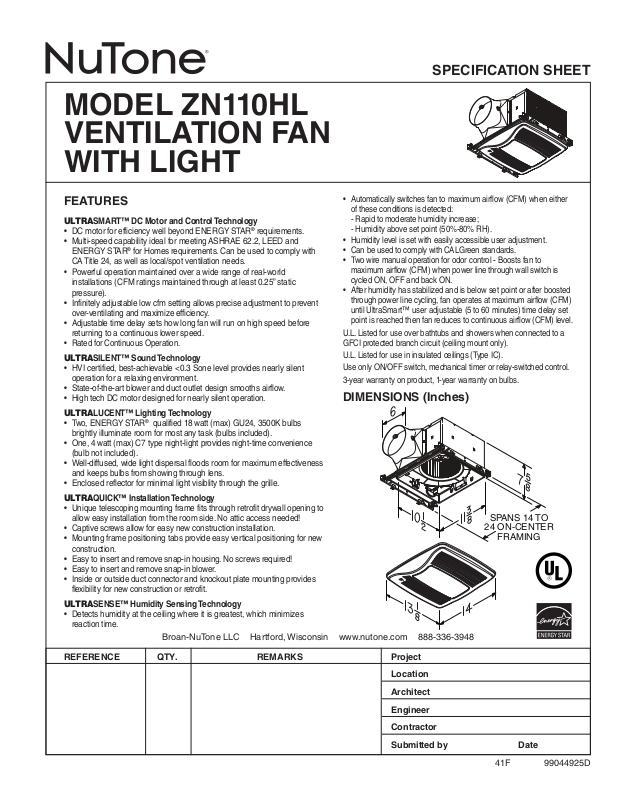

MODEL ZN110HL
24 ON-CENTER
VENTILATION FAN
WITH LIGHT
SPECIFICATION SHEET
FEATURES
ULTRASMART™ DC Motor and Control Technology
• DC motor for efficiency well beyond ENERGY STAR® requirements.
• Multi-speed capability ideal for meeting ASHRAE 62.2, LEED and
ENERGY STAR® for Homes requirements. Can be used to comply with
CA Title 24, as well as local/spot ventilation needs.
• Powerful operation maintained over a wide range of real-world
installations (CFM ratings maintained through at least 0.25” static
pressure).
• Infinitely adjustable low cfm setting allows precise adjustment to prevent
over-ventilating and maximize efficiency.
• Adjustable time delay sets how long fan will run on high speed before
returning to a continuous lower speed.
• Rated for Continuous Operation.
ULTRASILENT™ Sound Technology
• HVI certified, best-achievable <0.3 Sone level provides nearly silent
operation for a relaxing environment.
• State-of-the-art blower and duct outlet design smooths airflow.
• High tech DC motor designed for nearly silent operation.
ULTRALUCENT™ Lighting Technology
• Two, ENERGY STAR® qualified 18 watt (max) GU24, 3500K bulbs
brightly illuminate room for most any task (bulbs included).
• One, 4 watt (max) C7 type night-light provides night-time convenience
(bulb not included).
• Well-diffused, wide light dispersal floods room for maximum effectiveness
and keeps bulbs from showing through lens.
• Enclosed reflector for minimal light visiblity through the grille.
ULTRAQUICK™ Installation Technology
• Unique telescoping mounting frame fits through retrofit drywall opening to
allow easy installation from the room side. No attic access needed!
• Captive screws allow for easy new construction installation.
• Mounting frame positioning tabs provide easy vertical positioning for new
construction.
• Easy to insert and remove snap-in housing. No screws required!
• Easy to insert and remove snap-in blower.
• Inside or outside duct connector and knockout plate mounting provides
flexibility for new construction or retrofit.
ULTRASENSE™ Humidity Sensing Technology
• Detects humidity at the ceiling where it is greatest, which minimizes
reaction time.
Broan-NuTone LLC Hartford, Wisconsin www.nutone.com 888-336-3948
• Automatically switches fan to maximum airflow (CFM) when either
of these conditions is detected:
- Rapid to moderate humidity increase;
- Humidity above set point (50%-80% RH).
• Humidity level is set with easily accessible user adjustment.
• Can be used to comply with CALGreen standards.
• Two wire manual operation for odor control - Boosts fan to
maximum airflow (CFM) when power line through wall switch is
cycled ON, OFF and back ON.
• After humidity has stabilized and is below set point or after boosted
through power line cycling, fan operates at maximum airflow (CFM)
until UltraSmart™ user adjustable (5 to 60 minutes) time delay set
point is reached then fan reduces to continuous airflow (CFM) level.
U.L. Listed for use over bathtubs and showers when connected to a
GFCI protected branch circuit (ceiling mount only).
U.L. Listed for use in insulated ceilings (Type IC).
Use only ON/OFF switch, mechanical timer or relay-switched control.
3-year warranty on product, 1-year warranty on bulbs.

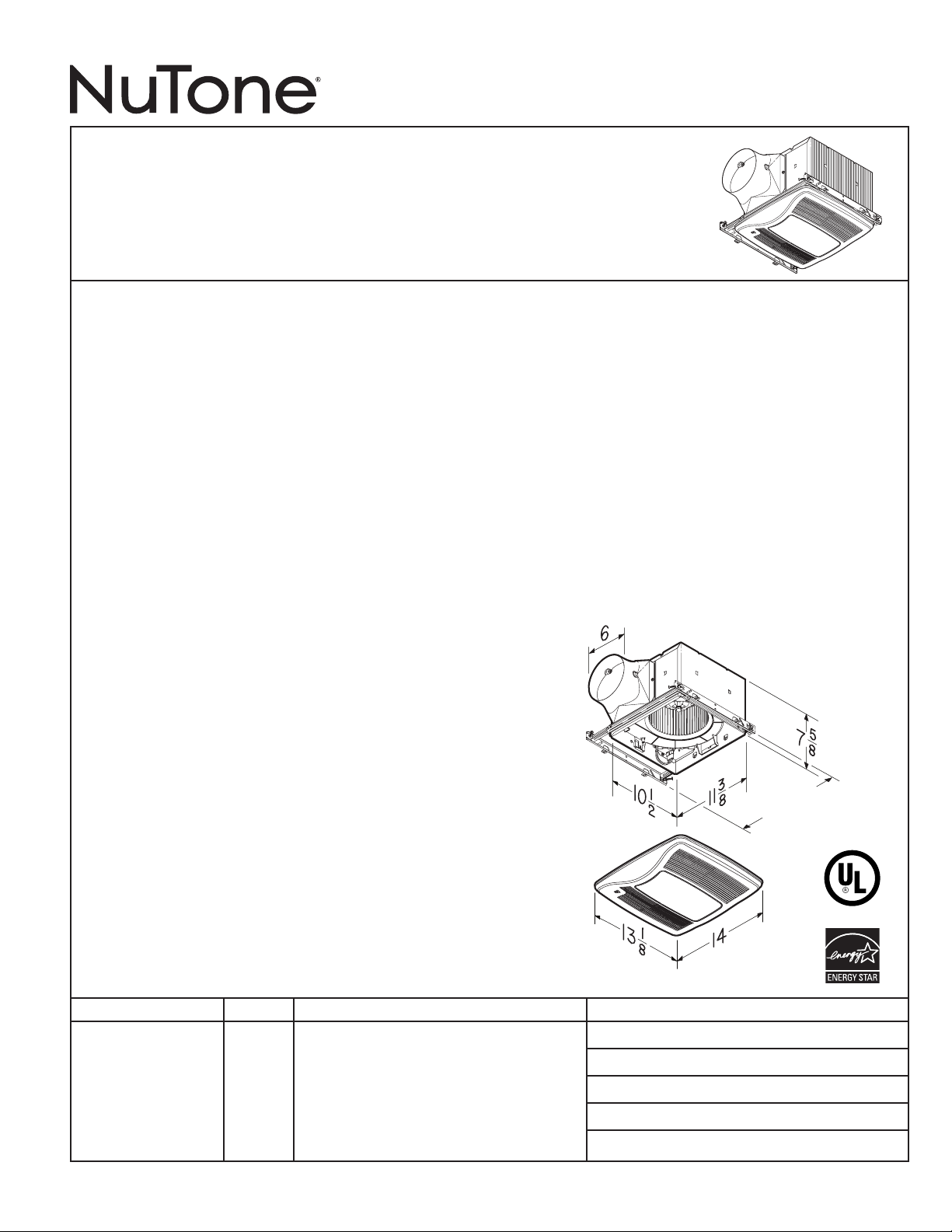

DIMENSIONS (Inches)
SPANS 14 TO
FRAMING
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
41F 99044925D
Page 2

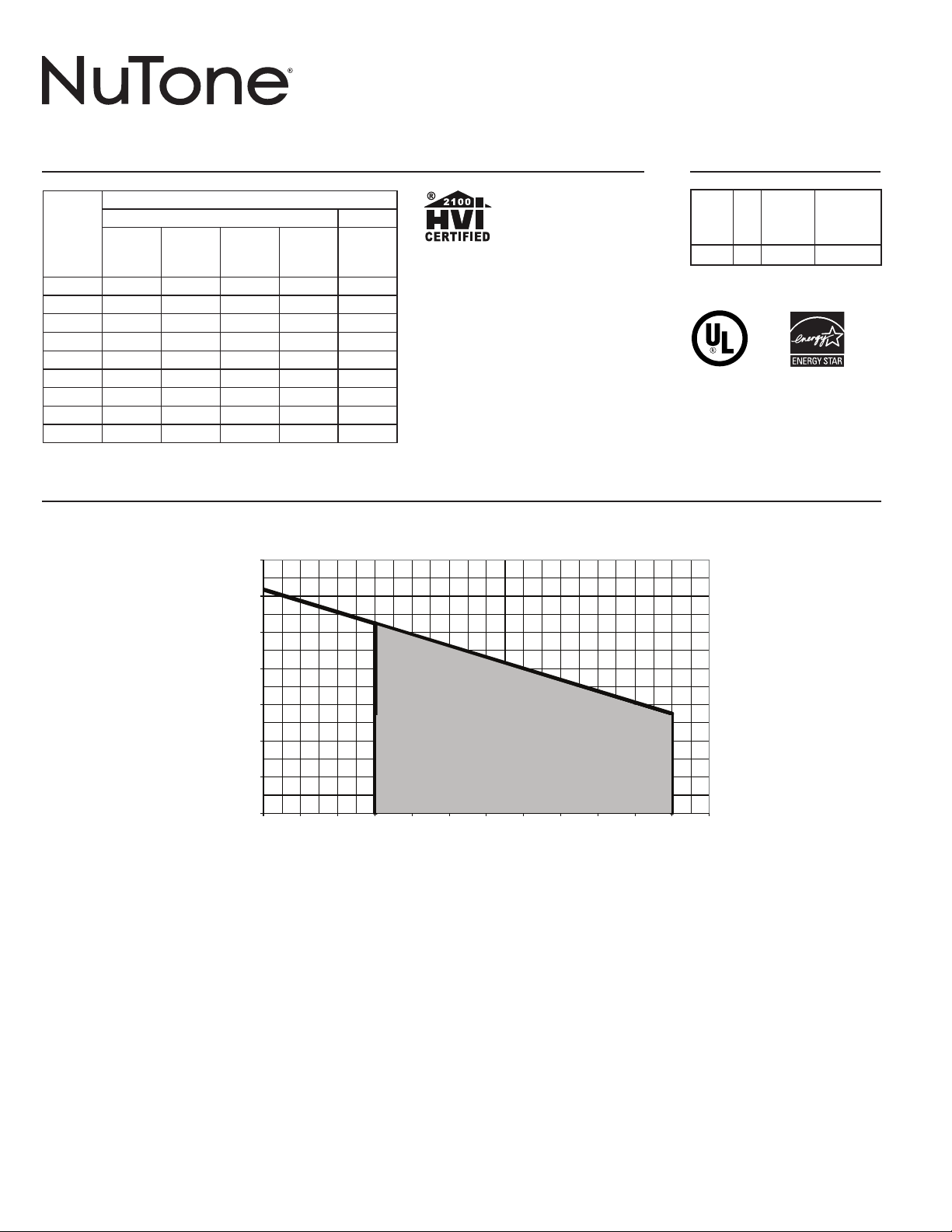

HVI PERFORMANCE
PERFORMANCE SPECIFICATIONS
MODEL ZN110HL VENTILATION FAN WITH LIGHT
ELECTRICAL
& WEIGHT
Airflow
Rate
Setting
(CFM)
110 110 < 0.3 9.3 11. 8 110
100 100 < 0.3 7. 9 12.7 100
90 90 < 0.3 7. 1 12.7 90
80 80 < 0.3 6.6 12.1 80
70 70 < 0.3 5.8 12.1 70
60 60 < 0.3 5.2 11. 5 60
50 50 < 0.3 4.7 10.6 50
40 40 < 0.3 4.2 9.5 40
30 30 < 0.3 3.9 7. 7 30
0.1 Ps - Static Pressure (inH2O) 0.25 Ps
Airflow
(CFM)
Sound
(Sones)
6" Duct
Power
(Watts)
Efficacy
(CFM/
Watt)
FAN CAPABILITY
©
2012 Broan -NuTone LLC
0.7
0.6
0.5
Airflow
(CFM)
HVI -210 0
CERTIFIED
RATING S comply
with new testing
procedures prescribed by the
Home Ventilating Institute, for
off-the-shelf products, as they are
available to consumers. Product
performance is rated at 0.1 in.
static pressure, based on tests
conducted in a state-of-the-art
test laboratory. Sones are a
measure of humanly-perceived
loudness, based on laboratory
measurements.
XN110L - 6" DUCT
ZN110L - 6” Duct
ZN110HL - 6" Duct
XN110 - 6" DUCT
technologies and
Shipping
Volts Hz Amps*
120 60 1. 0 13.8
* Total connected load
Weight
(lbs.)
0.4
0.3
Precise airflow rate
Static Pressure
0.2
2O - Inches o f Water Gauge)
0.1
(inH
0.0
adjustability allows fan to
produce any CFM shown
within this shaded area.
0 10 20 30 40 50 60 70 80 90 100 110 120
Airflow (CFM - Cubic Feet per Minute)
