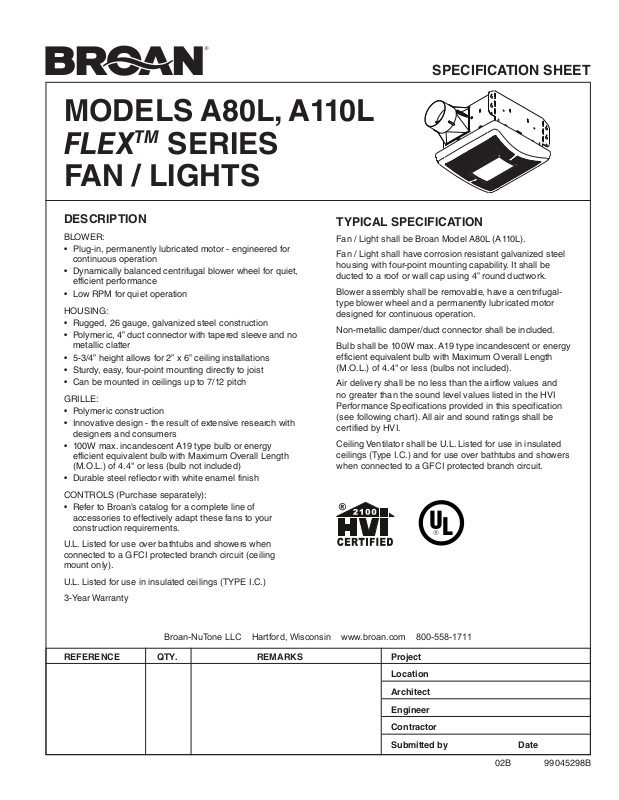

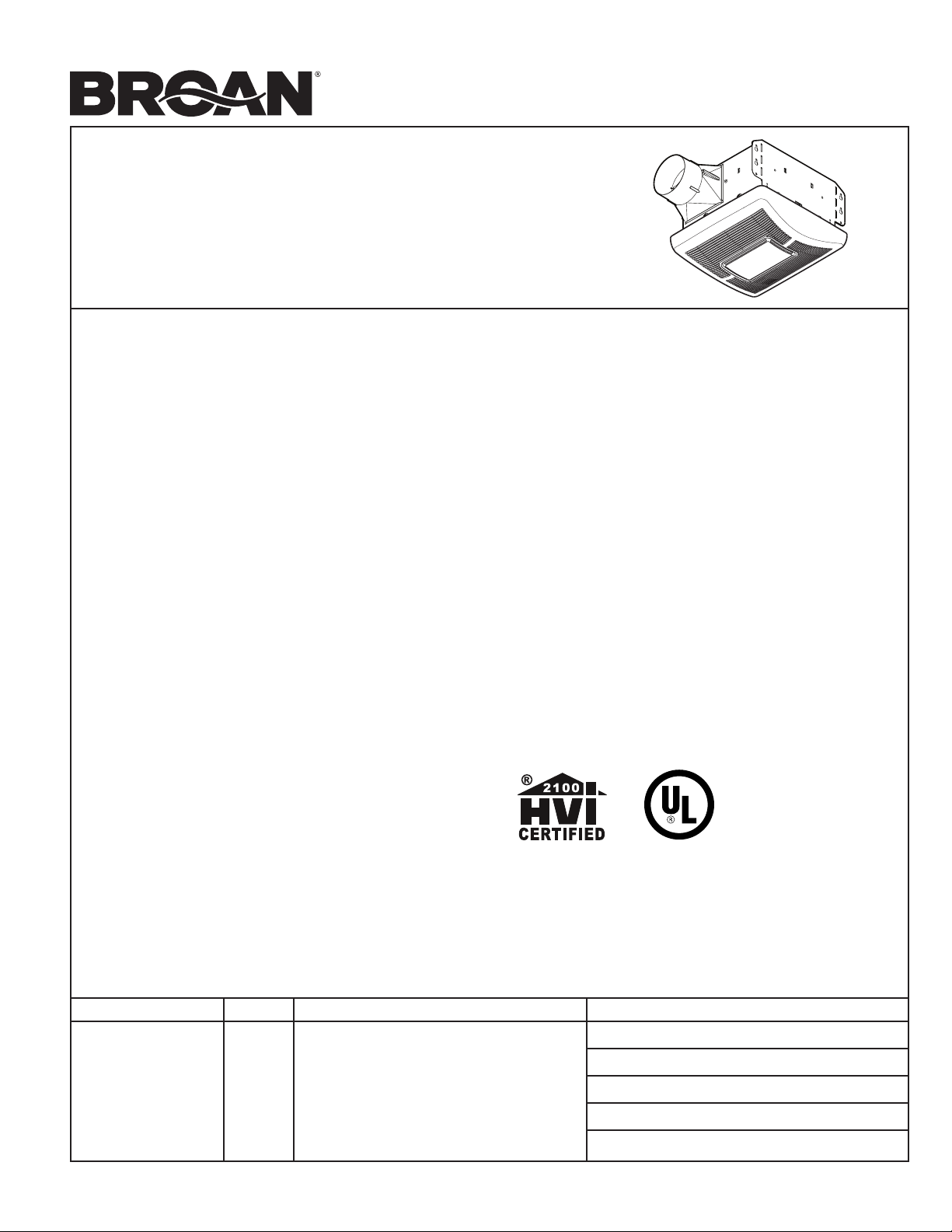

MODELS A80L, A110L
SPECIFICATION SHEET
FLEX
SERIES
FAN / LIGHTS
DESCRIPTION
BLOWER:
• Plug-in, permanently lubricated motor - engineered for
continuous operation
• Dynamically balanced centrifugal blower wheel for quiet,
efficient performance
• Low RPM for quiet operation
HOUSING:
• Rugged, 26 gauge, galvanized steel construction
• Polymeric, 4” duct connector with tapered sleeve and no
metallic clatter
• 5-3/4” height allows for 2” x 6” ceiling installations
• Sturdy, easy, four-point mounting directly to joist
• Can be mounted in ceilings up to 7/12 pitch
GRILLE:
• Polymeric construction
• Innovative design - the result of extensive research with
designers and consumers
• 100W max. incandescent A19 type bulb or energy
efficient equivalent bulb with Maximum Overall Length
(M.O.L.) of 4.4" or less (bulb not included)
• Durable steel reflector with white enamel finish
CONTROLS (Purchase separately):
• Refer to Broan’s catalog for a complete line of
accessories to effectively adapt these fans to your
construction requirements.
U.L. Listed for use over bathtubs and showers when
connected to a GFCI protected branch circuit (ceiling
mount only).
U.L. Listed for use in insulated ceilings (TYPE I.C.)
3-Year Warranty
TM
TYPICAL SPECIFICATION
Fan / Light shall be Broan Model A80L (A110L).
Fan / Light shall have corrosion resistant galvanized steel
housing with four-point mounting capability. It shall be
ducted to a roof or wall cap using 4” round ductwork.
Blower assembly shall be removable, have a centrifugaltype blower wheel and a permanently lubricated motor
designed for continuous operation.
Non-metallic damper/duct connector shall be included.
Bulb shall be 100W max. A19 type incandescent or energy
efficient equivalent bulb with Maximum Overall Length
(M.O.L.) of 4.4" or less (bulbs not included).
Air delivery shall be no less than the airflow values and
no greater than the sound level values listed in the HVI
Performance Specifications provided in this specification
(see following chart). All air and sound ratings shall be
certified by HVI.
Ceiling Ventilator shall be U.L. Listed for use in insulated
ceilings (Type I.C.) and for use over bathtubs and showers
when connected to a GFCI protected branch circuit.
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
02B 99045298B
Page 2

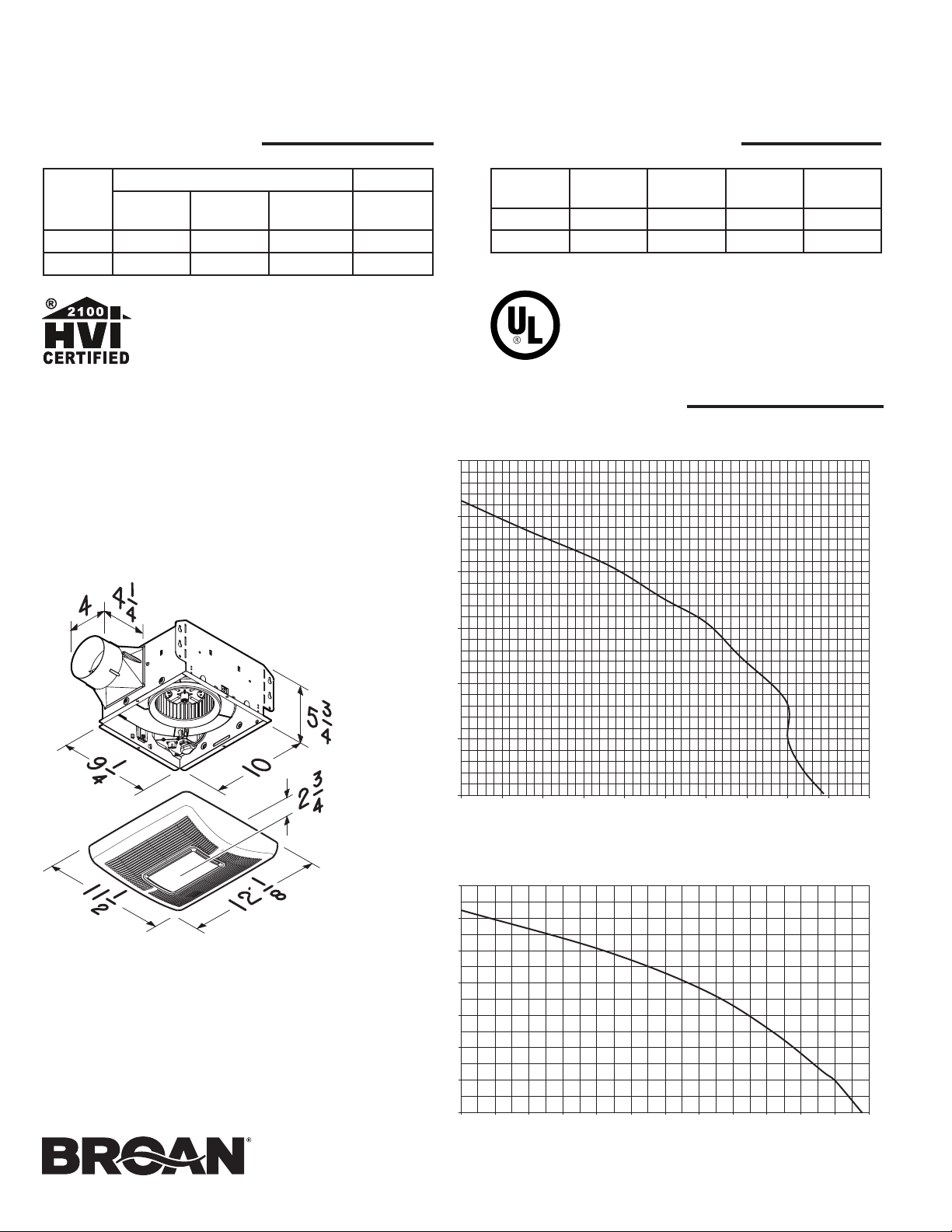

PERFORMANCE RATINGS
FLEXTM SERIES FAN / LIGHTS
HVI PERFORMANCE
0.1 Ps - Static Pressure (in H2O) 0.25 Ps
Model
A80L 80 1. 0 42.3 68
A110L 110 1. 3 23.4 92
Airflow
(CFM)
HVI-2100 CERTIFIED RATINGS comply with new testing
technologies and procedures prescribed by the Home
Ventilating Institute, for off-the-shelf products, as they are
available to consumers. Product performance is rated at 0.1 in.
static pressure, based on tests conducted in a state-of-the-art
test laboratory. Sones are a measure of humanly-perceived
loudness, based on laboratory measurements.
Sound
(Sones)
Power
(Watts)
ELECTRICAL & WEIGHT
Airflow
(CFM
Model Volts Hz Amps*
A80L 120 60 1. 2 10.0
A110L 120 60 1. 2 10.0
* Total connected load.
AIR FLOW PERFORMANCE
0.6
0.5
0.4
Shipping
Weight
Model A80L
0.3
Static Pressure
O Inches of Water Gauge)
2
0.2
(in. H
0.1
0.0
0 10 20 30 40 50 60 70 80 90 100
0.7
0.6
0.5
0.4
0.3
Static Pressure
O Inches of Water Gauge)
0.2
2
(in. H
0.1
Air Flow (CFM - Cubic Feet per Minute)
Model AE110
Model A110L
0.0
0 10 20 30 40 50 60 70 80 90 100 110 120
Air Flow (CFM - Cubic Feet per Minute)
