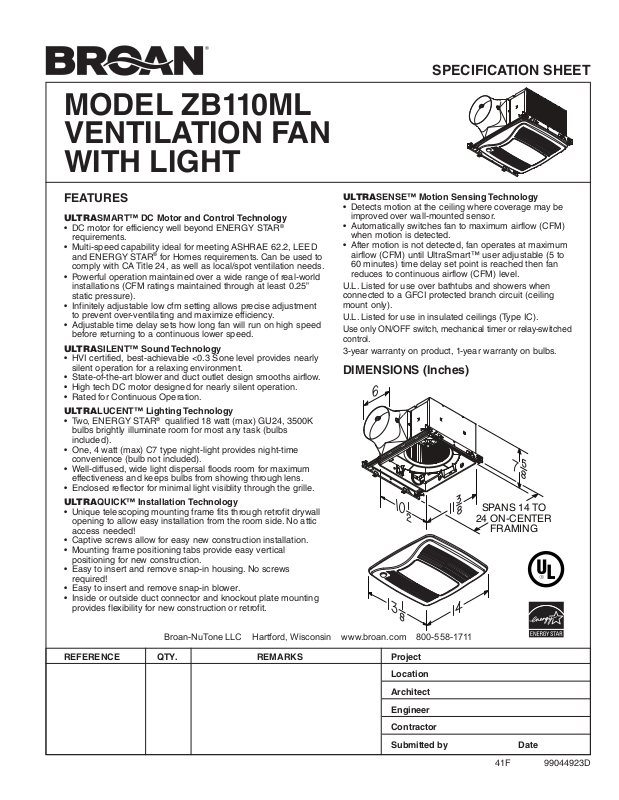

Page 1
MODEL ZB110ML
24 ON-CENTER
VENTILATION FAN
WITH LIGHT
SPECIFICATION SHEET
FEATURES
ULTRASMART™ DC Motor and Control Technology
• DC motor for efficiency well beyond ENERGY STAR®
requirements.
• Multi-speed capability ideal for meeting ASHRAE 62.2, LEED
and ENERGY STAR® for Homes requirements. Can be used to
comply with CA Title 24, as well as local/spot ventilation needs.
• Powerful operation maintained over a wide range of real-world
installations (CFM ratings maintained through at least 0.25”
static pressure).
• Infinitely adjustable low cfm setting allows precise adjustment
to prevent over-ventilating and maximize efficiency.
• Adjustable time delay sets how long fan will run on high speed
before returning to a continuous lower speed.
ULTRASILENT™ Sound Technology
• HVI certified, best-achievable <0.3 Sone level provides nearly
silent operation for a relaxing environment.
• State-of-the-art blower and duct outlet design smooths airflow.
• High tech DC motor designed for nearly silent operation.
• Rated for Continuous Operation.
ULTRALUCENT™ Lighting Technology
• Two, ENERGY STAR® qualified 18 watt (max) GU24, 3500K
bulbs brightly illuminate room for most any task (bulbs
included).
• One, 4 watt (max) C7 type night-light provides night-time
convenience (bulb not included).
• Well-diffused, wide light dispersal floods room for maximum
effectiveness and keeps bulbs from showing through lens.
• Enclosed reflector for minimal light visiblity through the grille.
ULTRAQUICK™ Installation Technology
• Unique telescoping mounting frame fits through retrofit drywall
opening to allow easy installation from the room side. No attic
access needed!
• Captive screws allow for easy new construction installation.
• Mounting frame positioning tabs provide easy vertical
positioning for new construction.
• Easy to insert and remove snap-in housing. No screws
required!
• Easy to insert and remove snap-in blower.
• Inside or outside duct connector and knockout plate mounting
provides flexibility for new construction or retrofit.
ULTRASENSE™ Motion Sensing Technology
• Detects motion at the ceiling where coverage may be
improved over wall-mounted sensor.
• Automatically switches fan to maximum airflow (CFM)
when motion is detected.
• After motion is not detected, fan operates at maximum
airflow (CFM) until UltraSmart™ user adjustable (5 to
60 minutes) time delay set point is reached then fan
reduces to continuous airflow (CFM) level.
U.L. Listed for use over bathtubs and showers when
connected to a GFCI protected branch circuit (ceiling
mount only).
U.L. Listed for use in insulated ceilings (Type IC).
Use only ON/OFF switch, mechanical timer or relay-switched
control.
3-year warranty on product, 1-year warranty on bulbs.

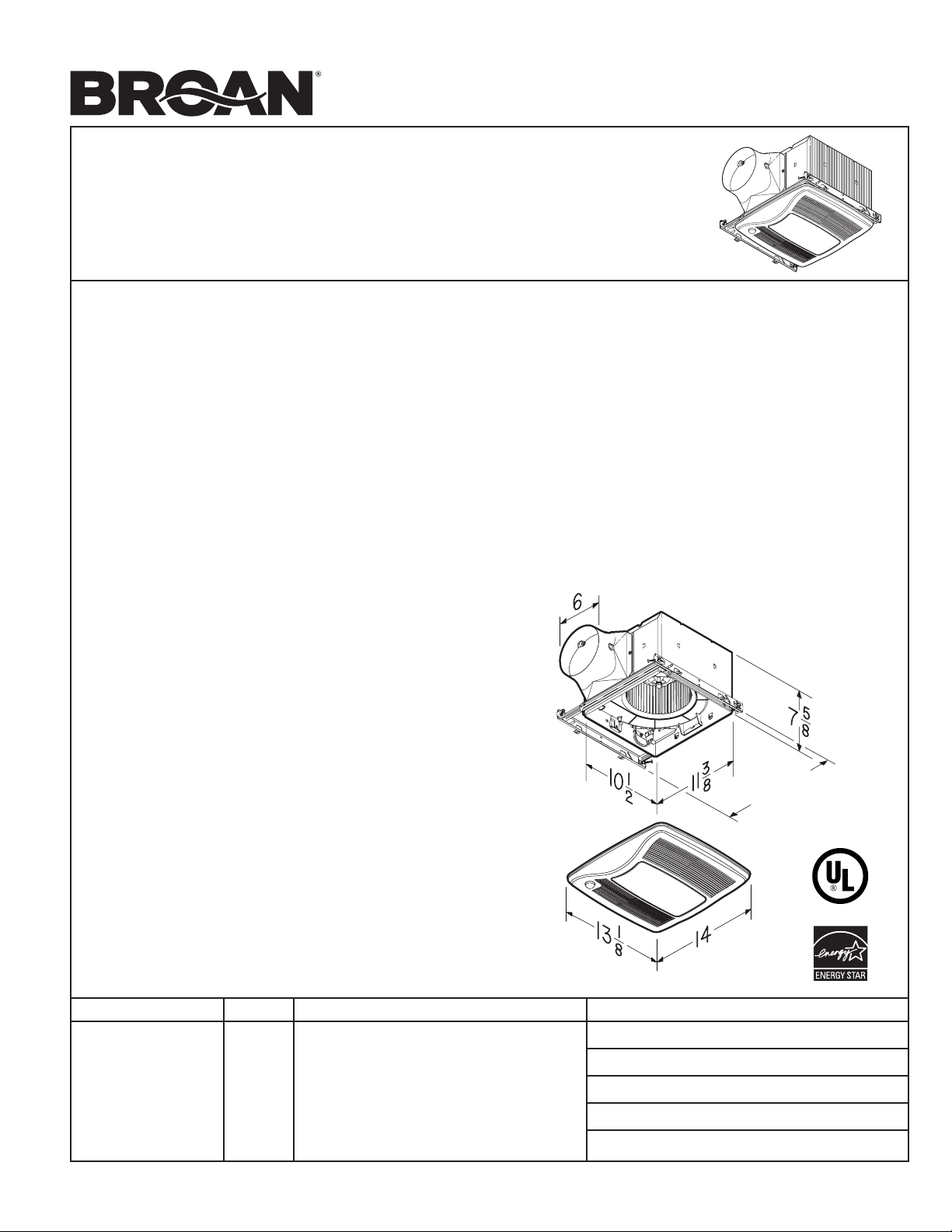

DIMENSIONS (Inches)
SPANS 14 TO
FRAMING
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
41F 99044923D
Page 2
HVI PERFORMANCE
PERFORMANCE SPECIFICATIONS
MODEL ZB110ML VENTILATION FAN WITH LIGHT
ELECTRICAL
& WEIGHT
Airflow
Rate
Setting
(CFM)
110 110 < 0.3 9.3 11. 8 110
100 100 < 0.3 7. 9 12.7 100
90 90 < 0.3 7. 1 12.7 90
80 80 < 0.3 6.6 12.1 80
70 70 < 0.3 5.8 12.1 70
60 60 < 0.3 5.2 11. 5 60
50 50 < 0.3 4.7 10.6 50
40 40 < 0.3 4.2 9.5 40
30 30 < 0.3 3.9 7. 7 30
0.1 Ps - Static Pressure (inH2O) 0.25 Ps
Airflow
(CFM)
Sound
(Sones)
6" Duct
Power
(Watts)
Efficacy
(CFM/
Watt)

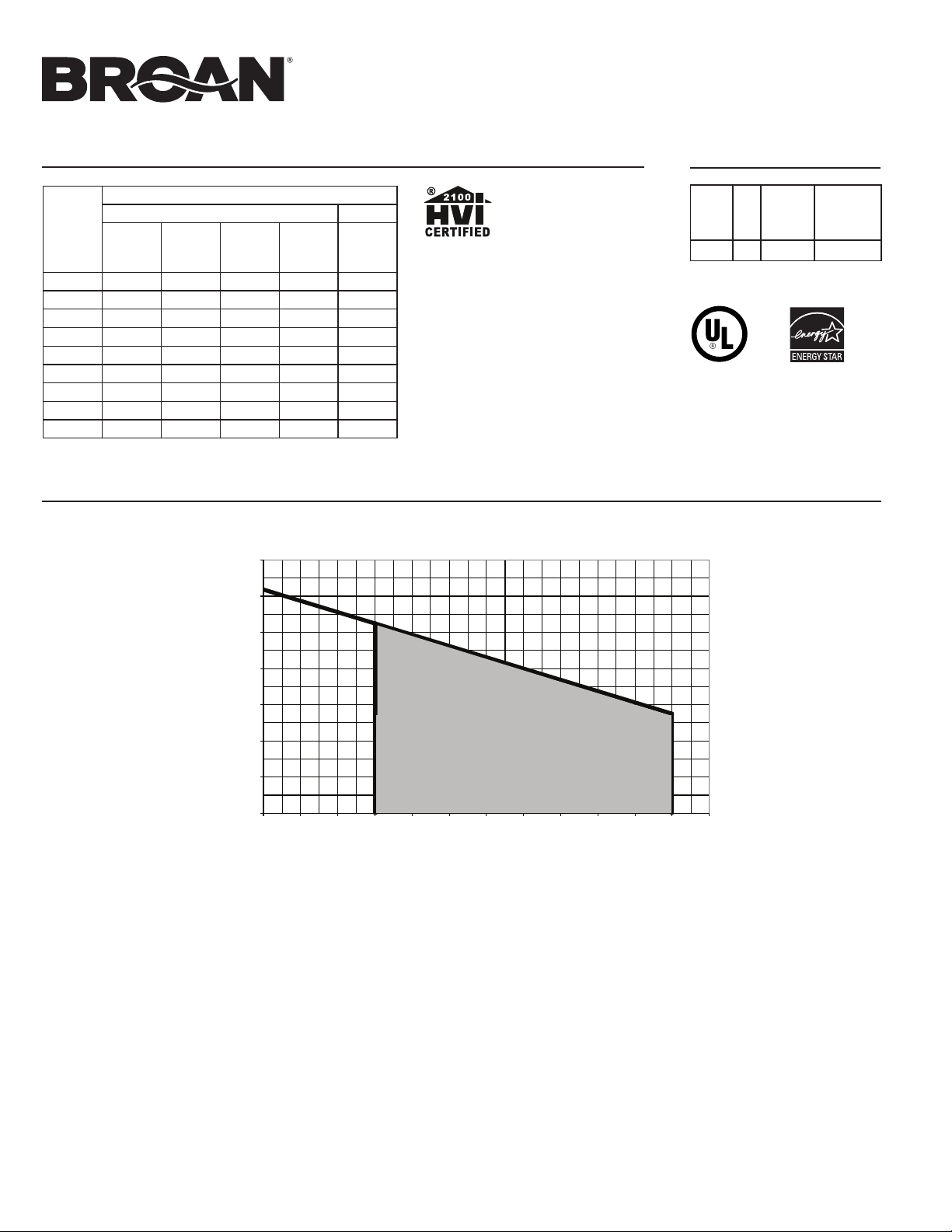

FAN CAPABILITY
©
2012 Broan -NuTone LLC
0.7
0.6
0.5
Airflow
(CFM)
HVI -210 0
CERTIFIED
RATI NGS comply
with new testing
procedures prescribed by the
Home Ventilating Institute, for
off-the-shelf products, as they are
available to consumers. Product
performance is rated at 0.1 in.
static pressure, based on tests
conducted in a state-of-the-art
test laboratory. Sones are a
measure of humanly-perceived
loudness, based on laboratory
measurements.
XN110L - 6" DUCT
ZB110L - 6” Duct
ZB110ML - 6" Duct
XN110 - 6" DUCT
technologies and
Shipping
Volts Hz Amps*
120 60 1. 0 13.6
* Total connected load
Weight
(lbs.)
0.4
0.3
Precise airflow rate
Static Pressure
0.2
2O - Inches of Water Gauge)
0.1
(inH
0.0
adjustability allows fan to
produce any CFM shown
within this shaded area.
0 10 20 30 40 50 60 70 80 90 100 110 120
Airflow (CFM - Cubic Feet per Minute)
