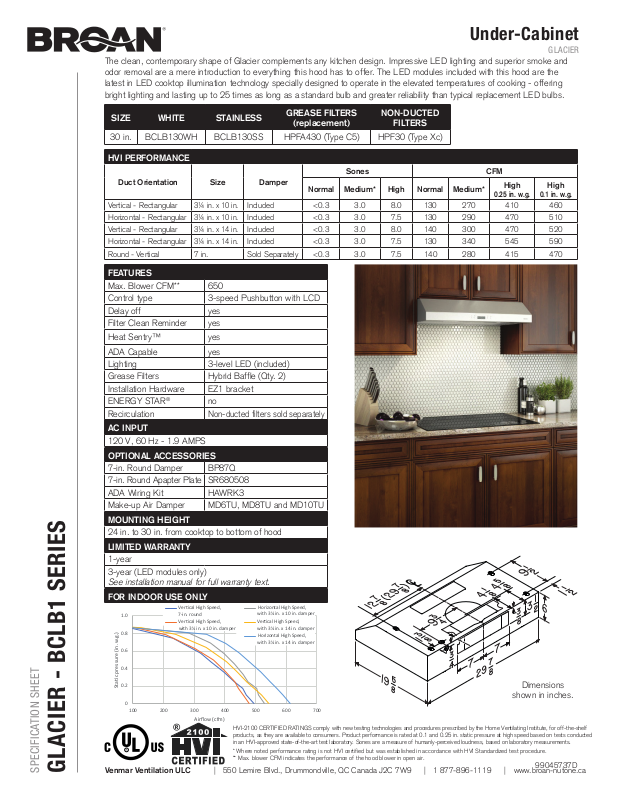

Broan BCLB130WH, BCLB130SS SPECIFICATION SHEET
| <![if ! IE]> <![endif]>SPECIFICATION SHEET |
<![if ! IE]> <![endif]>GLACIER - BCLB1 SERIES |
Under-Cabinet
GLACIER
The clean, contemporary shape of Glacier complements any kitchen design. Impressive LED lighting and superior smoke and odor removal are a mere introduction to everything this hood has to offer. The LED modules included with this hood are the latest in LED cooktop illumination technology specially designed to operate in the elevated temperatures of cooking - offering bright lighting and lasting up to 25 times as long as a standard bulb and greater reliability than typical replacement LED bulbs.
SIZE |
WHITE |
|
|
STAINLESS |
|
GREASE FILTERS |
|
|
NON-DUCTED |
|
|
|
|
|||||
|
|
|
|
(replacement) |
|
|
FILTERS |
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
30 in. |
BCLB130WH |
|
BCLB130SS |
|
HPFA430 (Type C5) |
|
HPF30 (Type Xc) |
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HVI PERFORMANCE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Sones |
|
|
|
|
CFM |
|
||
Duct Orientation |
|
|
Size |
Damper |
|
Normal |
Medium* |
|
High |
Normal |
Medium* |
|
High |
High |
||||
|
|
|
|
|
|
|
|
|
|
|
0.25 in. w.g. |
0.1 in. w.g. |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Vertical - Rectangular |
3¼ in. x 10 in. |
Included |
|
|
<0.3 |
3.0 |
|
|
8.0 |
130 |
270 |
|
410 |
460 |
||||
Horizontal - Rectangular |
3¼ in. x 10 in. |
Included |
|
|
<0.3 |
3.0 |
|
|
7.5 |
130 |
290 |
|
470 |
510 |
||||
Vertical - Rectangular |
3¼ in. x 14 in. |
Included |
|
|
<0.3 |
3.0 |
|
|
8.0 |
140 |
300 |
|
470 |
520 |
||||
Horizontal - Rectangular |
3¼ in. x 14 in. |
Included |
|
|
<0.3 |
3.0 |
|
|
7.5 |
130 |
340 |
|
545 |
590 |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
Round - Vertical |
7 in. |
|
Sold Separately |
<0.3 |
3.0 |
|
|
7.5 |
140 |
280 |
|
415 |
470 |
|||||
FEATURES
Max. Blower CFM** |
|
650 |
Control type |
|
3-speed Pushbutton with LCD |
Delay off |
|
yes |
Filter Clean Reminder |
|
yes |
Heat Sentry™ |
|
yes |
|
|
|
ADA Capable |
|
yes |
Lighting |
|
3-level LED (included) |
Grease Filters |
|
Hybrid Baffle (Qty. 2) |
Installation Hardware |
|
EZ1 bracket |
ENERGY STAR® |
|
no |
Recirculation |
|
Non-ducted filters sold separately |
AC INPUT |
|
|
120 V, 60 Hz - 1.9 AMPS |
|
|
OPTIONAL ACCESSORIES |
||
7-in. Round Damper |
|
BP87Q |
7-in. Round Apapter Plate |
|
SR680508 |
ADA Wiring Kit |
|
HAWRK3 |
Make-up Air Damper |
|
MD6TU, MD8TU and MD10TU |
MOUNTING HEIGHT
24 in. to 30 in. from cooktop to bottom of hood
LIMITED WARRANTY
1-year
3-year (LED modules only)
See installation manual for full warranty text.
FOR INDOOR USE ONLY
|
|
|
Ver cal High Speed, |
|
Horizontal High Speed, |
|
|
|
1.0 |
|
7-in. round |
|
with 3¼ in. x 10 in. damper |
||
|
|
|
Ver cal High Speed, |
|
Ver cal High Speed, |
|
|
| <![if ! IE]> <![endif]>w.g.) |
0.8 |
|
with 3¼ in. x 10 in. damper |
with 3¼ in. x 14 in. damper |
|||
|
|
|
Horizontal High Speed, |
|
|||
|
|
|
|
|
|||
|
|
|
|
with 3¼ in. x 14 in. damper |
|||
| <![if ! IE]> <![endif]>(in. |
|
|
|
|
|||
0.6 |
|
|
|
|
|
|
|
| <![if ! IE]> <![endif]>cSta pressure |
0.4 |
|
|
|
|
|
|
0.2 |
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|
100 |
200 |
300 |
400 |
500 |
600 |
700 |
Airflow (cfm)
Dimensions shown in inches.
HVI-2100 CERTIFIED RATINGS comply with new testing technologies and procedures prescribed by the Home Ventilating Institute, for off-the-shelf products, as they are available to consumers. Product performance is rated at 0.1 and 0.25 in. static pressure at high speed based on tests conducted in an HVI-approved state-of-the-art test laboratory. Sones are a measure of humanly-perceived loudness, based on laboratory measurements.
* Where noted performance rating is not HVI certified but was established in accordance with HVI Standardized test procedure. ** Max. blower CFM indicates the performance of the hood blower in open air.
Venmar Ventilation ULC |
99045737D |
| 550 Lemire Blvd., Drummondville, QC Canada J2C 7W9 | 1 877-896-1119 | www.broan-nutone.ca |
| <![if ! IE]> <![endif]>FICHE TECHNIQUE |
<![if ! IE]> <![endif]>GLACIER - SÉRIE BCLB1 |
Hottes conventionnelles
GLACIER
La forme simple et contemporaine de Glacier convient à tous les styles de cuisine. L’éclairage DEL impressionnant et l’élimination supérieure de la vapeur et des odeurs de cuisson ne sont qu’un avant-goût de tout ce que cette hotte a à offrir. Les modules DEL étant issus de la plus récente technologie en matière d’éclairage de surface de cuisson, ils sont spécialement conçus pour fonctionner dans un environnement à chaleur élevée. Leur durabilité est jusqu’à 25 fois supérieure à celle des ampoules standards et ils sont plus robustes que les ampoules à DEL typiques.
LARGEUR |
|
BLANC |
|
|
INOX |
|
FILTRES À GRAISSES |
|
FILTRES DE |
|
|
||||
|
|
|
|
(remplacement) |
|
|
RECIRCULATION |
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||
30 po |
|
BCLB130WH |
|
BCLB130SS |
|
HPFA430 (Type C5) |
|
|
HPF30 (Type Xc) |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
RENDEMENT HVI |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Orientation |
|
|
|
|
|
|
|
Sones |
|
|
|
pi³/min |
|
||
|
Largeur |
|
Volet |
|
|
|
|
|
|
Haute |
Haute |
||||
du conduit |
|
|
Normale |
Moyenne* |
Haute |
Normale |
Moyenne* |
||||||||
|
|
|
|
|
|
|
|
0,25 po d’eau |
0,1 po d’eau |
||||||
Rectangulaire vertical |
3¼ po x 10 po |
inclus |
<0,3 |
3,0 |
8,0 |
|
130 |
270 |
410 |
460 |
|||||
Rectangulaire horizontal |
3¼ po x 10 po |
inclus |
<0,3 |
3,0 |
7,5 |
|
130 |
290 |
470 |
510 |
|||||
Rectangulaire vertical |
3¼ po x 14 po |
inclus |
<0,3 |
3,0 |
8,0 |
|
140 |
300 |
470 |
520 |
|||||
Rectangulaire horizontal |
3¼ po x 14 po |
inclus |
<0,3 |
3,0 |
7,5 |
|
130 |
340 |
545 |
590 |
|||||
Rond vertical |
|
7 po |
|
vendu séparément |
<0,3 |
3,0 |
7,5 |
|
140 |
280 |
415 |
470 |
|||
CARACTÉRISTIQUES
Puissance max. du ventilateur** |
650 pi³/min |
|
Type de commande |
Boutons-poussoirs à 3 vitesses avec |
|
écran ACL |
||
|
||
Arrêt différé |
oui |
|
Rappel d’entretien des filtres |
oui |
|
Détecteur Heat SentryMC |
oui |
|
Capacité ADA |
oui |
|
Éclairage |
DEL à 3 intensités (inclus) |
|
Filtres à graisses |
Hybrides / à déflecteur (qté 2) |
|
Matériel pour l’installation |
Supports EZ1 |
|
ENERGY STAR® |
non |
|
Recirculation |
Filtres de recirculation vendus séparément |
|
ALIMENTATION CA |
|
|
120 V, 60 Hz -1,9 A |
|
|
ACCESSOIRES OPTIONNELS |
||
Volet rond de 7 po |
BP87Q |
|
Plaque pour conduit rond 7 po |
SR680508 |
|
Ensemble de câblage ADA |
HAWRK3 |
|
Dispositif d’apport d’air |
MD6TU, MD8TU et MDT10TU |
|
HAUTEUR DE MONTAGE
De 24 po à 30 po au-dessus de la surface de cuisson
GARANTIE LIMITÉE
1 an
3 ans (modules DEL seulement)
Voir le manuel d’installation pour le texte complet de la garantie.
POUR UTILISATION À L’INTÉRIEUR SEULEMENT
|
|
|
|
|
Ver cal 7 po rond, |
|
Horizontal rectangulaire |
|
||||||
|
|
|
|
|
|
|||||||||
|
1,0 |
|
|
|
haute vitesse |
|
3¼ po x 10 po, haute vitesse |
|
|
|
|
|||
|
|
|
|
|
Ver cal |
rectangulaire |
|
|
|
Ver cal rectangulaire |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
| <![if ! IE]> <![endif]>d’eau) |
0,8 |
|
|
|
3¼ po x 10 po, haute vitesse |
|
|
3¼ po x 14 po, haute vitesse |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Horizontal rectangulaire |
|
|
|
|
| <![if ! IE]> <![endif]>(po |
0,6 |
|
|
|
|
|
|
|
|
3¼ po x 14 po, haute vitesse |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
||
| <![if ! IE]> <![endif]>staque |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0,4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
| <![if ! IE]> <![endif]>Pression |
0,2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Les dimensions indiquées sont en pouces.
100 |
200 |
|
300 |
400 |
500 |
600 |
700 |
|
|
|||||
|
|
|
Débit de l’air (pi³/min) |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
L’HOMOLOGATION HVI-2100 est conforme aux nouvelles techniques et procédures d’essai prescrites par le Home Ventilating Institute |
||||
|
|
|
|
|
|
|
|
|
|
pour les produits d’emploi courant, dès leur disponibilité pour les consommateurs. Le rendement du produit est évalué à une pression |
||||
|
|
|
|
|
|
|
|
|
|
statique de 0,1 po et de 0,25 po, d’après les tests effectués dans le laboratoire d’essai ultra-perfectionné de l’AMCA. Le sone est une |
||||
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
mesure de la perception humaine de la puissance sonore, d’après des mesures effectuées en laboratoire. |
|
|||
|
|
|
|
|
|
|
|
|
|
* Signifie que la donnée n’est pas certifiée par le HVI, mais a été obtenue suivant les procédures de test standardisées du HVI. |
||||
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
** La puissance maximum du ventilateur indique la performance du ventilateur de la hotte à l’air libre. |
99045737D |
|||
Venmar Ventilation ULC |
|
| 550 boul. Lemire, Drummondville, QC Canada J2C 7W9 |
| 1 877 896-1119 |
|||||||||||
|
| www.broan-nutone.ca |
|||||||||||||
