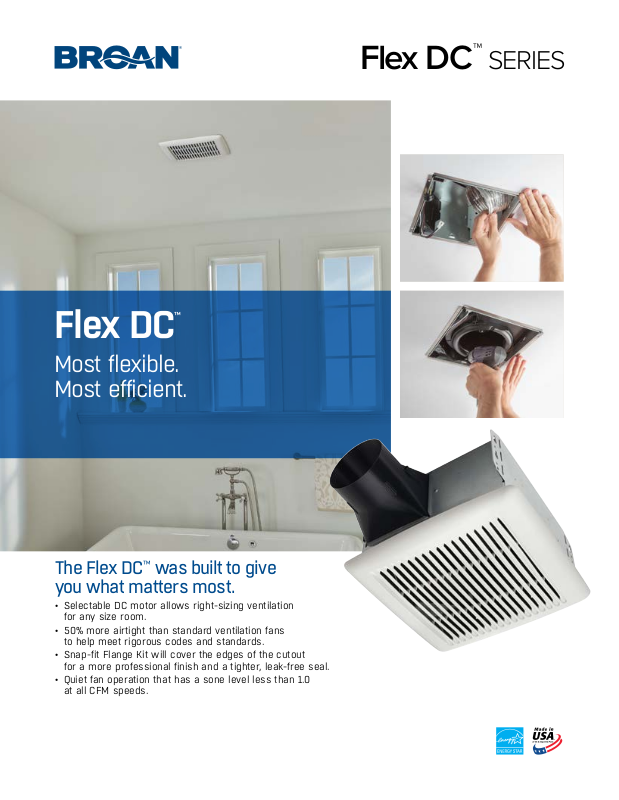

Flex DC
™
Flex DC
™
SERIES
Most flexible.
Most efficient.
The Flex DC™ was built to give
you what matters most.
• Selectable DC motor allows right-sizing ventilation
for any size room.
• 50% more airtight than standard ventilation fans
to help meet rigorous codes and standards.
• Snap-fit Flange Kit will cover the edges of the cutout
for a more professional finish and a tighter, leak-free seal.
• Quiet fan operation that has a sone level less than 1.0
at all CFM speeds.
Flex DC™ simplifies
the way you work.
Efficient Brushless Motor Design
Our new brushless DC motor is 1/3 the size of a standard
fan motor.
• Smaller size provides more room to move air more quietly.
• Brushless DC motor design lasts longer than standard motors.
• Lighter weight simplifies overhead installation.
Twice the ENERGY STAR® Efficiency Standard
Flex DC™ continues to save money long after installation. The
brushless DC motor achieves 90% efficiency so you can feel good
about letting it run while keeping the air more comfortable.
Flex DC™ at a glance
• Choose fan or LED fan/light models wi th
or without Sensaire® humidity sensing
technology.
• Sensaire
fan model AE50110DCS and fan/light
model AE50110DCSL.
• Dimmable, Title 24 compliant LED lighting
on the AE50110DCL and AE50110DCSL.
®
Sense on Rise technology on
• TrueSeal
an air tight seal from inside the housing.
• 4" round duct connector compatible with
any Broan duct increaser.
• UL Listed for use over bathtub or shower
when connected to a GFCI protected
branch circuit.
• Type IC, fits 2" x 6" and larger construction.
™
damper technology creates
NEW Snap-fit Flange Kit
Both new construction installation and
retrofit upgrades just got easier. Add the
flange by simply snapping it on the side
of the fan housing or go flangeless.
Flex DC™ Specifications
Sones a t
50
Model Description Selectable CFM
AE50110DC FAN 50–80–110 <0.3 0.4 0.9
AE50110DCL FAN WI TH LED LIGHT 50–80–110 <0.3 0.4 0.9
AE50110DCS HUMIDITY SENSING FAN 50–80–110 <0.3 0.4 0.9
AE50110DCSL HUMIDITY SENS ING FAN W ITH LED L IGHT 50–80–110 <0.3 0.4 0.9
DC DCS DCL/DCLS
CFM
80
CFM
CFM
Broan.com
Broan, 926 W. State Street, Hartford, WI 53027 800-558-1711
Switch between 50, 80 or 110 CFM
You’ll have fewer fans to inventory and the
right size at installation. Switch the CFM to
110
meet room requirements as well as ASHRAE
62.2 for spot and dwelling unit ventilation.
UP TO
Flex DC
STANDARD FAN HOU SING
CFM
™
100
*THAN STANDARD FAN HOUSINGS
50
LESS AIR LEAKAGE*
20 30
%
©2019 Broan | Printed in USA | 99851022D 08/19
