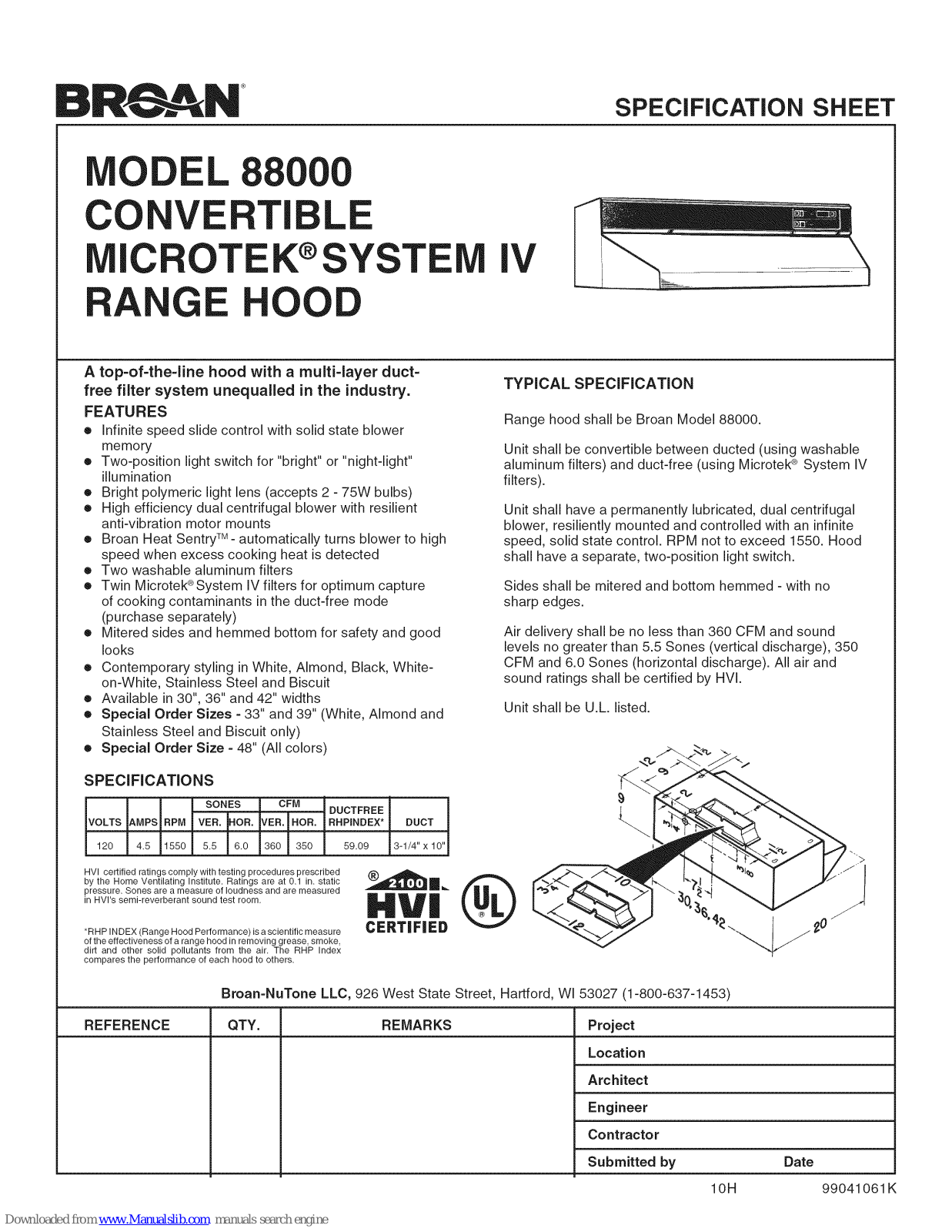

MODEL 88000

CO E E

SPECiFiCATiON SHEET

OTEK®SYSTEM

GE OO

A top=of-the-line hood with a multi-layer duct-
free filter system unequalled in the industry.
FEATURES

• infinite speed slide control with solid state blower

memory

• Two-position light switch for "bright" or "night-light"
illumination

• Bright polymeric light lens (accepts 2 - 75W bulbs)

• High efficiency dual centrifugal blower with resilient

anti-vibration motor mounts

• Broan Heat Sentry TM- automatically turns blower to high

speed when excess cooking heat is detected

• Two washable aluminum filters

• Twin Microtek_System iV filters for optimum capture

of cooking contaminants in the duct-free mode

(purchase separately)

• Mitered sides and hemmed bottom for safety and good
looks

• Contemporary styling in White, Almond, Black, White-

on-White, Stainless Steel and Biscuit

• Available in 30", 36" and 42" widths

• Special Order Sizes =33" and 39" (White, Almond and

Stainless Steel and Biscuit only)

• Special Order Size =48" (All colors)

IV

TYPICAL SPECIFICATION

Range hood shall be Broan Model 88000.
Unit shall be convertible between ducted (using washable

aluminum filters) and duct-free (using Microtek <_System iV
filters).

Unit shall have a permanently lubricated, dual centrifugal
blower, resiliently mounted and controlled with an infinite
speed, solid state control. RPM not to exceed 1550. Hood
shall have a separate, two-position light switch.

Sides shall be mitered and bottom hemmed - with no
sharp edges.

Air delivery shall be no less than 360 CFM and sound
levels no greater than 5.5 Sones (vertical discharge), 350
CFM and 6.0 Sones (horizontal discharge). All air and
sound ratings shall be certified by HVl.

Unit shall be U.L. listed.

SPECiFICATiONS

SONES CFIVi

VOLTS AMPS RPM VER. HOR. _/ER. HOR. RHPINDEX*

120 4.5 1550 5.5 6.0 360 350 59.09

HVI certified ratings comply with testing procedures prescribed
by the Home Ventilating Institute. Ratings are at 0.1 in. static
pressure. Sones are a measure of loudness and are measured

in HVI's semi-reverberant sound test room.

"RHP INDEX (Range Hood Performance) is a scientific measure
of the effectiveness of a range hood in removing grease, smoke,
dirt and other solid pollutants from the air. The RHP Index
compares the performance of each hood to others.

Broan-NuTone LLC, 926 West State Street, Hartford, Wl 53027 (1-800-637-1453)

REFERENCE QTY. REMARKS

DUCTFREE

3-t/4" x 10"

NN!o -..

Project
Location
Architect

Engineer

Contractor
Submitted by

Date

10H 99041061K
