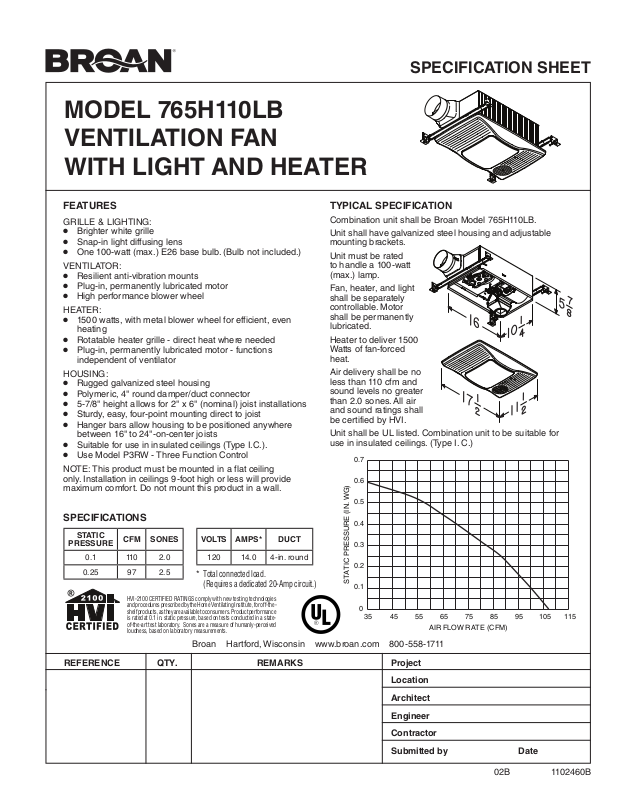

Page 1
MODEL 765H110LB
0.7
115
AIR FLOW RATE (CFM)
STATIC PRESSURE (IN. WG)
VENTILATION FAN
WITH LIGHT AND HEATER
SPECIFICATION SHEET
FEATURES
GRILLE & LIGHTING:
Brighter white grille
•
Snap-in light diffusing lens
•
One 100-watt (max.) E26 base bulb. (Bulb not included.)
•
VENTILATOR:
Resilient anti-vibration mounts
•
Plug-in, permanently lubricated motor
•
High performance blower wheel
•
HEATER:
1500 watts, with metal blower wheel for efficient, even
•
heating
Rotatable heater grille - direct heat where needed
•
Plug-in, permanently lubricated motor - functions
•
independent of ventilator
HOUSING:
Rugged galvanized steel housing
•
Polymeric, 4" round damper/duct connector
•
5-7/8" height allows for 2" x 6" (nominal) joist installations
•
Sturdy, easy, four-point mounting direct to joist
•
Hanger bars allow housing to be positioned anywhere
•
between 16" to 24"-on-center joists
Suitable for use in insulated ceilings (Type I.C.).
•
Use Model P3RW - Three Function Control
•
NOTE: This product must be mounted in a flat ceiling
only. Installation in ceilings 9-foot high or less will provide
maximum comfort. Do not mount this product in a wall.
SPECIFICATIONS
STATIC
PRESSURE
0.1 110 2.0
0.25 97 2.5
CFM SONES
HVI-2100 CERTIFIED RATINGS comply with new testing technologies
and procedures prescribed by the Home Ventilating Institute, for off-theshelf products, as they are available to consumers. Product performance
is rated at 0.1 in. static pressure, based on tests conducted in a stateof-the-art test laboratory. Sones are a measure of humanly-perceived
loudness, based on laboratory measurements.
VOLTS AMPS* DUCT
120 14.0 4-in. round
*
Total connected load.
(Requires a dedicated 20-Amp circuit.)
Broan Hartford, Wisconsin www.broan.com 800-558-1711
TYPICAL SPECIFICATION
Combination unit shall be Broan Model 765H110LB.
Unit shall have galvanized steel housing and adjustable
mounting brackets.
Unit must be rated
to handle a 100-watt
(max.) lamp.
Fan, heater, and light
shall be separately
controllable. Motor
shall be permanently
lubricated.
Heater to deliver 1500
Watts of fan-forced
heat.
Air delivery shall be no
less than 110 cfm and
sound levels no greater
than 2.0 sones. All air
and sound ratings shall
be certified by HVI.
Unit shall be UL listed. Combination unit to be suitable for
use in insulated ceilings. (Type I. C.)
0.6
0.5
0.4
0.3
0.2
0.1
0
35 45 55 65 75 85 95 105
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
02B 1102460B
