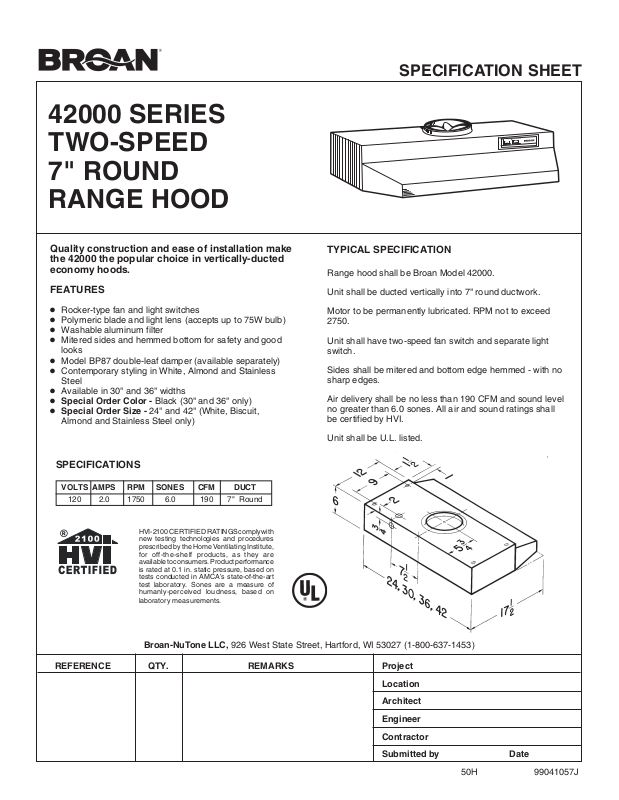

Broan 424204, 423002, 423604, 423001 Specifications

42000 SERIES
TWO-SPEED
7" ROUND
RANGE HOOD

SPECIFICATION SHEET

Quality construction and ease of installation make
the 42000 the popular choice in vertically-ducted
economy hoods.

FEATURES

Rocker-type fan and light switches

•

Polymeric blade and light lens (accepts up to 75W bulb)

•

Washable aluminum filter

•

Mitered sides and hemmed bottom for safety and good

•

looks
Model BP87 double-leaf damper (available separately)

•

Contemporary styling in White, Almond and Stainless

•

Steel
Available in 30" and 36" widths

•

Special Order Color - Black (30" and 36" only)

•

Special Order Size - 24" and 42" (White, Biscuit,

•

Almond and Stainless Steel only)

SPECIFICATIONS

VOLTS AMPS RPM SONES CFM DUCT

120 2.0 1750 6.0 190 7" Round

HVI-2100 CERTIFIED RATINGS comply with
new testing technologies and procedures
prescribed by the Home Ventilating Institute,
for off-the-shelf products, as they are
available to consumers. Product performance
is rated at 0.1 in. static pressure, based on
tests conducted in AMCA’s state-of-the-art
test laboratory. Sones are a measure of
humanly-perceived loudness, based on
laboratory measurements.

TYPICAL SPECIFICATION

Range hood shall be Broan Model 42000.

Unit shall be ducted vertically into 7" round ductwork.

Motor to be permanently lubricated. RPM not to exceed

2750.

Unit shall have two-speed fan switch and separate light
switch.

Sides shall be mitered and bottom edge hemmed - with no
sharp edges.

Air delivery shall be no less than 190 CFM and sound level
no greater than 6.0 sones. All air and sound ratings shall
be certified by HVI.

Unit shall be U.L. listed.

Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

50H 99041057J
