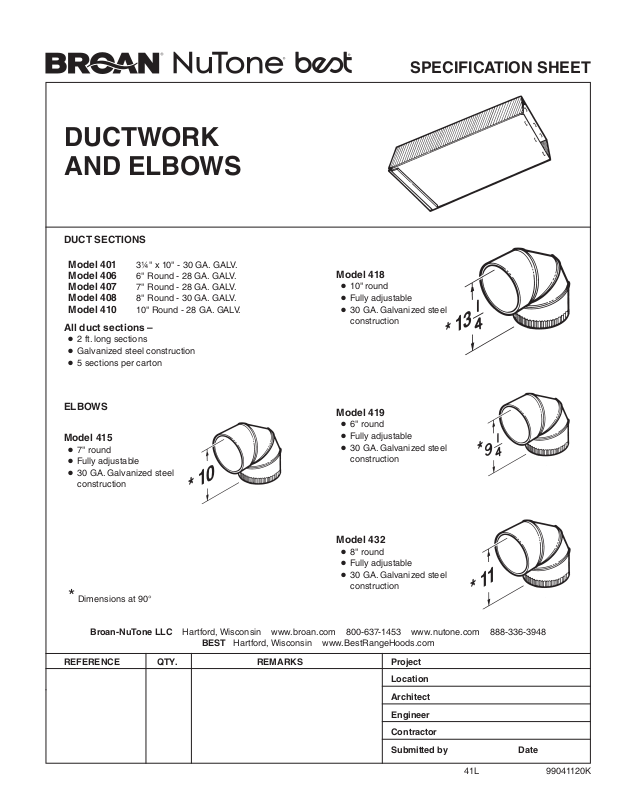

DUCTWORK
AND ELBOWS
DUCT SECTIONS
SPECIFICATION SHEET
Model 401 3¼" x 10" - 30 GA. GALV.
Model 406 6" Round - 28 GA. GALV.
Model 407 7" Round - 28 GA. GALV.
Model 408 8" Round - 30 GA. GALV.
Model 410 10" Round - 28 GA. GALV.
All duct sections –
2 ft. long sections
•
Galvanized steel construction
•
5 sections per carton
•
ELBOWS
Model 415
7" round
•
Fully adjustable
•
30 GA. Galvanized steel
•
construction
* 10
* Dimensions at 90°
Model 418
10" round
•
Fully adjustable
•
30 GA. Galvanized steel
•
construction
Model 419
6" round
•
Fully adjustable
•
30 GA. Galvanized steel
•
construction
Model 432
8" round
•
Fully adjustable
•
30 GA. Galvanized steel
•
construction
* 13
*
* 11
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-637-1453 www.nutone.com 888-336-3948
BEST Hartford, Wisconsin www.BestRangeHoods.com
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
41L 99041120K
Page 2
ELBOWS - CONT'D.
Model 428
3¼" x 10" – Vertical
•
30 GA. Galvanized steel construction
•
EAVE ELBOWS
Model 430
3¼" x 10" short eave elbow
•
Includes backdraft damper and grille
•
Black, electrically-bonded epoxy finish
•
20 ga. steel
•
Model 429
• 3¼" x 10" – Horizontal
• 30 GA. Galvanized steel construction
Model AEDD2
Model AXKD2
26 GA. Galvanized steel construction
•
Includes duct slips
•
Model 431
3¼" x 10" long eave elbow
•
Includes backdraft damper and grille
•
Black, electrically-bonded epoxy finish
•
20 ga. steel
•
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-637-1453
Broan-NuTone LLC Hartford, Wisconsin www.nutone.com 888-336-3948
BEST Hartford, Wisconsin www.BestRangeHoods.com
