WP Series
Wall-mount Panel
User Manual
Rev 1.0
WP series User Manual
I
Packing List
The complete package consist:
One wall-mount panel
One VGA cable
One USB A-A cable (touch screen only)
One DVI-D cable (optional)
One power cord
Driver CD (touch screen only)
Check to make sure that the unit was not damaged in shipping. If you encounter a
problem, contact your dealer.
Please read this manual thoroughly, and follow the installation and operation
procedures carefully to prevent any damage to the product, and / or any of the
devices that connect to it.
WP series User Manual
II
Safety Instructions
1. Please read these safety instructions carefully.
2. Please keep this User’s Manual for later reference.
3. Please disconnect this equipment from AC outlet before cleaning. Don’t use
liquid or sprayed detergent for cleaning. Use moisture sheet or clothe for
cleaning.
4. For pluggable equipment, the socked-outlet shall be installed near the
equipment and shall be easily accessible.
5. Please keep this equipment from humidity.
6. Lay this equipment on a reliable surface when install. A drop or fall could cause
injury.
7. Do not leave this equipment in an environment unconditioned, storage
temperature above 600 C, it may damage the equipment.
8. The opening on the enclosure is for air convection hence the equipment from
overheating. DO NOT COVER THE OPENING.
9. Make sure the voltage of the power source connect the equipment to the power
outlet.
10. Please keep the power cord such a way that people can not step on it. Do not
place anything over power cord. The power cord must rate for the voltage and
current marked on the product’s electrical ratings label. The voltage and current
rating of the cord should be greater than the voltage and the current rating
marked on the product.
11. All cautions and warning on the equipment should be noted.
12. If the equipment is not in use for long time, disconnect the equipment from mains
to avoid being damaged by transient over-voltage.
13. Never pour any liquid into ventilation openings; this could cause fire or electrical
shock.
14. Never open the equipment. For safety reason, qualified service personnel
should only open the equipment.
15. If one of the following situations arises, get the equipment checked by service
personnel.
The Power Cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment has not worked well or you can not get it work according to
User’s Manual.
WP series User Manual
III
The equipment has dropped and damaged.
If the equipment has obvious signs or breakage.
WP series User Manual
IV
Index of Contents
Packing List ......................................................................................................... I
Safety Instructions .............................................................................................. II
Index of Contents .............................................................................................. IV
1. General Information ..................................................................................... 2
1.1 Overview .............................................................................................. 2
1.2 Product Specification ........................................................................... 3
1.2.1 WP-815 Specification .................................................................. 3
1.2.2 WP-817 Specification .................................................................. 5
1.2.3 WP-919 Specification .................................................................. 7
1.2.4 WP-920 Specification .................................................................. 9
2. Panel Controls and OSD Function ............................................................. 11
2.1 Auto Tune .......................................................................................... 11
2.2 Input Source ...................................................................................... 11
2.3 Brightness .......................................................................................... 12
2.4 Contrast ............................................................................................. 12
2.5 Color .................................................................................................. 13
2.6 Position ................................................................ .............................. 13
2.7 Language ........................................................................................... 14
2.8 Recall ................................................................................................. 15
2.9 Exit ..................................................................................................... 15
2.10 Power Indicator ................................................................................ 15
3. Touchscreen (option) ................................................................................. 16
3.1 General Page ..................................................................................... 17
3.2 Sound Page ....................................................................................... 18
3.3 Mouse Page ....................................................................................... 19
3.4 Multi-monitor Page ............................................................................. 20
3.5 Advance Page ................................................................................... 21
4. Installation .................................................................................................. 23
4.1 Install Wall-mount Panel .................................................................... 23
4.1.1 Notes ........................................................................................ 23
4.1.2 Installation Steps: ...................................................................... 23
4.2 Installing the Video Card and Video Driver ........................................... 25
4.2.1 Configuring the Display Settings ............................................... 25
4.2.2 Connecting the Wall-mount Panel ........................................... 26
4.3 Turning on the Wall-mount Panel ...................................................... 26
WP series User Manual
V
4.4 Testing the wall-mount Panel ............................................................... 26
WP Series User Manual
2
1. General Information
1.1 Overview
WP series is designed to provide the industrial user with superior picture quality
and state-of-the-art features housed in a rugged industrial enclosure, which will
assure reliable operation in most harsh environments.
Support Sun native resolution (for 17 / 19 / 20.1” panel)
Bright Active Matrix TFT display
OSD function (On Screen Display) for LCD display
Panel protected by tempered glass
Touch screen function
WP Series User Manual
3
1.2 Product Specification
1.2.1 WP-815 Specification
Model name
WP-815
Dimension
482.6 x 354.6 x 64 mm / 19.0 x 14.0 x 2.5 inches
Package Dimension
566 x 484 x 245 mm / 22.3 x 19.1 x 9.6 inches
Net Weight
10.5 Kg / 23.1 lbs
Gross Weight
14.7 Kg / 32.4 lbs
Display Size
15 inches
Panel Type
Active Matrix TFT LCD
Resolution Capabilities
Maximum up to 1024 x 768 (XGA)
Pixel Pitch
Supports 0.297 mm x 0.297 mm
Viewing Angle (CR>10)
Right-Left View 130°(Typ)
Up-Down View 100°(Typ)
Contrast Ratio
550:1
Brightness
White 250 cd/m² (Center 1 point Typ)
Back Light
Dual Lamps for Back Light
Supported Colors
16M Colors (6-bit with FRC)
Response Time
Rising Time 2 ms, Decay Time 6 ms
Connectors
1 x VGA, 1 x AC Inlet, 1 x Power ON / OFF Switch, 1 x USB or 1 x
RS-232(touch screen only), 1 x DVI (optional)
Signal Cable
VGA cable or DVI-D, USB A-A or RS232 cable (touch screen only)
Sync
45 ~ 80 KHz
Power Source
100 ~ 240 VAC input
Power Consumption
10.12W
Temperature
Operate 0 ~ 50°C / 32 ~ 122°F
Storage -20 ~ 60°C / -4 ~ 140°F
Humidity
10% ~ 90% RH
Chassis Construction
Heavy duty steel materials
Touch Screen
5 wires resistive USB interface / RS232 interface
Table 1-1. WP-815 Specification
WP Series User Manual
4

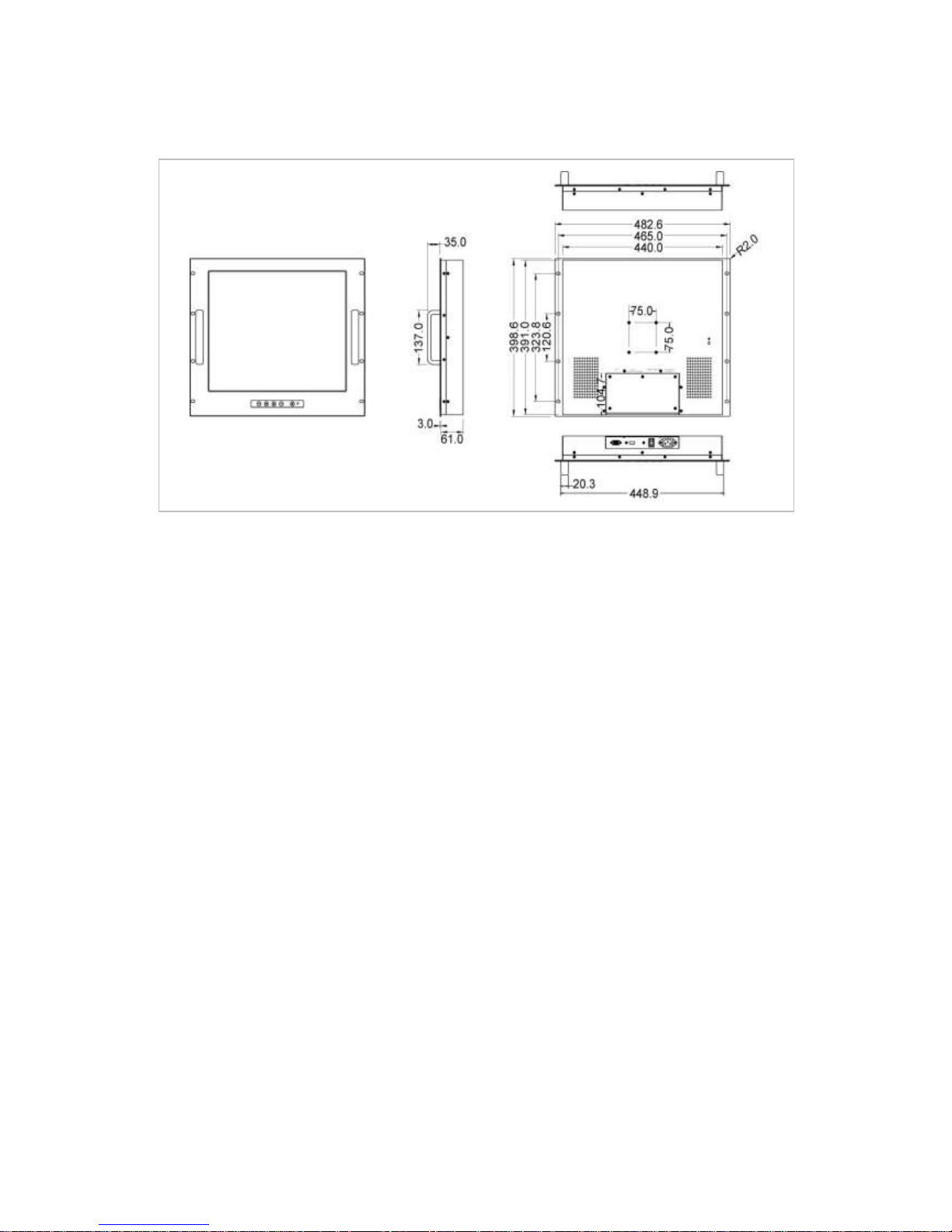

Figure 1-1. WP-815 Dimension
WP Series User Manual
5
1.2.2 WP-817 Specification
Model name
WP-817
Dimension
482.6 x 354.6 x 64 mm / 19.0 x 14.0 x 2.5 inches
Package Dimension
566 x 484 x 245 mm / 22.3 x 19.1 x 9.6 inches
Net Weight
11.0 Kg / 24.3 lbs
Gross Weight
15.2 Kg / 33.5 lbs
Display Size
17 inches
Panel Type
Active Matrix TFT LCD
Resolution Capabilities
Maximum Resolution up to 1280 x 1024 (SXGA)
Pixel Pitch
Supports 0.264 mm x 0.264 mm
Viewing Angle (CR>10)
Right-Left view 170°(Typ)
Up-Down View 160°(Typ)
Contrast Ratio
1000:1
Brightness
White 250 cd/m² (Center 1 point Typ)
Back Light
Dual Lamps for Back Light
Supported Colors
16.7M Colors (6-bit with FRC)
Response Time
Rising Time 3.8 ms, Decay Time 1.2 ms
Connectors
1 x VGA, 1 x AC Inlet, 1 x Power ON / OFF Switch, 1 x USB or 1 x
RS-232(touch screen only), 1 x DVI (optional)
Signal Cable
VGA cable or DVI-D, USB A-A or RS232 cable (touch screen only)
Sync
45 ~ 80 KHz
Power Source
100 ~ 240 VAC input
Power Consumption
9.91W
Temperature
Operate 0 ~ 50°C / 32 ~ 122°F
Storage -20 ~ 60°C / -4 ~ 140°F
Humidity
10% ~ 90% RH
Chassis Construction
Heavy duty steel materials
Touch Screen
5 wires resistive USB interface / RS232 interface
Table 1-2. WP-817 Specification
WP Series User Manual
6
Figure 1-2. WP-817 Dimension
WP Series User Manual
7
1.2.3 WP-919 Specification
Model name
WP-919
Dimension
482.6 x 398.6 x 64 mm / 19.0 x 15.7 x 2.5 inches
Package Dimension
561 x 526 x 250 mm / 22.1 x 20.7 x 9.8 inches
Net Weight
9.0 Kg / 19.8 lbs
Gross Weight
12.0 Kg / 26.4 lbs
Display Size
19 inches
Panel Type
Active Matrix TFT LCD
Resolution Capabilities
Maximum Resolution up to 1280 x 1024 (SXGA)
Pixel Pitch
Supports 0.098 mm x 0.294 mm
Viewing Angle (CR>10)
Right-Left View 170°(Typ)
Up-Down View 160°(Typ)
Contrast Ratio
1000:1
Brightness
White 250 cd/m² (Center 1 point Typ)
Back Light
Dual Lamps for Back Light
Supported Colors
16.7M Colors (6-bit with FRC)
Response Time
Rising Time 3.6 ms, Decay Time 1.4 ms
Connectors
1 x VGA, 1 x AC Inlet, 1 x Power ON / OFF Switch, 1 x USB or 1 x
RS-232(touch screen only), 1 x DVI (optional)
Signal Cable
VGA cable or DVI-D, USB A-A or RS232 cable (touch screen only)
Sync
45 ~ 80 KHz
Power Source
100 ~ 240 VAC input
Power Consumption
11.03W
Temperature
Operate 0 ~ 50°C / 32 ~ 122°F
Storage -20 ~ 60°C / -4 ~ 140°F
Humidity
10% ~ 90% RH
Chassis Construction
Heavy duty steel materials
Touch Screen
5 wires resistive USB interface / RS232 interface
Table 1-3. WP-919 Specification
WP Series User Manual
8
Figure 1-3. WP-919 Dimension
WP Series User Manual
9
1.2.4 WP-920 Specification
Model name
WP-920
Dimension
482.6 x 398.6 x 64 mm / 19.0 x 15.7 x 2.5 inches
Package Dimension
561 x 526 x 250 mm / 22.1 x 20.7 x 9.8 inches
Net Weight
10.8 Kg / 23.8 lbs
Gross Weight
13.6 Kg / 29.9 lbs
Display Size
20.1 inches
Panel Type
Active Matrix TFT LCD
Resolution Capabilities
Maximum Resolution up to 1600 x 1200 (UXGA)
Pixel Pitch
Supports 0.255 mm x 0.255 mm
Active Display Area
Horizontal: 408.0 mm, Vertical: 306.0 mm
Viewing Angle (CR>10)
Right-Left view 178°(Typ)
Up-Down View 178°(Typ)
Contrast Ratio
1000 : 1
Brightness
White 300 cd/m²
Back Light
Six Lamps for Back Light
Supported Colors
16.7M Colors (8-bit with FRC)
Response Time
Rising Time 7 ms, Decay Time 9 ms
Connectors
1 x VGA, 1 x AC Inlet, 1 x Power ON / OFF Switch, 1 x USB or 1 x
RS-232(touch screen only), 1 x DVI (optional)
Signal Cable
VGA cable or DVI-D, USB A-A or RS232 cable (touch screen only)
Sync
45 ~ 80 KHz
Power Source
100 ~ 240 VAC input
Power Consumption
45 W
Temperature
Operate 0 ~ 50°C / 32 ~ 122°F
Storage -20 ~ 60°C / -4 ~ 140°F
Humidity
10% ~ 90% RH
Chassis Construction
Heavy duty steel materials
Touch Screen
5 wires resistive USB interface / RS232 interface
Table 1-4. WP-920 Specification
WP Series User Manual
10
Figure 1-4. WP-920 Dimension
WP Series User Manual
11
2. Panel Controls and OSD Function
Table 2-1. Panel Controls
Figure 2-1. WP Series OSD Control Bar
2.1 Auto Tune
Press the “auto tune” button. The panel will adjust the display size
automatically and also tune the panel to its best condition.
2.2 Input Source
1. Press the “menu” button.
2. Use the “Down” and “Up” button to scroll.
Auto tune.
Input Source
Brightness
Contrast
Color
Position
Language
Recall
Exit
Controls
Description
Soft power on / off button. Adjacent LED is lit when
on.
Auto
Auto-synchronize and scale down display to any
valid factory preset timings.
Press to scroll the function you want to adjust.
Press to scroll the function you want to adjust.
Menu
To access the main menu. This button also acts as
the “Enter” button.
WP Series User Manual
12
3. Press the“menu”button to enter,and you will see:
VGA / DVI
4. Use the “Down” and “Up” button to select the input source of signal.
5. Press the “menu” button to enter
2.3 Brightness
1. Press the “menu” button.
2. Use the “Down” and “Up” button to scroll.
Auto tune.
Input Source
Brightness
Contrast
Color
Position
Language
Recall
Exit
3. Press the“menu”button to enter.
4. Use the“Down”and“Up”button to adjust the brightness of the display.
5. Press the “menu” button to enter.
2.4 Contrast
1. Press the “menu” button.
2. Use the “Down” and “Up” button to scroll.
Auto tune.
Input Source
Brightness
Contrast
Color
Position
Language
Recall
Exit
1. Press the “menu” button to enter.
2. Use the “Down” and “Up” button to adjust the contrast of the display.
WP Series User Manual
13
3. Press the “menu” button to enter.
2.5 Color
1. Press the “menu” button.
2. Use the “Down” and “Up” button to scroll.
Auto tune.
Input Source
Brightness
Contrast
Color
Position
Language
Recall
Exit
3. Press the “menu” button to enter. And you will see:
Icon
Description
9300°K
To set CIE coordinates at 9300°K color
7500°K
To set CIE coordinates at 7500°K color
6500°K
To set CIE coordinates at 6500°K color
User
To set user defined CIE
Auto color
To auto adjust color
Return
To exit and return to the previous page
Table 2-2. Icon Description
4. Use the “Down” and “Up” button to adjust the color of the display.
5. Press “menu” to enter.
2.6 Position
1. Press the “menu” button.
2. Use the “Down” and “Up” button to scroll.
Auto tune.
Input Source
Brightness
WP Series User Manual
14
Contrast
Color
Position
Language
Recall
Exit
3. Press the “menu” button to enter. And you will see:
Icon
Description
Image Pos
To adjust the position of the image.
OSD Pos
To adjust the position of the OSD.
Return
To exit and return to the previous page
Table 2-3. Icon Description
4. Use the “Down” and “Up” button to scroll.
5. Press the “menu” button to enter.
2.7 Language
1. Press the “menu” button.
2. Use the “Down” and “Up” button to scroll.
Auto tune.
Input Source
Brightness
Contrast
Color
Position
Language
Recall
Exit
3. Press the “menu” button to enter. And you will see:
English
German
French
Italian
Spanish
WP Series User Manual
15
4. Use the “Down” and “Up” button to scroll.
5. Press the “menu” button to enter.
2.8 Recall
1. Press the “menu” button.
2. Use the “Down” and “Up” button to scroll.
Auto tune.
Input Source
Brightness
Contrast
Color
Position
Language
Recall
Exit
3. Press the “menu” button to enter, and you will see:
Yes/ No
4. Select “Yes” button then ‘Menu” button to recall the factory setting.
Select “No “ to return to the previous page.
2.9 Exit
Press the “exit” button to quit OSD menu.
2.10 Power Indicator
GREEN ON
RED STANDBY
RED SUSPEND
RED OFF
OSD – On Screen Display
WP Series User Manual
16
3. Touchscreen (option)
Touch package provides a complete touch control solution including resistive
touch panel and optical touch panel. Touch package software is a utility and
used for adjusting our touch control devices to optimize our touch solution.
Touch package contains 5 function groups (see Figure 3-1). general, sound,
mouse, multi-monitor, and Advance. This user guide will explain all of
information or parameters in function group order.
Figure 3-1. Five Function Groups
WP Series User Manual
17
3.1 General Page
There are 7 information items and 2 tool function in the general page (see Figure
3-2). The followings is to explain all the items.
1. Utility version: Touchpack.exe version.
2. Service version: Touchpackservice.exe version.
3. API version: touchapi.dll version.
4. Driver version: Rs232 device driver version.
5. Firmware version: Our touch controller’s code version.
6. Interface: Touch controller’s communication interface. It can be USB or
RS232.
7. Display: This controller is reporting the mouse point to system display number.
8. 4 pts. Calibration: This is the simplest calibration way to support customer to
made touch device report correct position.
9. Free draw: This is a tool to user to draw mouse point to indicate how precise
your touch solution now.
Figure 3-2. General Page
WP Series User Manual
18
3.2 Sound Page
The sound page supports user to set the items about sound settings (see Figure
3-3).
1. Sound source: There are two sound sources, audio sound and buzzer sound.
So, user can choice audio or buzzer radio button. If user selects buzzer mode,
user can also adjust the frequency and duration to play the sound you like.
The test button can try to play the sound you set.
2. Play sound settings: User can check first pen down to play sound or/and pen
up to play sound. If both uncheck, it means that no sound to play.
Figure 3-3. Sound Page
WP Series User Manual
19
3.3 Mouse Page
The mouse page has four main items, report mode, right click settings, double
click settings, touch panel rotation（see Figure 3-4）.
1. Report mode item: User can select drawing mode to continue report all points
that touch controller senses. Button mode only report two points, first pen
down and lift up points. Disable touch will made touch device to not report any
point, user must use mouse to return the others to work properly.
2. Right click settings: Our touch solution can generate right click in two ways.
I. Auto right click: If you pen down and no move for a while, touch device will
generate right click event automatically.
II. Manual right click: User launch the “Start manual right click” button and
touch solution will show a right click window at the right-bottom corner. If
user want to generate a right click, user can hit this window once and then
pen down and lift to have a right click.
3. Double click settings: These two parameters, speed and area, are used to
change Windows OS parameters about generating double click conditions.
The bottom of these two shows the test area and user can click to test the
settings to feel your settings best.
4. Touch Panel Rotation: Cooperate with the picture of the display to rotate,
touching and accusing of the function needs and then rotating too, very
whirling angle is at present：0°（Default）、90°、180°、270°。
WP Series User Manual
20
Figure 3-4. Mouse Page
3.4 Multi-monitor Page
This page function can be supported on the versions, Windows 2K, XP, and
Vista. The multi-monitor page shows the system display distribution in time. It
also supports split display to fit some VGA cards. User can right click to pull
down the split display type to match your VGA card (see figure 3-5) and then the
page will show your settings. User can click display area to show a matching
program to link the relation between touch device and display.
WP Series User Manual
21
Figure 3-5. Multi-monitor Page
3.5 Advance Page
In the advance page (see Figure 3-6), there are three main item functions,
Linearization, HID mode, and system tools.
1. Linearization: Some kind of touch sensor, special in 5-wires resistive sensor,
need 9 points or 25 points reference points to precisely positioning. User can
use the “9 pts linearization” tool or “25 pts linearization” to enhance your touch
sensor.
2. HID mode: We support the digitizer HID mode for windows vista. This mode
can operate gesture functions provided by windows vista home advance and
upper. The mouse HID can work on any windows series versions. So, the
touch device is default on the mouse HID mode.
WP Series User Manual
22
3. System tools: The “search Rs232 device” button is used for search our
none-plug and play RS232 device. The “system information tool” button will
launch user’s installation computer information to provide some information for
analysis engineer to trace system problems. The “Download touch par am.”
button provides user a tool to gather touch device’s parameters into a file and
send to manufacture engineer to analysis when user meet some problems. If
manufacture engineer find any wrong, he can fix and save as the other file and
send back user. User can use the “Write touch par am.” button to open above
file and write into his touch device.

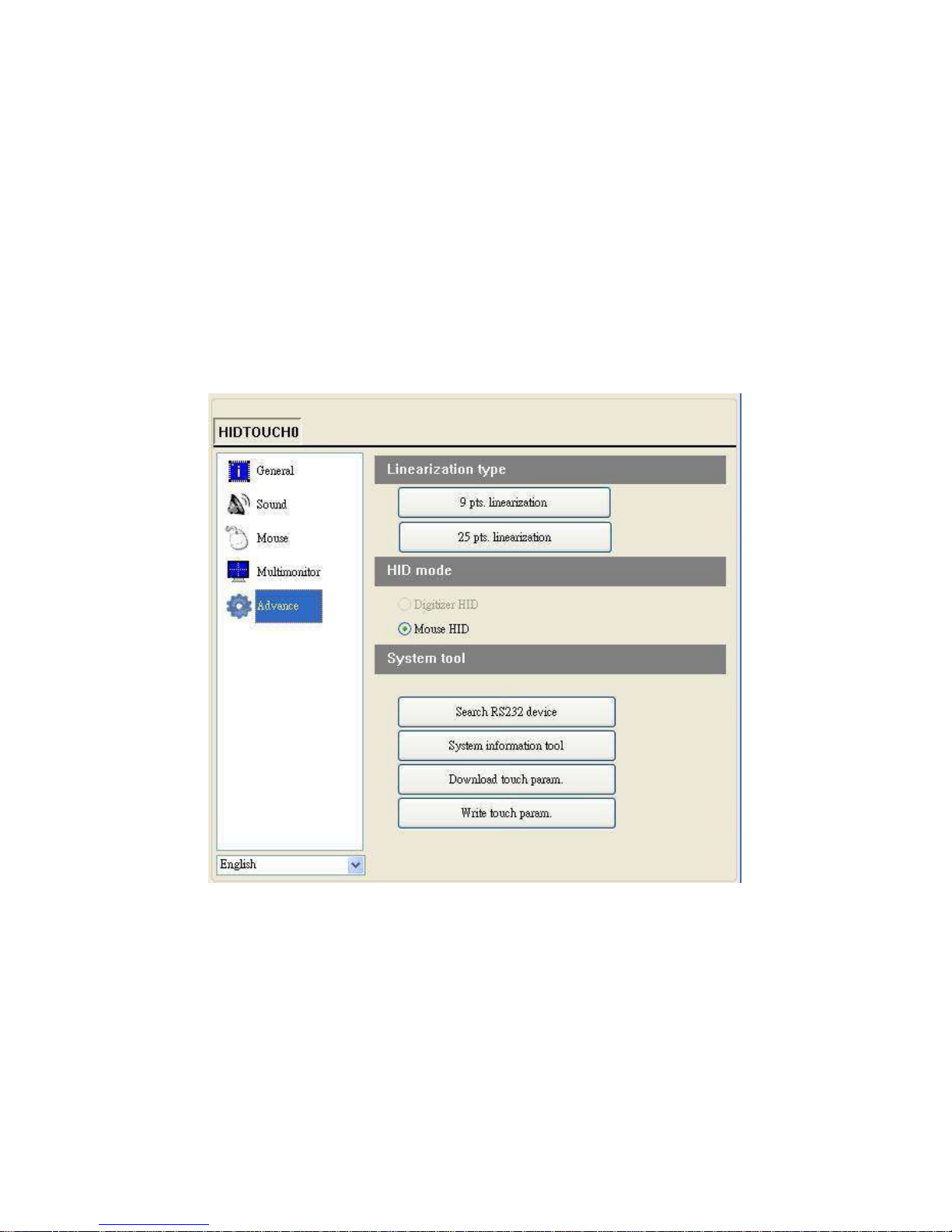

Figure 3-6. Advance Page
WP Series User Manual
23
4. Installation
4.1 Install Wall-mount Panel
4.1.1 Notes
1. Before installation, make sure all peripherals and computer have been turned
off.
2. Reliable grounding of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connections to
the branch circuit.
4.1.2 Installation Steps:
Cabinet installation steps:
Install eight screws to mount panel into cabinet.
WP Series User Manual
24
Mounting arm installation steps:
Install four screws through the mounting holes of the arm and fix the wall-mount
panel.
15 / 17 / 19” wall-mount
panel mounting holes
dimension
20.1” wall-mount panel
mounting holes
dimension
WP Series User Manual
25
4.2 Installing the Video Card and Video Driver
Before connecting the wall-mount panel, make sure your computer has a video card
already installed for the panel. After you connect the wall-mount panel, install the
video software driver. The video driver is supplied by the video card manufacturer
and may be found on the CD-ROM that came with your computer. If you need
information on installing a video card or video driver, refer to the manual that came
with your video card.
4.2.1 Configuring the Display Settings
After connecting the wall-mount panel and turning on your computer, you may need
to configure one or more of the following display settings:
Display mode (also called desktop area or video resolution)
Refresh rate (also called vertical scan rate or vertical sync)
Color depth (also called color palette or number of colors)
Each video card has several controls that let you adjust the display settings. However,
the software and driver for each video card is unique. In most cases, you adjust these
settings by using a program or utility provided by the manufacturer of the video card.
Most video cards use the Windows Display Properties control panel to configure the
display. To open the Windows Display Properties, click the right mouse button in a
blank area of the Windows desktop and then select Properties. The Settings tab
usually lets you change the Color Palette and the Desktop Area (x by y pixel
resolution).
Some video cards integrate additional features into the Windows Display Properties
control panel to give you an exceptional setup that is flexible and easy to use. For
example, the control panel may include an Advanced Properties button, an
Adjustment tab, or a Refresh tab for changing other settings. Other video cards have
a separate utility for setting display properties.
Whenever you change the resolution, color, or refresh rate, the image size, position,
or shape may change. This behavior is normal. You can readjust the image using the
panel on-screen controls. For more information on the panel on-screen controls, refer
to Chapter 2. For more information on configuring the display settings, refer to the
manual that came with your video card.
WP Series User Manual
26
4.2.2 Connecting the Wall-mount Panel
To connect wall-mount panel to a computer, perform the following steps
1. AC Inlet
2. Power ON/ OFF switch
3. USB port (for touch screen use)
4. VGA port
Figure 4-1. Connectors of Wall-mount Panel
1. Turn off your computer. You should always turn off your computer before
connecting or disconnecting a device.
2. Connect the video (VGA) connector of the VGA cable to the video card
connector on the rear panel of your computer.
3. Connect the USB connector of the USB cable to the USB port on the rear
panel of your computer.
4. Connect the AC power cord to the power inlet on the wall-mount and then to a
power outlet.
4.3 Turning on the Wall-mount Panel
Make sure all cables and the power cord are connected properly. Be sure to tighten all
connector screws. Check on / off switch in the back of wall-mount panel is on. The
LED underneath of the panel will be green light.
4.4 Testing the wall-mount Panel
To test that the wall-mount panel is working properly, perform the following steps:
1. Power up the wall-mount panel, and then turn on your computer.
2. Make sure the video image is centered within the screen area. Use the OSD
controls to adjust the image (see note below).
WP Series User Manual
27
If the unit does not power on when the on / off switch in the back of
wall-mount panel is on, try to push the power on / off button
underneath of the panel to power up the unit.
You can adjust the horizontal and vertical position, contrast, and
brightness to better suit your video card and your personal preference.
Refer to Chapter 2 for more information on using the on-screen menu
to adjust the video display.
Before you begin, make sure that powers to all the devices you will
be connecting up have been turned off. To prevent damage to your
installation due to ground potential difference, make sure that all the
devices on the installation are properly grounded. Consult your
direct vendor for any technical issues if necessary.
Loading...
