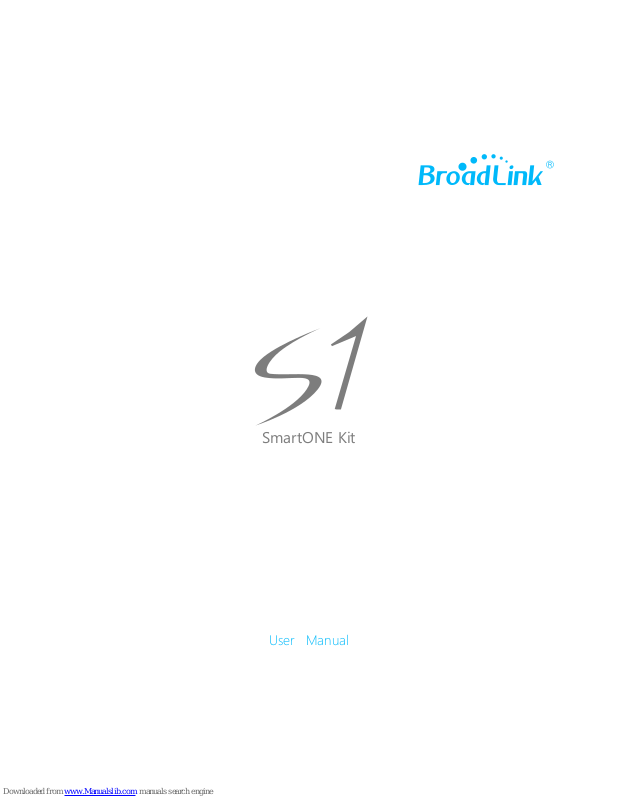

SmartONE Kit
User Manual
Thank you for choosing BroadLink DNA series products
Packing List
2
SmartONE x1
Screw x2
Bolt x4
AA Battery x3
Wireless Door Sensor
x1
Wireless Key Fob
Remote x1
Wireless Motion Sensor
x1
Infrared
Installation
Accessry
Bracket base
x1
SOS
Please confirm the items are in good conditions as below
Screw x2
Bolt x4
3M Adhesive Lable
x2
Wireless Door
Sensor Installation
Accessory
Guide Card x1
SmartONE
Reset Button
* Device Reset - Long press the reset button for more than 6 seconds
until the Wi-Fi LED is blinking rapidly
Wi-Fi LED
Status LED
Ventilation Holes
Buit-in Buzzer
Alarm
3
Scan QR code to download
Scan QR code from the packing
box or the user manual to
download and install the APP.
4
A: Visit www.ibroadlink.com using
your mobile browser and tap
Download APP as shown on Page1
above.
B:
e-Control
Page1
Step
1
Download the e-Control APP
e-Control APP User Guide
PC/Web download APP Forum
e-Control
Configuration Mode
Ensure the Wi-Fi LED is
blinking rapidly about
5-6 times per sec
Wi-Fi Router Smart Phone
SmartONE
Plug into the
power outlet
Connect to Wi-Fi
Open e-Control APP
Step
2
Configure the Device
5
6
* If the configuration is failed,please refer to Page14
Enter the Wi-Fi
user name
Enter the password
Step
3
Configure the Device
Step
4
Start to experience
Function
Device Control Panel
Quick Setup
Sensor Status
Alarm Status
Tap to view the
history info/
setup sensor
Tap to view sensor
alarm history
Available
Sensors
7
①
②
②
Add Sensor
e-Control APP
Add sensor as shown on the page above
Sensor status
Back
Add
Enter serial number
Align the barcode on sensor in
scanning box. The sensor can be
added automatically.
Scan Barcode
Please scan QR code, or manually
enter serial number
8
Sensor Info Page
Sensor Settings
Tap to change
senor name
Tap to select
the location
Tap to select the
installation site
Enable by default
******company
Wireless Door Sensor
Name Door sensor
Door sensor
Living room
Door
Type
Zone
Attach to
088888880
Back
vendor name
Sensor type
Sensor ID
Part-arm
Next
Scan Barcode
Back Save
Sensor definition
9
If Living room - [Door sensor](Open), then [Smart plug] - Desk Lamp (On)
Users can DIY various ways for smart home control. Devices will operate
automatically after setting when the conditions are triggered. IFTTT simply
enables you to enjoy the real unattended smart home such as the situation as
“Turn on the warm lights once the door of your house is opened”.
( ) is the condition to be triggered or action to be performed.
[ ] is the BroadLink brand or Broadink DNA products.
When adding IFTTT, make sure all the sensors added to WLAN should have Internet access,
otherwise the IFTTT scene cannot be uploaded to the server and loaded from the sensor.
→
→
10
IFTTT Style Interaction
e-Control APP
①
②
③
Tap to IFTTT
setup
Add new
Tap to IFTTT
Tap to
setup
Tap to
setup
Enter IFTTT page as shown above, and setup according to the APP tip, then tap save.
(SmartONE supports max 16 groups of IFTTT with 6 conditions and 8 actions for each group)
11
IFTTT Settings
e-Control APP
Motion Sensor No Person Key Fob SOS
Back
Sensor& condition
Timer
Action
SmartPlug zj ON
min
Alarm
Play button 2
Task list
IFTTT
Delete
Delete IFTTT
Save
IF
Then
Settings
Settings
Settings
①
②
③
Delay time
settings
Select sensor
Edit device
Lock device
Delay time settings
Select the sensor
Setup the delay time for
“Full/Part Arm”.
Select the sensors enabled
in“Part Arm”mode.
Tap to change the icon and name
Prevent your devices from being
detected and operated by other
smartphone users in the same WLAN.
Edit Device
Lock Device
Create shortcut
Lock device
Alarm setting
Alarm setting
Firmware update
12
General Settings
e-Control APP
Home
Back Save
General settings
Delay time settings
Set the alarm duration
Door Sensor
Motion Sensor
door Sensor Door opened
Settings
control
Function
Shortcut
Scene
Tap to create the
shortcut on your
desktop
Long Press
Enter Control page for more operationsFull-Arm
Part-Arm
Default the situation in which all the
sensors will be involved in alarm.
Select sensors needed to be involved in
alarm on the alarm setting Page (P12).
Full-Arm
Part Arm
Disarm
Cancel
13
( Wireless key fob remote can simply setup without Smartphone )
What action you want to be performed by this shortcut?
Delete
Create shortcut
Share configuration
Cancel
P2
If APP shows the page 2 as above when Wi-Fi
light keep flashing slowly, and device
configuration failed, please reset device and
reconfigure (Repeat Step 3).
If the configuration shows other problems，
please contact customer service staff for help.
Reset device
Press the reset button
more than 6 seconds
until the Wi-Fi LED is
blinking rapidly
New device
Offline
New device added；
The device is offline, unable
to control, please check your
network connection
Configuration FailedSearch/Edit Device
长
按
14
Back
RM
RM
A1
SmartONE
IFTTT
Back
RM
RM
A1
SmartONE
IFTTT
Edit name
Delete
Cance
