I. Introduction
RC10 is a mini wireless remote control with 4 buttons. As an important
part of Kaipule wireless alarm host, it has the functions of panic button
& household host remote control. With novel design & unique emitter with
4 buttons, it is convenient to carry and can be regarded as a decoration.
It gets extremely high sensitivity within 70M. Through codes setting,
RC10 can control wireless devices easily & conveniently. What’s more,
you can use traditional away arming / disarming, and send emergency
information through panic button. Simple operation can protect your life
and property more effectively. High quality is your first choice for modern
smart home system.
II. Specifications III. Main Functions
Model No.: RC 10 A. 4 independent functional buttons
Effective Range: ≤70 m B. Remote arming / disarming, convenient & simple; remote
Operating Voltage: CR 2032, 3V lithium battery (1 year working life) emergency call, securely hidden
Information Transmitting: press the button for more than 1s, C. Away arming / home arming
LED light flashes at the same time D. Comfortable & exquisite design; foolproof graphic interpretation button.
Working Environment: - 20 ℃ ~ 55 ℃ E. Low transmission power; signal output indicator is visible.
Operating Current: ≤15mA F. Compatible with all wireless hosts or other alarm systems of Kaipule..
Humidity: ≤80%
Non-condensing Quiescent Current: ≤1uA
Dimensions: 58 * 31 * 1 0mm Weight: 30 g
Color: white

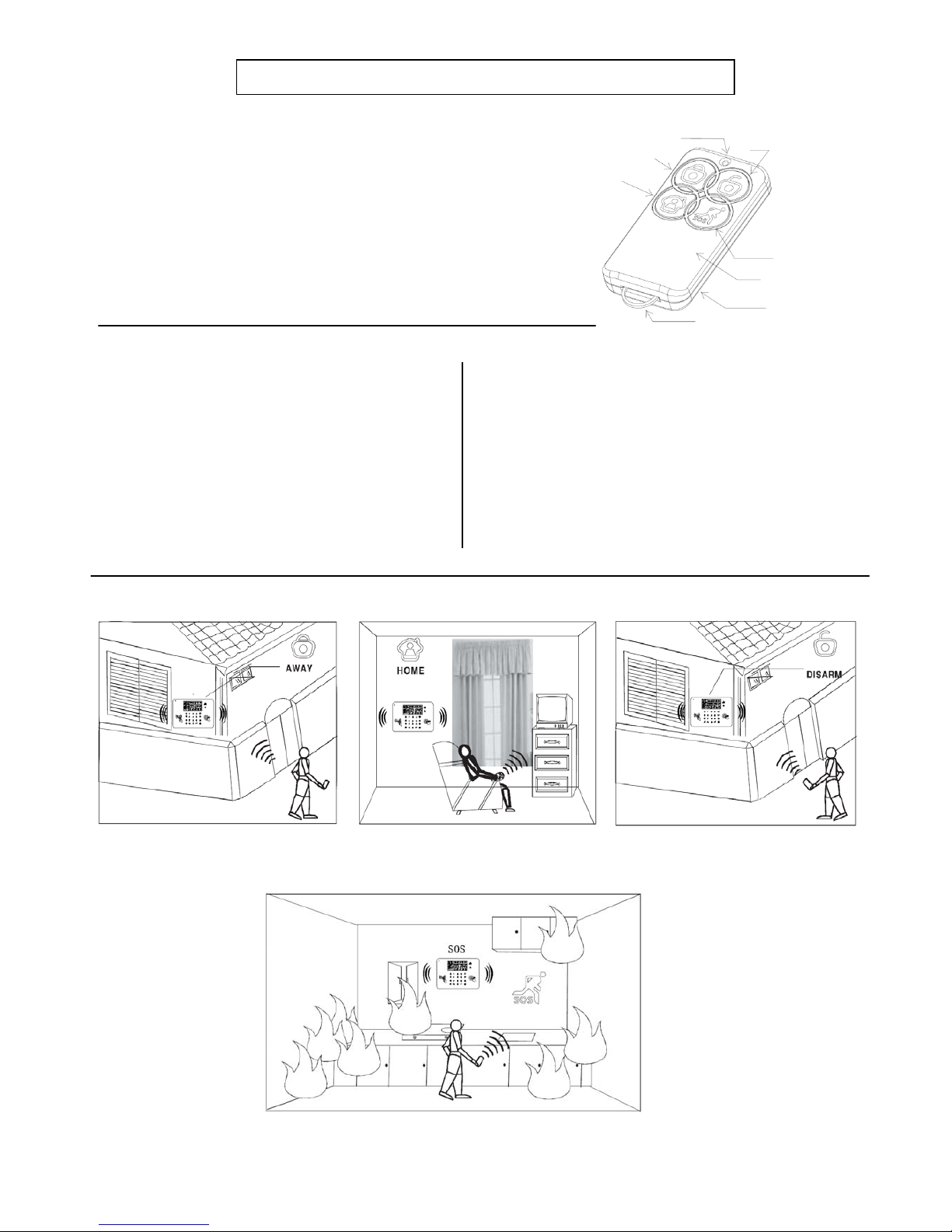

IV. Usage

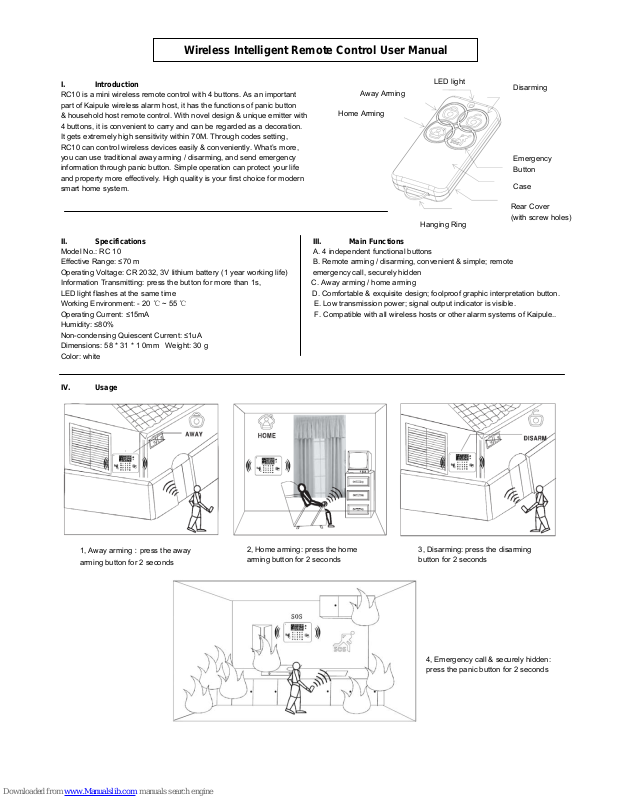

Wireless Intelligent Remote Control User Manual
1, Away arming：press the away
arming button for 2 seconds
2, Home arming: press the home
arming button for 2 seconds
4, Emergency call & securely hidden:
press the panic button for 2 seconds
3, Disarming: press the disarming
button for 2 seconds
LED light
Hanging Ring
Rear Cover
(with screw holes)
Case
Emergency
Button
Disarming
Home Arming
Away Arming
Testing & Maintenance
5.1 Testing
Batteries have been installed before delivery. Before testing, you need to register the RC10 codes to the wireless products.
Please check the setting details from wireless products installation user manual. Testing procedure is as follows:
1, 3 meters away from target receiver, press the button with closed padlock pattern in RC10;
2, Ensure wireless device give the same voice prompts, such as "the system is armed" etc;
3, Check the voice prompts in some blind spots where wireless devices signals can reach, such as the place
that transmission is blocked by wall & large objects, or the place that influenced by structural materials.
5.2 Battery Replacement
When signal transmission is weakened or LED lights dimmed, users need to
buy replacement batteries (Type: R2032 3V lithium battery).
Please replace the batteries accordingly:
1, Take out the small screws in the back of remote control with a small
Phillips screwdriver, being careful not to lose the screws;
2, Open the rear cover from the screws place, and remove the old batteries;
3, Insert new batteries, positive pole outward (as picture);
4, Install the rear cover and hanging ring, then fixed with screws;
5, New batteries testing: press one button, LE D lights on the remote
control flashes, meanwhile, the host can give corresponding response.
V. System Limitations
Our wireless alarm systems have been developed very reliable. While, because of their low point transmission capacity and limited range will make
the systems be restricted within a certain range. Followings are the situations that may occur:
The signal of receiver will probably be obstructed or out of the selected frequency range;①
② Wireless device should be tested regularly to check whether there is any conflict; we advise to test once every week;
③ Unstable voltage of host or low voltage of remote control may cause failure of signal transmission;
