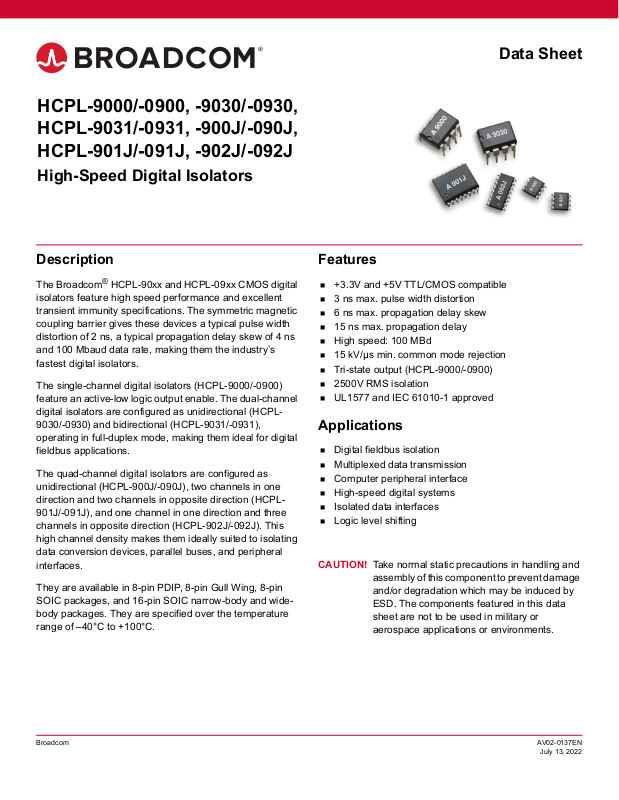

BROADCOM HCPL 9030 Datasheet

HCPL-9000/-0900, -9030/-0930,
HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J

High-Speed Digital Isolators

Data Sheet

Description

The Broadcom® HCPL-90xx and HCPL-09xx CMOS digital
isolators feature high speed performance and excellent
transient immunity specifications. The symmetric magnetic
coupling barrier gives these devices a typical pulse width
distortion of 2 ns, a typical propagation delay skew of 4 ns
and 100 Mbaud data rate, making them the industry’s
fastest digital isolators.

The single-channel digital isolators (HCPL-9000/-0900)
feature an active-low logic output enable. The dual-channel
digital isolators are configured as unidirectional (HCPL­9030/-0930) and bidirectional (HCPL-9031/-0931),
operating in full-duplex mode, making them ideal for digital
fieldbus applications.

The quad-channel digital isolators are configured as
unidirectional (HCPL-900J/-090J), two channels in one
direction and two channels in opposite direction (HCPL­901J/-091J), and one channel in one direction and three
channels in opposite direction (HCPL-902J/-092J). This
high channel density makes them ideally suited to isolating
data conversion devices, parallel buses, and peripheral
interfaces.

They are available in 8-pin PDIP, 8-pin Gull Wing, 8-pin
SOIC packages, and 16-pin SOIC narrow-body and wide­body packages. They are specified over the temperature
range of –40°C to +100°C.

Features

 +3.3V and +5V TTL/CMOS compatible
 3 ns max. pulse width distortion
 6 ns max. propagation delay skew
 15 ns max. propagation delay
 High speed: 100 MBd
 15 kV/µs min. common mode rejection
 Tri-state output (HCPL-9000/-0900)
 2500V RMS isolation
 UL1577 and IEC 61010-1 approved

Applications

 Digital fieldbus isolation
 Multiplexed data transmission
 Computer peripheral interface
 High-speed digital systems
 Isolated data interfaces
 Logic level shifting

CAUTION! Take normal static precautions in handling and

assembly of this component to prevent damage
and/or degradation which may be induced by
ESD. The components featured in this data
sheet are not to be used in military or
aerospace applications or environments.

Broadcom AV02-0137EN

July 13, 2022

HCPL-9000/-0900, -9030/-0930,
HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

Selection Guide

Device Number Channel Configuration Package

HCPL-9000 Single 8-pin DIP (300 Mil)

HCPL-0900 Single 8-pin Small Outline

HCPL-9030 Dual 8-pin DIP (300 Mil)

HCPL-0930 Dual 8-pin Small Outline

HCPL-9031 Dual, Bidirectional 8-pin DIP (300 Mil)

HCPL-0931 Dual, Bidirectional 8-pin Small Outline

HCPL-900J Quad 16-pin Small Outline, Wide Body

HCPL-090J Quad 16-pin Small Outline, Narrow Body

HCPL-901J Quad, 2/2, Bidirectional 16-pin Small Outline, Wide Body

HCPL-091J Quad, 2/2, Bidirectional 16-pin Small Outline, Narrow Body

HCPL-902J Quad, 1/3, Bidirectional 16-pin Small Outline, Wide Body

HCPL-092J Quad, 1/3, Bidirectional 16-pin Small Outline, Narrow Body

Ordering Information

HCPL-09xx and HCPL-90xx are UL Recognized with 2500 V

Option

Part Number

HCPL-9000
HCPL-9030
HCPL-9031

HCPL-0900
HCPL-0930
HCPL-0931

HCPL-900J
HCPL-901J
HCPL-902J

HCPL-090J
HCPL-091J
HCPL-092J

-000E 300 mil DIP-8 50 per tube

-300E X X 50 per tube

-500E X X X 1000 per reel

-000E SO-8 X 100 per tube

-500E X X 1500 per reel

-000E Wide Body SO-16 X 50 per tube

-500E X X 1000 per reel

-000E Narrow Body SO-16 X 50 per tube

-500E X X 1000 per reel

Package Surface Mount Gull Wing Tape and Reel QuantityRoHS Compliant

for 1 minute per UL1577.

rms

To order, choose a part number from the part number column and combine with the desired option from the option column
to form an order entry.

Example 1:

HCPL-9031-500E to order product of 300-mil DIP Gull Wing Surface-Mount package in Tape and Reel in RoHS
compliant.

Option data sheets are available. Contact your Broadcom sales representative or authorized distributor for information.

Broadcom AV02-0137EN

2

HCPL-9000/-0900, -9030/-0930,

V

DD1

IN

1

NC

GND

1

GND

2

OUT

1

V

DD2

V

OE

8

7

6

5

1

2

3

4

Galvanic Isolation

HCPL-9000/0900

V

DD1

IN

1

IN

2

GND

1

GND

2

OUT

2

V

DD2

OUT

1

8

7

6

5

1

2

3

4

Galvanic Isolation

V

DD1

IN

1

OUT

2

GND

1

GND

2

IN

2

V

DD2

OUT

1

8

7

6

5

1

2

4

Galvanic Isolation

HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

Pin Descriptions

Symbol Description

V

DD1

V

DD2

IN

X

OUT

GND

GND

V

OE

X

1

2

Power Supply 1

Power Supply 2

Logic Input Signal

Logic Output Signal

Power Supply Ground 1

Power Supply Ground 2

Logic Output Enable (Single Channel), Active Low

NC Not Connected

Functional Diagrams

Single Channel

Dual Channel

Truth Table

IN

1

LLL

HLH

LHZ

HHZ

V

OE

OUT

1

HCPL-9030/0930

Broadcom AV02-0137EN

HCPL-9031/0931

3

HCPL-9000/-0900, -9030/-0930,

1

2

3

4

5

6

7

89

10

11

12

13

14

15

16

V

DD1

GND

1

IN

1

IN

2

IN

3

IN

4

NC

GND

1

GND

2

NC

OUT

4

OUT

3

OUT

2

OUT

1

GND

2

V

DD2

Galvanic Isolation

HCPL-900J/-090J

1

2

3

4

5

6

7

89

10

11

12

13

14

15

16

V

DD1

GND

1

IN

1

IN

2

OUT

3

OUT

4

NC

GND

1 GND

2

NC

IN

4

IN

3

OUT

2

OUT

1

GND

2

V

DD2

Galvanic Isolation

HCPL-901J/-091J

1

2

3

4

5

6

7

89

10

11

12

13

14

15

16

V

DD1

GND

1

IN

1

IN

2

IN

3

OUT

4

NC

GND

1 GND

2

NC

IN

4

OUT

3

OUT

2

OUT

1

GND

2

V

DD2

Galvanic Isolation

HCPL-902J/-092J

0.28 (7.1)

0.33 (8.4)

0.30 (7.6)

0.38 (9.7)

0.008 (0.2)

0.015 (0.4)

Dimensions: inches (mm); scale = approx. 2.5X

0.345 (8.76)

0.40 (10.2)

0.27 (6.9)

0.24 (6.1)

0

10

0.055 (1.40)

0.065 (1.65)

0.030 (0.76)

0.045 (1.14)

0.014 (0.36)

0.045 (1.14)

0.070 (1.78)

0.09 (2.3)

0.11 (2.8)

0.015 (0.38)

0.040 (1.02)

0.13 (3.30)

0.17 (4.32)

0.023 (0.58)

NOTE:
Pin spacing is a basic
dimension; tolerances
do not accumulate

HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

Quad Channel

Package Outline Drawings

HCPL-9000, HCPL-9030, and HCPL-9031 Standard DIP Packages

Broadcom AV02-0137EN

4

HCPL-9000/-0900, -9030/-0930,

0.030 (0.762)

0.045 (1.143)

0.345 (8.76)

0.400 (10.160)

0.240 (6.096)

0.27 (6.9)

87 65

4321

0.045 (1.143)

0.070 (1.78)

0.120 (3.048)

0.150 (3.810)

0.047 (1.194)

0.070 (1.778)

0.040 (1.016)

0.047 (1.194)

0.370 (9.398)

0.390 (9.906)

0.190

(4.826)

0.015 (0.381)

0.025 (0.635)

0.025 (0.632)

0.035 (0.892)

0.030 (0.760)

0.056 (1.400)

0.015 (0.385)

0.035 (0.885)

0.290 (7.370)

0.310 (7.870)

0.370 (9.400)

0.390 (9.900)

TYP.

12

° NOM.

0.008 (0.203)

0.015 (0.4)

0.09 (2.3)

DIMENSIONS INCHES (MILLIMETERS)

LEAD COPLANARITY = 0.004 INCHES (0.10 mm)

MIN

MAX

0.11 (2.8)

HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

HCPL-9000, HCPL-9030, and HCPL-9031 Gull Wing Surface-Mount Option 300

PAD LOCATION (for reference only)

Broadcom AV02-0137EN

5

HCPL-9000/-0900, -9030/-0930,

0.188 (4.77)

0.197 (5.00)

0.050 (1.27)

0.004 (0.1)

0.012 (0.3)

NOTE:

Pin spacing is a basic

dimension; tolerances
do not accumulate

0.054 (1.37)

0.072 (1.83)

0.228 (5.8)

0.244 (6.2)

0.150 (3.8)

0.157 (4.0)

0.052 (1.32)

0.062 (1.57)

0.013 (0.3)

0.020 (0.5)

0.007 (0.2)

0.013 (0.3)

0.016 (0.4)

0.050 (1.3)

NOM

Dimensions: inches (mm); scale = approx. 5X

0.275 (6.99)

0.050 (1.27)

0.020 (0.51)
8 PLCS

Pad Layout

Dimensions: inches (mm); scale = approx. 5X

0.160 (4.05)

HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

HCPL-0900, HCPL-0930, and HCPL-0931 Small Outline SO-8 Package

Broadcom AV02-0137EN

6

HCPL-9000/-0900, -9030/-0930,

0.049 (1.24)

0.017 (0.43)

0.022 (0.56)

0.292 (7.42)

0.299 (7.59)

0.007 (0.18)

0.010 (0.25)

0.260 (6.60)

0.280 (7.11)

0.033 (0.85)

0.043 (1.10)

0.007 (0.2)

0.013 (0.3)

Pin 1 identied by

either an indent

or a marked dot

0.08 (2.0)

0.10 (2.5)

0.397 (10.08)

0.413 (10.49)

0.394 (10.00)

0.092 (2.34)

0.105 (2.67)

0.004 (0.1)

0.012 (0.3)

0.016 (0.4)

0.050 (1.3)

0.051 (1.30)

NOTE:

Pin spacing is a basic

dimension; tolerances
do not accumulate

0.013 (0.3)

0.020 (0.5)

Dimensions: inches (mm); scale = approx. 5X

0.419 (10.64)

0.050 (1.27)

0.449 (11.40)

0.020 (0.51)
16 PLCS

Pad Layout

Dimensions: inches (mm); scale = approx. 5X

0.317 (8.05)

HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

HCPL-900J, HCPL-901J, and HCPL-902J Wide Body SOIC-16 Package

Broadcom AV02-0137EN

7

HCPL-9000/-0900, -9030/-0930,

0.386 (9.8)

0.394 (10.0)

0.049 (1.24)

0.007 (0.2)

0.013 (0.3)

Pin 1 identified

by either an

indent or a

marked dot

0.004 (0.1)

0.012 (0.3)

0.016 (0.4)

0.050 (1.3)

0.051 (1.30)

NOTE:

Pin spacing is a basic

dimension; tolerances
do not accumulate

0.054 (1.4)

0.072 (1.8)

0.228 (5.8)

0.244 (6.2)

0.150 (3.81)

0.157 (3.99)

0.055 (1.40)

0.062 (1.58)

0.013 (0.3)

0.020 (0.5)

NOM

Dimensions: inches (mm); scale = approx. 5X

0.050 (1.27)

0.275 (6.99)

0.020 (0.51)
16 PLCS

Pad Layout

Dimensions: inches (mm); scale = approx. 5X

0.160 (4.05)

HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

HCPL-090J, HCPL-091J, and HCPL-092J Narrow Body SOIC-16 Package

Broadcom AV02-0137EN

8

HCPL-9000/-0900, -9030/-0930,
HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

Package Characteristics

Parameter Symbol Min. Typ. Max. Unit Test Conditions

Capacitance (Input-Output)

a

Single Channel — 1.1 —

Dual Channel — 2.0 —

Quad Channel — 4.0 —

Thermal Resistance θ

8-Pin PDIP — 54 —

8-Pin SOIC — 144 —

16-Pin SOIC Narrow Body — 41 —

16-Pin SOIC Wide Body — 28 —

Package Power Dissipation P

8-Pin PDIP — — 150

8-Pin SOIC — — 150

16-Pin SOIC Narrow Body — — 150

16-Pin SOIC Wide Body — — 150

a. Single- and dual-channel device are considered two-terminal devices: pins 1 to 4 shorted and pins 5 to 8 shorted. Quad-channel devices are

considered two-terminal devices: pins 1 to 8 shorted and pins 9 to 16 shorted.

Note: This product has been tested for electrostatic sensitivity to the limits stated in the specifications. However, Broadcom recommends that all

integrated circuits be handled with appropriate care to avoid damage. Damage caused by inappropriate handling or storage could range
from performance degradation to complete failure.

C

I-O

JCT

PD

pF f = 1 MHz.

°C/W Thermocouple located at center

underside of package.

mW

Insulation and Safety Related Specifications

Parameter Condition Min. Typ. Max. Unit

Barrier Resistance || Capacitance Ω || pF

Single Channel —

Dual Channel —

Quad Channel —

>1014 || 3

>1014 || 3

14

|| 7

>10

Creepage Distance (External) mm

8-Pin PDIP 7.04 — —

8-Pin SOIC 4.04 — —

16-Pin SOIC Narrow Body 4.03 — —

16-Pin SOIC Wide Body 8.08 — —

Leakage Current 240 V

, 60 Hz — 0.2 — μA

rms

—

—

—

Broadcom AV02-0137EN

9

HCPL-9000/-0900, -9030/-0930,
HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

IEC61010-1 Insulation Characteristics

Description Symbol

HCPL-0900
HCPL-0930
HCPL-0931
HCPL-090J
HCPL-091J
HCPL-092J

HCPL-9000
HCPL-9030
HCPL-9031
HCPL-900J
HCPL-901J
HCPL-902J

Installation Classification per DIN VDE 0110/1.89, Table 1

For Rated Mains Voltage

For Rated Mains Voltage

≤ 150 V

≤ 300 V

rms

rms

I – III I – IV

I – III

Pollution Degree (DIN VDE 0110/1.89) 2 2

Maximum Working Insulation Voltage V

IORM

150 300 V

Soldering Profile

The recommended reflow soldering conditions are per JEDEC Standard J-STD-020 (latest revision).

Absolute Maximum Ratings

Parameter Symbol Min. Max. Unit

Storage Temperature T

Ambient Operating Temperature

a

Supply Voltage V

Input Voltage V

Voltage Output Enable (HCPL-9000/-0900) V

Output Voltage V

Output Current Drive I

DD1

S

T

A

, V

IN

OE

OUT

OUT

DD2

Lead Solder Temperature (10s) — 260 °C

ESD 2 kV Human Body Model

a. Absolute maximum ambient operating temperature means the device will not be damaged if operated under these conditions. It does not

guarantee performance.

–55 150 °C

–55 125 °C

–0.5 7 V

–0.5 V

–0.5 V

–0.5 V

+ 0.5 V

DD1

+ 0.5 V

DD2

+ 0.5 V

DD2

—10mA

Unit

rms

Recommended Operating Conditions

Parameter Symbol Min. Max. Unit

Ambient Operating Temperature T

Supply Voltage V

Logic High Input Voltage V

Logic Low Input Voltage V

Input Signal Rise and Fall Times tIR, t

Note: This product has been tested for electrostatic sensitivity to the limits stated in the specifications. However, Broadcom recommends that all

integrated circuits be handled with appropriate care to avoid damage. Damage caused by inappropriate handling or storage could range

Broadcom AV02-0137EN

DD1

A

, V

IH

IL

DD2

IF

–40 100 °C

3.0 5.5 V

2.4 V

DD1

V

00.8V

—1μs

10

HCPL-9000/-0900, -9030/-0930,
HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

from performance degradation to complete failure.

3.3V Operation: Electrical Specifications

Test conditions that are not specified can be anywhere within the recommended operating range. All typical specifications
are at T

Quiescent Supply Current 1 I

Quiescent Supply Current 2 I

Logic Input Current I

Logic High Output Voltage V

Logic Low Output Voltage V

Switching Specifications

= +25°C, V

A

DD1

= V

DD2

= +3.3V.

Parameter Symbol Min. Typ . Max. Unit Test Conditions

DD1

HCPL-9000/-0900 — 0.008 0.01

HCPL-9030/-0930 — 0.008 0.01

HCPL-9031/-0931 — 1.5 2.0

HCPL-900J/-090J — 0.018 0.02

HCPL-901J/-091J — 3.3 4.0

HCPL-902J/-092J — 1.5 2.0

DD2

HCPL-9000/-0900 — 3.3 4.0

HCPL-9030/-0930 — 3.3 4.0

HCPL-9031/-0931 — 1.5 2.0

HCPL-900J/-090J — 5.5 8.0

HCPL-901J/-091J — 3.3 4.0

HCPL-902J/-092J — 3.0 6.0

IN

OH

OL

–10 — 10 µA

V

DD2

0.8 * V

– 0.1 V

DD2VDD2

DD2

– 0.5 — V I

—VI

—00.1VI

—0.50.8VI

mA VIN = 0V

mA VIN = 0V

= –20 µA, VIN = V

OUT

= –4 mA, VIN = V

OUT

= 20 µA, VIN = V

OUT

= 4 mA, VIN = V

OUT

IH

IH

IL

IL

Broadcom AV02-0137EN

11

HCPL-9000/-0900, -9030/-0930,
HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

Parameter Symbol Min. Typ . Max. Unit Test Conditions

Maximum Data Rate 100 110 — MBd CL = 15 pF

Clock Frequency fmax — — 50 MHz

Propagation Delay Time to Logic Low Output t

Propagation Delay Time to Logic High Output t

Pulse Width t

Pulse Width Distortiona |t

Propagation Delay Skew

PHL

b

– t

PLH

|

|PWD| — 2 3 ns

Output Rise Time (10% to 90%) t

Output Fall Time (10% to 90%) t

PHL

PLH

t

PSK

PW

R

F

—1218ns

—1218ns

10 — — ns

—4 6ns

—2 4ns

—2 4ns

Propagation Delay Enable to Output
(Single Channel)

High to High Impedance t

Low to High Impedance t

High Impedance to High t

High Impedance to Low t

Channel-to-Channel Skew

PHZ

PLZ

PZH

PZL

t

CSK

—3 5ns

—3 5ns

—3 5ns

—3 5ns

—2 3ns

(Dual and Quad Channels)

Common Mode Transient Immunity

(Output Logic High or Logic Low)

a. PWD is defined as |t

is equal to the magnitude of the worst-case difference in t

b. t

PSK

is the maximum common mode voltage slew rate that can be sustained while maintaining V

c. CM

H

common mode input voltage that can be sustained while maintaining V
and falling common mode voltage edges.

Note: This product has been tested for electrostatic sensitivity to the limits stated in the specifications. However, Broadcom recommends that all

integrated circuits be handled with appropriate care to avoid damage. Damage caused by inappropriate handling or storage could range
from performance degradation to complete failure.

PHL

c

– t

|. %PWD is equal to the PWD divided by the pulse width.

PLH

|CMH|,

|CM

L

|

15 18 — kV/µs V

PHL

and/or t

that will be seen between units at 25°C.

PLH

> 0.8V

< 0.8V. The common mode voltage slew rates apply to both rising

OUT

OUT

. CML is the maximum

DD2

= 1000V

cm

5V Operation: Electrical Specifications

Test conditions that are not specified can be anywhere within the recommended operating range. All typical specifications
are at T

Quiescent Supply Current 1 I

Broadcom AV02-0137EN

= +25°C, V

A

DD1

= V

DD2

= +5.0V.

Parameter Symbol Min. Typ. Max. Unit Test Conditions

DD1

HCPL-9000/-0900 — 0.012 0.018

HCPL-9030/-0930 — 0.012 0.018

HCPL-9031/-0931 — 2.5 3.0

HCPL-900J/-090J — 0.024 0.036

HCPL-901J/-091J — 5.0 6.0

HCPL-902J/-092J — 2.5 3.0

mA VIN = 0V

12

HCPL-9000/-0900, -9030/-0930,
HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

Parameter Symbol Min. Typ. Max. Unit Test Conditions

Quiescent Supply Current 2 I

DD2

mA VIN = 0V

HCPL-9000/-0900 — 5.0 6.0

HCPL-9030/-0930 — 5.0 6.0

HCPL-9031/-0931 — 2.5 3.0

HCPL-900J/-090J — 8.0 12.0

HCPL-901J/-091J — 5.0 6.0

HCPL-902J/-092J — 6.0 9.0

Logic Input Current I

Logic High Output Voltage V

Logic Low Output Voltage V

IN

OH

OL

–10 — 10 µA

V

– 0.1 V

DD2

0.8 * V

DD2VDD2

DD2

– 0.5 — V I

—00.1VI

—0.50.8VI

—VI

OUT

OUT

OUT

OUT

= –20 µA, VIN = V

= –4 mA, VIN = V

= 20 µA, VIN = V

= 4 mA, VIN = V

IH

IH

IL

IL

Switching Specifications

Maximum Data Rate 100 110 — MBd C

= 15 pF

L

Clock Frequency fmax — — 50 MHz

Propagation Delay Time to Logic Low Output t

Propagation Delay Time to Logic High Output t

Pulse Width t

Pulse Width Distortion

a

Propagation Delay Skew

|t

– t

PLH

|

PHL

b

|PWD| — 2 3 ns

Output Rise Time (10% to 90%) t

Output Fall Time (10% to 90%) t

PHL

PLH

t

PSK

PW

R

F

—1015ns

—1015ns

10 — — ns

—46ns

—13ns

—13ns

Propagation Delay Enable to Output
(Single Channel)

High to High Impedance t

Low to High Impedance t

High Impedance to High t

High Impedance to Low t

Channel-to-Channel Skew

PHZ

PLZ

PZH

PZL

t

CSK

—35ns

—35ns

—35ns

—35ns

—23ns

(Dual and Quad Channels)

Common Mode Transient Immunity

(Output Logic High or Logic Low)

a. PWD is defined as |t

is equal to the magnitude of the worst-case difference in t

b. t

PSK

is the maximum common mode voltage slew rate that can be sustained while maintaining V

c. CM

H

common mode input voltage that can be sustained while maintaining V
and falling common mode voltage edges.

Note: This product has been tested for electrostatic sensitivity to the limits stated in the specifications. However, Broadcom recommends that all

integrated circuits be handled with appropriate care to avoid damage. Damage caused by inappropriate handling or storage could range
from performance degradation to complete failure.

PHL

c

– t

|. %PWD is equal to the PWD divided by the pulse width.

PLH

|CMH|,

|CM

L

|

15 18 — kV/µs V

PHL

and/or t

that will be seen between units at 25°C.

PLH

> 0.8V

< 0.8V. The common mode voltage slew rates apply to both rising

OUT

OUT

. CML is the maximum

DD2

= 1000V

cm

Broadcom AV02-0137EN

13

HCPL-9000/-0900, -9030/-0930,
HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

Mixed 5V/3.3V or 3.3V/5V Operation: Electrical Specifications

Test conditions that are not specified can be anywhere within the recommended operating range. All typical specifications
are at T

= +25°C, V

A

Parameter Symbol Min. Typ. Max. Unit Test Conditions

Quiescent Supply Current 1 I

HCPL-9000/-0900 — 0.012 0.018

HCPL-9030/-0930 — 0.012 0.018

HCPL-9031/-0931 — 2.5 3.0

HCPL-900J/-090J — 0.024 0.036

HCPL-901J/-091J — 5.0 6.0

HCPL-902J/-092J — 2.5 3.0

Quiescent Supply Current 2 I

HCPL-9000/-0900 — 5.0 6.0

HCPL-9030/-0930 — 5.0 6.0

HCPL-9031/-0931 — 2.5 3.0

HCPL-900J/-090J — 8.0 12.0

HCPL-901J/-091J — 5.0 6.0

HCPL-902J/-092J — 6.0 9.0

Logic Input Current I

Logic High Output Voltage V

Logic Low Output Voltage V

Switching Specifications

Maximum Data Rate 100 110 — MBd C

Clock Frequency fmax — — 50 MHz

Propagation Delay Time to Logic Low Output t

Propagation Delay Time to Logic High Output t

Pulse Width t

Pulse Width Distortion

Propagation Delay Skew

Output Rise Time (10% to 90%) t

Output Fall Time (10% to 90%) t

Propagation Delay Enable to Output
(Single Channel)

High to High Impedance t

Low to High Impedance t

High Impedance to High t

High Impedance to Low t

Channel-to-Channel Skew
(Dual and Quad Channels)

= +5.0V, V

DD1

a

|t

PHL

b

– t

PLH

= +3.3V.

DD2

DD1

DD2

IN

OH

OL

–10 — 10 µA

V

DD2

0.8 * V

– 0.1 V

DD2VDD2

DD2

– 0.5 — V I

—VI

—00.1VI

—0.50.8VI

PHL

PLH

PW

|

|PWD| — 2 3 ns

t

PSK

R

F

PHZ

PLZ

PZH

PZL

t

CSK

—1218ns

—1218ns

10 — — ns

—46ns

—24ns

—24ns

—35ns

—35ns

—35ns

—35ns

—23ns

mA VIN = 0V

mA VIN = 0V

= –20 µA, VIN = V

OUT

= –4 mA, VIN = V

OUT

= 20 µA, VIN = V

OUT

= 4 mA, VIN = V

OUT

= 15 pF

L

IH

IH

IL

IL

Broadcom AV02-0137EN

14

HCPL-9000/-0900, -9030/-0930,

1

2

3

45

6

7

8

V

DD1

IN

1

C1

C2

Note: C1, C2 = 47 nF ceramic capacitors.

NC

GND

1

V

DD2

OUT

1

GND

2

HCPL-9000

or

HCPL-0900

V

OE

HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

Parameter Symbol Min. Typ. Max. Unit Test Conditions

Common Mode Transient Immunity

(Output Logic High or Logic Low)

a. PWD is defined as |t

is equal to the magnitude of the worst-case difference in t

b. t

PSK

is the maximum common mode voltage slew rate that can be sustained while maintaining V

c. CM

H

mode input voltage that can be sustained while maintaining V
common mode voltage edges.

Note: This product has been tested for electrostatic sensitivity to the limits stated in the specifications. However, Broadcom recommends that all

integrated circuits be handled with appropriate care to avoid damage. Damage caused by inappropriate handling or storage could range
from performance degradation to complete failure.

PHL

c

– t

|. %PWD is equal to the PWD divided by the pulse width.

PLH

|CMH|,

|CM

L

|

15 18 kV/µs V

OUT

Bypassing and PC Board Layout

= 1000V

The HCPL-90xx and HCPL-09xx digital isolators are
extremely easy to use. No external interface circuitry is
required because the isolators use high-speed CMOS IC

and/or t

PHL

< 0.8V. The common mode voltage slew rates apply to both rising and falling

that will be seen between units at 25°C.

PLH

technology allowing CMOS logic to be connected directly to

> 0.8V

the inputs and outputs. As shown in Figure 1, the only

OUT

DD2

external components required for proper operation are low
ESR 47 nF ceramic capacitors for decoupling the power
supplies. Ground planes for both GND
highly recommended for data rates above 10 Mb/s.

cm

. CML is the maximum common

and GND2 are

1

Capacitors must be located as close as possible to the V
pins.

Application Information

Figure 1: Functional Diagram of Single-Channel HCPL-0900
or HCPL-0900

Power Consumption

The HCPL-90xx and HCPL-09xx CMOS digital isolators
achieves low power consumption from the manner by which
they transmit data across isolation barrier. By detecting the
edge transitions of the input logic signal and converting this
to a narrow current pulse, which drives the isolation barrier,
the isolator then latches the input logic state in the output
latch. Since the current pulses are narrow, about 2.5 ns
wide, the power consumption is independent of mark-to­space ratio and solely dependent on frequency.

DD

The approximate power supply current per channel is:

I(Input) = 40(f/fmax)(1/4) mA

where f = operating frequency, fmax = 50 MHz.

Signal Status on Start-up and Shut Down

To minimize power dissipation, the input signals to the
channels of HCPL-90xx and HCPL-09xx digital isolators are
differentiated and then latched on the output side of the
isolation barrier to reconstruct the signal. This could result in
an ambiguous output state depending on power up,
shutdown, and power loss sequencing. Therefore, the
designer should consider the inclusion of an initialization
signal in this start-up circuit. Initialization consists of toggling
the input either high then low or low then high.

Broadcom AV02-0137EN

15

HCPL-9000/-0900, -9030/-0930,

INPUT

O

2.5 V CMOS

0 V

V

OH

V

OL

V

OUT

V

IN

t

PLH

t

PHL

50%

10%

90%

90%

10%

V

IN

V

OUT

V

OUT

V

IN

t

PSK

50%

50%

2.5 V

CMOS

2.5 V
CMOS

DATA

DATA

INPUTS

CLOCK

OUTPUTS

CLOCK

t

PSK

t

PSK

HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

Propagation Delay, Pulse Width Distortion and Propagation Delay Skew

Propagation Delay is a figure of merit, which describes how
quickly a logic signal propagates through a system as
illustrated in Figure 2.

Figure 2: Timing Diagram to Illustrate Propagation Delay, t
and t

PHL

UTPUT

The propagation delay from low to high, t

, is the amount

PLH

of time required for an input signal to propagate to the
output, causing the output to change from low to high.
Similarly, the propagation delay from high to low, t

PHL

amount of time required for the input signal to propagate to
the output, causing the output to change from high to low.

PLH

5 V CMOS

, is the

propagation delays, either t

PLH

or t

, among two or more

PHL

channels within a single device (applicable to dual and quad
channel devices) that are operating under the same
conditions.

As illustrated in Figure 3, if the inputs of two or more devices
are switched either ON or OFF at the same time, t
difference between the minimum propagation delay, either
t

or t

PLH

t

PLH

or t

Figure 3: Timing Diagram to Illustrate Propagation Delay
Skew

, and the maximum propagation delay, either

PHL

.

PHL

PSK

is the

Pulse Width Distortion, PWD, is the difference between t
and t

and often determines the maximum data rate

PLH

PHL

capability of a transmission system. PWD can be expressed
in percent by dividing the PWD (in ns) by the minimum pulse
width (in ns) being transmitted. Typically, PWD on the order
of 20% to 30% of the minimum pulse width is tolerable.

Propagation Delay Skew, t
Skew, t

, are critical parameters to consider in parallel

CSK

, and Channel-to-Channel

PSK

data transmission applications where synchronization of
signals on parallel data lines is a concern. If the parallel data
is being sent through channels of the digital isolators,
differences in propagation delays will cause the data to
arrive at the outputs of the digital isolators at different times.
If this difference in propagation delay is large enough, it will
limit the maximum transmission rate at which parallel data
can be sent through the digital isolators.

t

is defined as the difference between the minimum and

PSK

maximum propagation delays, either t
two or more devices that are operating under the same

PLH

or t

, among

PHL

conditions (i.e., the same drive current, supply voltage,
output load, and operating temperature). t
the difference between the minimum and maximum

is defined as

CSK

As mentioned previously, t

, can determine the maximum

PSK

parallel data transmission rate. Figure 4 shows the timing
diagram of a typical parallel data transmission application
with both the clock and data lines being sent through the
digital isolators. The figure shows data and clock signals at
the inputs and outputs of the digital isolators. In this case,
the data is clocked off the rising edge of the clock.

Figure 4: Parallel Data Transmission

Broadcom AV02-0137EN

16

HCPL-9000/-0900, -9030/-0930,

50%

50%

90%

10% 10%

90%

V

IN

V

OUT

V

OE

t

PW

t

PLZ

t

PZH

t

PHZ

t

PZL

t

F

t

R

tPW Minimum Pulse Width t

PHZ

Propagation Delay, High to High Impedance

t

PLZ

Propagation Delay, Low to High Impedance t

PZL

Propagation Delay, High Impedance to Low

t

PZH

Propagation Delay, High Impedance to High tR Rise Time

t

F

Fall Time

HCPL-9031/-0931, -900J/-090J,
HCPL-901J/-091J, -902J/-092J Data Sheet High-Speed Digital Isolators

Propagation delay skew represents the uncertainty of where an edge might be after being sent through a digital isolator.

Figure 4 shows that there will be uncertainty in both the data and clock lines. It is important that these two areas of

uncertainty not overlap. Otherwise, the clock signal might arrive before all of the data outputs have settled, or some of the
data outputs might start to change before the clock signal has arrived. From these considerations, the absolute minimum
pulse width that can be sent through digital isolators in a parallel application is twice t

. A cautious design should use a

PSK

slightly longer pulse width to ensure that any additional uncertainty in the rest of the circuit does not cause a problem.

Figure 5 shows the minimum pulse width, rise and fall time, and propagation delay enable to output waveforms for

HCPL-9000 or HCPL-0900.

Figure 5: Timing Diagram to Illustrate the Minimum Pulse Width, Rise and Fall Time, and Propagation Delay Enable to Output
Waveforms for HCPL9000 or HCPL-0900

Broadcom AV02-0137EN

17

Copyright © 2018–2022 Broadcom. All Rights Reserved. The term “Broadcom” refers to Broadcom Inc. and/or its
subsidiaries. For more information, go to www.broadcom.com. All trademarks, trade names, service marks, and logos
referenced herein belong to their respective companies.

Broadcom reserves the right to make changes without further notice to any products or data herein to improve reliability,
function, or design. Information furnished by Broadcom is believed to be accurate and reliable. However, Broadcom does
not assume any liability arising out of the application or use of this information, nor the application or use of any product or
circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
