Chapter 1.
Getting Started
Product Features 3
Tips 4
Before You Start 5
Safety Precautions 8
Proper Posture During Computer Use 21
Overview 24
Turning the Computer On and O 32
Product Features
Chapter 1
Getting Started
3
A mini notebook with excellent
portability and usability
The mini notebook that is so compact that t
it can be put into a handbag and easily used
anywhere.
Environmentally-Friendly Eco Design
This is an environmentally friendly system t
designed in accordance with international
environmental specications regarding the
use of environmentally friendly materials and
the reduction of hazardous materials.
The system ensures minimal noise by verifying t
the noise level on the basis of the noise levels
of everyday life.
Fast Start
You do not need to wait a long time for the t
computer to boot up, because it boots up
quickly once you press the Power button.
(Optional)
Experience a netbook that is more convenient t
to use with the Samsung Fast Start solution.
(Optional)
Samsung’s Proprietary Software
Using Easy Content Share, you can view video, t
music and photos from your PC on the TV.
(Optional)
Using Samsung Recovery Solution, you can t
resolve problems easily and quickly and restore
the PC to the state when it was purchased.
(Optional)
Optional items may be changed or may not be provided
depending on the computer model.
Tips
T
Tip
The computer is not turned on or does not respond
and displays a blank screen.
T
Chapter 1
Chapter 1.
Getting Started
Getting Started
I want to connect an external monitor, TV or projector.
4
4
A
T
A
T
Restore the computer using Samsung Recovery Solution.
1. Turn the computer on and press the F4 key when the
booting screen (SAMSUNG logo) appears.
2. The computer will boot up in restore mode after a short
while and Samsung Recovery Solution appears.
3. When the start menu screen appears, click Restore.
The keyboard Fn keys (shortcut keys) do not work.
Install Easy Display Manager and Easy Speedup
Manager.
I want to restore the computer to the state when it was
purchased.
A
T
A
Connect the display device and the computer with the
monitor and repeatedly press the F4 key while holding
down the Fn key.
How can I extend the battery usage time?
The battery usage time may be shortened if you recharge
the battery before it is completely discharged.
To resolve this problem, enter the BIOS Setup and select
Battery Calibration to discharge the battery completely
and then recharge the battery.
If you use the Samsung Recovery Solution function, you
A
can easily and quickly restore the computer to a previous
state even if you do not have a separate OS recovery DVD
or recovery CD.
For detailed information on a function,
refer to the corresponding section of the
User Manual.
Before You Start
Chapter 1
Getting Started
5
Before reading the User Guide, rst check the following
information.
Optional items, some devices and software referred to in t
the User Guide may not be provided and/or changed by
upgrade.
Note that the computer environment referred in the User
Guide may not be the same as your own environment.
The pictures used for the cover and the main body in the t
User Manual are those of the representative model of each
series and may dier from the actual appearance of the
product.
This guide decribes procedures for using both the mouse t
and the touchpad.
This manual has been written for the Windows operating t
system. The descriptions and gures may dier depending
on the installed operating system.
The User guide supplied with this computer may vary t
depending on your model.
Safety Precaution Notations
Icon Notation Description
Failing to follow instructions marked with
Warning
Caution
this symbol, may cause personal injury
and or fatality.
Failing to follow instructions marked with
this symbol, may cause slight injury to
yourself or damage your property.
Text Notations
Icon Notation Description
Using the software
The software described in the main text can be launched t
using the following menu path.
- Start > All Programs
- Start > All Programs > Samsung
When the programs are not installed, select t Samsung
Recovery Solution > System Software to install the
programs. (Only for models supplied with Samsung
Recovery Solution)
Caution
Content included in this section includes
information required about the function.
Content included in this section includes
Note
helpful information to use the function.
Before You Start
Chapter 1
Getting Started
6
Copyright
© 2010 Samsung Electronics Co., Ltd.
Samsung Electronics Co., Ltd. owns the copyright of this manual.
No part of this manual may be reproduced or transmitted in any
form or by any means, electronic or mechanical, without the
consent of Samsung Electronics Co., Ltd.
The information in this document is subject to change without
notice due to improving the performance of the product.
Samsung Electronics shall not be liable for any data loss. Please
take care to avoid losing any important data and backup your data
to prevent any such data loss.
Precautions for Operating System Support
If a problem occurs because of the reinstallation of other
operating systems(OS) or a previous version of a OS pre-installed
on this computer, or a software that does not support the OS, the
company will not provide technical support, a replacement or
refund, and if our service engineer visits you due to this problem,
a service charge will be applied.
Performance Restrictions
1 Online games and some games(3D,2D) may not be supported
and Full HD video and some high bit rate HD video playback
may be slow and stutter on this computer.
2 There is one memory slot provided on this computer. It
supports 2GB memory max. To upgrade to 2GB memory,
replace the current memory with a 2GB memory module.
Before You Start
Chapter 1
Getting Started
7
About the Product Capacity Representation
Standard
About HDD Capacity Representation
The capacity of the storage device (HDD, SSD) of the manufacturer
is calculated assuming that 1KB=1,000 Bytes.
However, the operating system (Windows) calculates the storage
device capacity assuming that 1KB=1,024 Bytes, and therefore the
capacity representation of the HDD in Windows is smaller than the
actual capacity due to the dierence in capacity calculation.
(E.g. For a 80GB HDD, Windows represents the capacity as 74.5GB,
80x1,000x1,000x1,000 byte/(1,024x1,024x1,024)byte = 74.505GB)
In addition, the capacity representation in Windows may be even
smaller because some programs such as Recovery Solution may
reside in a hidden area of the HDD.
About Memory Capacity Representation
The memory capacity reported in Windows is less than the actual
capacity of memory.
This is because BIOS or a video adapter uses a portion of memory
or claims it for further use.
(E.g. For 1GB(=1,024MB) memory installed, Windows may report
the capacity as 1,022MB or less)
For more information, refer to the Samsung Recovery Solution
section.
Safety Precautions
For your security and to prevent damage, please read the
following safety instructions carefully.
Since this is commonly applied to Samsung Computers, some
pictures may dier from actual products.
Warning
Chapter 1
Getting Started
Keep a distance of 15cm or more between
the computer and the wall and do not place
any objects between them.
This may increase the internal temperature of
the computer and may cause an injury.
8
Failing to follow instructions marked with this symbol may
cause personal injury and even fatality.
Installation Related
Do not install the product in places exposed
to humidity such as a bathrooms.
There is a danger of electric shock. Use the
product within the operating conditions
specied in the Manufacturers User Guide.
Keep the plastic bags out of the reach of
children.
There is a danger of suocation.
Do not install the computer on a slant or a
place prone to vibrations, or avoid using the
computer in that location for a long time.
This increases the risk that a malfunction or
damage to the product will occur.
Avoid exposing any part of your body to the
heat from the computer vent or AC adapter
for a long time when the computer is on.
Exposing a part of your body close to the heat
from the vent or AC adapter for long periods of
time may cause a burn.
Avoid blocking the vent at the bottom or
side of the computer when using it on a bed
or cushion.
If the vent is blocked, there is a danger of
damaging the computer or overheating the
inside of the computer.
NP Ver 2.4
Safety Precautions
Chapter 1
Getting Started
9
Warning
Failing to follow instructions marked with this symbol may
cause personal injury and even fatality.
Power Related
The power plug and wall outlet gures may dier
depending on the country specications and the product
model.
Do not touch the main plug or power cord
with wet hands.
There is a danger of electric shock.
Do not exceed the standard capacity
(voltage/current) of a multiplug or power
outlet extension when using it for the
product.
There is a danger of electric shock or re
hazard.
If the power cord or power outlet makes a
noise, disconnect the power cord from the
wall outlet and contact a service center.
There is a danger of electric shock or re
hazard.
Do not use a damaged or loose main plug or
power cord or power outlet.
There is a danger of electric shock or re
hazard.
Plug the power cord rmly into the power
outlet and AC adapter.
Failing to do so may cause re hazard.
Do not unplug the power cord out by
pulling the cable only.
If the cord is damaged, it may cause electric
shock.
Do not bend the power cord excessively or
do not place a heavy object over the power
cord. It is especially important to keep the
power cord out of reach of infants and pets.
If the cord is damaged, it may cause electric
shock or re.
Safety Precautions
Chapter 1
Getting Started
10
Warning
Failing to follow instructions marked with this symbol may
cause personal injury and even fatality.
Connect the power cord to an outlet or
multiple power plug (extended cable) with
a ground terminal.
Failing to do so may result in electric shock.
If water or another substance enters
the power input jack, AC adapter or the
computer, disconnect the power cord and
contact the service center.
Damage to the device within the computer
may cause electric shock or re hazard.
Keep the power cord or outlet clean so that
they are not covered with dust.
AC Adapter Usage Precautions
Connect the power cord to the AC adapter
rmly.
Otherwise, there is a danger of re due to an
incomplete contact.
Use only the AC adapter supplied with the
product.
Using another adapter may cause the screen to
icker.
Do not place heavy objects or step onto
the power cord or AC adapter to avoid
damaging the power cord or AC adapter.
If the cord is damaged, there is a danger of
electric shock or re.
Failing to do so may result in re.
Safety Precautions
Chapter 1
Getting Started
11
Warning
Failing to follow instructions marked with this symbol may
cause personal injury and even fatality.
Battery Usage Related
Please charge the battery fully before using the
computer for the rst time.
Keep the battery out of the reach of infants
and pets, as they could put the battery into
their mouths.
There is a danger of electric shock or choking.
Use an authorized battery and AC adapter
only.
Please use an authorized battery and adapter
approved by Samsung Electronics.
Unauthorized batteries and adapters may not
meet the proper safety requirements and may
cause problems or malfunctions and result in
an explosion or re.
Do not use the computer in a badly
ventilated location such as on bedding, on a
pillow or cushion, etc, and do not use it in a
location such as room with oor heating as
it may cause the computer to overheat.
Take care that the computer vents (on the side
or the bottom) are not blocked especially in
these environments. If the vents are blocked,
the computer may overheat and it may cause a
computer problem, or even an explosion.
Do not use the computer in a humid
location such as a bathroom or sauna.
Please use the computer within the
recommended temperature and humidity
range (10~32ºC, 20~80% RH).
Do not close the LCD panel and put the
computer into your bag to move it when it
is still turned on.
If you put the computer into your bag without
turning it o, the computer may overheat and
there is a danger of re. Shut the computer
down properly before moving it.
Safety Precautions
Chapter 1
Getting Started
12
Warning
Failing to follow instructions marked with this symbol may
cause personal injury and even fatality.
Never heat the battery or put the battery
into a re. Do not put or use the battery
in a hot location such as a sauna, inside a
vehicle exposed to the heat, and so on.
There is a danger of an explosion or re.
Take care not to allow metal objects such as
a key or clip to touch the battery terminal
(metal parts).
terminals, it may cause excessive current ow
and it may damage the battery, or result in a
re.
If liquid leaks out of the battery or there
is a funny smell coming from the battery,
remove the battery from the computer and
contact a service center.
There is a danger of an explosion or re.
To use the computer safely, replace a dead
battery with a new, authorized battery.
Usage Related
Disconnect all cables connected to the
computer before cleaning it. If you are
cleaning a notebook computer, remove the
battery.
There is a danger of electric shock or damage
to the product.
Do not connect a phone line connected to a
digital phone to the modem.
There is a danger of a electric shock, re or
damage to the product.
Do not place any container lled with water or
chemicals over or near the computer.
If water or chemicals enter the computer, this
may cause re or electric shock.
If the computer is broken or dropped,
disconnect the power cord and contact a
service center for a safety check.
Using a broken computer may cause electric
shock or re hazard.
Safety Precautions
Chapter 1
Getting Started
13
Warning
Failing to follow instructions marked with this symbol may
cause personal injury and even fatality.
Avoid direct sunlight when the computer
is in an air-tight location such as inside a
vehicle.
There is a danger of a re hazard. The computer
may overheat and also present opportunity to
thieves.
Do not use your notebook PC for long
periods of time while a part of your body
is making direct contact with it. The
temperature of the product may increase
during normal operation.
This may result in harming or burning your skin.
Upgrade Related
Never disassemble the power supply or AC
adapter.
There is a danger of electric shock.
When removing the RTC (Real Time Clock)
battery, keep it out of the reach of children
as they could touch and/or swallow it.
There is a danger of choking. If a child has
swallowed it, contact a doctor immediately.
Use only authorized parts (multiplug, battery and memory) and never
disassemble parts.
There is a danger of damaging the product,
electric shock or re hazard.
Shut down the computer and disconnect
all cables before disassembling the
computer. If there is a modem, disconnect
the phone line. If you are disassembling
notebook computer, make sure to remove
the battery.
Failing to do so, may cause electric shock.
Safety Precautions
Chapter 1
Getting Started
14
Warning
Failing to follow instructions marked with this symbol may
cause personal injury and even fatality.
Custody and Movement Related
Follow the instructions for the relevant
location (e.g. airplane, hospital, etc.) when
using a wireless communication device
(wireless LAN, Bluetooth, etc.).
Avoid exposing a drive to magnetic fields.
Security devices with magnetic fields include airport walk-through devices and security wands.
When carrying the notebook computer
with other items, such as the adapter,
mouse, books etc, take care not to press
anything against the notebook computer.
If a heavy object is pressed against the
notebook computer, a white spot or stain may
appear on the LCD. Therefore, take care not to
apply any pressure to the notebook.
In this case, place the notebook computer in
a separate compartment away from the other
objects.
The airport security devices that check carry-on luggage, such as conveyor belts, use
x-rays instead of magnetism and will not
damage a drive.
Safety Precautions
Chapter 1
Getting Started
15
Caution
Failing to follow instructions marked with this symbol may
cause slight injury or damage to the product.
Installation Related
Do not block the ports (holes), vents, etc. of the product and
do not insert objects.
Damage to a component within the computer may cause electric
shock or re.
When using the computer with it lying on its side, place it so
that the vents face upwards.
Failing to do so, may cause the internal temperature of the
computer to rise and the computer to malfunction or halt.
Do not place a heavy object over the product.
This may cause a problem with the computer. In addition, the
object may fall and cause injury, or damage the computer.
Battery Usage Related
Dispose of worn-out batteries properly.
There is a danger of re or explosion.t
The battery disposal method may dier depending on t
your country and region. Dispose of the used battery in an
appropriate way.
Do not throw or disassemble the battery and do not put it
into water.
This may cause an injury, re or explosion.
Use only a battery authorized by Samsung Electronics.
Failing to do so may cause an explosion.
Avoid contact with metal objects such as car keys or clips
when keeping or carrying a battery.
Contact with a metal may cause excessive current and a high
temperature and may damage the battery or cause a re.
Charge the battery according to the instructions in the manual.
Failing to do so, may cause an explosion or re from damage to
the product.
Do not heat the battery or expose it to heat (e.g. inside a
vehicle during the summer).
There is a danger of explosion or re.
Safety Precautions
Chapter 1
Getting Started
16
Caution
Failing to follow instructions marked with this symbol may
cause slight injury or damage to the product.
Usage Related
Do not place a candle, light cigar, etc. over or on the product.
There is a danger of re.
Use a wall outlet or multi-plug with a grounding part.
Failing to do so may cause electric shock hazard.
Make sure to have the product tested by a safety service
engineer after repairing the product.
Authorized Samsung Repair Centers will carry out safety checks
after a repair. Using a repaired product without testing it for
safety may cause an electric shock or re.
Connect only permitted devices to the connectors or ports
of the computer.
Failing to do so, may cause electric shock and re.
Close the LCD panel only after checking if the notebook
computer is turned o.
The temperature may rise and it may cause overheating and
deformation of the product.
Do not press the Eject Button while the Floppy Disk/CD-ROM
drive is in operation.
You might lose data and the disk might be suddenly ejected and
could cause an injury.
Take care not to drop the product while using it.
This may cause personal injury or loss of data.
Do not touch the antenna with electricity facility such as the
power outlet.
In case of lightning, immediately turn the system o,
disconnect the power cord from the wall outlet and phone
line from modem. Do not use a modem or phone.
There is a danger of electric shock or re.
Do not use your computer and AC-Adapter on your lap or
soft surfaces.
If the computer temperature increases, there is a danger of
burning yourself.
There is a danger of electric shock.
When handling computer parts, follow the instructions on
the manual supplied with the parts.
Failing to do so, may cause damage to the product.
Safety Precautions
Chapter 1
Getting Started
17
Caution
Failing to follow instructions marked with this symbol may
cause slight injury or damage to the product.
If the computer emits smoke, or there is a burning smell,
disconnect the power plug from the wall outlet and contact
a service center. If your computer is a notebook computer,
make sure to remove the battery.
There is a danger of re.
Do not use a damaged or modied CD/Floppy Disk.
There is a danger of damaging the product or personal injury.
Do not insert your ngers into the PC Card Slot.
There is a danger of injury or electric shock.
Use recommended computer cleansing solution when
cleaning the product and only use the computer when it is
completely dried.
Do not place your face close to the Optical Disk Drive tray
when it is operating.
There is a danger of injury due to an abrupt ejection.
Check CDs for cracks and damage prior to use.
It may damage the disc and cause disorder of device and injury of
user.
Failing to do so may cause electric shock or re.
Emergency disk eject method using paperclip should not
be used while the disk is in motion. Make sure to use the
emergency disk eject method only when the Optical Disk
Drive is stopped.
There is a danger of injury.
Safety Precautions
Chapter 1
Getting Started
18
Caution
Failing to follow instructions marked with this symbol may
cause slight injury or damage to the product.
Upgrade Related
Take care when touching the product or parts.
The device may be damaged or you may be injured.
Take care not to throw or drop a computer part or device.
This may cause injury or damage to the product.
Make sure to close the computer cover before connecting
the power after a reassembly.
There is a danger of electric shock if your body touches an
internal part.
Custody and Movement Related
When moving the product, turn the power o and separate
all connected cables rst.
The product might be damaged or users may trip over the cables.
For long periods of not using the notebook computer,
discharge the battery and preserve as it is detached.
The battery will be preserved at its best condition.
Do not operate or watch the computer while driving a
vehicle.
There is a danger of a trac accident. Please concentrate on
driving.
Use parts authorized by Samsung Electronics only.
Failing to do so, may cause re or damage the product.
Never disassemble or repair the product by yourself.
There is a danger of electric shock or re.
To connect a device that is not manufactured or authorized
by Samsung Electronics, enquire at your service center
before connecting the device.
There is a danger of damaging the product.
Safety Precautions
Chapter 1
Getting Started
19
Caution
Failing to follow instructions marked with this symbol may
cause slight injury or damage to the product.
Cautions on Preventing Data Loss
(Hard Disk Management)
Take care not to damage the data on a hard disk drive.
A hard disk drive is so sensitive to external impact that an t
external impact may cause loss of data on the surface of the
disk.
Take extra care, because moving the computer or an impact t
on the computer when it is turned on may damage the data of
the hard disk drive.
The company is not liable for any loss of data on the hard disk t
drive.
Causes that may damage the data of a hard disk drive and
the hard disk drive itself.
The data may be lost when an external impact is applied to the t
disk while disassembling or assembling the computer.
The data may be lost when the computer is turned o or reset t
by a power failure while the hard disk drive is operating.
The data may be lost and irrecoverable due to a computer virus t
infection.
The data may be lost if the power is turned o while running a t
program.
Moving or causing an impact to the computer while the hard t
disk drive is operating, may cause les to be corrupted or bad
sectors on the hard disk.
To prevent data loss due to damage to the hard disk drive,
please backup your data frequently.
Safety Precautions
Chapter 1
Getting Started
20

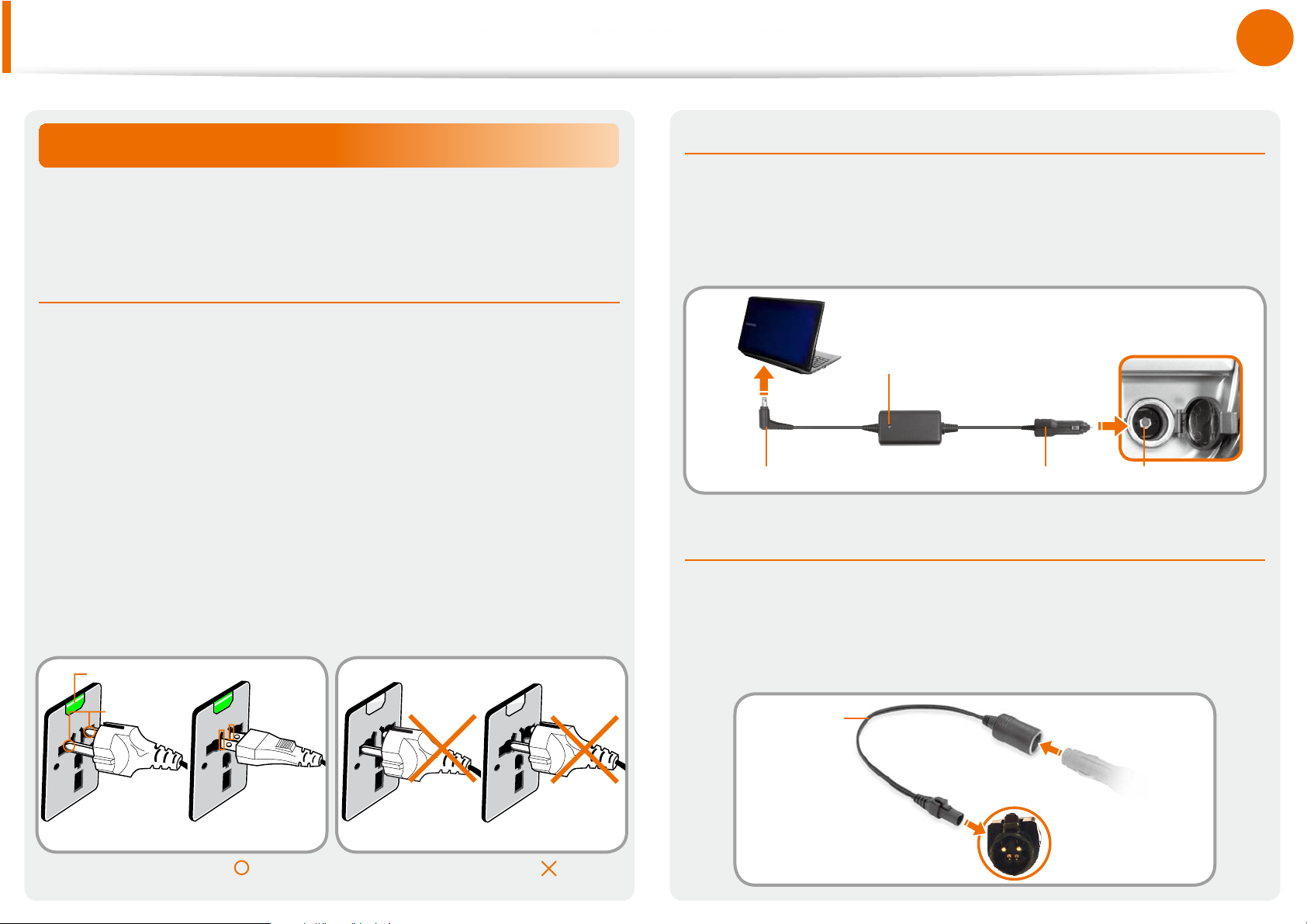

Using the power supply in an airplane
Since the power outlet type diers depending on the type of
airplane, connect the power appropriately.
When using the AC power plug
Connect the power plug pins perpendicular into the center of the
power outlet.
If the plug pins are not inserted into the center of the holes, the t
plug pins are only inserted up to half their length. In this case,
reconnect the power plug.
You have to insert the power plug into the outlet when the t
power indicator (LED) of the power outlet is lit green. If the
power is connected properly, the power indicator (LED)
remains green.
Otherwise, the power indicator (LED) is turned o. In this case,
unplug the power, check if the power indicator (LED) is green,
and then reconnect the power plug.
Power Indicator (LED)
Center
Holes
When using the auto adapter
When the cigar socket is provided, you have to use the auto
adapter (optional). Insert the cigar plug of the auto adapter into
the cigar socket and connect the DC plug of the auto adapter to
the power input port of the computer.
Auto Adapter
In-ight Cigar SocketCigar PlugDC Plug
When using the Airplane Charging Converter
Depending on the airplane, you have to use the auto adapter
and charging converter. Connect the airplane charging converter
(optional) to the auto adapter (optional) and then insert the
airplane power input jack into the power outlet.
Charging
Converter
Connect this end to
1
the auto adapter.
220V Power Plug 110V Power Plug
Good Example
Wrong Example
Connect the airplane power
input jack to the power
outlet of the airplane.
2
Proper Posture During Computer Use
Chapter 1
Getting Started
21
Maintaining a proper posture during computer use is very
important to prevent physical harm.
The following instructions are about maintaining a proper posture
during computer use developed through human engineering.
Please read and follow them carefully when using the computer.
Otherwise, the probability of (RSI: Repetitive Strain Injury) from
repeated operations may increase and serious physical harm may
be caused.
The instructions in this manual have been prepared so that t
they can be applied within the coverage of general users.
If the user is not included in the coverage, the t
recommendation is to be applied according to the user’s
needs.

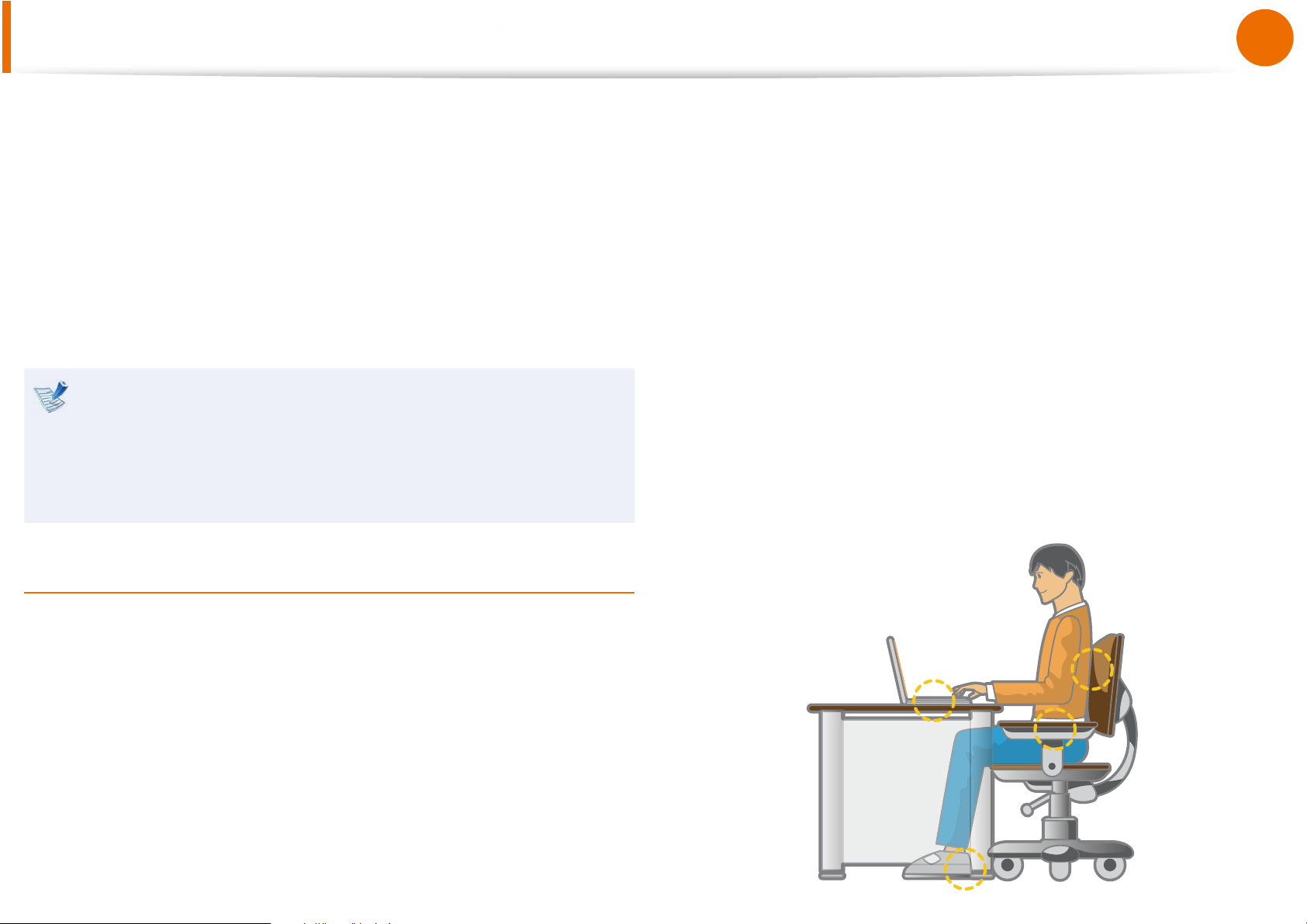

Do not use the computer while you are lying down, but only t
while you are sitting down.
Do not use the computer on your lap. If the computer t
temperature increases, there is a danger of burning yourself.
Work while keeping your waist straight.t
Use a chair with a comfortable back.t
Keep the center of your leg weight not on the chair but on t
your feet when you are sitting on a chair.
To use the computer while talking over the telephone, use a t
headset. Using the computer with the phone on your shoulder
is bad for posture.
Keep frequently used items within a comfortable work range t
(where you can reach them with your hands).
Proper Posture
Adjust the heights of desks and chairs appropriate to your
height.
The heights are to be adjusted so that your arm forms a right
angle when you place your hand over the keyboard while sitting
down on a chair.
Adjust the height of chair so that your heel is comfortably placed
on the oor.
Proper Posture During Computer Use
Chapter 1
Getting Started
22

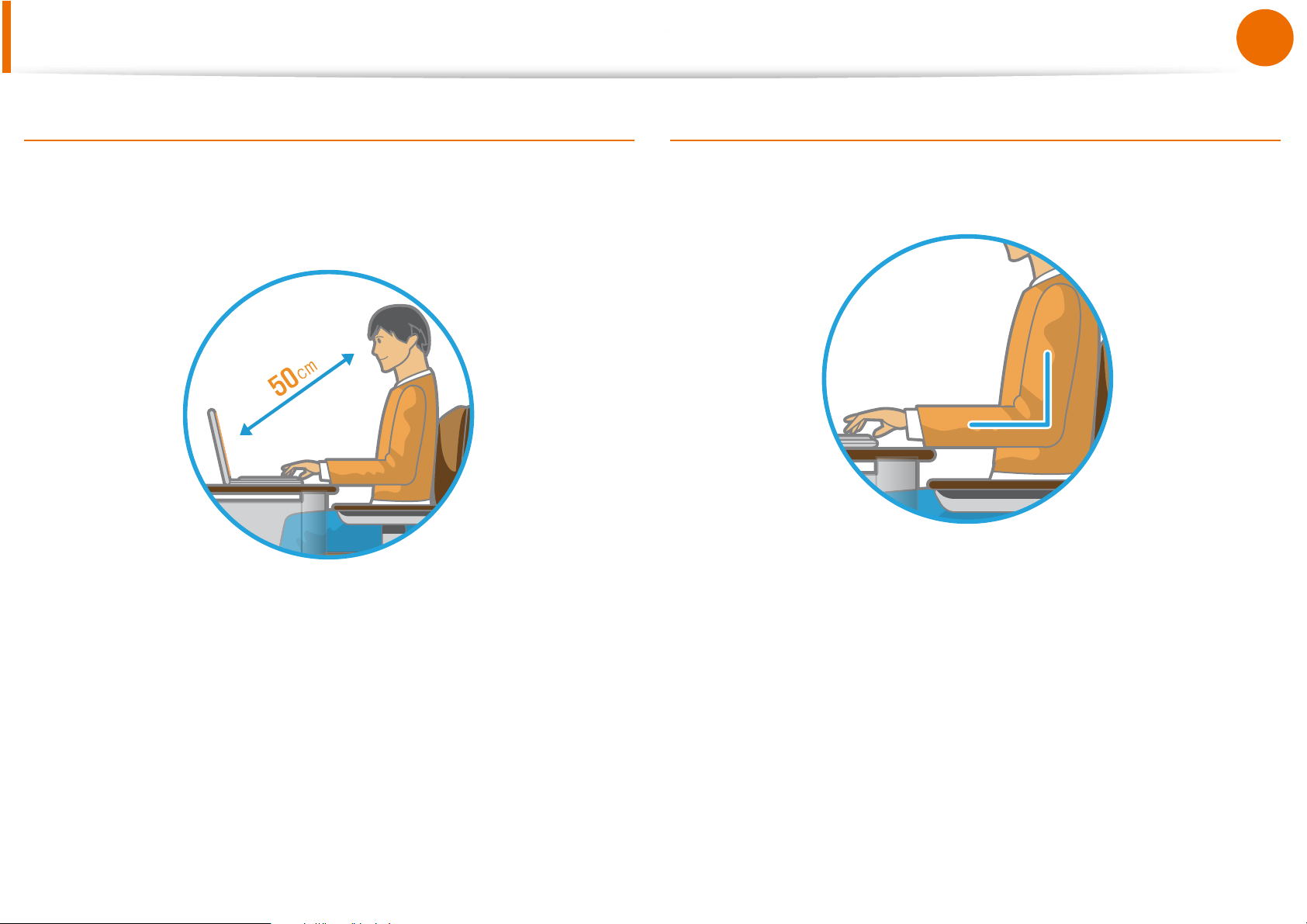

Eye Position
Keep the monitor or LCD away from your eyes by at least
50cm.
Hand Position
Keep your arm at a right angle as shown by the gure.
Adjust the height of the monitor and the LCD screen so that its t
top height is equal to or lower than your eyes.
Avoid setting the monitor and LCD excessively bright.t
Keep the monitor and LCD screen clean.t
If you wear glasses, clean them before using the computer.t
When entering contents printed on a paper into the computer, t
use a static paper holder so that the height of the paper is
almost equal to that of the monitor.
Keep the line from your elbow to your hand straight.t
Do not place your palm over the keyboard while typing.t
Do not hold the mouse with excessive force.t
Do not press the keyboard, touchpad or mouse with excessive t
force.
It is recommended connecting an external keyboard and t
mouse when using the computer for long periods of time.
Proper Posture During Computer Use
Chapter 1
Getting Started
23
Volume Control (Headphones and Speakers)

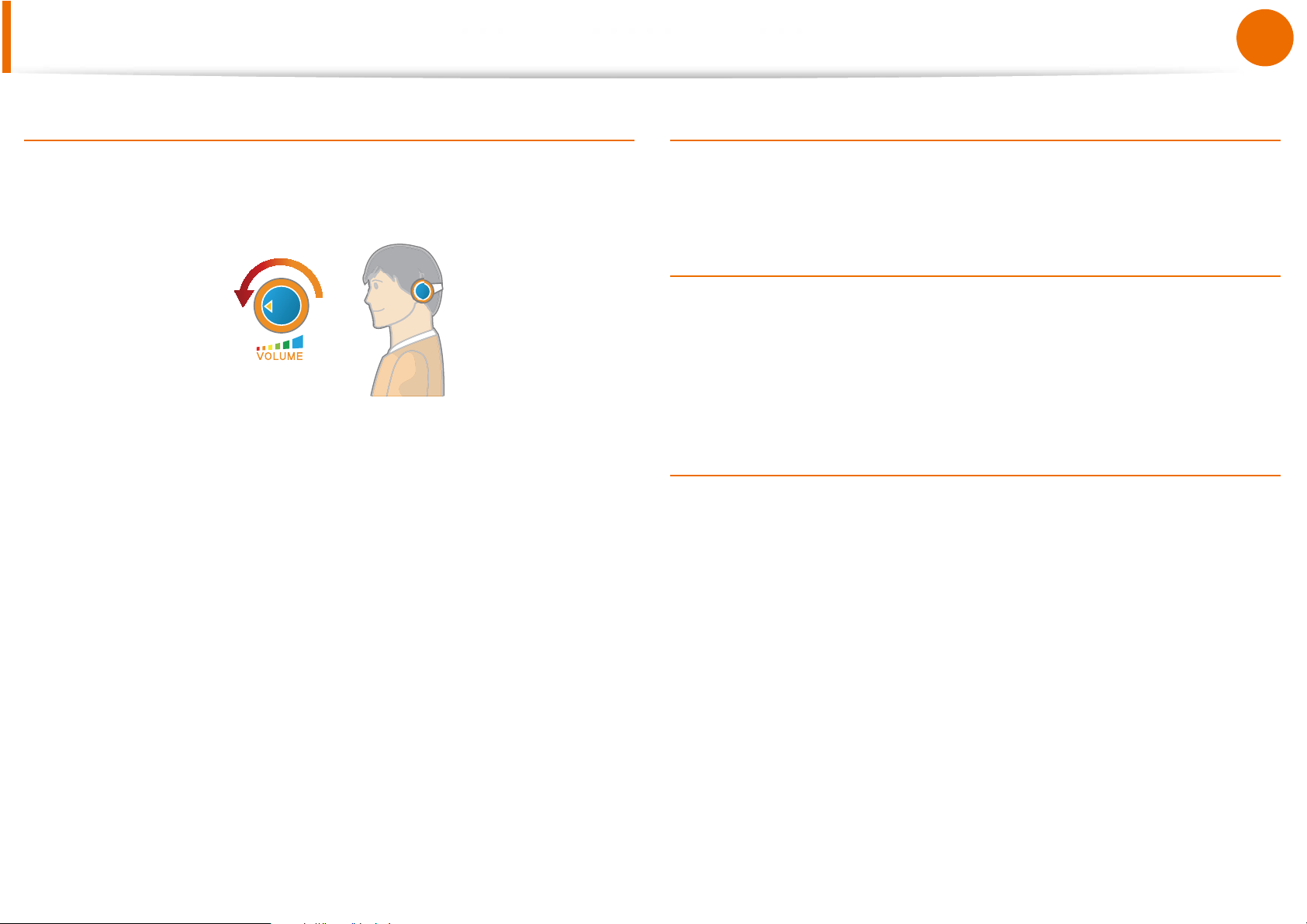

Check your volume rst to listen to music.
Check your
volume!
Check if the volume is too loud before using headphones.t
It is not recommended using headphones for long periods of t
time.
Any deviation from the equalizer default setting could cause t
Use Time (Break Time)
Take a break for 10 minutes or more after a 50-minute period t
when working for more than one hour.
Illumination
Do not use the computer in dark locations. The illumination t
level for computer use must be as bright so for reading a book.
Indirect illumination is recommended. Use a curtain to prevent t
reection on the LCD screen.
Operation Condition
Do not use the computer in hot and humid locations.t
Use the computer within the allowed temperature and t
humidity range specied in the User Guide.
hearing impairment.
The default setting can be changed through software and t
driver updates without your intervention. Please check the
equalizer default setting before rst usage.
Overview
Front View
Chapter 1
Getting Started
24
The pictures used for the cover and the main body in the t
User Manual are those of the representative model of each
series. Therefore the colors and appearance of the pictures
may dier from the actual appearance of the product
depending on the model.
The actual color and appearance of the computer may t
dier from the pictures used in this guide.
For N-Series models
Ź
Camera Lens
1
(Optional)
2 LCD The screen images are displayed here.
3 Keyboard
Touchpad/
4
Touchpad Buttons
1
2
5 Power Switch Turns the computer on or o.
Multi Card Slot
6
(Optional)
Microphone
7
(Optional)
Using this lens, you can take still pictures
and record video.
A device to enter data by pressing the
keys.
The touchpad and touchpad buttons
provide functions similar to the mouse
ball and buttons.
A card slot that supports SD card, SDHC
card, MMC card and SDXC card.
You can use the built-in microphone.
Shows the operating status of the
computer.

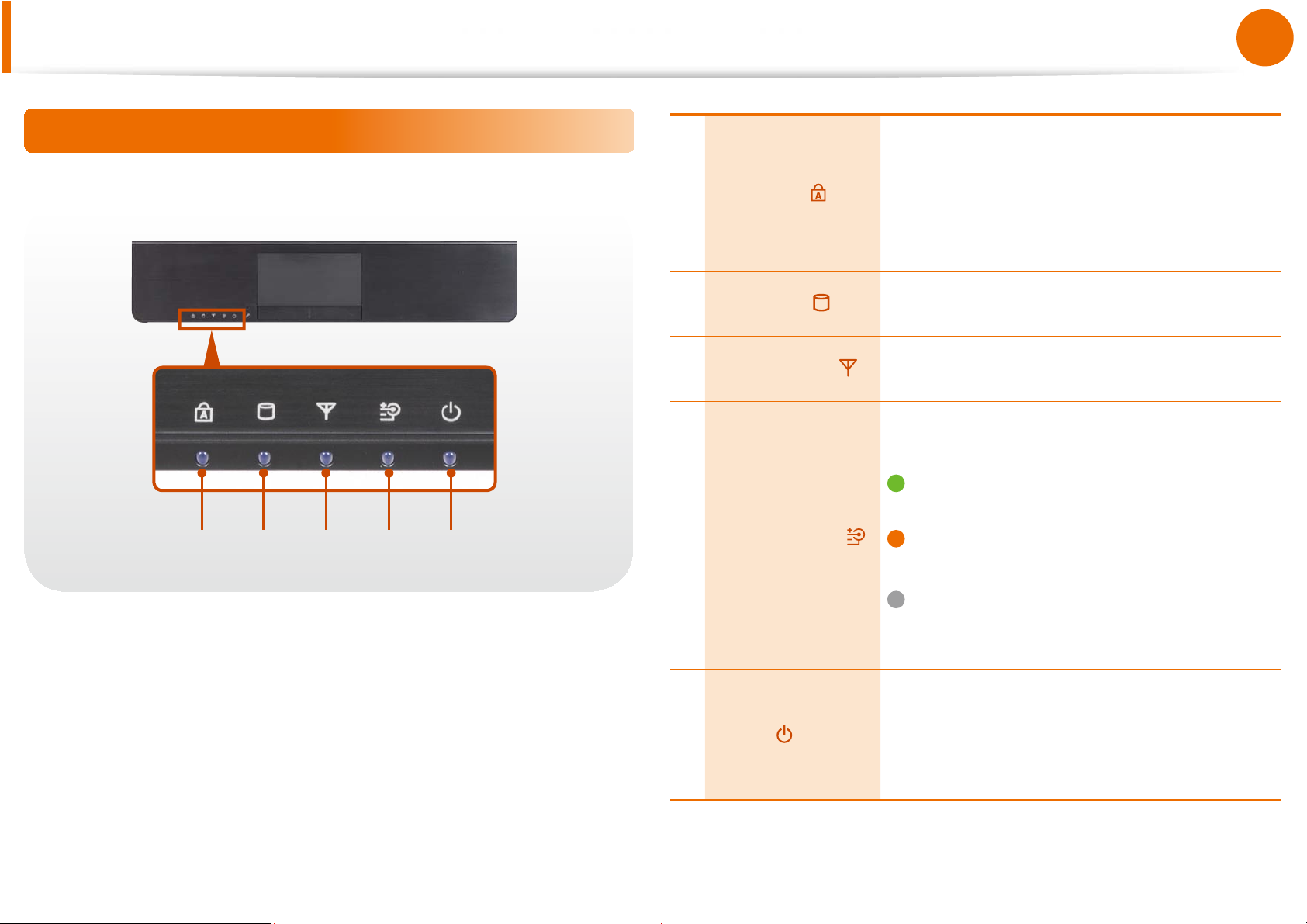

8 Status Indicators
3
Using the camera lens, web cam
4
7
8
6
5
Using the Cyberlink YouCam program (optional), you can
take pictures or record video by using the computer’s built-in
camera by adding the balloon talk or frame eect.
The corresponding operating LED is
lit when the corresponding function
operates.
Overview
For NF-Series models
Ź
1
Chapter 1
Getting Started
Camera Lens
1
(Optional)
2 LCD The screen images are displayed here.
3 Speaker A device used to generate sound.
Using this lens, you can take still pictures
and record video.
25
8
7
2
3
4
5
6
4 Power Button Turns the computer on or o.
5 Keyboard
Touchpad/
6
Touchpad Buttons
Microphone
7
(Optional)
8 Status Indicators
Using the camera lens, web cam
A device to enter data by pressing the
keys.
The touchpad and touchpad buttons
provide functions similar to the mouse
ball and buttons.
You can use the built-in microphone.
Shows the operating status of the
computer.
The corresponding operating LED is
lit when the corresponding function
operates.
Using the Cyberlink YouCam program (optional), you can
take pictures or record video by using the computer’s built-in
camera by adding the balloon talk or frame eect.
Overview
Chapter 1
Getting Started
26
Status Indicators
1 2345
1 Caps Lock
2 HDD/ODD
3 Wireless LAN
4 Charge Status
This turns on when the Caps Lock key is
pressed allowing capital letters to be typed
without holding the Shift button down.
On: Upper-case alphabetic input
O: Lower-case alphabetic input
This turns on when the hard disk is or ODD
being accessed.
This turns on when the wireless LAN is
operating.
This shows the power source and the
battery charge status.
Green: When the battery is fully
charged or the battery is not installed.
Orange: When the battery is being
charged.
5 Power
O: When the computer is running on
battery power without being connected
to AC adapter.
This shows the computer operating status.
On: When the computer is operating.
Blinks: When the computer is in Sleep
mode.
Overview

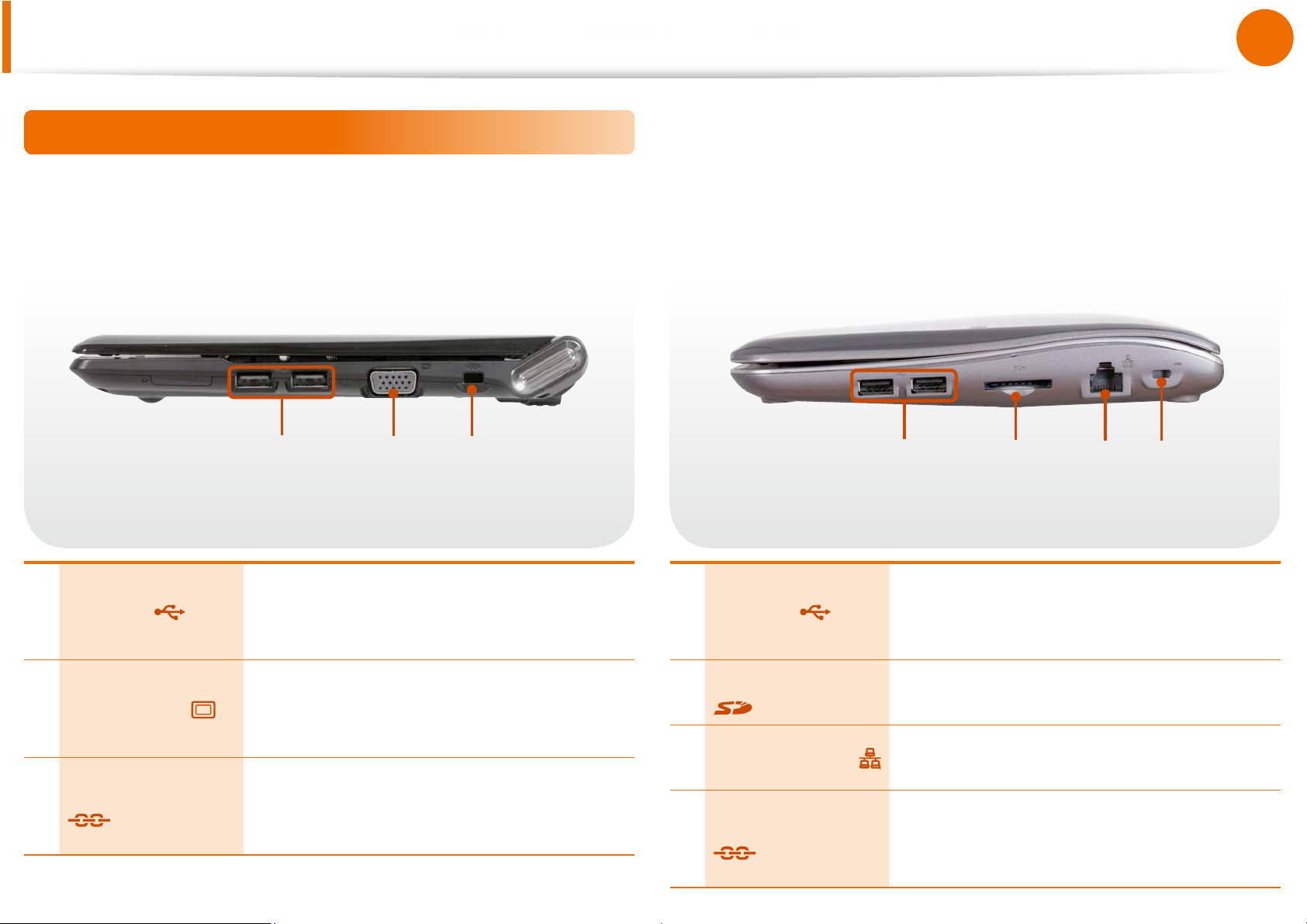

Right View
Chapter 1
Getting Started
27
For N-Series models
Ź
1 USB Port
123
You can connect USB devices to the USB
port such as a keyboard/mouse, digital
camera, etc.
For NF-Series models
Ź
1 USB Port
1234
You can connect USB devices to the USB
port such as a keyboard/mouse, digital
camera, etc.
2 Monitor Port
Security Lock Port
3
A port used to connect a monitor, TV
or projector supporting a 15pin D-SUB
interface.
You can connect a Kensington lock to
the Security Lock Port to prevent the
computer from being stolen.
Multi Card Slot
2
(Optional)
3 Wired LAN Port Connect the Ethernet cable to this port.
Security Lock Port
4
A card slot that supports SD card, SDHC
card, MMC card and SDXC card.
You can connect a Kensington lock to
the Security Lock Port to prevent the
computer from being stolen.
Overview

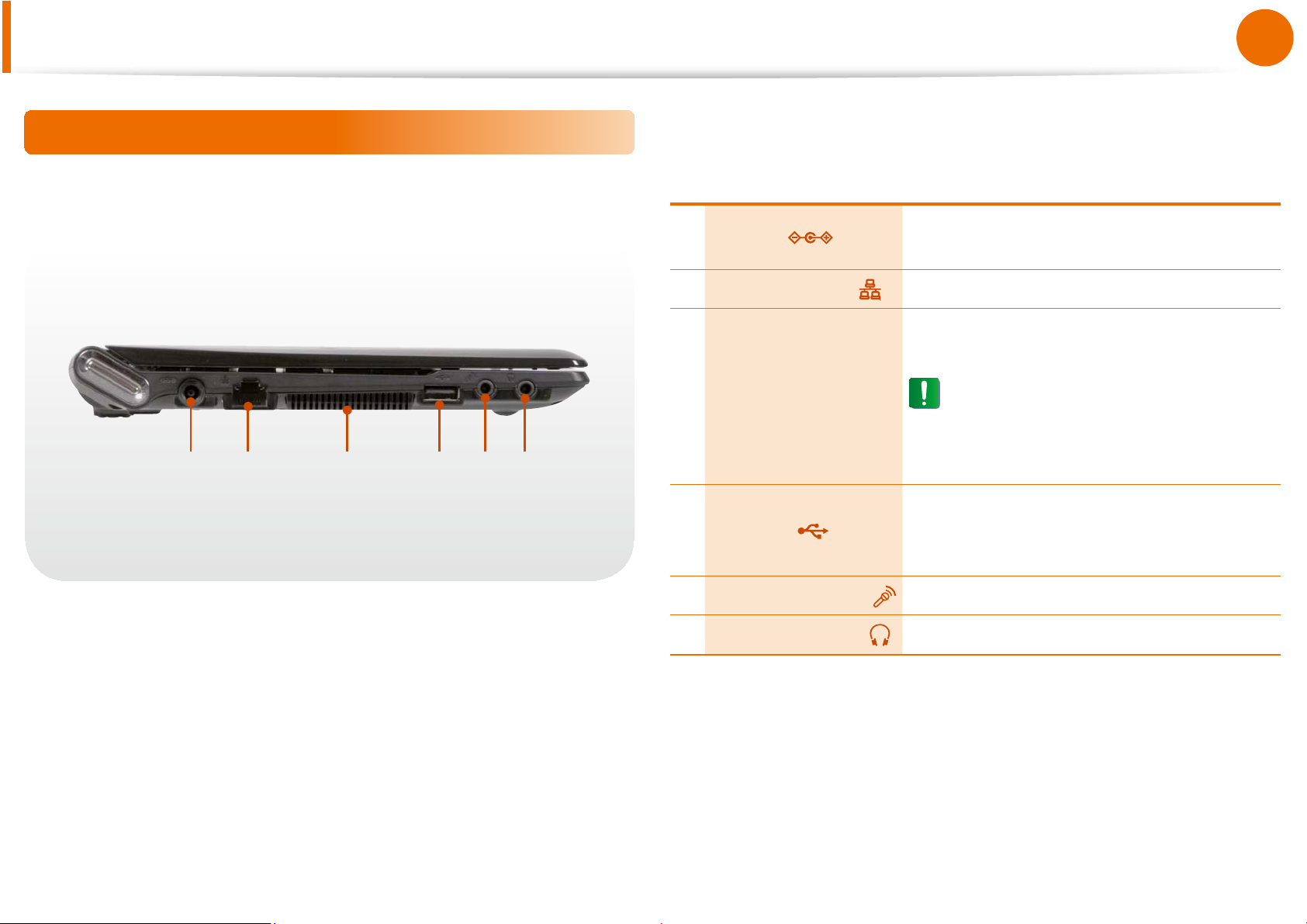

Left View
For N-Series models
Ź
Chapter 1
Getting Started
A jack to connect the AC adapter that
1 DC Jack
supplies power to the computer.
2 Wired LAN Port Connect the Ethernet cable to this port.
The internal heat of the computer is
emitted through these holes.
28
21345 6
3 Fan Vents
4 USB Port
5 Microphone Jack A jack used to connect the microphone.
6 Headphone Jack A jack used to connect the headphones.
If the vents are blocked the
computer may overheat.
Avoid blocking the vents as this may
be dangerous.
You can connect USB devices to the USB
port such as a keyboard/mouse, digital
camera, etc.
Overview
For NF-Series models
Ź
1 DC Jack
2 Monitor Port
Chapter 1
Getting Started
A jack to connect the AC adapter that
supplies power to the computer.
A port used to connect a monitor, TV
or projector supporting a 15pin D-SUB
interface.
The internal heat of the computer is
emitted through these holes.
29
21345 6
3 Fan Vents
4 USB Port
5 Microphone Jack A jack used to connect the microphone.
6 Headphone Jack A jack used to connect the headphones.
If the vents are blocked the
computer may overheat.
Avoid blocking the vents as this may
be dangerous.
You can connect USB devices to the USB
port such as a keyboard/mouse, digital
camera, etc.
Overview

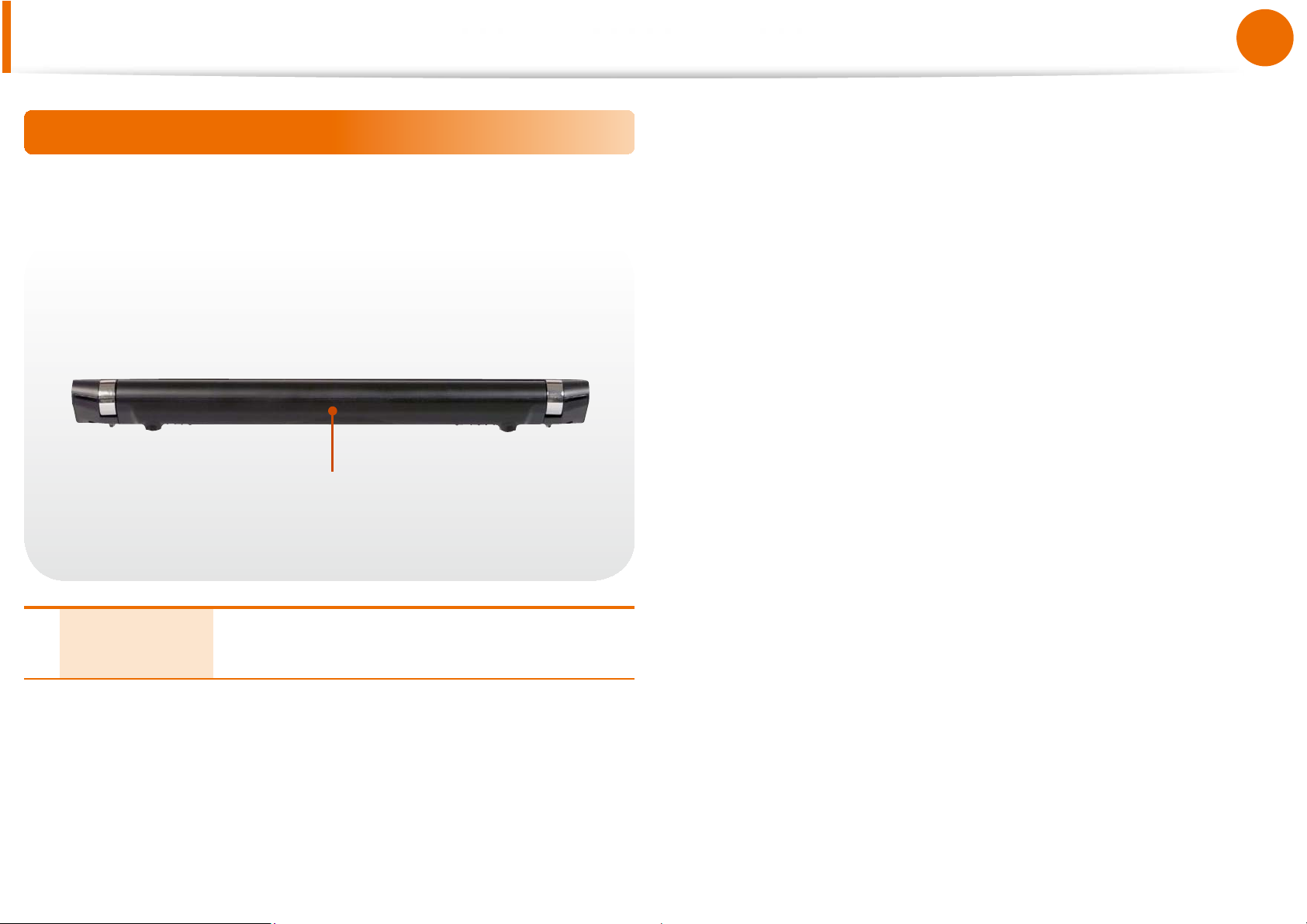

Back View
For N-Series models
Ź
Chapter 1
Getting Started
30
1 Battery
1
This is a Lithium-Ion rechargeable battery that
supplies power to the computer.
Overview

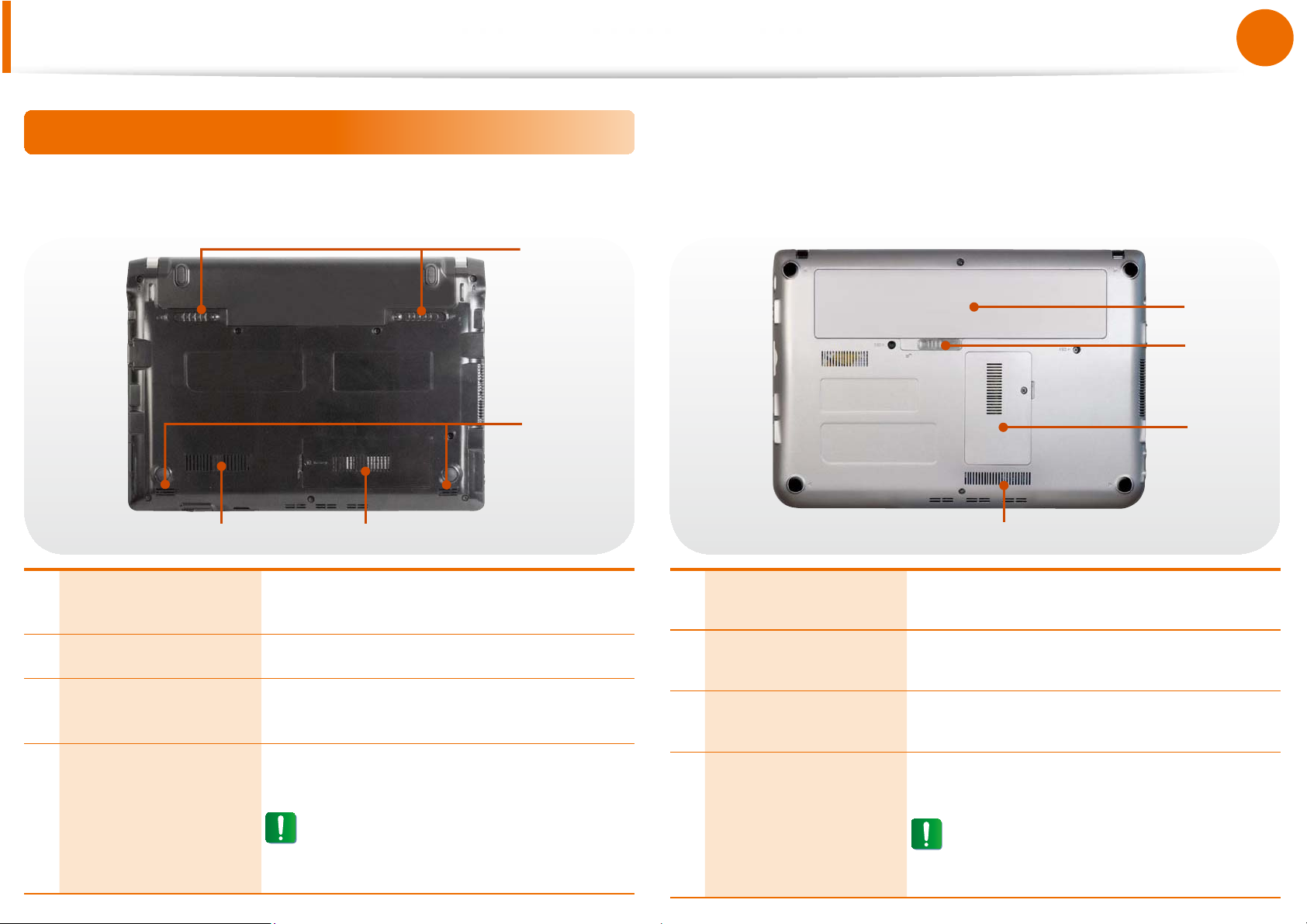

Bottom View
Chapter 1
Getting Started
31
For N-Series models
Ź
1
2
4
1 Battery Latches
2 Speaker A device used to generate sound.
Memory
3
Compartment Cover
The latch used to remove or install the
battery.
The main memory is installed inside the
cover.
3
For NF-Series models
Ź
1 Battery
2 Battery Latches
Memory
3
Compartment Cover
1
2
3
4
This is a Lithium-Ion rechargeable battery
that supplies power to the computer.
The latch used to remove or install the
battery.
The main memory is installed inside the
cover.
4 Fan Vents
The internal heat of the computer is
emitted through these holes.
If the vents are blocked the computer
may overheat. Avoid blocking the
vents as this may be dangerous.
4 Fan Vents
The internal heat of the computer is
emitted through these holes.
If the vents are blocked the computer
may overheat. Avoid blocking the
vents as this may be dangerous.
Turning the Computer On and O
Chapter 1
Getting Started
32

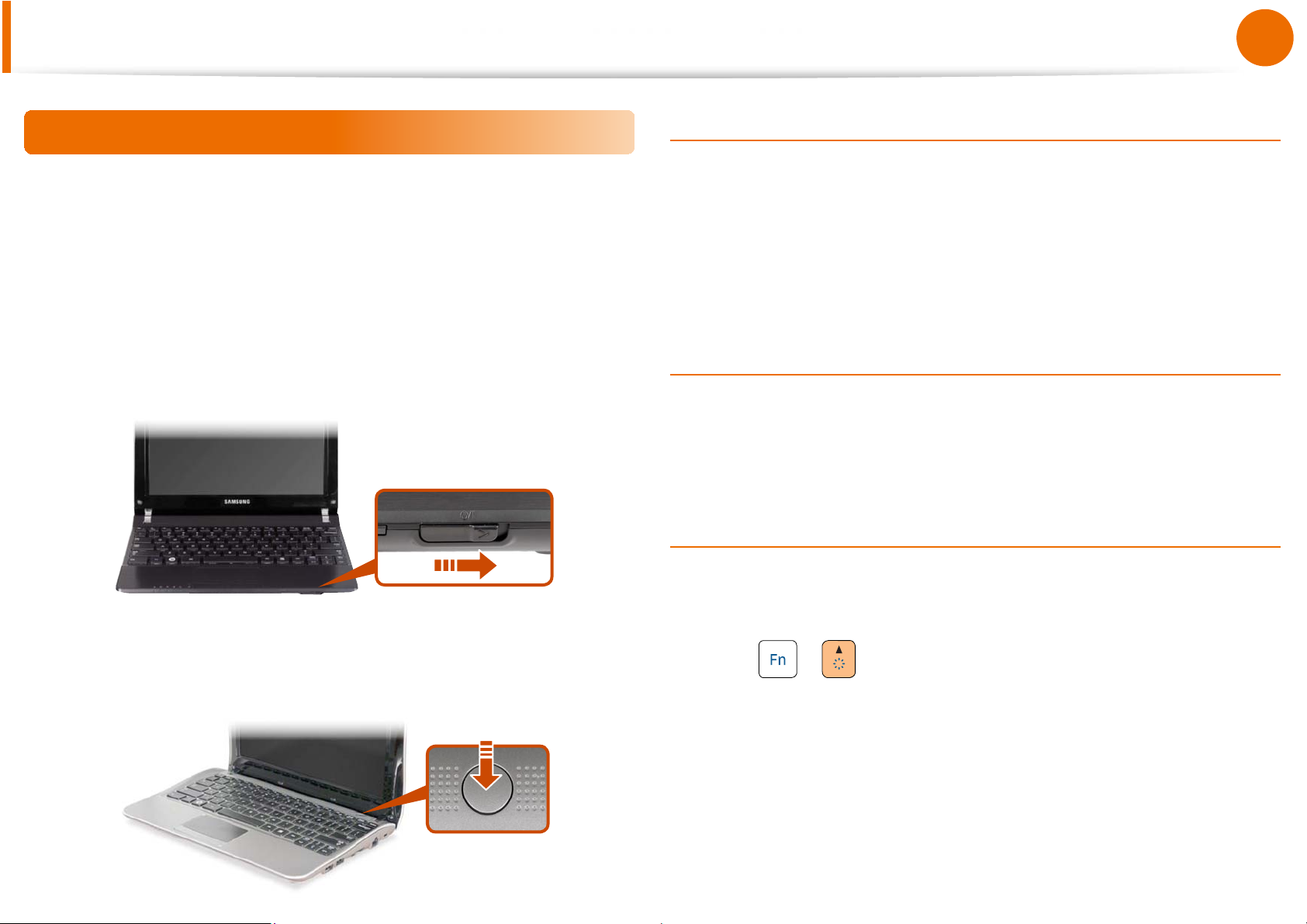

Turning the computer on
Install the battery and connect the AC adapter.
1
Lift the LCD panel up.
2
For N-Series models
Ź
3
Slide the Power Switch to turn the computer on.
About Windows Activation
When you turn the computer on for the rst time, the Windows
activation screen appears.
Follow the activation procedures according to the instructions on
the screen to use the computer.
Entering Sleep mode
When the computer is turned on, press the computer’s power
button once briey.
Adjusting the screen brightness
For NF-Series models
Ź
Press the Power button to turn the computer on.
When the computer runs on battery power, the LCD brightness is
automatically set to low.
Press the
brightness.
+ key combination to increase the screen
Turning the Computer On and O
Turning the computer o
Since the procedures to turn the computer o may dier t
depending on the installed operating system, please turn
the computer o according to the procedures for the
purchased operating system.
Save all your data before clicking on t Shut down.
For Windows XP
Ź
Click the Start button on the taskbar.
1
Click Turn O Computer.
Chapter 1
Getting Started
33
If t Samsung Fast Start is installed, the system shutdown
location may dier.
For Windows 7
Ź
Click Start > Shut down mode to shutdown the
computer.
12
1 2
Click Turn O.
2
If the system cannot be shut down due to a system error,
turn it o by pressing and holding the Power Button for a
minimum of 4 seconds.
Please note that turning the computer o by this method
may cause a system problem. Thereafter, when turning the
computer back on, the disk checking program may launch to
check for and correct any disk errors.
Turning the Computer On and O
Samsung Fast Start (Optional)
Chapter 1
Getting Started
34
These descriptions are for Windows 7 and for supported
models only.
If you are using the system very often while on the move, use Fast
Start to reduce the booting time.
When the Samsung Fast Start function is being used, the
computer runs in hybrid power-saving mode when the computer
enters standby mode or hibernation mode.

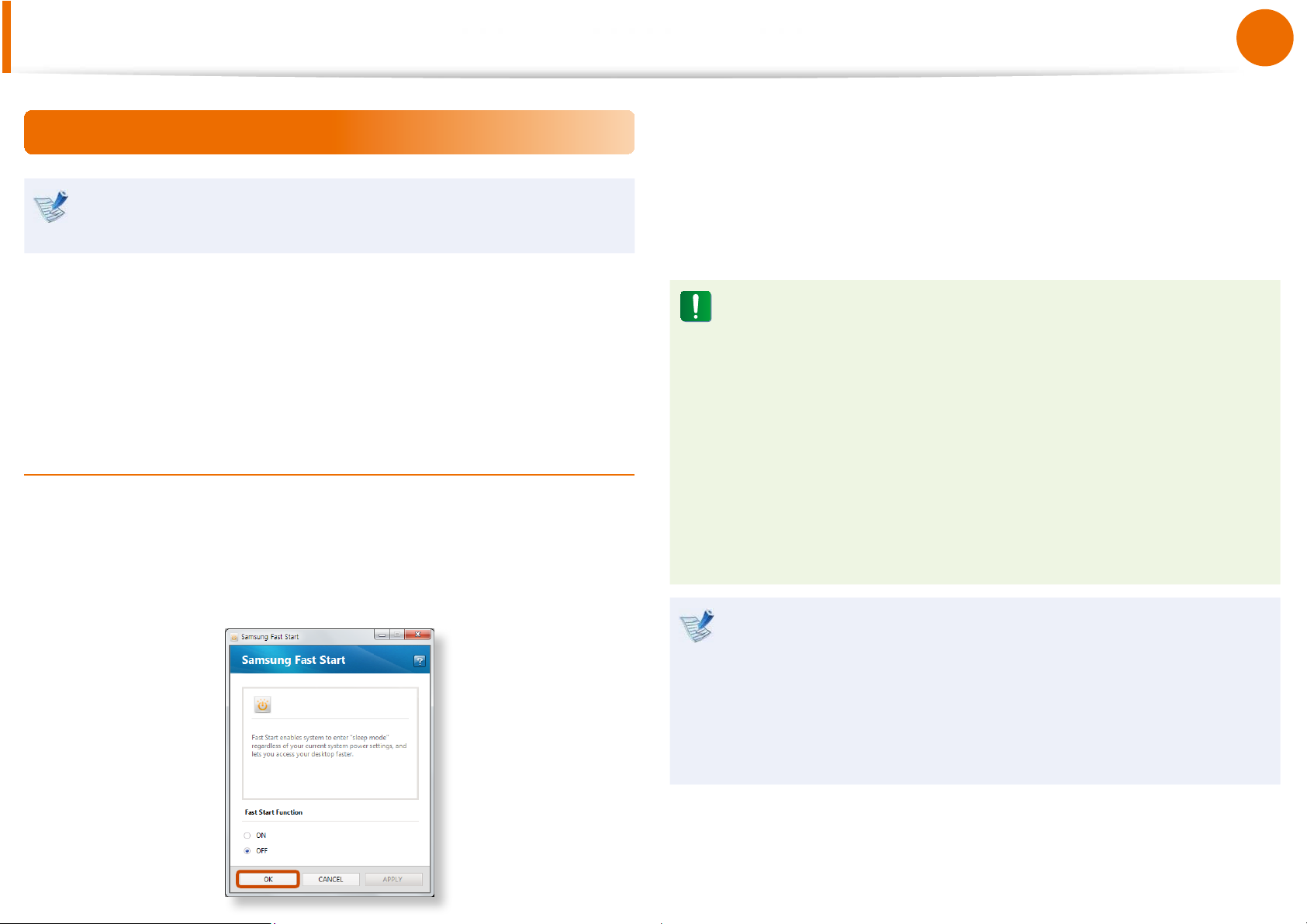

Using Fast Start
Runs Samsung Fast Start.
1
Select ON or OFF depending on your requirements, and click
2
OK.
The Fast Start function will be turned on or o according to
3
your selection.
While the Fast Start function is enabled
You cannot change some power options in the Control t
Panel. To change these, rst disable the Fast Start function.
The existing power saving mode and maximum power t
saving mode functions have been replaced by this
function.
Battery and AC power should be removed before you open t
memory door to change or add memory.
The LCD may icker once if the Fast Start function is turned
ON or OFF.
What is hybrid power-saving mode?
In hybrid saving mode, the data you are working on will be
saved to memory and the HDD, in the event of a sudden
power failure, ensuring the safety of your data.
However, as unexpected accidents can always occur, it is
recommended backing up any important data beforehand.
Chapter 2.
Using the computer
Keyboard 36

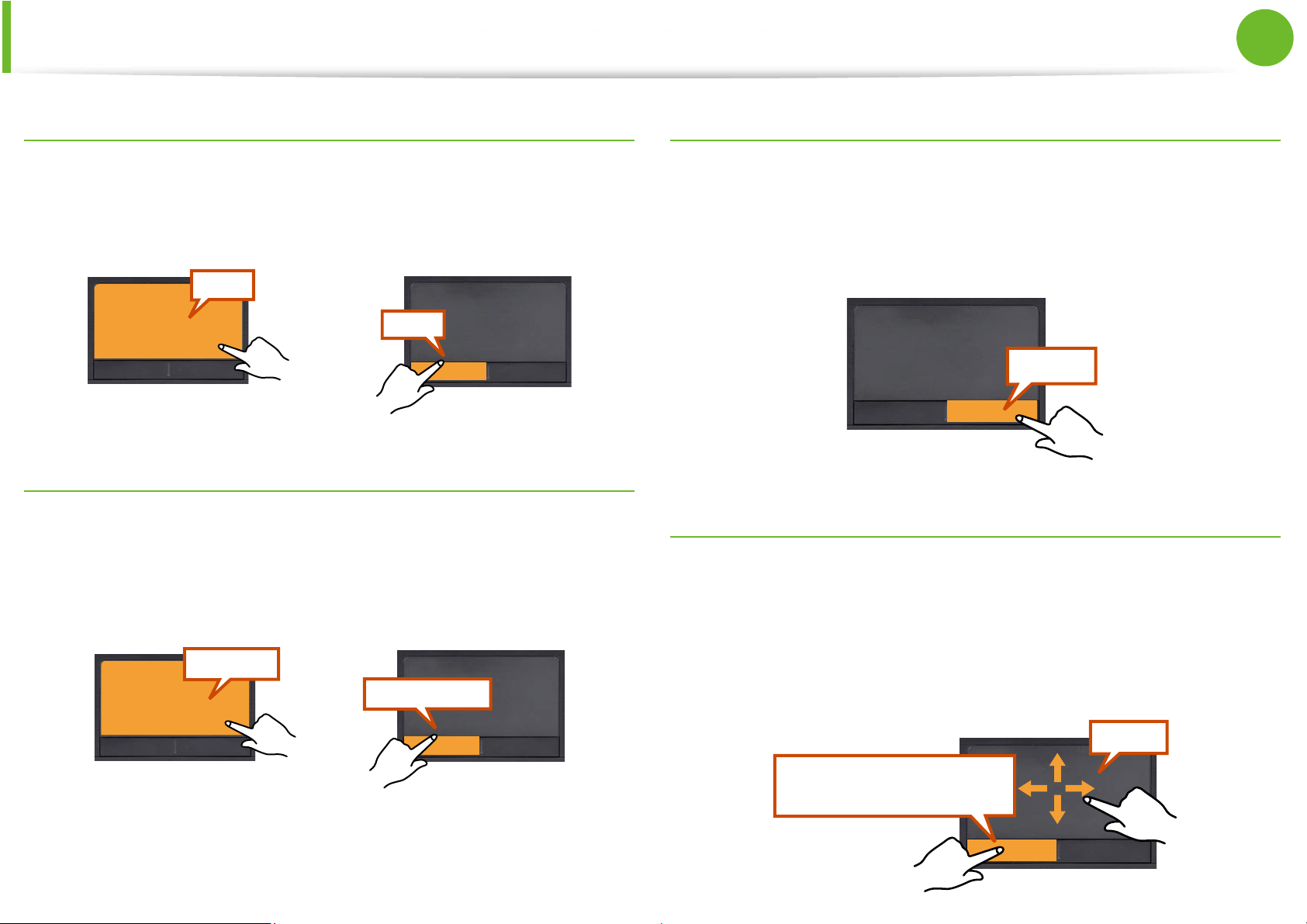

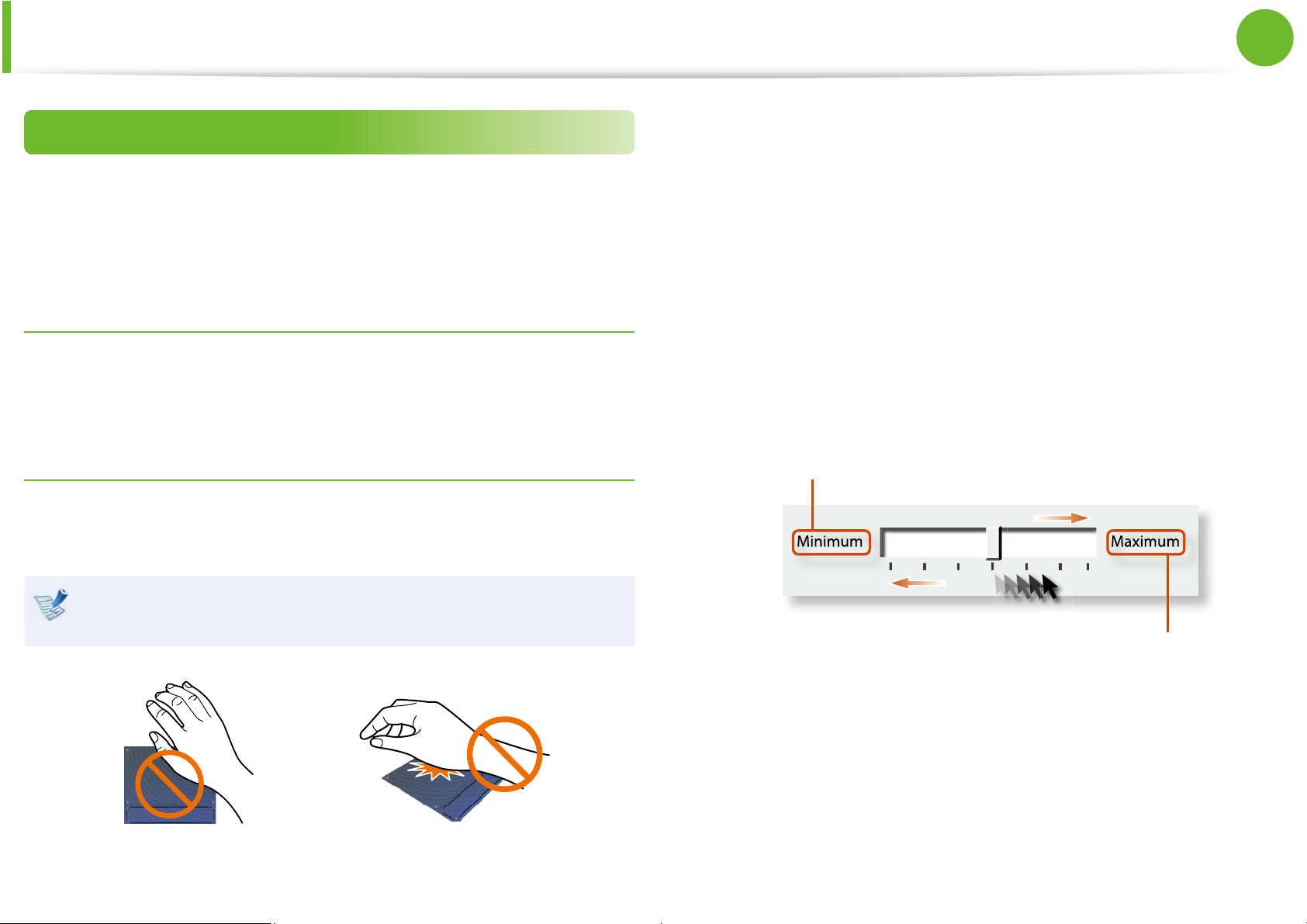

Tou ch pad 4 0

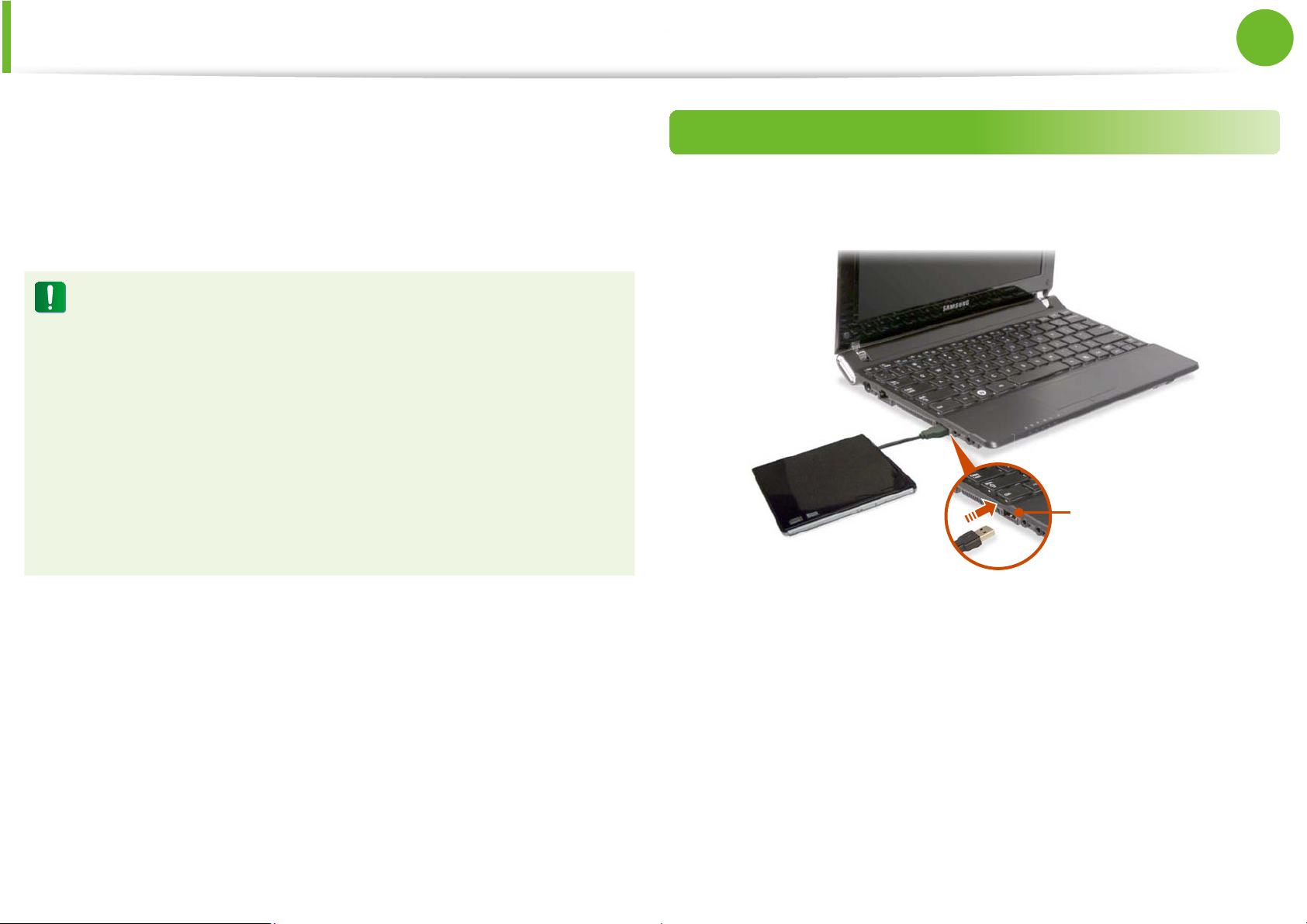

External-type CD drive (ODD, To be purchased) 46

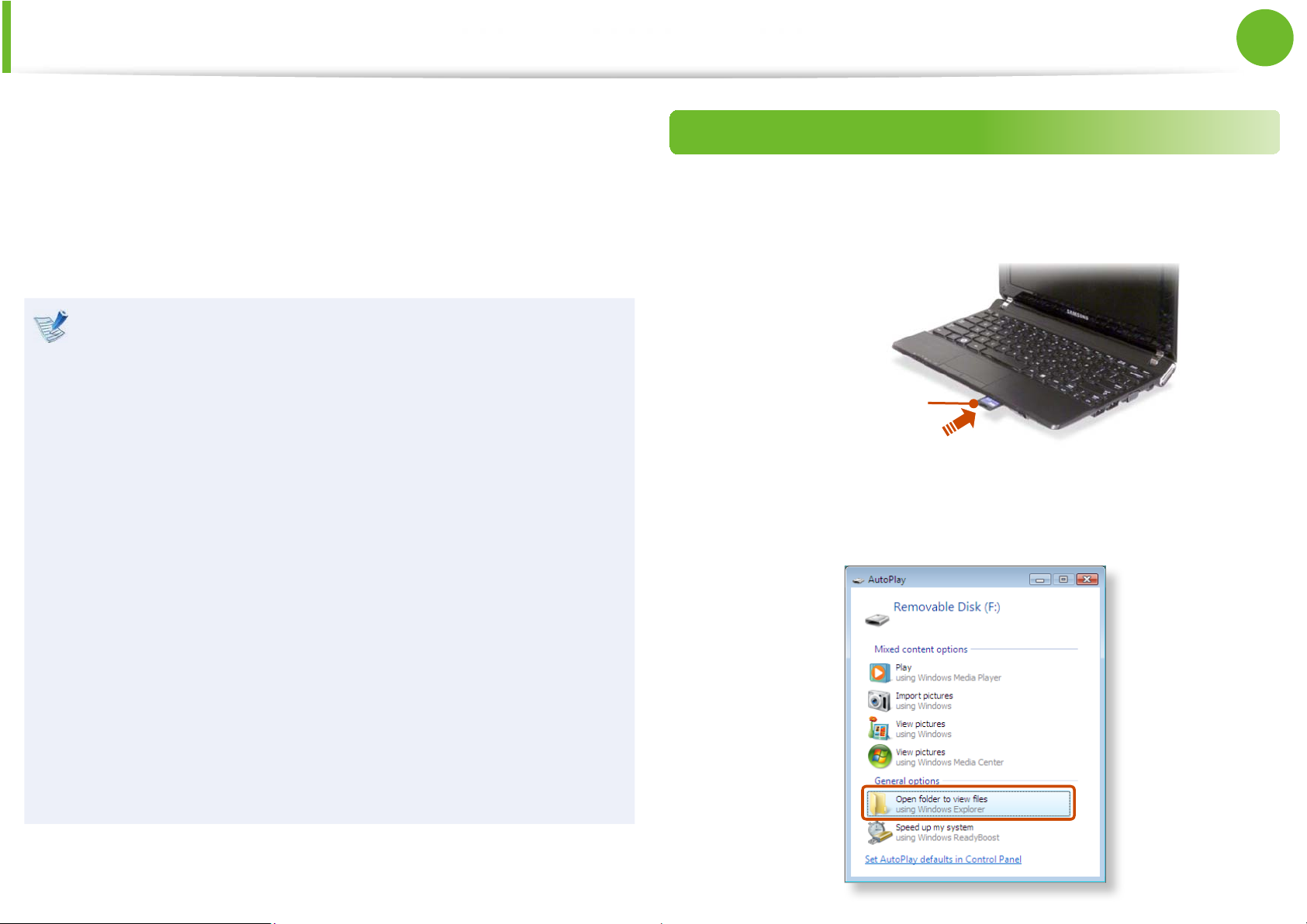

Multi Card Slot (Optional) 48

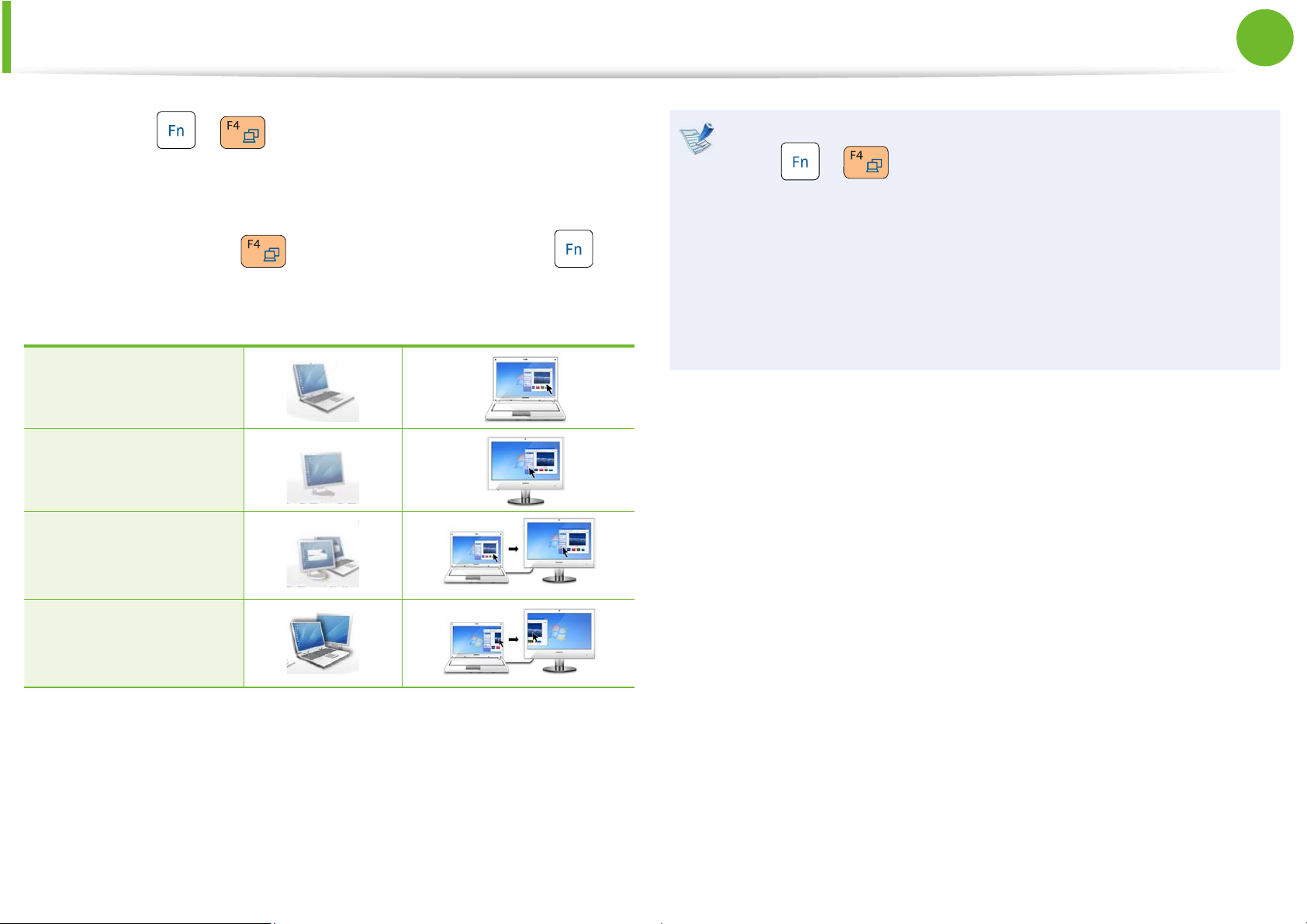

Connecting an External Display Device (Optional) 51

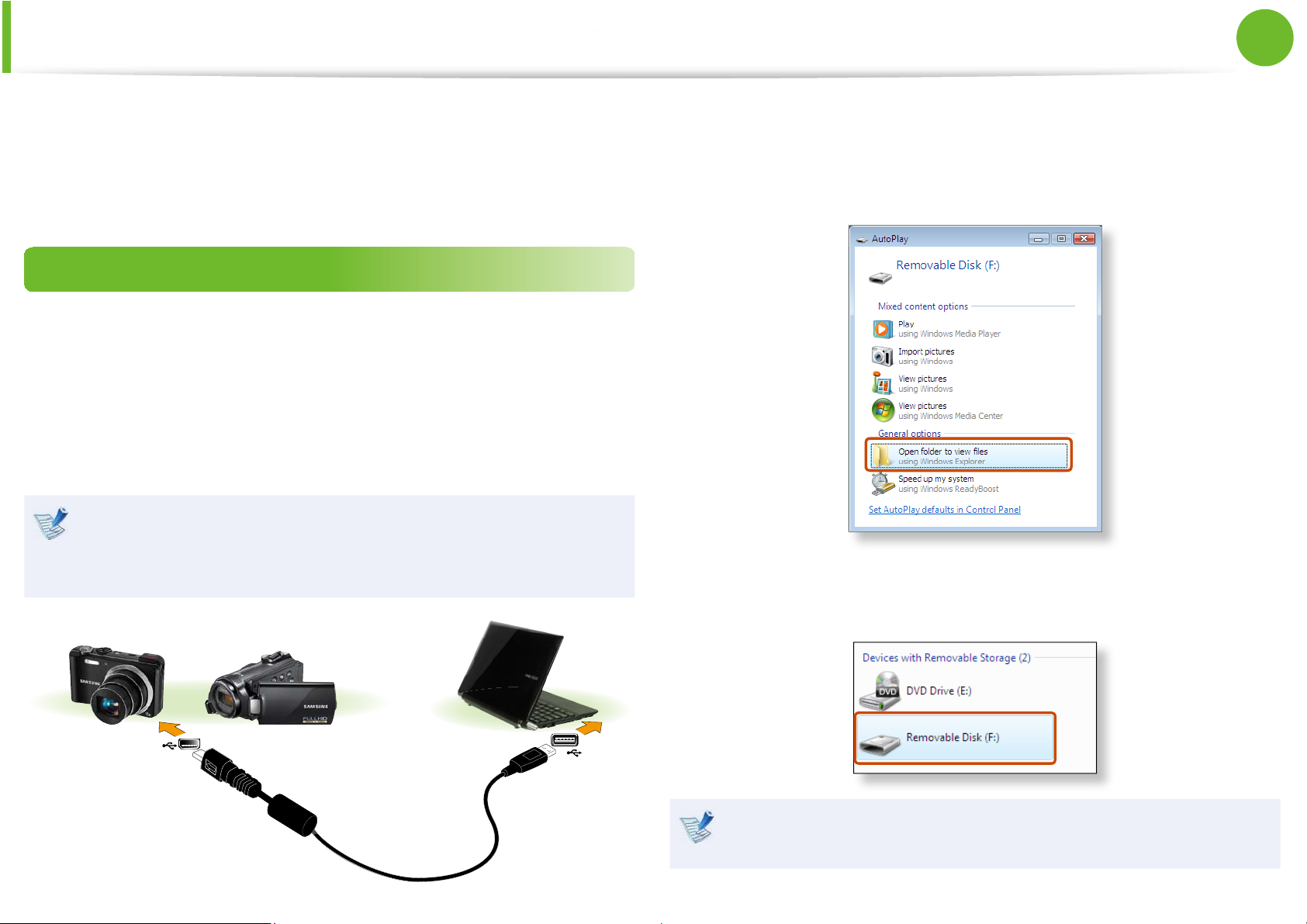

Connecting an External Digital Device 53
Adjusting the Volume 54

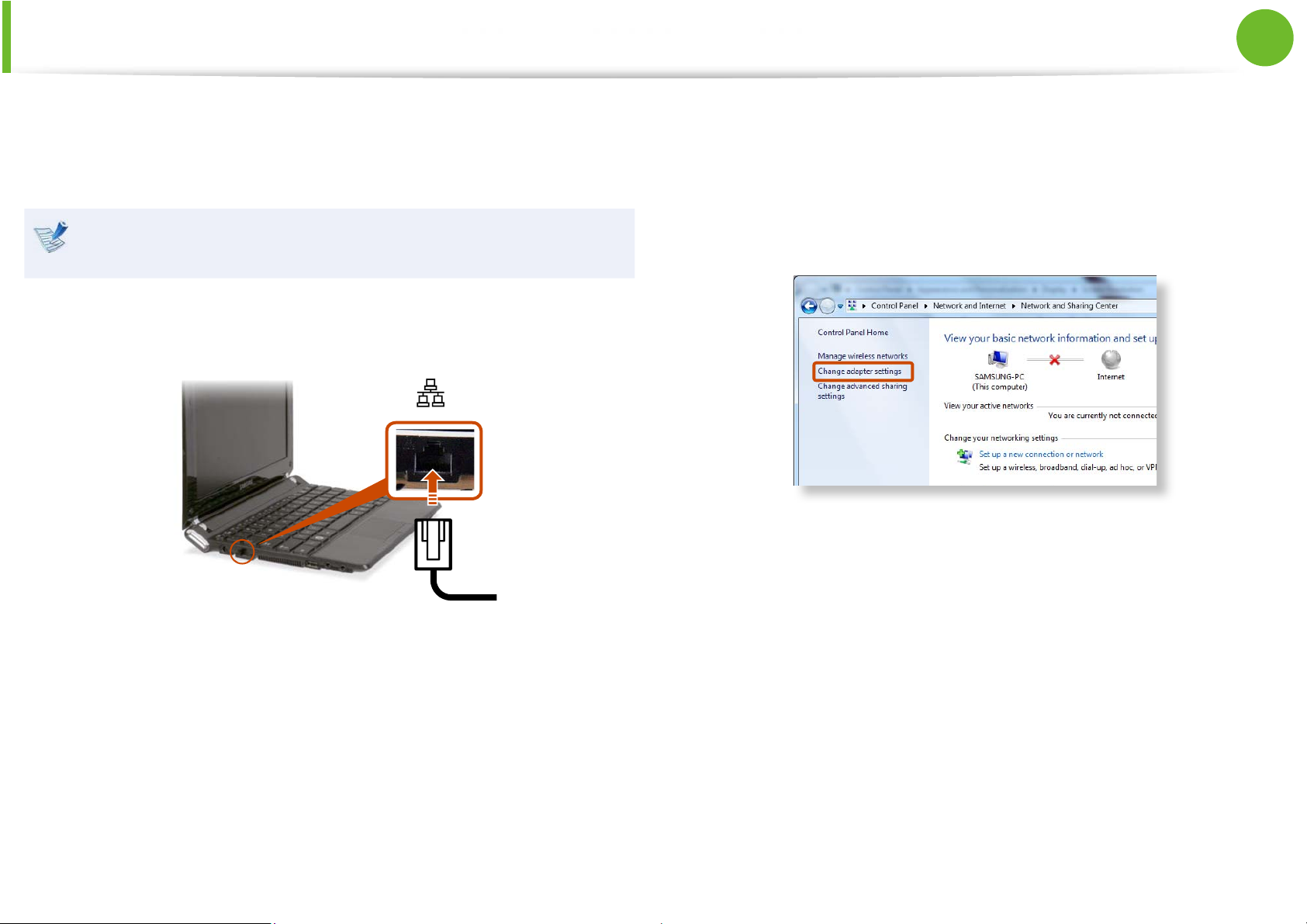

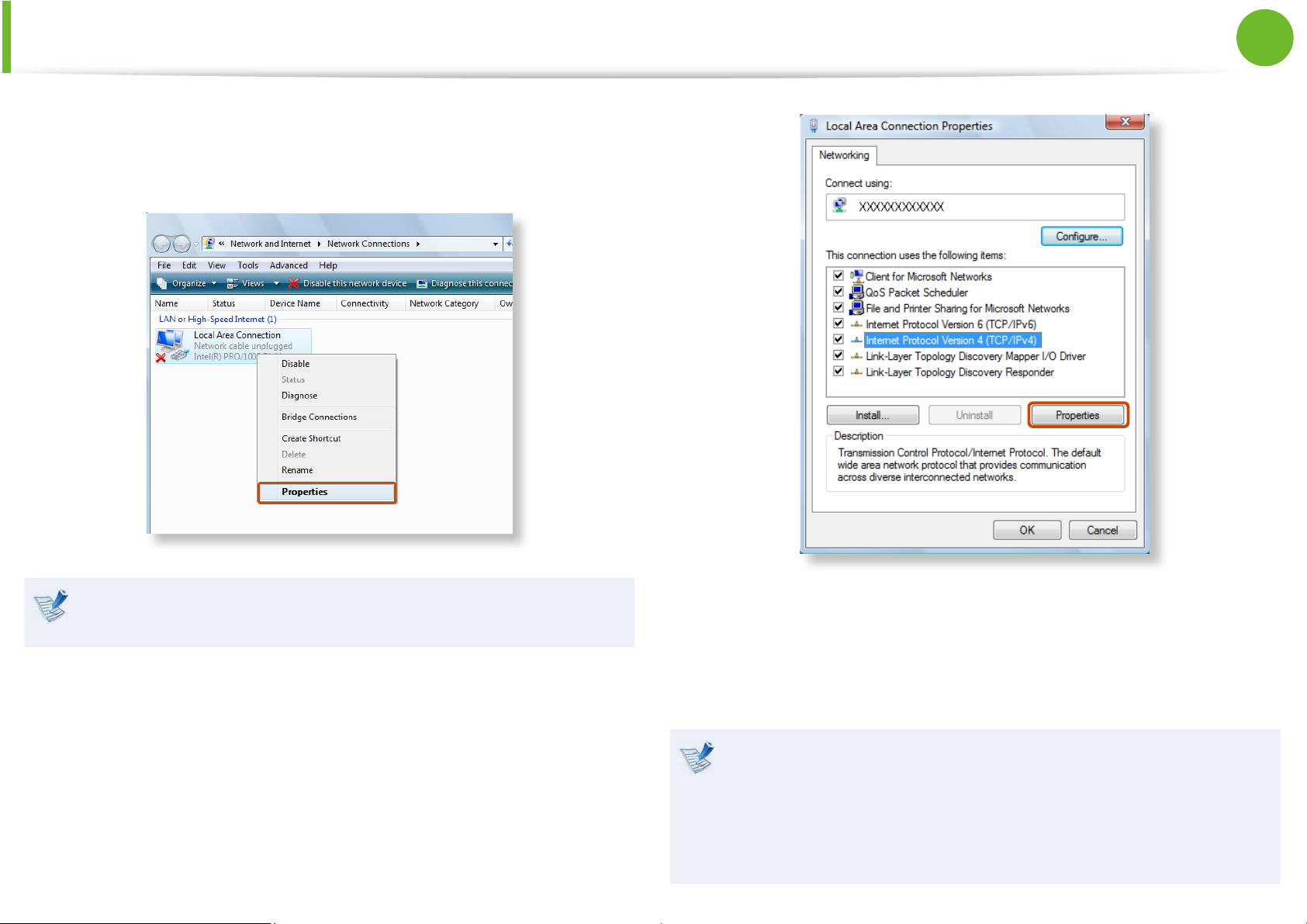

Wired Network 57
Wireless Network (Optional) 61
Sharing Content in a Home Network
(Easy Content Share) (Optional) 65
Keyboard
Shortcut key functions and procedures are discussed in the following sections.
The keyboard image may dier from the actual keyboard.t
The keyboard may dier depending on your country. The following mainly describes the shortcut keys.t
Shortcut Keys
You can use the following functions by pressing the keys below with the Fn key.
Chapter 2
Using the computer
36
+

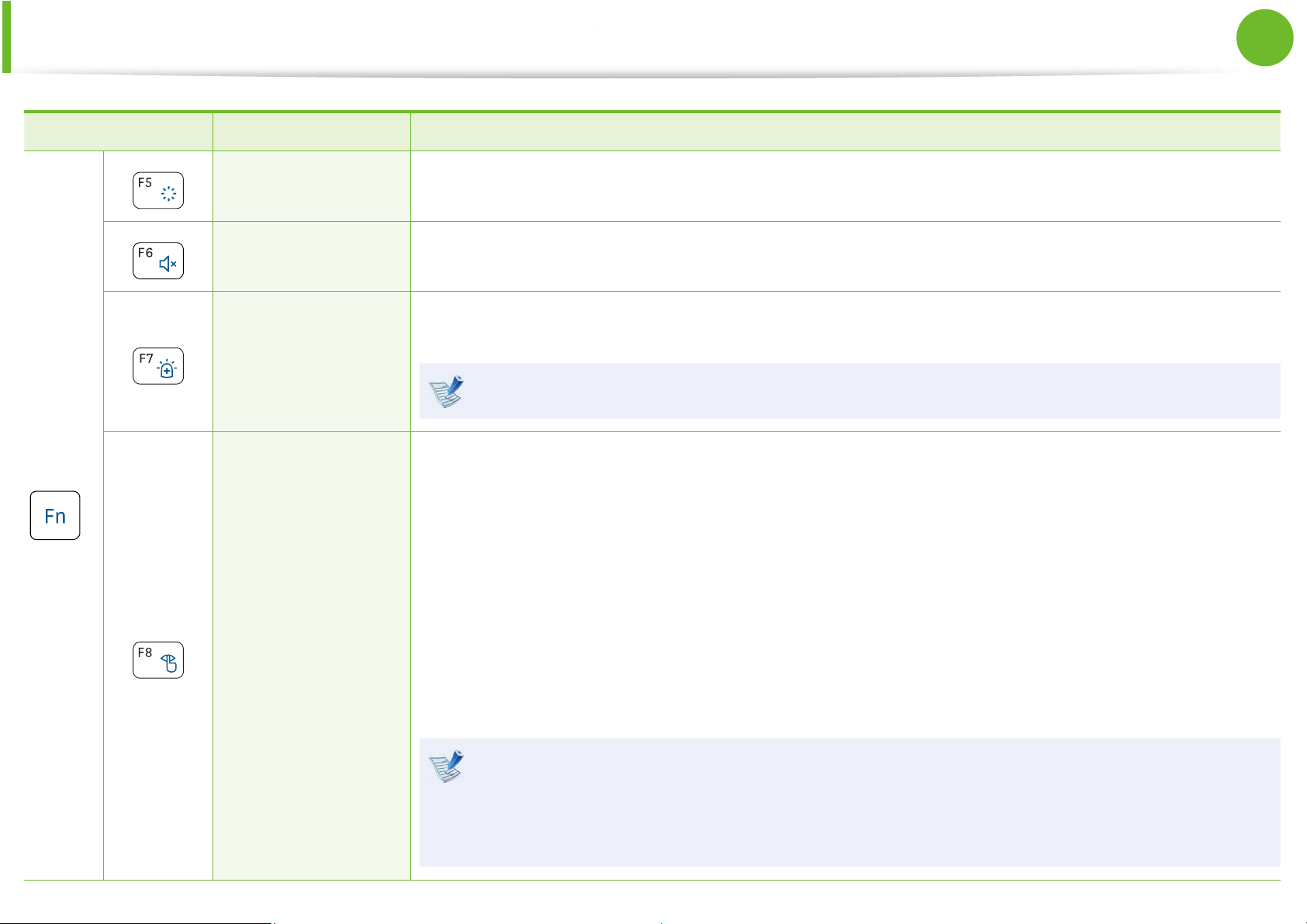

Shortcut Keys Name Function
REST
(Sleep Mode)
Gauge
+
Euro
CRT/LCD
Switches to Sleep mode. To wake the computer up, press the Power button.
Shows the remaining battery charge.
You can only use this function when the Easy Display Manager program is installed.
Enters the Euro monetary unit symbol.
This key may not be provided depending on the keyboard type.
Switches the screen output to the LCD or external monitor when an external monitor (or TV) is
connected to the computer.
Keyboard
Shortcut Keys Name Function
Backlight Turns the LCD backlight on or o.
Mute Mutes or cancels mute.
System diagnosis, recovery and Internet consultation program, Samsung Support Center, will be
Samsung Support
Center
launched. (Optional)
For some models, Samsung Magic Doctor is launched.
You can select operation mode when you need maximum system performance or low-noise/
low power consumption with one-click.
Chapter 2
Using the computer
37
+
Easy SpeedUp
Manager
Silent:t Low-noise and low power consumption mode
Normal:t Normal Mode
Speed:t Maximum performance mode. The system operates in its maximum performance,
and system resources are allocated to the currently active program with priority for maximum
performance.
Speed Boot:t Quick booting mode. This mode enables quick booting when the booting
process has slowed down because multiple programs have been installed. You can boot up
the computer more quickly by setting the time to execute the S/W in the Advanced menu.
If you don’t want fan noise turning ON and OFF in the Silent mode, select the t
Advanced menu > Fan Silent Mode > Low in the BIOS Setup.
The fan keeps turning ON and works in Low noise mode.
You can only use this function when the t Easy SpeedUp Manager program is installed.
Keyboard
Shortcut Keys Name Function
Wireless network Turns on or o wireless network device in a model equipped with wireless network device.
Turns the Touchpad function on or o.
Touchpad
When using an external mouse only, you can turn the Touchpad o.
+
Num Lock Turns the numeric keyboard on or o.
Chapter 2
Using the computer
38
Scroll Lock
If you turn the Scroll Lock on, you can scroll the screen up or down without changing the cursor
location in some applications.
Keyboard
Chapter 2
Using the computer
39

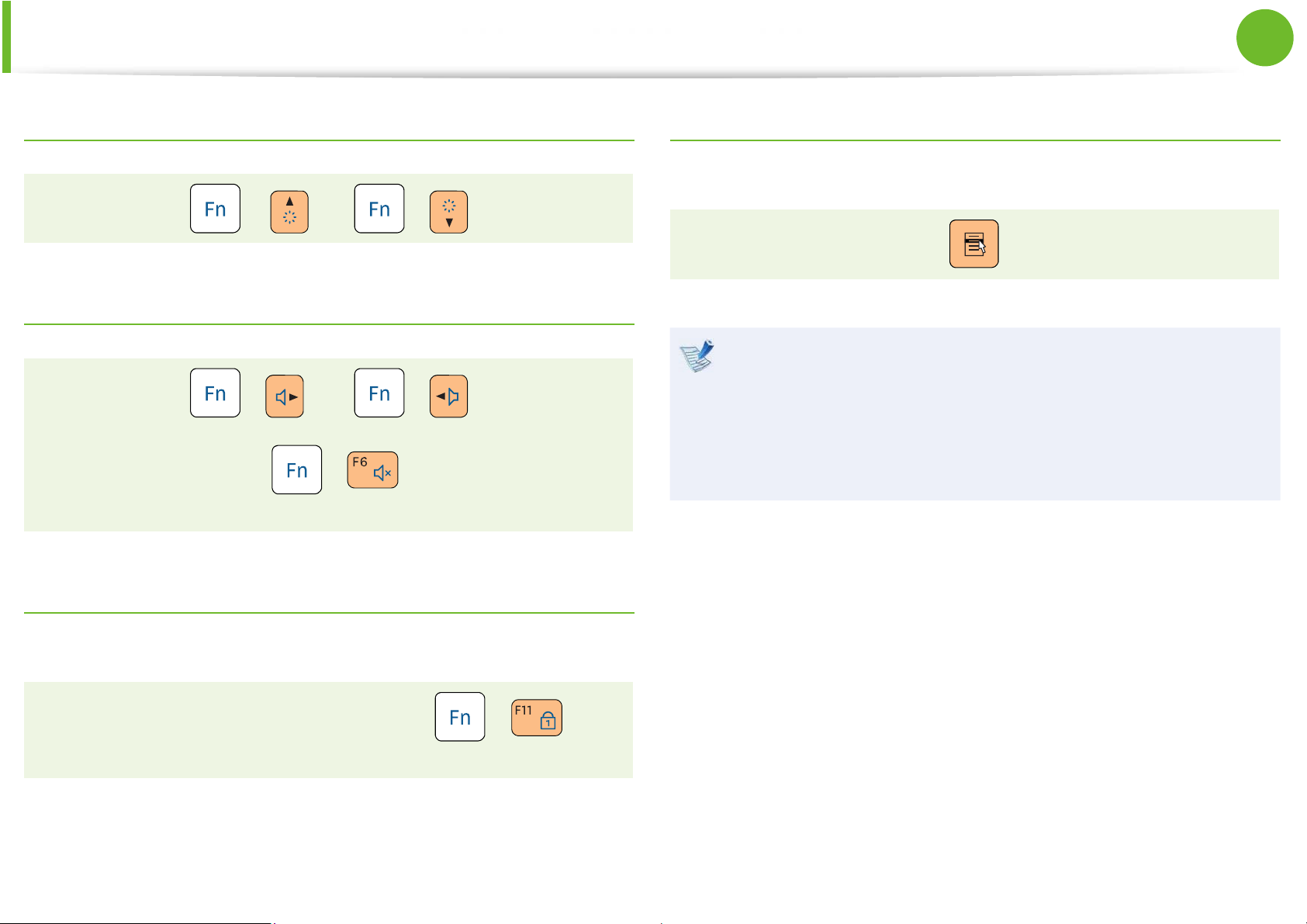

Screen Brightness Control
+
Or
+

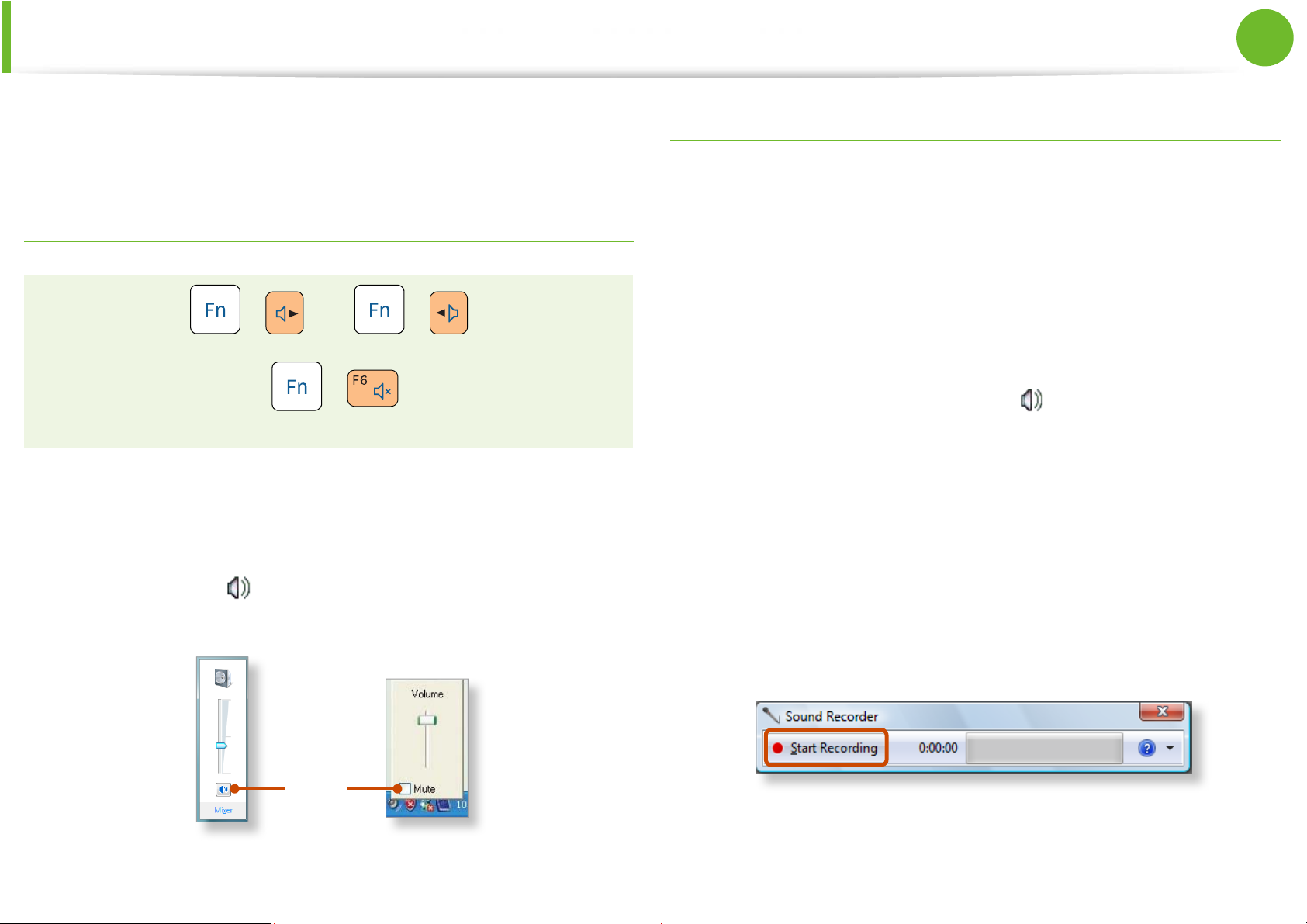

Volume Control
+
Alternatively, press the + key combination to turn
the volume on or o.
Or
+
Other Function Keys
Performs the right-click mouse function (touchpad).
When the shortcut key function does not work properly,
you have to install the following program.
Winodws 7t : Easy Display Manager
Windows XPt : Easy Display Manager, Easy SpeedUp
Manager
Numeric Key
The numbers are printed in blue on the numeric keys.
If Num Lock is turned on by pressing the + key
combination, you can use the numeric keys to enter digits.

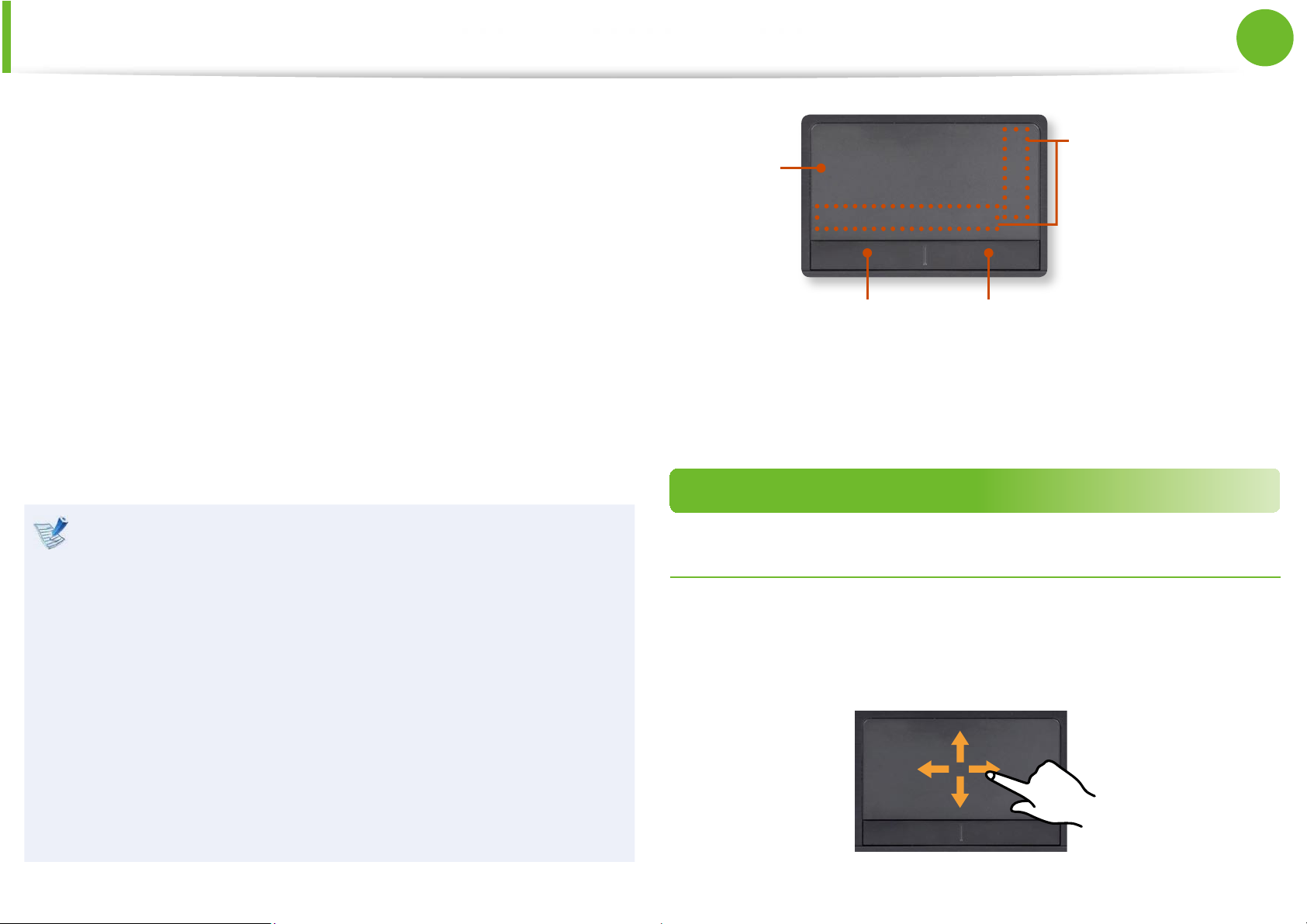

Touchpad
Chapter 2
Using the computer
40
The touchpad provides the same function as a mouse and the left
and right buttons of the touchpad plays the role of the left and
right buttons of a mouse.
To use the touchpad, the touchpad driver is required.
A built-in Windows driver and a driver provided by the
manufacturer are provided. For a better performance, using the
driver provided by the touchpad manufacturer is recommended.
The driver provided by the touchpad manufacturer is already
installed in this product by default when you purchase this
product. When you reinstall Windows or change the operating
system, using the driver provided by the corresponding
manufacturer is recommended.
Use the Touchpad with your ngers. Using a sharp object t
may damage the Touchpad.
If you touch the Touchpad or press the Touchpad buttons t
while booting up, the Windows boot time may be
extended.
Scroll Area
Touch Area
Use to move
the cursor.
Touchpad Left Button
You can select or run a
program using this button.
Touchpad Right Button
Plays the role of the right
mouse button.
This corresponds to the
wheel of the mouse
and can be moved up,
down, left or right.
Basic Touchpad Functions
Moving the cursor on the screen
Place your nger on the touchpad slightly and move your nger.
The mouse cursor will move accordingly. Move your nger in the
Checking the touchpad manufacturert
Click the Start > Control Panel > Hardware and Sound
> Mouse > Hardware tab and check the device (E.g. Elan,
Synaptics, etc. ).
The Windows driver provides basic touchpad functions t
(moving the pointer, clicking, etc.) but the gesture function
is not supported.
direction you wish to move the cursor.
Touchpad
Chapter 2
Using the computer
41
Click Function
Place a nger on the touchpad and click on an item once.
Alternatively, press the left button once quickly and release it.
Tap
or
Click
Double-Click Function
Put your nger on the touchpad and quickly tap twice with your
nger on an item you want.
Alternatively, press the left touchpad button twice quickly.
Right Button Function
This corresponds to clicking the right mouse button.
Press the right touchpad button once. The corresponding pop-up
menu appears.
Click
Drag Function
Dragging refers to moving an item to another place after selecting
it.
TapTa p
or
Press and hold down the left touchpad button over an item you
want to drag and move the item to the new location.
ClickClick
Move
Holding down the left
touchpad button
Touchpad
Chapter 2
Using the computer
42
The Gesture Function of the Touchpad
(Optional)
The Touchpad Gesture function may not be provided and t
the version of the function may dier depending on the
model. Some usage procedures may dier depending on
the version.
For detailed usage procedures, refer to the description in t
the Touchpad Settings window.
Using the Touchpad, you can use the following additional Gesture
functions.
Scroll functiont
Conguring the Gesture Function
If the Gesture function is not activated, you can activate it
according to the following procedures.
When using the Elan driver
Ź
1
Click the Start > Control Panel > Hardware and Sound >
Mouse > ELAN > Options button.
When using the Sysnaptics driver
Ź
Click the Start > Control Panel > Hardware and Sound >
Mouse > Device Settings tab > Settings button.
The Touchpad Settings window appears. Click over the
2
corresponding item to select the item in the Select an item
and click OK.
Zoom functionst
To cancel the Gesture function, unselect the corresponding
Rotation function t
Page move functiont
item in the Touchpad Settings window and click OK.
Touchpad
Chapter 2
Using the computer
43

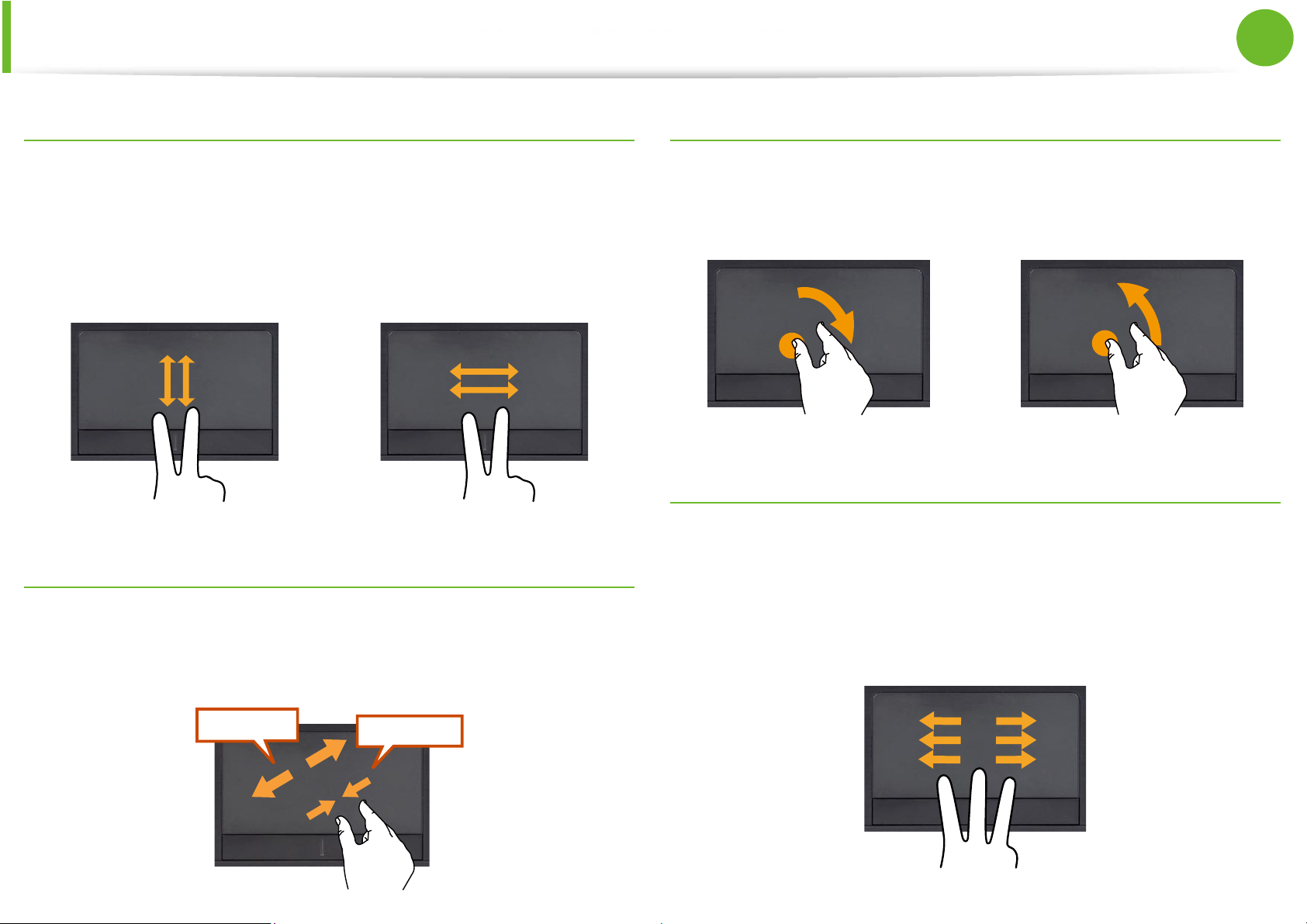

The Scroll Function
This function is the same as the scroll area of the Touchpad.
If you place two ngers over the Touchpad and move them up,
down, left or right, the screen is scrolled up, down, left or right
accordingly.
or
Zoom Functions
If you place two ngers over the Touchpad together or apart, the
current image or text is zoomed in or out.
Rotation Function
Place two ngers over the touchpad and move the ngers as
follows to rotate the photo or image.
or
Page Move Function
You can move to the previous or next page when you are looking
at a photo or surng the Internet.
For example, if you lightly brush three ngers to the left while you
are looking at a web site, you will return to the previous page.
Zoom-in
Zoom-out
or
Touchpad
Setting the Touchpad Sensitivity
If the touchpad reacts too sensitively or the pointer moves
unintentionally, please adjust the touchpad pointer speed and
sensitivity.
Chapter 2
Using the computer
When using the Elan driver
Ź
Click Start > Control Panel > Hardware and Sound > Mouse
> ELAN > Options > PalmTracking and then adjust the
sensitivity.
When using the Sysnaptics driver
Ź
44
Adjusting the Touchpad Pointer Speed
Click Start > Control Panel > Hardware and Sound > Mouse >
Pointer Options and then adjust the pointer speed.
Adjusting the Touchpad Palm Detection Function
The palm detection function is to avoid malfunctions when the
palm touches the touchpad by mistake.
This function is provided by the touchpad driver provided by
the manufacturer.
Click Start > Control Panel > Hardware and Sound > Mouse
> Device Settings > Settings > Pointing > Sensitivity and
then adjust the sensitivity.
When the touchpad pointer does not move smoothly:
Slide the bar appropriately in the direction of Minimum.
Minimum Maximum
When the touchpad pointer moves unintentionally (excessively):
Slide the bar appropriately in the direction of Maximum.
Touchpad
Touchpad On/O Function
If you want to use the mouse only without using the touchpad,
you can turn the touchpad o.
Chapter 2
Using the computer
45
To lock the touchpad function, press the
You can set the touchpad and touchpad button settings in
the tabs that appear when clicking Start > Control Panel >
Hardware and Sound > Mouse.
+ keys.
External-type CD drive
(ODD, To be purchased)
Chapter 2
Using the computer
46
This computer supports an external USB CD-ROM drive (can be
additionally purchased).
Check if the interface type of the external CD-ROM drive is a USB
type. For detailed specications, refer to the catalog.
Do not insert a cracked or scratched CD.t
Otherwise, the CD may break and damage the optical disk
drive when the CD rotates at a high speed.
When you clean a CD or DVD title, wipe with a soft cloth t
from inside to outside.
Do not eject a CD when the CD operating LED is on.t
The gures used for the description are of a representative t
model. Therefore the gures may dier from the real ones.
Using a CD that is not in the shape of a circle is not t
recommended.
Connecting the CD Drive
Connect the CD drive to the USB port.
USB port
External-type CD drive
Inserting and Ejecting a CD
Press the Eject button of the CD drive.
1
(ODD, To be purchased)
Chapter 2
Using the computer
47
Status Indicator
Eject Button
When the CD tray opens, insert a CD or DVD and push the
2
tray in until it clicks.
Push the CD tray inward until it clicks.
Emergency Hole
3
The CD drive status indicator is turned on.
A CD drive’s reading and writing speed may dier t
depending on the condition and type of the media.
To eject a CD when the CD drive does not work or the t
computer is o, place the end of a paper clip (
the Emergency Hole until the CD tray is ejected.
) into
Multi Card Slot
(Optional)
Chapter 2
Using the computer
48
Using the multi card slot, you can read and write data to a SD card,
SDHC card, MMC card, SDXC card.
You can use a card as a removable disk and conveniently
exchange data with digital devices such as a digital camera, digital
camcorder, MP3, etc..
Supported Cards : SD Card, SDHC card, MMC card, SDXC t
card
You have to additionally purchase a multi card with the t
necessary capacity depending on your requirements.
You can use a multi card just like any data storage device. A t
copyright protection function is not supported.
Since you can lose a card when moving the computer, t
keep the card separately.
The gures used for the description are of a representative t
model. Therefore the gures may dier from the real ones.
Using the card
Insert a card into the slot according to the directions printed
1
on the slot.
Example) SD Card
The card drive appears. Click Open folder and view les.
2
If the window does not appear, click Start > Computer.
If a slot protection dummy card is inserted into your t
computer, remove the dummy card before using the
computer.
These descriptions are written based on Windows 7, the t
latest operating system. Therefore, some descriptions and
gures may dier from your operating system. But as the
usage is similar to other Windows operating systems, you
can use these descriptions for reference.

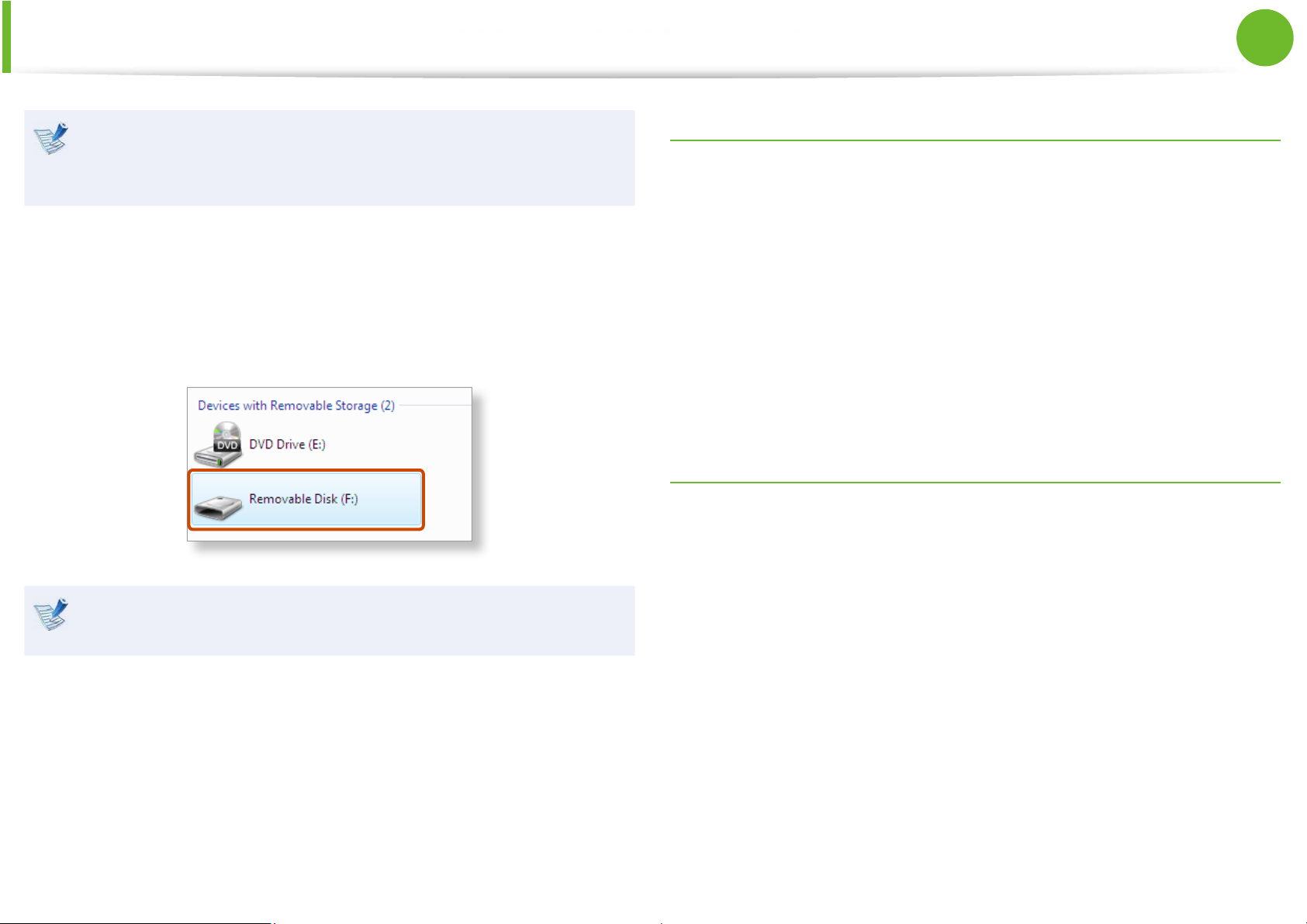

Multi Card Slot
(Optional)
Chapter 2
Using the computer
49
If a window asking to scan and change appears, click
Continue Without Scanning. This will proceed to Step 2
above.
You can save, move and delete data by double-clicking the
3
corresponding drive.
You can only use the card after formatting it.
Using a Mini SD and RS-MMC
Since the above cards are too small, you cannot insert the cards
into the slot directly.
Insert the card into the dedicated adapter (available from most
electronic retailers) and then insert the adapter into the multi card
slot.
However, depending on the adapter’s body material, some
RS-MMC cards may not be recognized properly. Samsung
recommend that you check the card is recognized correctly prior
to purchasing.
To remove a memory card
Take hold of the end of the card and remove the card.
The device name of the card drive may dier depending on
your computer model.
Multi Card Slot
(Optional)
Chapter 2
Using the computer
50
To format a memory card
When using the memory card for the rst time, you must format
the card before using it.
Formatting a card deletes all data saved on the card. If the
card includes data, backup the data before formatting it.
Click Start > Computer.
1
Right-click over a card drive with the touchpad and select
2
Format.
Click Start to the formatting.
3
To use a card to exchange data with a digital device such t
as a digital camera, formatting the data using the digital
device is recommended.
When you try to use a card, which is formatted in the t
computer, in another digital device, you may have to
format the card again in the device.
You cannot format, write or delete data from a SD, or SDHC t
card with a write protection tab when it is in the Lock
position.
Inserting and removing a memory card repeatedly may t
damage the memory card.
Connecting an External Display Device
(Optional)
Chapter 2
Using the computer
51
If you connect an external display device such as a monitor, TV,
projector, etc., you can view the picture on the wider screen of the
external device when you give a presentation or watch a video or
movie.
Before you start, check the port and cable of the external t
display device and then connect the display device to the
computer.
Due to restrictions of the operating system the DualView t
function is not supported for Windows 7 Starter.
About the connection cable
Users should additionally purchase the necessary connection
cables.
Connecting to the monitor port
You can experience a wider screen by connecting the computer to
a monitor, TV or projector with a monitor port.
You can give better presentations by connecting the computer to
a projector.
Connect the RGB port of the computer and the port of the
1
monitor or TV with the monitor cable (15 pin).
External
Monitor
TV
Projector
Analog Monitor (RGB) Cable
Connect the power cord of the connected monitor, TV or
2
projector and turn the power on.
Connecting an External Display Device
(Optional)
Chapter 2
Using the computer
52
Press the + key combination once. Then the Easy
3
Display Manager screen appears where you can select a
display device.
Since pressing the
changes the selection, select a display device.
LCD
CRT
LCD + CRT Clone
key while holding down the key
If the screen is not switched even if you press t
the
Easy Display Manager program.
Alternatively, to set up dual view:t
Open the Display Settings window in the Control Panel,
select Monitor 2 and select the Expand to t to this
monitor checkbox to set dual view. For more detailed
information, refer to the Windows online help.
+ key combination, you have to install the
LCD + CRT DualView
Connecting an External Digital Device
Chapter 2
Using the computer
53
You can save a le stored on a device onto the computer by
connecting a digital device such as a camera, camcorder or mobile
phone to the computer and using the le management functions.
Connecting and using a camera or camcorder
If a digital device such as a camera or camcorder is connected with
the computer, it is recognized as a removable disk so that you can
copy or move the les on the device.
Connect the USB port of the notebook computer and the USB
1
port of the digital device such as a camera using the USB cable.
Both the computer and the digital device must be turned on. t
You have to additionally purchase the USB cable necessary t
to connect the computer and the device.
The Auto run window appears. Click Open folder and view
2
les.
If the window does not appear, click Start > Computer.
Double-click the corresponding drive. You can then save,
3
move or delete data.
Camera
Camcorder
The device name of the card drive may dier depending on
the model.
Adjusting the Volume
Chapter 2
Using the computer
54
You can adjust the volume using the keyboard and the volume
control program.
Adjusting the Volume using the Keyboard
+
Alternatively, press the + key combination to turn
the volume on or o.
Adjusting the Volume using the Volume Adjustment
Program
Or
+
Using the Sound Recorder
The procedures to record sound using the Windows Recorder are
described below.
For Windows 7
Ź
Connect a microphone to the microphone jack.
1
You can also use the internal MIC.
Right-click over the Volume icon on the taskbar and select
2
Recording Device.
Check if the microphone is set as the default recording
3
device.
If this is the case, it is already set as the default device. If not,
Click the Volume icon on the taskbar and slide the volume
control bar to adjust the volume.
Mute
Windows XPWindows 7
right-click over the microphone and select Set default.
Click Start > All Programs > Accessories > Sound Recorder
4
and click Start recording to start a recording.

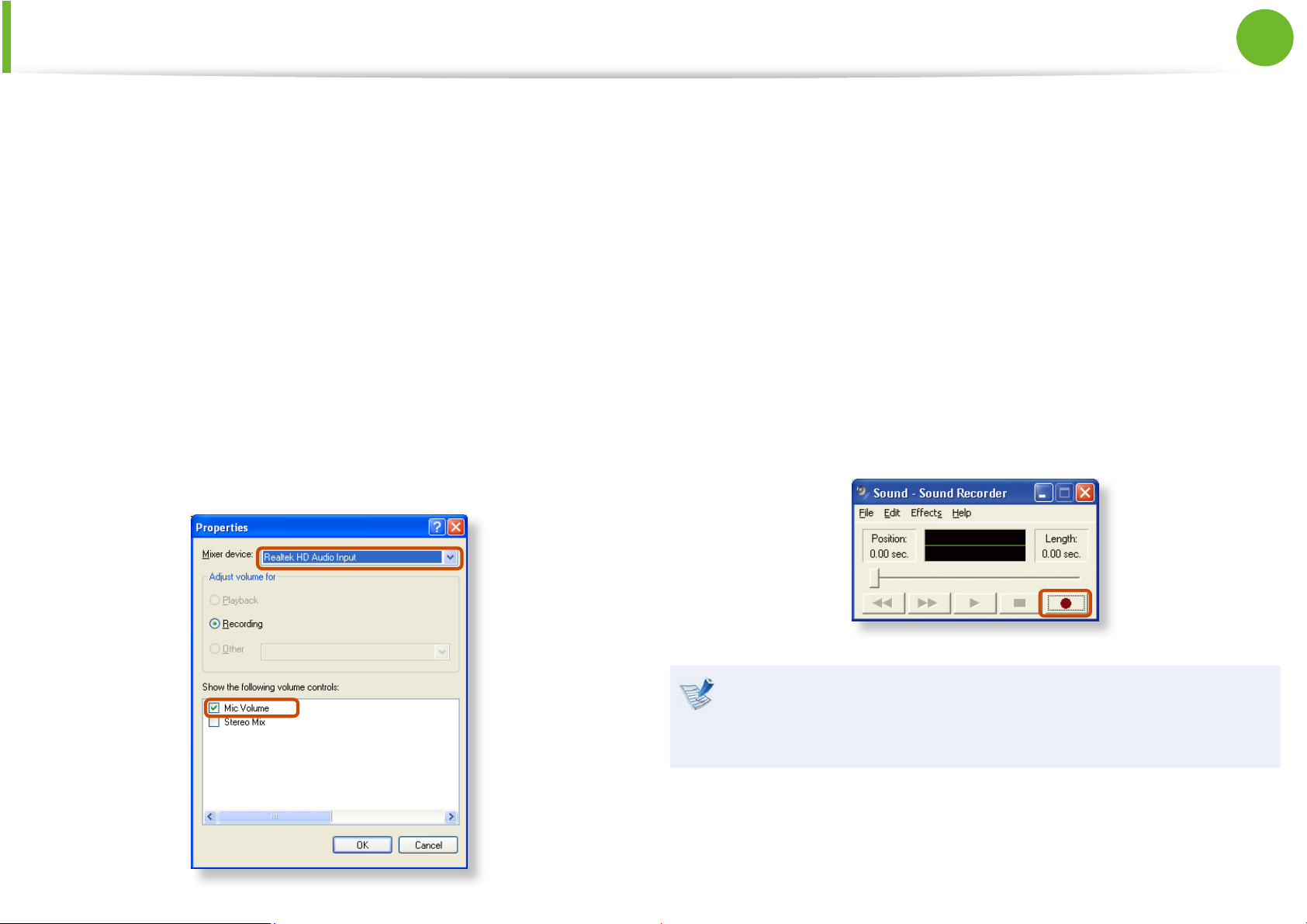

Adjusting the Volume
Chapter 2
Using the computer
55
For Windows XP
Ź
Connect a microphone to the microphone jack.
1
You can also use the internal MIC.
Click Start > Control Panel > Sounds, Speech, and Audio
2
Devices > Sounds and Audio Devices.
Click Advanced from Volume and then, click Options >
3
Properties.
Select Realtek HD Audio input from the mixer device to
4
select Recording from Adjust Volume for.
Select Mic Volume from Show the following volume
5
controls and click OK.
When Recording Control window appears, check the Select
6
checkbox.
Increase the recording volume to increase the recording
sensitivity and close the window.
Click Start > All Programs > Accessories > Entertainment
7
> Sound Recorder.
Click the Record button to perform recording.
8
The default recording duration of Windows XP is 60 seconds.
Download a dedicated recording program from the Internet
to record audio data for a long time.
Adjusting the Volume
Chapter 2
Using the computer
56
Using SRS Premium Sound
The SRS Premium Sound function enables you to experience more
stereophonic sound using stereo speakers.
The software programs provider may vary, depending on t
your computer model.
In addition, some pictures may dier from actual product t
depending on the computer model and software version.
Double-click the > SRS Premium Sound icon in the
1
system of the Taskbar.
If SRS Premium Sound is disabled, right-click over the SRS
Premium Sound icon
and select Enable Process.
If you select an SRS mode, you can listen to sound in that
2
mode.
SRS Mode
No. SRS Mode Description
1
2
Music
Movie
Select this mode to listen to music.
Select this mode to watch a movie.
Precautions when removing the sound driver
To remove the driver in Add or Remove Programs, remove
the SRS Premium Sound Control Panel item.
Remove the SRS Premium Sound Control Panel item.t
Remove the Realtek High Denition Audio Driver and then t
restart the system.
If the programs are not removed in this order, an error may
occur or the device may not work properly.
Wired Network
Chapter 2
Using the computer
57
A wired network is a network environment used for a company
network or broadband internet connection at home.
The gures used for the description are of a representative
model. Therefore the gures may dier from the real ones.
Connect a LAN cable to the computer’s LAN port.
1
For Windows 7
Ź
2
Click Start > Control Panel > Network and Internet >
Network and Sharing Center and click on Change adapter
settings in the left menu pane.
For Windows XP
Ź
Click Start > Control Panel > Network and Internet
Connections > Network Connection.
Wired Network
Select Local Area Connection and click the right button of
3
the touch pad and select Properties.
Chapter 2
Using the computer
58
The LAN Device name may dier depending on your
computer’s Network Device.
For Windows 7
Ź
4
Select Internet Protocol Version 4(TCP/IPv4) from the list
of Network Components and click Properties.
For Windows XP
Ź
Click General tab and select a LAN driver from Connect
using:. Select Internet Protocol(TCP/IP) and click
Properties.
The Network Component name may dier depending on t
the Operating System Installed.
To add a network component, click t Install in the screen
shown in the gure above. You can add clients, services,
and protocols.

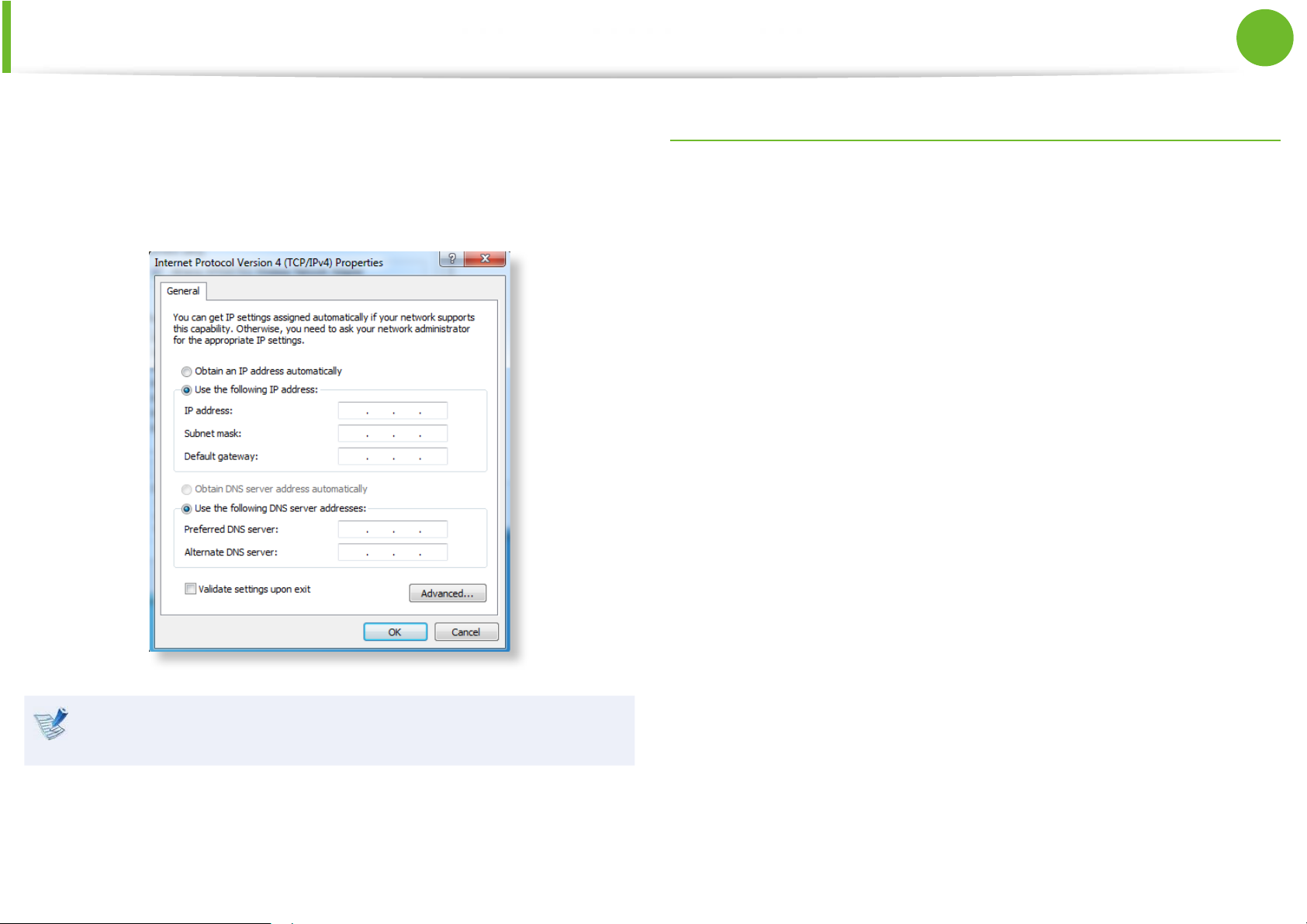

Wired Network
Chapter 2
Using the computer
59
Congure the IP settings.
5
When using DHCP, select Obtain an IP address
automatically. To use a static IP address, select Use the
following IP address, and set the IP address manually.
Using the <Wake On LAN> Function
<Wake On LAN> is a function that activates the system from Sleep
mode when a signal (such as a ping or magic packet command)
arrives over the network (wired LAN).
For Windows 7
Ź
1
Click Start > Control Panel > Network and Internet >
Network and Sharing Center and click on Change adapter
settings in the left menu pane.
For Windows XP
Ź
Click Start > Control Panel > Network and Internet
Connections > Network Connections.
Right-click on the Local Area Connection and select
2
Properties.
When not using DHCP, ask your network administrator for the
IP address.
When you have completed the settings, click the OK button.
6
The network settings have been completed.
Loading...
