BCM95389/BCM95396 Overview
Overview
This document discusses how to bring up the Broadcom BCM95389/
BCM95396 reference board system using WebSmart™ software. It describes
steps required to set up and configure the WebSmart program.
The WebSmart program allows you to manage the Broadcom BCM95389/
BCM95396 reference board and monitor its performance. This program can
be accessed by either of the following:
• A direct connection between a management console and the console port
of the Broadcom BCM95389/BCM95396 reference board. The
management console used for the connection can be a VT-100 terminal or
PC-running terminal emulation software. The user has access to the
WebSmart common language infrastructure (CLI).
• A network connection from one of the ports of the BCM95389/
BCM95396 reference board to a client Web browser. The user has access
to the WebSmart web-based GUI interface.
Broadcom Corporation
Document 95389_95396-QS100-R Page 1
BCM95389/BCM95396
Block Diagram

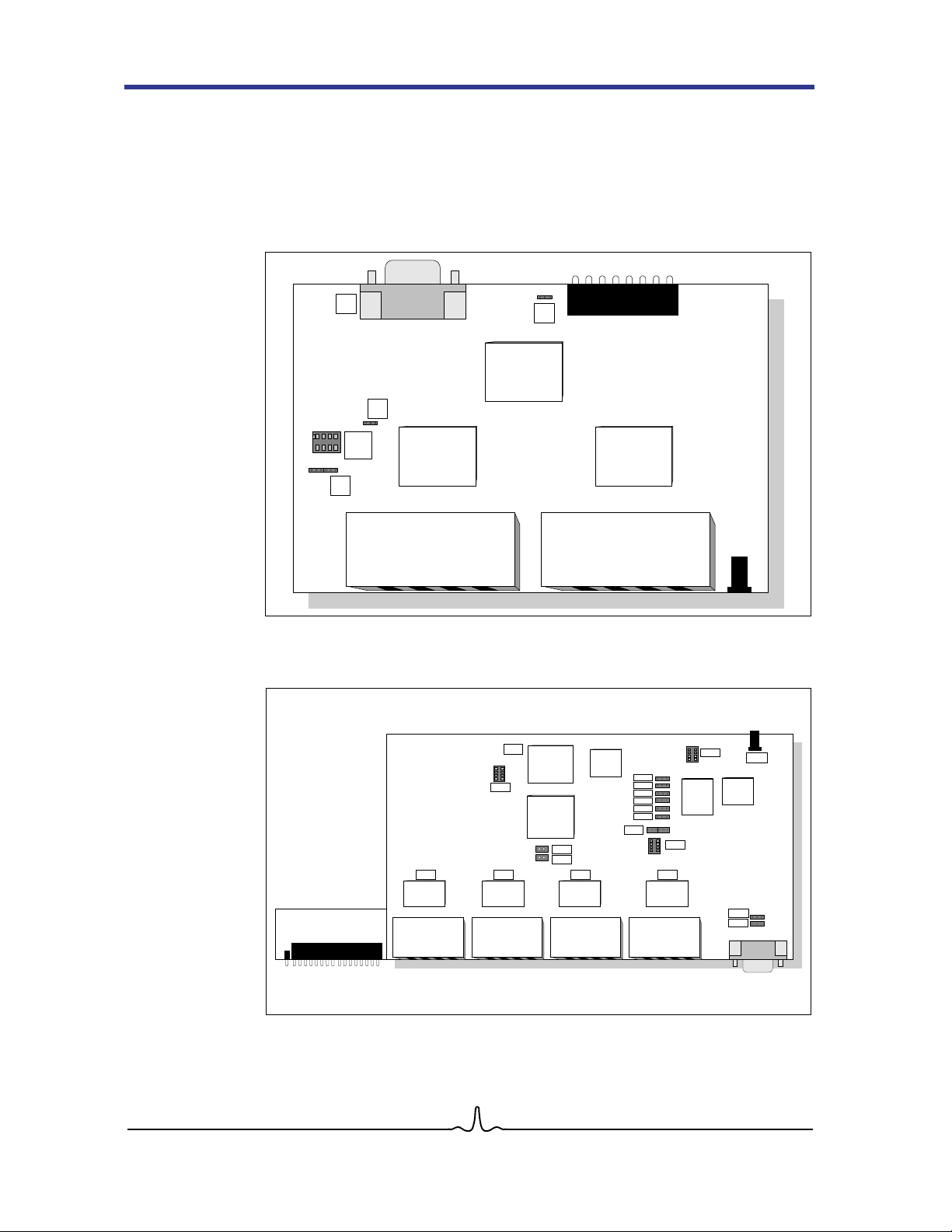

Figure 1 and Figure 2 are generalized block diagrams for the BCM95389 and
BCM95396 reference boards.
J1
J2
BCM5389
J3
U12
BCM5464 BCM5464
J4
Magnetics Magnetics
Figure 1: BCM95389 Block Diagram
U46
Taifatech
TF
U47
5396
U11 U15 U19 U23
BCM5464
Magnetics Magnetics
BCM5464 BC M5464 BCM5464
J12
J14
SK6
J10
Magnetics
J16
J28
J29
J30
J34
J33
Magnetics
SK3
SW2
SK4
SK5
SK2
J31
J32
Figure 2: BCM95396 Block Diagram
Broadcom Corporation
Page 2 Document 95389_95396-QS100-R
BCM95389/BCM95396 Connector Settings
Connector Settings
Table 1: BCM95389 Connector Settings
Number Settings
J2 CPU_EPROM_SEL strap pin setting.
1–2: SPI Mode
2–3: EEPROM mode
J3 Mux components connecting to SPI/EEPROM pins.
1–2: EEPROM (U12)/ 6-pin jumper (J4)
2–3: Microcontroller (U7)
Power
Connector
Number Settings
J10 SPI header/6-pins
J12 CPU_EPROM_SEL strap pin setting.
J14 OPEN: For nonmanagement mode
J16 Mux components connecting to SPI/EEPROM pins.
J28 Mux components connecting to SPI/EEPROM pins.
J29 Mux components connecting to SPI/EEPROM pins.
J30 Mux components connecting to SPI/EEPROM pins.
J31 UART
J32 UART
5V/300A DC power source
Table 2: BCM95396 Connector Settings
OPEN: For Websmart/microcontroller (8051) mode
CLOSE: For SPI mode
OPEN: For SPI mode
CLOSE: For EEPROM mode
CLOSE: For management mode
1–2: 8051 mode
2–3: Websmart mode
1–2: 8051 mode
2–3: Websmart mode
1–2: 8051 mode
2–3: websmart mode
1–2: 8051 mode
2–3: websmart mode
1–2: 8051 mode
2–3: websmart mode
1–2: 8051 mode
2–3: Websmart mode
Broadcom Corporation
Document 95389_95396-QS100-R Page 3
BCM95389/BCM95396
Table 2: BCM95396 Connector Settings (Continued)
Number Settings
J33 Mux components connecting to SPI/EEPROM pins.
1–2: 8051 mode
2–3: Websmart mode
J34 Mux components connecting to SPI/EEPROM pins.
1–2: 8051 mode
2–3: Websmart mode
J13 AL-A250ATX MAX250W power source
Setting Up a WebSmart™ Console Connection
Terminal-to-WebSmart™ Connection

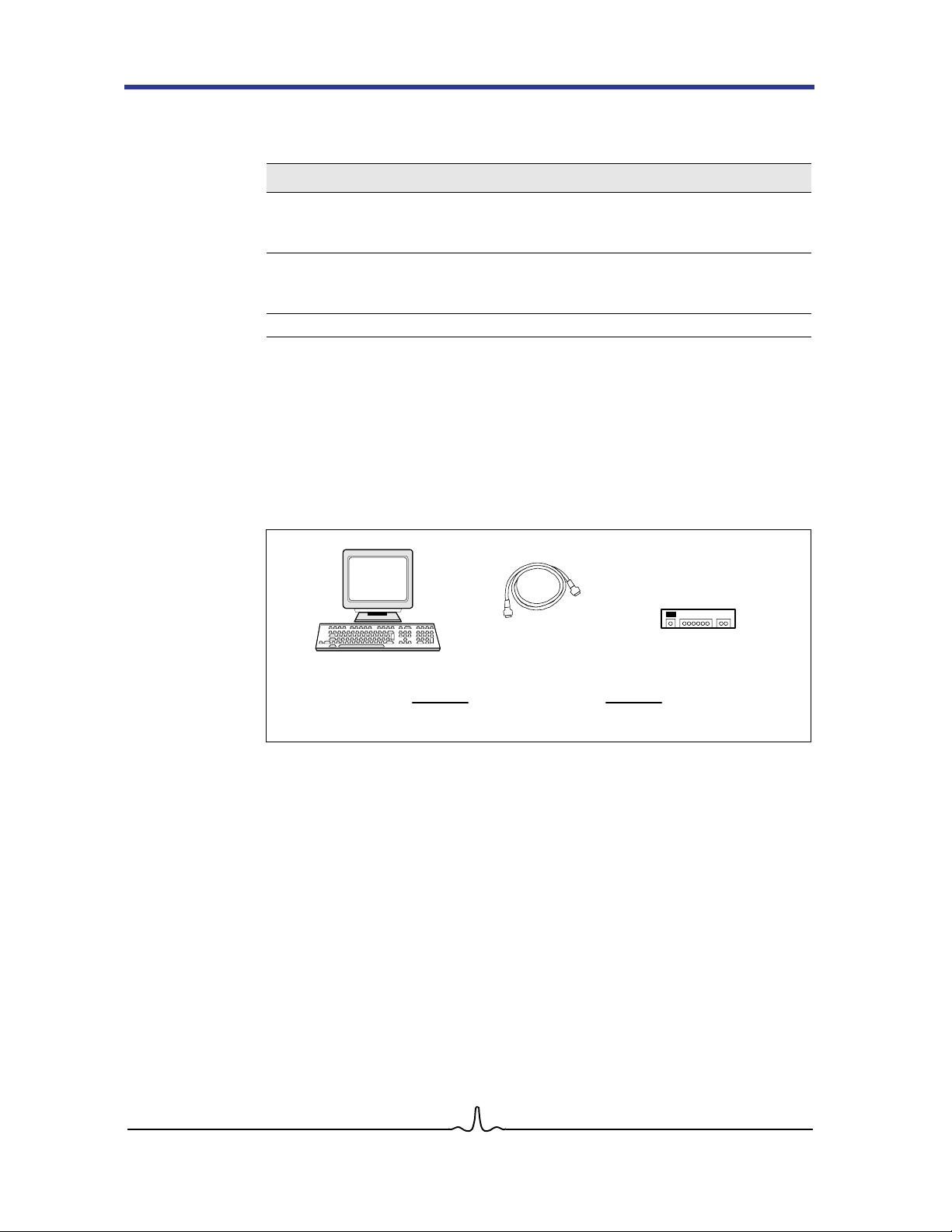

Connect a terminal or a PC with terminal emulation software to the console
port using a RS-232 straight cable.
9-pin Male
Connector
Note:
RS-232 Cable
9-pin Female to
9-pin Male Cable
Figure 3: Terminal-to-WebSmart Connection
Broadcom Switch
9-pin Female
Connector
The console port on the demo system is a DB-9 connector.
Broadcom Corporation
Page 4 Document 95389_95396-QS100-R
BCM95389/BCM95396 Setting Up a WebSmart™ Console Connection
Configuring the HyperTerminal Utility
HyperTerminal is a Windows® utility program for serial communications.
To configure HyperTerminal, follow these steps:
1. Start the HyperTerminal utility.
2. Select the COM port to communicate with the BCM95389/BCM95396
demo target board.

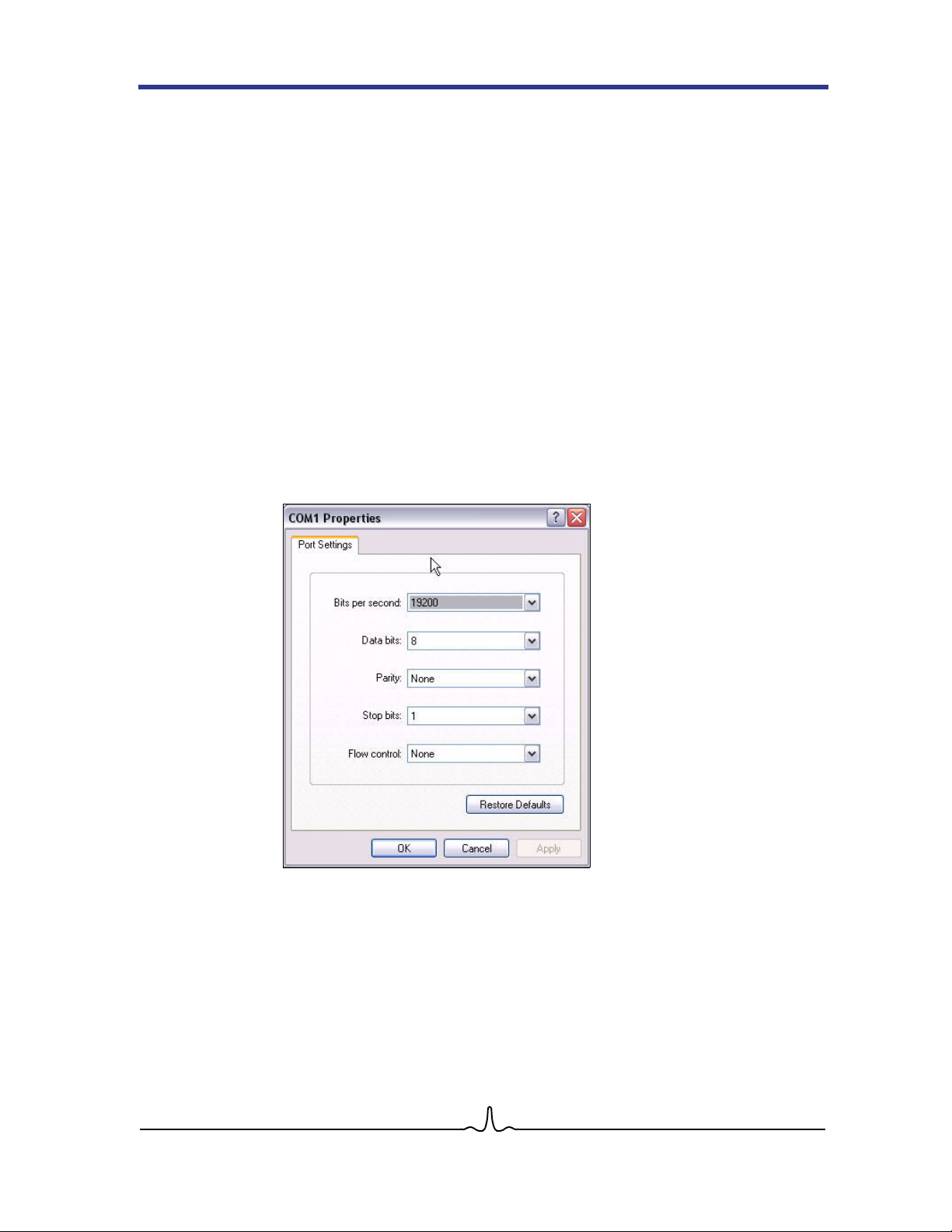

3. Set the serial port properties:
• Bits per second: 19200 bps
• Data bits: 8 bits
• Parity: none
• Stop bits: 1
• Flow control: none
• The properties window should look like the window below.
4. Click OK.
Broadcom Corporation
Document 95389_95396-QS100-R Page 5
BCM95389/BCM95396

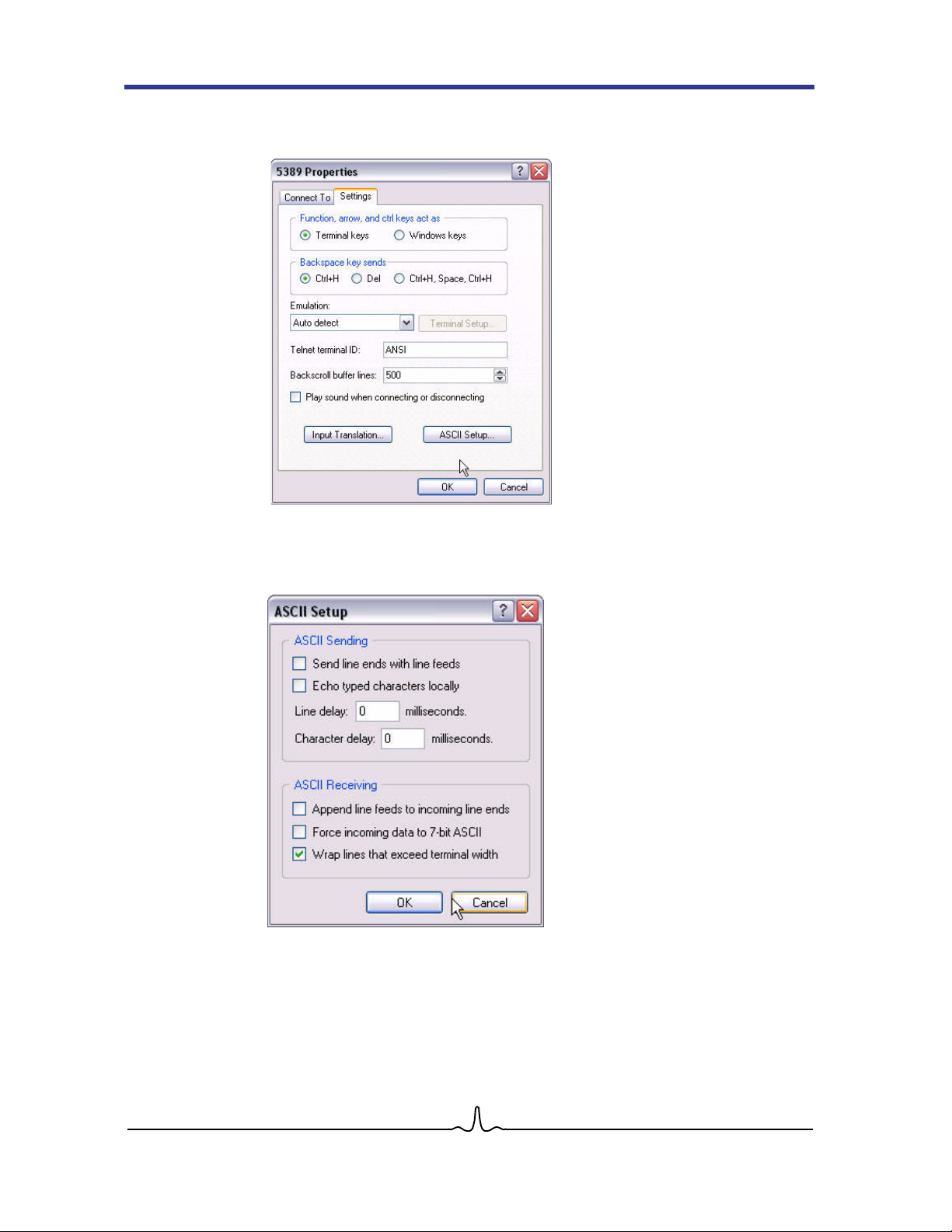

5. From the Properties menu select the Settings tab.
6. Click the ASCII Setup button to display the ASCII Setup window.
7. Click OK.
8. Power up in the BCM95389/BCM95396 reference board. If
communication is successful, the WebSmart CLI prompt appears on the
screen as shown below:
Broadcom Corporation
Page 6 Document 95389_95396-QS100-R
BCM95389/BCM95396 Setting Up a WebSmart™ Console Connection
9. The BCM95389/BCM95396 WebSmart CLI prompts can be viewed by
typing h for Help Menu. Typing <enter> afterward is not necessary.

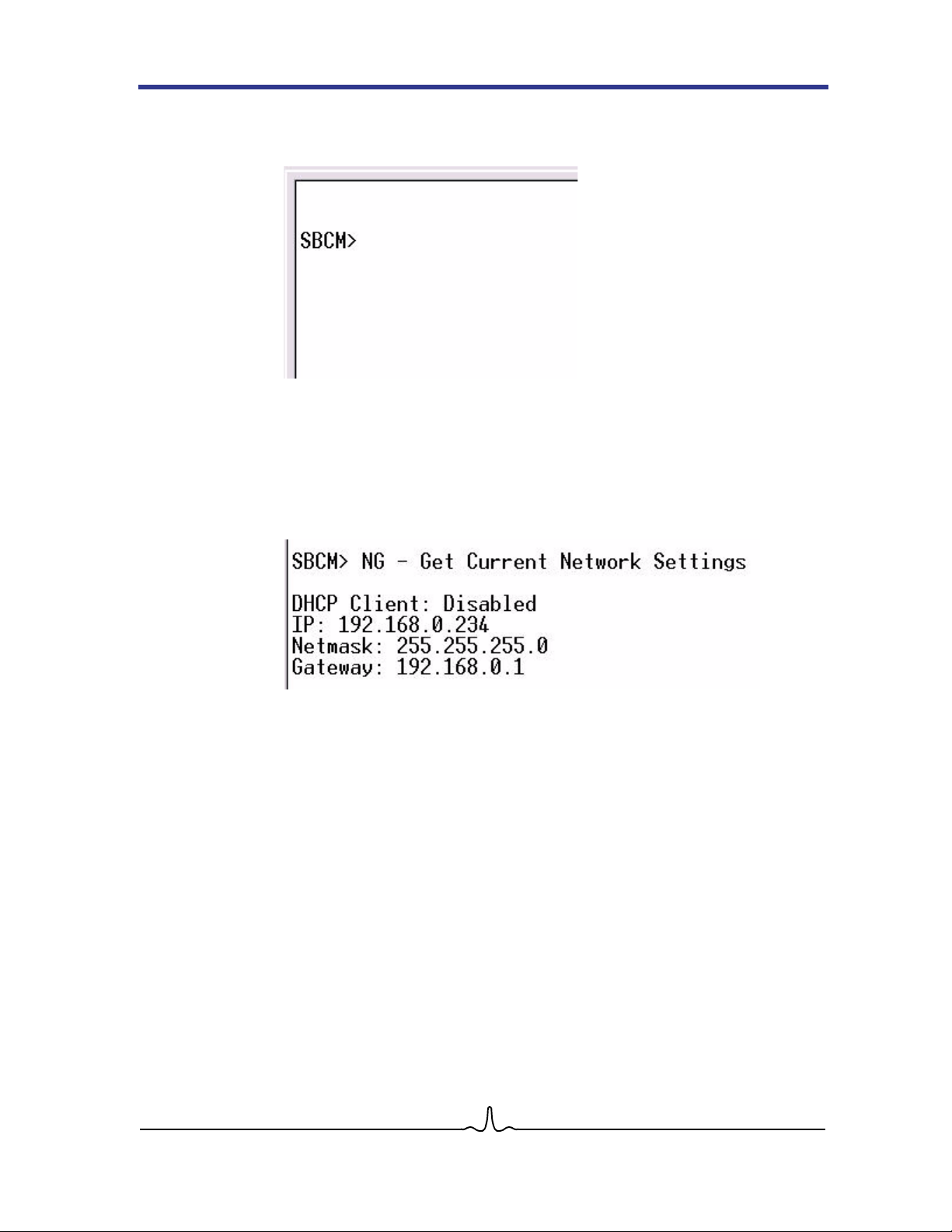

10. The initial network setting can be viewed by typing ng. Typing <enter>
afterward is not necessary. The display appears as shown below:
11. To customize these settings, type ns at the prompt. Typing <enter>
afterward is not necessary. Typing ns prompts asking if DHCP is preferred.
Type y for yes or n for no. If no is chosen, the next message shows the
existing IP address. This address can be modified by backspacing and typing
the new IP address. Type <enter> when finished. The same procedures
apply for changing the netmask and gateway. See the example below:
Broadcom Corporation
Document 95389_95396-QS100-R Page 7

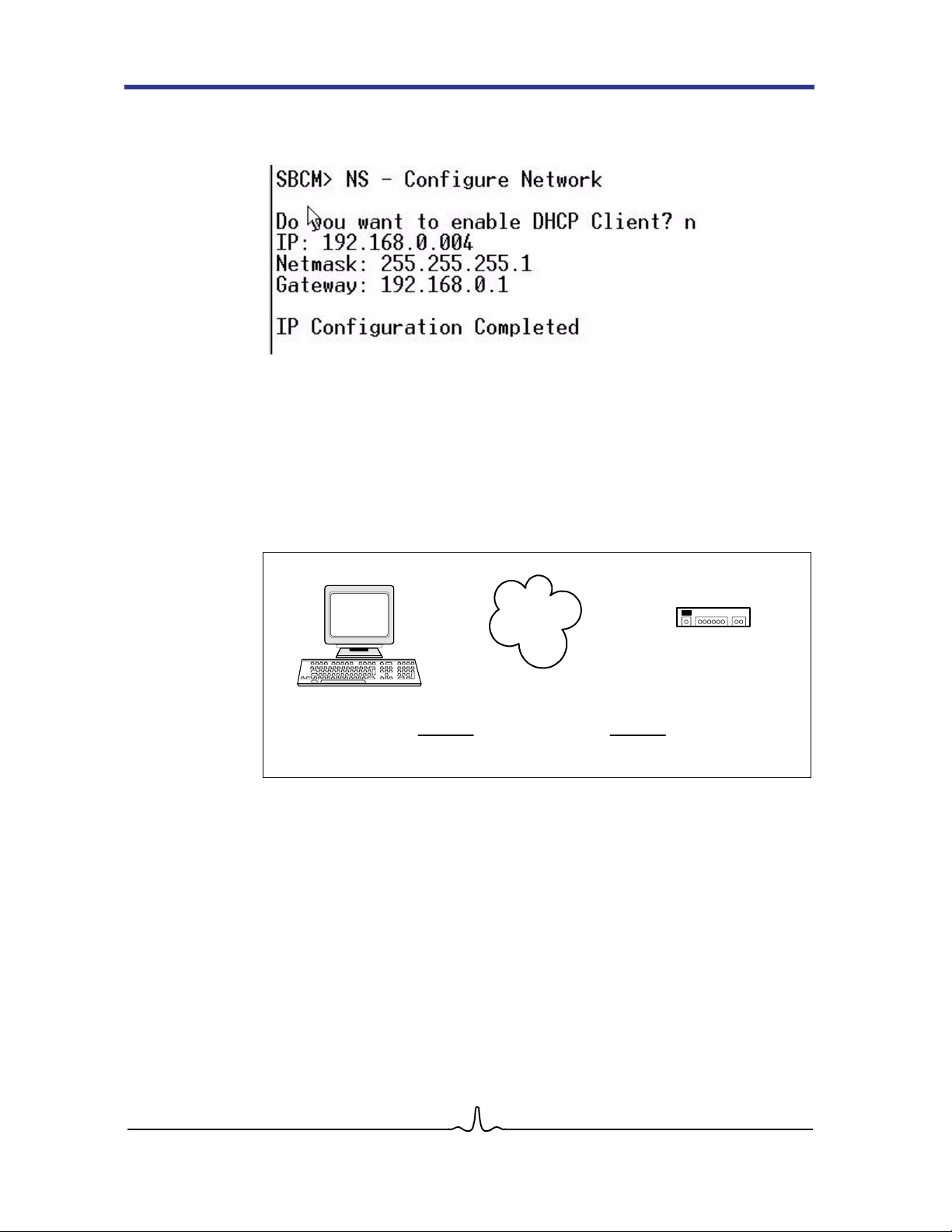

BCM95389/BCM95396
Setting Up a WebSmart™ Web-Based Connection
Connect both the client station and the BCM95389/BCM95396 reference
board to a common network. The BCM95389/BCM95396 reference board
connects via one of its network ports.
Broadcom Switch
Client System Network
Figure 4: WebSmart Web-Based Connection
Note:
The BCM95389/BCM95396 reference board should have a
jumper connecting pins 2 and 3 on the J3 connector. This jumper should
be installed by default. If not, or if it has been changed, this jumper must
be replaced on pins 2 and 3 for the Web-based WebSmart software to
operate.
1. Power-up the BCM95389/BCM95396 reference board.
2. Open the Web browser software on the client system.
Switch RJ-45
Port
Broadcom Corporation
Page 8 Document 95389_95396-QS100-R
BCM95389/BCM95396 Setting Up a WebSmart™ Web-Based Connection
3. Type the IP address corresponding to the BCM95389/BCM95396
reference board. If the address has not been changed either manually (by
issuing the ns command) or by the DHCP, the default address is
192.168.0.234. The browser address box should then be http://
192.168.0.234.

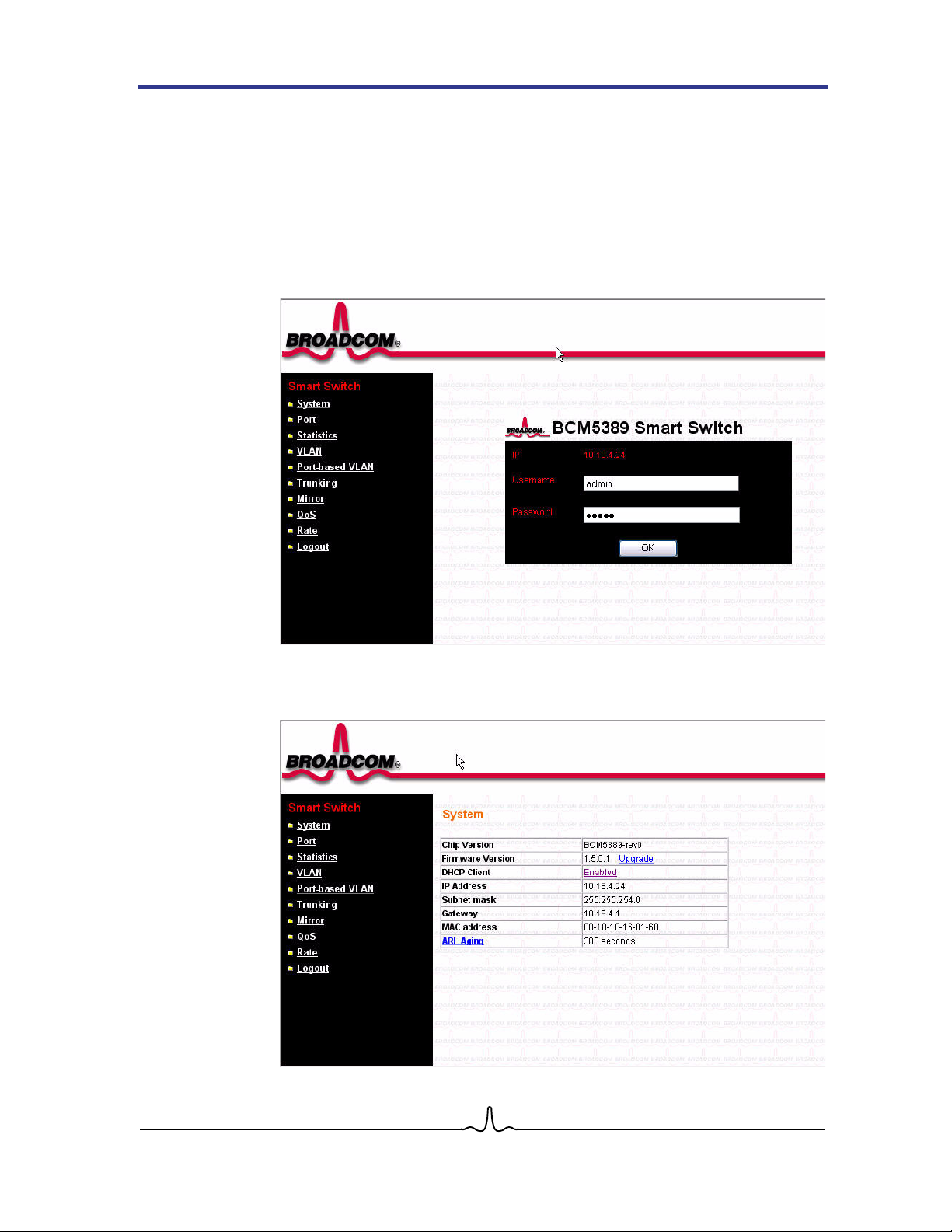

4. A dialog box should appear. Type admin for the username and admin for
the password as shown below.
5. The main menu Web-based WebSmart page should look similar to the
window below.
Broadcom Corporation
Document 95389_95396-QS100-R Page 9
