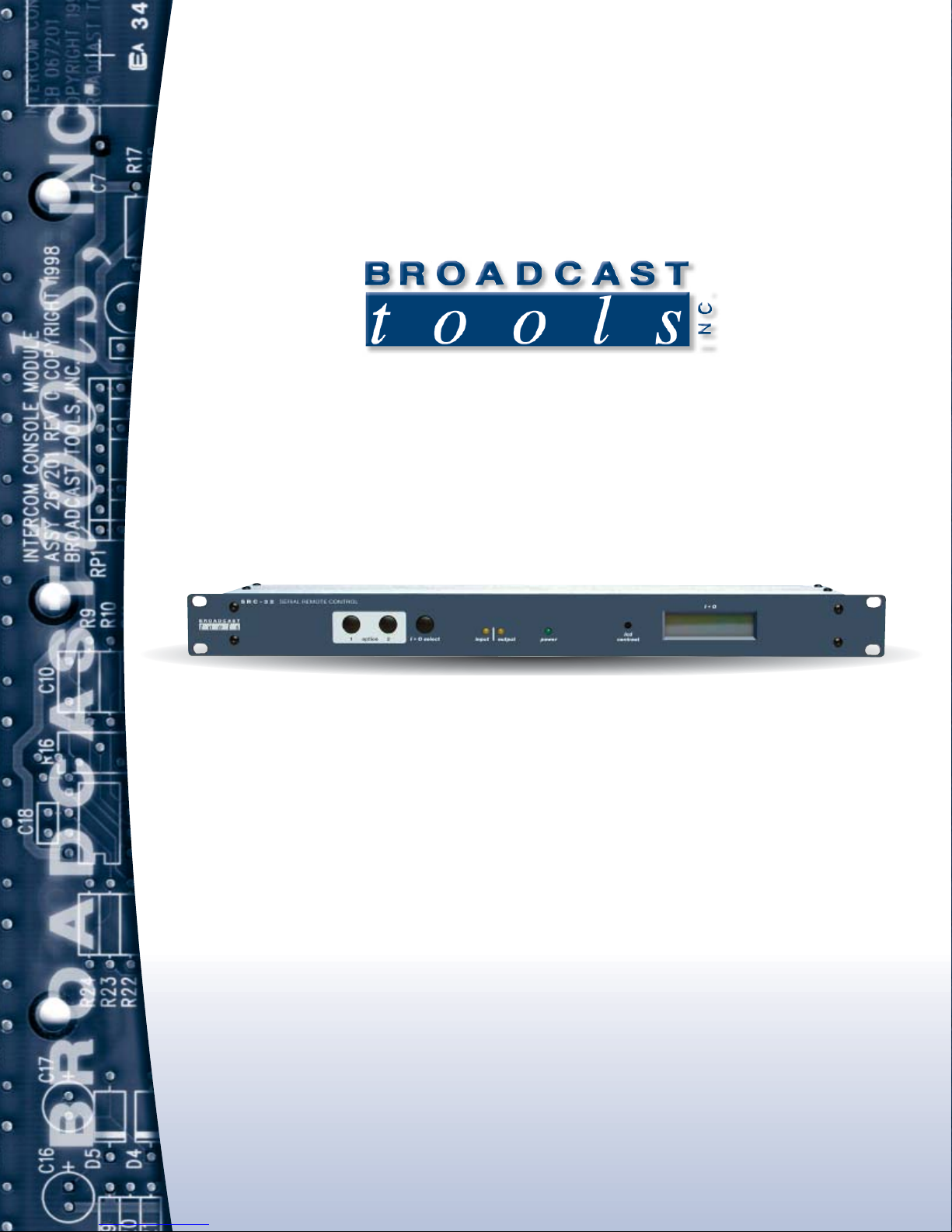

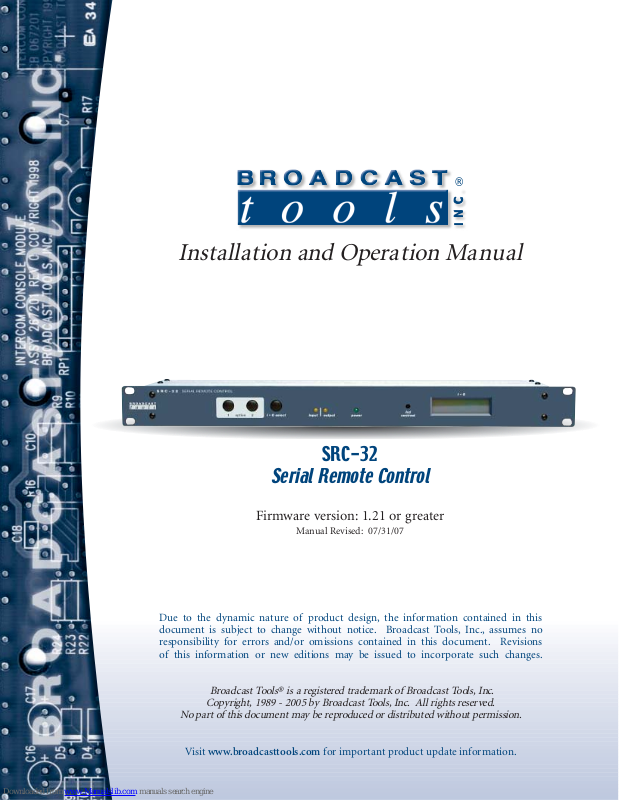

SRC-32
Serial Remote Control
INC
®
Page 2
ee--mmaaiill::
vvooiiccee::
360.854.9559
ffaaxx::
866.783.1742
SRC-32 Installation and Operation Manual
Table of Contents
Section Title Page #
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Who to Contact for Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Front Panel Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2
CONTENTS
Page 3
ee--mmaaiill::
vvooiiccee::
360.854.9559
ffaaxx::
866.783.1742
3
SRC-32 Installation and Operation Manual
INTRODUCTION
INTRODUCTION
Thank you for your purchase of a Broadcast Tools® SRC-32, Serial Remote
Control (referred to as the SRC-32 throughout this manual). We’re confident
that this product will give you many years of dependable service. This manual
is intended to give you all the information needed to install and operate the
Broadcast Tools® SRC-32.
SAFETY INFORMATION
Only qualified personnel should install Broadcast Tools® products. Incorrect or
inappropriate use and/or installation could result in a hazardous condition.
WHO TO CONTACT FOR HELP
If you have any questions regarding your product or you need assistance, please contact your distributor from whom you purchased this equipment.
If you would like more information about Broadcast Tools® products, you may
reach us at:
Broadcast T ools, Inc.
131 State Street
Sedro-Woolley, WA 98284 USA
Voice: 360.854.9559
Fax: 866.783.1742
Internet Home Page: www.broadcasttools.com
E-mail: [email protected]
THANK YOU FOR CHOOSING
BROADCAST TOOLS® BRAND PRODUCTS!
CAUTION!
Broadcast Tools®
Products, as with any
electronic device, can
fail without warning.
Do not use this product
in applications where a
life threatening condition
could result due to failure.
NOTE:
This manual should be
read thoroughly before
installation and operation.
WEBSITE:
Visit our web site for
product updates and
additional information
Page 4
ee--mmaaiill::
vvooiiccee::
360.854.9559
ffaaxx::
866.783.1742
4
SRC-32 Installation and Operation Manual
DESCRIPTION
PRODUCT DESCRIPTION
The Broadcast Tools® SRC-32 is a computer interface to the real world. Connected
through an RS-232 or RS-422/485 serial port the SRC-32 can notify your PC software program that any of the 32 opto-isolated inputs has been opened or closed and
allows your software to control 16 - SPDT, 1-amp relays and an additional 16 open
collector outputs. Communication with the SRC-32 can be accomplished via short
“burst” type ASCII or binary commands from your PC (computer mode). Also, two
units can be operated in a standalone mode (master/slave mode) to form a "Relay
extension cord," with 32-channels of control in each direction. The unit can communicate using RS422/485 or RS232, at data rates up to 38400. The SRC-32 may
be expanded to 128 inputs x 128 outputs. Optional external Ethernet capabilities
may be added by the purchase of the SP-1. The SRC-32 is supplied with a 16 x 2
LCD display to indicate the status of both the inputs and outputs. A push button
switch allows LCD display selection of either inputs or outputs. Three front panel
LED’s display power, input or outputs along with the LCD contrast control.
Removable (Euro) screw terminals are provided for ease of wire
installation/removal.
Set-up:
Connect the supplied 12-vac power supply. When the SRC-32 is powered, the LCD
will momentarily display the version of firmware programmed into the flash microprocessor and the current baud rate setting. The default baud rate setting is 9600, 8,
N, 1. The baud rate can be set to 2400, 9600, 19200 or 38400 (other baud rates may
be supplied). This can be done using either the ASCII or binary command formats
listed below. Inputs can be simple contact closures or completely optically isolated
with your external trigger sourcing current to the opto-isolators. See page 11 for
details on jumper settings to configure the inputs and relays. The RS-232 serial connection is made either through the RJ-11 or male DB-9 connector. JP09 is used to
reverse the RS-232 transmit and receive pins and is normally set in the “RR” position. The SRC-32 is supplied with a modular cord and DB-9 female to modular
adapter (S9). The male DB-9 is used to connect to an external modem. RS422/485
connections are made on the terminal block.
FRONT PANEL DESCRIPTION
The front panel allows the user to select either inputs or outputs to be displayed on
the LCD. The third front panel switch from the left is used to select inputs and outputs. The “input” LED will light when the LCD is displaying the status of the inputs
and the “output” LED will light when displaying output status. When an output is
off, a “0” will be shown and when it is on a “1” will display. The front panel LCD
displays the first 16 I/O from left to right on the top row and 17 through 32 from left
to right on the bottom. The user has the option of how an input is displayed. Inputs
are normally “high” when in the off state and pulled down to “0” when a contact is
closed. If you are monitoring TTL inputs, you may want to keep the display in this
format to display the true sense of the input. If you are monitoring contact closures,
you may want to have a “1” appear when the contact is closed and a “0” when it is
open. If this is the case, turn on DIPswitch position 8.
The green “Power” LED will light when the SRC-32 has power connected.
Page 5
ee--mmaaiill::
vvooiiccee::
360.854.9559
ffaaxx::
866.783.1742
5
SRC-32 Installation and Operation Manual
INSTALLATION
INSTALLATION GUIDELINES
DIP Switch Settings:
Multiple SRC-32’s can be “daisy chained” together using a single serial port to a PC
and the 10 pin IDC “EXT” headers marked “EXT-1” and “EXT-2”. The EXT-2 from
one SRC-32 can be connected to the EXT-1 of the next and so on. Each board
should have a unique address set on its DIPswitch address setting. Up to three additional, SRC-32’s may be connected together so that up to 128 inputs can be monitored and 128 outputs controlled from one PC’s com port, other serial devices or the
external Ethernet option. The SRC-32 connected to the PC is considered the
“Master” unit and must have its address at zero and jumper JP13 set to RS-232 or
RS-422/485 depending on the PC connection. Each external SRC-32 should have a
non-zero address of 1,2 or 3. The external “Slave” SRC-32 needs to have JP13 set
to “External”. NOTE: After changing Dipswitches, be sure to press the reset switch
or recycle the power.
DIP 1, 2
The board address is set using Dipswitch numbers 1 and 2 in normal hex format:
1, 2
0 0 = 0 (master) No polling is required for status.
0 1 = 1
1 0 = 2
1 1 = 3
DIP 3, 4 = Set baud rate
3, 4
0 0 = 9600
0 1 = 2400
1 0 = 19200
1 1 = 38400
Baud rate will be set by the DIPswitches on power up or reset. It can also be
changed using the serial port commands at other times, but if the SRC-32 is reset,
the baud rate will be set according to the DIP settings.
DIP 5 = (ON) Hex mode – When on, hex “Burst” mode is selected. Refer to the
protocol below for hex commands. (Off) is ASCII mode. Refer to the ASCII protocol below for ASCII commands.
DIP 6 = (ON) Pair mode, inputs from one SRC-32 will map directly to outputs of
another SRC-32 when connected together via RS-232 or RS422. (OFF) normal
operation via RS-232/422. DIP 5 must also be ON, as pair mode only works in hex
mode.
DIP 7 = (ON) Modem mode. (Not yet implemented) Set master to address 00 and
slave to 01. Master will output an AT command to an external modem and call the
slave. Also set DIP 5 and 6 ON for hex pair mode.
NOTE:
After changing a
DIPswitch setting, the
board must be reset by
pressing the “RST”
button or by cycling the
power.
WEBSITE:
Visit our web site for
product updates and
additional information
Page 6
ee--mmaaiill::
vvooiiccee::
360.854.9559
ffaaxx::
866.783.1742
6
SRC-32 Installation and Operation Manual
INSTALLATION
DIP 8 = (ON) Invert sense of LCD display of inputs. A closed contact will display
as a “1” and an open as a “0”. (OFF) A closed contact will display as a “0” and an
open as a “1”.
NOTE: After changing DIP settings, be sure to press the reset button or recycle the power.
SRC-32 ASCII Serial Burst Mode Commands:
The burst mode allows a computer or ASCII terminal to control and interrogate the
unit. This section defines all burst mode commands. Dipswitch 5 must be off for
the ASCII commands to be received. Each burst mode command starts with an
asterisk (*). Next is a single decimal digit that corresponds to the unit (ID) address
0-3. Following are one or more ASCII characters specifying the command. A carriage-return is required to terminate each command. If the command requested a
response, the response will consist of an upper case S, followed by the unit address,
and then the specific response. If acknowledgments are enabled, successful commands are responded to with RRR while errors get an EEE response. The syntax
of each command is given below. The syntax shows the command exactly as it
should be sent, except that lower case characters represent values that should be substituted:
SRC-32 ASCII Commands:
*uC4x- Set RS-232/RS-422/485 mode timings: x = 1, Turn ON
RS-232/RS-422/485 mode NO delays on sending data. x = 0, Turn OFF
RS-232/RS-422/485 mode (delay for the RS-232 charge pump startup
before sending response).
*uCCx- Set Serial Speed. x = 0: 2400 1: 9600 2: 19200 3: 38400
*uCEx - Enable Error and Good Responses- Where x = Y to enable and x = N to
disable. In this mode, when a command is sent that is in error, the unit
will reply (possibly before receiving the entire command) with “EEE.” If
the command is sent correctly, the unit will reply with “RRR.”
*uCAxxx…x - Load AT command string for modem init. (future feature)
*uCTxxx…x - Load Telephone number for modem to dial if set to master in modem
mode. (Future feature
)
Character String Meaning Allowable Values
u Unit ID 0-3
ii Input Number 01-32
rr Output Number 01-32
Page 7
ee--mmaaiill::
vvooiiccee::
360.854.9559
ffaaxx::
866.783.1742
7
SRC-32 Installation and Operation Manual
INSTALLATION
Output Control Commands:
*uORrrL- Latch Output rr, (output number 01-32). 01–08 are relays,
09–32 open collectors
*uORrrF- Unlatch Output rr, (output number 01-32). 01–08 are relays,
09–32 open collectors
*uORrrPtt- Pulse Output rr, (output number 01-32). Pulse Length tt: 00-
99 corresponds to 00 - 9.9 Seconds. 01–08 are relays, 09–32
open collectors
ASCII Information Retrieval Commands:
*POLL - Respond with unit (ID) address in appropriate time slot. If
there are multiple units on the line, each will respond with a
different delay after receipt of this command.
*uSPii - Send status of input ii. Response is SuP,ii,x where x is 1 if the
corresponding input is high, 0 otherwise.
*uSPA - Send status of all inputs. Response is
SuP,A,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x
--> 31<CR><LF > where input 1 is first and input 32 is last.
x is 1 if the corresponding input is high, 0 otherwise.
*uSR - Send status of all OUTPUTS. Response is:
SuA,x,x,x,x,x,x,x,x--->32<CR><LF>
*uU - Send Unit Information :<name(SRC-32)><version><cr><lf>
*SA - Send current AT command string for modem.
*ST - Send current telephone number for modem to dial.
SRC-32 Binary Serial Burst Commands:
Dip switch 5 must be on for binary commands to be processed. All commands start
with a 2Ah (ASCII *). The first byte contains the board ID and the byte count
iiibbbbb Byte count is number of bytes after the byte containing the byte count
including checksum. The second byte contains an 8-bit command. Some commands
are followed by data bytes. Checksum is the LSByte of the sum of all bytes preceding checksum including start. Binary commands must be received as a packet.
If 50 ms or more passes after a character is received with no new character following, the SRC-32 will begin looking for a new string if no valid data packet has been
received.
WEBSITE:
Visit our web site for
product updates and
additional information
Page 8
ee--mmaaiill::
vvooiiccee::
360.854.9559
ffaaxx::
866.783.1742
8
SRC-32 Installation and Operation Manual
INSTALLATION
Pair Mode
The SRC-32 can be used to transmit the outputs from one unit to another over a serial connection. The logical sense of the inputs is inverted when written to the outputs
of its corresponding unit. Normally inputs are high and when closed go to a logic 0
when in pair mode. When logic 0 is received, it will write logic 1 to the output.
This allows the relays connected to outputs 1-8 to come on if its corresponding input
is closed. Multiple units can also be set up to communicate with the same number
of units on the other end of a data link. All units must have DIPswitches 5 and 6
turned on and the unit addresses must have a corresponding unit on the other end of
the link set to the same address. For example, if you have two units on each side set
to address 0 and 2, then the two units on the other side of the data link must also be
set to 0 and 2. All units will automatically transmit the states of their inputs on
power up, every ten seconds and when any input changes states. If a unit does not
receive an update from its corresponding paired unit for a period of 20 seconds, its
LCD display will begin to flash “COM - FAILURE”. As soon as communications
is restored, the “COM – FAILURE” message will clear.
Command Additional Data Bytes Function
SRC-32 Binary Commands:
40h RS-232 timer off
41h RS-232 timer on
42h Set serial speed to 2400
43h Set serial speed to 9600
44h Set serial speed to 19200
45h Set serial speed to 38400
46h Enable error & good responses
47h Disable error & good responses
48h N Latch output n (00 – 1F)
49h N Unlatch output n (00 – 1F)
4Ah Nt Pulse output n (00 – 1F),
t= time (1-63h =.1 - 9.9sec)
4Bh N Poll output n (00 – 1F) (see 55h)
4Ch N Poll input n (00 – 1F) (see 55h)
4Dh All Output status request (see 52h)
4Eh All Input status request (see 53h)
4Fh Unit version request (see 54h)
Special Binary Commands for Modem Operation:
Future feature Load AT command string for modem init.
Future feature Load Telephone number for modem to dial if master
Future feature Request for stored AT command (56h response)
Future feature Request for stored telephone number (57h response)
Binary Output Response from SRC-32:
60h nnn…n Load AT command string for modem init. (Future feature)
61h nnn…n Load Telephone number for modem to dial if master
(Future feature)
62h Request for stored AT command (56h response) (Future feature)
63h Request for stored telephone number (57h response) (Future
feature)
Page 9
ee--mmaaiill::
vvooiiccee::
360.854.9559
ffaaxx::
866.783.1742
9
SRC-32 Installation and Operation Manual
INSTALLATION
Command Additional Data Bytes Function
Binary Output Response from SRC-32:
50h Error response if enabled by 46h
51h Good response if enabled by 46h
52h Nnnn Response of 4Dh, outputs are sent as 4
bytes, 8 outputs per byte with the order
being MSByte sent first, LSByte sent last.
53h Response of 4Eh, inputs are sent as 4
bytes, 8 inputs per byte with the order
being MSByte sent first, LSByte sent last.
54h N Response to 4Fh outputs version, (ie 13h
= ver1.3)
55h N Response to 4Bh or 4Ch for polled out-
put or input and used to notify when an
input changes state, here the three highest bits of n are used to identify if an
input/output is low/high and the lowest 5
bits identify the input or output. n = 00h
– 1Fh if input n is low, n = 20h – 3Fh if
input n is high, n = 40h 5Fh if output n is
low and n = 60 – 7F if output n is high.
n=cccnnnnn where ccc = 000 = input
low, 001 = input hi, 010 = output lo, 011
= output hi. nnnnn lowest 5 bits used to
identify the input or output.
56h nnn…n Response to 62h with stored AT com-
mand (Future feature)
57h nnn…n Response to 63h with store telephone
number (Future feature)
Example of Binary Exchange:
To poll the output status of board 2 when outputs (0-31) 0, 6, 10 and 31 are high, all
else low:
Binary Command String to SRC-32:
00101010b 2Ah Start byte
01000010b 42h Board ID 2 (010b), Byte count 2 (00010b)
01001101b 4Dh All Output Status Request
10111001b B9h Check sum (2Ah+42h+4Dh=B9h)
Binary Response String from SRC-32:
00101010b 2Ah Start byte
01000101b 45h Board ID 2 (010b), Byte count 5 (00101b)
10000000b 80h MSByte sent first
00000000b 00h
00000100b 04h
00000010b 02h LSByte sent last
01000001b F5h Check sum (2Ah+45h+80h+00h+04h+02h=F5h)
WEBSITE:
Visit our web site for
product updates and
additional information
Page 10
ee--mmaaiill::
vvooiiccee::
360.854.9559
ffaaxx::
866.783.1742
10
SRC-32 Installation and Operation Manual
INSTALLATION
Input jumper configuration:
The SRC-32’s inputs may be configured for one of three operations:
1 – Optically isolated wet source (5 to 24 vdc)
2 - Optically isolated dry (5-volt source)
3 - CMOS/TTL 5-volt compatible input
Relay jumper configuration:
The SRC-32’s relays may be configured for normally open or normally closed contacts. The SRC-32 is shipped configured for normally open contacts. To configure
for normally closed contacts, move the jumper from the NOx position to the NCx
position. x refers to the relay number. There are sixteen relays installed in the SRC-
32. These jumpers are located between the relays and front panel connectors.
It is recommended that all cables connected to the SRC-32 should be looped through
ferrite cores to suppress RF. Surge protection with RF filtering such as the Tripp
Lite “ISOBAR 4” is also suggested for the power transformer. The purchase of an
inexpensive uninterruptible power supply (UPS) will provide back up in case of
power outages. Check out our web site for lightning protection links.
WEBSITE:
Visit our web site for
product updates and
additional information
FFuunnccttiioonn ““AA””
IInnppuutt
““BB””
IInnppuutt
““AA””
jjuummppeerr
““AA””
jjuummppeerr
““BB””
JJuummppeerr
Optically
Isolated
ddrryy
ccoonnttaaccttss
Ground Source side of
Opto-Isolator
(Cathode)
1&2 3&4 2&3
Optically
Isolated
wweett
ssoouurrccee
Anode of the
Opto-Isolator
(2.2K)
Cathode of
Opto-Isolator
2&3 N/C 2&3
TTL/CMOS
compatible
55-- vvoolltt llooggiicc
Ground Logic input
with pull-up
1&2 3&4 1&2
CAUTION!
Installation of the
SRC-32 in high RF
environments should be
performed with care.
Shielded cable is suggested for all control,
audio inputs and outputs. All shields should
be tied to the “CHASSIS GROUND” terminals. The station
ground should be connected to the chassis
ground screw (CH1)
located near J13 as
viewed from the rear.
For lightning protection devices, check out
www
.polyphaser
.com
and www.itwlinx.com.
Page 11
ee--mmaaiill::
vvooiiccee::
360.854.9559
ffaaxx::
866.783.1742
11
SRC-32 Installation and Operation Manual
INSTALLATION
Removable (Euro) screw terminal connections.
Connector
Position:
Top-1 In-1A In-1B In-2A In-2B In-3A In-3B
Bottom-1 In-4A In-4B In-5A In-5B In-6A In-6B
Top-2 In-7A In-7B In-8A In-8B In-9A In-9B
Bottom-2 In-10A In-10B In-11A In-11B In-12A In-12B
Top-3 In-13A In-13B In-14A In-14B In-15A In-15B
Bottom-3 In-16A In-16B In-17A In-17B In-18A In-18B
Top-4 In-19A In-19B In-20A In-20B In-21A In-21B
Bottom-4 In-22A In-22B In-23A In-23B In-24A In-24B
Top-5 In-25A In-25B In-26A In-26B In-27A In-27B
Bottom-5 In-28A In-28B In-29A In-29B In-30A In-30B
Top-6 In-31A In-31B In-32A In-32B OC-17 OC-18
Bottom-6 OC-19 OC-20 OC-21 OC-22 OC-23 OC-24
Top-7
GGNNDD
OC-25 OC-26 OC-27 OC-28 OC-29
Bottom-7 OC-30 OC-31 OC-32
GGNNDD
K1-A K1-B
Top-8 K2-A K2-B K3-A K3-B K4-A K4-B
Bottom-8 K5-A K5-B K6-A K6-B K7-A K7-B
Top-9 K8-A K8-B K9-A K9-B K10-A K10-B
Bottom-9 K11-A K11-B K12-A K12-B K13-A K13-B
Top-10 K14-A K14-B K15-A K15-B K16-A K16-B
Bottom-10 RX
++
RX
--
TX
--
TX
++ GGNNDD GGNNDD
Page 12
ee--mmaaiill::
vvooiiccee::
360.854.9559
ffaaxx::
866.783.1742
12
SRC-32 Installation and Operation Manual
SPECIFICATIONS
SPECIFICATIONS
Digital Inputs: 32 – Selectable 5 to 24 vdc optically Isolated or TTL/CMOS
5-volt logic compatible input 100 ms minimum duration.
Jumper selectable.
Relay Outputs: 16 – SPDT, 1 amp relays. Jumper selectable either N.O. or N.C.
Open Collectors: 16 – Open collector outputs. 12 vdc @ 100 ma each.
RS-232 Serial Port: 2400, 9600, 19200, 38400 baud, 8 data bits, no parity, 1 stop
bit. Other baud rates may be requested.
RS-232 Modem Port: 2400, 9600, 19200, 38400 baud, 8 data bits, no parity, 1 stop
bit. Other baud rates may be requested.
RS-422/485 Serial Port: 2400, 9600, 19200, 38400 baud, 8 data bits, no parity, 1 stop
bit. Other baud rates may be requested.
Ethernet Option: Optional External Ethernet Device Server such as the
Broadcast Tools® SP-1.
Operation Control: Front Panel - 16 x 2 LCD I/O Display
Interfacing: Inputs – Removable screw terminals (Euro).
Relays/Open collectors – Removable screw terminals (Euro).
RS-232 Serial port - Modular w/cable and adapter (Supplied)
RS-232 Serial/ Modem Port - Male DB-9
RS-422 Serial port – Removable screw terminals (Euro).
Expansion port - Two, 10 position (2x5) .1” headers
Logic: Flash microprocessor / Non-volatile memory
Power: 12 Vac @ 1 Amp / 120 Vac 50-60 Hz, “Wall Wart” Supplied.
(CE, 240 Vac 50-60 Hz optional)
Mechanical: 19” X 1.75” X 4.65”
Weight: 4 pounds
WEBSITE:
Visit our web site for
product updates and
additional information
Page 13
13
SRC-32 Installation and Operation Manual
LIMITED WARRANTY
LLIIMMIITTEEDD WWAARRRRAANNTTYY
The term “Buyer” as used in this document refers to and includes both (but only) (a) any person or entity who acquires such an item for
the purpose of resale to others (i.e., a dealer or distributor of an item), and (b) the first person or entity who acquires such an item for
such person’s or entity’s own use.
Broadcast Tools warrants to each Buyer of any item manufactured by Broadcast Tools that the item will be free from defects in materials and workmanship at the time it is shipped by Broadcast Tools if the item is properly installed, used and maintained.
EEXXCCLLUUSSIIVVEE RREEMMEEDDIIEESS
If Broadcast Tools is notified, in writing, of a failure of any item manufactured by Broadcast Tools to conform to the foregoing Limited
Warranty within one (1) year following the date of the Buyer’s acquisition of the item, and if the item is returned to Broadcast Tools in
accordance with Broadcast Tools’ instructions for confirmation by inspection of the defect (which at Broadcast Tools’ election may
include, without limitation, a requirement that the Buyer first obtain a Return Authorization number from Broadcast Tools, that the Buyer
furnish proof of purchase in the form of an invoice and/or receipt, and that the Buyer prepay all freight charges associated with any return
of the item to Broadcast Tools using such freight service as Broadcast Tools reasonably may specify), Broadcast Tools will repair or
replace the defective item, or will refund the purchase price paid by the Buyer for the item. Broadcast Tools shall have the exclusive
right to choose between these alternative remedies.
NNOO OOTTHHEERR WWAARRRRAANNTTIIEESS OORR RREEMMEEDDIIEESS
TO THE MAXIMUM EXTENTPERMITTED BYAPPLICABLE LA W , BROADCASTTOOLS AND ITS SUPPLIERS DISCLAIM ALLOTHER
WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE; AND THE FOREGOING ALTERNATIVE REMEDIES SHALL BE EXCLUSIVE OF
ALL OTHER REMEDIES. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS,
WHICH VARY FROM STATE/JURISDICTION TO STATE/JURISDICTION.
NNOO LLIIAABBIILLIITTYY FFOORR CCOONNSSEEQQUUEENNTTIIAALL DDAAMMAAGGEESS
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, NEITHER BROADCAST TOOLS NOR ANY OF ITS SUPPLIERS
SHALL HAVE ANY LIABILITY FOR ANY SPECIAL, INCIDENTAL, INDIRECT, CONSEQUENTIAL OR PUNITIVE DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, ANYDAMAGES FOR LOST PROFITS, BUSINESS INTERRUPTION, LOSS OF DA TA OR
INFORMATION, COST OF CAPITAL, CLAIMS OF CUSTOMERS, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE
OF OR THE INABILITY TO USE ANY ITEM SUPPLIED BY BROADCAST TOOLS, EVEN IF BROADCAST TOOLS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES HAVE ANY LIABILITY FOR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL,
EXEMPLARY OR PUNITIVE DAMAGES. THIS LIMITATION OF LIABILITY APPLIES WHETHER A CLAIM IS ONE ALLEGING
BREACH OF ACONTRACT OR WARRANTY, NEGLIGENCE OR OTHER TORT, FOR THE VIOLATION OF ANY STATUTORY DUTY,
THE FAILURE OF ANY LIMITED OR EXCLUSIVE REMEDY TO ACHIEVE ITS ESSENTIAL PURPOSE, OR ANY OTHER CLAIM OF
ANY NATURE. BECAUSE SOME STATES AND JURISDICTIONS DO NOTALLOW THE EXCLUSION OR LIMITATION OF LIABILITY
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, THIS LIMITATION MAY NOT APPLY TO YOU.
Broadcast T ools, Inc.
131 State Street
Sedro-Woolley, WA 98284 • USA
www.broadcasttools.com website
ee--mmaaiill::
vvooiiccee::
360.854.9559
ffaaxx::
866.783.1742
Loading...
