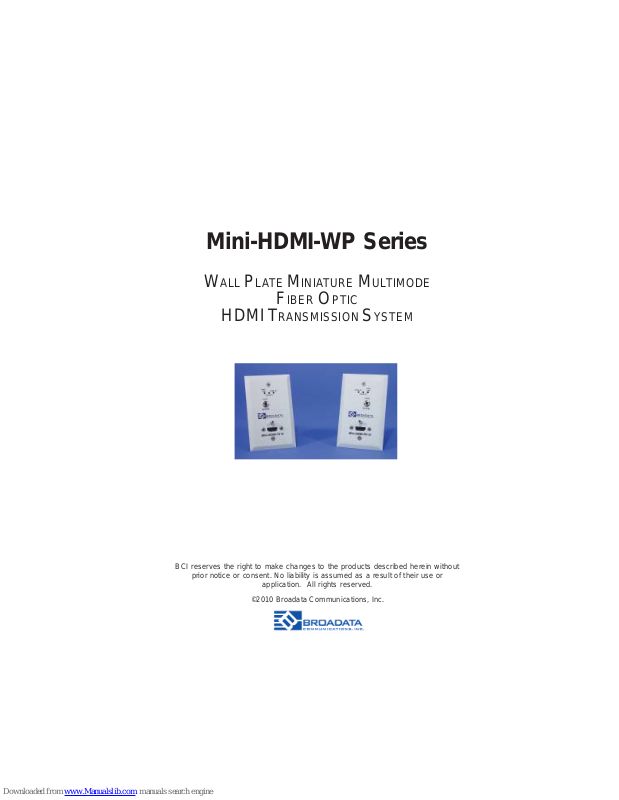

Broadata Mini-HDMI-WP Series User Manual

Mini-HDMI-WP Series

WALL PLA TE MINIATURE MULTIMODE

FIBER OPTIC

HDMI TRANSMISSION SYSTEM

BCI reserves the right to make changes to the products described herein without

prior notice or consent. No liability is assumed as a result of their use or

application. All rights reserved.

©2010 Broadata Communications, Inc.

Mini-HDMI-WP User’s Manual

Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System

Broadata Technical Support, [e-mail]

3

SAFETY INSTRUCTIONS AND

COMPLIANCE DECLARATIONS

PLEASE OBSERVE THE FOLLOWING SAFETY

PRECAUTIONS AS OUR PRODUCTS CONT AIN

CLASS I LASER PRODUCTS

WARNING

Do not disconnect the fiber optic connector while the unit is powered
up. Exposure to laser radiation is possible when the laser fiber optic
connector is disconnected while the unit is powered up.

Although the fiber optic connectors in this product emit only Class 1
energy that is below the levels considered to be hazardous, one should
never stare directly into a fiber optic connector or an unconnected fiber
end unless one can be certain that no exposure to laser energy could
occur.

CAUTION

This manual is intended for use by trained service personnel. The use
of controls, making adjustments, or performing operations other than
those specified may result in hazardous radiation exposure.

The following label or equivalent is located on the surface of laser products.
This label indicates that the product is classified as a CLASS 1 LASER
PRODUCT.

SURGE PROTECTION DEVICE RECOMMENDED

This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.

BCI Mini-HDMI-WP User’s Manual
Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System

Broadata Technical Support, [phone]

4

TABLE OF CONTENTS

1.0 PRODUCT DESCRIPTION .............................................5

2.0 SETUP..............................................................................6

2.1 MOUNTING ...................................................................... 6

2.2 CABLING AND CONNECTORS ......................................6

2.2.1 HDMI VIDEO INTERFACE............................................7

2.2.2 OPTICAL FIBER CONNECTION.................................8

2.3 DC POWER CONNECTION............................................ 9

3.0 OPERATION...................................................................10

4.0 MAINTENANCE AND TROUBLESHOOTING .............. 11

4.1 MAINTENANCE .............................................................11

4.2 TROUBLESHOOTING .................................................. 11

5.0 SPECIFICATIONS..........................................................12

6.0 SERVICE PROCEDURE ............................................... 13

6.1 REPLACEMENT POLICY ............................................. 13

6.2 RETURN AND REPAIR SERVICE.................................13

7.0 LIMITED WARRANTY....................................................14

Mini-HDMI-WP User’s Manual

Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System

Broadata Technical Support, [e-mail]

5

1.0 PRODUCT DESCRIPTION

The Mini-HDMI-WP Series is a high performance, low cost, miniature,
Fiber Optic HDMI extender system, designed specifically for wall plate
installation. It carries one (1) unidirectional HDMI video, together with
HDCP/DDC, through one (1) multimode fiber. This unique fiber optic
transmission system lets your digital flat panel display extend up to
400m at WUXGA (1920x120 @ 60Hz) resolution.

No user adjustment is required for the Mini-HDMI-WP system due to the
use of advanced digital fiber optic transmission system technology with
zero compression and zero bit reduction. This allows for a quick and
easy setup, offering trouble-free operation for many years to come. The
Mini-HDMI-WP supports video resolution up to WUXGA
(1920 x 1200 @ 60 Hz) or 1080p @ 60Hz HDTV video resolution. It
supports in-wall +12VDC powering option.

Figure 1-1 illustrates the TX and RX view of the Mini-HDMI-WP model.

Figure 1-1

Mini-HDMI-WP TX and RX View

BCI Mini-HDMI-WP User’s Manual
Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System

Broadata Technical Support, [phone]

6

2.0 SETUP

The BCI Mini-HDMI-WP Series units are used in pairs. One
Mini-HDMI-WP-T transmitter unit is located at the near-end and
connected through one optical fiber, to the Mini-HDMI-WP-R receiver
located at the far-end of the link. Figure 2-1 depicts a typical installation
for the Mini-HDMI-WP-T/R.

Figure 2-1

Mini-HDMI-WP Setup

2.1 Mounting

Before installing the units into your wall plate housing, make
sure there is enough space to pull and connect both the electrical
and optical cables without stressing them beyond the
manufacturer’s limitations (also known as the minimum bend
radius).

2.2 Cabling and Connectors

In order to setup the BCI Mini-HDMI-WP properly , make sure to
observe the following instructions when installing the proper
cables. The Mini-HDMI-WP requires two parts to the cabling
setup, the electrical and the optical.

Media Room Wall

Mini-HDMI-T-WP

HDMI Input
(with DDC)

Video Projector Room

Mini-HDMI-R-WP

HDMI Output

(with DDC)

1 Multimode

Fiber

Mini-HDMI-WP User’s Manual

Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System

Broadata Technical Support, [e-mail]

7

2.2.1 HDMI Video Interface

Use the following instructions to properly connect your
component video as illustrated in Figure 2-2.

1. Directly connect the Mini-HDMI-WP-T (Transmitter) unit’s
HDMI video input port to the user’s HDMI video source.

2. For the receive unit, directly connect the
Mini-HDMI-WP-R (Receiver) unit’s HDMI video output
ports to the user’s HDMI video receivers.

Figure 2-2

Electrical Connection

BCI Mini-HDMI-WP User’s Manual
Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System

Broadata Technical Support, [phone]

8

2.2.2 Optical Fiber Connection

Most cable manufacturers identify individual fibers in the fiber
cable. Select an appropriate terminated fiber. Each unit’ s optical
ports in the system are specified for use with SC-connectorized
Multimode (62.5/125 micron) fiber. Follow the ensuing
instructions on installing and connecting the fiber optic links:

1. Ensure the power is off before proceeding with the fiber
optic cable installation.

2. Prior to connecting the fiber optic cables, remove and save
the dust caps from the optical port of both the Mini-HDMI-WP
units. Clean the fiber optic connector and use a lint-free
cloth dampened with alcohol to thoroughly wipe the side
and end of the ferrule.

3. Connect the fiber from one unit to the other connecting the
near end Mini-HDMI-WP-T unit’s optical port to the far end
of the Mini-HDMI-WP-R unit’s optical RX port as illustrated
in Figure 2-3.

Figure 2-3

Fiber Optic Connection

Mini-HDMI-WP User’s Manual

Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System

Broadata Technical Support, [e-mail]

9

2.3 DC Power Connection

The standard option to connect a power source is a +12VDC, which is
used when power source is farther away (see Figure 2-3). In order to
make sure that you have a proper installation, please observe the
following:

1. Y our AC jack has power .

2. The 12VDC power supply is working.

3. Your electrical system has proper grounding (this ensures

that your power supply does not suffer from voltage
variations).

4. Power Surge Protection. This is optional, but highly

recommended. A UPS system provides voltage regularity
as well as prevents spikes from occurring, thus protecting
your Mini-HDMI-WP from sensitive voltage conditions.

The Mini-HDMI-WP derives power from an external 12VDC power supply .
This power supply is a wall mounted AC/DC adapter, 100-240 VAC,
50-60 Hz, at or 0.5A.

If you have any problems or concerns, regarding the installation, make
sure that you have taken the proper steps to ensure a proper power
connection. Otherwise, feel free to contact us for any questions you
may have.

BCI Mini-HDMI-WP User’s Manual
Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System

Broadata Technical Support, [phone]

10

3.0 OPERA TION

After the installation procedure is completed, the units are ready for
operation. T o operate the BCI Mini-HDMI-WP unit s, simply apply power
as indicated in the previous step. Note that the front panel LED status is
described in T able 1.

When power is connected, this LED turns RED.
When power and optical link are on, this LED
turns GREEN

When video source is properly connected, this
LED turns GREEN

When video display is properly connected, the
LED turns GREEN

PWR/LINK

SOURCE

DISPLAY

Transmitter Description

When power is connected, this LED turns RED.
When power and optical link are on, this LED
turns GREEN

When video source is properly connected, this
LED turns GREEN

When video display is properly connected, the
LED turns GREEN

PWR/LINK

SOURCE

DISPLAY

Receiver Description

Table 1

TX and RX LED Indicators

Mini-HDMI-WP User’s Manual

Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System

Broadata Technical Support, [e-mail]

11

4.0 MAINTENANCE AND TROUBLESHOOTING

4.1 Maintenance

There is no operator maintenance other then keeping the units
clean.

4.2 Troubleshooting

If the BCI Mini-HDMI-WP units do not operate properly after
installation, check for possible cable breaks, loose connections,
and incorrect cable connections. If a problem exists on the
fiber link, please check your fiber connectors for improperly
cleaned fiber cables and connectors. If problems persist that
may be fiber related, contact BCI at 1-800-214-0222 for further
assistance.

For electrical problems, perform the following troubleshooting
procedures:

1. If the POWER indicator is OFF, check for the following:

a. The line cord is plugged into the unit and your outlet

has power.

2. If the POWER indicator is ON, but the units are not

working, check for the following:

a. Make sure the appropriate (Multimode) fibers are being

used.
b. Fiber and fiber connectors are not broken.
c. For each unit, the transmit (TX) fiber is connected to

the other unit’s receiver (RX).

BCI Mini-HDMI-WP User’s Manual
Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System

Broadata Technical Support, [phone]

12

5.0 SPECIFICATIONS

Video

Resolution Up to 1080p @ 60Hz or

1920x1200 @ 60Hz
Connector HDMI Female Plug
Protocol HDCP/DDC Capable

Optical

Fiber Type Multimode
Number of Fibers 1
Connector SC

Physical

Dimension (H x W x D) 0.45” x 2.75” x 1.4”
Power Level (max.) +12VDC @ 0.5A (in-wall)

Power Wiring Distance >200 ft. when 22-AWG wire is

used with 12VDC
Operating Temperature 0 to +50oC
Humidity 0 to 95% RH,

non-condensing

Mini-HDMI-WP User’s Manual

Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System

Broadata Technical Support, [e-mail]

13

6.0 SERVICE PROCEDURE

6.1 Replacement Policy

Standard products found defective on arrival (DOA) will be
replaced, based on availability , within 24 to 48 hours anywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.

6.2 Return/Repair Service

The BCI Mini-HDMI-WP System contains no user serviceable
components. If you have a problem with your unit, please contact
the Customer Service Department. To facilit ate our return/repair
processing please contact Broadata Communications, Inc. to
obtain a Return Material Authorization (RMA). Please include
the following information:

• Product model number

• Serial Number

• Complete description of problem

• Hardware installation description

Broadata Communications, Inc.

2545 West 237th Street, Suite K

T orrance, CA 90505

1-800-214-0222

[phone]

[phone] (Facsimile)

e-mail: [e-mail]

Website: www .broadatacom.com

BCI Mini-HDMI-WP User’s Manual
Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System

Broadata Technical Support, [phone]

14

7.0 LIMITED W ARRANTY

Broadata Communications, Inc. (BCI) warrants, for a period of one year
from date of shipment, each product sold shall be free from defects in
material and workmanship. BCI will correct, either by repair, or at BCI’ s
election, by replacement, any said products that in our sole discretion
prove to be defective and are returned to the manufacturing location
within 30 days after such defect is ascertained. All warranties are limited
to defects arising under normal use and do not include malfunctions or
failure resulting from misuse, abuse, neglect, alterations, electrical power
problems, usage not in accordance with product instructions, improper
installation, or damage determined by BCI to have been caused by the
Buyer or repair made by a third party. Limited warranties granted on
products are to the initial customer end-user and are not transferable.
OUR LIABILITY UNDER THIS W ARRANTY SHALL IN ANY CASE BE
LIMITED TO THE INVOICE VALUE OF THE PRODUCT SOLD AND BCI
SHALL NOT BE LIABLE TO ANYONE FOR CONSEQUENTIAL OR
INCIDENT AL DAMAGES ARISING FROM THE USE OF ITS PRODUCTS
OR THE SALE THEREOF. We make NO WARRANTY AS TO THE
MERCHANT ABILITY OF ANY GOODS, OR THA T THEY ARE FIT FOR
ANY P ARTICULAR PURPOSE OR END APPLICA TION NOR DO WE
MAKE ANY WARRANTY, EXPRESSED OR IMPLIED OTHER THAN
AS STATED ABOVE.

Mini-HDMI-WP User’s Manual

Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System

Broadata Technical Support, [e-mail]

15

BCI Mini-HDMI-WP User’s Manual
Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System

Broadata Technical Support, [phone]

16

Broadata Communications, Inc.

2545 West 237th Street, Suite K

T orrance, CA 90505

1-800-214-0222

[phone]

[phone] (Facsimile)

e-mail: [e-mail]

Website: www .broadatacom.com

60000-MiniHDMI-WP
