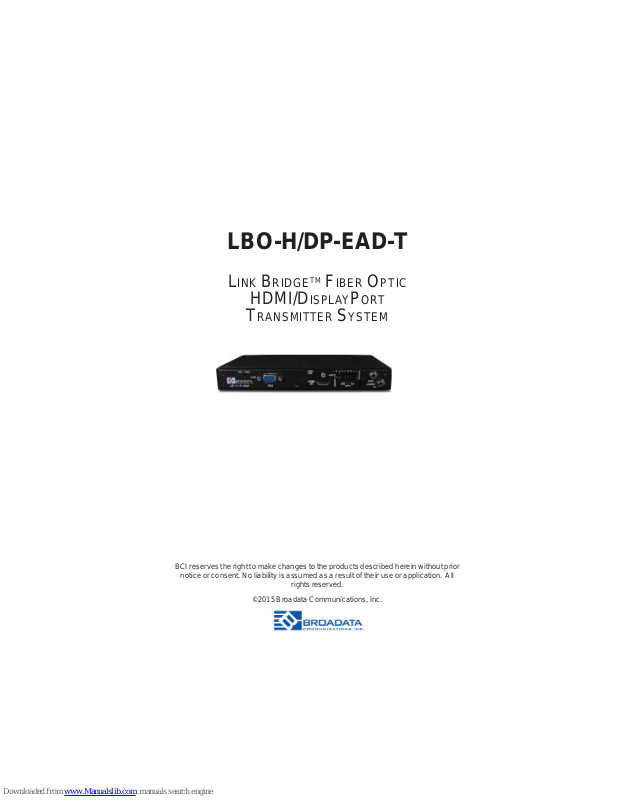

Broadata LBO-H/DP-EAD-T User Manual

LBO-H/DP-EAD-T

LINK BRIDGETM FIBER OPTIC

HDMI/DISPLA YPORT

TRANSMITTER SYSTEM

BCI reserves the right to make changes to the products described herein without prior

notice or consent. No liability is assumed as a result of their use or application. All

rights reserved.

©2015 Broadata Communications, Inc.

LBO-H/DP-EAD-T User Manual

Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [e-mail]

3

SAFETY INSTRUCTIONS AND COMPLIANCE DECLARA TIONS

PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS AS OUR

PRODUCTS CONTAIN

CLASS I LASER PRODUCTS

W ARNING

This product is a CLASS I LASER PRODUCT only when the units are connected
with a fiber optical cable. Do not disconnect the fiber optic connector while
the unit is powered up. Exposure to laser radiation is possible when the
laser fiber optic connector is disconnected while the unit is powered up. It
should be noted that when the fiber is disconnected, the product will have

CLASS IM INVISIBLE LASER RADIATION.

Although the fiber optic connectors in this product emit only Class 1 energy
that is below the levels considered to be hazardous, one should never stare
directly into a fiber optic connector or an unconnected fiber end unless one
can be certain that no exposure to laser energy could occur.

CAUTION

Only service personnel are intended to access the interior of the units. It
should be cautioned that CLASS 3 INVISIBLE LASER RADIATION WHEN
OPEN, AVOID EXPOSURE TO THE BEAM. The use of controls, making
adjustments, or performing operations other than those specified may result
in hazardous radiation exposure. This product has operating wavelengths
at 778nm, 800nm with average -0.5dB to 0dBm optical power per wavelength,
825nm, 911nm, and 980nm. The laser is operated in pulse mode within 1
KHz frequency and ¼ duty cycle.

The following label or equivalent is located on the surface of laser products.
This label indicates that the product is classified as a CLASS 1 LASER
PRODUCT.

SURGE PROTECTION DEVICE RECOMMENDED

This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lightning strikes, etc. Use of
surge protection systems is highly recommended in order to protect and

extend the life of your equipment.

LBO-H/DP-EAD-T User Manual
Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [phone]

4

TABLE OF CONTENTS

1.0 PRODUCT DESCRIPTION .............................................5

2.0 SETUP..............................................................................7

2.1 MOUNTING.......................................................................7

2.2 CABLING AND CONNECTORS.......................................7

23. DISPLAY VIDEO INTERFACE .........................................8

2.4 HDMI VIDEO INTERFACE................................................8

2.5 AUDIO INTERF ACE..........................................................9

2.6 SERIAL DA TA INTERF ACE..............................................9

2.7 OPTICAL FIBER CONNECTION ...................................10

3.0 DC POWER CONNECTION ..........................................11

4.0 OPERA TION ...................................................................12

5.0 MAINTENANCE AND TROUBLESHOOTING ...............13

5.1 MAINTENANCE ..............................................................13

5.2 TROUBLESHOOTING ...................................................13

6.0 SPECIFICA TIONS...........................................................15

7.0 SERVICE PROCEDURE ................................................16

7.1 REPLACEMENT POLICY ..............................................16

7.2 RETURN AND REPAIR SERVICE .................................16

8.0 LIMITED WARRANTY ....................................................17

LBO-H/DP-EAD-T User Manual

Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [e-mail]

5

1.0 PRODUCT DESCRIPTION

The LBO-H/DP-EAD-T is a high performance, low cost, miniature, Link
Bridge Fiber Optic HDMI Transmission System that embeds the source
audio into the video signal. It carries one (1) unidirectional HDMI video
or one selectable DisplayPort video or one selectable DisplayPort video,
one (1) uni-directional embedded stereo audio, and two (2) RS-232
data channels. This unique fiber optic transmission system lets your
digital flat panel display extend up to 400m at WUXGA (1920x1200 @
60Hz) or 720p/1080i/1080p HDTV video resolution. DVI video is also
available through a DVI-to-HDMI adapter cable. No user adjustment is
required for the LBO-H/DP-EAD-T unit due to the use of advanced
digital fiber optic transmission system technology with zero compression
and zero bit reduction. This allows for a quick and easy setup, offering
trouble-free operation for many years to come. In addition, the
LBO-H/DP-EAD-T transmitter is compatible with our LBO Series
receivers. This makes both fiber transmission and HDMI/DVI/VGA/
YPbPr/SV/CV/SDI conversion in one single system setup. The units
are easily monitored by power and link LED indicators. Figures 1-1 and
1-2 illustrate the front and rear panels of the LBO-H/DP-EADT unit.

LBO-H/DP-EAD-T User Manual
Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [phone]

6

Figure 1-2

LBO-H/DP-EAD-T Rear Panel

Figure 1-1

LBO-H/DP-EAD-T Front Panel

LINK

1.5AMP

+12VDC

AUTO

PWR/

1

2

DATA

O

TX

HDMI IN

LINK

SOURCE

5

HDMI

D

A

TA

2

1

IR

1

DP

I

LBO

LB - H / D - EAD

AUDIO

SPDIF

L/R

DISPLAY

PORT

FRONT PANEL

REAR PANEL

LBO-H/DP-EAD-T User Manual

Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [e-mail]

7

2.0 SETUP

The BCI LBO Optcial Extender Series units are used in pairs. One
LBO-H/DP-EAD-T transmitter unit is located at the near-end (source)
and connected through a single fiber optic cable, to one of the LBO
receivers like the LBO-HDMI-R receiver shown below and located at
the far-end (sink) of the link. Figure 2-1 depicts a typical installation for
the LBO-H/DP-T-EAD and LBO-HDMI-R.

Figure 2-1

LBO-H/DP-T with LBO-HDMI-R

2.1 Mounting

Before installing the units into your housing, make sure there is
enough space to pull and connect both the electrical and optical
cables without stressing them beyond the manufacturer’s
limitations (also known as the minimum bend radius).

2.2 Cabling and Connectors

In order to setup the LBO-H/DP-EAD-T properly , make sure to
observe the following instructions when installing the proper
cables. The LBO-H/DP-EAD-T requires two parts to the cabling
setup, the electrical and the optical.

LBO-H/DP-EAD-T User Manual
Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [phone]

8

2.3 Display Video Interface

Use the following instructions to properly connect your component
video as illustrated in Figure 2-2. Connect the
LBO-H/DP-EAD-T (Transmitter) unit’s DisplayPort video input
port to the user’s DisplayPort video source with the appropriate
DP cables.

2.4 HDMI Video Interface

The HDMI video connection is the HDMI plug connectors for the
video input port. Use the following instructions to properly connect
your video as illustrated in Figure 2-2. Connect the
LBO-H/DP-EAD-T (Transmitter) unit’s to HDMI video input port
to the user’s HDMI video source with the appropriate HDMI
cables.

Figure 2-2

LBO-H/DP-EAD-R Cabling and Connectors

AUTO

PWR/

1

2

DATA

O

TX

HDMI IN

LINK

SOURCE

5

HDMI

D

A

TA

2

1

IR

1

DP

I

LBO

LB - H / D - EAD

AUDIO

SPDIF

L/R

DISPLAY

PORT

2.3 User’s Display Port
Video Source

2.4 User’s Display Port
Video Source

2.6 Serial Port
Interface

2.5 User’s Digital
Audio Source

2.5 User’s Analog
Audio Source

LBO-H/DP-EAD-T User Manual

Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [e-mail]

9

2.5 Audio Interface

The audio interface supports one stereo channel high fidelity
analog or digital transmission. Line-level audio signals or SPDIF
digital signals are connected to the LBO-H/DP-EAD-T unit. The
following steps illustrate the installation procedures for audio
devices.

T o send audio signals, label and connect one stereo audio-jack
cable to the “AUDIO” connector of the line level or digital audio
source. On the LBO-H/DP-EAD-T unit, connect the other end of
the cables to the front panel stereo jack connector labeled
“AUDIO IN” (see Figure 2-2).

2.6 Serial Data Interface

T o transmit RS232/ IR data connect dat a source to the terminal
block shown in Figure 2-2.

The LBO-H/DP-EAD-T transmits two channels of data signals.
Follow the procedures for installing data terminal devices.

1. Label and connect one serial data cable to the user’s RS-232
data port.

2. Connect the other end of this cable to the front panel data

terminal block connector on the LBO-H/DP-EAD-T per the pin
out shown in Figure 2-2.

LBO-H/DP-EAD-T User Manual
Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [phone]

10

2.7 Optical Fiber Connection

Most cable manufacturers identify individual fibers in the fiber
cable. Select an appropriate terminated fiber. Each unit’s optical
ports in the system are specified for use with multimode (62.5/
125 or 50/125 micron) fiber. Follow the ensuing instructions on
installing and connecting the fiber optic links:

1. Ensure the power is off before proceeding with the fiber
optic cable installation.

2. Prior to connecting the fiber optic cables, remove and save
the dust caps from the optical port of the LBO-H/DP-EAD-T
units. Clean the fiber optic connector and use a lint-free cloth

dampened with alcohol to thoroughly wipe the side and end
of the ferrule.

3. Connect the fiber from one unit to the other connecting the
rear end LBO-H/DP-EAD-T unit’s optical port to the user’s
optical RX port.

LBO-H/DP-EAD-T User Manual

Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [e-mail]

11

3.0 DC Power Connection

Congratulations! Y ou are now ready to power up the LBO-H/DP-EAD-T
and set up your network connection. In order to make sure that you
have a proper installation, please observe the following:

1. Your AC jack has power.

2. The 12VDC power supply is working.

3. Y our electrical system has proper grounding (this ensures
that your power supply does not suffer from voltage
variations).

4. Power Surge Protection. This is optional, but highly
recommended. A UPS system provides voltage regularity
as well as prevents spikes from occurring, thus protecting
your LBO-H/DP-EAD-T from sensitive voltage conditions.

The LBO-H/DP-EAD-T derives power from an external 12VDC power
supply. This power supply is a wall mounted AC/DC adapter , 100-240
VAC, 50-60 Hz, at 1.0A. This power supply comes standard for the
LBO-H/DP-EAD-T unless otherwise specified. To supply power to the
LBO-H/DP-EAD-T, simply connect the power cord, already provided
with the units, and connect it to the wall jack. (You will find one power
cord per unit). Once the power cord has been connected to the wall
jack, connect 12VDC to the unit and the unit should power up immediately .

If you have any problems or concerns, regarding the installation, make
sure that you have taken the proper steps to ensure a proper power
connection. Otherwise, feel free to contact us for any questions you
may have.

LBO-H/DP-EAD-T User Manual
Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [phone]

12

4.0 OPERA TION

After the installation procedure is completed, the units are ready for
operation. To operate the LBO-H/DP-EAD-T unit, simply apply power
as indicated in the previous sections. The following describes the LED
activity.

LED Indicator

PWR/LINK

DATA

When power is connected, this LED turns RED.
When power and link are on, this LED turns GREEN

GREEN LED will be on when the unit detects data signal

Description

Table 1

LED Indicator

Position

AUTO

DP

Select input automatically. Input has priority.

Select DP input.

Description

HDMI Select HDMI input.

Table 2

Video Switch Operation

LBO-H/DP-EAD-T User Manual

Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [e-mail]

13

5.0 MAINTENANCE AND TROUBLESHOOTING

5.1 Maintenance

There is no operator maintenance other then keeping the units
clean. However, observe the following light indicators to make
sure that the unit is working properly:

5.2 Troubleshooting

If the LBO-H/DP-EAD-T units do not operate properly after
installation, check for: possible cable breaks, loose
connections, and incorrect cable connections. If a problem
exists on the fiber link, please check your fiber connectors for
improperly cleaned fiber cables and connectors. If problems
persist that may be fiber related, contact BCI at 1-800-214-0222
for further assistance.

For electrical problems, perform the following troubleshooting
procedures:

1. If the POWER indicator is OFF , check for the following:

a. The line cord is plugged into the unit and your outlet

has power.

2. If the POWER indicator is ON, but the Optical Link
indicator is OFF, check for the following:

a. Make sure the appropriate (Multimode) fibers are being

used.
b. Fiber and fiber connectors are not broken.
c. For each unit, the transmit (TX) fiber is connected to

the other unit’s receiver (RX).

3. If the POWER indicator and Optical Link indicator are
ON, but the audio/video channels are not operating,
then:

LBO-H/DP-EAD-T User Manual
Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [phone]

14

a. Check to see that the attached user equipment is turned

on.

b. Both ends of the link are connected to the corresponding

equipment and to the same corresponding channel port.

c. Cable connections at both the video/audio channels

are securely fastened to each connector. Turn the
power off, then back on to reset the link.

LBO-H/DP-EAD-T User Manual

Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [e-mail]

15

6.0 SPECIFICATIONS

Video

Resolution Up to 1080p@60Hz or

1920x1200@60Hz
Connector HDMI Female Plug/DisplayPort
Protocol DDC/EDID/HDCP Compatible

Transmission

Cable Type Multimode
Number of Cables 1
Connector SC

Physical

Dimension 8.36”(W) x 4.23”(D) x 1.12”(H)
Power Level (max.) +12VDC @ 1.5A

LED Indicator Power/Link
Operating Temperature 0 to +50oC
Humidity 0 to 95% RH, non-condensing

LBO-H/DP-EAD-T User Manual
Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [phone]

16

7.0 SERVICE PROCEDURE

7.1 Replacement Policy

Standard products found defective on arrival (DOA) will be
replaced, based on availability , within 24 to 48 hours anywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.

7.2 Return/Repair Service

The LBO-H/DP-EAD-T System contains no user serviceable
components. If you have a problem with your unit, please contact
the Customer Service Department. To facilitate our return/repair
processing please contact Broadata Communications, Inc. to
obtain a Return Material Authorization (RMA). Please include
the following information:

• Product model number

• Serial Number

• Complete description of problem

• Hardware installation description

Broadata Communications, Inc.

2545 West 237th Street, Suite K

T orrance, CA 90505

1-800-214-0222

[phone]

[phone] (Facsimile)

e-mail: [e-mail]

Website: www.broadatacom.com

LBO-H/DP-EAD-T User Manual

Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [e-mail]

17

8.0 LIMITED WARRANTY

Broadata Communications, Inc. (BCI) warrants, for a period of one
year from date of shipment, each product sold shall be free from defects
in material and workmanship. BCI will correct, either by repair, or at
BCI’s election, by replacement, any said products that in our sole
discretion prove to be defective and are returned to the manufacturing
location within 30 days after such defect is ascertained. All warranties
are limited to defects arising under normal use and do not include
malfunctions or failure resulting from misuse, abuse, neglect, alterations,
electrical power problems, usage not in accordance with product
instructions, improper installation, or damage determined by BCI to
have been caused by the Buyer or repair made by a third party . Limited
warranties granted on products are to the initial customer end-user and
are not transferable. OUR LIABILITY UNDER THIS WARRANTY SHALL
IN ANY CASE BE LIMITED TO THE INVOICE VALUE OF THE
PRODUCT SOLD AND BCI SHALL NOT BE LIABLE T O ANYONE FOR
CONSEQUENTIAL OR INCIDENT AL DAMAGES ARISING FROM THE
USE OF ITS PRODUCTS OR THE SALE THEREOF. We make NO
WARRANTY AS TO THE MERCHANTABILITY OF ANY GOODS, OR
THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE OR END
APPLICA TION NOR DO WE MAKE ANY WARRANTY, EXPRESSED
OR IMPLIED OTHER THAN AS STATED ABOVE.

LBO-H/DP-EAD-T User Manual
Link Bridge

TM

Fiber Optic HDMI/DisplayPort Transmitter

Broadata Technical Support, [phone]

18

Broadata Communications, Inc.

2545 West 237th Street, Suite K

Torrance, CA 90505

1-800-214-0222

[phone]

[phone] (Facsimile)

e-mail: [e-mail]

Website: www.broadatacom.com

60000-LBOH/DPEADT
