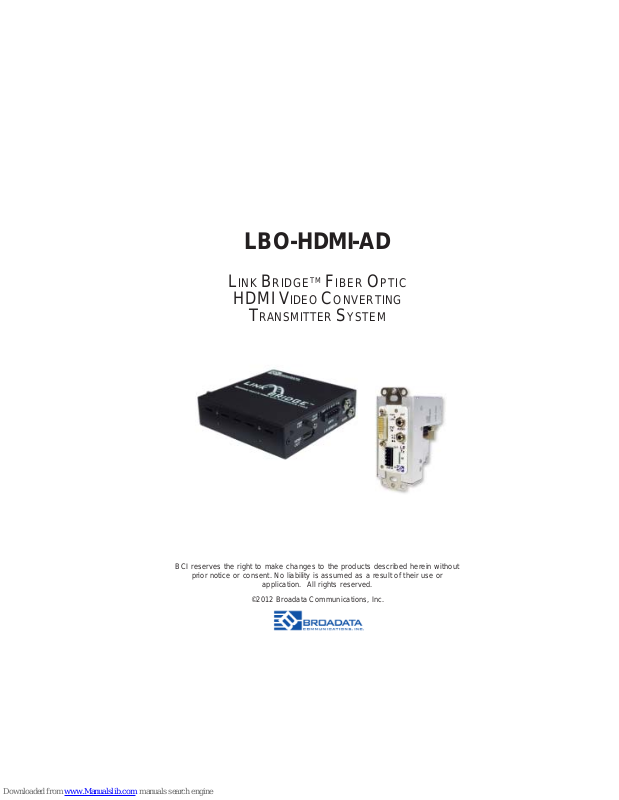

LBO-HDMI-AD
LINK BRIDGETM FIBER OPTIC
HDMI VIDEO CONVERTING
TRANSMITTER SYSTEM
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or
application. All rights reserved.
©2012 Broadata Communications, Inc.
Page 2
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected]
3
SAFETY INSTRUCTIONS AND
COMPLIANCE DECLARATIONS
PLEASE OBSERVE THE FOLLOWING SAFETY
PRECAUTIONS AS OUR PRODUCTS CONT AIN
CLASS I LASER PRODUCTS
WARNING
Do not disconnect the fiber optic connector while the unit is powered
up. Exposure to laser radiation is possible when the laser fiber optic
connector is disconnected while the unit is powered up.
Although the fiber optic connectors in this product emit only Class 1
energy that is below the levels considered to be hazardous, one should
never stare directly into a fiber optic connector or an unconnected fiber
end unless one can be certain that no exposure to laser energy could
occur.
CAUTION
This manual is intended for use by trained service personnel. The use
of controls, making adjustments, or performing operations other than
those specified may result in hazardous radiation exposure.
The following label or equivalent is located on the surface of laser products.
This label indicates that the product is classified as a CLASS 1 LASER
PRODUCT.
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.
Page 3
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, (800) 214-0222
4
TABLE OF CONTENTS
1.0 PRODUCT DESCRIPTION .............................................5
2.0 SETUP..............................................................................8
2.1 MOUNTING ...................................................................... 8
2.2 CABLING AND CONNECTORS ......................................8
2.2.1 ELECTRICAL CABLE CONNECTIONS .......................9
2.2.1.1 HDMI VIDEO INTERFACE..........................................9
2.2.1.2 AUDIO INTERFACE ..................................................10
2.2.1.3 SERIAL DA T A INTERF ACE....................................... 1 1
2.2.2 OPTICAL FIBER CONNECTION ................................12
2.3 DC POWER CONNECTION.........................................14
2.4 IN-WALL POWER/FIBER WIRING INSTRUCTION.....15
3.0 OPERATION...................................................................18
4.0 MAINTENANCE AND TROUBLESHOOTING .............. 19
4.1 MAINTENANCE .............................................................19
4.2 TROUBLESHOOTING ..................................................19
5.0 SPECIFICATIONS .......................................................... 21
6.0 SERVICE PROCEDURE ...............................................23
6.1 REPLACEMENT POLICY .............................................23
6.2 RETURN AND REPAIR SERVICE ................................. 23
7.0 LIMITED WARRANTY....................................................24
Page 4
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected]
5
1.0 PRODUCT DESCRIPTION
The LBO-HDMI-AD Series is a high performance, low cost, miniature,
Link BridgeTM Fiber Optic HDMI Transmission System. It carries one (1)
unidirectional HDMI video, one (1) bi-directional stereo audio and two (2)
RS-232 through one multimode fiber. This unique fiber optic transmission
system lets your digital flat panel display extend up to 400m at WUXGA
(1920x1200 @ 60Hz) or 720p/1080i/1080p HDTV video resolution. DVI
video is also available through a DVI-to-HDMI adapter cable.
No user adjustment is required for the LBO-HDMI-AD system due to the
use of advanced digital fiber optic transmission system technology with
zero compression and zero bit reduction. This allows for a quick and
easy setup, offering trouble-free operation for many years to come. In
addition, the LBO-HDMI-AD transmitter (or receiver) is compatible with
our LBO Series receiver (or transmitter). This makes both fiber
transmission and HDMI/DVI/VGA/YPbPr/SV/CV/SDI conversion in one
single system setup. The LBO-HDMI-AD comes with either a standalone
miniature enclosure or a Decora wall-plate packaging. The units are easily
monitored by power and link LED indicators.
Figures 1-1, 1-2, 1-3 and 1-4 illustrate the front and rear panels of the
LBO-HDMI-AD-T and LBO-HDMI-AD-R units.
Page 5
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, (800) 214-0222
6
FRONT PANEL (ST ANDALONE)
REAR PANEL (ST ANDALONE)
Power/Optical
Link LED
Audio In
Audio Out
Data
Out
Data
In
HDMI In

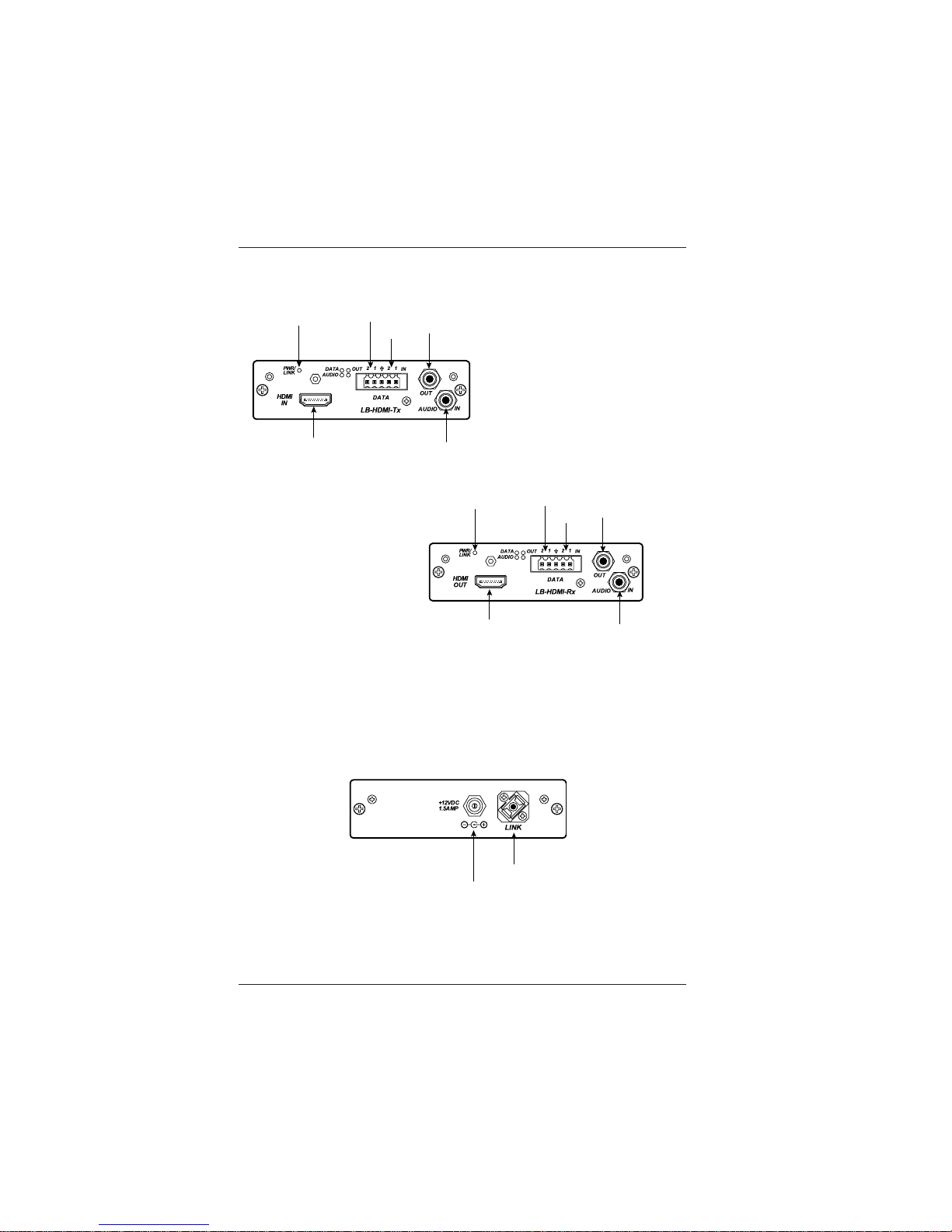

Figure 1-2
LBO-HDMI-AD-T/R Rear Panel
Figure 1-1
LBO-HDMI-AD-T/R Front Panel
Power/Optical
Link LED
Audio In
Audio Out
Data
Out
Data
In
HDMI OUT
Power
Connector
Fiber Optic
Output Connector
Page 6
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected]
7

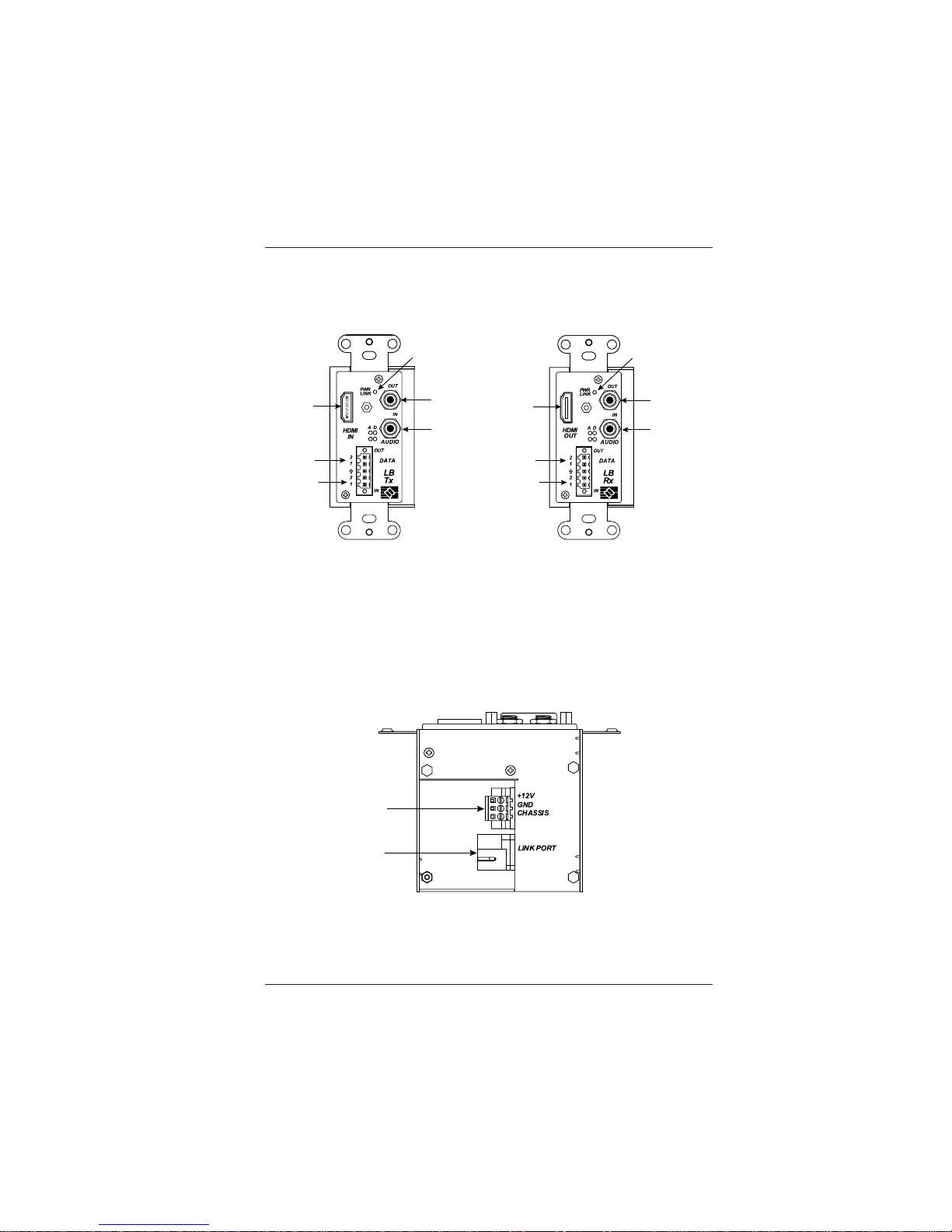

FRONT PANEL (WALL PLA TE)
Figure 1-3
LBO-HDMI-AD-T/R-WP Front Panel
REAR PANEL (WALL PLA TE)
Figure 1-4
LBO-HDMI-AD-T/R-WP Rear Panel
Power
Connector
Fiber Optic
Connector
Power/Optical
Link LED
Data
Out
Data
In
Audio
Out
Audio
In
HDMI In
Power/Optical
Link LED
Data
Out
Data
In
Audio
Out
Audio
In
HDMI Out
Page 7
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, (800) 214-0222
8
2.0 SETUP
LBO-HDMI-AD-T (or LBO-HDMI-AD-R) is a transmitter or receiver and
they can be paired with any DVI/HDMI centric LBO receiver (such as
LBO-DVI-R). One LBO-HDMI-AD-T transmitter unit is located at the nearend and connected through one optical fiber, to the LBO-HDMI-AD-R

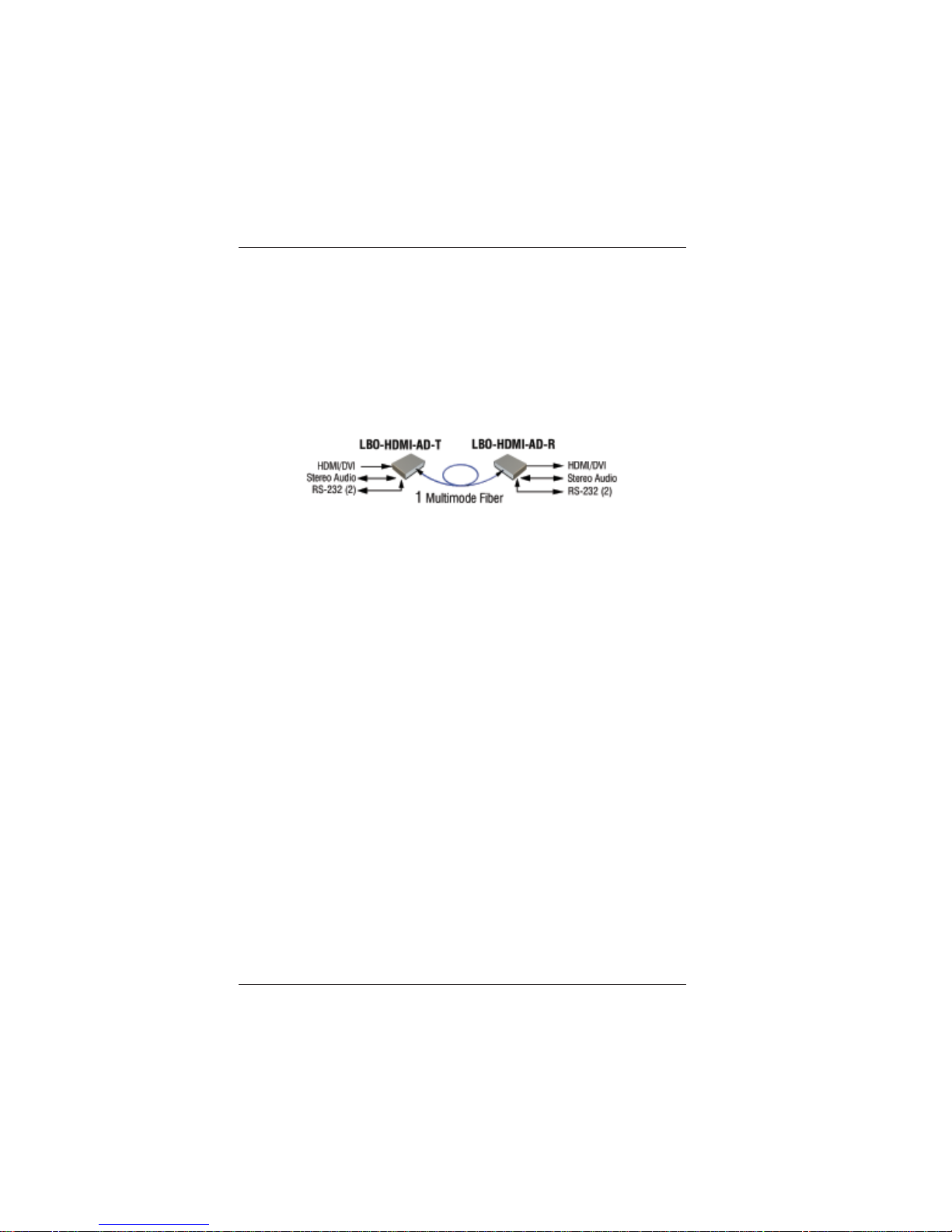

receiver located at the far-end of the link. Figure 2-1 depicts a typical
installation for the LBO-HDMI-AD-T/R.
Figure 2-1
Mini-HDMI-AD-T/R Setup
2.1 Mounting
Before installing the units into your housing, make sure there is
enough space to pull and connect both the electrical and optical
cables without stressing them beyond the manufacturer’s
limitations (also known as the minimum bend radius).
2.2 Cabling and Connectors
In order to setup the LBO-HDMI-AD-T/R properly, make sure to
observe the following instructions when installing the proper
cables. The LBO-HDMI-AD-T/R requires two parts to the cabling
setup, the electrical and the optical.
Page 8
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected]
9
2.2.1 Electrical Cable Connection
The three available cable connections on the electrical side are
for HDMI video, audio and data connections. Follow the
proceeding instructions in order to properly install your electrical
connections.
2.2.1.1 HDMI Video Interface
The HDMI video connection is the HDMI plug connectors for
video input and output ports. Use the following instructions
to properly connect your component video as illustrated in
Figure 2-2.
1. Connect the LBO-HDMI-AD-T (Transmitter) unit’s to
HDMI video input port to the user’s HDMI video source
with the appropriate HDMI cables.
2. For the receive unit, connect the LBO-HDMI-AD-R
(Receiver) HDMI video output ports to the user’s HDMI
video receivers with the appropriate HDMI cables
respectively , as illustrated in Figure 2-2.

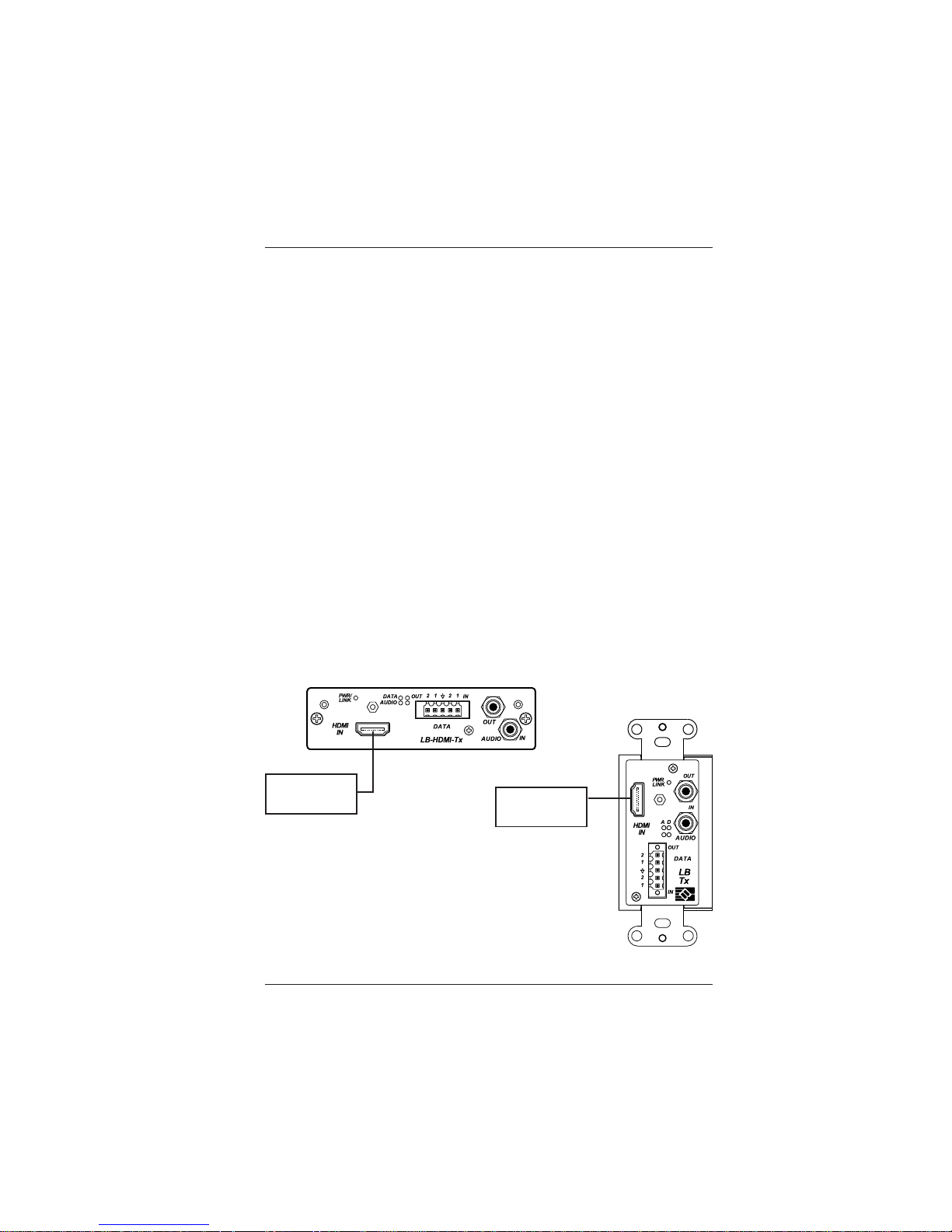

Figure 2-2
Video Connection
User’s HDMI
Video Source
User’s HDMI
Video Source
Page 9
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, (800) 214-0222
10
2.2.1.2 Audio Interface
The audio interface supports two channel high fidelity
transmissions. Two separate mono channels or one stereo
channel is transmitted in each direction. Line-level audio signals
are connected to the LBO-HDMI-AD units. The following steps
illustrate the installation procedures for audio devices.
T o send audio signals, label and connect one stereo audio-jack
cable to the “AUDIO OUTPUT” connector of the line level audio
source. On the LBO-HDMI-AD unit, connect the other end of
the cables to the front panel stereo jack connector labeled
“AUDIO IN” (see Figure 2-3a).
To receive audio signals, at the far-end location, label and
connect one stereo audio-jack cable to the “AUDIO INPUT”
connector of the line level audio receiver. On the
LBO-HDMI-AD unit, connect the other end of the cables to the
front panel stereo jack connector labeled “AUDIO OUT” (see
Figure 2-3b).

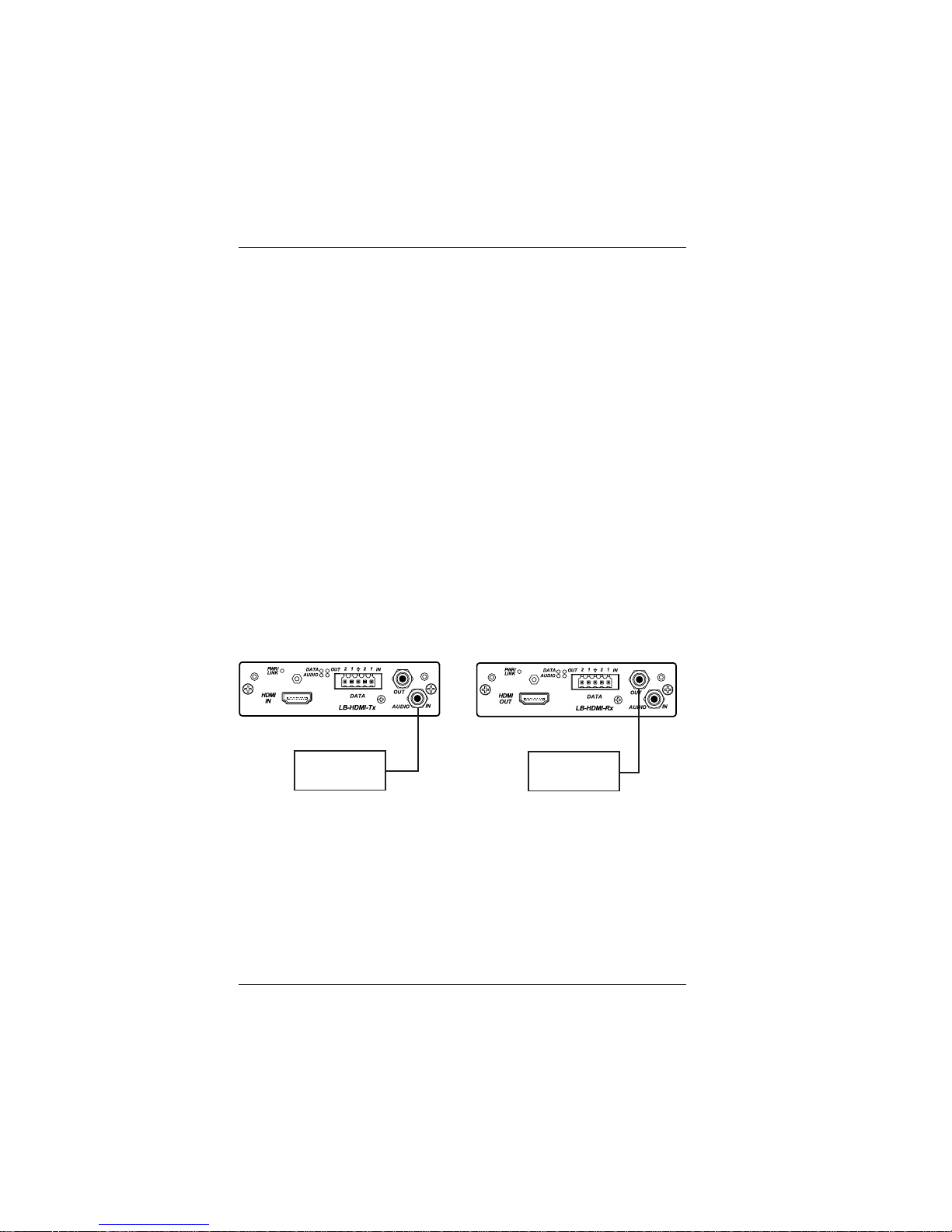

Figure 2-3a
Audio input to LBO-HDMI-AD unit
Figure 2-3b
Audio output to LBO-HDMI-AD unit
User’s
Audio Output
User’s
Audio Input
Page 10
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected]
11
2.2.1.3 Serial Data Interface
Each LBO-HDMI-AD unit can be used for RS-232 interface.
RS-232 data
The LBO-HDMI-AD transmits two channels of data signals.
Follow the procedures for installing data terminal devices.
1. Label and connect one serial computer data cable to the
user’s RS-232 device.
2. Connect the other end of this cable to the front panel data
terminal block connector on the LBO-HDMI-AD (see
Figure 2-4).

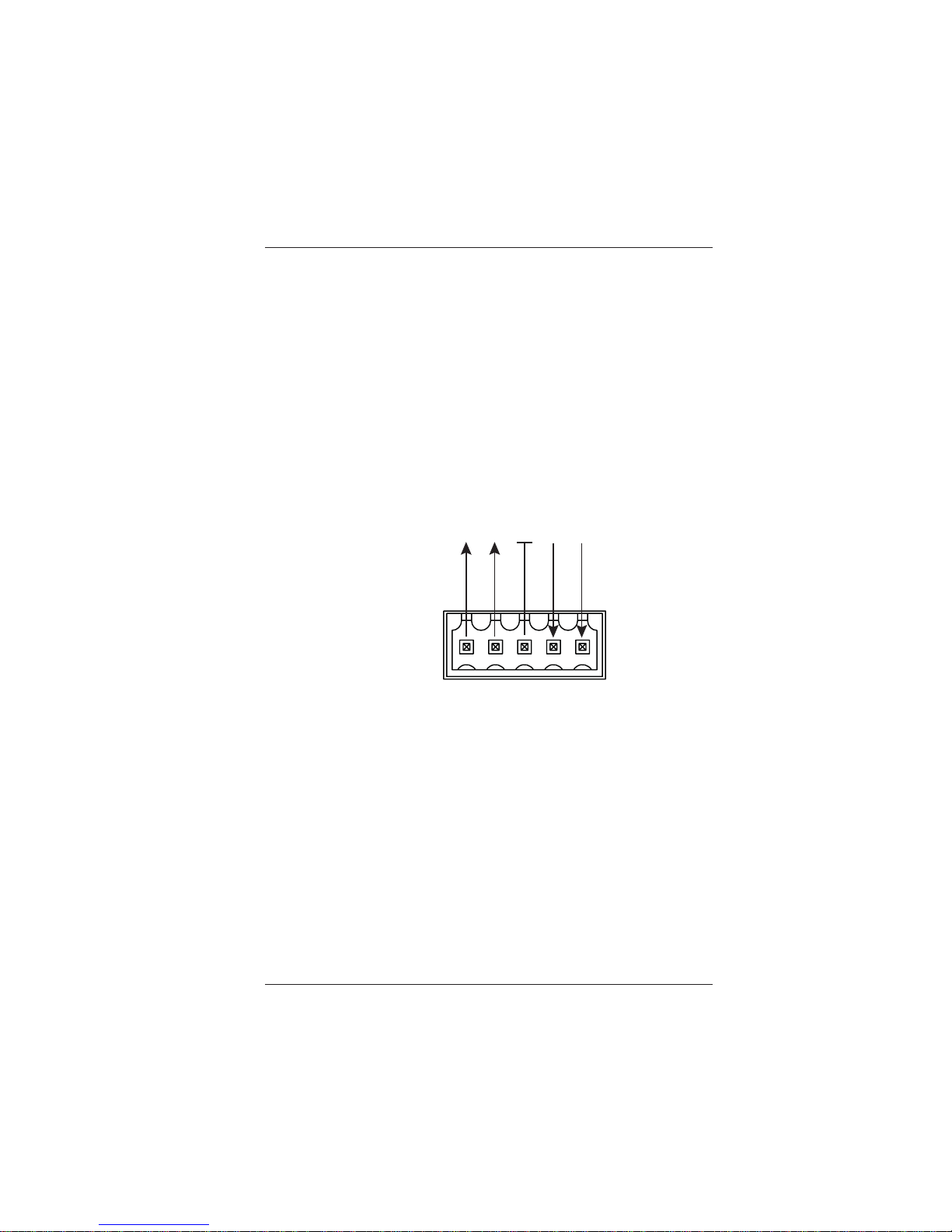

Figure 2-4
RS-232 Terminal block pinout
Ch 2 Ch 2Ch 1 Ch 1
GND
OUT IN
Page 11
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, (800) 214-0222
12
2.2.2 Optical Fiber Connection
Most cable manufacturers identify individual fibers in the fiber
cable. Select an appropriate terminated fiber. Each unit’ s optical
ports in the system are specified for use with Multimode
(62.5/125 or 50/125 micron) fiber. Follow the ensuing
instructions on installing and connecting the fiber optic links:
1. Ensure the power is off before proceeding with the fiber
optic cable installation.
2. Prior to connecting the fiber optic cables, remove and save
the dust caps from the optical port of the LBO-HDMI-AD
units. Clean the fiber optic connector and use a lint-free
cloth dampened with alcohol to thoroughly wipe the side
and end of the ferrule.
3. Connect the fiber from one unit to the other connecting the
near end LBO-HDMI-AD-T unit’s optical port to the far end
of the LBO-HDMI-AD-R unit’s optical RX port as illustrated
in Figure 2-5.
Page 12
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected]
13

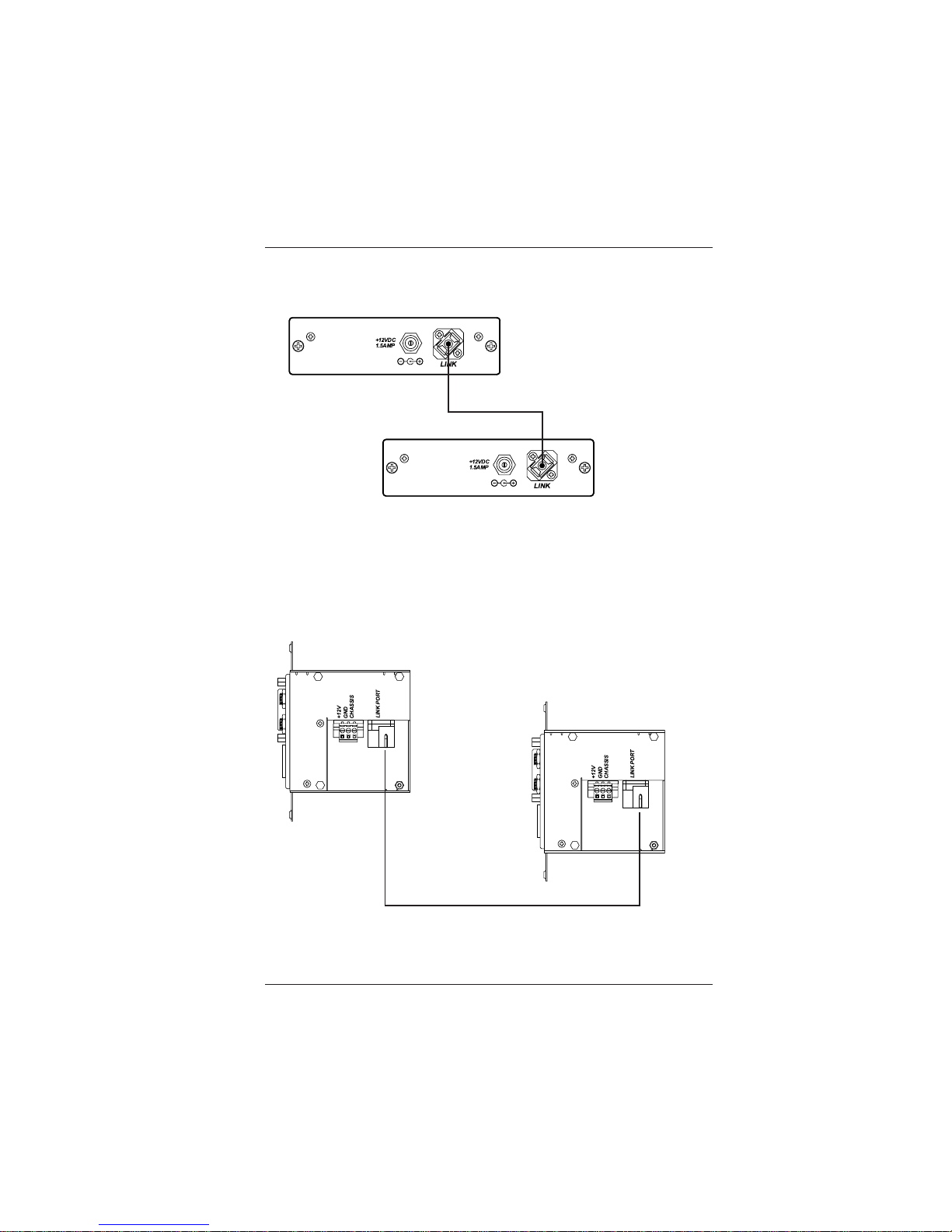

Figure 2-5
Fiber Optic Connection
LBO-HDMI-AD-T
LBO-HDMI-AD-R
LBO-HDMI-AD-T-WP
LBO-HDMI-AD-R-WP
Page 13
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, (800) 214-0222
14
2.3 DC Power Connection
Congratulations! Y ou are now ready to power up the LBO-HDMI-AD and
set up your network connection. In order to make sure that you have a
proper installation, please observe the following:
1. Y our AC jack has power .
2. The 12VDC power supply is working.
3. Y our electrical system has proper grounding (this ensures
that your power supply does not suffer from voltage
variations).
4. Power Surge Protection. This is optional, but highly
recommended. A UPS system provides voltage regularity
as well as prevents spikes from occurring, thus protecting
your LBO-HDMI-AD from sensitive voltage conditions.
The LBO-HDMI-AD derives power from an external 12VDC power supply .
This power supply is a wall mounted AC/DC adapter, 100-240 VAC,
50-60 Hz, at 1.5A. This power supply comes standard for the
LBO-HDMI-AD unless otherwise specified.
If you have any problems or concerns, regarding the installation, make
sure that you have taken the proper steps to ensure a proper power
connection. Otherwise, feel free to contact us for any questions you
may have.
Page 14
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected]
15
2.4 In-Wall Power/Fiber Wiring Instruction
The in-wall power/fiber installation for the LBO-HDMI-AD-WP (wall plate
version) must confirm national and local electrical codes, e.g., UL junction
boxes shall be used and DC power source shall not exceed product
rated range (+12VDC @ 1.5A). Follow the following steps for power/
fiber installation:
1. As shown in Figure 2-6, feed both fiber and power cables through
the opening of the wall box, and secure the cables with cable
clamps to provide strain relief.
2. T erminated fiber with SC optical connector to be directly plugged
into the SC connector port of the LBO-HDMI-AD-WP units
(see Figure 2-5).
3. Before connecting power wire to the LBO-HDMI-AD-WP unit,
make sure power supply is off. Prepare the Positive (+12V)
and Negative (GND or +12V return), and chassis ground
(CHASSIS to earth ground) tip of the power wire as shown in
Figure 2-7 to be directly plugged into the captive screw +12VDC
connector of the LBO-HDMI-AD-WP units (see Figure 2-6).
Make sure the polarity of the connection is correct. Insulate
any exposed wire shields to prevent short circuits.
Page 15
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, (800) 214-0222
16

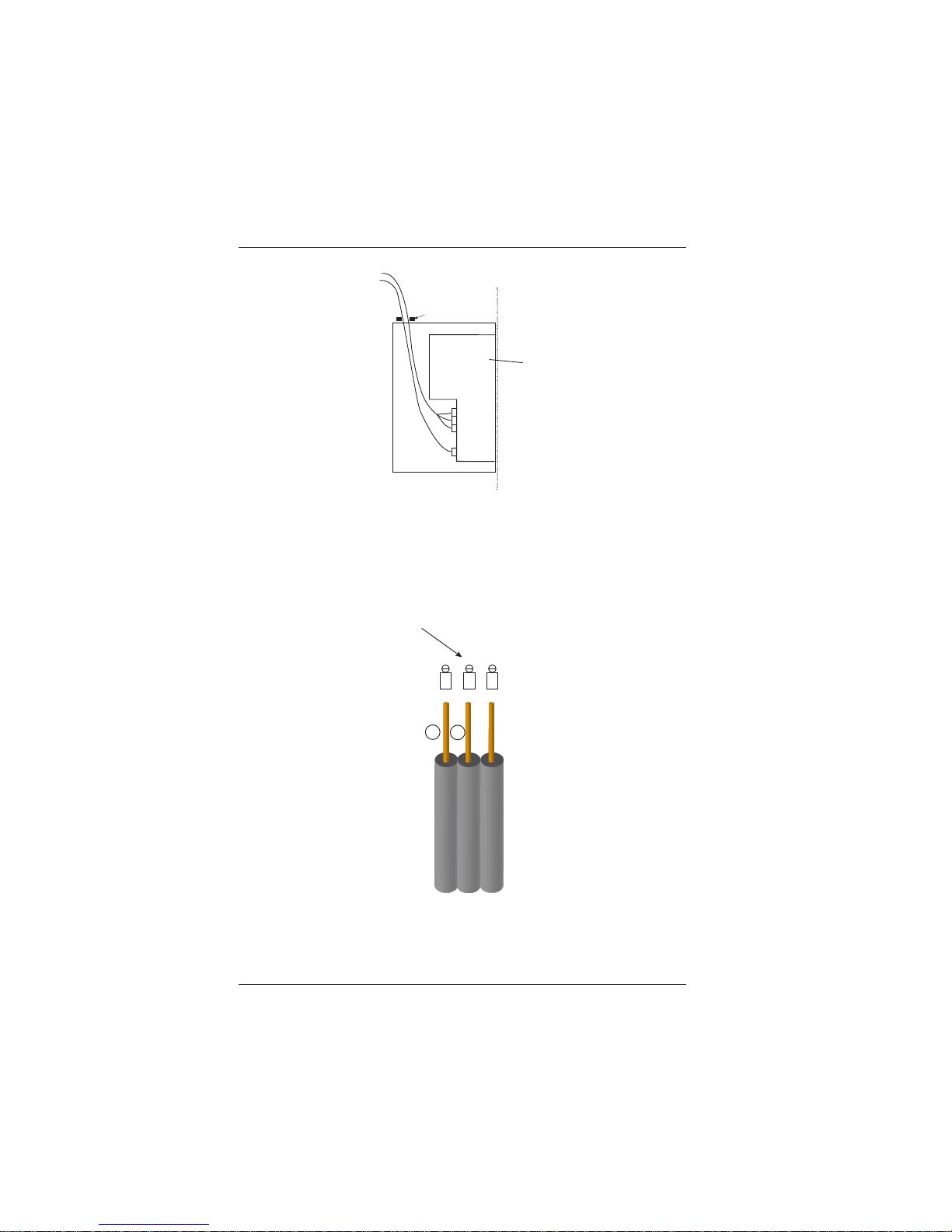

Figure 2-6
In-wall fiber/power cable installation
Figure 2-7
Power Connection
LBO-HDMI-AD-WP
Unit
Clamp
Power
Wire
Fiber
Cable
+12V
GND
Wall
Junction Box
CHASSIS
Link Port
+12V GND CHASSIS
+
_
Captive
Screw
Connector
E
Page 16
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected]
17
Note 1: During installation, the installer may need to connect the power
supply output to an appropriate Listed NEC type cable before it
is routed behind a wall. Simply routing the power supply output
cable behind a wall will most likely not comply with applicable
installation requirements. Unit should only be powered by a
power source that is Listed (NEC) Class 2 or a Listed ITE Power
Supply marked/rated as LPS or Limited Power Source.
Note 2: The installation shall be in accordance with the applicable
provisions of the National Electrical Code ANSI/NFPA 70,
Article 725 and the Canadian Electrical Code, Part 1,
Section 16.
Note 3: The power supply shall not be permanently fixed to the building
structure or similar structures.
Note 4: The power supply shall not be located within environmental air
handling spaces or within the wall cavity .
Note 5: The power supply is to be located within the same vicinity as
the A/V processing equipment in an ordinary location, Pollution
Degree 2, secured to the equipment rack within the dedicated
closet, podium or desk.
Page 17
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, (800) 214-0222
18
3.0 OPERA TION
After the installation procedure is completed, the units are ready for
operation. T o operate the LBO-HDMI-AD unit s, simply apply power as
indicated in the previous sections. The following describes the LED
activity.

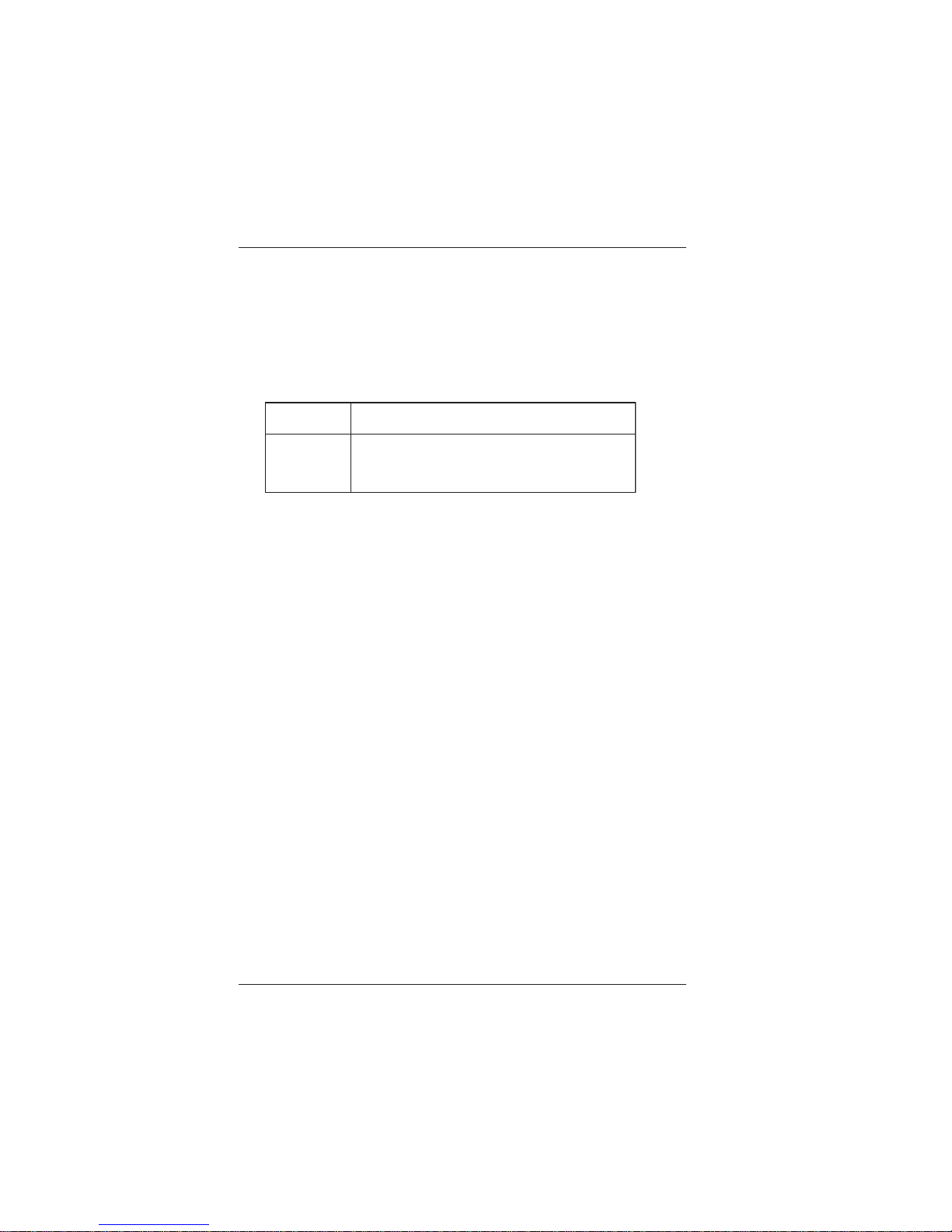

Table 1
LED Indicator
When power is connected, this LED turns RED.
When power and optical link are on, this LED
turns GREEN
PWR/LINK
LED Indicator Description
Page 18
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected]
19
4.0 MAINTENANCE AND TROUBLESHOOTING
4.1 Maintenance
There is no operator maintenance other then keeping the units
clean. However, observe the following light indicators to make
sure that the unit is working properly:
4.2 Troubleshooting
If the LBO-HDMI-AD units do not operate properly after
installation, check for: possible cable breaks, loose connections,
and incorrect cable connections. If a problem exists on the
fiber link, please check your fiber connectors for improperly
cleaned fiber cables and connectors. If problems persist that
may be fiber related, contact BCI at 1-800-214-0222 for further
assistance.
For electrical problems, perform the following troubleshooting
procedures:
1. If the POWER indicator is OFF , check for the following:
a. The line cord is plugged into the unit and your outlet
has power.
2. If the POWER indicator is ON, but the Optical Link
indicator is OFF, check for the following:
a. Make sure the appropriate (Multimode) fibers are being
used.
b. Fiber and fiber connectors are not broken.
c. For each unit, the transmit (TX) fiber is connected to
the other unit’s receiver (RX).
3. If the POWER indicator and Optical Link indicator are
ON, but the audio/video channels are not operating,
then:
Page 19
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, (800) 214-0222
20
a. Check to see that the attached user equipment is turned
on.
b. Both ends of the link are connected to the
corresponding equipment and to the same
corresponding channel port.
c. Cable connections at both the video/audio channels
are securely fastened to each connector. Turn the
power off, then back on to reset the link.
Page 20
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected]
21
5.0 SPECIFICATIONS
Video
Resolution Up to 1080p@60Hz or
1620x1200@60Hz
Connector HDMI Female Plug
Protocol DDC/EDID/HDCP Capable
Audio
Channel Capacity 2
Operating Mode Unbalanced (Stereo Audio),
Bi-directional
Input/Output Impedance 10k/50 Ohms (Stereo Audio)
Max. Input/Output Level 5 dBu/4Vpp
(Stereo Audio)
Magnitude Freq. Response 20Hz to 20kHz @ -3dB
THD+N >70 @ 1k Hz (Stereo Audio)
Connector 3.5mm Stereo Jack
Serial Data
Channel Capacity 2
Signal Format RS-232
Data Rate Up to 57.6kbaud
Connector Terminal Block
Optical
Fiber Type Multimode
Number of Fibers 1
Connector SC
Page 21
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, (800) 214-0222
22
Physical
Dimension
Standalone 4.17”(W) x 4.1”(D) x 1.1”(H)
Wallplate
1.75”(W) x 2.70”(D) x 2.81”(H)
Power Level (max.) +12VDC @ 1.5A
Operating Temperature 0 to +50oC
Humidity 0 to 95% RH,
non-condensing
Ordering Information
LBO-HDMI-AD-T-M-SC Fiber Transmitter , Multimode, 1-Fiber
LBO-HDMI-AD-R-M-SC Fiber Receiver, Multimode, 1-Fiber
2 RS-232
2A
HDMI
Add -WP for Wallplate configuration
Add -CH for LBO-CH Chassis mounting kit
Add -UPS for International Universal Power Supply
Page 22
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected]
23
6.0 SERVICE PROCEDURE
6.1 Replacement Policy
Standard products found defective on arrival (DOA) will be
replaced, based on availability , within 24 to 48 hours anywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.
6.2 Return/Repair Service
The LBO-HDMI-AD System contains no user serviceable
components. If you have a problem with your unit, please contact
the Customer Service Department. To facilitate our return/repair
processing please contact Broadata Communications, Inc. to
obtain a Return Material Authorization (RMA). Please include
the following information:
• Product model number
• Serial Number
• Complete description of problem
• Hardware installation description
Broadata Communications, Inc.
2545 West 237th Street, Suite K
T orrance, CA 90505
1-800-214-0222
(310) 530-1416
(310) 530-5958 (Facsimile)
e-mail: [email protected]
Website: www .broadatacom.com
Page 23
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, (800) 214-0222
24
7.0 LIMITED W ARRANTY
Broadata Communications, Inc. (BCI) warrants, for a period of one year
from date of shipment, each product sold shall be free from defects in
material and workmanship. BCI will correct, either by repair, or at BCI’ s
election, by replacement, any said products that in our sole discretion
prove to be defective and are returned to the manufacturing location
within 30 days after such defect is ascertained. All warranties are limited
to defects arising under normal use and do not include malfunctions or
failure resulting from misuse, abuse, neglect, alterations, electrical power
problems, usage not in accordance with product instructions, improper
installation, or damage determined by BCI to have been caused by the
Buyer or repair made by a third party. Limited warranties granted on
products are to the initial customer end-user and are not transferable.
OUR LIABILITY UNDER THIS W ARRANTY SHALL IN ANY CASE BE
LIMITED TO THE INVOICE VALUE OF THE PRODUCT SOLD AND BCI
SHALL NOT BE LIABLE TO ANYONE FOR CONSEQUENTIAL OR
INCIDENT AL DAMAGES ARISING FROM THE USE OF ITS PRODUCTS
OR THE SALE THEREOF. We make NO WARRANTY AS TO THE
MERCHANT ABILITY OF ANY GOODS, OR THA T THEY ARE FIT FOR
ANY P ARTICULAR PURPOSE OR END APPLICATION NOR DO WE
MAKE ANY WARRANTY, EXPRESSED OR IMPLIED OTHER THAN
AS ST A TED ABOVE.
Page 24
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected]
25
Page 25
LBO-HDMI-AD User’s Manual
Link Bridge
TM
Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, (800) 214-0222
26
Page 26
Broadata Communications, Inc.
2545 West 237th Street, Suite K
T orrance, CA 90505
1-800-214-0222
(310) 530-1416
(310) 530-5958 (Facsimile)
e-mail: [email protected]
Website: www .broadatacom.com
60000-LBOHDMI/AD
Loading...
