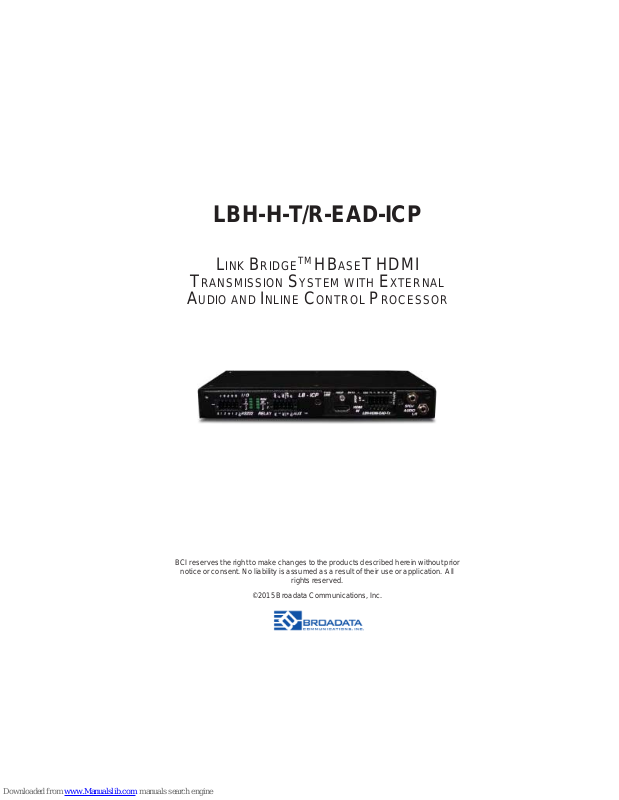

Page 1

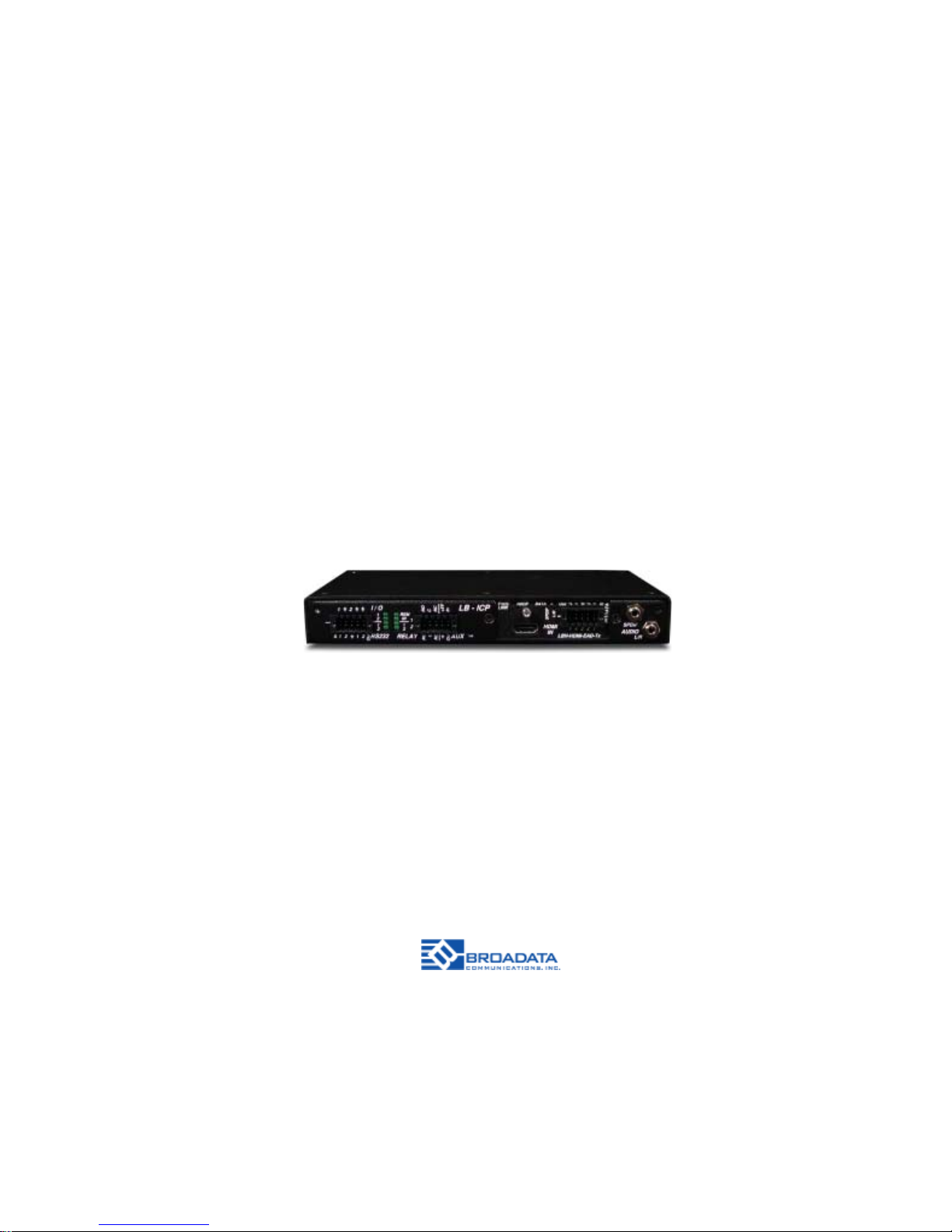

LBH-H-T/R-EAD-ICP

LINK BRIDGE

HBASET HDMI

TRANSMISSION SYSTEM WITH EXTERNAL

AUDIO AND INLINE CONTROL PROCESSOR

BCI reserves the right to make changes to the products described herein without prior

notice or consent. No liability is assumed as a result of their use or application. All

rights reserved.

Page 2

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

SAFETY INSTRUCTIONS AND

COMPLIANCE DECLARA TIONS

PLEASE OBSERVE THE FOLLOWING SAFETY

PRECAUTIONS

SURGE PROTECTION DEVICE RECOMMENDED

This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.

Page 3

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

TABLE OF CONTENTS

1.0 PRODUCT DESCRIPTION ..............................................5

2.0 OPERATION CONTROL AND FUNCTIONS ...................6

2.1 TRANSMITTER EXTENDER FRONT AND REAR

P ANELS ...........................................................................6

2.2 RECEIVER EXTENDER FRONT AND REAR PANEL.....7

2.3 ICP FRONT AND REAR PANEL .....................................8

3.0 CONNECTOR PINOUT ASSIGNMENT ...........................9

3.1 EXTENDER ......................................................................9

3.1.1 SERIAL DA TA INTERF ACE............................................9

3.1.2 STATUS LEDS ............................................................. 10

3.2 ICP .................................................................................11

3.3 LB-KP8 ...........................................................................12

4.0 LB-ICP WEB SERVER DESCRIPTION .........................14

5.0 SPECIFICA TIONS...........................................................34

6.0 SERVICE PROCEDURE ................................................37

6.1 REPLACEMENT POLICY ..............................................37

6.2 RETURN AND REPAIR SERVICE .................................37

7.0 LIMITED WARRANTY ....................................................38

Page 4

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

1.0 PRODUCT DESCRIPTION

Overall

• An HDBaseT HDMI extender with external audio ports and

multimple control I/O ports

• Not only extend HDMI video, but also provide in-line control

I/O paths, over HDBaseT link

Extender

• Extend HDMI, external stereo audio, and RS-232/IR up to 100

meters over 1 CAT-5e/6 cable

• Full HDTV video resolution for 4K2K and 1080p/1080i/720p

• Fully uncompressed video and audio, provides zero loss of

quality

• Supports True DDC/EDID/HDCP transmission

• Bi-directional POH

Inline Control Processor (ICP)

• Control I/O ports contain:

- two (2) RS-232

- two (2) Relay

- two (2) Digital I/O

- one (1) IR

- one (1) Ethernet

• Control and monitor AV devices using a standard Ethernet

• Front panel port status indicators

• User friendly customizable control configurations via built-in

web server

ORDERING INFORMA TION

LBH-H-EAD-T-ICP Link Bridge HDMI Transmitter w/Audio,

RS-232 and Control I/O Ports

LBH-H-EAD-R-ICP Link Bridge HDMI Receiver w/Audio,

RS-232 and Control I/O Ports

Page 5

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

2.0 OPERA TION CONTROLS AND FUNCTIONS

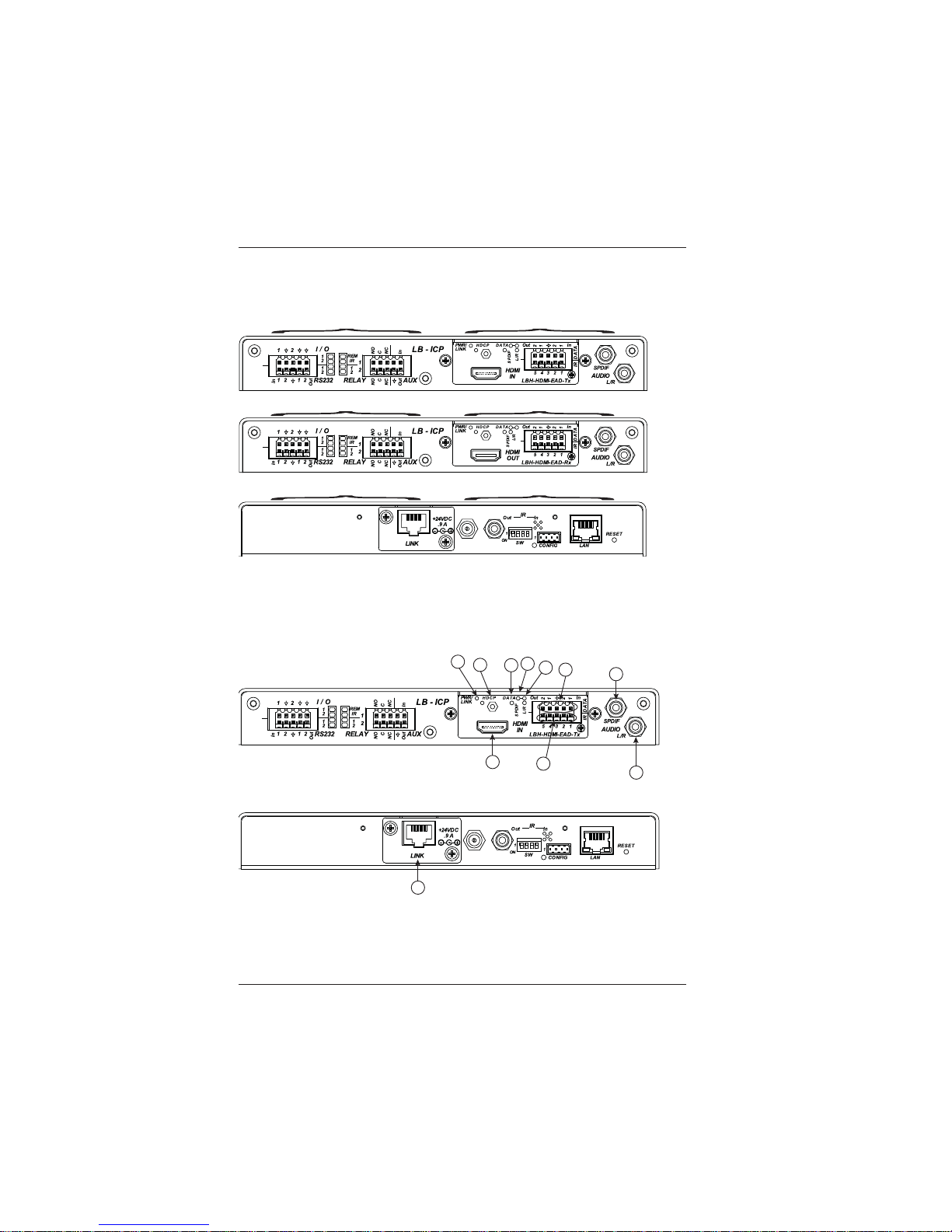

2.1 Transmitter Extender Front and Rear Panel

1. Power/Link: The red LED indicates the unit is powered up.

The green LED indicates that the unit has a good HDBT connection.

ICP Extender

ICPExtender

Front

TX or R

Rear

Extender/Front

Extender/Rear

Page 6

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

2. HDCP LED: The blue LED is lighted when HDCP video is present. The blue LED blinks when non-HDCP video is present.

3. SPDIF LED: Lighted when corresponding SPDIF audio is active.

4. DAT A LEDs: Lighted when corresponding input or output ports

are active.

5. L/R LED: Lighted when corresponding audio is active.

6. DATA: RS-232 pass-through data connector .

7. IR: IR pass-through IR connector .

8. SPDIF: SPDIF audio input connector.

9. L/R: L/R audio input connector.

10. HDMI IN: HDMI video input connector.

11. HDBT: HDBT CAT-5e/6/7 cable connector.

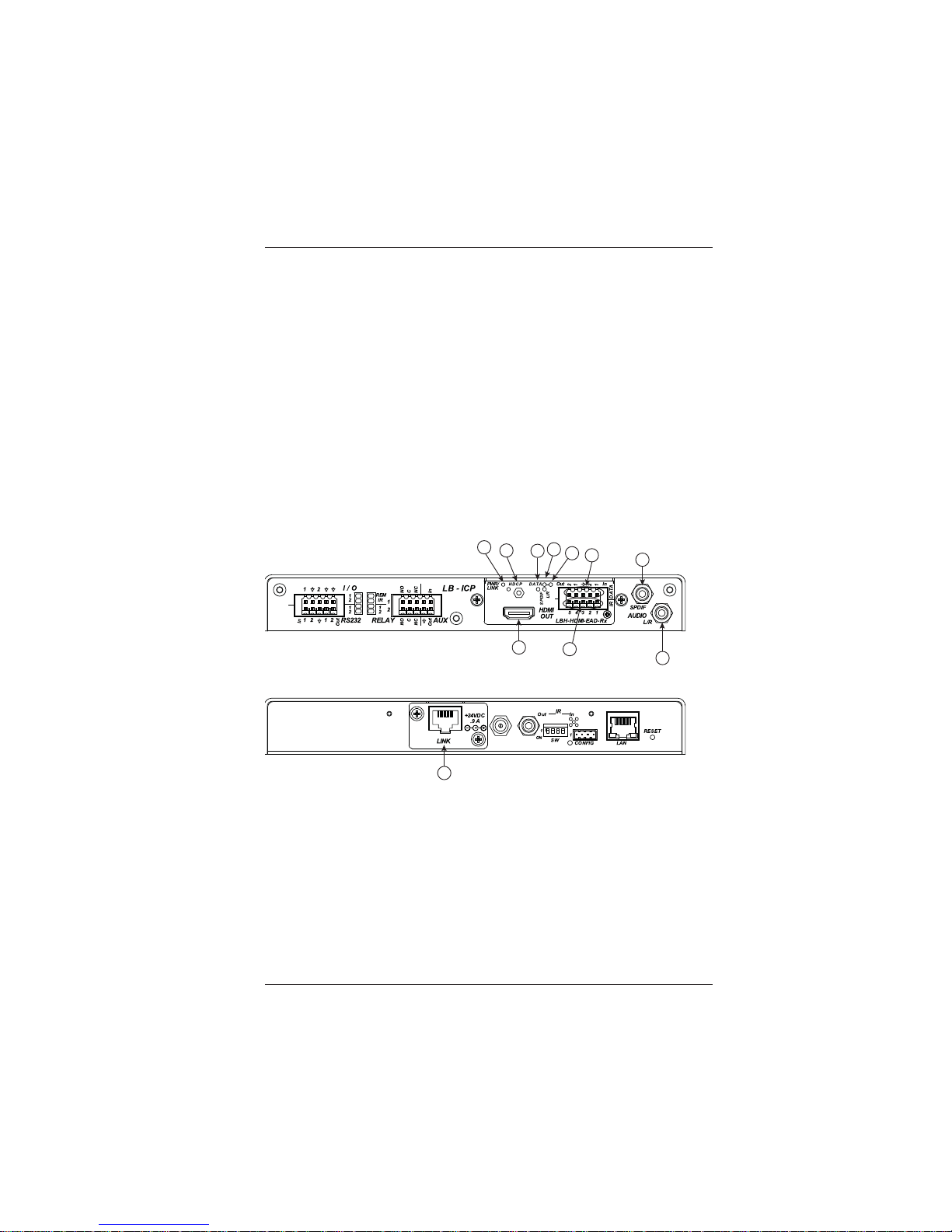

2.2 Receiver Extender Front and Rear Panel

1. Power/Link: The red LED indicates the unit is powered up.

The green LED indicates that the unit has a good HDBT connection.

2. HDCP LED: The blue LED is lighted when HDCP video is present. The blue LED blinks when non-HDCP video is present.

3. SPDIF LED: Lighted when corresponding SPDIF audio is active.

4. DAT A LEDs: Lighted when corresponding input or output ports

are active.

5. L/R LED: Lighted when corresponding audio is active.

6. DATA: RS-232 pass-through data connector .

Extender/Front

Extender/Rear

Page 7

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

7. IR: IR pass-through IR connector .

8. SPDIF: SPDIF audio output connector.

9. L/R: L/R audio output connector.

10. HDMI IN: HDMI video output connector.

11. HDBT: HDBT CAT -5e/6/7 cable connector.

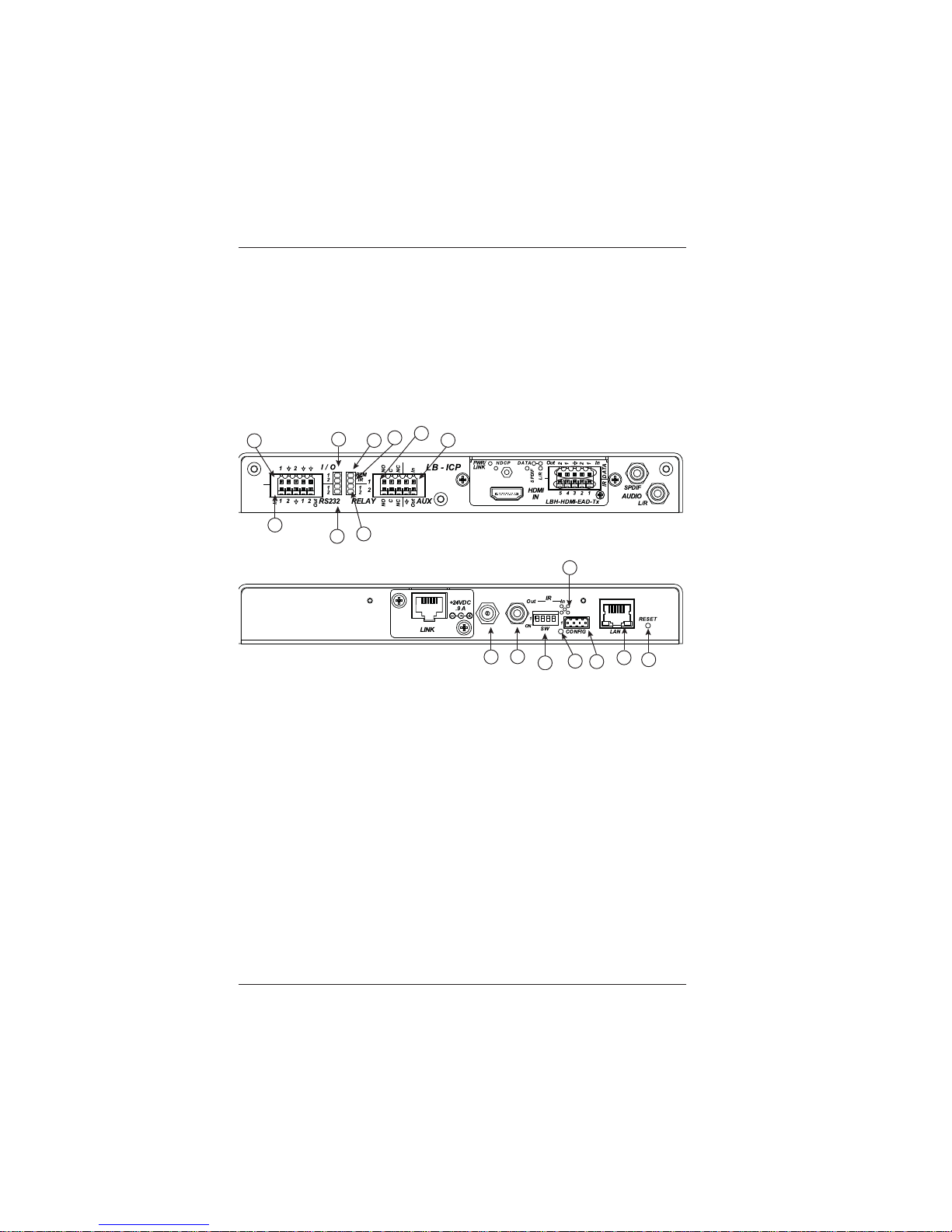

2.3 ICP Front and Rear Panel

1. Digital I/O: Digital input/output ports.

2. Digital I/O LEDs: Light when the corresponding ports are active

high.

3. RS-232: Serial port to control devices.

4. RS-232 LEDs: Light when the corresponding RS-232 ports

are active.

5. REM LED: Light when the unit is set as a remote unit.

6. IR LED: Light when the IR out are active.

7. RELAY LED: Light when the corresponding, normally open pins,

are closed.

8. RELAY: Normally open and normally closed relay ports.

9. AUX-In and AUX-Out: Reserved.

10. DC12V: DC power input connector .

11. IR Out: IR blaster port.

ICP Fron

ICP Back

Page 8

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

12. SW: The unit configuration dip switch

13. IR Learner: Built-in IR receiver for IR learning.

14. IR Learner LED: Lighted when the unit is IR learning mode.

15. CONFIG: Configuration/keypad port

16. LAN: Ethernet connector.

17. RESET: Press the button to reset the device back to factory

default settings.

3.0 CONNECTOR PINOUT ASSIGNMENT

3.1 Extender

3.1.1 Serial Data Interface

Each LBH-H-EAD-ICP unit can be used for RS-232 and IR interface.

RS-232/ IR Data

The LBH-H-EAD-ICP transmits two channels of data signals. Follow the procedures for installing data terminal devices.

1. Label and connect one serial data cable to the user’s RS-232 or IR device.

2. Connect the other end of this cable to the front panel data terminal block connector on the LBH-H-EAD-ICP (see below).

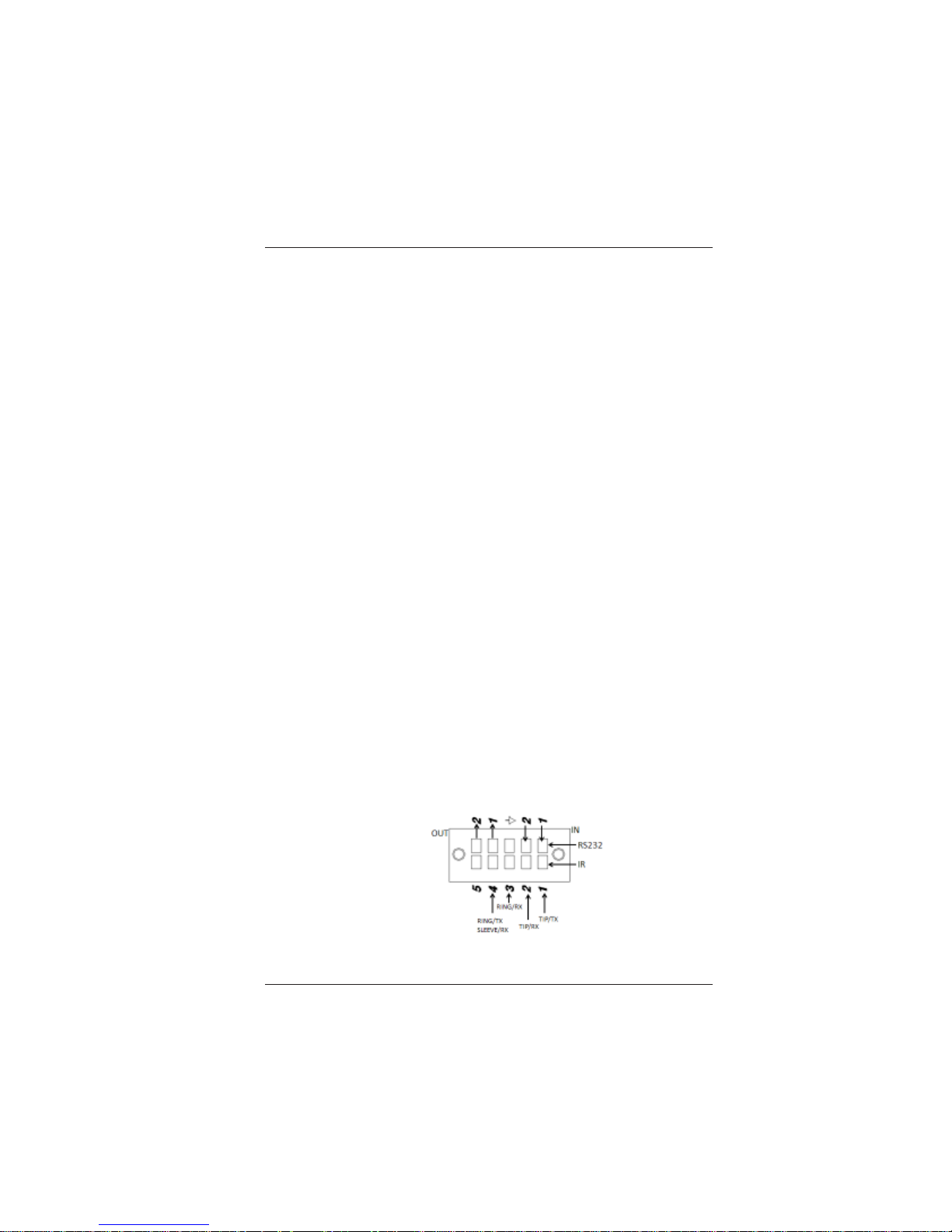

RS-232/IR Terminal block pinout

Page 9

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

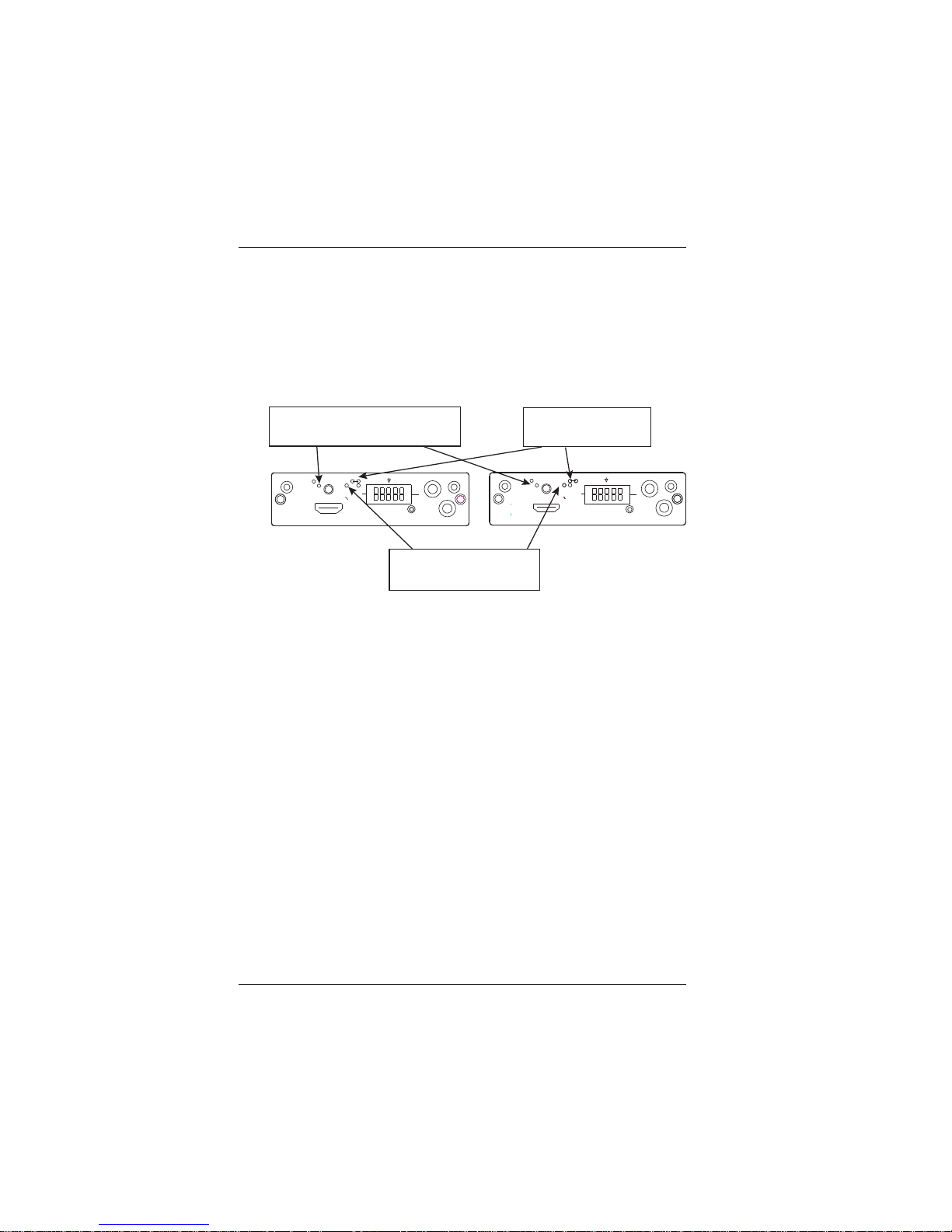

3.1.2 Status LED’ s

Additional status LED’s are provided for the user to indicate the presence of HDCP video, audio presence and data presence. These are to assist the user in identifying right from the front panel whether a given signal is present for transmission and aid in the troubleshooting process if a given signal is missing.

HDCP LED: Will be solid LED when video input has a HDCP. It will blink when video input does not have HDCP.

Data in and Data out LED: It will be on when the unit detects data signal.

SPDIF & L/R detect LED. It will be on when the unit detect the audio input signal.

LBH-HDMI-EAD-Tx

Out

SPDIF

L/R

HDMI

LINK

PWR/

HDCP

DATA

12543

SPDIF

AUDIO

L/R

1221

LBH-HDMI-EAD-Rx

Out

L/R

SPDIF

OUT

HDMI

HDCP

LINK

PWR/

DATA

AUDIO

12543

L/R

SPDIF

122

Page 10

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

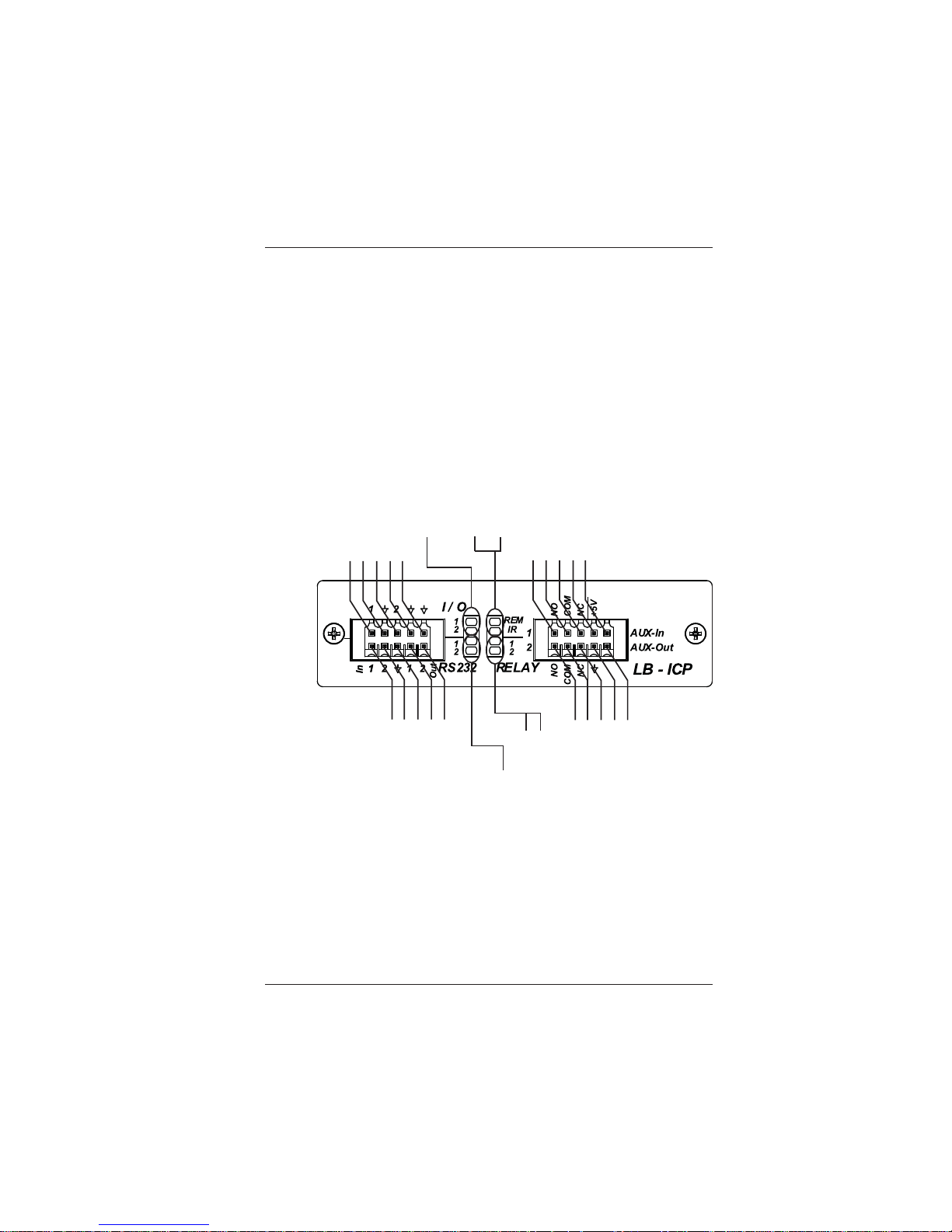

3.2 LB-ICP

Front

Digital I/O CH-1

GND

Digital I/O CH-2

GND

Relay 1 Normally Open

Relay 1 Common

Relay 1 Normally Closed

Reserved/Do Not Connect

Digital I/O LEDs

1=I/O Ch-1

2=I/O Ch-2

Remote LED

(On=Remote)

IR TX LED

(On=IR TX Act.)

}

On=High Level

Reserved/Do Not Connect

Relay 2 Normally Closed

Relay 2 Common

Relay 2 Normally Open

RS-232 OUT CH-2

RS-232 OUT CH-1

GND

RS-232 IN CH-2

RS-232 IN CH-1

1=Relay 1 ON

2=Relay 2 ON

RS-232 LEDs

1=CH-1 Activity

2=CH-2 Activity

Page 11

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

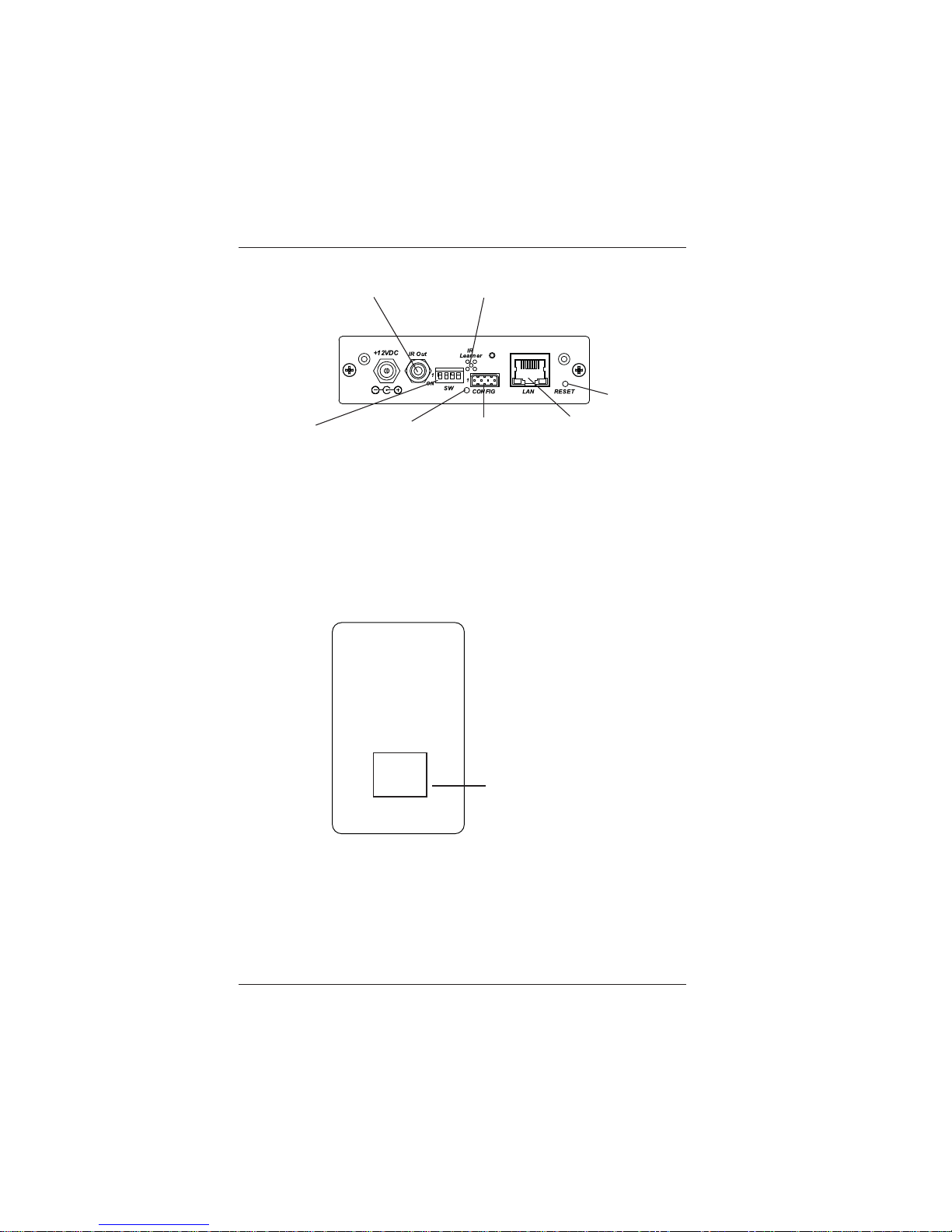

3.3 LB-KP8

Rear

IR OUT for external emitter

IR detector behind holes

Reset button: push to reset to default settings

RJ-45 1 - TX+ 2 - TX3 - RX+ 4 - N/C 5 - N/C 6 - RX7 - N/C 8 - N/C

CONFIG/Keypad

1. +12V keypad power

2. RS-232 IN

3. RS-232 OUT

4. GND

IR Learn LED (ON in IR Learn mode

DIP SW Position 1: Local/Remote (Local=OFF) Position 2: Reserved Position 3: Reserved Position 4: Reserved

Rear

Control

RJ-45 Pin 1: RS-232 OUT Pin 2: RS-232 IN Pin 3: --no connect-Pin 4: +12v Pin 5: +12v Pin 6: --no connect-Pin 7: GND Pin 8: GND

Page 12

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

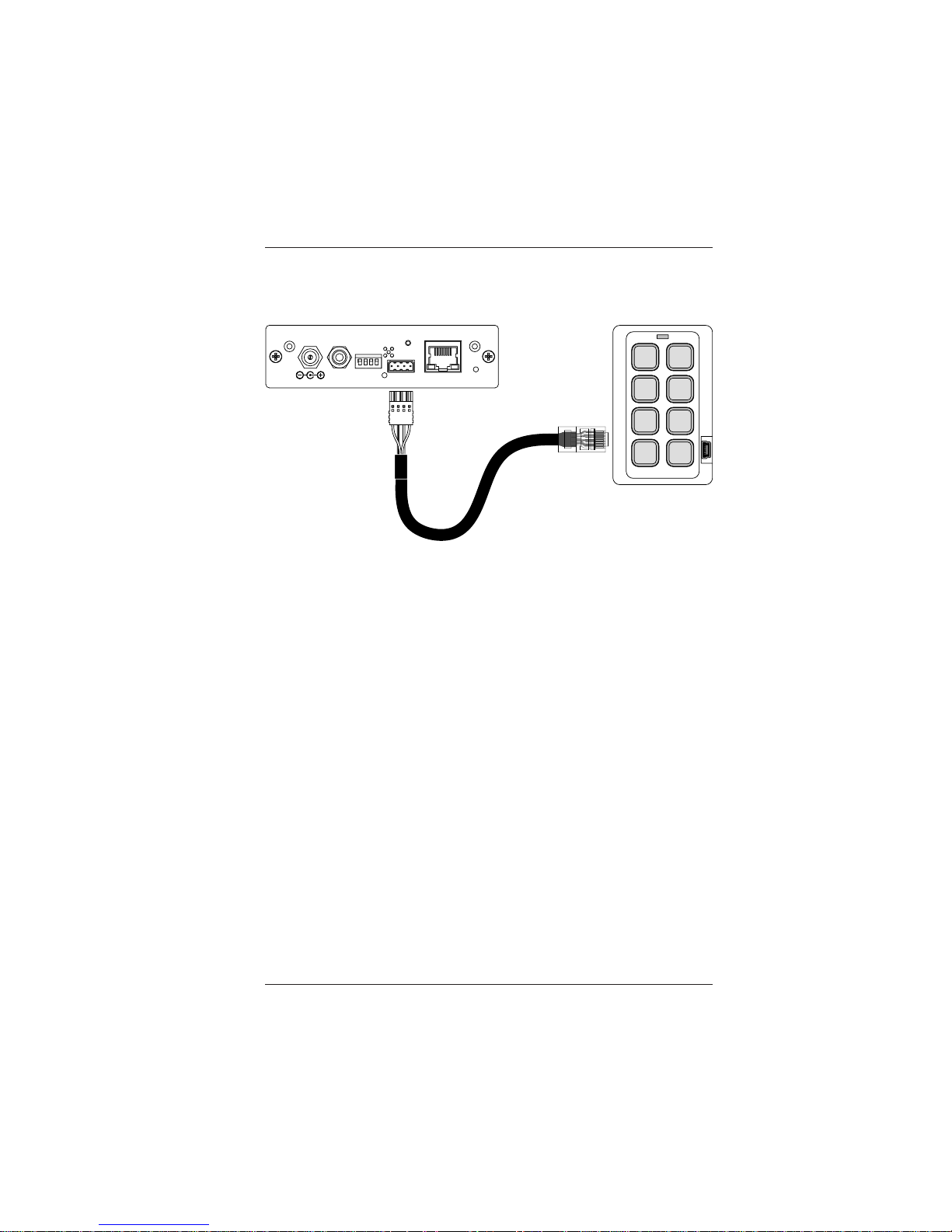

The cable connection between LB-KP8 and LB-ICP is shown below .

Learner

CONFIG

LAN RESET

IR Out

+12VD C

Standard RJ 45

Termination T-568B

2. Whit e / Oran g e (RS2 3 2 In)

3. Ora ng e (RS232 Out)

1. Blue (+12V)

4. Brown (Ground)

1. White/Or ange

2. Or ange

3. White/Gr een

4. Blue

5. White/Blue

6. Gr een

7. White/Brown

8. Brown

Page 13

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

4.0 LB-ICP WEB SERVER DESCRIPTION

Introduction

The ICP Web Server provides user friendly and intuitive web pages to configure the virtual keypad and automation functions within the ICP. It also provides web pages to manage the IR Learner and IR code import. A standard web browser can be used to access the web pages.

Accessing Web Server

The IP address of the ICP must be obtained in order to access the Web Server. There are 2 ways to obtain the IP address of an ICP.

1) Use the IPCONFIG command in the Configuration Port Command Line Interface to display the unit’s IP address.

2) Use the BCI PC Configuration Program (see Appendix)

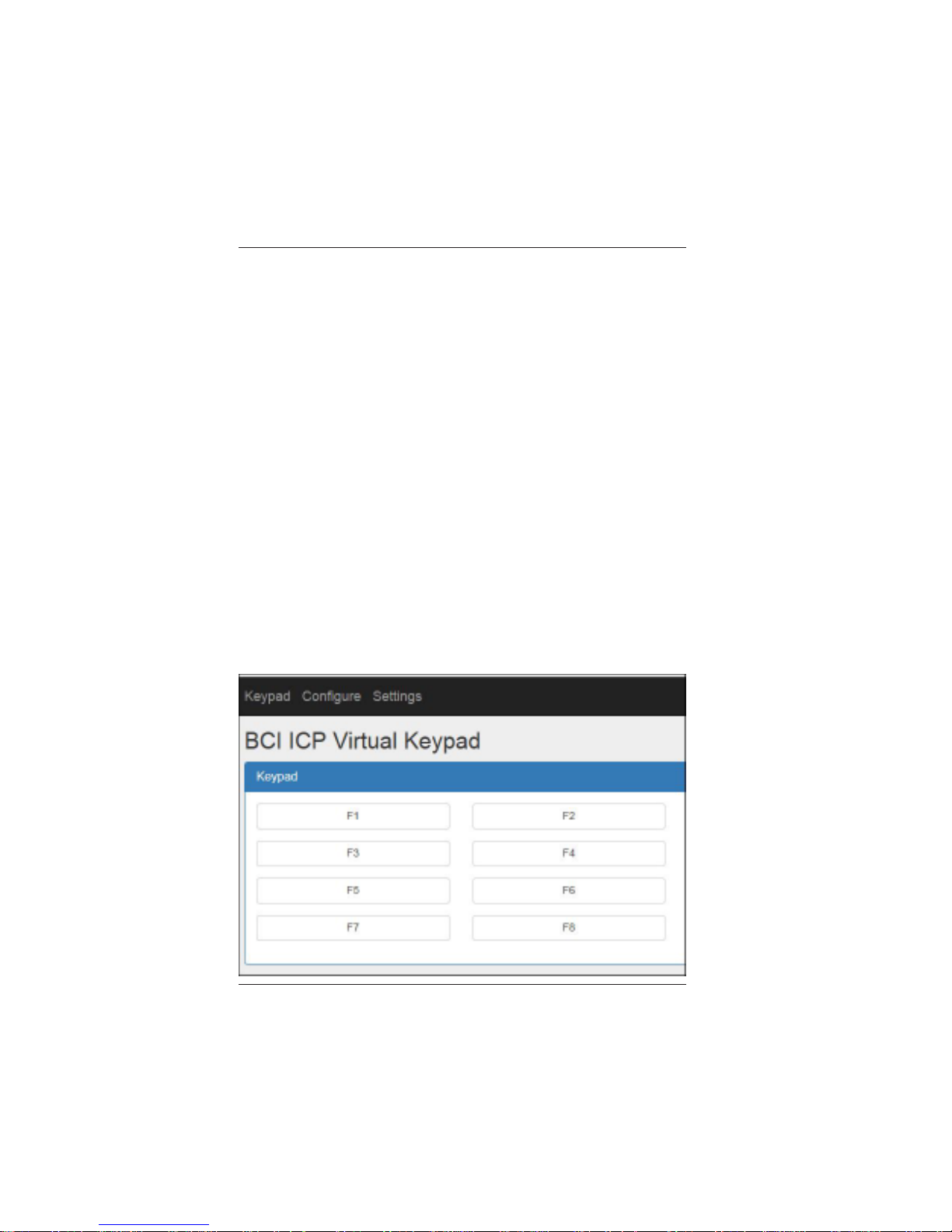

Type in the unit’s IP address in the web browser. The ICP Virtual Keypad page will be displayed. All 8 keys of the Virtual Keypad are unprogrammed by default. The keys are configured in the Configure Key Action page.

Page 14

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

Before configuring the Virtual Keypad, the system first needs to be set up using the Configure System page. On the top menu bar, click Configure and then click System. This brings up the ICP Login page.

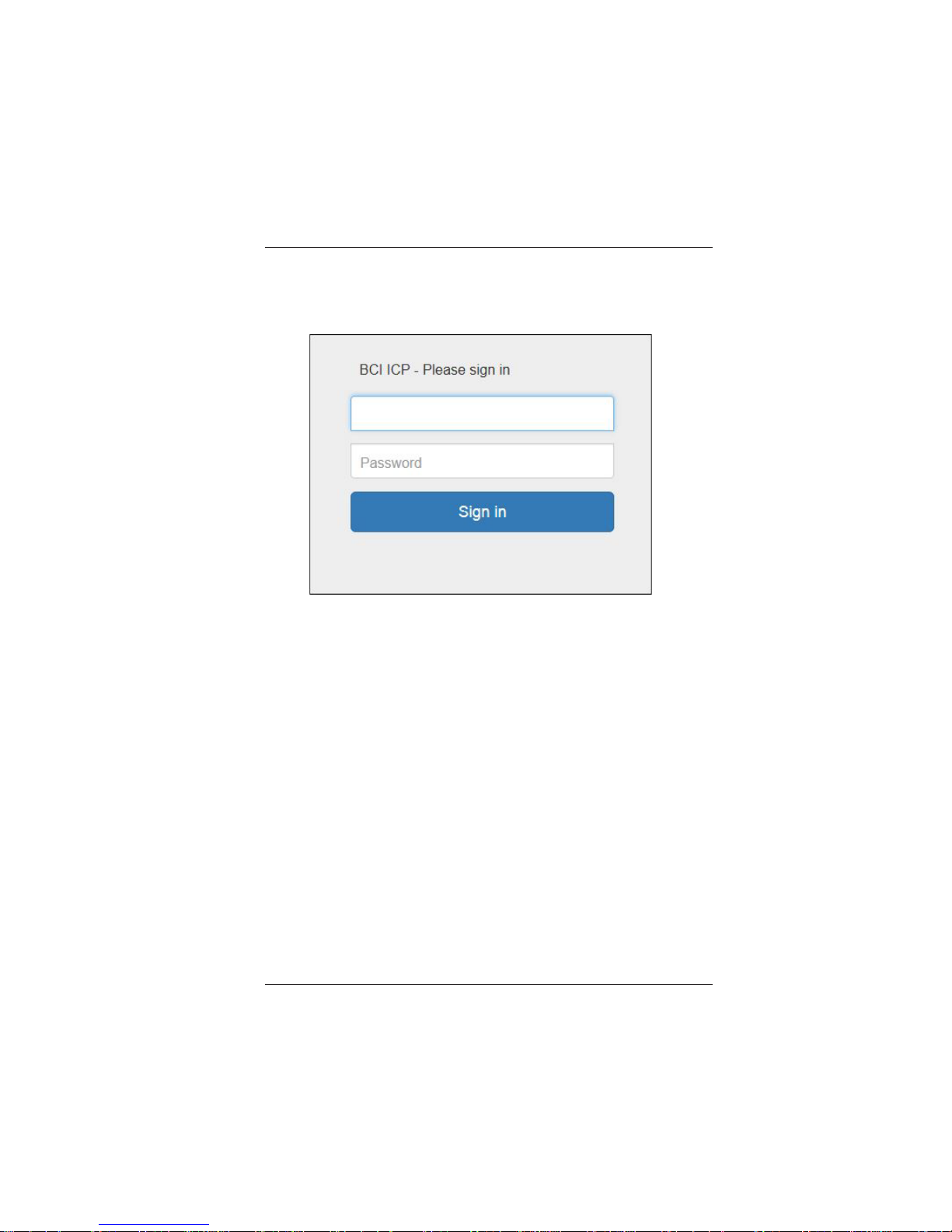

In the ICP Login type in admin for the Userid and admin for the Password and then click Sign in button. The Configure System page will appear . See the following section for Configure System page details. Once logged in, the user is free to open any of the Configure or Settings pages. The default Password can be changed using the BCI Product Configuration program (see Appendix).

Page 15

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

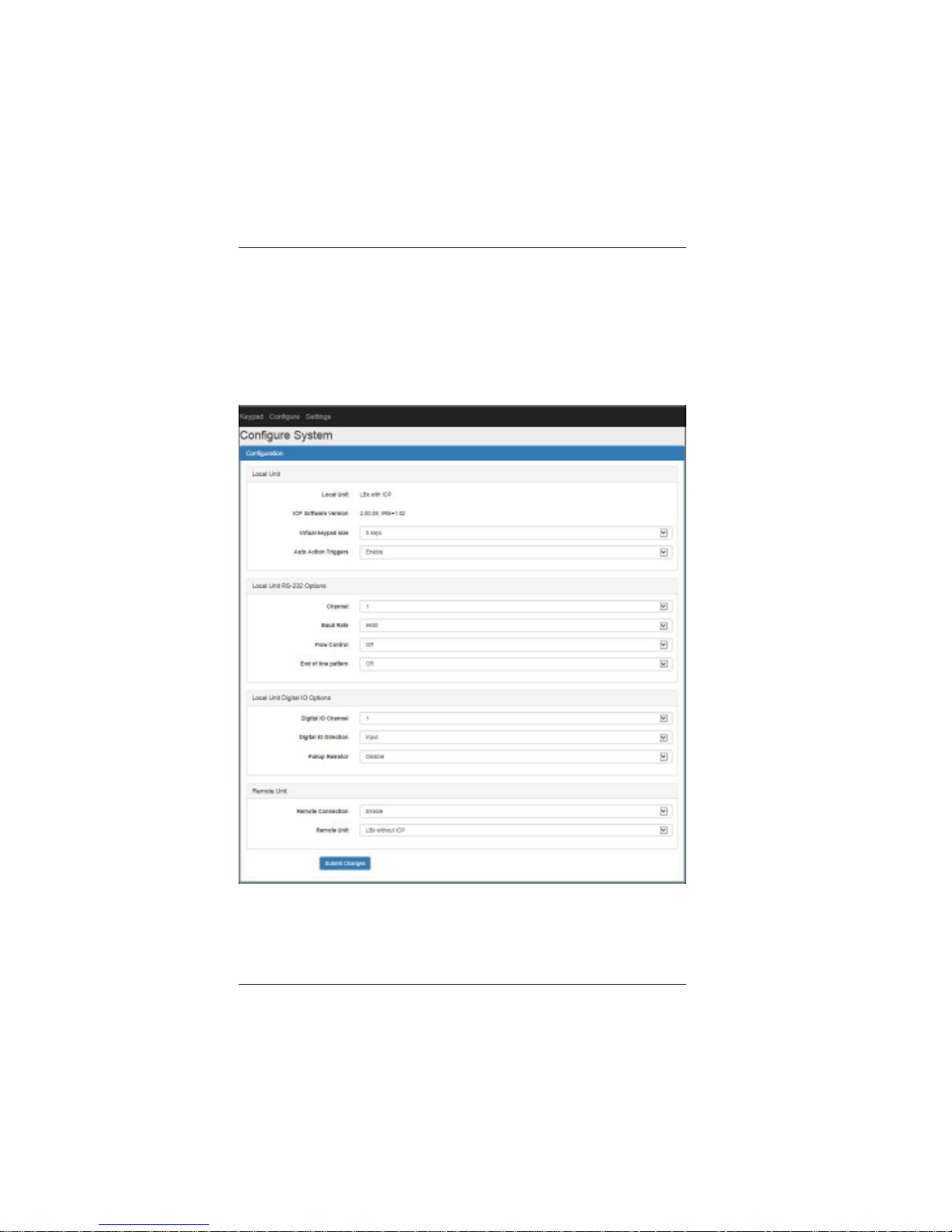

Configure System

The Configure System page is used to configure the local unit’s virtual keypad, RS-232 channels, Digital IO channels and remote unit types.

On the top menu bar, click Configure and then click System. The following page will be displayed.

Page 16

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

Local Unit

The first two lines in this panel show the Local unit type and software version. Below that are the pull down menus for selecting the virtual keypad size and enabling Auto Action Triggers.

Virtual Keypad Size: Select 8 keys or 16 keys. 8 keys option: maximum of 10 actions per key. 16 keys option: maximum of 5 actions per key.

Auto Action Triggers: Select Enable to enable the auto action triggers defined in the Configure Auto Action page. Select Disable to disable all auto triggers.

Local Unit RS-232 Options

This panel is used to configure the local RS-232 channels. Channel: Select channel 1, 2 or 3. Note: Channel 3 is only available on

LBC-ICP and EAD/SCL-ICP units.

Channel 1/2: RS-232 control channels. Channel 3: RS-232 control channel or pass-through channel. Channel

3 defaults as a control channel. Set Remote Connection (Remote Unit panel) to Disable in order to configure Channel 3 as a pass-through channel. Channel 3 (Remote) is the pass-through channel on the remote unit.

Baud Rate: Select a baud rate from 9600 to 115200 baud. Flow Control: Select On to enable flow control and Off to disable flow

control. Flow control is available only on Channel 1. If flow control is enabled, Channel 2 is no longer available.

End of Line Pattern: Select CR or CR+LF for end of line termination.

Local Unit Digital IO Options

The 3 pull down menus in this panel are used to configure the Digital IO settings. Digital IOs are inputs by default and show up as triggers in the Configure Auto Actions page.

Page 17

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

Digital IO Channel: Select channel 1 or 2. Digital IO Direction: Select channel as a digital Input or Output. If the Digital IO Direction is set to Input, there is an option for Pullup

Resistor. Pullup Resistor: Select Enable or Disable pull-up resistor. If the Digital IO Direction is set to Output, there is an option for Digital

Output Mode. Digital Output Mode: Select TTL for a 5V compatible TTL type output

or Open Collector for an open collector type output. An open collector type output can be used to implement a contact closure type output. For example, if a digital output is set to Open Collector, setting the Digital Output St ate to 1 (High) will emulate a switch closure to ground. Setting the Digital Output St ate to 0 (Low) will emulate a switch being open. The Open Collector output also has an option for a Pullup Resistor.

Remote Unit

This panel enables the connection with the remote unit and selects the remote unit type. This panel is not available if the Local unit type is

Standalone ICP. Remote Connection: Select Enable to enable the connection with the

remote unit. Select Disable to disable the connection with the remote unit and enable the RS-232 pass-through channel. None of the remote unit control outputs will be available once Disable is selected.

Remote Unit: Select the remote unit type. The available remote unit types are LBx without ICP, LBx with ICP and EAD/SCL with ICP.

Page 18

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

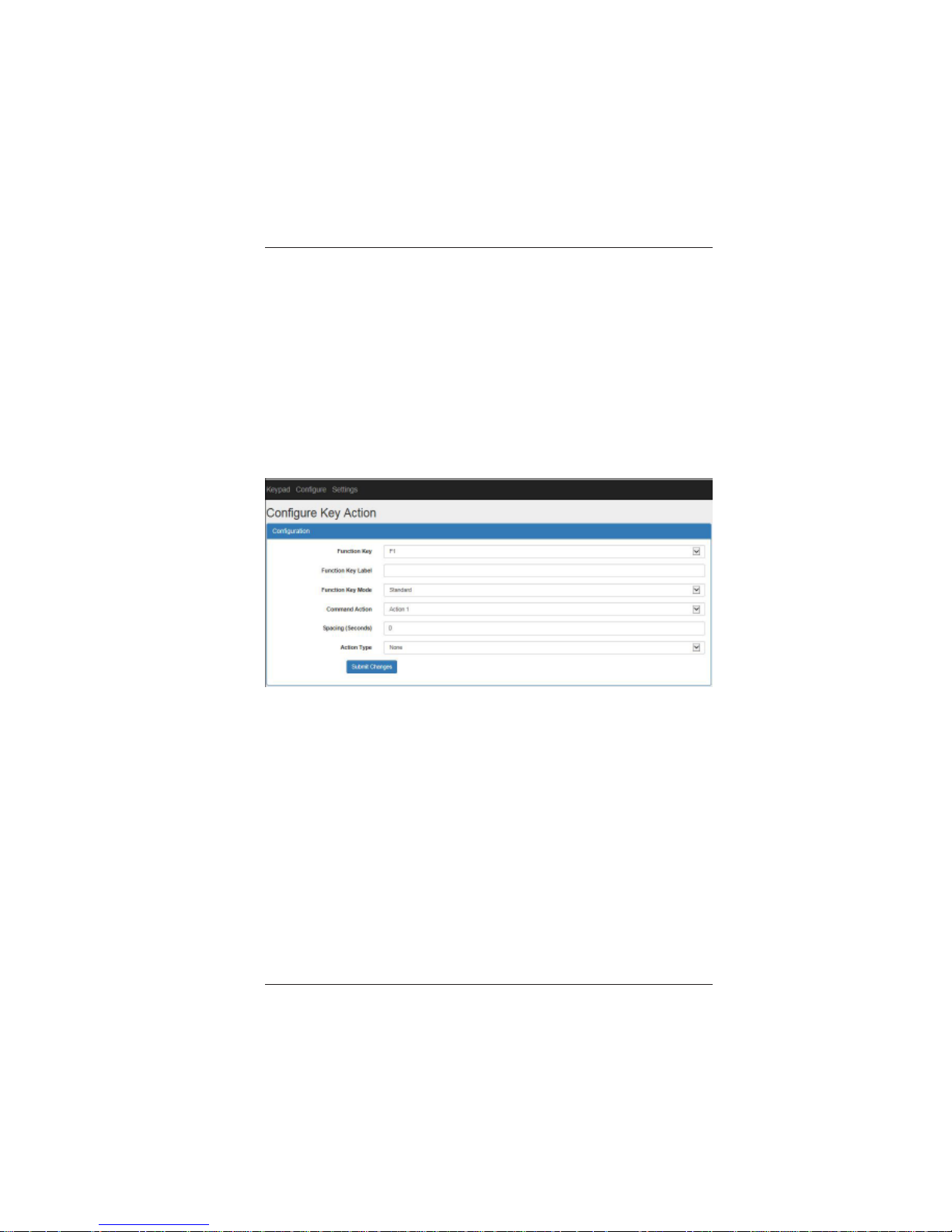

Configure Key Action

The Configure Key Action p age is used to configure the keys virtual on the virtual keypad. On the 8-key keypad, each function key can be defined as a macro for up to 10 different actions. On the 16-key keypad, each function key can be defined as a macro for up to 5 actions. The available actions are Relay, RS-232, IR and T elnet. Digital Output actions are only available if Digital IOs are configured as outputs in the Configure System page.

On the top menu click Configure and then click Key Action. The following page will be displayed.

Function Key: Select the function key F1 through F8 to be defined. Function Key Label: Type in a label name for the selected function

key. Function Key Mode: Select Standard for a “momentary” type key.

Only one action is assigned to a Standard key. Select Toggle for a “toggle” type key. A Toggle key has two states: Press and Release. One set of actions is assigned to the Press state and another set of actions is assigned to the Release state.

Command Action: Select the action number to be defined. Action 1 through Action 10 can be defined.

Page 19

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

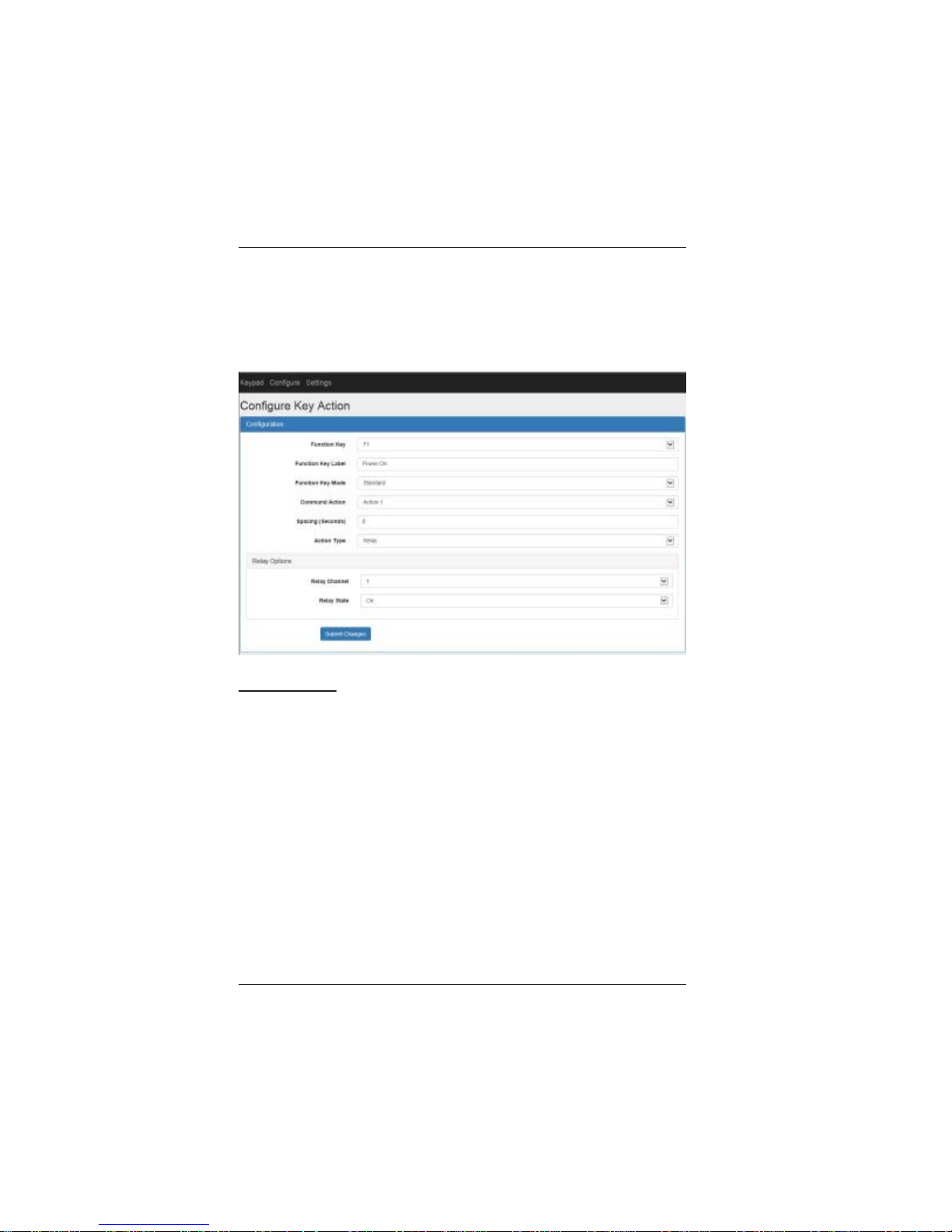

Spacing: Enter the delay (in seconds) desired before the command action.

Action Type: Select the action type. Available types are None, Relay, Digital Output, RS-232, IR, and Telnet.

Relay Options Relay Channel: Select the relay channel 1 or 2.

Relay State: Select the relay channel state, On (energized) or Off

(de-energized).

Page 20

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

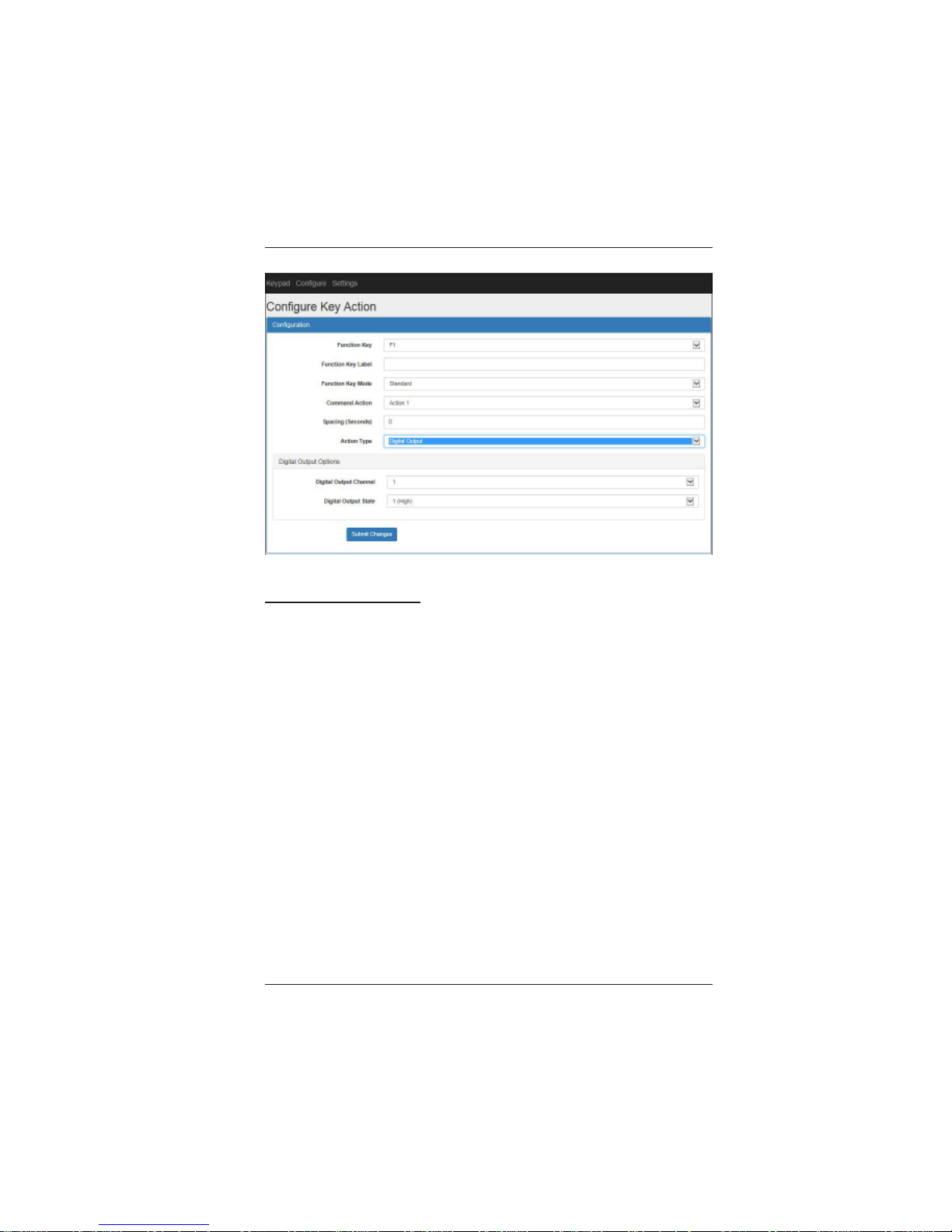

Digital Output Options Digital Output Channel: Select the digital output channel 1 or 2.

Note: this option is not available if both Digital IO channels are set to Inputs in Configure System page.

Digital Output State: Select the digital output state: 1 (High) or 0 (Low).

Page 21

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

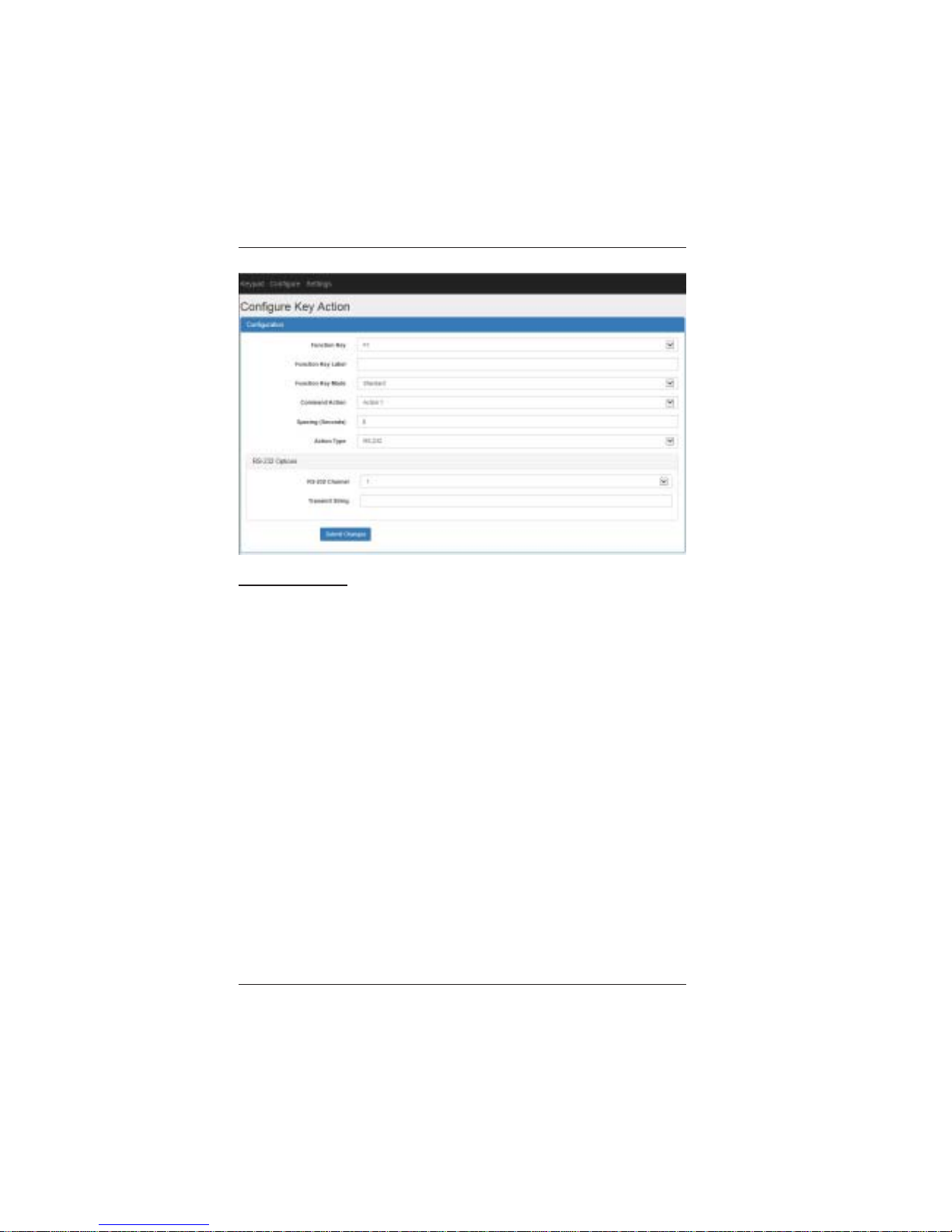

RS-232 Options RS-232 Channel: Select channel 1, 2, or 3 (Remote).

Transmit String : T ype in the text string to be transmitted. S trings are

terminated with CR+LF , depending on the selection made in Configure System page. Characters enclosed by <> will be treated as hex. For example to transmit 00h enter <00>.

Page 22

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

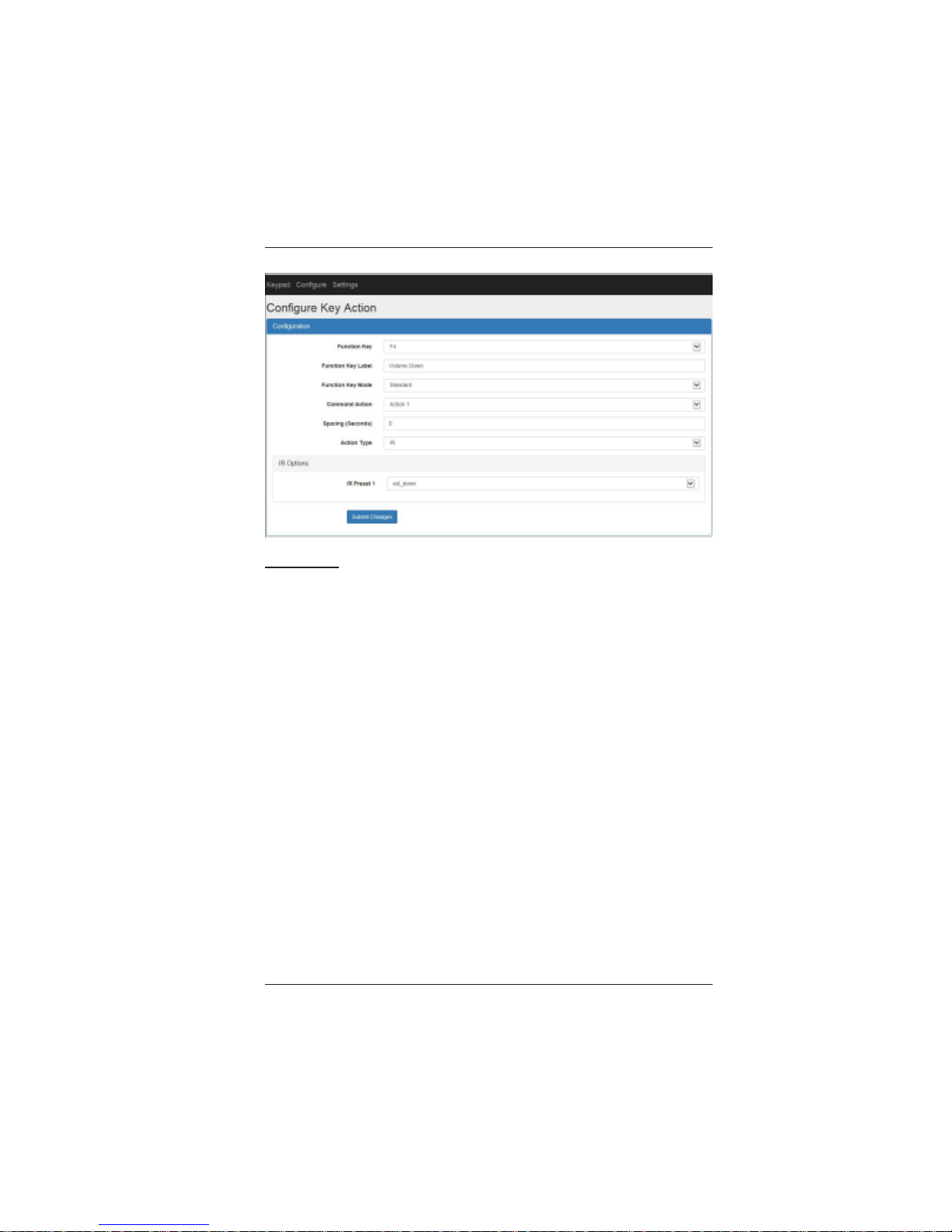

IR Options IR Preset: Select from list of IR commands stored in memory. IR

commands must be learned via Configure IR Code page or imported via Configure IR Import page.

Page 23

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

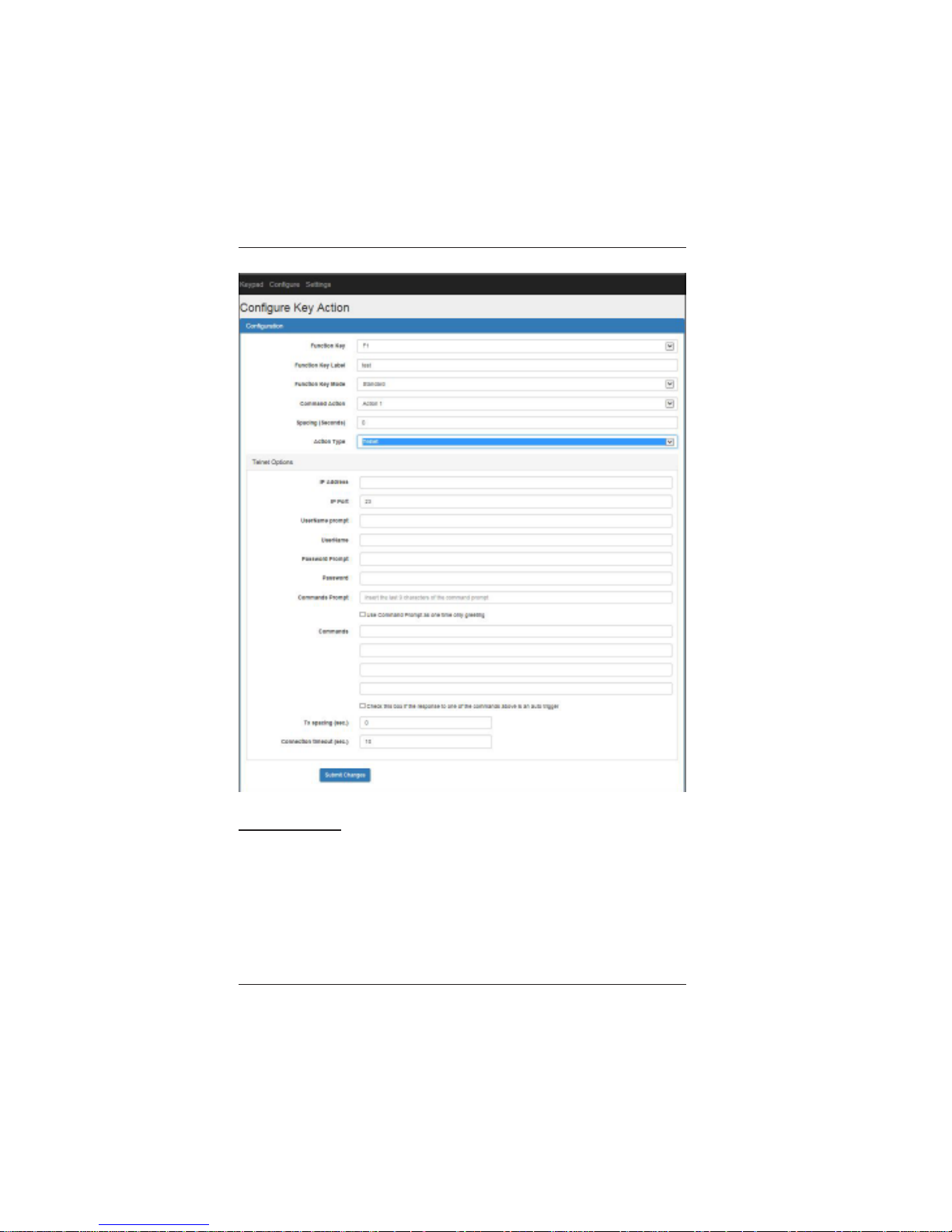

Telnet Options IP Address: Enter IP address of telnet server.

IP Port: Enter port number of telnet server . The default port number is

23. UserName Prompt: Enter username prompt from telnet server. Leave

blank if there is no username prompt.

Page 24

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

UserName: Enter user name required for log in. Leave blank if there is no username.

Password Prompt: Enter password prompt from telnet server . Leave blank if there is no password prompt.

Password: Enter password required for log in. Leave blank if there is no password.

Command Prompt: Enter command prompt from telnet server. Only the last 9 characters of the command prompt are needed. Leave blank if there is no command prompt. Note: Check box below if stgring is used as a one-time greeting.

Commands: Enter the command string to be transmitted. Up to four command strings can be transmitted at one time. Note: Check box below if the response to one of the commands is used as an auto trigger.

Tx Spacing: Enter the delay (seconds) before command is transmitted. Enter 0 if no delay is desired.

Connection Timeout: Enter the timeout (default is 10 seconds). The connection timeout is the time the ICP will wait before it terminates the telnet connection with the server due to no response.

Page 25

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

Configure Auto Action

The Configure Auto Action page is used to configure a set of auto actions based on a selected trigger. Available triggers are Video Detect, Digital Input 1, Digital Input 2, RS-232 Channel 1, RS-232 Channel 2, T elnet Trigger 1 and Telnet Trigger 2. The available actions are Relay , RS-232, IR and T elnet. Digit al Output actions are only available if Digital IOs are configured as outputs in the Configure System page. All auto triggers work independently and can be triggered simultaneously .

On the top menu click Configure and then click Auto Actions. The following page will be displayed:

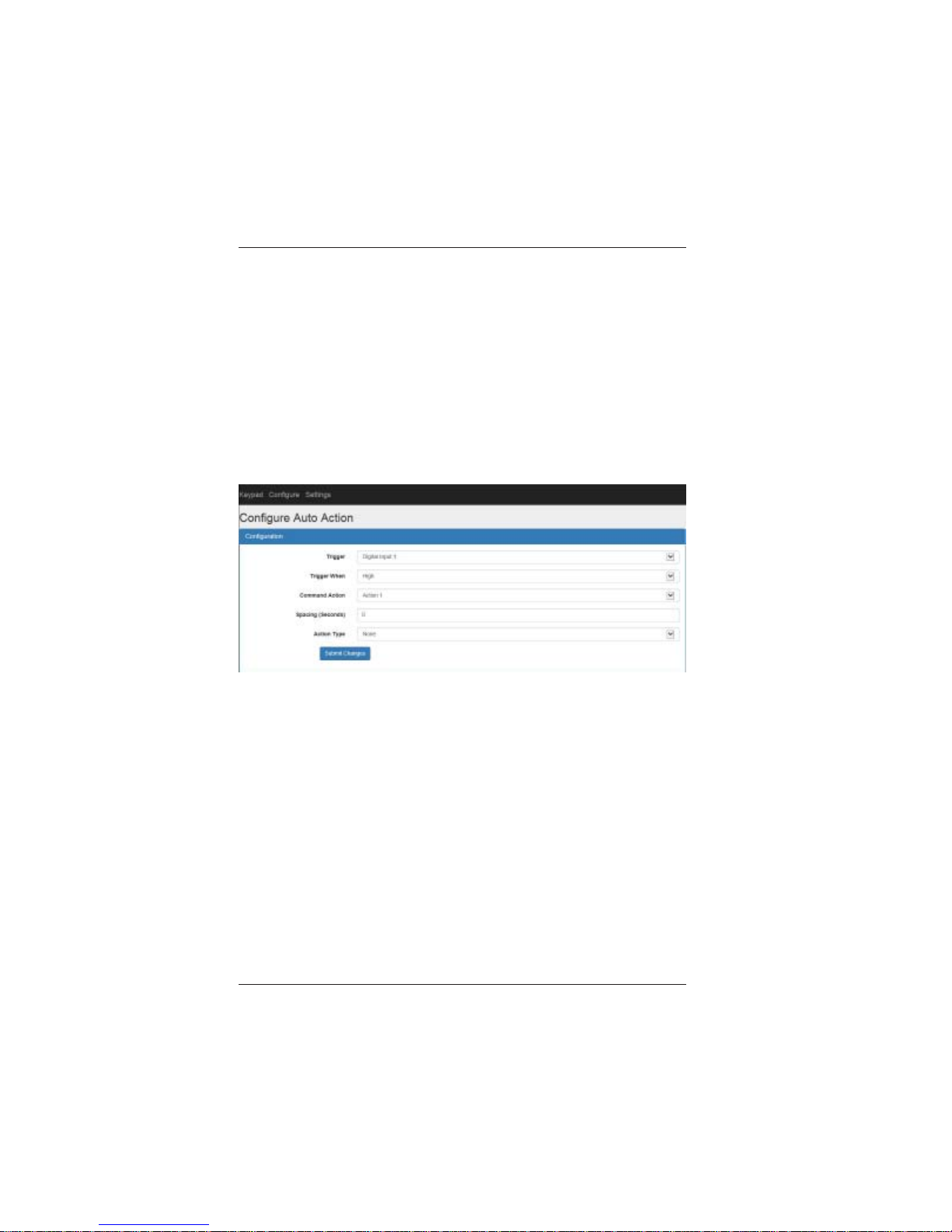

Trigger: Select the auto action trigger. Available triggers are Video Detect, Digital Input 1, Digital Input 2, RS-232 Channel 1, Channel 2, Telnet Trigger 1 and Telnet Trigger 2.

Trigger When: For Digital Input s, select High for the High signal trigger. Select Low for the Low signal trigger . For the Video Detect Line, the trigger options are when Video Detect Line is Asserted or De-asserted. For RS-232 triggers, enter the trigger string. Up to 2 trigger strings can be fefined for each RS-232 channel. For T elnet triggers, enter the trigger string. Up to 2 trigger strings can be defined for each Telnet trigger. Note: A telnet trigger needs to be associated with one or more telnet actions. The check box under the Commands box in Configure Key Action, Telnet Options panel must be checked.

Refer to the Configure Key Action sections for the rest of the pull down menu descriptions.

Page 26

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

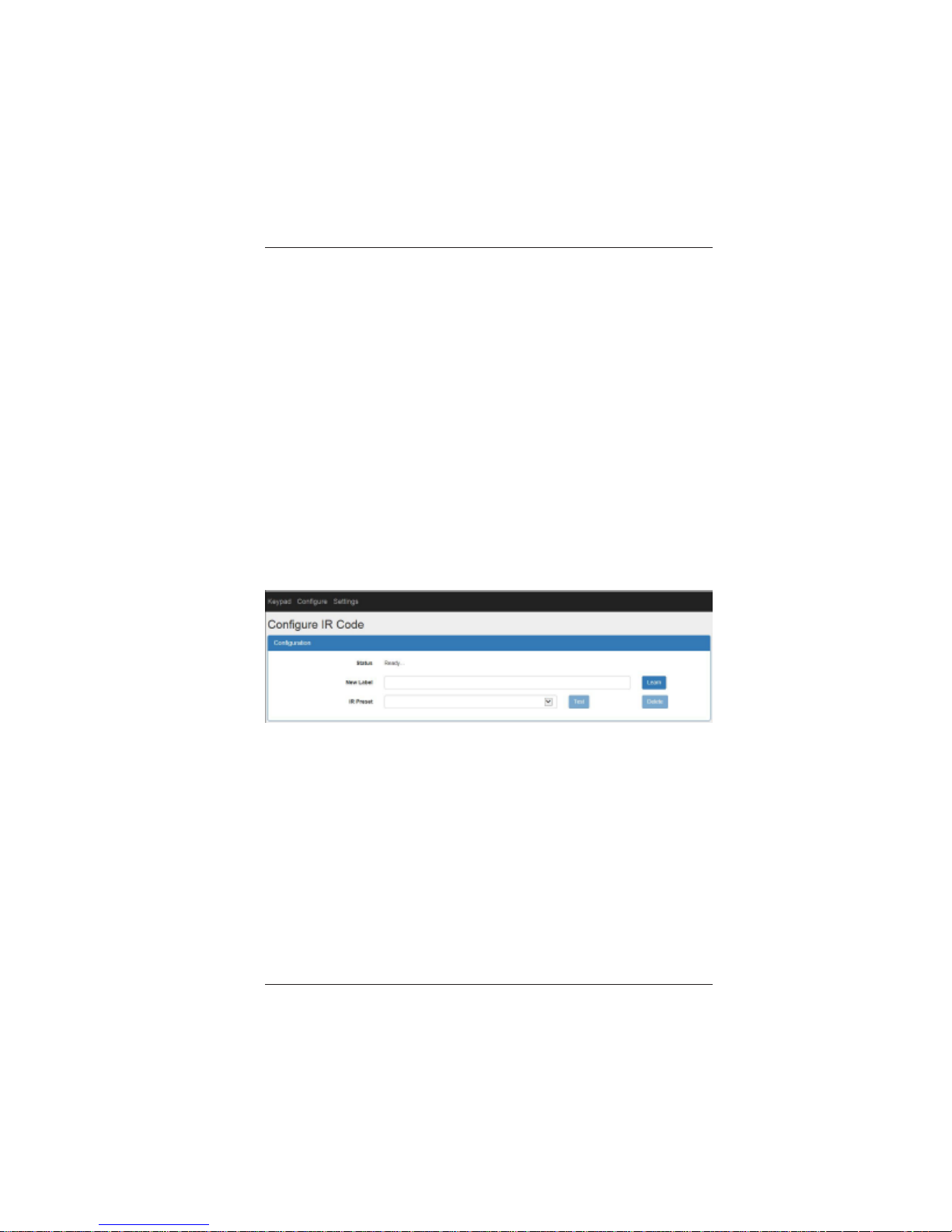

Configure IR Code

The Configure IR Code page is used to learn and manage IR codes in the ICP. To learn an IR code, type in the label of the IR code in New Label and click the Learn button. Once IR Learn mode is initiated, the user needs to present an IR signal to the IR receiver port within 30 seconds. If a valid IR code is not presented within 30 seconds, the IR learn process will timeout and the process will need to be re-initiated. After an IR code is learned successfully , it will be stored in memory and appear in the IR Preset drop down menu. To test a learned IR code, select the IR code from the IR Preset menu and click Test button. Verify that the IR code works correctly on the t arget device. To delete an IR code from the IR Preset menu, select the desired IR code and click the Delete button.

On the top menu click Configure and then click IR Code. The following page will be displayed:

Page 27

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

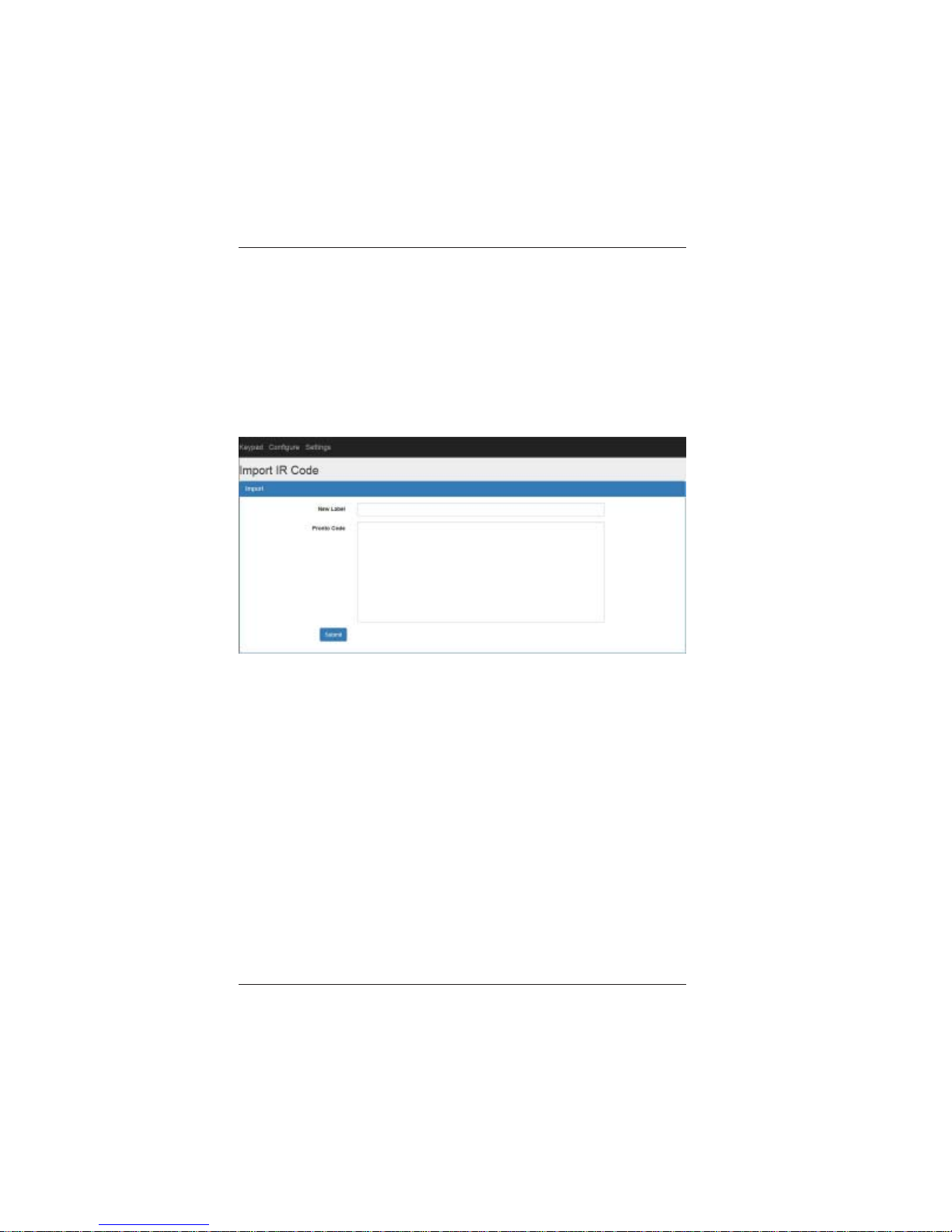

Configure IR Code Import

The Configure IR Code Import page is used to import an IR pronto code. Once a code is imported, it will be stored in memory and is available as an IR Preset. It can be tested in the Configure IR Code page.

On the top menu click Configure and then click IR Code Import. The following page will be displayed.

New Label: Enter a label for the IR code. Pronto Code: Enter the pronto code to be imported.

Page 28

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

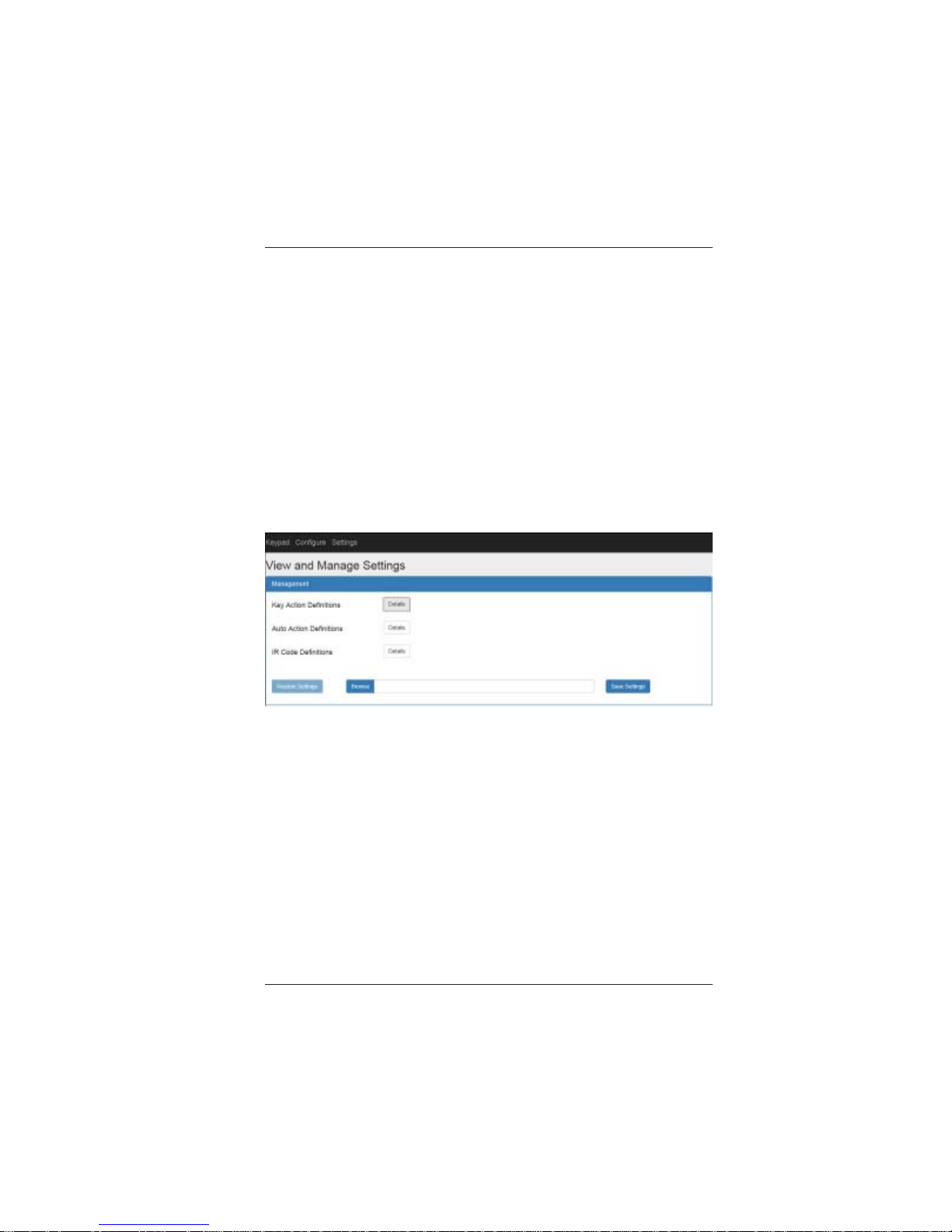

View and Manage Settings

The View and Manage Settings page shows the current settings of the Key Action Definitions, Auto Action Definitions and IR Code Definitions. Click the Details button next to Key Action Definitions to display the Key Action settings det ails. Click the Details button next to Auto Action Definitions to display Auto Action settings details. Click the Details button next to IR Code Definitions to display the IR Code details. ICP settings are saved to a file on the local PC using the Save Settings button. ICP settings are restored from a file using the Restore Settings button.

On the top menu click Settings and then click View and Manage Settings. The following page will be displayed:

Page 29

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

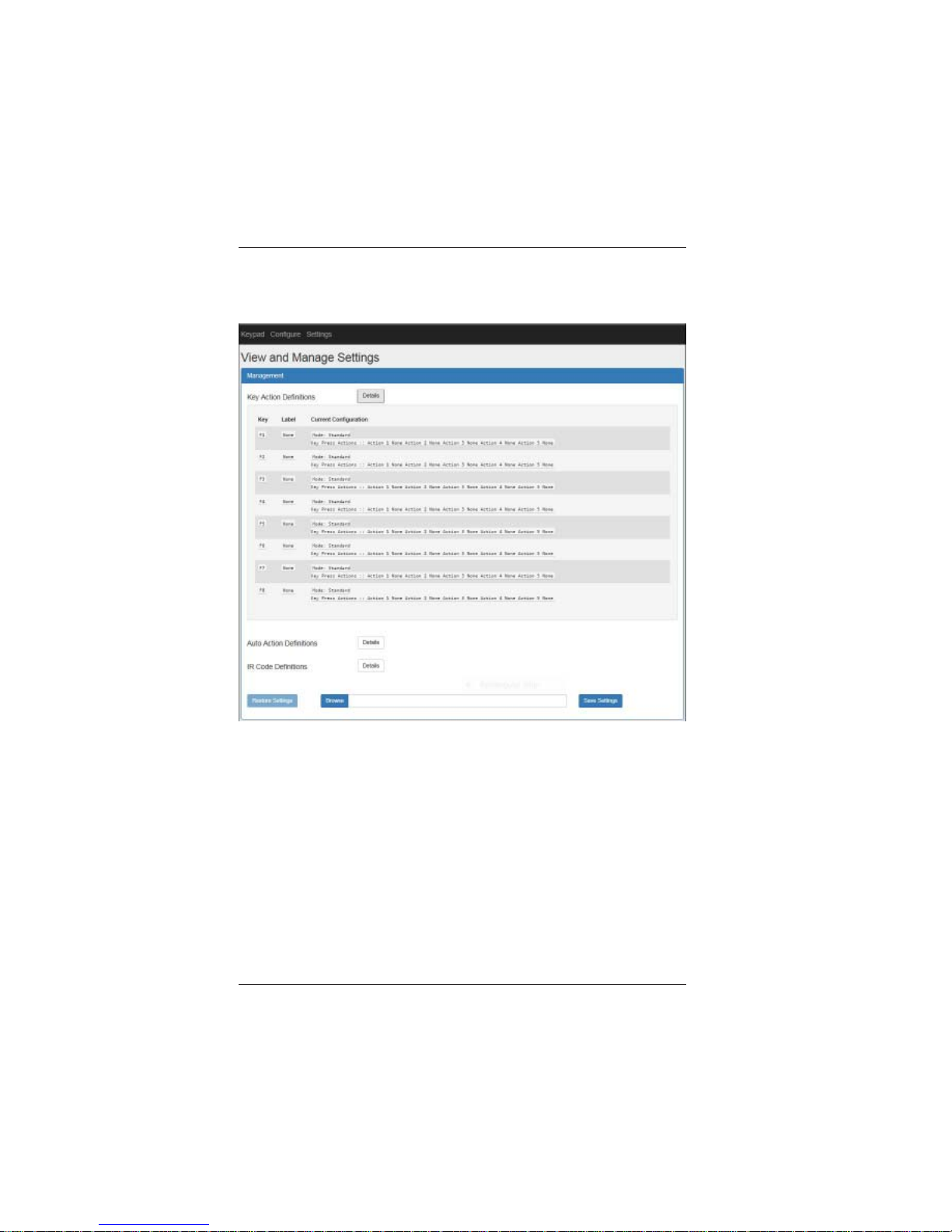

Click the Key Action Definitions Details button and the following will be displayed:

Page 30

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

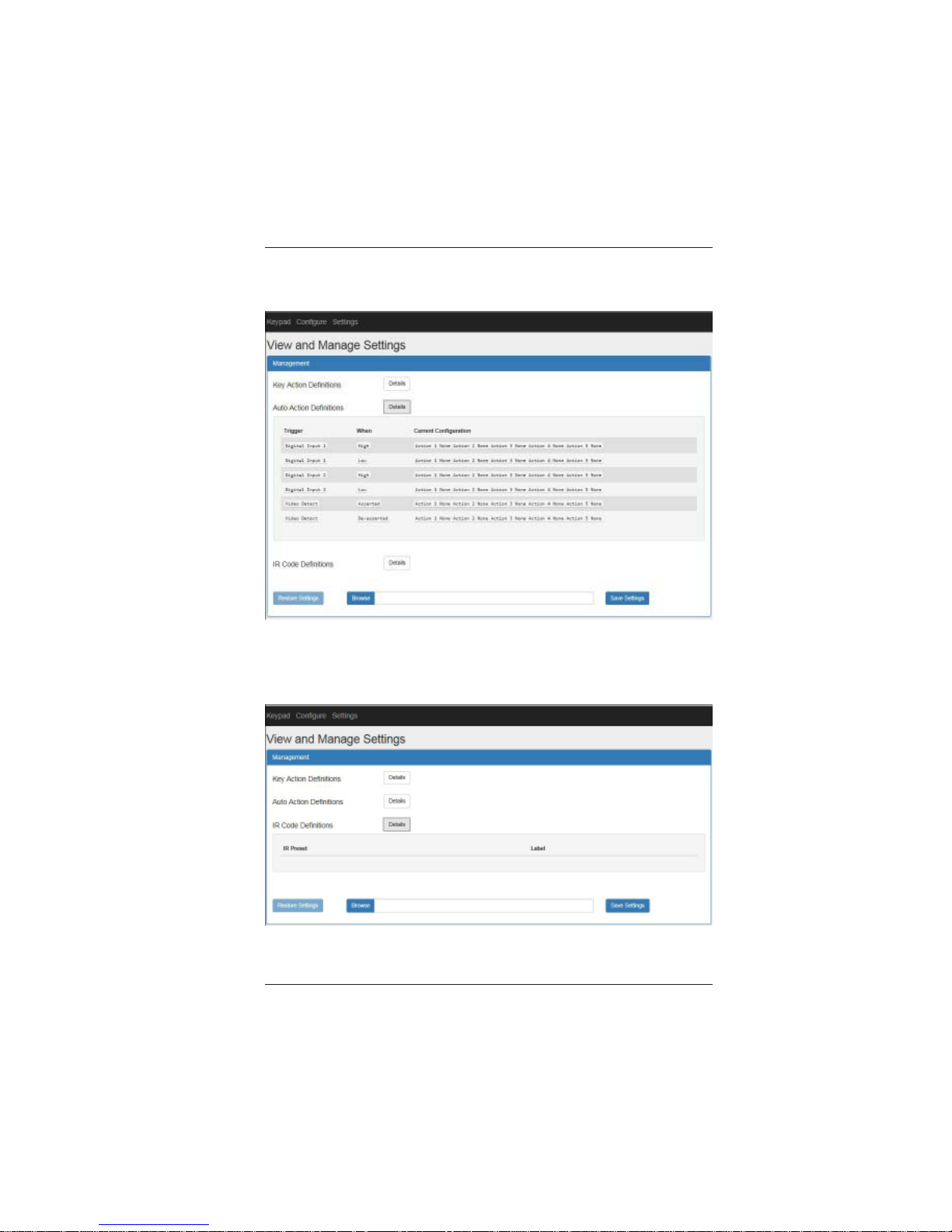

Click the Auto Action Definitions Det ails button and the following will be displayed:

Click the IR Code Definitions Details button and the following will be displayed:

Page 31

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

Examples

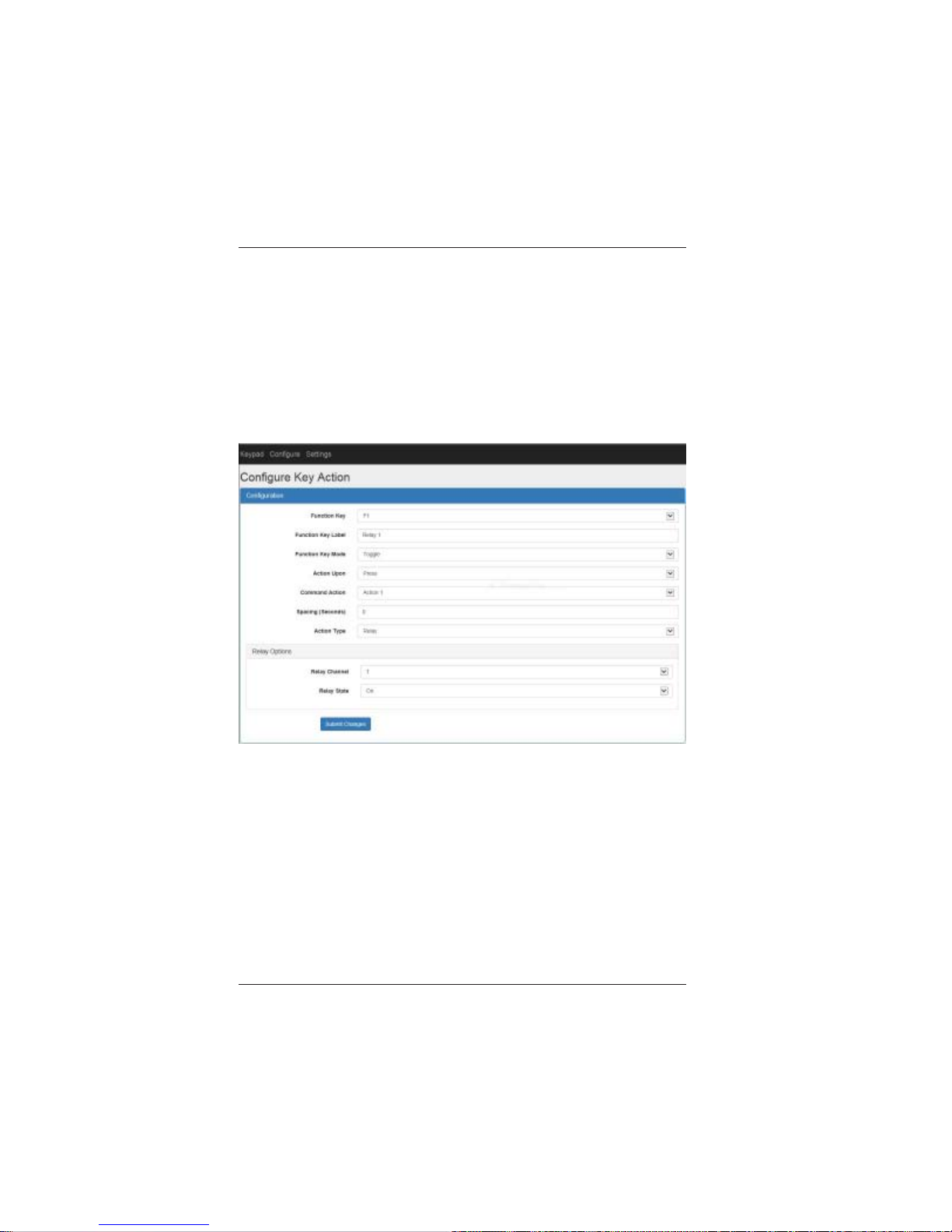

Example #1: This example configures the F1 key on the virtual keypad as a toggle key to turn on/off Relay channel 1.

On the top menu click Configure and then Key Action. Configure F1 Key toggle-press action, to turn Relay channel 1 On as

follows:

Click Submit Changes.

Page 32

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

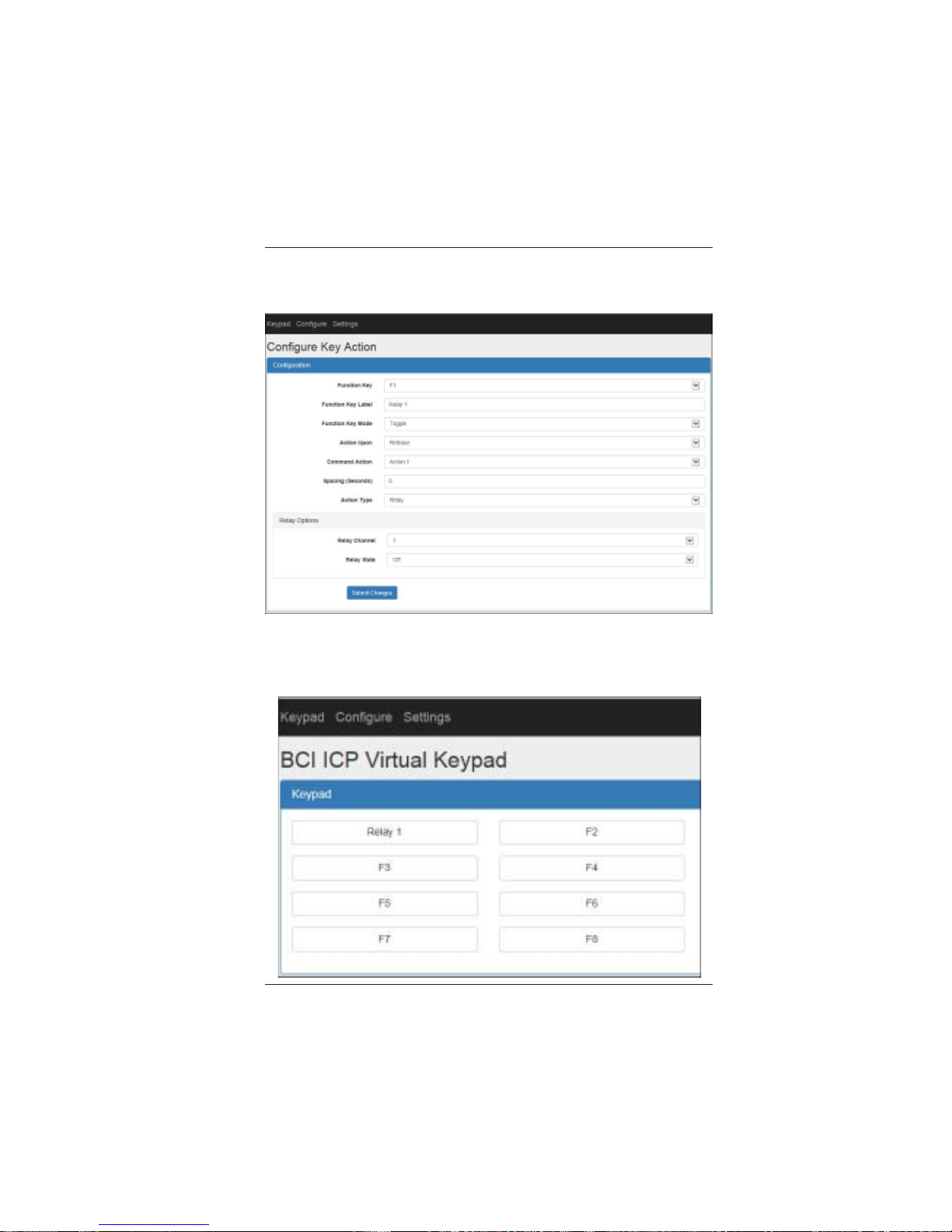

Configure F1 Key toggle-release action, to turn Relay channel 1 Off as follows:

Click Submit Changes. On the top menu click Keypad. The following virtual keypad should be

displayed:

Page 33

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

5.0 SPECIFICATIONS

VIDEO (TRANSMISSION)

HDMI 4K2K & HDTV 1080p @ 60Hz or

1920 x 1200 @ 60Hz Connector HDMI Female Plug Protocol DDC/EDID/HDCP Capable

AUDIO (TRANSMISSION)

Channel Capacity 1 (Stereo) Operating Mode Unbalanced (Stereo Audio) & SPDIF Input/Output Impedance 10k/50 Ohms (Stereo Audio) Max. Input/Output Level 5 dBu/4Vpp (Stereo Audio) Magnitude Freq. Response 20Hz to 20kHz @ -3dB THD + N >70 @ 1k Hz (Stereo Audio) Connector 3.5mm Stereo Jack

SERIAL DA T A (TRANSMISSION)

Channel Capacity 2 Signal Format RS-232/IR Data Rate Up to 57.6kbaud Connector Terminal block

HDBT (TRANSMISSION)

Cable Type CA T 5e/6 or higher Number of Cables 1 Connector/Distance RJ-45/Up to 100m

Page 34

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

ETHERNET (CONTROL)

Channel Capacity 1 Connector Female RJ-45 (integrated Activity and

Link LEDs)

Data Rate 10/100Base-T, half/full duplex with

autodetect

Protocols DHCP, HTTP , TCP/IP, UDP/IP ,

AUTOIP , Telnet

RS-232 (CONTROL)

Channel Capacity 2 (no flow control) or 1 (with RTS/

CTS flow control)

Baud Rate 2400 to 115200 baud (9600

baud=default), 8 data bits, 1 stop bit, no parity

Connector Terminal block

DIGITAL I/O (CONTROL)

Channel Capacity 2 digital input/output (configurable) Digital Input Input voltage range: 0 to 5 VDC

Programmable pullup: 2.2k ohms to +5 VDC Threshold low to high: 2 VDC Threshold high to low: 0.8 VDC

Digital Output Output voltage high: 3 VDC min

Output voltage low: 0.55 VDC max (64 mA sink max) Programmable open collector

Connector Terminal block

Page 35

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

IR (CONTROL)

Channel Capacity 1 in and 1 out Connector 3.5 mm jack (for IR blaster) Carrier Frequency 30 kHz to 60 kHz (Output) 30 kHz to

60 kHz (IR learning) IR Learning 2 inches captive distance from panel

RELA Y (CONTROL)

Channel Capacity 2 normally open/normally closed

relays Relay Contact Rating 24 VDC, 1A Connector Terminal block

PHYSICAL

Dimensions 8.36” (W) x 4.23” (D) x 1.12” (H) Power Consumption 24 VDC @ 1.25A Operating Temperature 0 to 50-deg C Humidity 0 to 95%, non-condensing

Page 36

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, [email protected]

6.0 SERVICE PROCEDURE

6.1 Replacement Policy

Standard products found defective on arrival (DOA) will be replaced, based on availability , within 24 to 48 hours anywhere in the U.S. Please call Customer Service at 800-214-0222 for information.

6.2 Return/Repair Service

The Link Bridge LBH-H-T/R-EAD-ICP System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information:

• Product model number

• Serial Number

• Complete description of problem

• Hardware installation description

Broadata Communications, Inc.

2545 West 237th Street, Suite K

Torrance, CA 90505

1-800-214-0222

(310) 530-1416

(310) 530-5958 (Facsimile)

e-mail: [email protected]

Website: www.broadatacom.com

Page 37

LBH-H-T/R-EAD-ICP User Manual

Link Bridge

HBaseT HDMI Transmission System w/External Audio and Inline Control Processor

Broadata Technical Support, (800) 214-0222

7.0 LIMITED WARRANTY

Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole discretion prove to be defective and are returned to the manufacturing location within 30 days after such defect is ascertained. All warranties are limited to defects arising under normal use and do not include malfunctions or failure resulting from misuse, abuse, neglect, alterations, electrical power problems, usage not in accordance with product instructions, improper installation, or damage determined by BCI to have been caused by the Buyer or repair made by a third party . Limited warranties granted on products are to the initial customer end-user and are not transferable. OUR LIABILITY UNDER THIS W ARRANTY SHALL IN ANY CASE BE LIMITED TO THE INVOICE VALUE OF THE PRODUCT SOLD AND BCI SHALL NOT BE LIABLE TO ANYONE FOR CONSEQUENTIAL OR INCIDENT AL DAMAGES ARISING FROM THE USE OF ITS PRODUCTS OR THE SALE THEREOF. We make NO WARRANTY AS TO THE MERCHANTABILITY OF ANY GOODS, OR THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE OR END APPLICA TION NOR DO WE MAKE ANY WARRANTY, EXPRESSED OR IMPLIED OTHER THAN AS STATED ABOVE.

Page 38
