Broadata LBC-H-T/R-4P-LITE User Manual

Download

Page 1

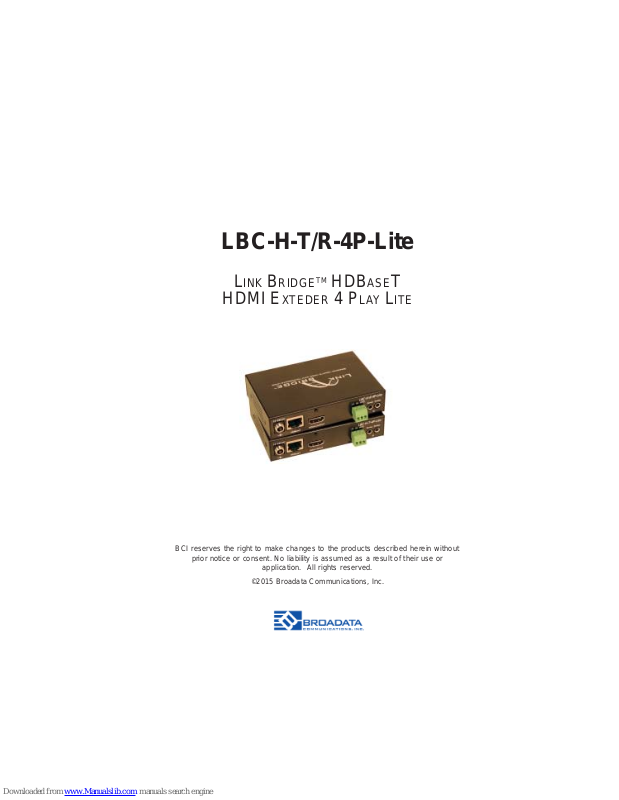

LBC-H-T/R-4P-Lite

LINK BRIDGETM HDBASET

HDMI EXTEDER 4 PLAY LITE

BCI reserves the right to make changes to the products described herein without

prior notice or consent. No liability is assumed as a result of their use or

Page 2

LBC-H-T/R-4P Lite User Manual

Link Bridge

HDBaseT HDMI Extender, 4 Play Lite

Broadata Technical Support, [email protected]

SAFETY INSTRUCTIONS AND

COMPLIANCE DECLARA TIONS

PLEASE OBSERVE THE FOLLOWING SAFETY

PRECAUTIONS

SURGE PROTECTION DEVICE RECOMMENDED

This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.

Page 3

LBC-H-T/R-4P Lite User Manual Link Bridge

HDBaseT HDMI Extender, 4 Play Lite

Broadata Technical Support, (800) 214-0222

TABLE OF CONTENTS

1.0 PRODUCT DESCRIPTION .............................................5

2.0 OPERATION CONTROLS AND FUNCTIONS ............... 6

2.1 TRANSMITTER FRONT AND REAR PANELS...............6

2.2 RECEIVER FRONT AND REAR PANELS.......................7

3.0 IR......................................................................................8

3.1 IR BLASTER CABLE PIN ASSIGNMENT........................8

3.2 IR RECEIVER CABLE PIN ASSIGNMENT ......................8

4.0 MAINTENANCE AND TROUBLESHOOTING .................9

4.1 MAINTENANCE ................................................................9

4.2 TROUBLESHOOTING .....................................................9

5.0 SPECIFICA TIONS...........................................................11

6.0 SERVICE PROCEDURE ................................................12

6.1 REPLACEMENT POLICY ..............................................12

6.2 RETURN AND REPAIR SERVICE .................................12

7.0 LIMITED WARRANTY ....................................................13

Page 4

LBC-H-T/R-4P Lite User Manual

Link Bridge

HDBaseT HDMI Extender, 4 Play Lite

Broadata Technical Support, [email protected]

1.0 PRODUCT DESCRIPTION

• Extend HDMI Signals up to 70 meters Over One CA T 5e/6 Cable

• Ultra HD (4K2K) and HDTV video resolutions up to 720p/1080i/ 1080p@60Hz

• Fully Uncompressed Video & Audio Provides Zero Loss of Quality

• Supports True DDC/EDID/HDCP T ransmission Over One Ethernet Cable

• Video/Audio+IR+RS232, Over 1 CAT 5e/6 Cable

• Bi-directional PoC (Power over Cable)

Page 5

LBC-H-T/R-4P Lite User Manual Link Bridge

HDBaseT HDMI Extender, 4 Play Lite

Broadata Technical Support, (800) 214-0222

2.0 OPERA TION CONTROLS AND FUNCTIONS

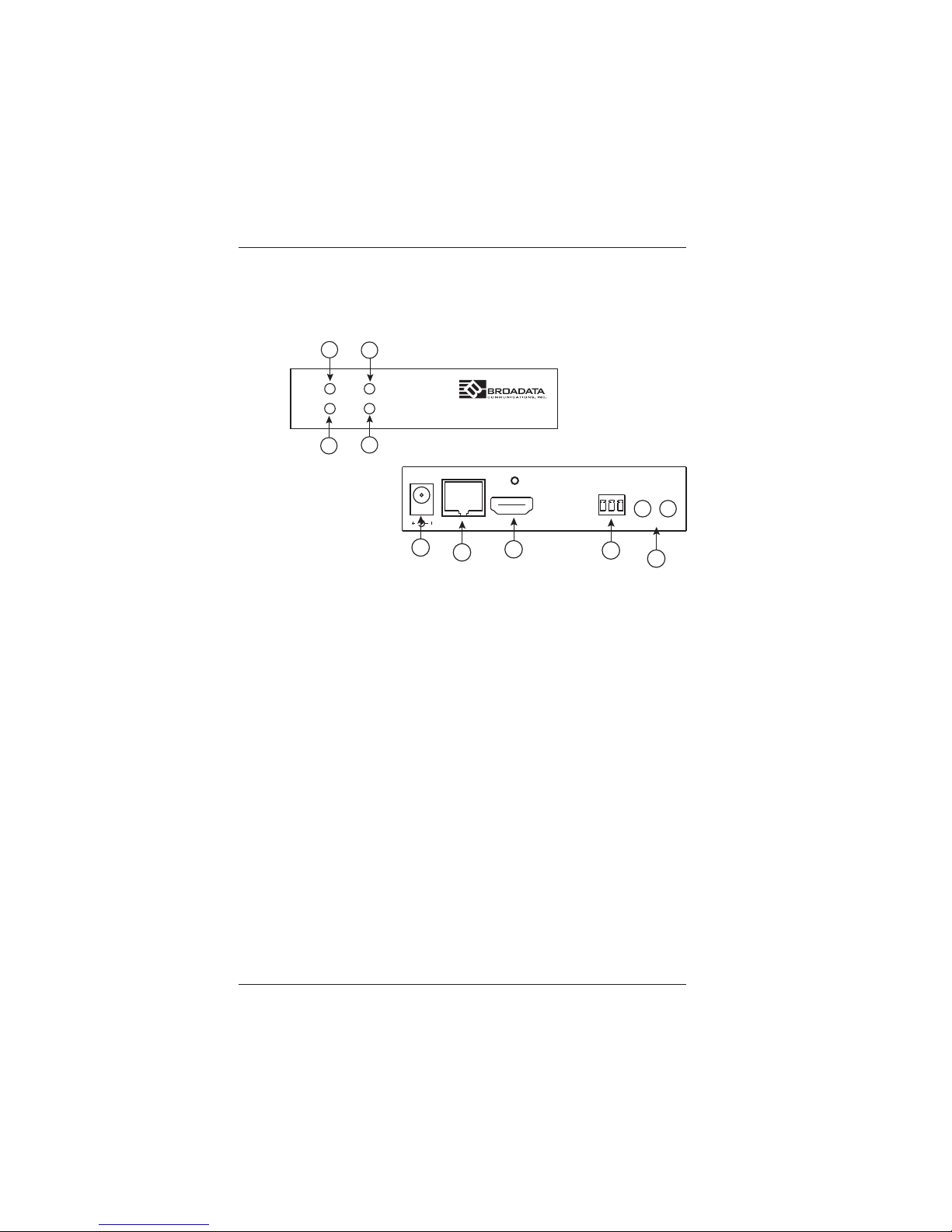

2.1 Transmitter Front and Rear Panels

1. Act: Blinking when work normally

2. HDMI: S table on when with HDCP, blinking when without HDCP

3. Pwr: St able on when power up

4. HDBT: Blinking when HDBT connect without video signal, stable on when video active

5. Power: Connect to 24V DC adapter here to power up device

6. HDBaseT: Connect Cat from here to a compatible receiver

7. HDMI Input: Connect to HDMI resource

8. RS232: Connect to PC or control system to program control command

9. IR: Connect to IR emitter or sensor

Front

Act

Pwr HDBT

HDMI

Rear

Sensor Emitter

GRx

RS232HDMI INPUTHDBaseT

LBC-H-T-4P-Lite

12-28V/1A

Page 6

LBC-H-T/R-4P Lite User Manual

Link Bridge

HDBaseT HDMI Extender, 4 Play Lite

Broadata Technical Support, [email protected]

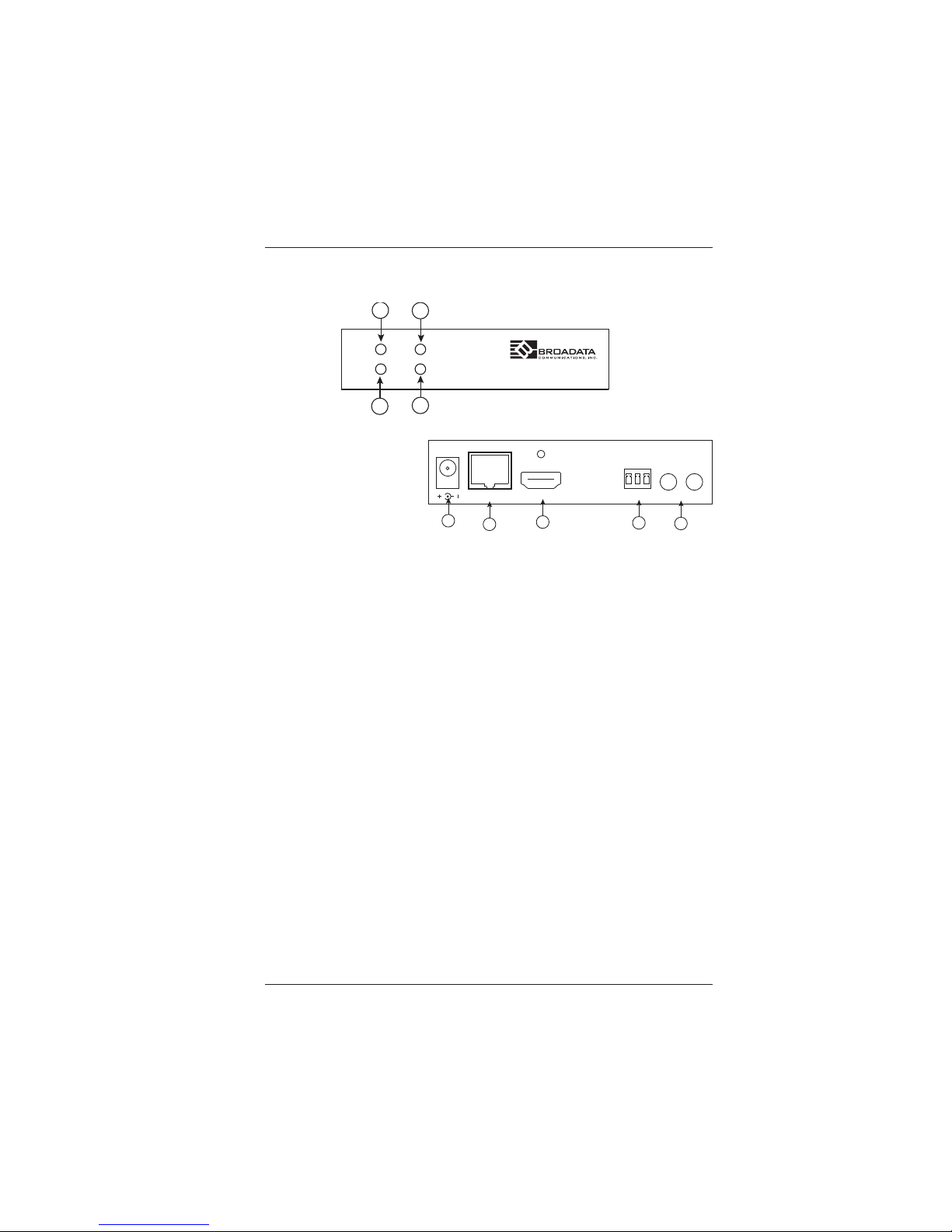

2.2 Receiver Front and Rear Panels

1. Act: Blinking when work normally

2. HDMI: S table on when with HDCP, blinking when without HDCP

3. Pwr: St able on when power up

4. HDBT: Blinking when HDBT connect without video signal, stable on when video active

5. Power: Connect to 24V DC adapter here to power up device

6. HDBaseT: Connect HDBaseT source here

7. HDMI Output: Connect to display

8. RS232: Connect to a display for control

9. IR: Connect to IR emitter or sensor

Front

Act

Pwr HDBT

HDMI

Rear

Sensor Emitter

Tx GRx

RS232HDBaseT HDMI OUTPUT

LBC-H-R-4P-Lite

12-28V/1A

Page 7

LBC-H-T/R-4P Lite User Manual Link Bridge

HDBaseT HDMI Extender, 4 Play Lite

Broadata Technical Support, (800) 214-0222

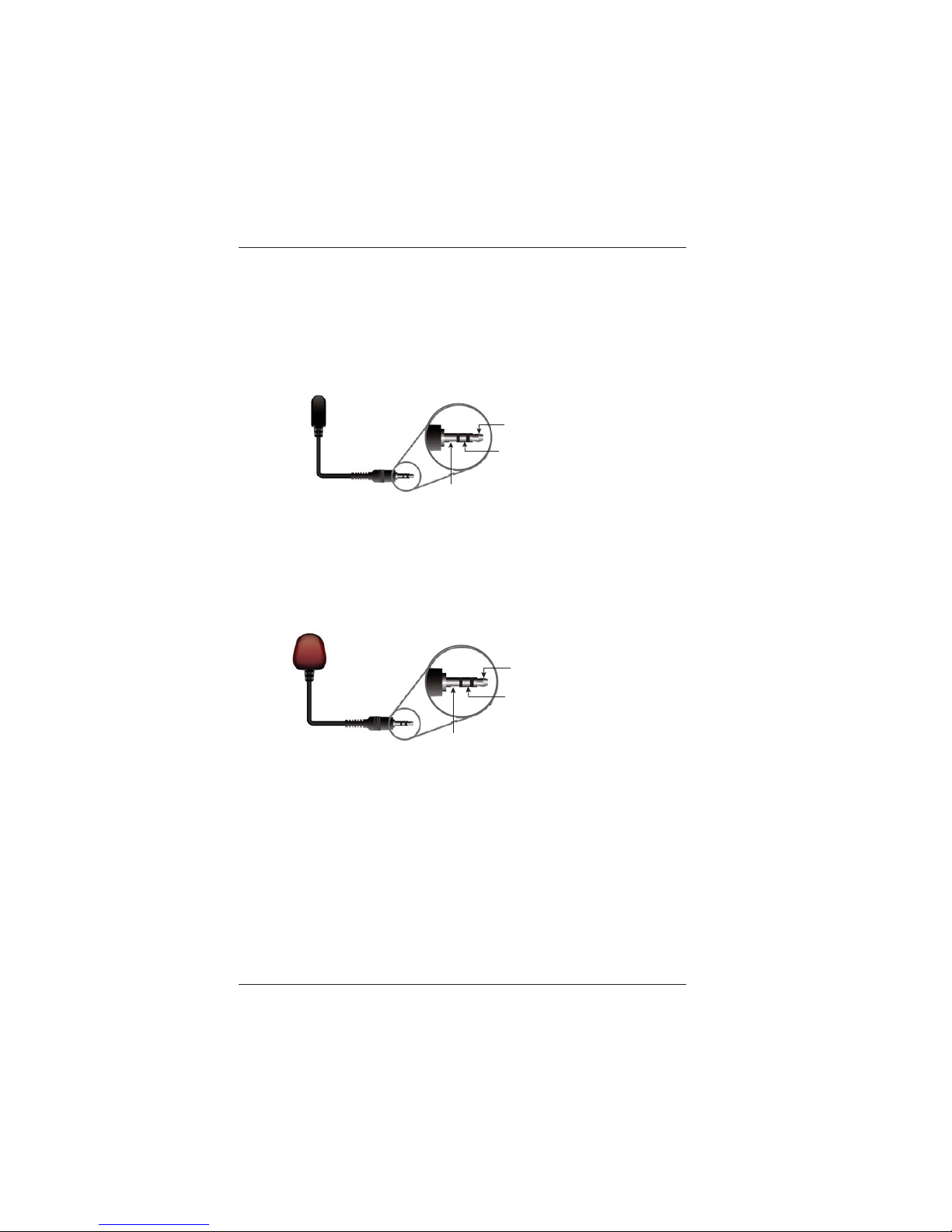

3.0 IR

3.1 IR Blaster Cable Pin Assignment

3.3 IR Receiver Cable Pin Assignment

IR Blaster

Power 5V

IR Blaster Signal

IR Receiver

IR Signal

Power 5V

Grounding

Page 8

LBC-H-T/R-4P Lite User Manual

Link Bridge

HDBaseT HDMI Extender, 4 Play Lite

Broadata Technical Support, [email protected]

4.0 MAINTENANCE AND TROUBLESHOOTING

4.1 Maintenance

There is no operator maintenance other then keeping the units clean. However, observe the following light indicators to make sure that the unit is working properly:

4.2 Troubleshooting

If the LBC-H-4P-Lite units do not operate properly after installation, check for possible cable breaks, loose connections, and incorrect cable connections. If problems persist that may be fiber related, contact BCI at 1-800-214-0222 for further assistance.

Page 9

LBC-H-T/R-4P Lite User Manual Link Bridge

HDBaseT HDMI Extender, 4 Play Lite

Broadata Technical Support, (800) 214-0222

5.0 SPECIFICATIONS

VIDEO/ AUDIO SPECIFICA TIONS

HDMI Version 1.4 with 3D, 4k×2k support Video Resolution Up to 4K2K@30Hz Protocol DDC/EDID/HDCP Capable Video Bandwidth 300MHz / 10.2Gbps Audio Operating Mode Stereo Audio Audio Sampling Rate 32KHz to 192KHz HDMI/Audio Connector HDMI Female plug

DATA

Serial Control RS232 Data Rate Up to 57.6Kbaud Connector Terminal block IR Control Infrared Data Rate 30 - 50KHz In/Out Connectors 3.5mm Stereo

HDBT TRANSMISSION

Cable Type CAT 5e/6 or higher Number of Cables 1 Connector/ Distance RJ-45 / Up to 100m

PHYSICAL

Dimensions Standalone 4.57”(W) x 2.95”(D) x 0.99”(H) Power Consumption +24VDC @ 0.5 Amps (Max.) Operating Temperature 0 to +40oC Humidity 20 to 90% RH, Non-Condensing

Page 10

LBC-H-T/R-4P Lite User Manual

Link Bridge

HDBaseT HDMI Extender, 4 Play Lite

Broadata Technical Support, [email protected]

6.0 SERVICE PROCEDURE

6.1 Replacement Policy

Standard products found defective on arrival (DOA) will be replaced, based on availability , within 24 to 48 hours anywhere in the U.S. Please call Customer Service at 800-214-0222 for information.

6.2 Return/Repair Service

The LBC-H-4 Play Lite System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information:

• Product model number

• Serial Number

• Complete description of problem

• Hardware installation description

Broadata Communications, Inc.

2545 West 237th Street, Suite K

T orrance, CA 90505

1-800-214-0222

(310) 530-1416

(310) 530-5958 (Facsimile)

e-mail: [email protected]

Website: www .broadatacom.com

Page 11

LBC-H-T/R-4P Lite User Manual Link Bridge

HDBaseT HDMI Extender, 4 Play Lite

Broadata Technical Support, (800) 214-0222

7.0 LIMITED WARRANTY

Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole discretion prove to be defective and are returned to the manufacturing location within 30 days after such defect is ascertained. All warranties are limited to defects arising under normal use and do not include malfunctions or failure resulting from misuse, abuse, neglect, alterations, electrical power problems, usage not in accordance with product instructions, improper installation, or damage determined by BCI to have been caused by the Buyer or repair made by a third party . Limited warranties granted on products are to the initial customer end-user and are not transferable. OUR LIABILITY UNDER THIS WARRANTY SHALL IN ANY CASE BE LIMITED TO THE INVOICE VALUE OF THE PRODUCT SOLD AND BCI SHALL NOT BE LIABLE TO ANYONE FOR CONSEQUENTIAL OR INCIDENT AL DAMAGES ARISING FROM THE USE OF ITS PRODUCTS OR THE SALE THEREOF. We make NO WARRANTY AS TO THE MERCHANTABILITY OF ANY GOODS, OR THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE OR END APPLICA TION NOR DO WE MAKE ANY W ARRANTY, EXPRESSED OR IMPLIED OTHER THAN AS STATED ABOVE.
