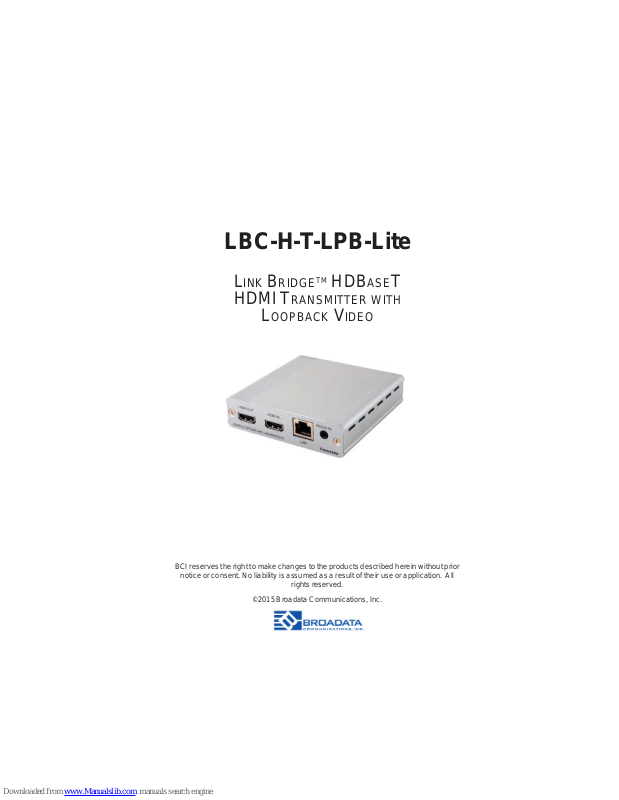

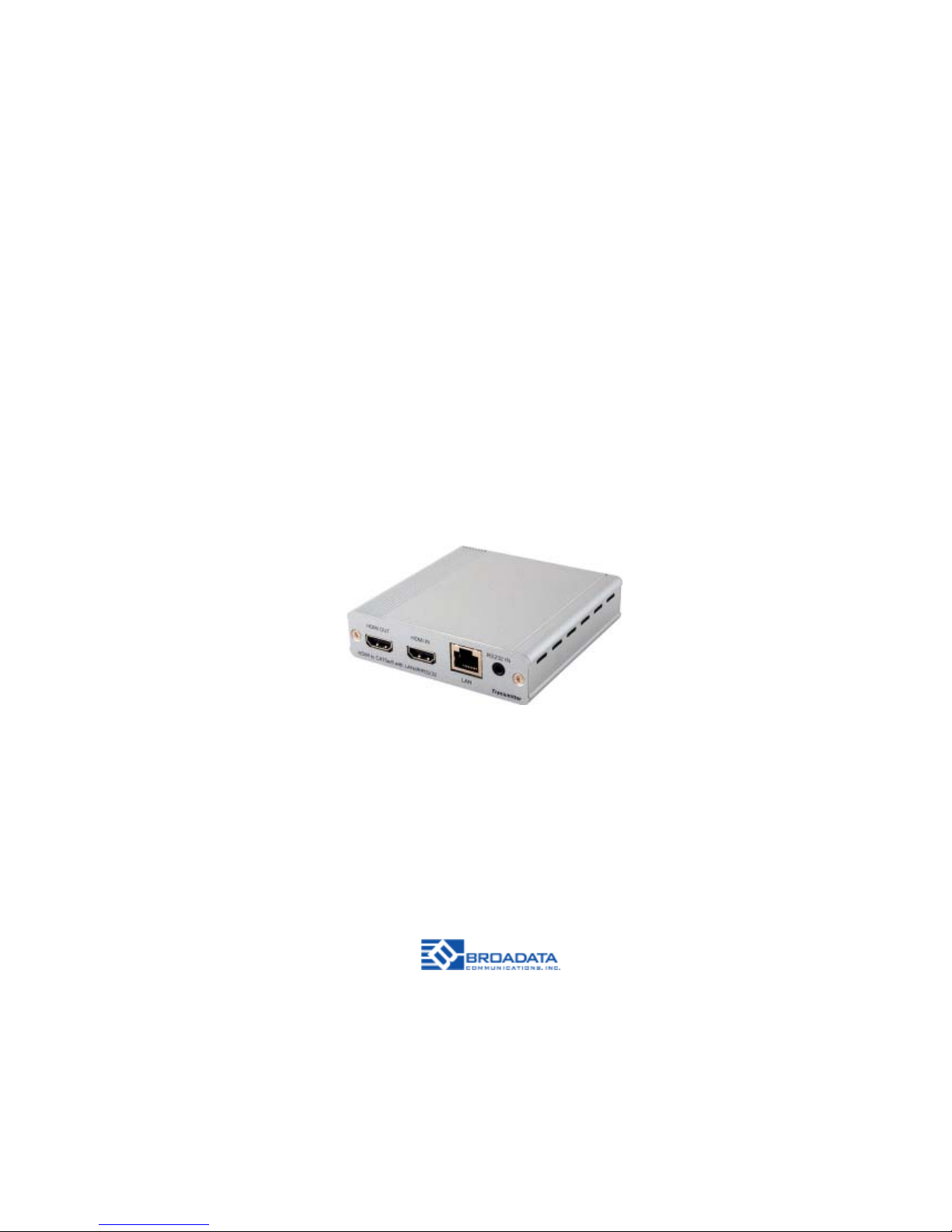

LBC-H-T-LPB-Lite
LINK BRIDGETM HDBASET
HDMI TRANSMITTER WITH
LOOPBACK VIDEO
BCI reserves the right to make changes to the products described herein without prior
notice or consent. No liability is assumed as a result of their use or application. All
rights reserved.
©2015 Broadata Communications, Inc.
Page 2
LBC-H-T-LPB-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmitter w/Loopback Video
Broadata Technical Support, [email protected]
3
SAFETY INSTRUCTIONS AND
COMPLIANCE DECLARA TIONS
PLEASE OBSERVE THE FOLLOWING SAFETY
PRECAUTIONS
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.
Page 3
LBC-H-T-LPB-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmitter w/Loopback Video
Broadata Technical Support, (800) 214-0222
4
TABLE OF CONTENTS
1.0 PRODUCT DESCRIPTION .............................................5
2.0 OPERATION CONTROLS AND FUNCTIONS ............... 6
2.1 FRONT PANEL .................................................................6
2.2 REAR P ANEL ...................................................................7
3.0 SERIAL CONTROL..........................................................8
3.1 D-SUB 9 PIN ASSIGNMENT ........................................... 8
3.2 IR BLASTER CABLE PIN ASSIGNMENT.......................9
4.0 MAINTENANCE AND TROUBLESHOOTING ...............10
4.1 MAINTENANCE .............................................................10
4.2 TROUBLESHOOTING ..................................................10
5.0 SPECIFICATIONS ..........................................................12
6.0 SERVICE PROCEDURE ...............................................13
6.1 REPLACEMENT POLICY .............................................13
6.2 RETURN AND REPAIR SERVICE .................................13
7.0 LIMITED WARRANTY....................................................14
Page 4
LBC-H-T-LPB-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmitter w/Loopback Video
Broadata Technical Support, [email protected]
5
1.0 PRODUCT DESCRIPTION
The LBC-H-T-LPB-Lite can convert a single CAT-5e/6/7 input and
2-way IR control to a single CAT-5e/6/7 output and includes a
simultaneous HDMI bypass output. It supports resolutions up to 1080p
Full HD, 4K×2K timing, 3D and multi-channel digital audio formats (such
as LPCM 7.1CH, Dolby T rueHD, Dolby Digital Plus and DTS-HD). The
HDMI output can be connected to an HDMI display or cascaded to
another splitter. The CAT-5e/6/7 output can be connected to a
CA T-5e/6/7 to HDMI Receiver to extend the operating distance up to 60
meters.
Features
• Extend HDBaseT signals up to 60m meters over one
CA T-5e/6 Cable and drop HDMI video
• Supports full HDTV video resolutions up to 4K2K@30Hz
• Fully uncompressed video and audio provides zero loss of
quality
• Supports true DDC/EDID/HDCP transmission
• Video/audio+IR+data, over 1 CAT-5e/6 cable
• 1-way 24V/PoC remoting power at HDBaseT output port
• HDMI 1.4 and HDCP 2.2 compliant
• Supports IR control data
Page 5
LBC-H-T-LPB-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmitter w/Loopback Video
Broadata Technical Support, (800) 214-0222
6
2.0 OPERA TION CONTROLS AND FUNCTIONS

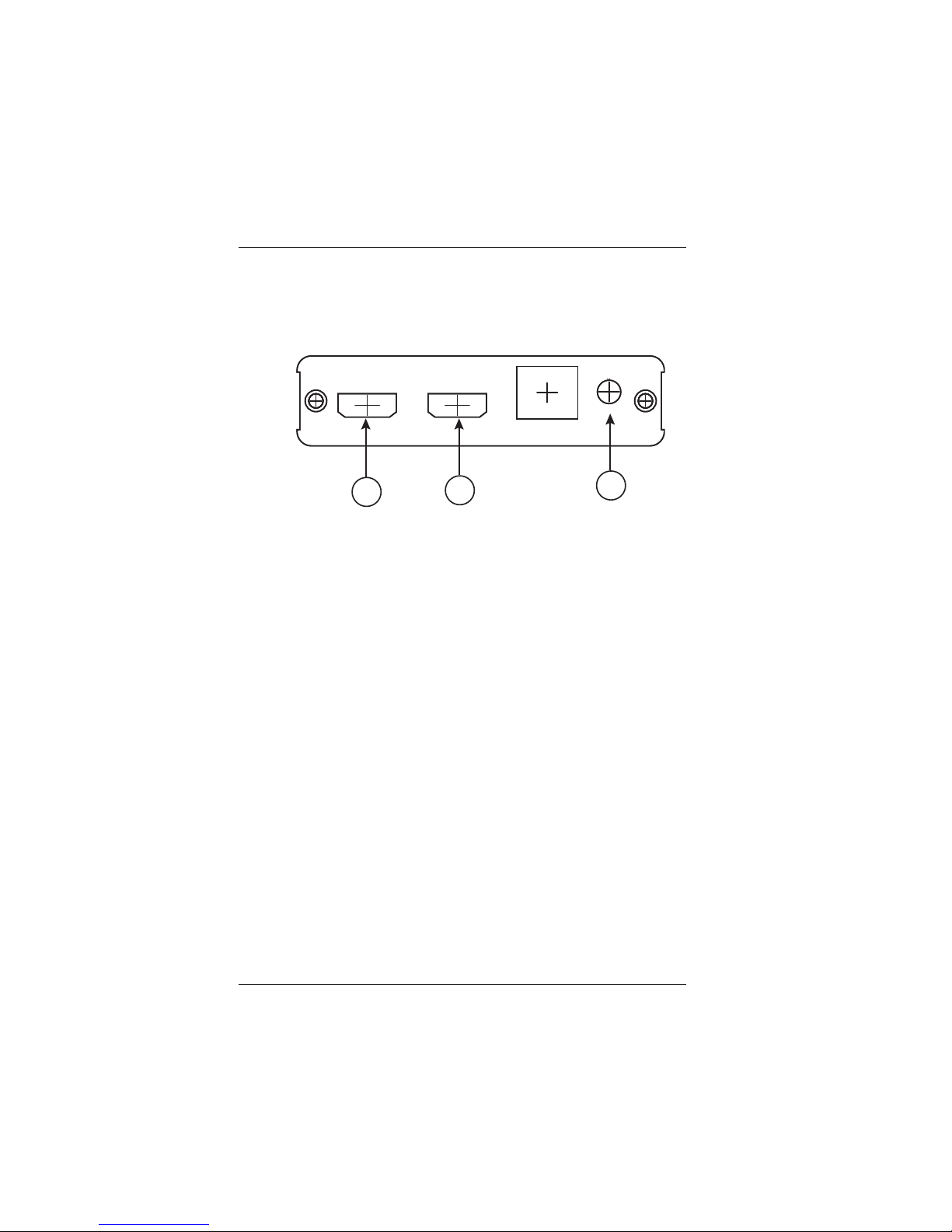

2.1 Front Panel
1. HDMI OUT : Connect to HDMI display for instant image display
or cascade with another family type transmitter. The unit will
detect CA T-5e/6/7 output’s EDID when it obtains a 4Kx2K EDID
and sends out the signal accordingly to other output ports. If
CA T-5e/6/7 output is without a 4Kx2K’s EDID the unit will detect
all output’s EDID and send out the signal that all outputs can
accept.
This device obtains the last memory function therefore, the
device will use the last CAT-5e/6/7 output port’s EDID when
CAT-5e/6/7 output port is not connected after power cycling.
2. HDMI IN: Connect with source equipment such as DVD/Blu
ray or PS3 player.
3. RS-232 IN: Connect to a PC/Laptop or RS-232 enabled device
(with supplied 3.5mm Phone Jack to D-Sub 9-Pin female
adaptor) to transmit of RS-232 commands.
HDMI OUT HDMI IN
LAN
RS232 IN
HDMI to CAT5e/6 with LAN/IR/RS232 Transmitter
1
2
3
Page 6
LBC-H-T-LPB-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmitter w/Loopback Video
Broadata Technical Support, [email protected]
7

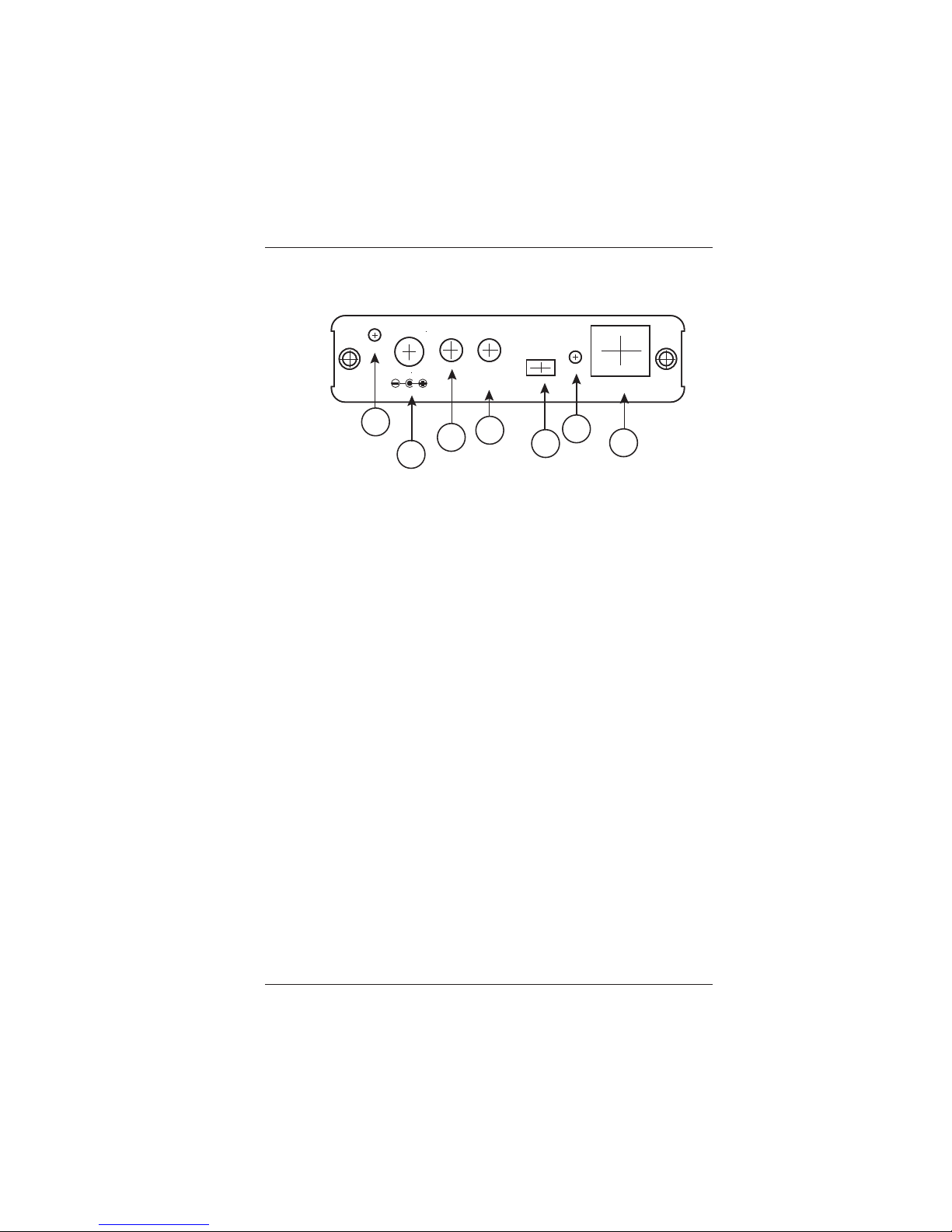

2.2 Rear Panel
1. POWER LED: Once the power supply is connected the LED
will illuminate.
2. DC 24V: Plug the 24V DC power supply into the unit and
connect the adaptor to an AC outlet.
3. IR 1 BLASTER: Connect with the supplied IR Blaster to blast
out the IR signal received from the Receiver side. Place the IR
Blaster in direct line- of-sight of the equipment to be controlled.
4. IR 2 EXTENDER: Connect with the supplied IR Extender to
receive IR signal from Transmitter side and blast out at Receiver
side. Ensure that remote controller being used is within the
direct line-of-sight of the IR Extender.
5. USB: This slot is reserved for firmware update only.
6 . LINK LED: This LED will illuminate when both the input source
and output display signals are connected through CAT cable.
When it blinks regularly it states the display is NOT sending
signals to Receiver but the Transmitter and Receiver are linked
and if it blink irregularly it states an error has occurred.
7. CAT-5e/6/7 OUT: Connect this port to CAT5e/6/7 to HDMI
Receiver with CAT -5e/6/7 cable to extend the signal up to 60m.
POWER
DC 24V
CAT5e/6 OUT
IR 1
BLASTER USB LINK
IR 2
EXTENDER
1
2
3
4
5
6
7
Page 7
LBC-H-T-LPB-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmitter w/Loopback Video
Broadata Technical Support, (800) 214-0222
8
3.0 SERIAL CONTROL
3.1 D-Sub Pin Assignment
Pin
1
2
3
4
5
6
7
8
9
Define TX/RX
N/C
TxD/RxD
RxD/TxD
N/C
GND
N/C
N/C
N/C
N/C
Page 8
LBC-H-T-LPB-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmitter w/Loopback Video
Broadata Technical Support, [email protected]
9

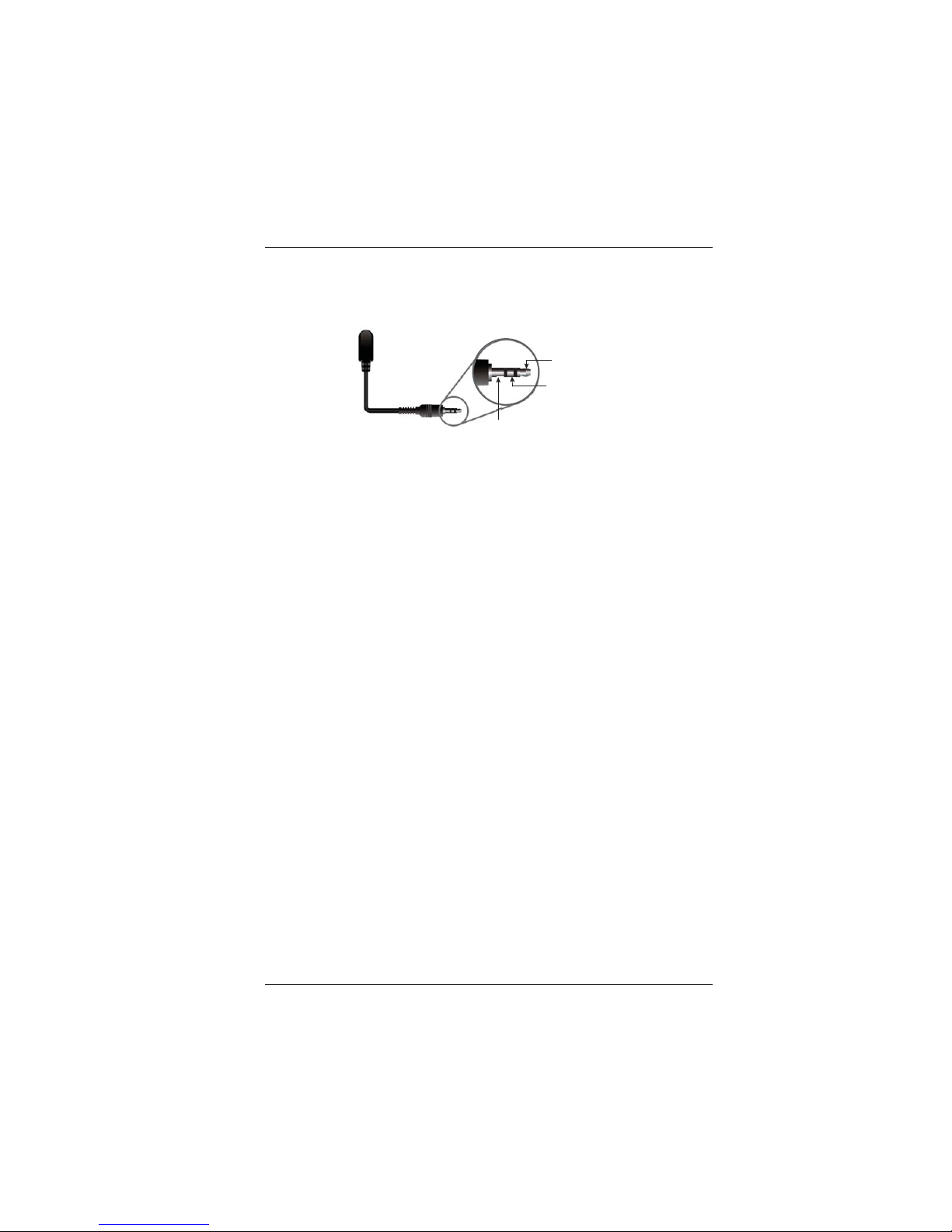

3.2 IR Blaster Cable Pin Assignment
IR Blaster
Power 5V
IR Blaster Signal
NC
Page 9
LBC-H-T-LPB-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmitter w/Loopback Video
Broadata Technical Support, (800) 214-0222
10
4.0 MAINTENANCE AND TROUBLESHOOTING
4.1 Maintenance
There is no operator maintenance other then keeping the units
clean. However, observe the following light indicators to make
sure that the unit is working properly:
4.2 Troubleshooting
If the LBC-H-T-LPB-Lite units do not operate properly after
installation, check for possible cable breaks, loose connections,
and incorrect cable connections. If problems persist that may
be fiber related, contact BCI at 1-800-214-0222 for further
assistance.
Page 10
LBC-H-T-LPB-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmitter w/Loopback Video
Broadata Technical Support, [email protected]
11
5.0 SPECIFICATIONS
Video/Audio
HDMI Version 1.4 with 3D, 4K×2K support
Video Resolution Up to 4K2K @ 30Hz
Protocol DDC/EDID Capable, HDCP 2:2
Video Bandwidth 300MHz / 10.2Gbps
Audio Formats Supports up to 7.1CH & Dolby
TrueHD, DTS-HD Master Audio
Audio Sampling Rate 32KHz to 192KHz
HDMI/Audio Connector HDMI Female plug
Data
Serial Control RS232
Data Rate Up to 57.6Kbaud
Connector 3.5mm Jack
IR
Data Rate 30 - 50KHz
In/Out Connectors 3.5mm Stereo
HDBT Transmission
Cable Type CA T 5e/6 or higher
Number of Cables 1
Connector Distance RJ-45/Up to 60m
Physical
Dimensions Standalone 4.02”(W) x 4.33”(D) x 0.98”(H)
Power Consumption +24 VDC @ 1.25 Amps (Max.)
Operating Temperature 0 to +40oC
Humidity 20 to 90% RH, Non-Condensing
Page 11
LBC-H-T-LPB-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmitter w/Loopback Video
Broadata Technical Support, (800) 214-0222
12
6.0 SERVICE PROCEDURE
6.1 Replacement Policy
Standard products found defective on arrival (DOA) will be
replaced, based on availability, within 24 to 48 hours anywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.
6.2 Return/Repair Service
The LBC-H-T-LPB-Lite System contains no user serviceable
components. If you have a problem with your unit, please contact
the Customer Service Department. T o facilit ate our return/repair
processing please contact Broadata Communications, Inc. to
obtain a Return Material Authorization (RMA). Please include
the following information:
• Product model number
• Serial Number
• Complete description of problem
• Hardware installation description
Broadata Communications, Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
(310) 530-1416
(310) 530-5958 (Facsimile)
e-mail: [email protected]
Website: www.broadatacom.com
Page 12
LBC-H-T-LPB-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmitter w/Loopback Video
Broadata Technical Support, [email protected]
13
7.0 LIMITED WARRANTY
Broadata Communications, Inc. (BCI) warrants, for a period of one
year from date of shipment, each product sold shall be free from defects
in material and workmanship. BCI will correct, either by repair, or at
BCI’s election, by replacement, any said products that in our sole
discretion prove to be defective and are returned to the manufacturing
location within 30 days after such defect is ascertained. All warranties
are limited to defects arising under normal use and do not include
malfunctions or failure resulting from misuse, abuse, neglect, alterations,
electrical power problems, usage not in accordance with product
instructions, improper installation, or damage determined by BCI to
have been caused by the Buyer or repair made by a third party . Limited
warranties granted on products are to the initial customer end-user and
are not transferable. OUR LIABILITY UNDER THIS W ARRANTY SHALL
IN ANY CASE BE LIMITED TO THE INVOICE VALUE OF THE
PRODUCT SOLD AND BCI SHALL NOT BE LIABLE TO ANYONE FOR
CONSEQUENTIAL OR INCIDENT AL DAMAGES ARISING FROM THE
USE OF ITS PRODUCTS OR THE SALE THEREOF. We make NO
WARRANTY AS TO THE MERCHANTABILITY OF ANY GOODS, OR
THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE OR END
APPLICA TION NOR DO WE MAKE ANY WARRANTY, EXPRESSED
OR IMPLIED OTHER THAN AS STA TED ABOVE.
Page 13
LBC-H-T-LPB-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmitter w/Loopback Video
Broadata Technical Support, (800) 214-0222
14
Page 14
Broadata Communications, Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
(310) 530-1416
(310) 530-5958 (Facsimile)
e-mail: [email protected]
Website: www.broadatacom.com
60000-LBCHTLPBLITE
