Broadata LBC-H-R-SCL-ICP User Manual

LBC-H-R-SCL-ICP

LINK BRIDGETM HDBASET HDMI RECEIVER

WITH INLINE CONTROL PROCESSOR

BCI reserves the right to make changes to the products described herein without prior

notice or consent. No liability is assumed as a result of their use or application. All

rights reserved.

©2013 Broadata Communications, Inc.

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

3

SAFETY INSTRUCTIONS AND COMPLIANCE DECLARA TIONS

SURGE PROTECTION DEVICE RECOMMENDED

This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lightning strikes, etc. Use of
surge protection systems is highly recommended in order to protect and extend
the life of your equipment.

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

4

TABLE OF CONTENTS

1.0 PRODUCT DESCRIPTION ..............................................5

2.0 OPERATION CONTROL AND FUNCTIONS ...................7

2.1 SCALING RECEIVER FRONT P ANEL ............................7

2.2 SCALING RECEIVER REAR P ANEL...............................8

2.3 ICP FRONT AND REAR PANEL .....................................9

3.0 CONNECTOR PINOUT ASSIGNMENT .........................10

3.1 SCALING RECEIVER.....................................................10

3.1.1 IR PIN ASSIGNMENT ...................................................10

3.1.2 RS-232 PIN ASSIGNMENT...........................................1 1

3.2 ICP .................................................................................12

4.0 ON SCREEN DISPLAY (OSD) MENU ............................14

4.1 MAIN MENU SELECTION .............................................14

4.2 DISPLA Y ........................................................................14

4.3 COLOR ..........................................................................15

4.4 AUDIO ............................................................................16

4.5 SETUP...........................................................................17

4.6 INFORMA TION...............................................................18

5.0 LB-ICP WEB SERVER DESCRIPTION ........................19

6.0 SPECIFICA TIONS...........................................................43

7.0 SERVICE PROCEDURE ................................................46

7.1 REPLACEMENT POLICY ..............................................46

7.2 RETURN AND REPAIR SERVICE .................................46

8.0 LIMITED WARRANTY ....................................................47

9.0 APPENDIX .....................................................................48

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

5

1.0 PRODUCT DESCRIPTION

Overall

• An HDBaseT HDMI video scaling receiver with multiple control

I/O ports

• Not only scale HDMI video, but also provide in-line control I/O

paths, over HDBaseT link

Scaling Receiver

• Extend HDMI, LAN and RS-232/IR up to 100 meters over 1

CA T 5e/6 Cable

• Supports input/output video scaling up to 1080p 60Hz and

1920x1200@60Hz

• High performance video scaler with OSD Menu Control

• Supports HDMI w/embedded audio and optical audio

extraction

• Provides output picture adjustment on contrast, brightness,

hue, saturation, sharpness, RGB level, and scan size

• Auto-EDID support, automatically detect the factory setting of

the connected display

• Bi-directional PoC

Inline Control Processor (ICP)

• Control I/O ports contain:

- two (2) RS-232

- two (2) Relay

- two (2) Digital I/O

- one (1) IR

- one (1) Ethernet

• Control and monitor AV devices using a standard Ethernet

network (Smart phone or PC) or RS-232 (keypad)

• Front panel port status indicators

• User friendly customizable control configurations via built-in

web server

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

6

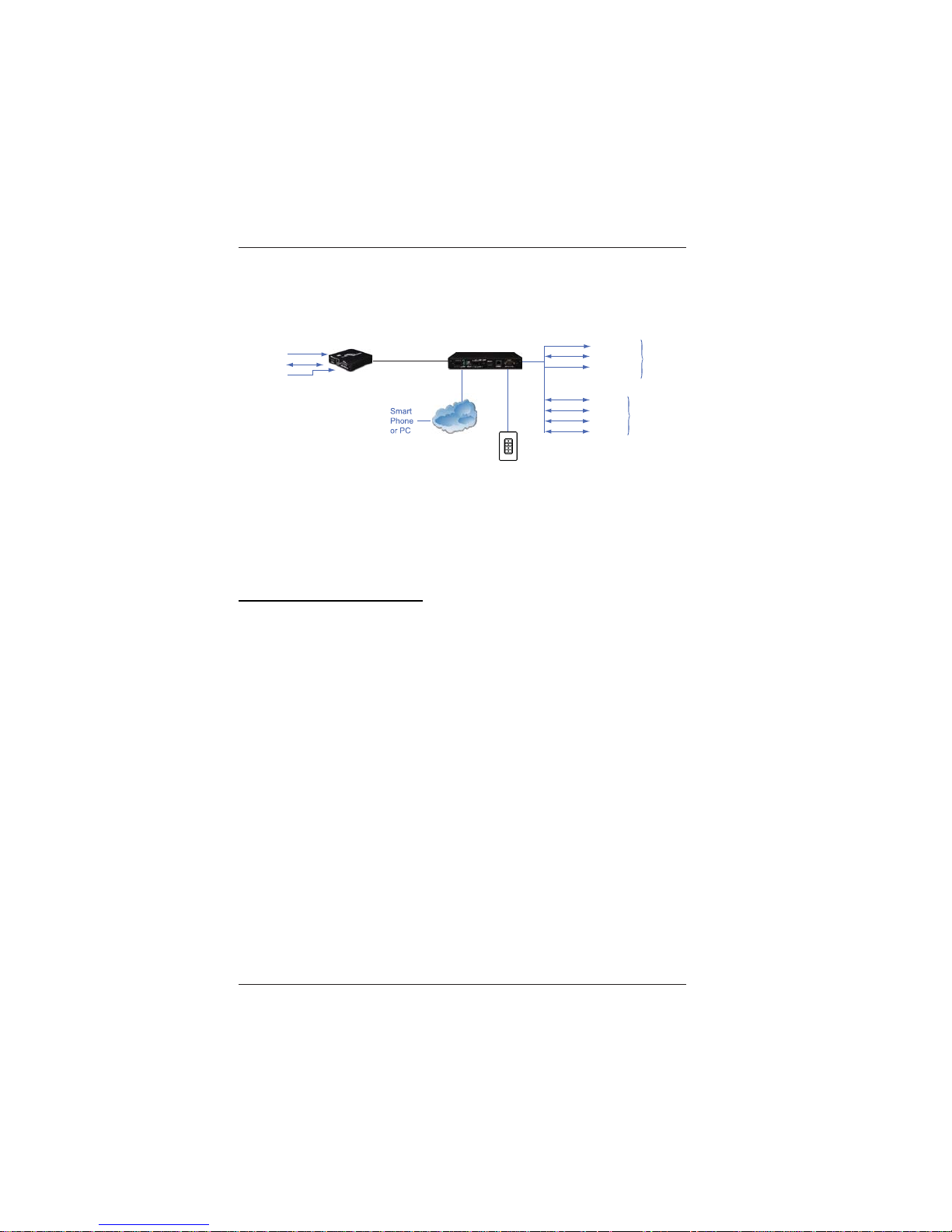

Figure 1-1 shows a typical application diagram.

Figure 1-1

ORDERING INFORMA TION

LBC-H-R-SCL-ICP Link Bridge HDBaseT Scaling Receiver with

Control I/O Ports

HDMI

RS-232/IR

LAN

HDBaseT

Link

1 CAT-5/6e

NET

Keypad
LB-KP8

LBC-HDBT-T

LBC-HDMI-R-SCL-ICP

HDMI
RS-232/IR
LAN

RS-232
GPIO
Relay
IR

For
Control

Ethernet

RS-232

For
Extender

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

7

2.0 OPERA TION CONTROLS AND FUNCTIONS

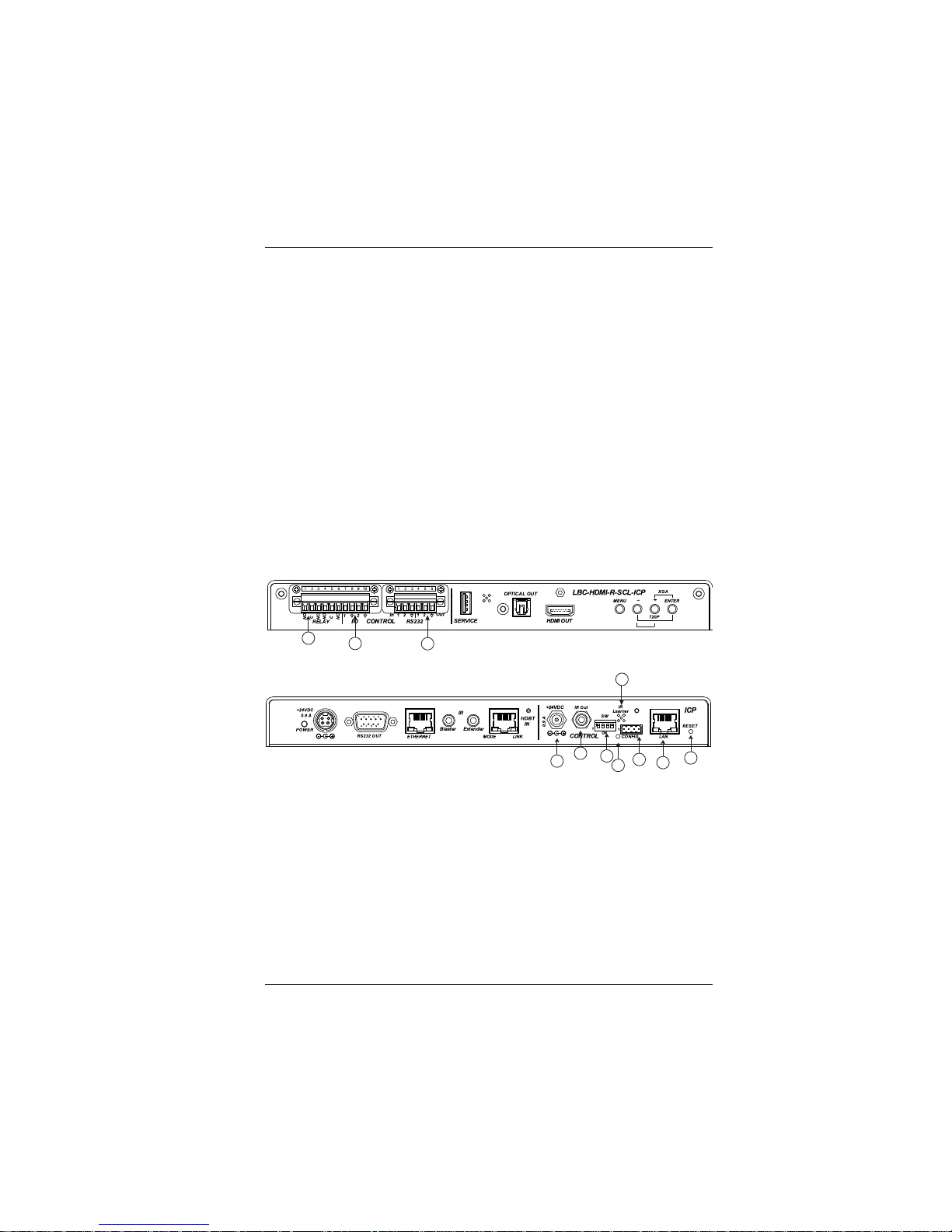

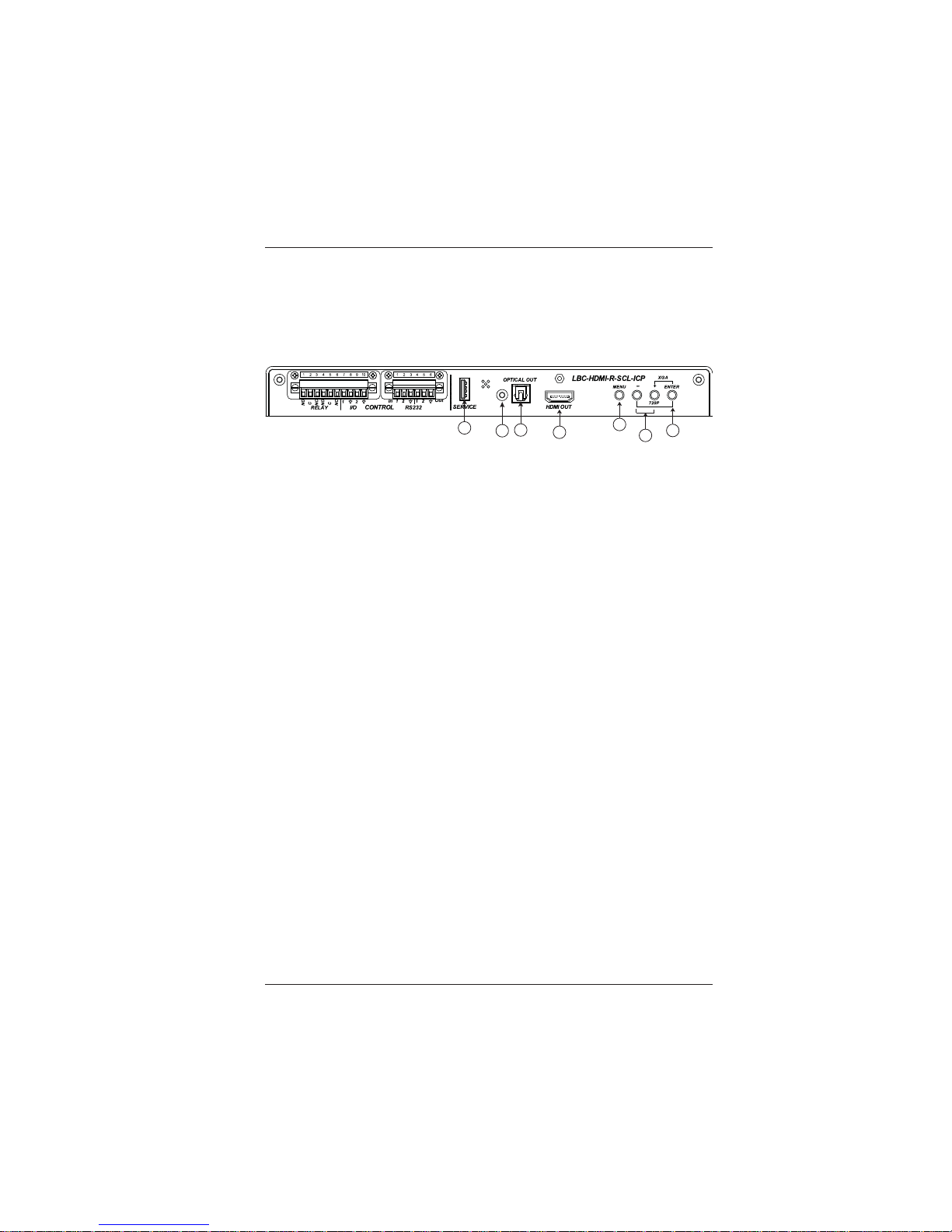

2.1 Scaling Receiver Front Panel

1. SERVICE:
This port is reserved for firmware update only .

2.IR:
IR Receiver window (accepts the remote control signal of this

device only).

3. OPTICAL OUT:
Connect to an amplifier or active speaker with optical cable for

audio output.

4. HDMI OUT:
This slot is to connect with HDMI TV/Monitor.

5. MENU:
Press this button to enter into the OSD menu.

6. +/- :
Press these buttons to scroll up and down through the OSD

menu.

7. Enter:
Press this button to confirm the selection. Press this button

together with [–] key to switch output timing to 720p@60
instantly . Press this button together with [+] key to switch output
timing to XGA (1024x768) inst antly.

1

2

3

4

5

6

7

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

8

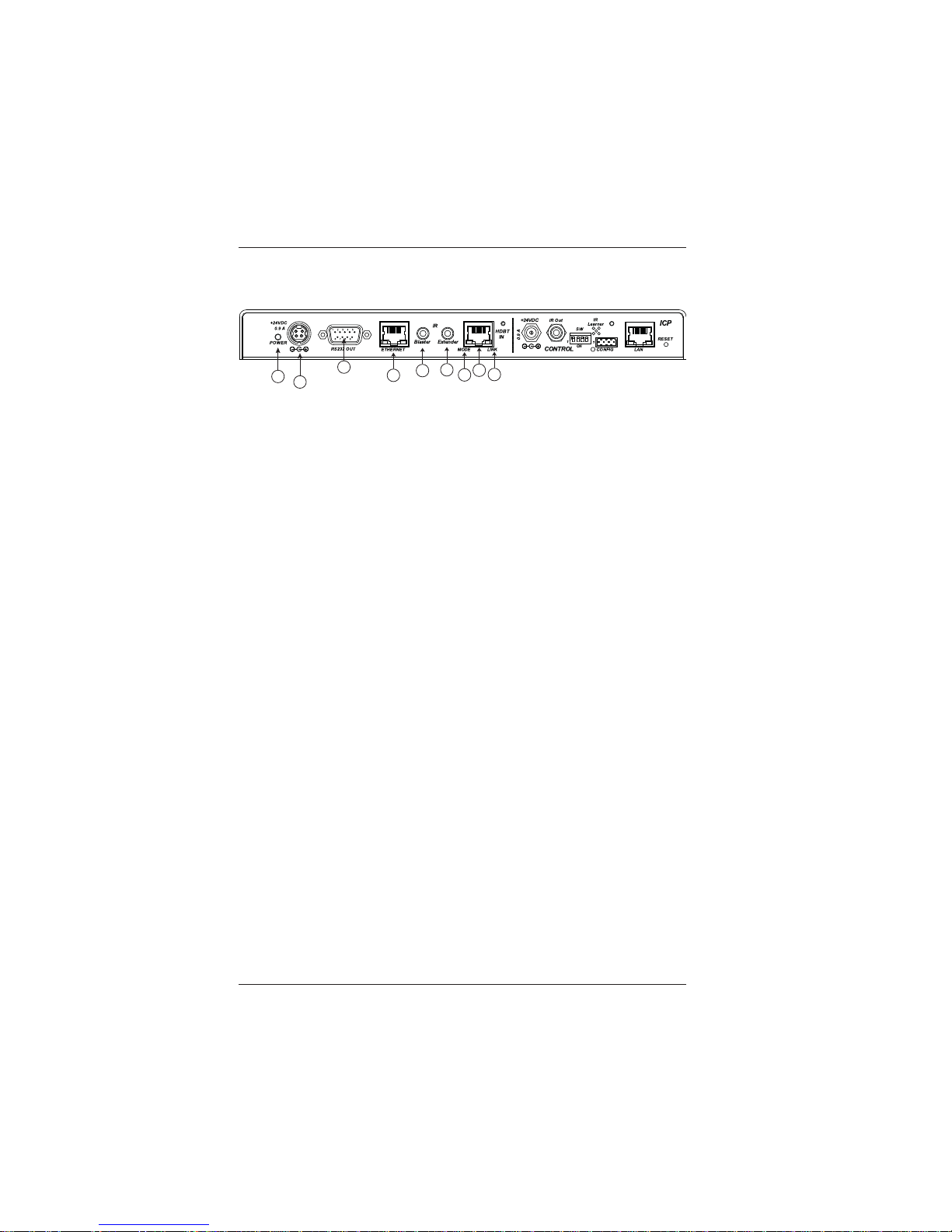

2.2 Scaling Receiver Rear Panel

1. Power LED:
This LED will illuminate when the device is connected to a power

supply.

2. DC 24V:

Plug the 24 V DC power supply into the unit and connect the
adaptor to an AC outlet. Only one side of power is needed to
activate both Transmitter and Receiver when both obtain the
PoH function.

3. RS-232 OUT:

This slot is to connect with D-Sub 9-pin cable from device
equipment for receiving RS-232 commands. Commands are
listed in Appendix B.

4. LAN:

Connect to an active network for LAN sharing of a total
transmission rate up to 100Mbps. Or when a compatible LAN
equipped Transmitter is connected to an active network, this
allows the network access (including internet access if available)
to be shared between the Transmitter and Receiver. Connect
any Ethernet equipped device e.g. a Smart TV or games console
to the LAN port for that device to share the network internet
access.

Note: DO NOT connect LAN cable with any of the
CA T5e/6/7 port. Doing so may trigger power shut down
and ruin the device

5. IR Blaster:

Connect to the supplied IR Blaster cable for IR signal
transmission. Place the IR Blaster in direct line-of-sight of the
equipment to be controlled.

6. IR Extender:

1

2

3

4

5

6

7

8

9

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

9

Connect to the supplied IR Receiver cables for IR signal
reception. Ensure that remote being used is within the direct
line-of-sight of the IR Extender.

7. MODE LED:
This LED will illuminated when the power is connected.

8. Link LED:
This LED will illuminate when the slot has been connected to
the Transmitter and the Transmitter has connected with sources
that shows image on screen.

9. CA T5e/6 IN:
Connect to the Transmitter unit with a Single CA T5e/6/7 cable
for receiving all data signals.

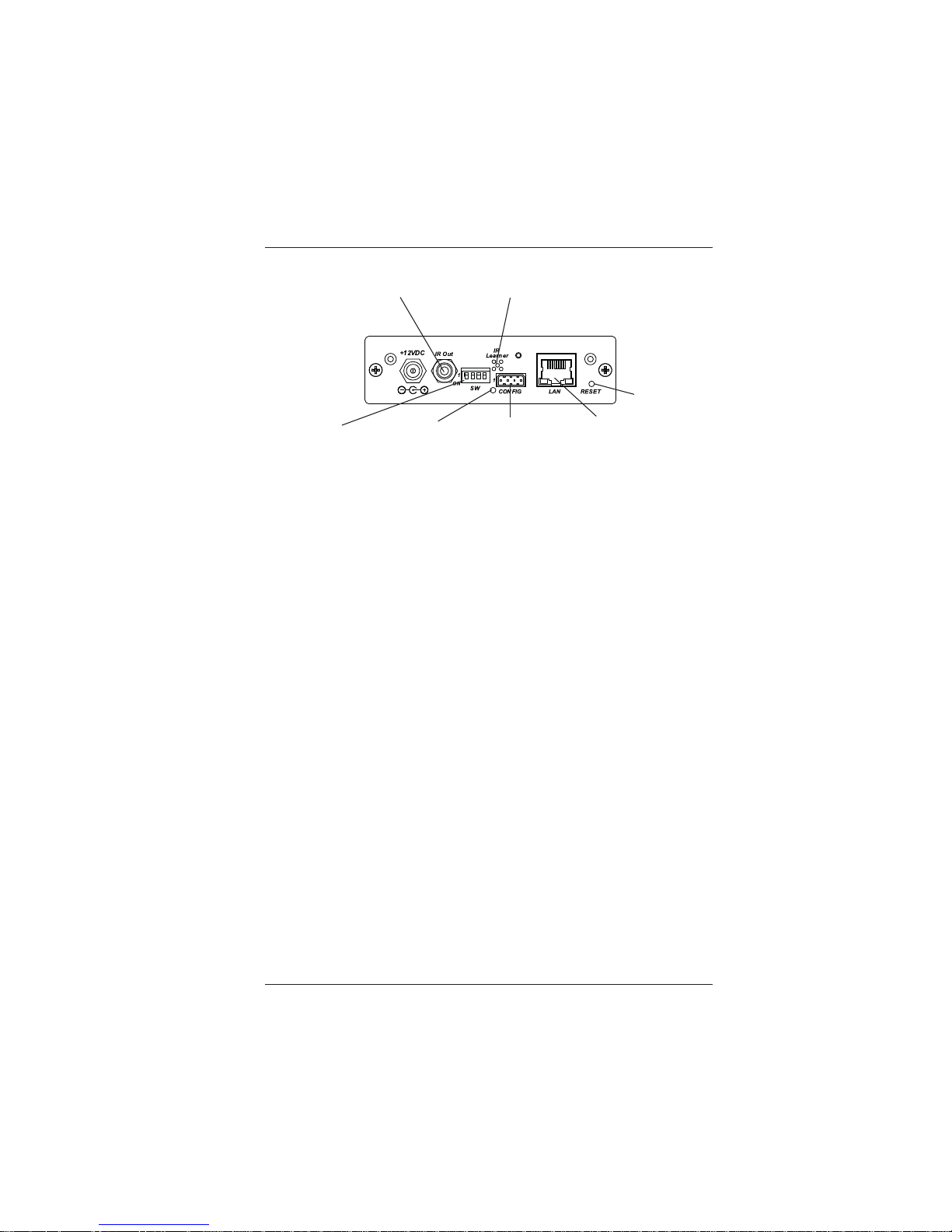

2.3 ICP Front and Rear Panel

1. Digital I/O: Digital input/output ports.

2. RS-232: Serial port to control devices.

3. RELAY: Normally open and normally closed relay ports.

4. DC12V: DC power input connector.

5. IR Out: IR blaster port.

6. SW: The unit configuration dip switch

7. IR Learner: Built-in IR receiver for IR learning.

8. IR Learner LED: Lighted when the unit is IR learning mode.

9. CONFIG: Configuration/keypad port.

1

2

3

4

5

6

7

8

9

ICP/Front

ICP/Back

10

11

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

10

10. LAN: Ethernet connector.

11. RESET: Press the button to reset the device back to factory
default settings.

3.0 CONNECTOR PINOUT ASSIGNMENT

3.1 Scaling Receiver

3.1.1 IR Pin Assignment

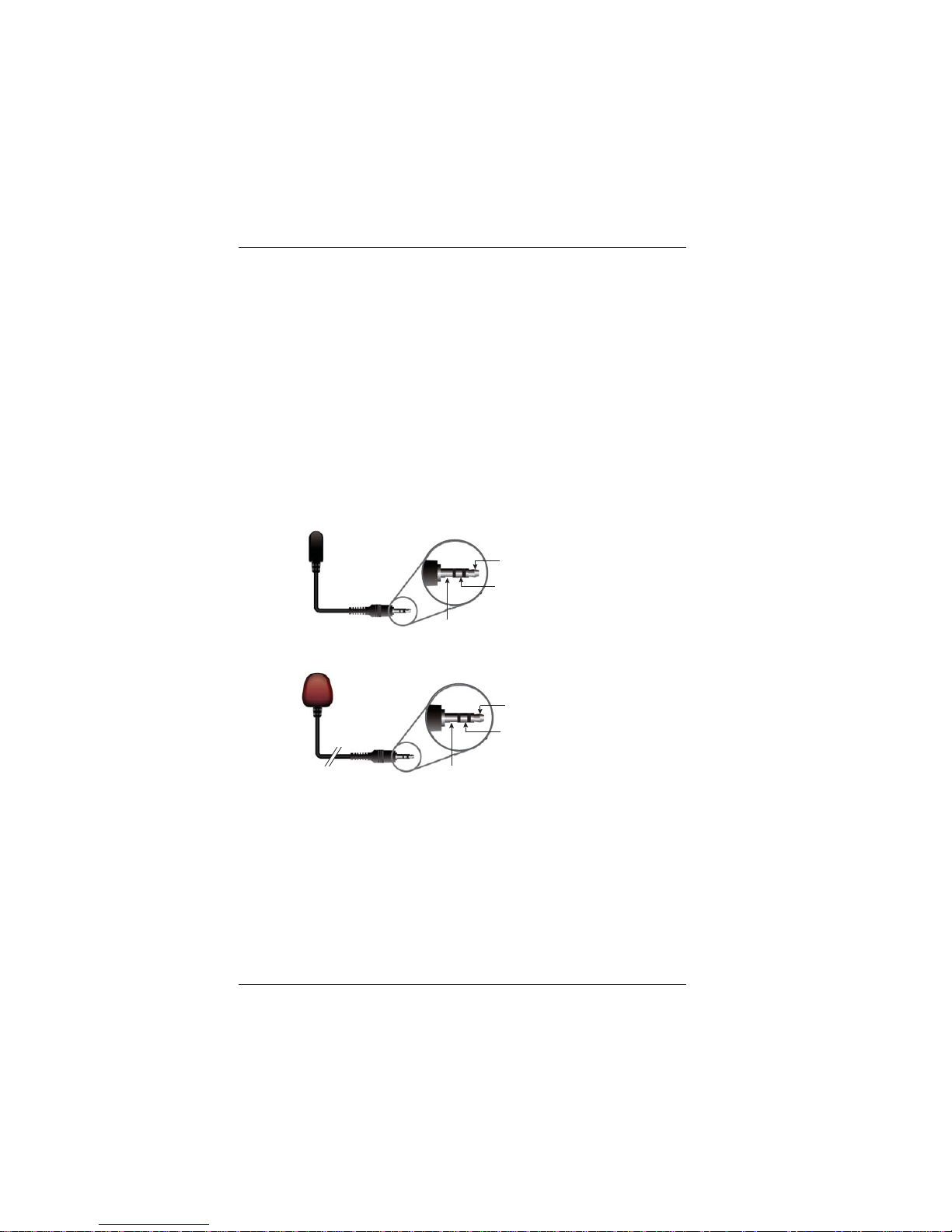

IR Blaster

Power 5V

IR Blaster Signal

NC

IR Receiver

IR Signal

Power

Grounding

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

11

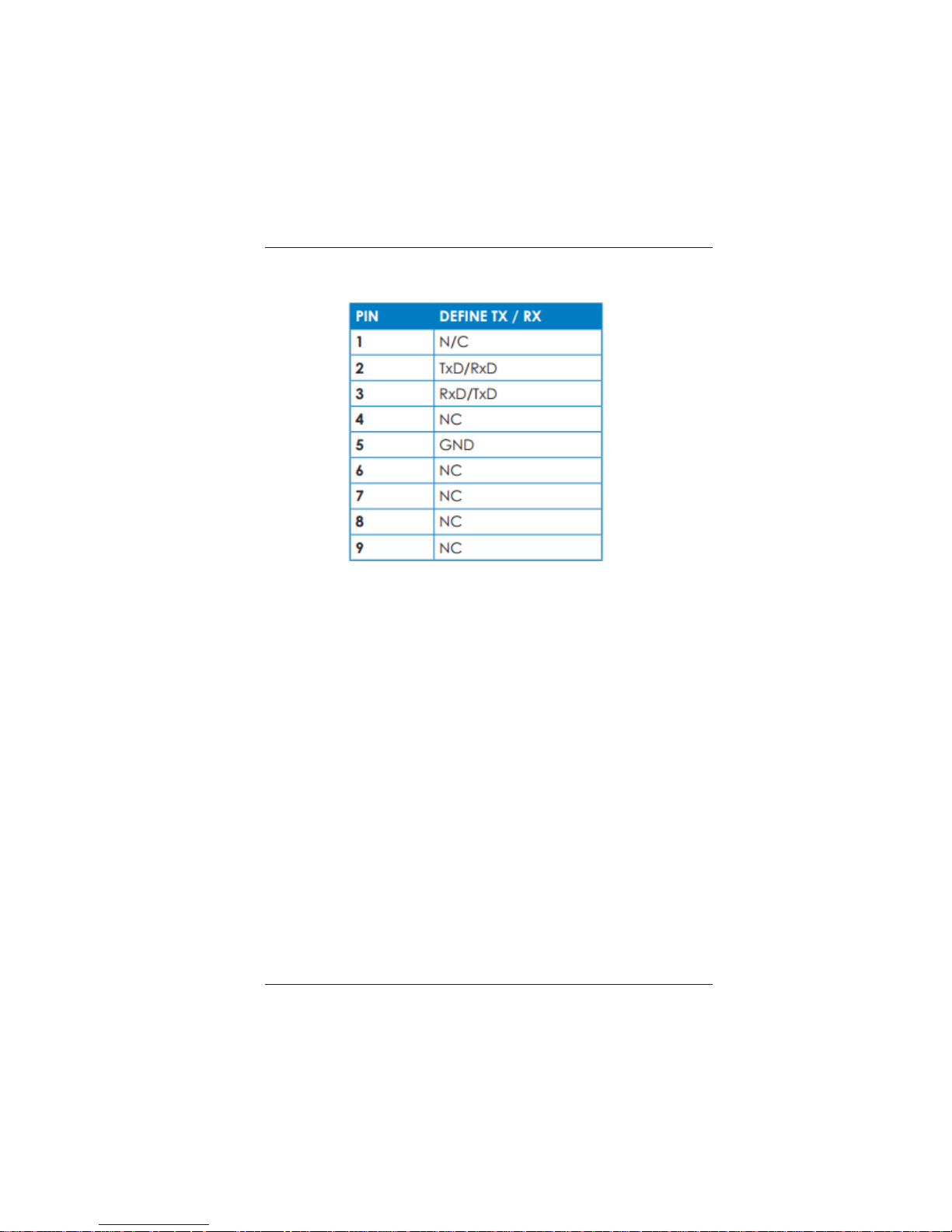

3.1.2 RS-232 Pin Assignment

Baud Rate: 9600bps
Data Bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

12

Front

Digital I/O CH-1

GND

Digital I/O CH-2

GND

GND

Relay 1 Normally Open

Relay 1 Common

Relay 1 Normally Closed

Reserved/Do Not Connect

Reserved/Do Not Connect

Digital I/O LEDs

1=I/O Ch-1

2=I/O Ch-2

Remote LED

(On=Remote)

IR TX LED

(On=IR TX Act.)

}

On=High Level

Reserved/Do Not Connect

Reserved/Do Not Connect

Relay 2 Normally Closed

Relay 2 Common

Relay 2 Normally Open

RS-232 OUT CH-2

RS-232 OUT CH-1

GND

RS-232 IN CH-2

RS-232 IN CH-1

1=Relay 1 ON

2=Relay 2 ON

RS-232 LEDs

1=CH-1 Activity

2=CH-2 Activity

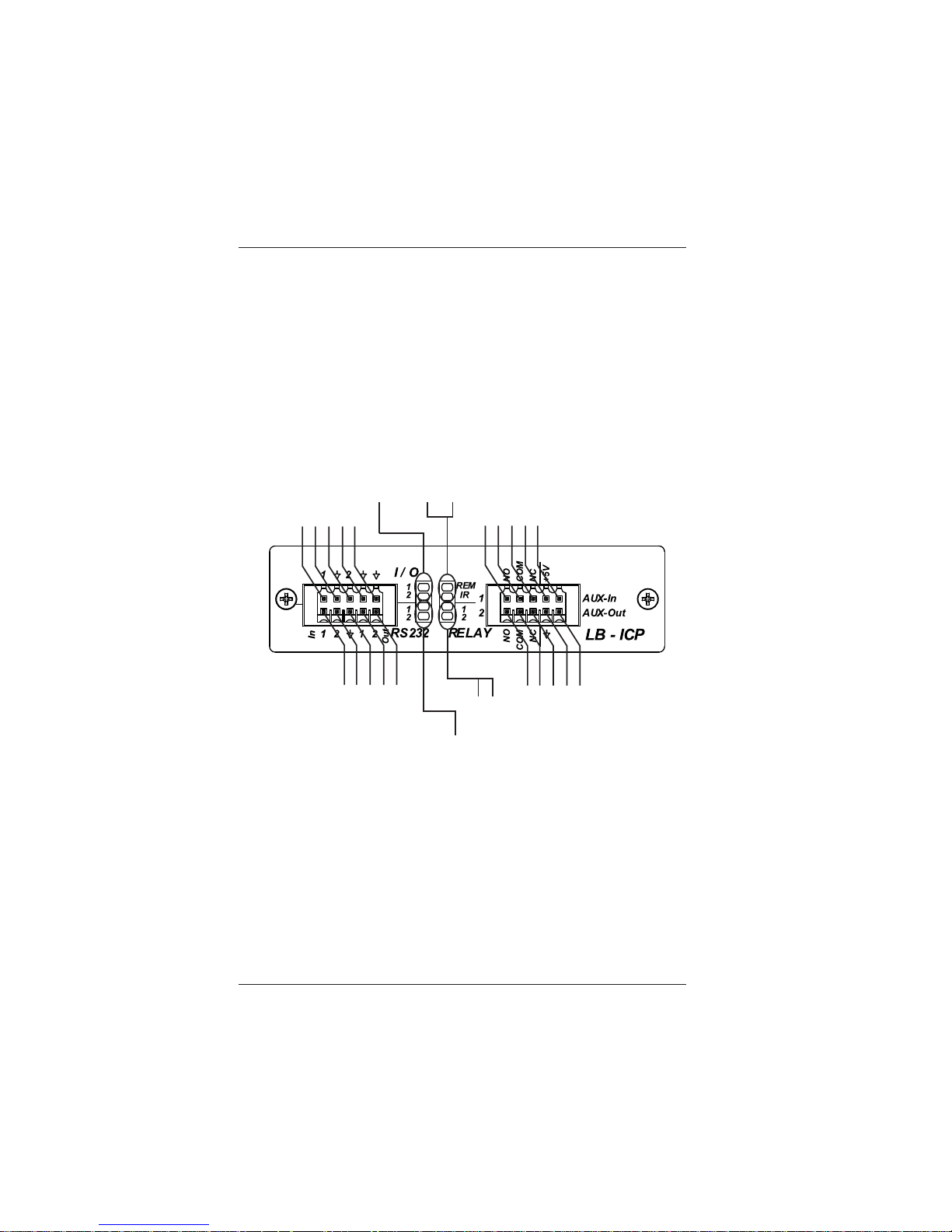

3.2 ICP

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

13

Rear

IR OUT for
external emitter

IR detector
behind holes

Reset button:
push to reset to
default settings

RJ-45
1 - TX+
2 - TX­3 - RX+
4 - N/C
5 - N/C
6 - RX­7 - N/C
8 - N/C

CONFIG/Keypad

1. +12V keypad power

2. RS-232 IN

3. RS-232 OUT

4. GND

IR Learn LED
(ON in IR
Learn mode

DIP SW
Position 1: Local/Remote
(Local=OFF)
Position 2: Reserved
Position 3: Reserved
Position 4: Reserved

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

14

4.0 ON SCREEN DISPLAY (OSD) MENU

4.1 Main Menu Selection

Display , Color , Audio, Factory Reset, Informaiton

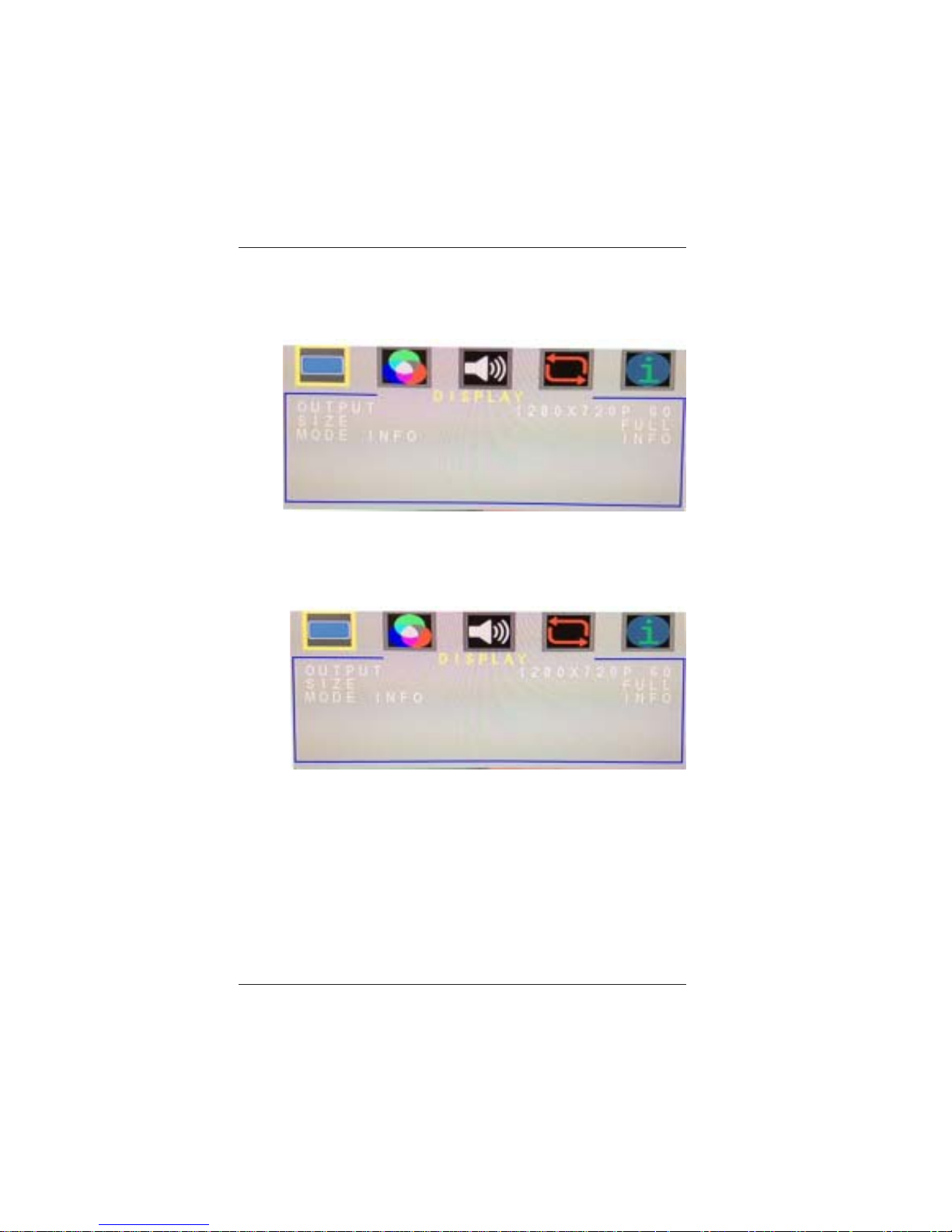

4.2 DISPLA Y : Output, Size, Mode Info

OUTPUT: 640x480 60, 800x600 60, 1024x768 60, 1360x768 60,

1280x720 60, 1280x800 60, 1280x1024 60, 1440x900 60, 1400x1050
60, 1680x1050 60, 1600x1200 60, 1920x1080 60, 1920x1200 60,
720x480P 60, 1280x720P 60 (Factory Default upon reset),
1920x1080I 60, 1920x1080P 60 (setting upon shipment), 720x576P
50, 1280x720P 50, 1920x1080I 50, 1920x1080P 50

SIZE: OVERSCAN, FULL (Factory Default upon reset),
UNDERSCAN, LETTERBOX, PANSCAN, ASPECT RATIO (setting

upon shipment), UNDER 2, UNDER 1

MODE INFO: INFO, ON, OFF

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

15

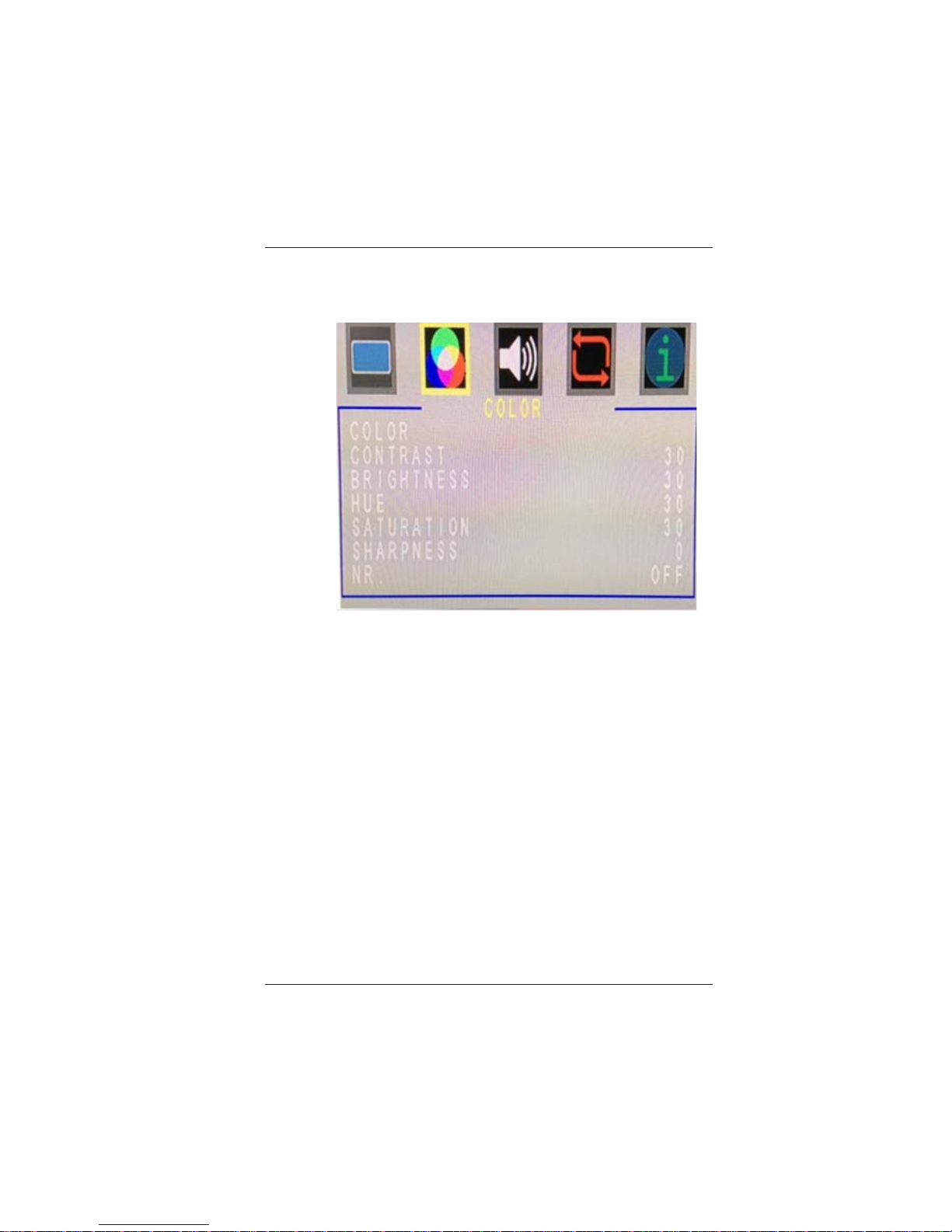

4.3 COLOR: Color, Contrast, Brightness, Hue,
Saturation, Sharpness, NR

COLOR

RED: 0 ~ 1023 of Red Color Level
GREEN: 0 ~ 1023 of Green Color Level
BLUE: 0 ~ 1023 of Blue Color Level
RED OFFSET: 0 ~ 1023 of Red Color Level
GREEN OFFSET: 0 ~ 1023 of Green Color Level

BLUE OFFSET: 0 ~ 1023 of Blue Color Level
CONTRAST: 0 ~ 60 of Contrast Level
BRIGHTNESS: 0 ~ 60 of Brightness Level
HUE: 0 ~ 60 of Hue Level
SATURATION: 0 ~ 60 of Saturation Level
SHARPNESS: 0 ~ 30 of Sharpness Level
NR: OFF (Factory Default upon reset), LOW,

MIDDLE, HIGH

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

16

4.4 AUDIO

VOLUME: 0 ~ 100
DELAY: OFF, 40ms, 110ms, 150ms
SOUND: ON, MUTE

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

17

4.5 SETUP: Factory Reset, Keylock

FACTORY RESET: YES, NO
KEY LOCK: OFF, ON

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

18

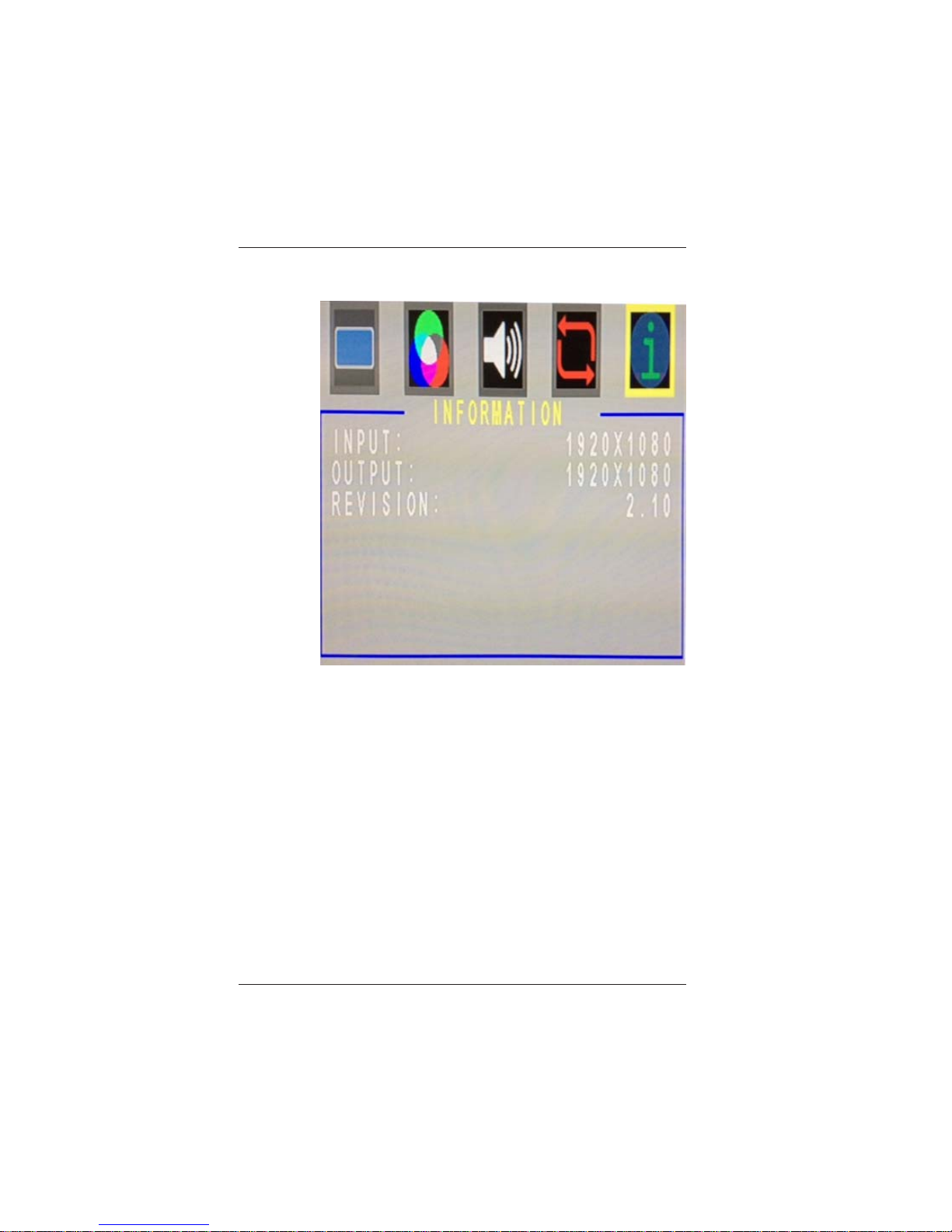

4.6 INFORMATION: Input, Output, Revision

INPUT: Input Resolution Displayed
OUTPUT: Output Resolution Displayed
REVISION: Firmware Revision Displayed

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

19

5.0 LB-ICP WEB SERVER DESCRIPTION

Introduction

The ICP Web Server provides user friendly and intuitive web pages to
configure the virtual keypad and automation functions within the ICP. It
also provides web pages to manage the IR Learner and IR code import.
A standard web browser can be used to access the web pages.

Accessing Web Server

The IP address of the ICP must be obtained in order to access the Web
Server. There are 2 ways to obtain the IP address of an ICP.

1) Use the IPCONFIG command in the Configuration Port
Command Line Interface to display the unit’s IP address.

2) Use the BCI PC Configuration Program

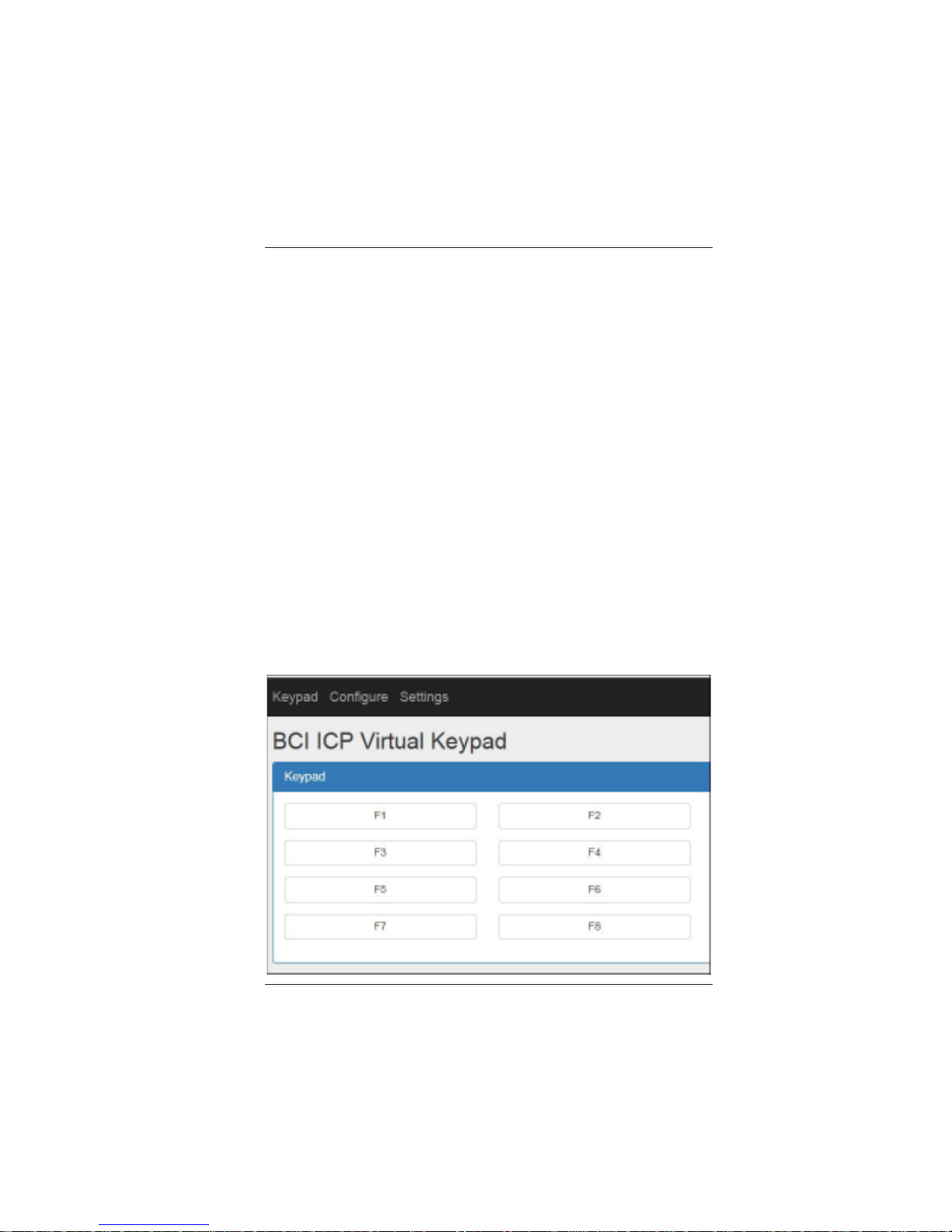

Type in the unit’s IP address in the web browser. The ICP Virtual
Keypad page will be displayed. All 8 keys of the Virtual Keypad are un­programmed by default. The keys are configured in the Configure
Key Action page.

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

20

Before configuring the Virtual Keypad, the system first needs to be set
up using the Configure System page. On the top menu bar, click

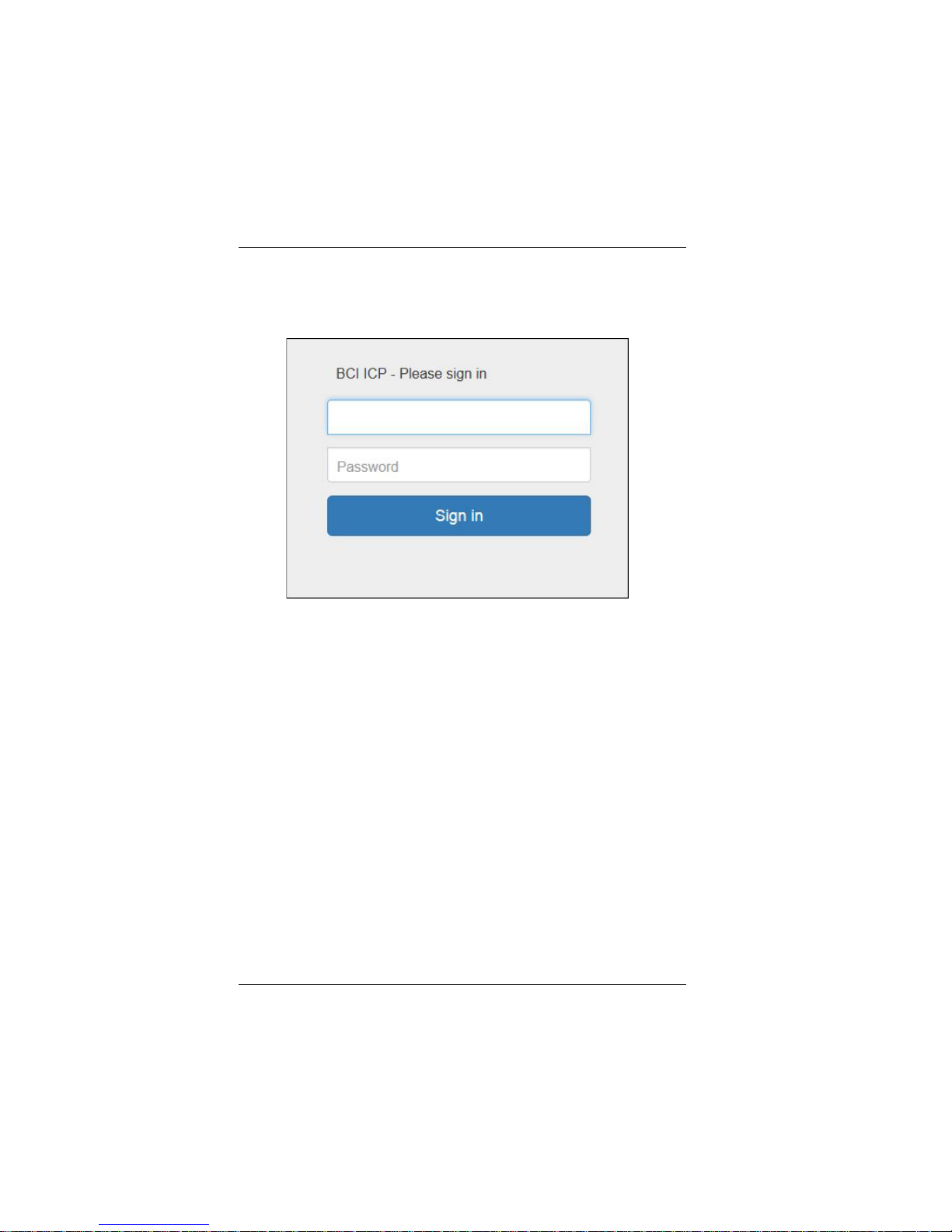

Configure and then click System. This brings up the ICP Login page.

In the ICP Login type in admin for the Userid and admin for the Password
and then click Sign in button. The Configure System page will appear .
See the following section for Configure System page details. Once
logged in, the user is free to open any of the Configure or Settings
pages. The default Password can be changed using the BCI Product
Configuration program.

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

21

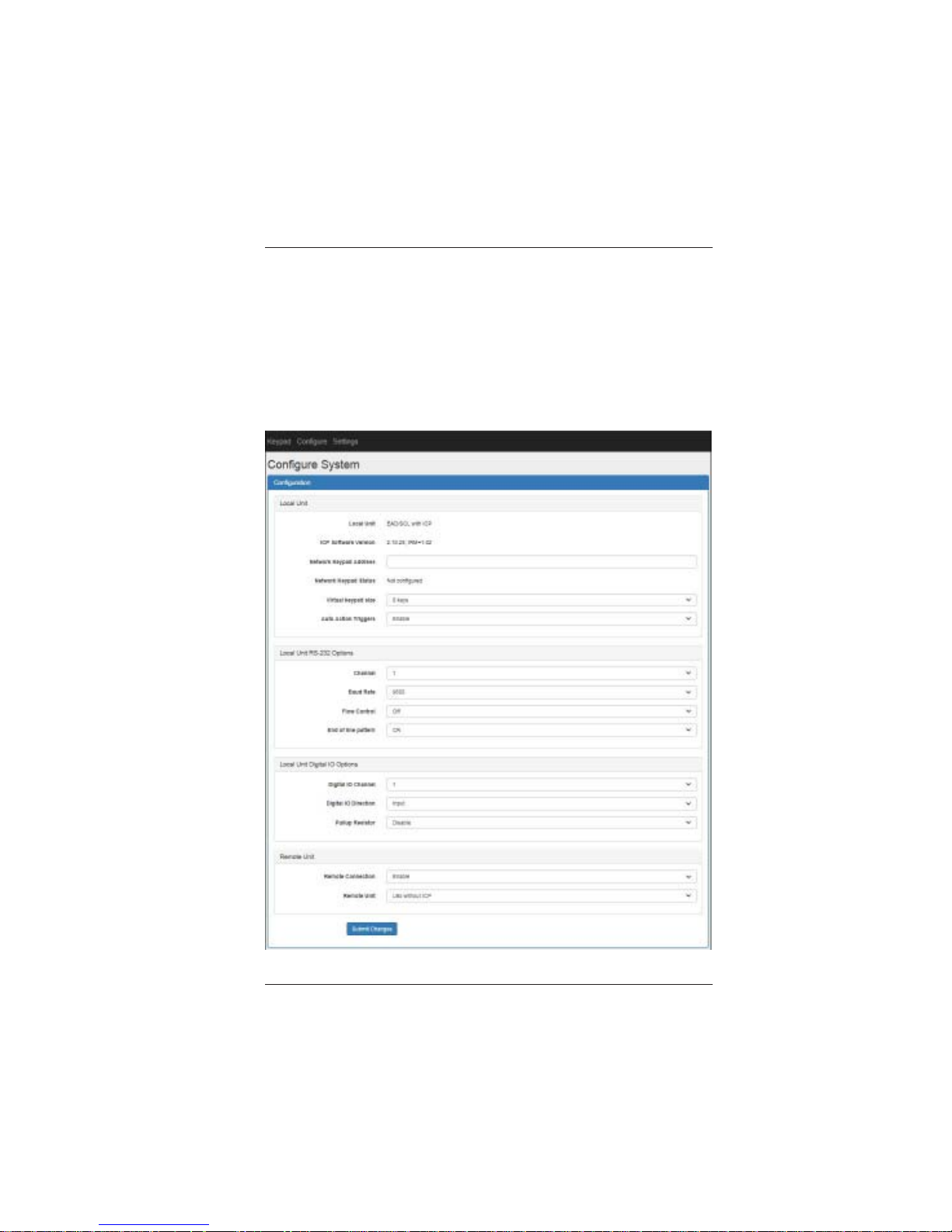

Configure System

The Configure System page is used to configure the network keypad,
virtual keypad, RS-232 channels, Digital IO channels and remote unit
types.

On the top menu bar, click Configure and then click System. The
following page will be displayed.

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

22

Local Unit

The first two lines in this panel show the Local unit type and software
version. Below that is the address setup and status for the Network
Keypad. The last 2 pull down menus are for selecting the virtual keypad
size and enabling Auto Action T riggers.

Network Keypad Address: Enter the IP address of the network keyp ad
(LB-KP8E or LB-KP16E) if one is present in the system. Use the BCI
Product Configuration program to discover the network keypad’s IP
address.

Network Keypad Status: Shows type of network keypad connected
to ICP.

Virtual Keypad Size: Select 8 keys or 16 keys. 8 keys option: maximum
of 10 actions per key . 16 keys option: maximum of 5 actions per key.

Auto Action Triggers: Select Enable to enable the auto action triggers
defined in the Configure Auto Action page. Select Disable to disable
all auto action triggers.

Local Unit RS-232 Options

This panel is used to configure the local RS-232 channels.
Channel: Select channel 1, 2 or 3. Note: Channel 3 is only available

on LBC-ICP and EAD/SCL-ICP units.

Channel 1/2: RS-232 control channels.
Channel 3: RS-232 control channel or pass-through channel. Channel

3 defaults as a control channel. Set Remote Connection (Remote Unit
panel) to Disable in order to configure Channel 3 as a pass-through
channel. Channel 3 (Remote) is the pass-through channel on the remote
unit.

Baud Rate: Select a baud rate from 9600 to 115200 baud.

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

23

Flow Control: Select On to enable flow control and Off to disable flow
control. Flow control is available only on Channel 1. If flow control is
enabled, Channel 2 is no longer available.

End of Line Pattern: Select CR or CR+LF for end of line termination.

Local Unit Digital IO Options

The 3 pull down menus in this panel are used to configure the Digital IO
settings. Digital IOs are inputs by default and show up as triggers in the

Configure Auto Actions page.
Digital IO Channel: Select channel 1 or 2.
Digital IO Direction: Select channel as a digital Input or Output.

If the Digital IO Direction is set to Input, there is an option for Pullup
Resistor.

Pullup Resistor: Select Enable or Disable pull-up resistor.
If the Digital IO Direction is set to Output, there is an option for Digital

Output Mode.
Digital Output Mode: Select TTL for a 5V compatible TTL type output

or Open Collector for an open collector type output. An open collector
type output can be used to implement a contact closure type output.
For example, if a digital output is set to Open Collector, setting the
Digital Output S tate to 1 (High) will emulate a switch closure to ground.
Setting the Digital Output St ate to 0 (Low) will emulate a switch being
open. The Open Collector output also has an option for a Pullup Resistor.

Remote Unit

This panel enables the connection with the remote unit and selects the
remote unit type. This panel is not available if the Local unit type is

Standalone ICP.
Remote Connection: Select Enable to enable the connection with the

remote unit. Select Disable to disable the connection with the remote
unit and enable the RS-232 pass-through channel. RS-232 channel 3
(remote) will not be available.

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

24

Remote Unit: Select the remote unit type. The available remote unit
types are LBx without ICP, LBx with ICP and EAD/SCL with ICP.

Configure Key Action

The Configure Key Action page is used to configure the keys on the
virtual keypad. On the 8-key keypad, each function key can be defined
as a macro for up to 10 different actions. On the 16-key keypad, each
function key can be defined as a macro for up to 5 actions. The available
actions are Relay, RS-232, IR and Telnet. Digital Output actions are
only available if Digital IOs are configured as outputs in the Configure
System page.

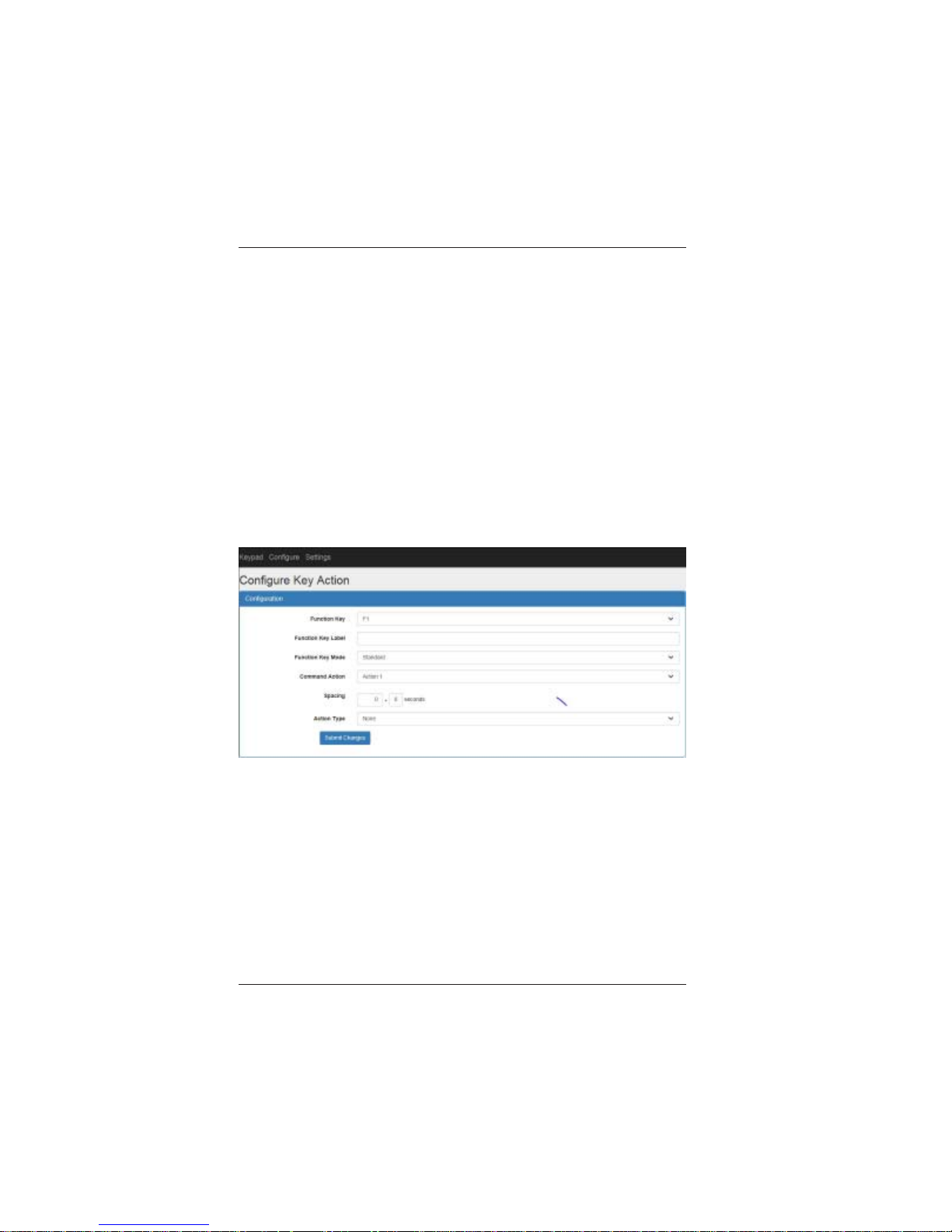

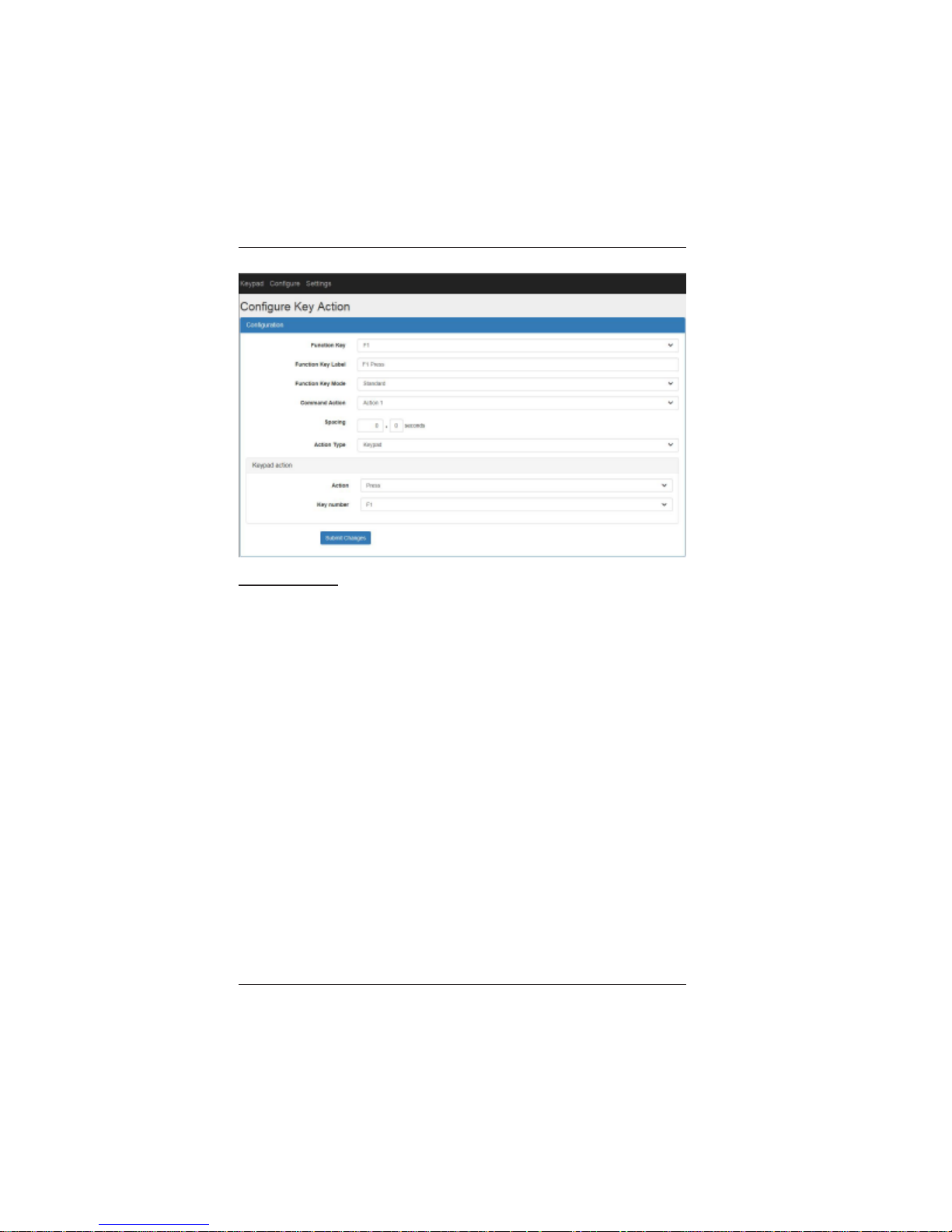

On the top menu click Configure and then click Key Action. The
following page will be displayed:

Function Key: Select the function key F1 through F8 to be defined.
Function Key Label: Type in a label name for the selected function

key.
Function Key Mode: Select Standard for a “momentary” type key.

Only one set of actions is assigned to a Standard key. Select Toggle
for a “toggle” type key . A Toggle key has two states: Press and Release.

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

25

One set of actions is assigned to the Press state and another set of
actions is assigned to the Release state.

Command Action: Select the action number to be defined. Action 1
through Action 10 can be defined.

Spacing: Enter the delay desired before the command action.
Action Type: Select the action type. Available types are None,

Relay, Digital Output, RS-232, IR, Telnet, and Keypad.

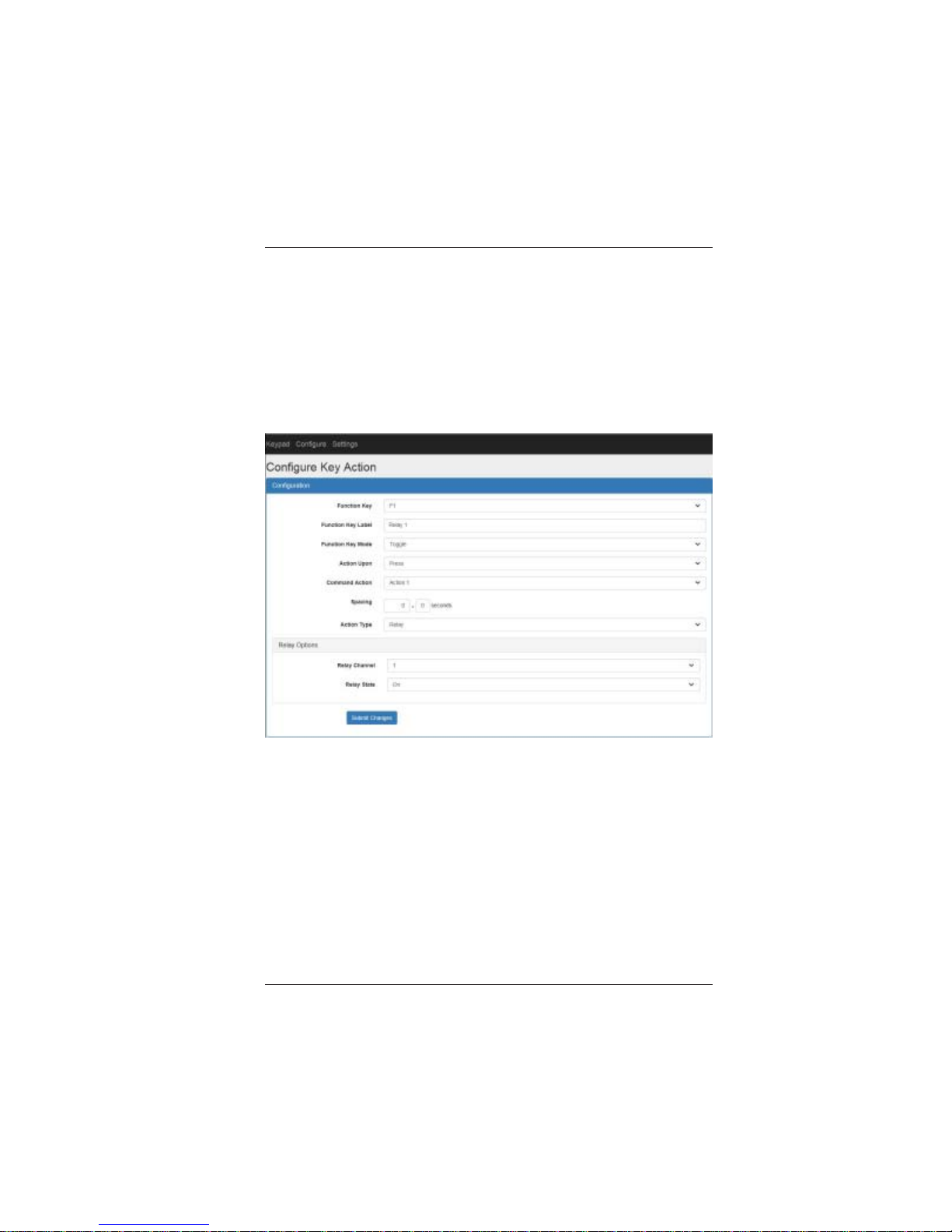

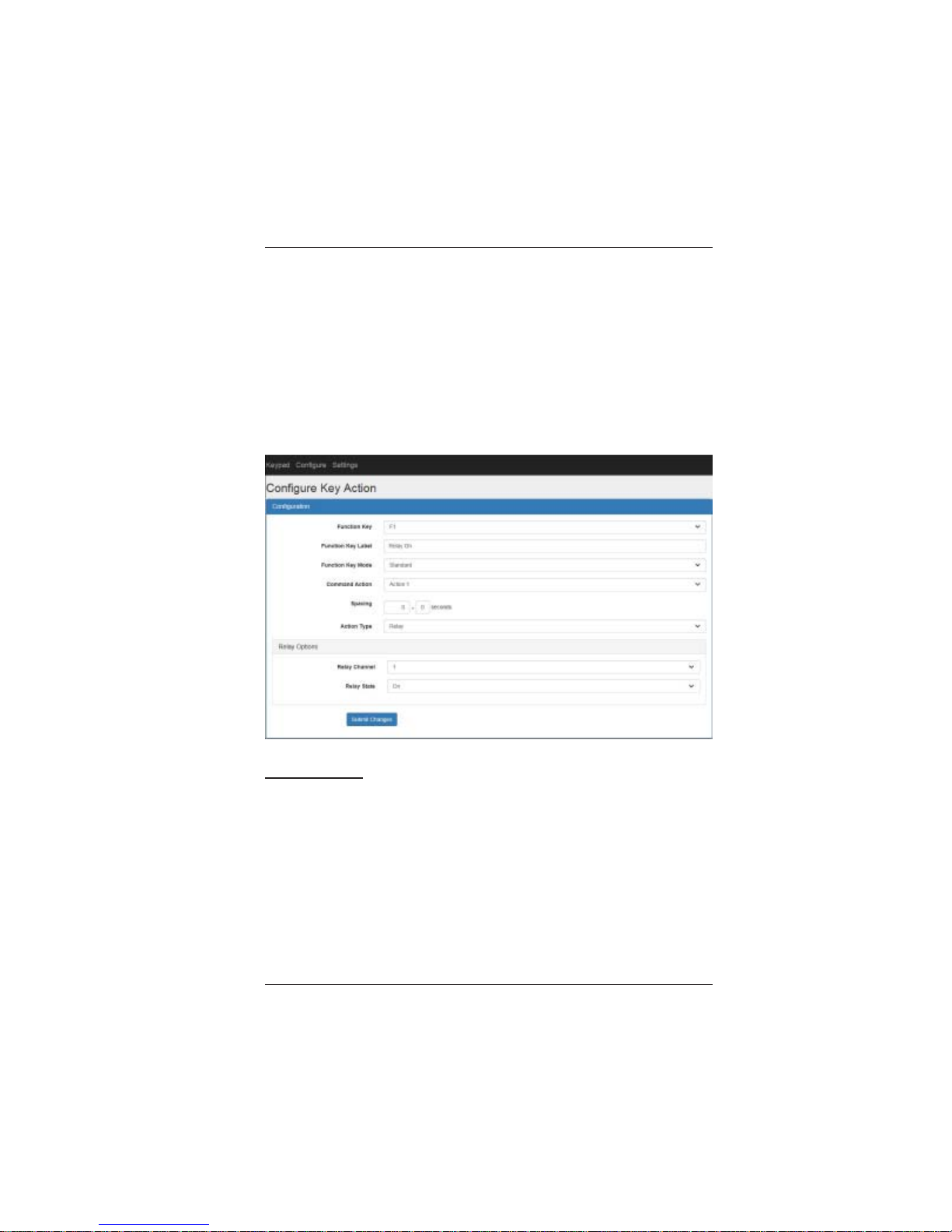

Relay Options
Relay Channel: Select the relay channel 1 or 2.

Relay State: Select the relay channel state, On (contact closed between
NO and COM) or Off (contact open between NO and COM).

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

26

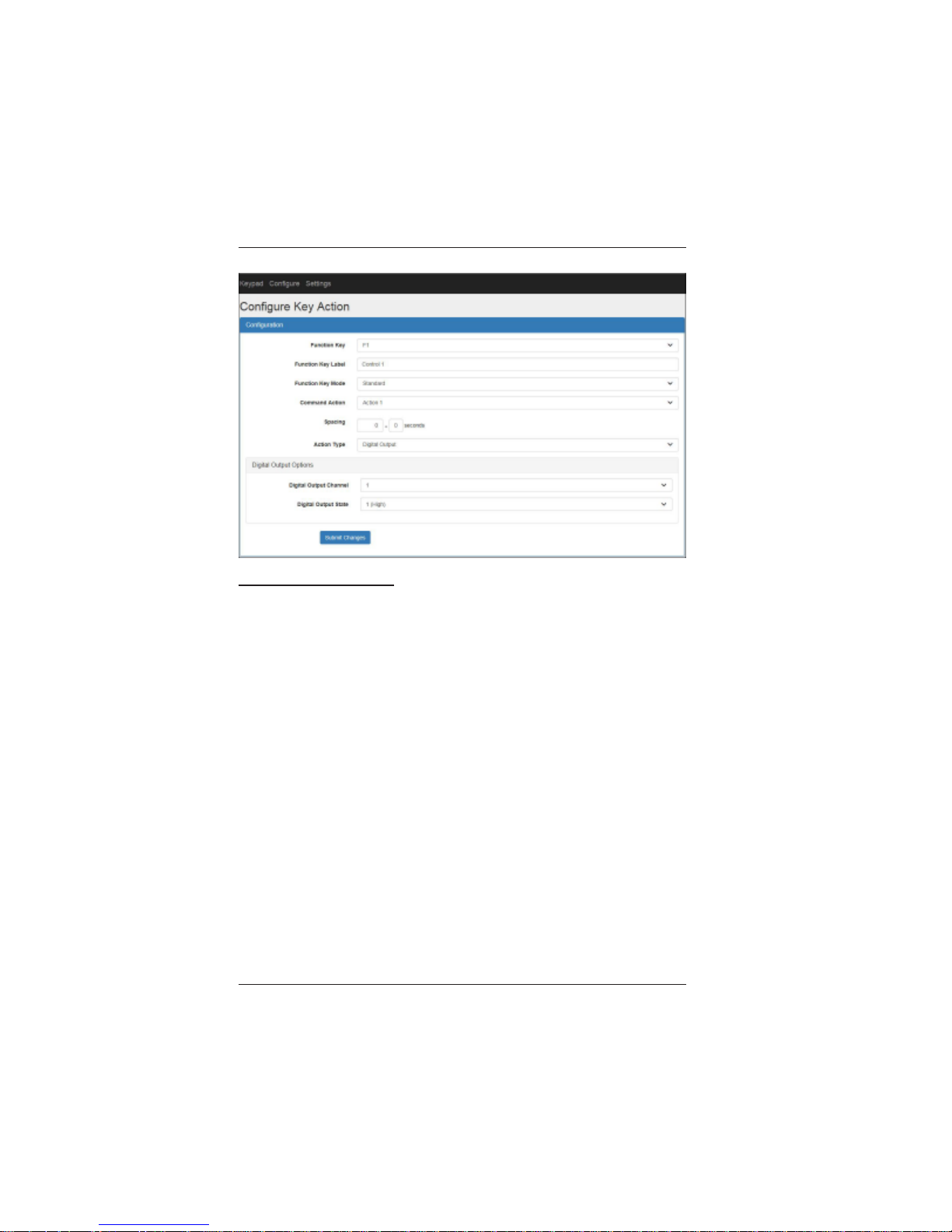

Digital Output Options
Digital Output Channel: Select the digital output channel 1 or 2.

Note: this option is not available if both Digital IO channels are set to
Inputs in Configure System page.

Digital Output State: Select the digital output state: 1 (High) or 0
(Low).

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

27

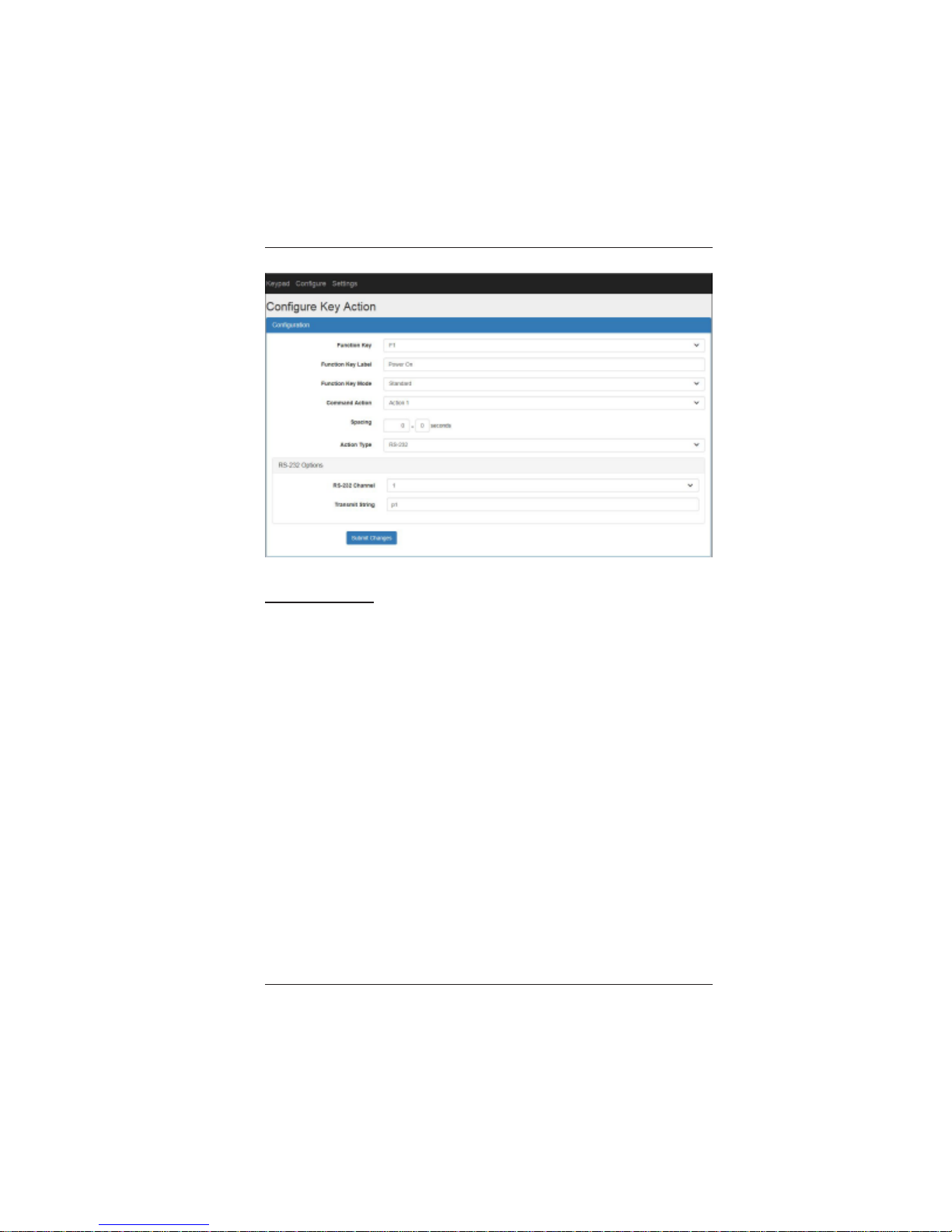

RS-232 Options
RS-232 Channel: Select channel 1, 2, 3, or 3 (Remote).
Transmit String : T ype in the text string to be transmitted. S trings are

terminated with CR or CR+LF, depending on the selection made in
Configure System page. Characters enclosed by <> will be transmitted
as hex. For example to transmit 00h enter <00>.

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

28

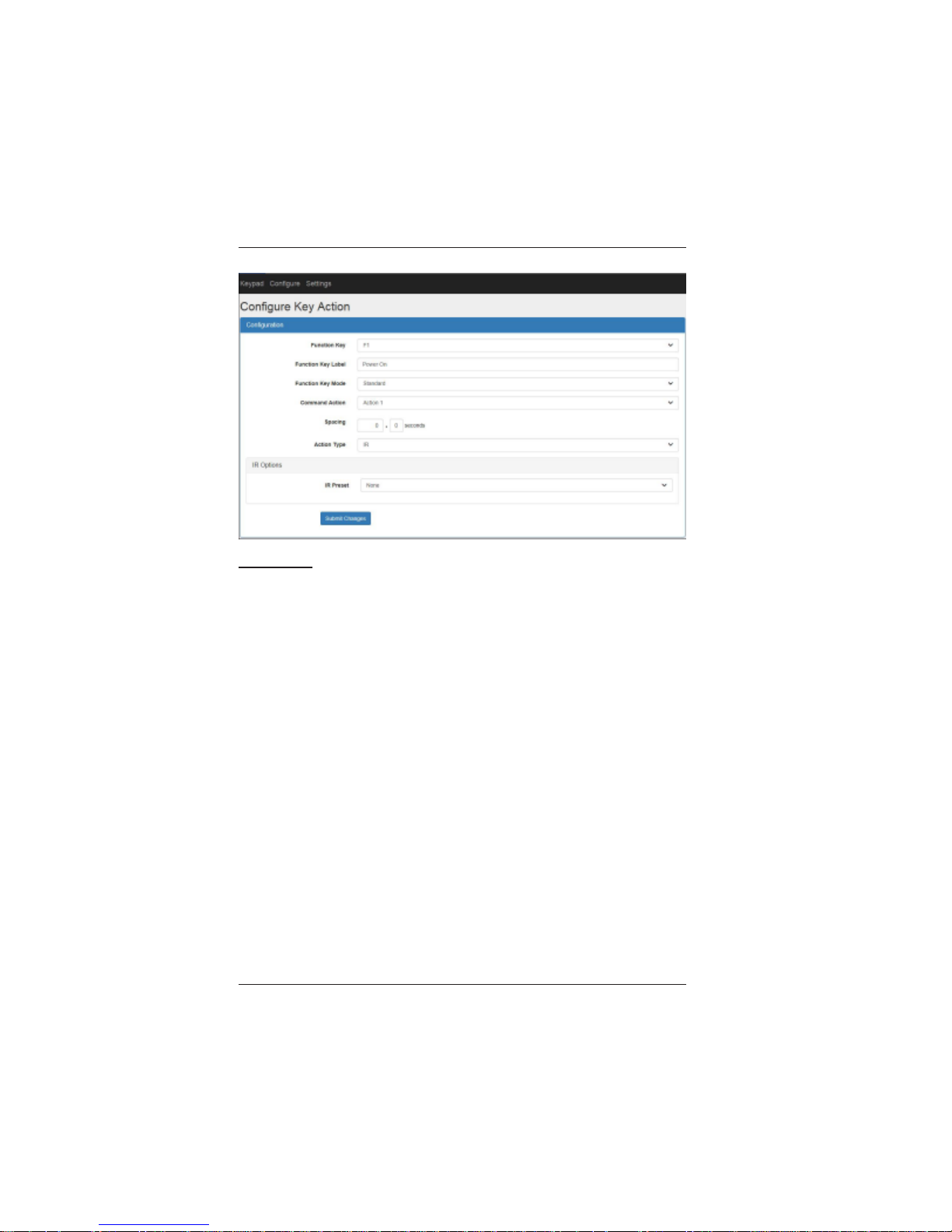

IR Options

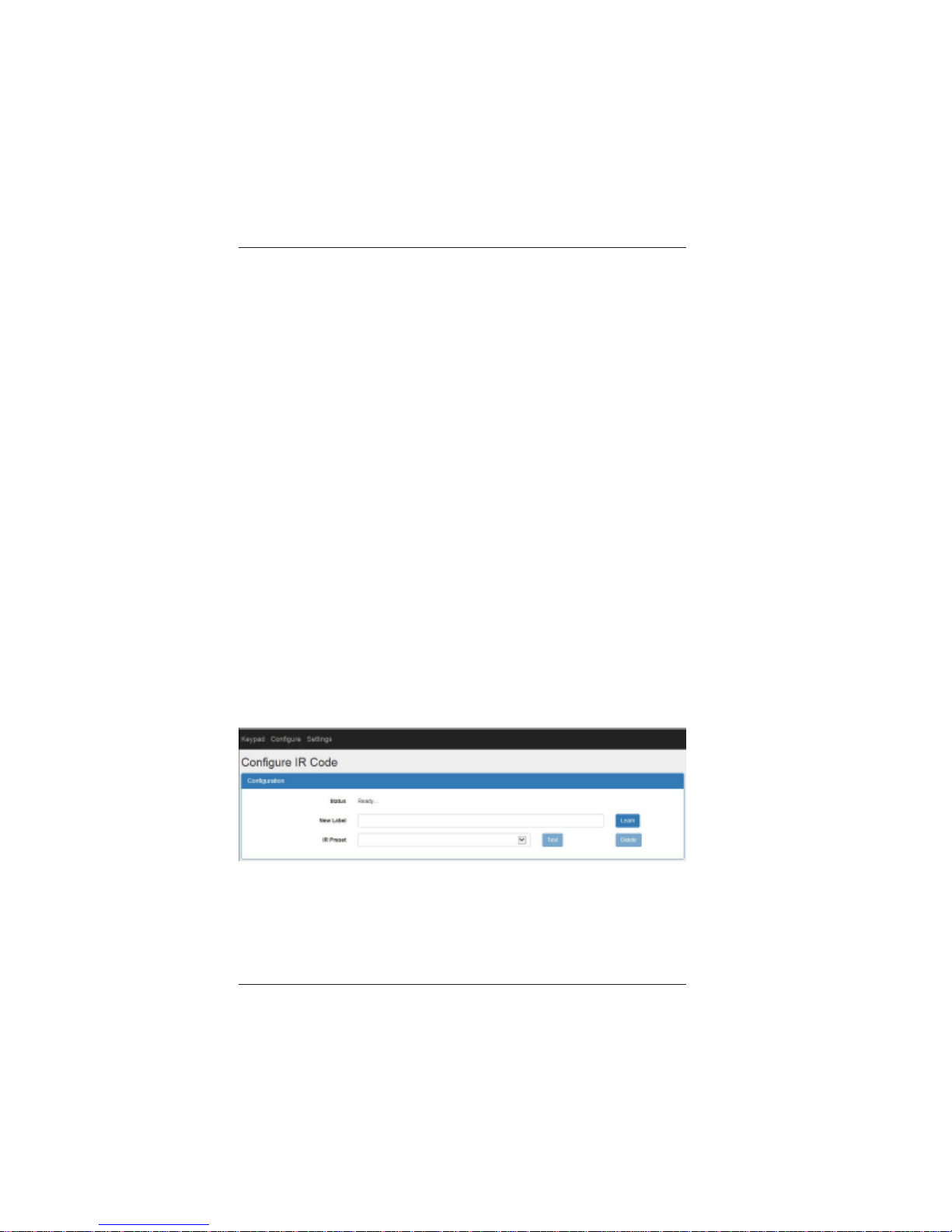

IR Preset: Select from list of IR commands stored in memory. IR

commands must be learned via Configure IR Code page or imported
via Configure IR Import page.

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

29

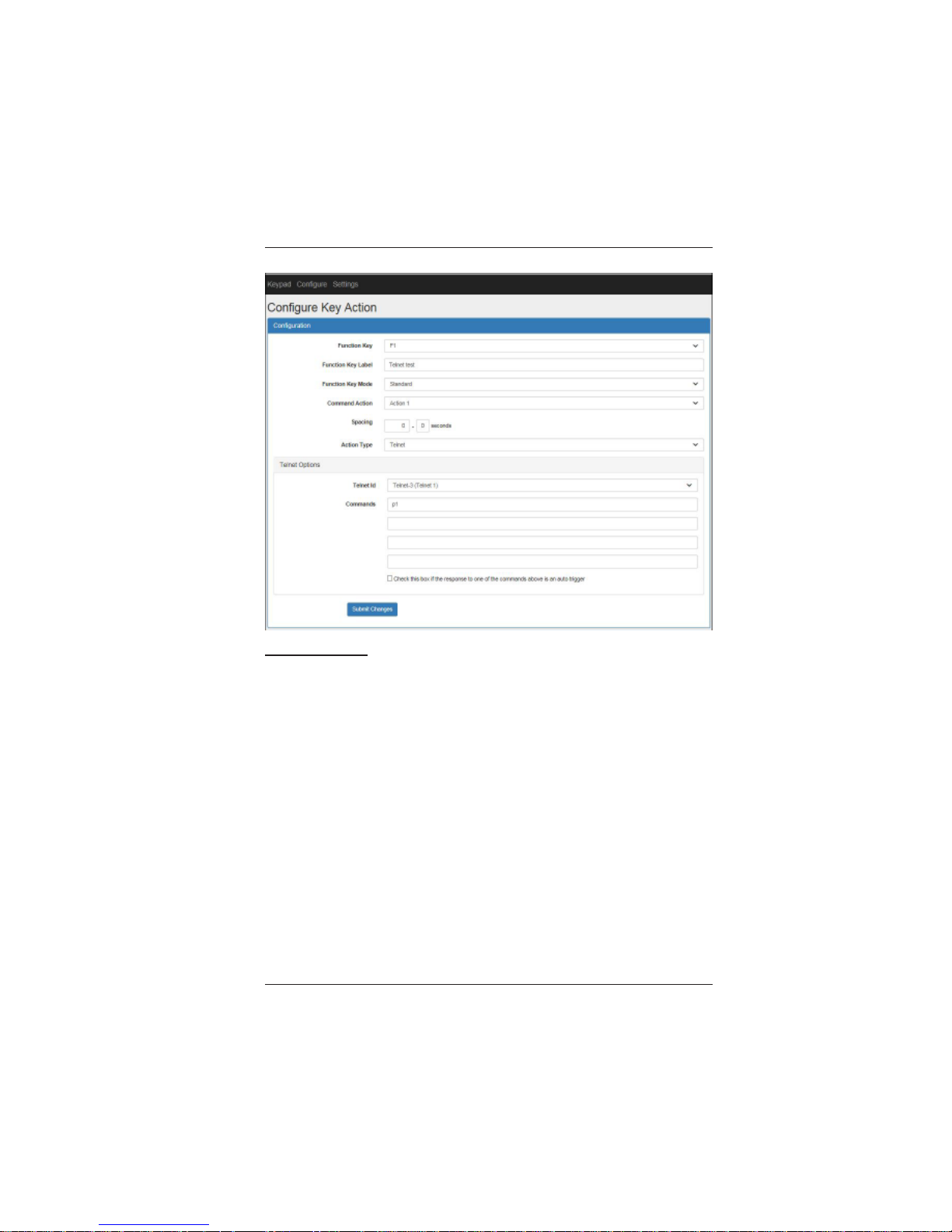

Telnet Options
T elnet ID: Select the telnet connection desired for telnet actions. The

connections defined in Configure Telnet Connections page appear in
this menu.

Commands: Enter the command strings to be transmitted. Up to 4
different command strings can be defined.
Select the check box if the response to one of the commands is to be
used as an auto trigger.

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

30

Keypad Action
Action: Select Press, Release or Release All T oggle Buttons
Press: This action presses the key selected in Key Number menu. All

associated actions for the key press state will be executed.
Release: This action releases the key selected in Key Number menu.

All associated actions for the key release state will be executed.
Release All Toggle Buttons: This action sets all toggle keys to the

release state without executing any actions.
Key Number: Select a key number for the selected keypad action.

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

31

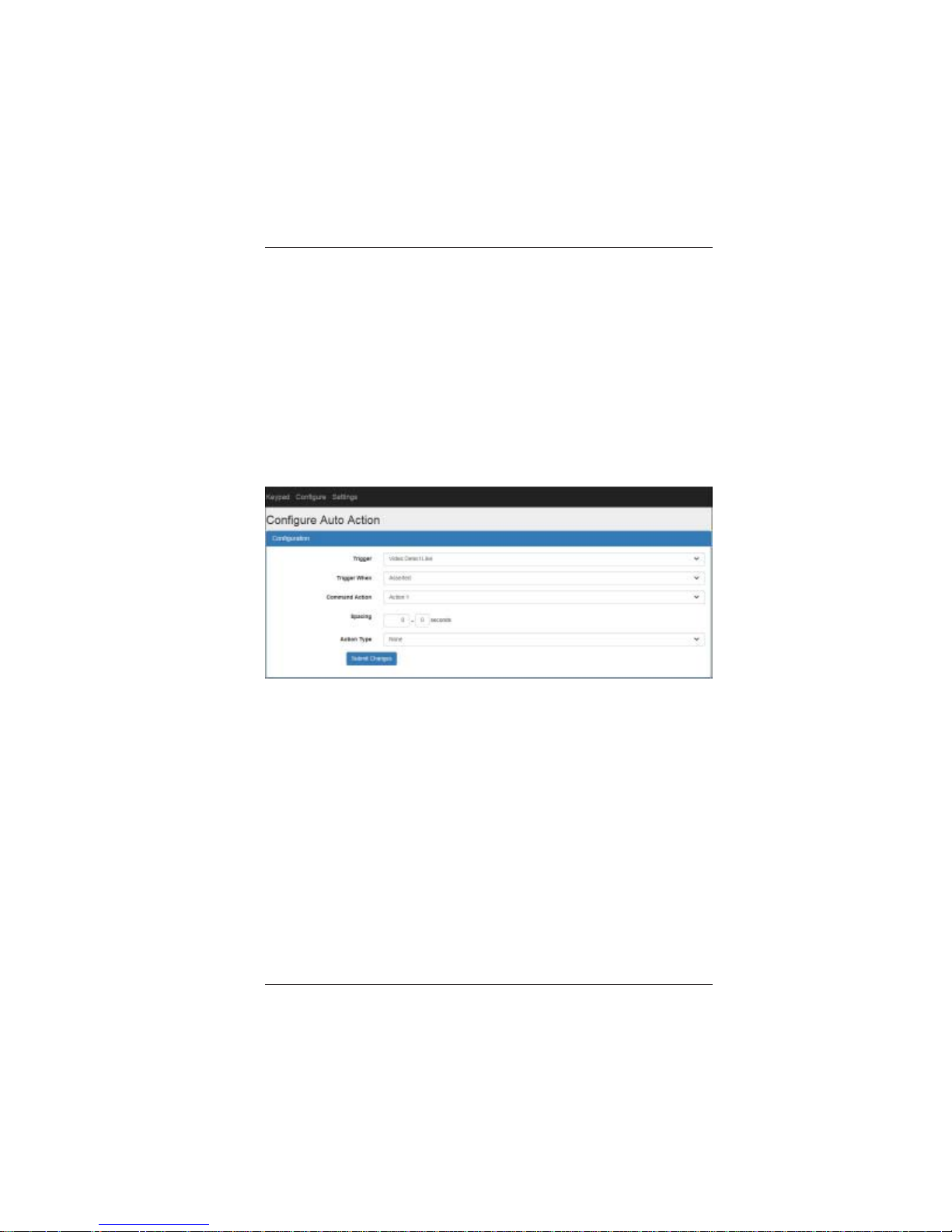

Configure Auto Action

The Configure Auto Action page is used to configure a set of auto
actions based on a selected trigger. Available triggers are Video Detect,
Digital Input 1, Digital Input 2, RS-232 Channel 1, RS-232 Channel 2,
T elnet T rigger 1 and T elnet Trigger 2. The available actions are Relay,
RS-232, IR and Telnet. Digital Output actions are only available if
Digital IOs are configured as outputs in the Configure System page.
All auto triggers work independently and can be triggered simultaneously .

On the top menu click Configure and then click Auto Actions. The
following page will be displayed:

Trigger: Select the auto action trigger. Available triggers are Video
Detect, Digital Input 1, Digital Input 2, RS-232 Channel 1, RS-232
Channel 2, T elnet Trigger 1 and T elnet T rigger 2.

Trigger When: For Digital Input s, select High for the High signal trigger.
Select Low for the Low signal trigger . For the Video Detect Line, the
trigger options are Video Detect Line Asserted or De-asserted. For
RS-232 triggers, enter the trigger string. Up to 2 trigger strings can be
defined for each RS-232 channel. For T elnet triggers, select the telnet
trigger and enter the trigger string. Up to 2 trigger strings can be
defined for each Telnet trigger.

Note: A telnet trigger needs to be associated with one or more telnet
actions. The check box under the Commands box in Configure Key
Action, Telnet Options panel must be selected.

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

32

Allow delayed actions checkbox: Select this box to allow a set of
delayed actions to be overridden by the opposing trigger. For example:
video detect asserted trigger overrides video detect de-asserted trigger
actions.

Refer to the Configure Key Action sections for the descriptions of
action types.

Configure IR Code

The Configure IR Code page is used to learn and manage IR codes in
the ICP. To learn an IR code, type in the label of the IR code in New
Label and click the Learn button. Once IR Learn mode is initiated, the
user needs to present an IR signal to the IR receiver port within 30
seconds. If a valid IR code is not presented within 30 seconds, the IR
learn process will timeout and the process will need to be re-initiated.
After an IR code is learned successfully , it will be stored in memory and
appear in the IR Preset drop down menu. To test a learned IR code,
select the IR code from the IR Preset menu and click Test button.
Verify that the IR code works correctly on the target device. To delete
an IR code from the IR Preset menu, select the desired IR code and
click the Delete button.

On the top menu click Configure and then click IR Code. The following
page will be displayed:

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

33

Configure IR Code Import

The Configure IR Code Import page is used to import an IR pronto
code. Once a code is imported, it will be stored in memory and is
available as an IR Preset. It can be tested in the Configure IR Code
page.

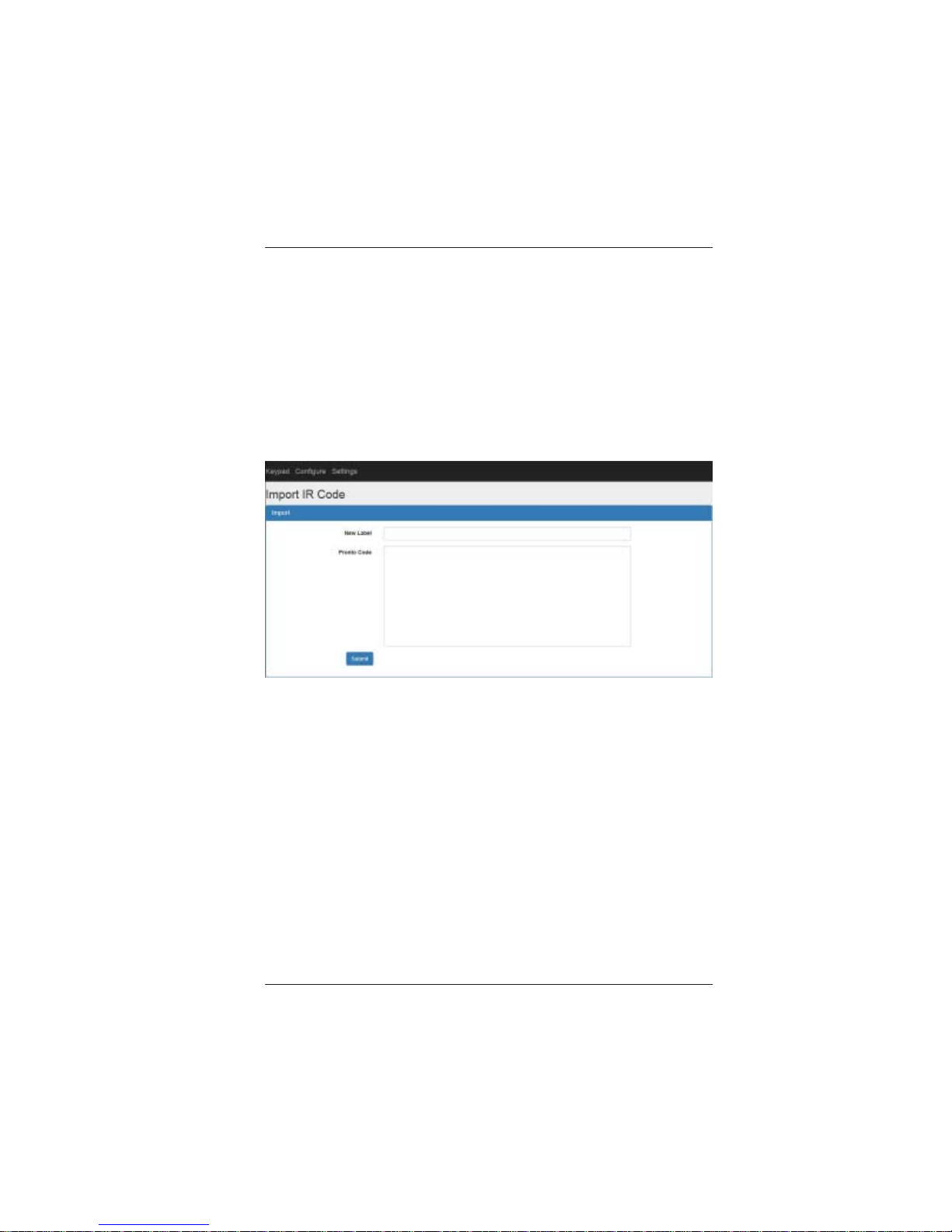

On the top menu click Configure and then click IR Code Import. The
following page will be displayed:

New Label: Enter a label for the IR code.
Pronto Code: Enter the pronto code to be imported.

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

34

Configure T elnet Connections

The Configure T elnet Connections page is used to setup the telnet
connections for telnet key actions and auto actions. The 2 telnet
connection types are Persistent and Action. The Persistent connection
is a permanent telnet connection between the ICP and the remote device.
This type of connection is typically used for monitoring telnet status
messages for the purpose of triggering auto actions. The Action
connection is a temporary telnet connection. This type of connection is
typically used for normal telnet actions.

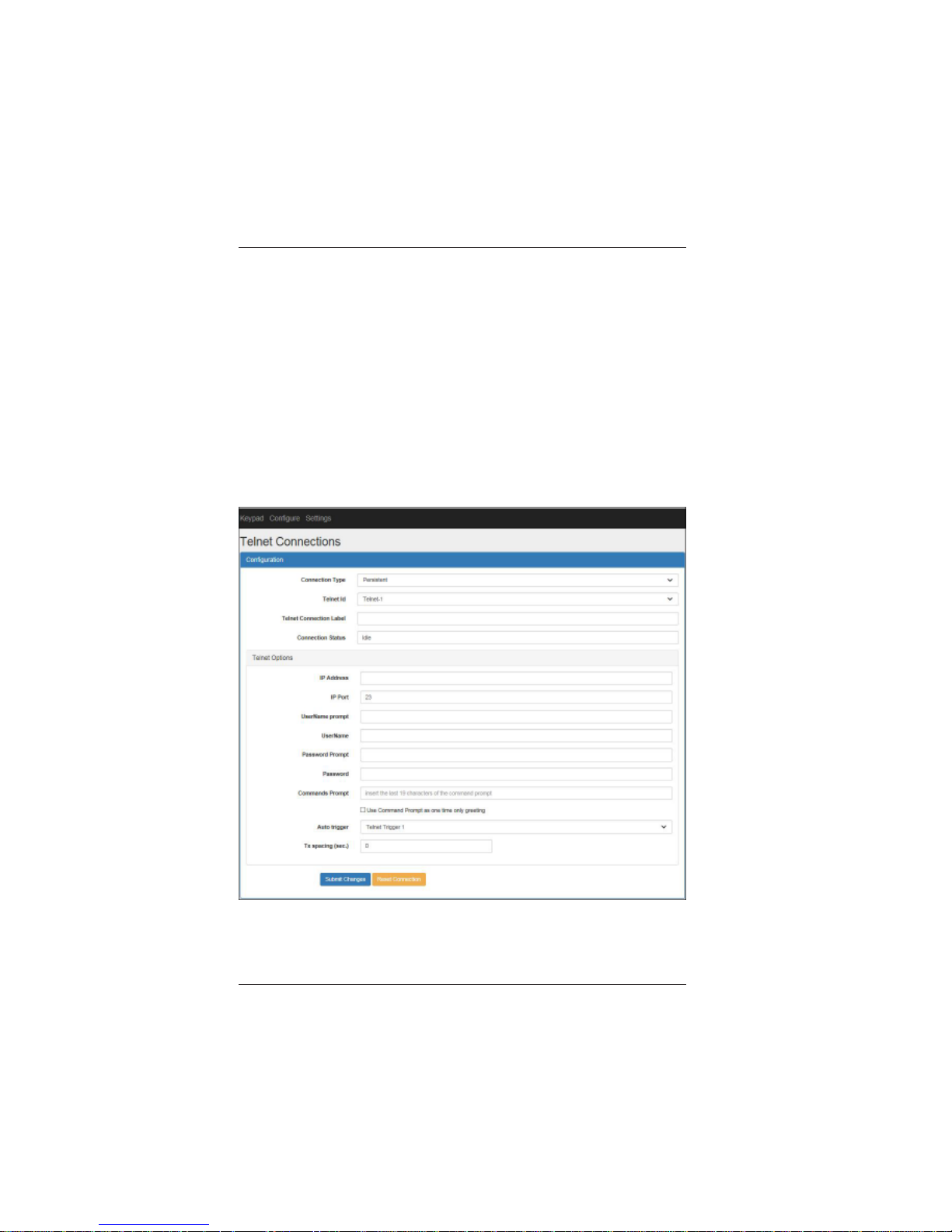

On the top menu click Configure and then click T elnet Connections.
The following page will be displayed:

Connection Type: Select Persistent or Action.
Telnet ID: Select Telnet-1 or Telnet-2.

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

35

T elnet Connection Label: Enter a label for the telnet connection.
Connection Status: This box shows the status of a persistent

connection.

Telnet Options
IP Address: Enter IP address of telnet server.

IP Port: Enter port number of telnet server . The default port number is

23.
UserName Prompt: Enter username prompt from telnet server. Leave

blank if there is no username prompt.
UserName: Enter user name required for log in. Leave blank if there

is no username.
Password Prompt: Enter password prompt from telnet server . Leave

blank if there is no password prompt.
Password: Enter password required for log in. Leave blank if there is

no password.
Command Prompt: Enter command prompt from telnet server. Only

the last 9 characters of the command prompt are needed. Leave blank
if there is no command prompt.
Note: Select check box below if string is used as a one-time only
greeting.

Auto Trigger: Select T elnet Trigger 1 or T elnet T rigger 2. This selection
associates the telnet connection with T elnet Trigger 1 or T elnet T rigger
2 used in Auto Actions.

Tx Spacing: Enter the delay (seconds) before command is transmitted
in Telnet Actions. Enter 0 if no delay is desired.

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

36

View and Manage Settings

The View and Manage Settings page shows the current settings of
the Key Action Definitions, Auto Action Definitions and IR Code
Definitions. Click the Details button next to Key Action Definitions to
display the Key Action settings det ails. Click the Details button next to
Auto Action Definitions to display Auto Action settings details. Click the
Details button next to IR Code Definitions to display the IR Code details.
ICP settings are saved to a file on the local PC using the Save Settings
button. ICP settings are restored from a file using the Restore Settings
button.

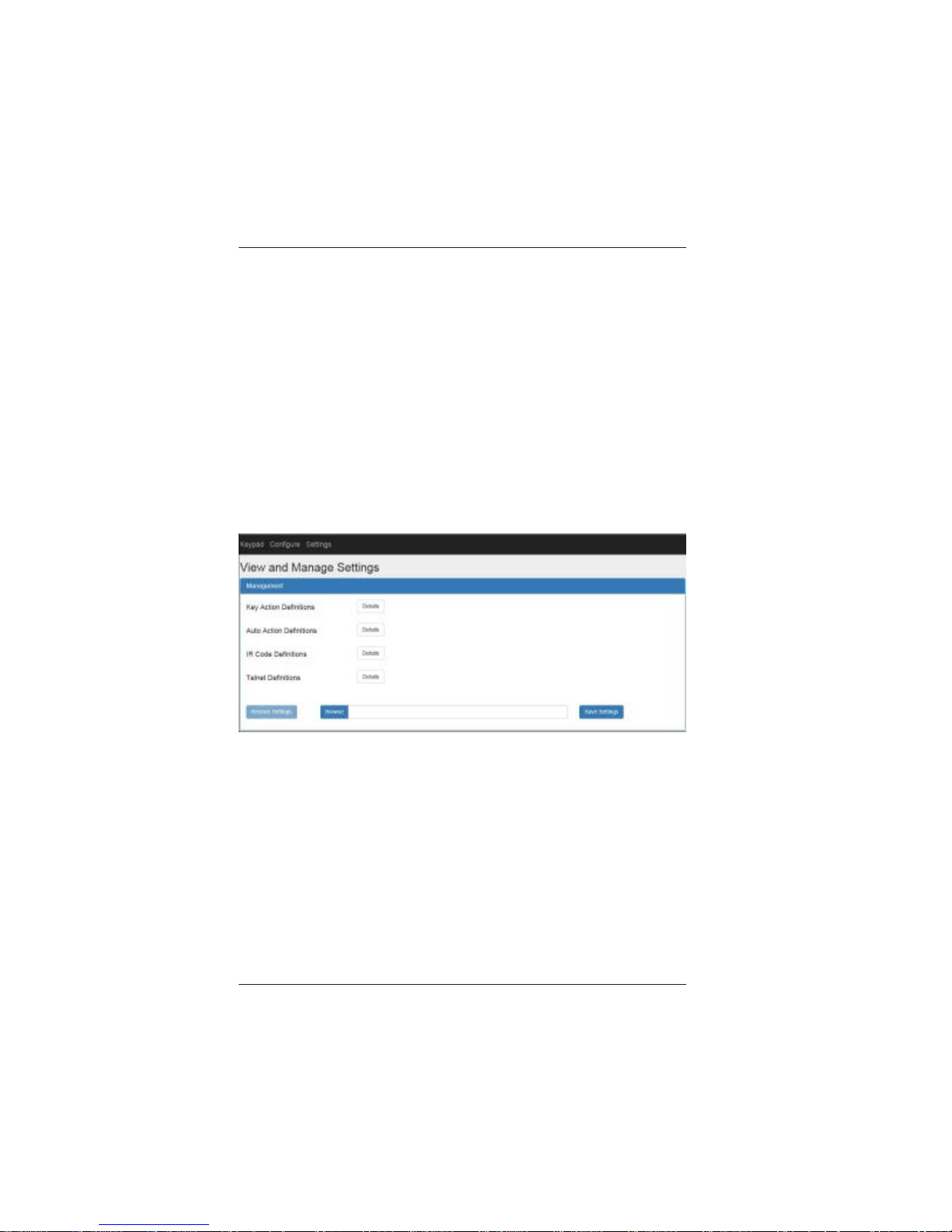

On the top menu click Settings and then click View and Manage
Settings. The following page will be displayed:

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

37

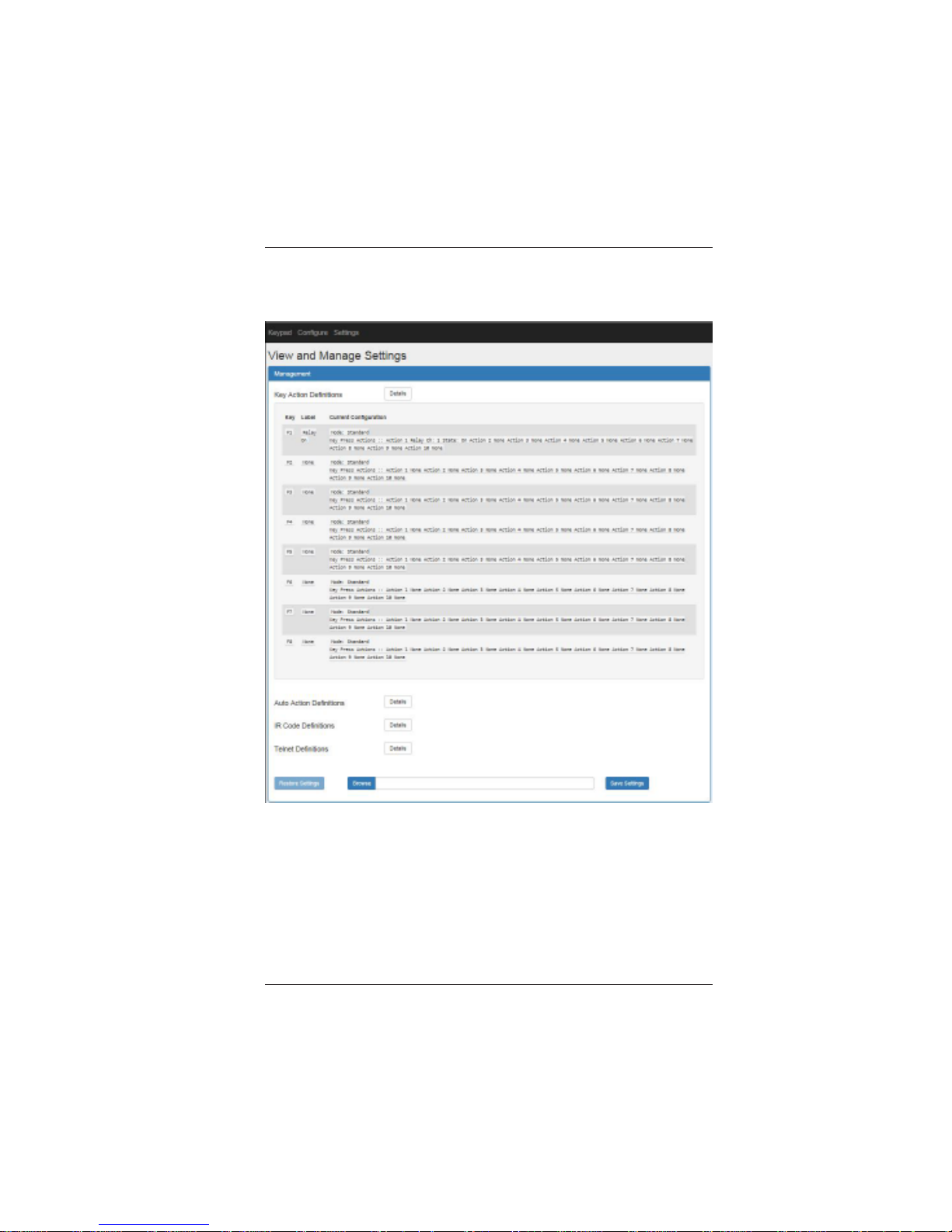

Click the Key Action Definitions Details button and the following will
be displayed:

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

38

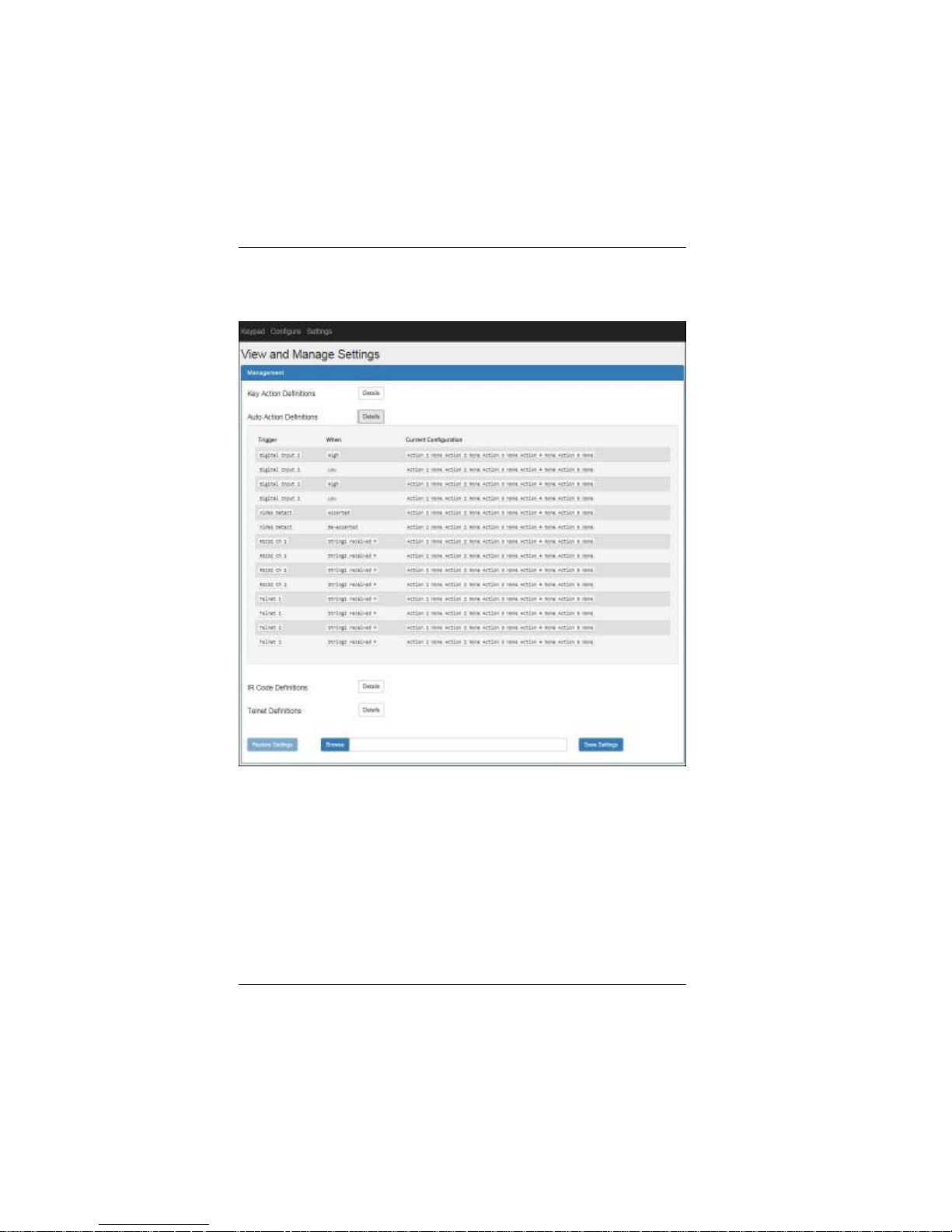

Click the Auto Action Definitions Det ails button and the following will
be displayed:

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

39

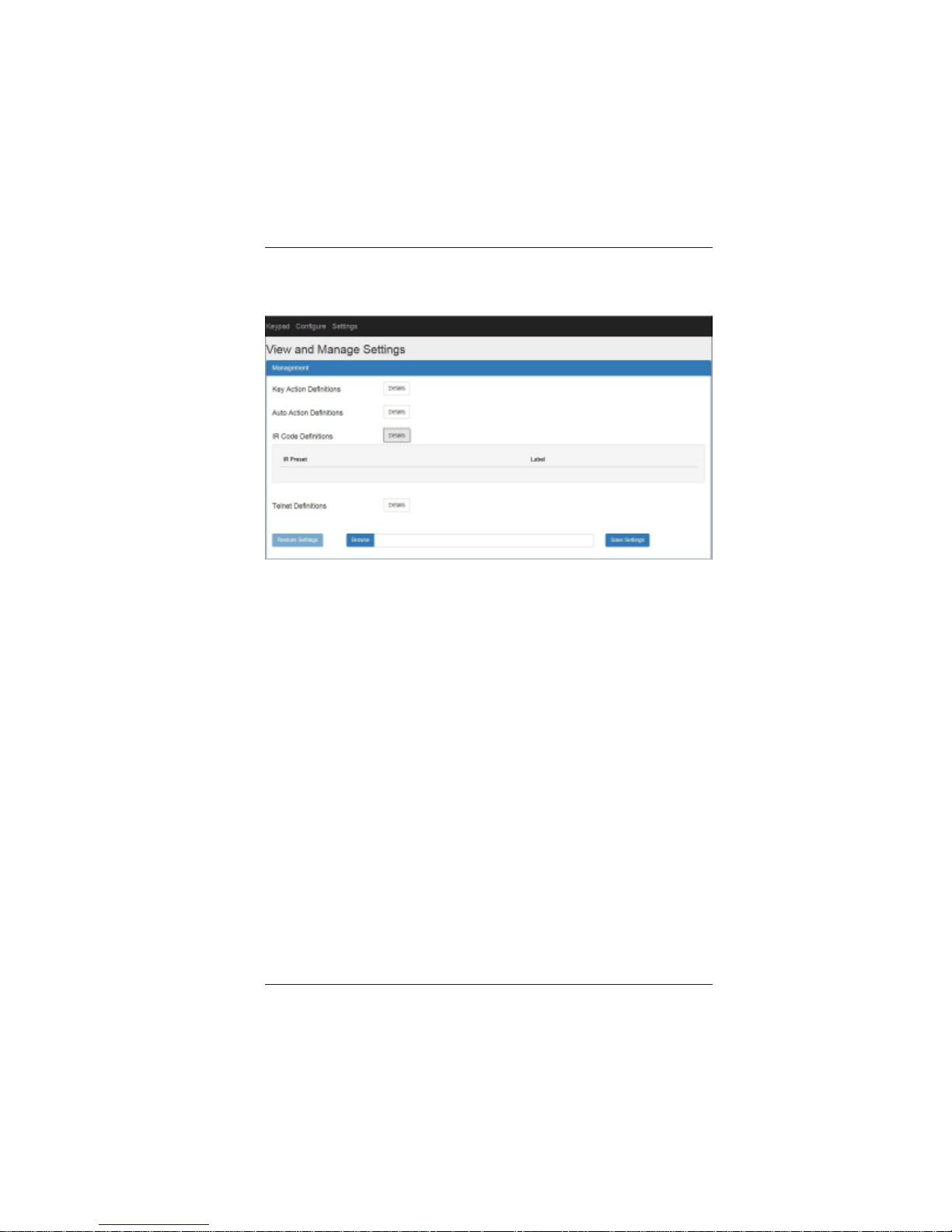

Click the IR Code Definitions Details button and the following will be
displayed:

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

40

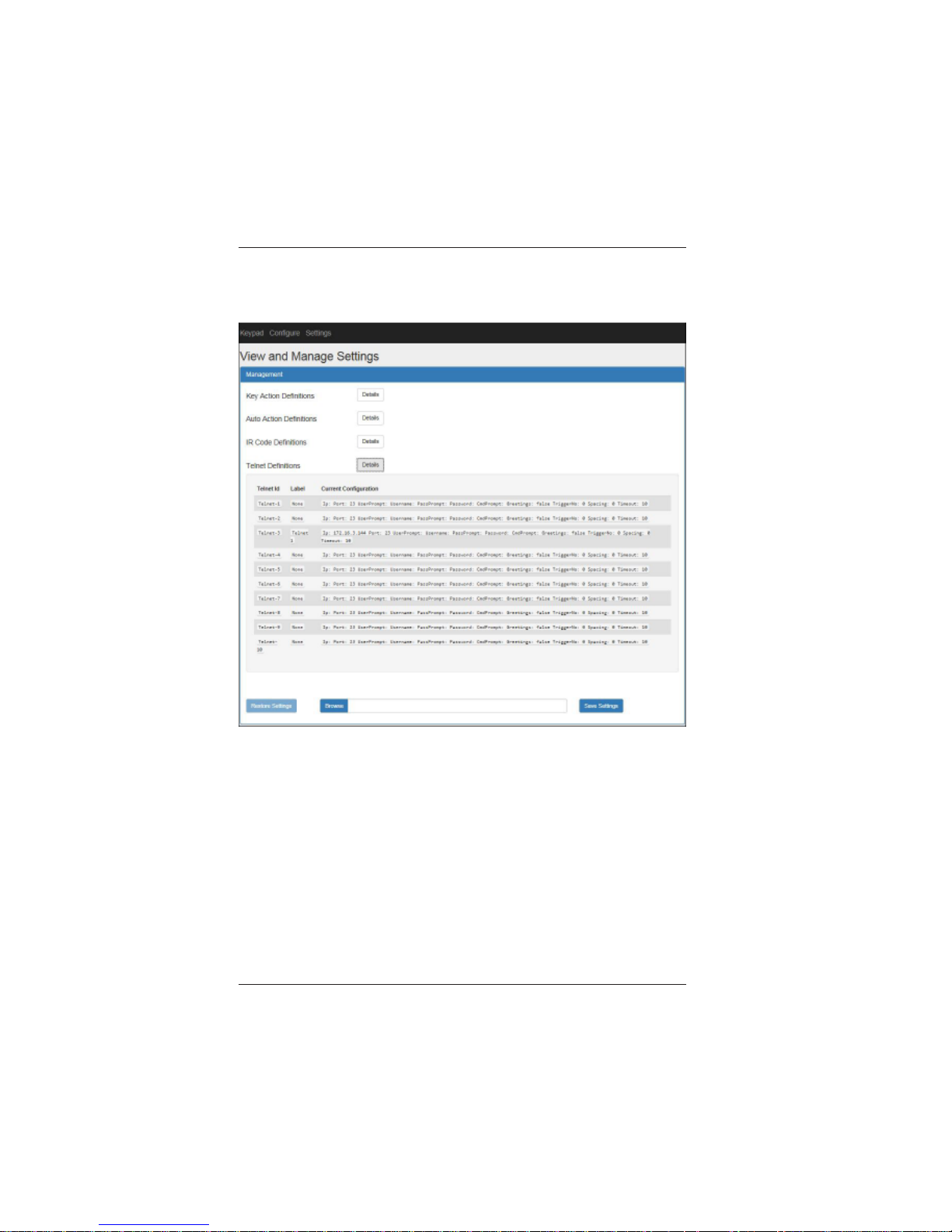

Click the Telnet Definitions Details button and the following will be
displayed:

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

41

Examples

Example #1: This example configures the F1 key on the virtual keypad
as a toggle key to turn on/off Relay channel 1.

On the top menu click Configure and then Key Action.
Configure F1 Key toggle-press action, to turn Relay channel 1 On as

follows:

Click Submit Changes.

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

42

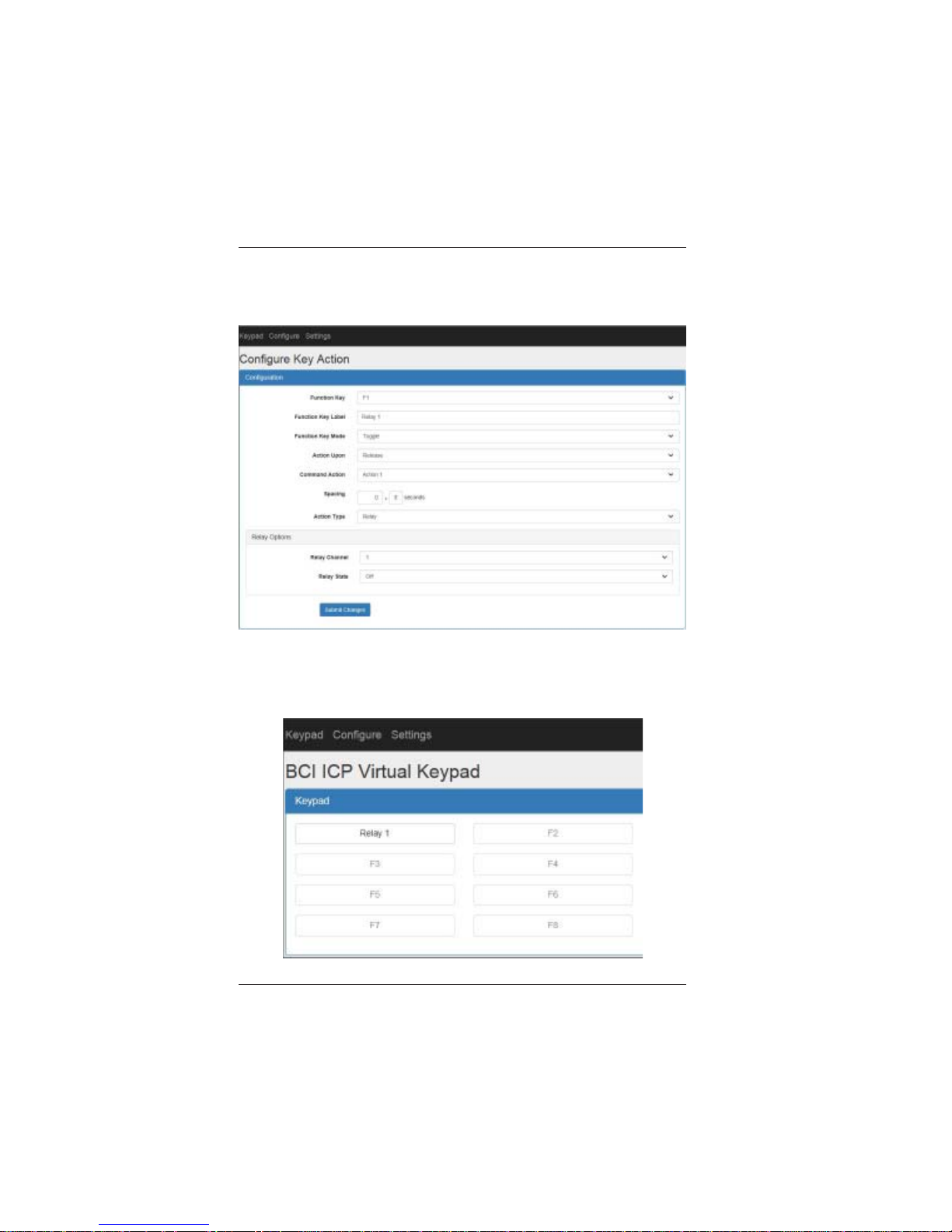

Configure F1 Key toggle-release action, to turn Relay channel 1 Off as
follows:

Click Submit Changes.
On the top menu click Keypad. The following virtual keypad should be

displayed:

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

43

6.0 SPECIFICATIONS

Video (Transmission)

HDMI Up to 1080p@60Hz or 1920x1200@60Hz
Connector HDMI Female Plug
Protocols DDC/EDID/HDCP Capable

Supported Resolutions

Resolution V ertical Refresh Rate (Hz)
640x480 60
800x600 60
1360x768 60
1280x720 60
1280x800 60
1280x1024 60
1440x900 60
1400x1050 60
1680x1050 60
1600x1200 60
1920x1200 60
720x480p 60
1280x720p 60
1920x1080i 60
1920x1080p 60
1720x576p 50
1280x720p 50
1920x1080i 50
1920x1080p 50

Network LAN

Data Rate 100Mbps
Connector RS-45

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

44

IRInfrared

Data Rate 30-50KHz
In/Out Connectors 3.5mm stereo

Serial Control RS-232

Data Rate Up to 57.6kbaud
Connector DB9 Serial

HDBT (Transmission)

Cable T ype CAT-5e/6 or higher
Number of Cables 1

Connector/Distance RJ-45/Up to 100m
Ethernet (Control)

Channel Capacity 1
Connector Female RS-45 (integrated activity and link

LEDs)

Data Rate 10/100Base-T , half/full duplex with

autodetect

Protocols DHCP, HTTP , TCP/IP, UDP/IP , AUTOIP,

Telnet

RS-232 (Control)

Channel Capacity 2 (no flow control) or 1

(with RTS/CTS flow control)

Baud Rate 2400 to 115200 baud (9600 baud=default),

8 data bits, 1 stop bit, no parity

Connector Terminal block

Digital I/O (Control)

Channel Capacity 2 digital input/output (configurable)
Digital Input Input voltage range: 0 to 5 VDC

Programmable pullup: 2.2k ohms to
+5 VDC
Threshold low to high: 2 VDC
Threshold high to low: 0.8 VDC

Digital Output Output voltage high: 3 VDC min

Output voltage low: 0.55 VDC max (64 mA
sink max)
Programmable open collector

Connector Terminal block

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

45

IR (Control)

Channel Capacity 1 in and 1 out
Connector 3.5mm jack (for IR blaster)
Carrier Frequency 30 kHz to 60 kHz (Output)

30 kHz to 60 kHz (IR learning)

IR Learning 2 inches captive distance from panel

Relay (Control)

Channel Capacity 2 normally open/normally closed relays
Relay Contact Rating 24 VDC, 1A
Connector Terminal Block

Physical

Dimensions 1 0 . 0 0” (W ) x 7.62” (D) x 1.12” (H)
Power Consumption 24 VDC @ 1.25A
Operating Temperature0 to 50o C
Humidity 0 to 95%, non-condensing

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

46

7.0 SERVICE PROCEDURE

7.1 Replacement Policy

Standard products found defective on arrival (DOA) will be
replaced, based on availability , within 24 to 48 hours anywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.

7.2 Return/Repair Service

The Link Bridge LBC-H-R-SCL-ICP System contains no user
serviceable components. If you have a problem with your unit,
please contact the Customer Service Department. To facilitate
our return/repair processing please contact Broadata
Communications, Inc. to obtain a Return Material Authorization
(RMA). Please include the following information:

• Product model number

• Serial Number

• Complete description of problem

• Hardware installation description

Broadata Communications, Inc.

2545 West 237th Street, Suite K

Torrance, CA 90505

1-800-214-0222

[phone]

[phone] (Facsimile)

e-mail: [e-mail]

Website: www.broadatacom.com

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

47

8.0 LIMITED WARRANTY

Broadata Communications, Inc. (BCI) warrants, for a period of one
year from date of shipment, each product sold shall be free from defects
in material and workmanship. BCI will correct, either by repair, or at
BCI’s election, by replacement, any said products that in our sole
discretion prove to be defective and are returned to the manufacturing
location within 30 days after such defect is ascertained. All warranties
are limited to defects arising under normal use and do not include
malfunctions or failure resulting from misuse, abuse, neglect, alterations,
electrical power problems, usage not in accordance with product
instructions, improper installation, or damage determined by BCI to
have been caused by the Buyer or repair made by a third party . Limited
warranties granted on products are to the initial customer end-user and
are not transferable. OUR LIABILITY UNDER THIS W ARRANTY SHALL
IN ANY CASE BE LIMITED TO THE INVOICE VALUE OF THE
PRODUCT SOLD AND BCI SHALL NOT BE LIABLE TO ANYONE FOR
CONSEQUENTIAL OR INCIDENT AL DAMAGES ARISING FROM THE
USE OF ITS PRODUCTS OR THE SALE THEREOF. We make NO
WARRANTY AS TO THE MERCHANTABILITY OF ANY GOODS, OR
THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE OR END
APPLICA TION NOR DO WE MAKE ANY WARRANTY, EXPRESSED
OR IMPLIED OTHER THAN AS STATED ABOVE.

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

48

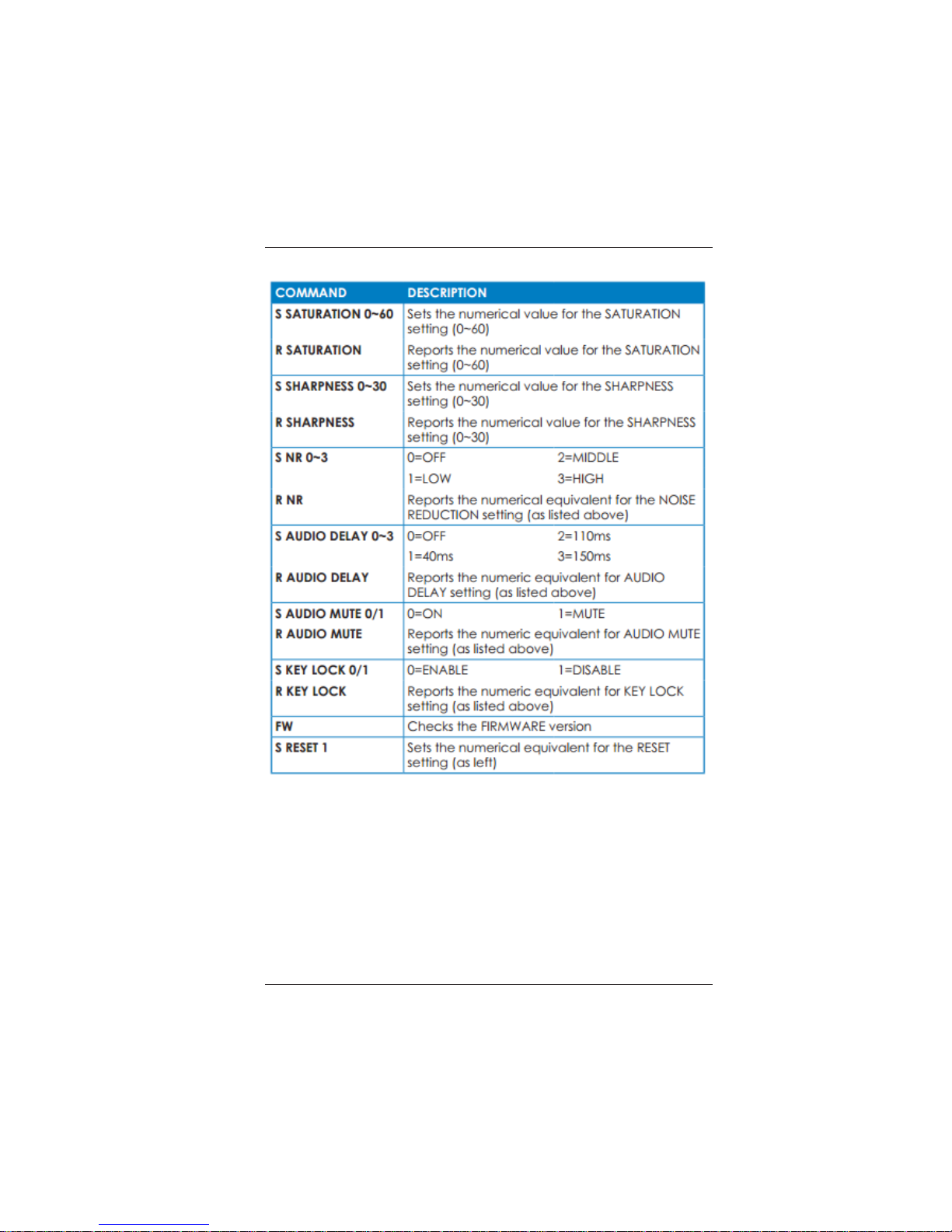

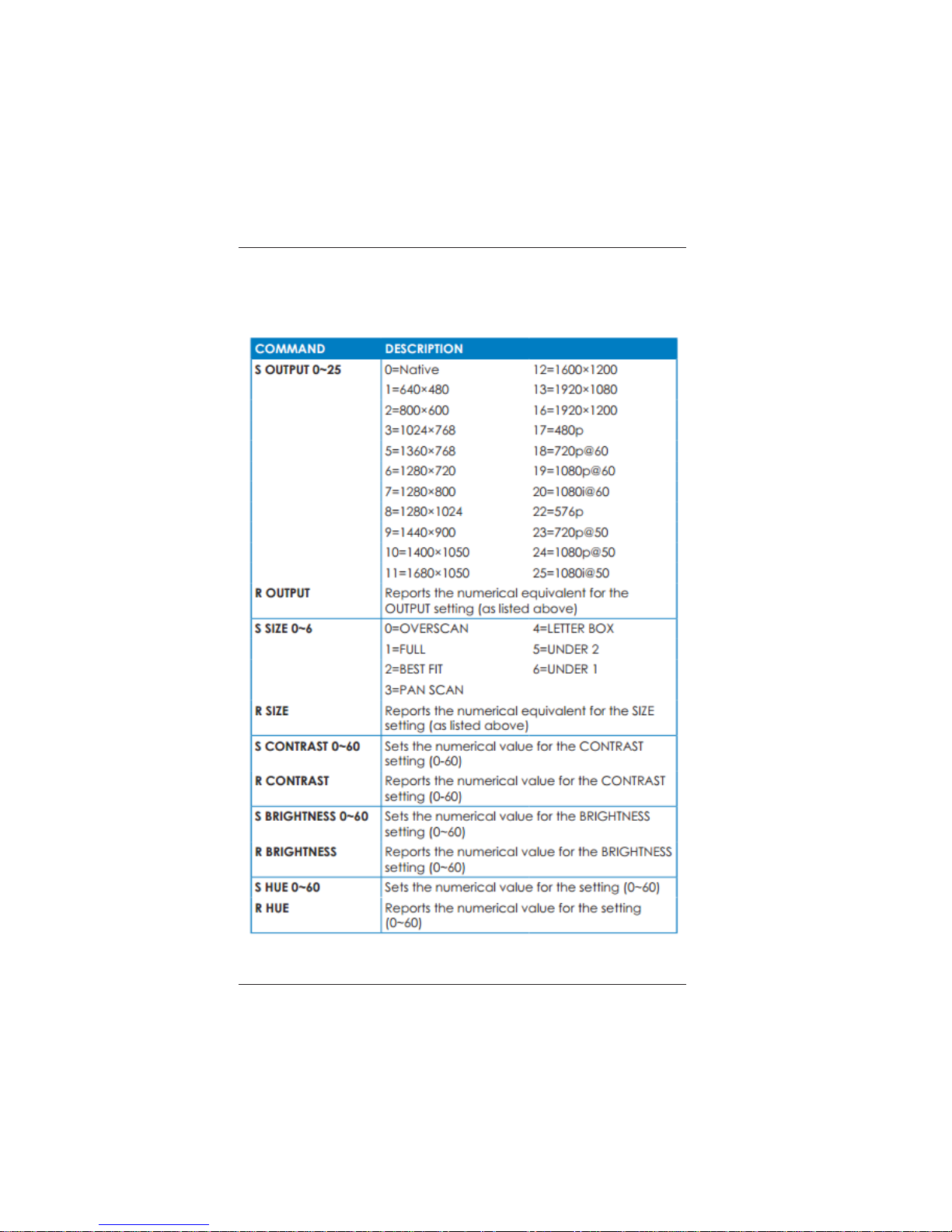

9.0 APPENDIX: RS-232 COMMANDS FOR SCALING
RECEIVER

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

49

Note:

1. RS-232 commands will not execute unless followed with carriage
return and LF (Line Feed).

2. Commands are not case-sensitive

3. Resolutions 1~16 are RGB encoded and 17~25 are YUV
encoded.

4. Digital audio supports LPCM 2CH only , please ensure the source
input audio is set to send LPCM 2CH audio in order to avoid
unwanted audio noise.

LBC-H-R-SCL-ICP User Manual
Link Bridge

TM

HBaseT Receiver with Inline Control Processor

Broadata Technical Support, [phone]

50

LBC-H-R-SCL-ICP User Manual

Link Bridge

TM

HBaseT HDMI Receiver with Inline Control Processor

Broadata Technical Support, [e-mail]

51

Broadata Communications, Inc.

2545 West 237th Street, Suite K

Torrance, CA 90505

1-800-214-0222

[phone]

[phone] (Facsimile)

e-mail: [e-mail]

Website: www.broadatacom.com

60000-LBCHRSCLICP
