1.0 PRODUCT DESCRIPTION

The LBC-H-R-DOP receiver accepts from the transmitter unit the signal of resolutions up to 1080p Full HD, 4Kx2K timing, 3D and multi-channel digital audio formats and sends to two HDTV outputs. The HDMI can be connected to HDMI display for instant nearby display and the CA T-5e/6/7 can be connected to CAT5e/6/7 to HDMI transmitter for a distance of up to 100 meters with Bidirectional PoC feature. Further, a total of 100Mbps Ethernet transmission rate allows all connected devices to share the Ethernet service and Bi-directional PoC provides PoC to the transmitter, or received from compatible PoC transmitter through CAT-5e/6/7.

Features

• Extend HDMI Signals up to 100 meters Over One CAT-5e/6 Cable with dual video output

• Supports Full HDTV Video Resolutions up to 4K2K@30Hz

• Fully Uncompressed Video & Audio Provides Zero Loss of

Quality

• Supports True DDC/EDID/HDCP T ransmission

• Video/Audio+IR+Data+Ethernet, Over 1 CAT-5e/6 Cable

• Two-way 24V/POC Remoting Power

• HDMI 1.4 and HDCP 2.2 compliant

• Supports both RS232 and IR Control Data

Page 5

LBC-H-R-DOP User Manual Link Bridge

HDBaseT HDMI Receiver w/Dual Video Output

Broadata Technical Support, (800) 214-0222

2.0 OPERA TION CONTROLS AND FUNCTIONS

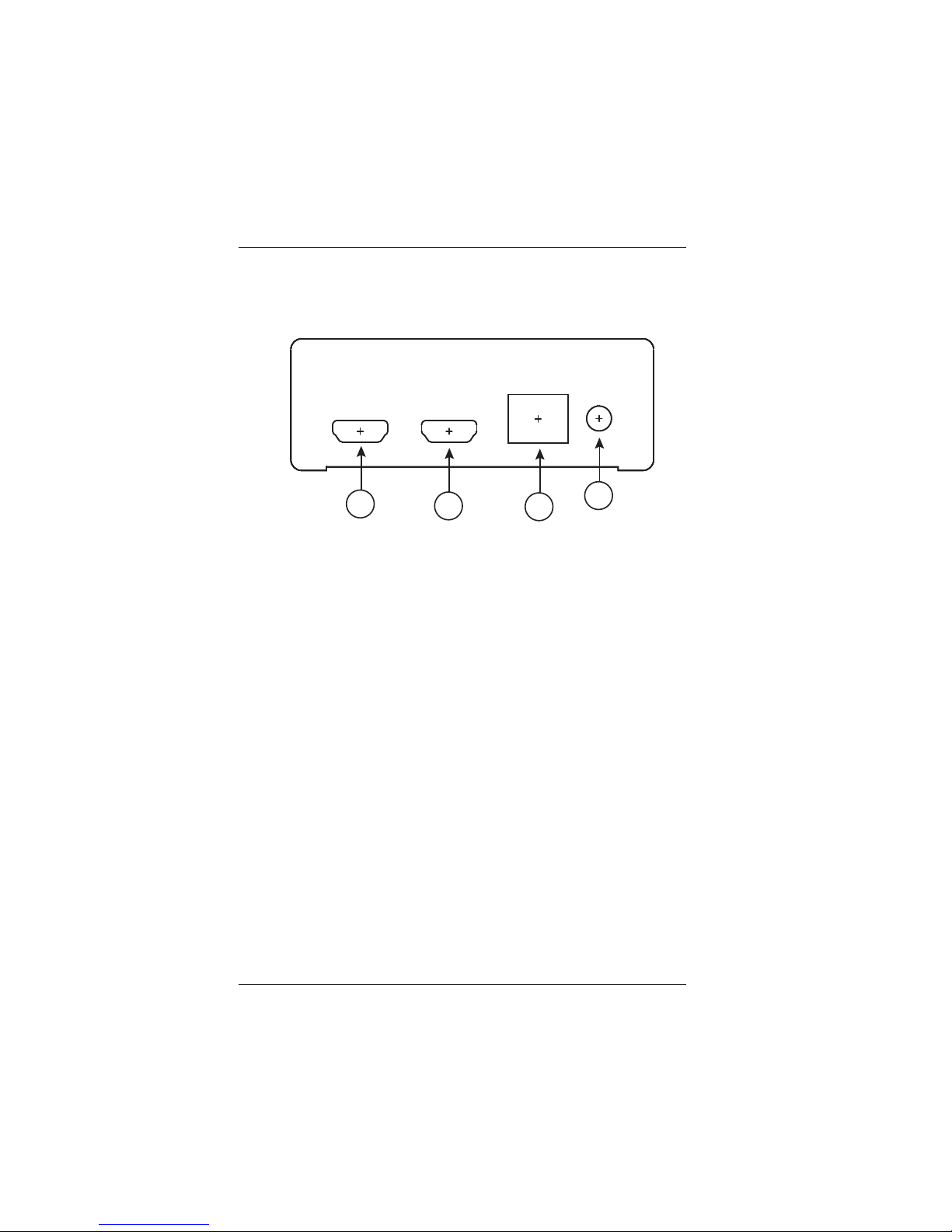

2.1 Front Panel

1. HDMI OUT 1 & 2: Connect to HDMI displays for instant image

display or cascade with another family type transmitter. The unit will detect HDMI OUT 1’s EDID when it obtain a 4Kx2K EDID and send out the signal accordingly to other output ports. If HDMI OUT 1’s EDID is without a 4Kx2K’s EDID the unit will detect all output’s EDID and send out the signal that all output can accept.

This device obtains the last memory function therefore, the device will use the last HDMI OUT 1’s EDID when HDMI OUT 1 is not connected to a display after power cycling or switch in between the EDID setting.

2. LAN: Connect to intranet or internet service system for a total sharing rate of 100Mbps within the link of Receiver.

Warning: DO NOT connect this slot with any of the CA T-5e/6/7 port, doing so may trigger a power shot down and ruin the device.

3. RS-232 OUT: Connect to a RS-232 enabled device (with supplied 3.5mm Phone Jack to D-Sub 9-Pin male adaptor) for transmit of RS-232 commands.

HDMI OUT 1 HDMI OUT 2

LAN

RS-232 OUT

CAT5e/6/7 to HDMI with LAN/IR/RS-232 Receiver

Page 6

LBC-H-R-DOP User Manual

Link Bridge

HDBaseT HDMI Receiver w/Dual Video Output

Broadata Technical Support, [email protected]

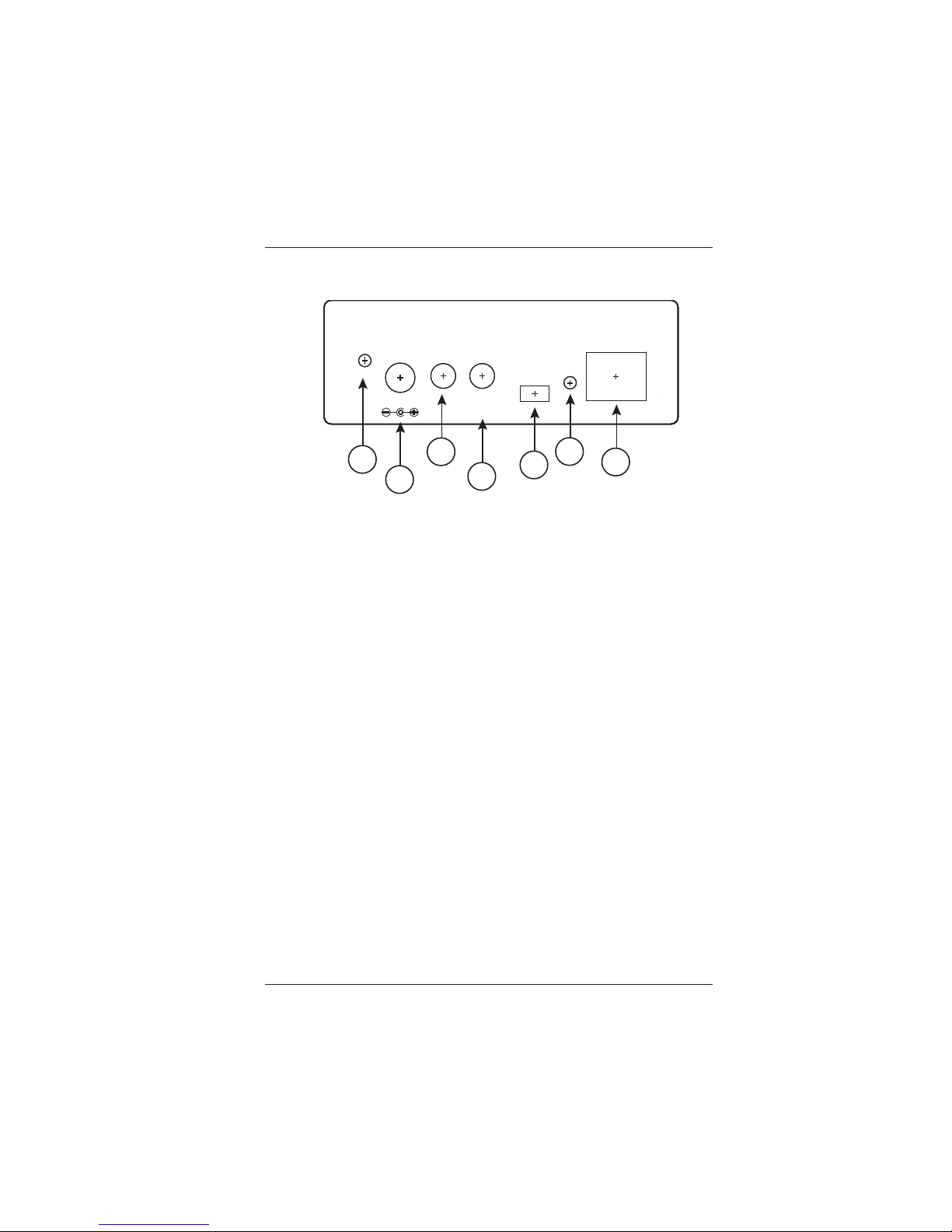

2.2 Rear Panel

1. POWER LED: Once the power supply is connected the LED

will illuminate.

DC 24V: Plug the 24V DC power supply into the unit and connect

the adaptor to an AC outlet.

IR 2 BLASTER: Connect to the supplied IR Blaster cable for IR

signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled.

IR 1 EXTENDER: Connect to the supplied IR Extender cable

for IR signal reception. Ensure that remote controller being used is within the direct line-of- sight of the IR Extender.

USB: This port is reserved for firmware update only.

LINK LED: The link LED will illuminate when both the input source

and output display signals are connected through CAT cable. When it blinks regularly it states the display is NOT sending signals to Receiver but the Transmitter and Receiver are linked and if it blink irregularly it states an error has occurred.

CAT-5e/6/7 IN: Connect this port to HDMI to CAT-5e/6/7

Transmitter (with or without PoC function) with CA T -5e/6/7 cable to extend the signal up to 100m.

POWER

DC 24V

CAT5e/6/7 IN

IR 2

BLASTER

USB

LINK

IR 1

EXTENDER

Page 7

LBC-H-R-DOP User Manual Link Bridge

HDBaseT HDMI Receiver w/Dual Video Output

Broadata Technical Support, (800) 214-0222

3.0 SERIAL CONTROL

3.1 D-Sub Pin Assignment

1 2 3 4 5 6 7 8 9

Define TX/RX

N/C TxD/RxD RxD/TxD

N/C

GND

N/C

Page 8

LBC-H-R-DOP User Manual

Link Bridge

HDBaseT HDMI Receiver w/Dual Video Output

Broadata Technical Support, [email protected]

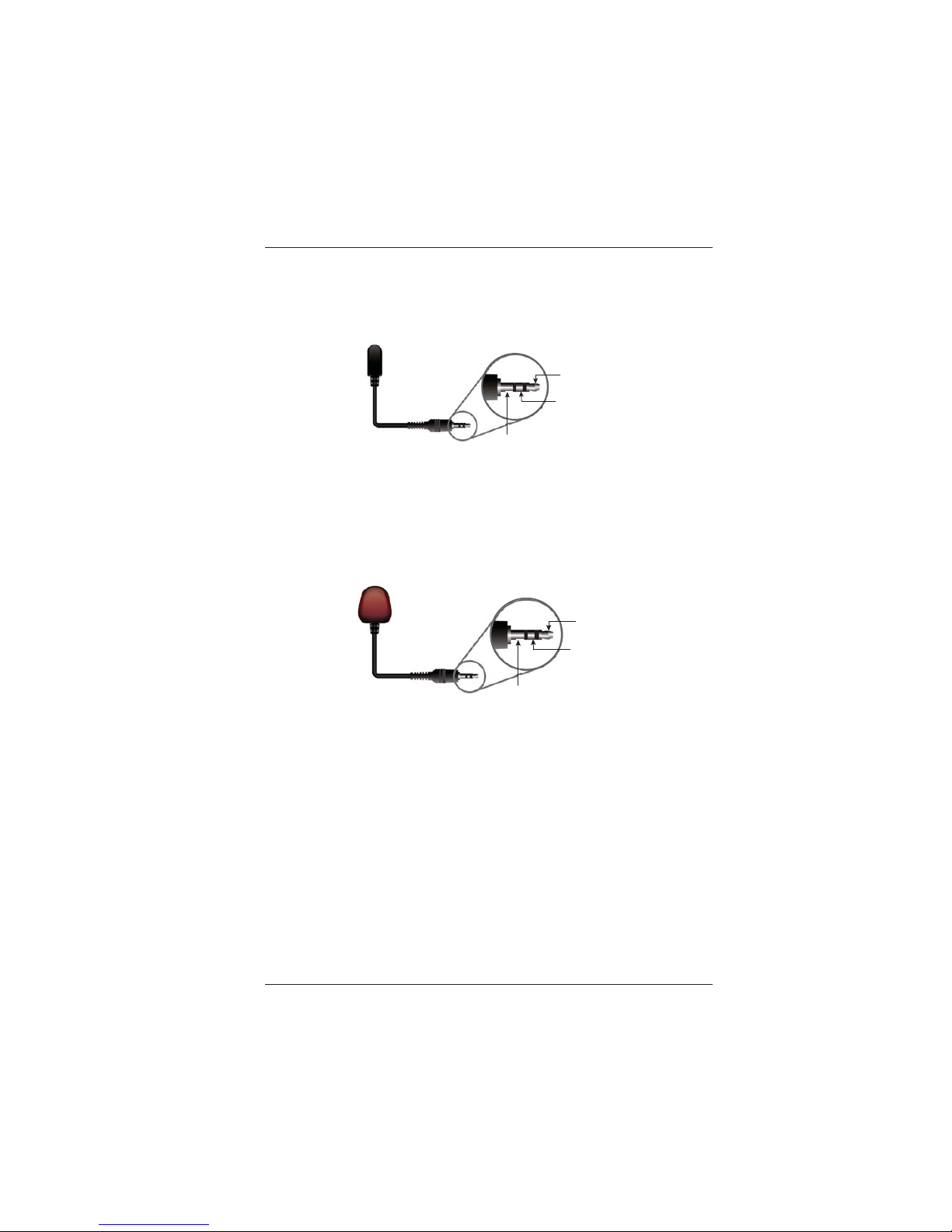

3.2 IR Blaster Cable Pin Assignment

3.3 IR Receiver Cable Pin Assignment

IR Blaster

Power 5V

IR Blaster Signal

IR Receiver

IR Signal

Power 5V

Grounding

Page 9

LBC-H-R-DOP User Manual Link Bridge

HDBaseT HDMI Receiver w/Dual Video Output

Broadata Technical Support, (800) 214-0222

4.0 MAINTENANCE AND TROUBLESHOOTING

4.1 Maintenance

There is no operator maintenance other then keeping the units clean. However, observe the following light indicators to make sure that the unit is working properly:

4.2 Troubleshooting

If the LBC-H-R-DOP units do not operate properly after installation, check for possible cable breaks, loose connections, and incorrect cable connections. If problems persist that may be fiber related, contact BCI at 1-800-214-0222 for further assistance.

For electrical problems, perform the following troubleshooting procedures:

1. If the POWER indicator is OFF , check for the following:

a. The line cord is plugged into the unit and your outlet

has power.

2. If the POWER indicator is ON, but the Link indicator is OFF, check for the following:

a. Make sure the appropriate cables are being used. b. Cable and cable connectors are not broken. c. For each unit, the transmit (TX) cable is connected to

the other unit’s receiver (RX).

3. If the POWER indicator and Link indicator are ON, but the channels are not operating, then:

a. Check to see that the attached user equipment is turned

on.

b. Both ends of the link are connected to the

corresponding equipment and to the same corresponding channel port.

Page 10

LBC-H-R-DOP User Manual

Link Bridge

HDBaseT HDMI Receiver w/Dual Video Output

Broadata Technical Support, [email protected]

c. Cable connections at both channels are securely

fastened to each connector. T urn the power of f, then back on to reset the link.

Page 11

LBC-H-R-DOP User Manual Link Bridge

HDBaseT HDMI Receiver w/Dual Video Output

Broadata Technical Support, (800) 214-0222

5.0 SPECIFICATIONS

Video/Audio

HDMI Version 1.4 with 3D, 4K×2K support Video Resolution Up to 4K2K @ 30Hz Protocol DDC/EDID Capable, HDCP 2:2 Video Bandwidth 300MHz / 10.2Gbps Audio Operating Mode Stereo Audio Audio Formats Supports up to 7.1CH & Dolby

TrueHD, DTS-HD Master Audio Audio Sampling Rate 32KHz to 192KHz HDMI/Audio Connector HDMI Female plug

Data

Serial Control RS232 Data Rate Up to 57.6Kbaud Connector 3.5mm Jack

Data Rate 30 - 50KHz In/Out Connectors 3.5mm Stereo

Ethernet

Ethernet Speed 100Mbps LAN Connector RJ45

HDBT Transmission

Cable Type CA T -5e/6 or higher Number of Cables 1 Connector Distance RJ-45/Up to 100m

Physical

Dimensions Standalone 3.94”(W) x 4.41”(D) x 1.50”(H) Power Consumption +24 VDC @ 1.25 Amps (Max.) Operating Temperature 0 to +40oC Humidity 20 to 90% RH, Non-Condensing

Page 12

LBC-H-R-DOP User Manual

Link Bridge

HDBaseT HDMI Receiver w/Dual Video Output

Broadata Technical Support, [email protected]

6.0 SERVICE PROCEDURE

6.1 Replacement Policy

Standard products found defective on arrival (DOA) will be replaced, based on availability , within 24 to 48 hours anywhere in the U.S. Please call Customer Service at 800-214-0222 for information.

6.2 Return/Repair Service

The LBC-H-R-DOP System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information:

• Product model number

• Serial Number

• Complete description of problem

• Hardware installation description

Broadata Communications, Inc.

2545 West 237th Street, Suite K

Torrance, CA 90505

1-800-214-0222

(310) 530-1416

(310) 530-5958 (Facsimile)

e-mail: [email protected]

Website: www.broadatacom.com

Page 13

LBC-H-R-DOP User Manual Link Bridge

HDBaseT HDMI Receiver w/Dual Video Output

Broadata Technical Support, (800) 214-0222

7.0 LIMITED WARRANTY

Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole discretion prove to be defective and are returned to the manufacturing location within 30 days after such defect is ascertained. All warranties are limited to defects arising under normal use and do not include malfunctions or failure resulting from misuse, abuse, neglect, alterations, electrical power problems, usage not in accordance with product instructions, improper installation, or damage determined by BCI to have been caused by the Buyer or repair made by a third party . Limited warranties granted on products are to the initial customer end-user and are not transferable. OUR LIABILITY UNDER THIS W ARRANTY SHALL IN ANY CASE BE LIMITED TO THE INVOICE VALUE OF THE PRODUCT SOLD AND BCI SHALL NOT BE LIABLE TO ANYONE FOR CONSEQUENTIAL OR INCIDENT AL DAMAGES ARISING FROM THE USE OF ITS PRODUCTS OR THE SALE THEREOF. We make NO WARRANTY AS TO THE MERCHANTABILITY OF ANY GOODS, OR THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE OR END APPLICA TION NOR DO WE MAKE ANY WARRANTY, EXPRESSED OR IMPLIED OTHER THAN AS STA TED ABOVE.
