Page 1
LBC-HDBT-T/R-48-Lite
LINK BRIDGE™ HDBASET
HDMI TRANSMISSION WITH
48V POH OVER 60M
BCI reserves the right to make changes to the products described herein without prior
notice or consent. No liability is assumed as a result of their use or application. All
rights reserved.
©2015 Broadata Communications, Inc.
Page 2
LBC-HDBT-T/R-48-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmission w/48V PoH over 60m
Broadata Technical Support, [email protected]
3
SAFETY INSTRUCTIONS AND
COMPLIANCE DECLARA TIONS
PLEASE OBSERVE THE FOLLOWING SAFETY
PRECAUTIONS
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.
Page 3
LBC-HDBT-T/R-48-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmission w/48V PoH over 60m
Broadata Technical Support, (800) 214-0222
4
TABLE OF CONTENTS
1.0 PRODUCT DESCRIPTION .............................................5
2.0 OPERATION CONTROLS AND FUNCTIONS ............... 6
2.1 FRONT PANEL .................................................................6
2.2 REAR P ANEL ...................................................................7
3.0 SERIAL CONTROL..........................................................8
3.1 D-SUB 9 PIN ASSIGNMENT ........................................... 8
3.2 IR BLASTER CABLE PIN ASSIGNMENT.......................9
4.0 MAINTENANCE AND TROUBLESHOOTING ...............10
4.1 MAINTENANCE .............................................................10
4.2 TROUBLESHOOTING ..................................................10
5.0 SPECIFICATIONS .......................................................... 12
6.0 SERVICE PROCEDURE ...............................................13
6.1 REPLACEMENT POLICY .............................................13
6.2 RETURN AND REPAIR SERVICE .................................13
7.0 LIMITED WARRANTY....................................................14
Page 4
LBC-HDBT-T/R-48-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmission w/48V PoH over 60m
Broadata Technical Support, [email protected]
5
1.0 PRODUCT DESCRIPTION
The LBC-HDBT-T/R-48-Lite can send uncompressed audio/video and
IP data over a single run of CAT-5e/6/7 cable at a distance up to 60
meters. It has the added benefit of control through the built-in RS-232
and IR ports and a bi-directional LAN serving connection. The Receiver
(PD) can be powered by the PoE 48V function of the Transmitter (PSE),
allowing for greater flexibility in installations.
Features
• Extend HDMI Signals up to 60 meters Over One CAT-5e/6
Cable
• Supports Full HDTV Video Resolutions up to 4K2K @ 30Hz
• Fully Uncompressed Video & Audio Provides Zero Loss of
Quality
• Supports True DDC/EDID/HDCP T ransmission
• Video/Audio+IR+Data+Ethernet, Over 1 CAT-5e/6 Cable
• 48V PoH with PSE/TX and PD/RX
• HDMI 1.4 and HDCP 2.2 compliant
• Supports both RS-232 and IR Control Data
Page 5
LBC-HDBT-T/R-48-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmission w/48V PoH over 60m
Broadata Technical Support, (800) 214-0222
6
2.0 OPERA TION CONTROLS AND FUNCTIONS

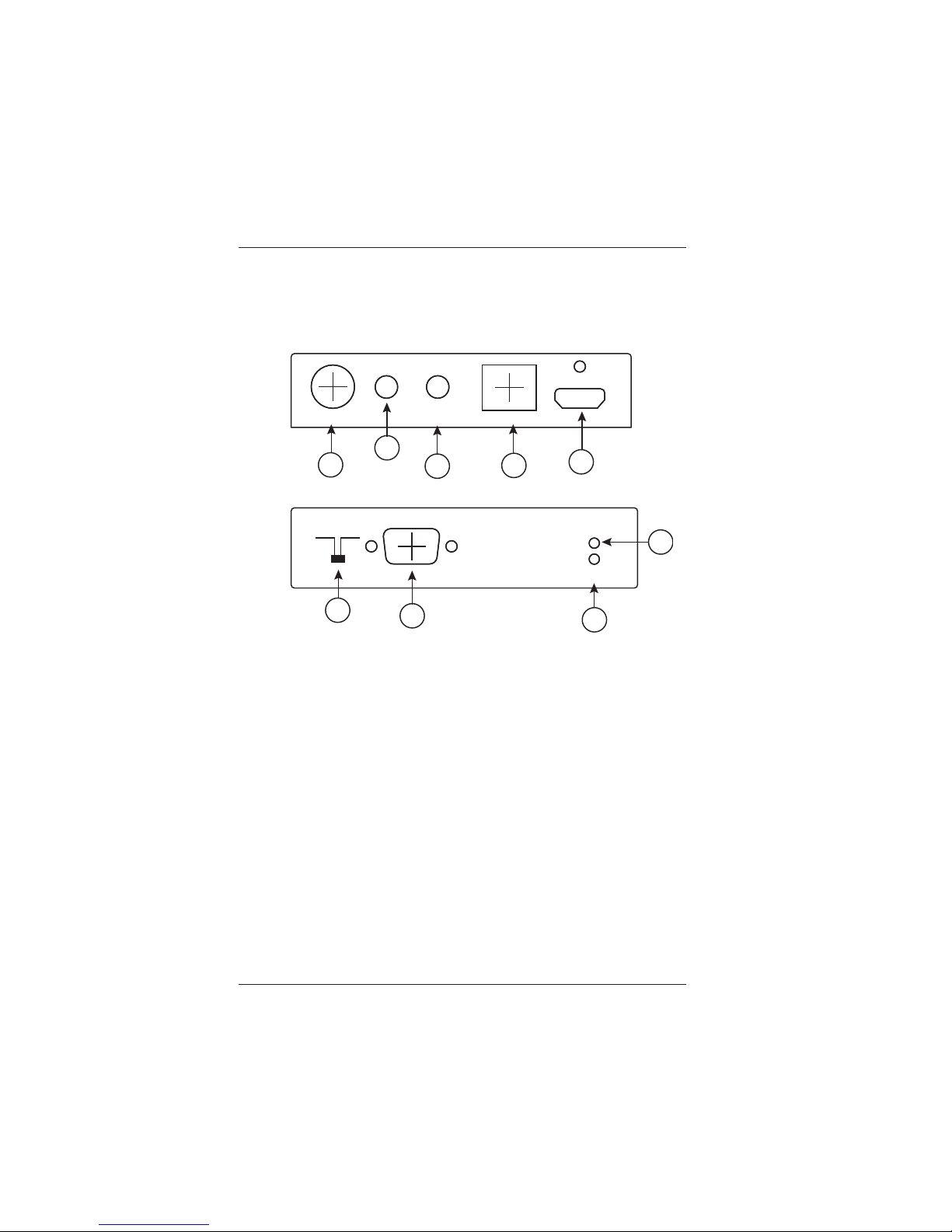

2.1 Transmitter Front and Rear Panels
1. DC 48V: Plug the 48V DC power supply into the unit and connect
the adaptor to an AC outlet.
2 . IR1 BLASTER: Connect to the supplied IR Blaster cable for IR
signal transmission. Place the IR Blaster in direct line-of-sight of
the equipment to be controlled.
3. IR2 EXTENDER: Connect to the supplied IR Extender cables
for IR signal reception. Ensure that remote being used is within
the direct line-of-sight of the IR Extender.
4. CAT-5e/6/7 OUT: Connect to the Receiver unit with a single
CA T5e/6/7 cable for transmission of all dat a signals.
5. HDMI IN: Connect to HDMI source equipment such as a DVD or
Blu-ray player.
CAT5e/6/7 OUT
IR2
EXTENDER
IR1
BLASTER
HDMI IN
DC 48V
Front
1
2
3
4
5
POWER
LINK
RS-232 IN
STD UPDATE
Rear
6
7
8
9
Page 6
LBC-HDBT-T/R-48-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmission w/48V PoH over 60m
Broadata Technical Support, [email protected]
7
6. STD/UPDATE Switch: This switch is reserved for factory use
only .
7. RS-232 IN: Connect to a PC or Laptop with D-Sub 9-pin male
cable for the transmission of RS-232 commands.
8. POWER LED: This LED will illuminate when the device is
connected to a power supply .
9. LINK LED: This LED will illuminate when both T ransmitter and
Receiver are connected through CAT cable. When it blinks
regularly it states the Transmitter is NOT sending signal but the
Transmitter and Receiver are linked and if it blinks irregularly it
states an error has occurred.
Page 7
LBC-HDBT-T/R-48-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmission w/48V PoH over 60m
Broadata Technical Support, (800) 214-0222
8

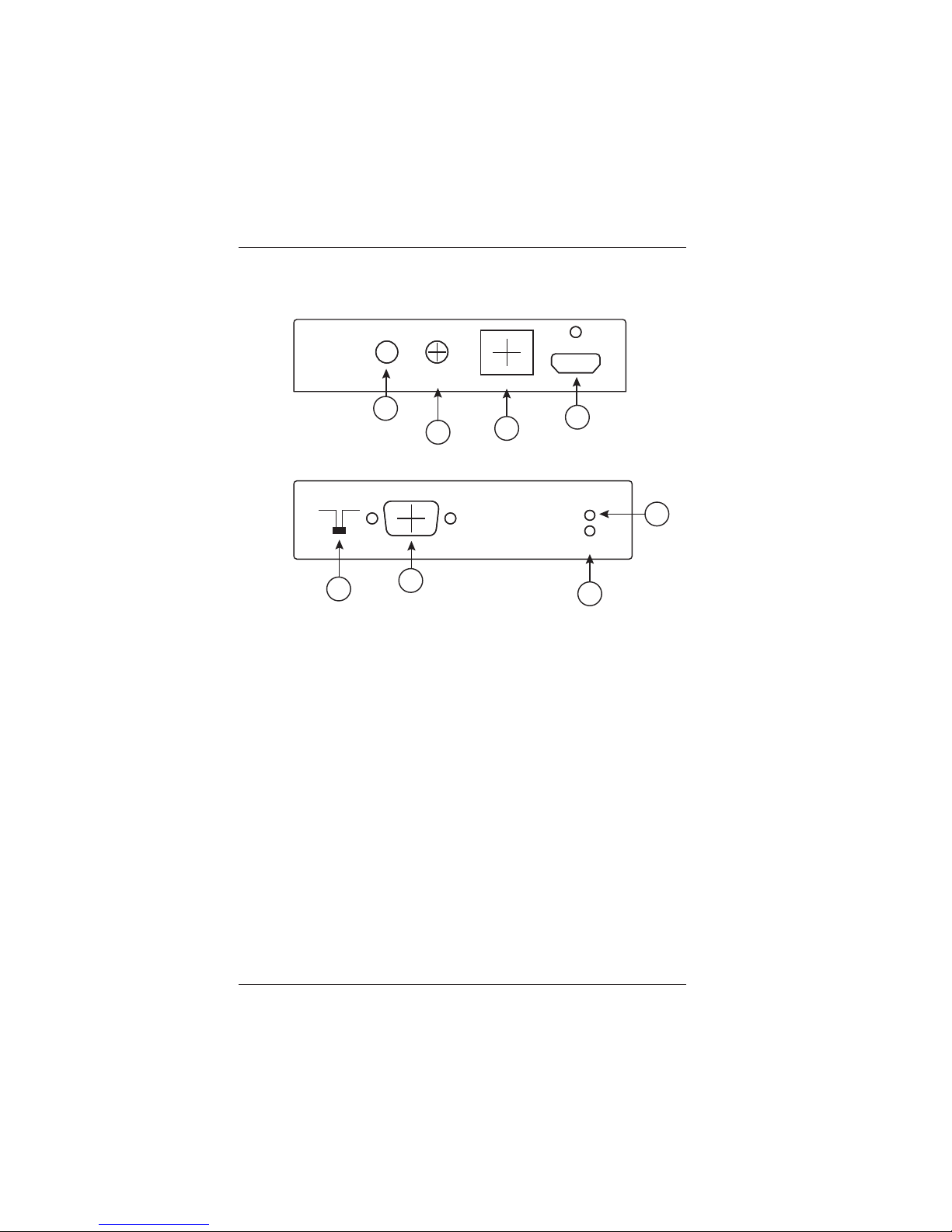

2.2 Receiver Front and Rear Panels
1. IR2 BLASTER: Connect to the supplied IR Blaster cable for IR
signal transmission. Place the IR Blaster in direct line-of-sight of
the equipment to be controlled.
2 . IR1 EXTENDER: Connect to the supplied IR Extender cables
for IR signal reception. Ensure that remote being used is within
the direct line-of-sight of the IR Extender.
3 . CAT-5e/6/7: Connect to the Transmitter unit with a single
CA T-5e/6/7 cable for transmission of all data signals.
4 . HDMI OUT: Connect to a HDMI equipped TV/monitor for display
of the HDMI input source signal.
5. STD/UPDATE Switch: This switch is reserved for factory use
only .
6. RS-232 OUT: Connect to the device that is to be controlled (via
D-Sub 9-pin female cable) by RS-232 commands.
CAT5e/6/7 IN
IR1
EXTENDER
IR2
BLASTER
HDMI OUT
Front
1
2
3
4
POWER
LINK
RS-232 OUT
STD UPDATE
Rear
5
6
8
7
Page 8
LBC-HDBT-T/R-48-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmission w/48V PoH over 60m
Broadata Technical Support, [email protected]
9
7. POWER LED: This LED will illuminate when the device is
connected to a power supply .
8. LINK LED: This LED will illuminate when both T ransmitter and
Receiver are connected through CAT cable. When it blinks
regularly it states the Receiver is NOT sending signal but the
Transmitter and Receiver are linked and if it blinks irregularly it
states an error has occurred.
Page 9
LBC-HDBT-T/R-48-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmission w/48V PoH over 60m
Broadata Technical Support, (800) 214-0222
10

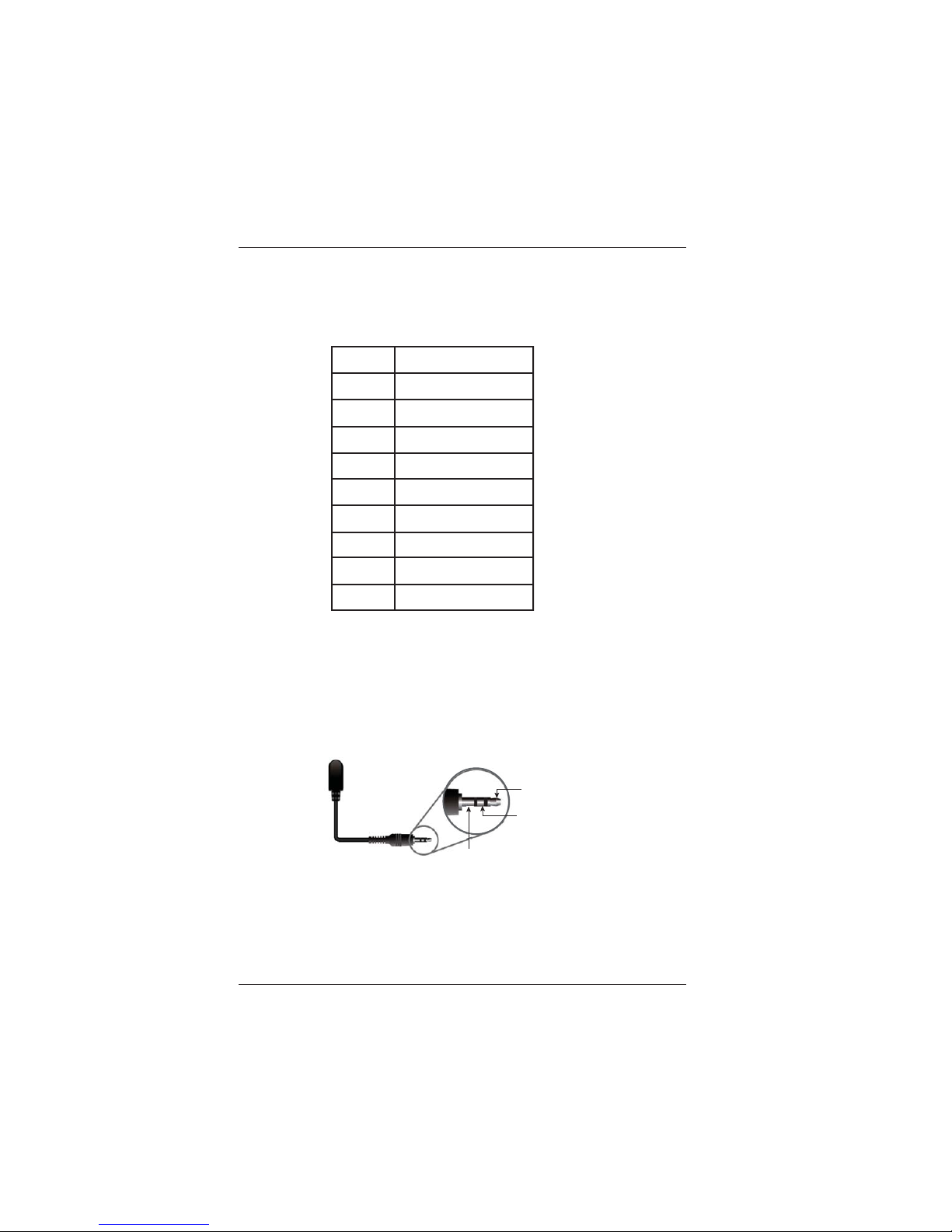

3.0 SERIAL CONTROL
3.1 D-Sub 9 Pin Assignment
3.2 IR Blaster Cable Pin Assignment
Pin
1
2
3
4
5
6
7
8
9
Define TX/RX
N/C
TxD/RxD
RxD/TxD
N/C
GND
N/C
N/C
N/C
N/C
IR Blaster
Power 5V
IR Blaster Signal
NC
Page 10
LBC-HDBT-T/R-48-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmission w/48V PoH over 60m
Broadata Technical Support, [email protected]
11

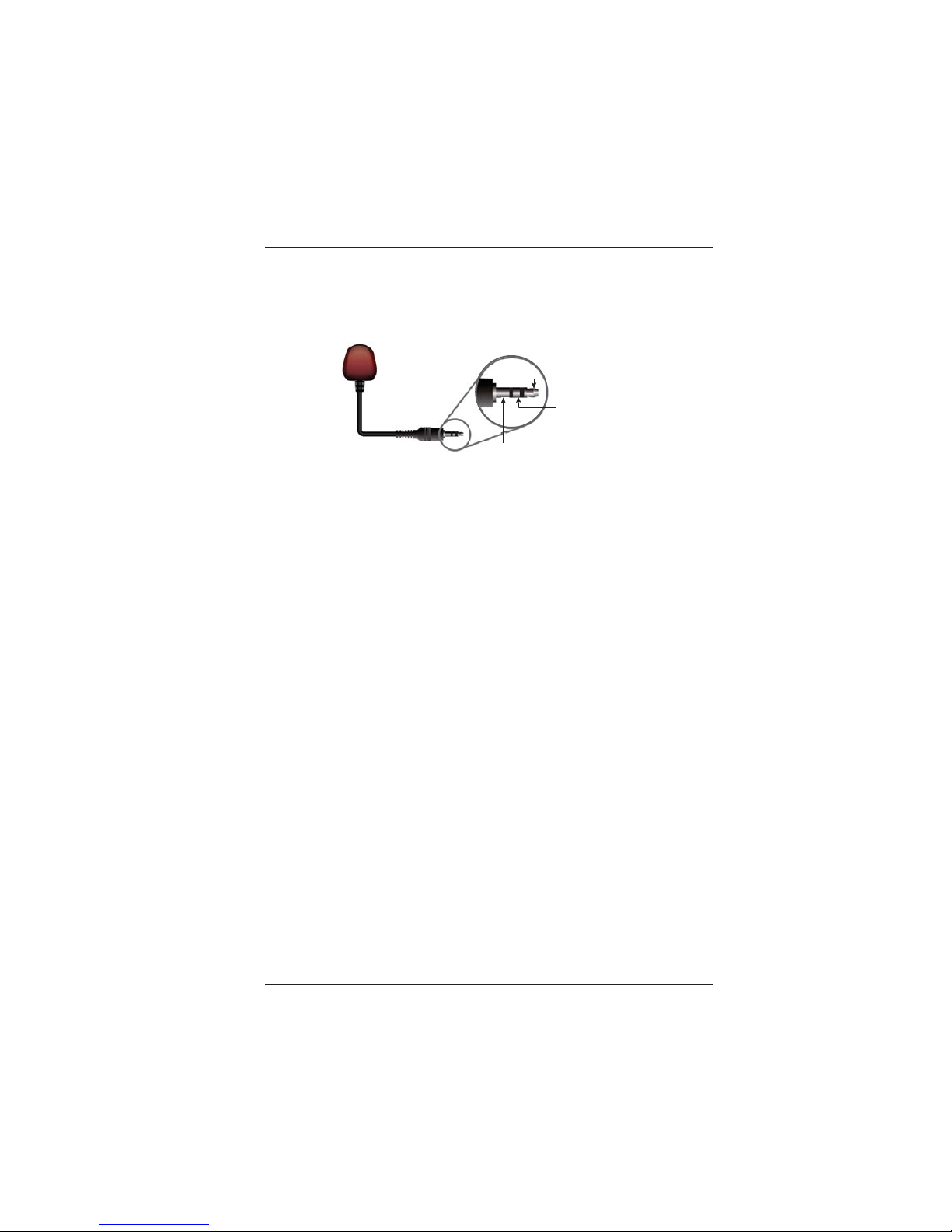

3.3 IR Receiver Cable Pin Assignment
IR Receiver
IR Signal
Power 5V
Grounding
Page 11
LBC-HDBT-T/R-48-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmission w/48V PoH over 60m
Broadata Technical Support, (800) 214-0222
12
4.0 MAINTENANCE AND TROUBLESHOOTING
4.1 Maintenance
There is no operator maintenance other then keeping the units
clean. However, observe the following light indicators to make
sure that the unit is working properly:
4.2 Troubleshooting
If the LBC-HDBT-T/R-48-Lite units do not operate properly
after installation, check for possible cable breaks, loose
connections, and incorrect cable connections. If problems
persist that may be fiber related, contact BCI at 1-800-214-0222
for further assistance.
For electrical problems, perform the following troubleshooting
procedures:
1. If the POWER indicator is OFF , check for the following:
a. The line cord is plugged into the unit and your outlet
has power.
2. If the POWER indicator is ON, but the Link indicator is
OFF, check for the following:
a. Make sure the appropriate cables are being used.
b. Cable and cable connectors are not broken.
c. For each unit, the transmit (TX) cable is connected to
the other unit’s receiver (RX).
3. If the POWER indicator and Link indicator are ON, but
the channels are not operating, then:
a. Check to see that the attached user equipment is turned
on.
b. Both ends of the link are connected to the corresponding
equipment and to the same corresponding channel port.
Page 12
LBC-HDBT-T/R-48-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmission w/48V PoH over 60m
Broadata Technical Support, [email protected]
13
c. Cable connections at both channels are securely
fastened to each connector. T urn the power of f, then
back on to reset the link.
Page 13
LBC-HDBT-T/R-48-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmission w/48V PoH over 60m
Broadata Technical Support, (800) 214-0222
14
5.0 SPECIFICATIONS
Video/Audio
HDMI Version 1.4 with 3D, 4K×2K support
Video Resolution Up to 4K2K @ 30Hz
Protocol DDC/EDID Capable, HDCP 2:2
Video Bandwidth 300MHz / 10.2Gbps
Audio Formats Supports up to 7.1CH & Dolby T rueHD,
DTS-HD Master Audio
Audio Sampling Rate 32KHz to 192KHz
HDMI/Audio Connector HDMI Female plug
Data
Serial Control RS-232
Data Rate Up to 57.6Kbaud
Connector DB9 Serial
IR
Data Rate 30 - 50KHz
In/Out Connectors 3.5mm Stereo
HDBT Transmission
Cable Type CA T 5e/6 or higher
Number of Cables 1
Connector/ Distance RJ-45 / Up to 60m
Physical
Dimensions 4.25”(W) x 4.57”(D) x 1.14”(H)
Power Consumption +48VDC @ 0.9 Amps (Max.)
Operating Temperature 0 to +40oC
Humidity 20 to 90% RH, Non-Condensing
Page 14
LBC-HDBT-T/R-48-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmission w/48V PoH over 60m
Broadata Technical Support, [email protected]
15
6.0 SERVICE PROCEDURE
6.1 Replacement Policy
Standard products found defective on arrival (DOA) will be
replaced, based on availability , within 24 to 48 hours anywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.
6.2 Return/Repair Service
The LBC-HDBT-T/R-48-Lite System contains no user
serviceable components. If you have a problem with your unit,
please contact the Customer Service Department. To facilitate
our return/repair processing please contact Broadata
Communications, Inc. to obtain a Return Material Authorization
(RMA). Please include the following information:
• Product model number
• Serial Number
• Complete description of problem
• Hardware installation description
Broadata Communications, Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
(310) 530-1416
(310) 530-5958 (Facsimile)
e-mail: [email protected]
Website: www.broadatacom.com
Page 15
LBC-HDBT-T/R-48-Lite User Manual
Link Bridge
TM
HDBaseT HDMI Transmission w/48V PoH over 60m
Broadata Technical Support, (800) 214-0222
16
7.0 LIMITED WARRANTY
Broadata Communications, Inc. (BCI) warrants, for a period of one year
from date of shipment, each product sold shall be free from defects in
material and workmanship. BCI will correct, either by repair, or at
BCI’s election, by replacement, any said products that in our sole
discretion prove to be defective and are returned to the manufacturing
location within 30 days after such defect is ascertained. All warranties
are limited to defects arising under normal use and do not include
malfunctions or failure resulting from misuse, abuse, neglect, alterations,
electrical power problems, usage not in accordance with product
instructions, improper installation, or damage determined by BCI to
have been caused by the Buyer or repair made by a third party . Limited
warranties granted on products are to the initial customer end-user and
are not transferable. OUR LIABILITY UNDER THIS W ARRANTY SHALL
IN ANY CASE BE LIMITED TO THE INVOICE VALUE OF THE
PRODUCT SOLD AND BCI SHALL NOT BE LIABLE TO ANYONE FOR
CONSEQUENTIAL OR INCIDENT AL DAMAGES ARISING FROM THE
USE OF ITS PRODUCTS OR THE SALE THEREOF. We make NO
WARRANTY AS TO THE MERCHANTABILITY OF ANY GOODS, OR
THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE OR END
APPLICA TION NOR DO WE MAKE ANY WARRANTY, EXPRESSED
OR IMPLIED OTHER THAN AS STA TED ABOVE.
Page 16
Broadata Communications, Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
(310) 530-1416
(310) 530-5958 (Facsimile)
e-mail: [email protected]
Website: www.broadatacom.com
60000-LBCHDBTT/R48Lite
Loading...
