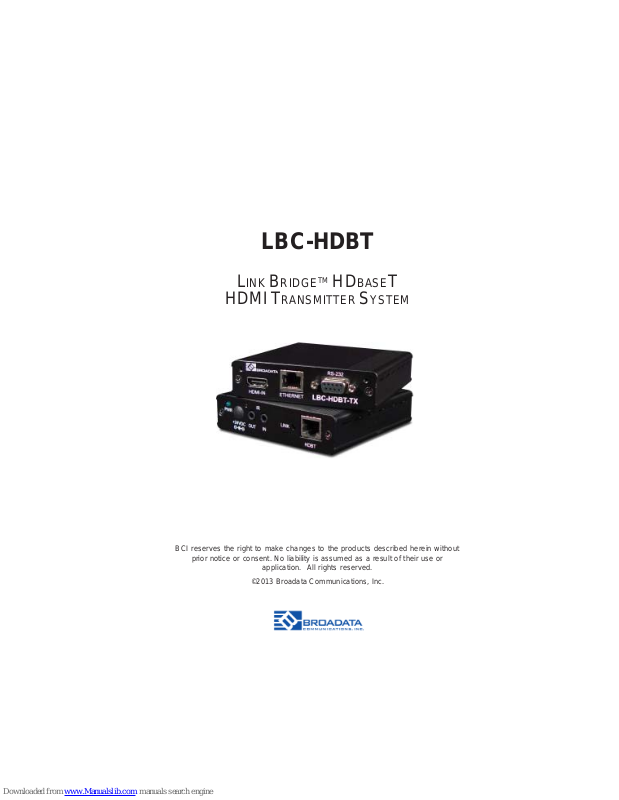

Broadata LBC-HDBT User Manual

LBC-HDBT

LINK BRIDGETM HDBASET

HDMI TRANSMITTER SYSTEM

BCI reserves the right to make changes to the products described herein without

prior notice or consent. No liability is assumed as a result of their use or

application. All rights reserved.

©2013 Broadata Communications, Inc.

LBC-HDBT User’s Manual

Link Bridge

TM

HDbaseT HDMI Transmission System

Broadata Technical Support, [e-mail]

3

SAFETY INSTRUCTIONS AND

COMPLIANCE DECLARATIONS

PLEASE OBSERVE THE FOLLOWING SAFETY

PRECAUTIONS

SURGE PROTECTION DEVICE RECOMMENDED

This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.

LBC-HDBT User’s Manual
Link Bridge

TM

HDbaseT HDMI Transmission System

Broadata Technical Support, [phone]

4

TABLE OF CONTENTS

1.0 PRODUCT DESCRIPTION .............................................5

2.0 OPERATION CONTROLS AND FUNCTIONS ............... 6

2.1 TRANSMITTER FRONT AND REAR PANELS...............6

2.2 RECEIVER FRONT AND REAR PANELS .......................7

3.0 SERIAL CONTROL.......................................................... 8

3.1 D-SUB 9 PIN ASSIGNMENT ........................................... 8

3.2 IR BLASTER CABLE PIN ASSIGNMENT....................... 9

3.3 IR RECEIVER CABLE PIN ASSIGNMENT ....................9

4.0 MAINTENANCE AND TROUBLESHOOTING .............. 10

4.1 MAINTENANCE .............................................................10

4.2 TROUBLESHOOTING ..................................................10

5.0 SPECIFICATIONS .......................................................... 12

6.0 SERVICE PROCEDURE ...............................................13

6.1 REPLACEMENT POLICY .............................................13

6.2 RETURN AND REPAIR SERVICE ................................. 13

7.0 LIMITED WARRANTY....................................................14

LBC-HDBT User’s Manual

Link Bridge

TM

HDbaseT HDMI Transmission System

Broadata Technical Support, [e-mail]

5

1.0 PRODUCT DESCRIPTION

The LBC-HBT-Tx/Rx with HDMI video and RS-232 over Single CA T5e/6
transmitter and receiver set can send uncompressed audio/video over
a single run of CA T5e/6 cable up to 100 m with PoC (Power over cable)
feature and the added benefit of control through the built-in RS-232 and
IR ports and a bi-directional LAN connection.

Features

• HDMI 1.4 with 3D, 4k×2k support, HDCP & DVI Compliant

• Supports CEC bypass

• Simultaneous transmission of uncompressed data over a
single 100m/ 328 ft CA T5e/6 cable

• Uncompressed video 1080p, 60 Hz, 36-bit

• Audio support up to 7.1CH & Dolby TrueHD, DTS-HD

• 5Play™ convergence: HDMI, LAN, Bidirectionlal PoC and
Control (IR & RS-232)

• Installation Friendly

Package Contents

• 1×HDMI to CAT5e/6 (with LAN/IR/RS-232/Bidirectionlal PoC)
Transmitter

• 1×CA T5e/6 to HDMI (with LAN/IR/RS-232/Bidirectionlal PoC)
Reciever

• 1×IR Blaster

• 1×IR Receiver

• 1×24 V/1.25 A DC Power Adaptor

• Operation Manual

LBC-HDBT User’s Manual
Link Bridge

TM

HDbaseT HDMI Transmission System

Broadata Technical Support, [phone]

6

2.0 OPERA TION CONTROLS AND FUNCTIONS

2.1 Transmitter Front and Rear Panels

1. HDMI In: Connect to HDMI source equipment such as a DVD or

Blu-ray player.

2. LAN: Connect to an internet or network connection.

3. RS-232 In: Connect to a PC or laptop with D-Sub 9 pin male

cable for the transmission of RS-232 commands.

4. Power LED: This blue LED will illuminate when the device is
connected to a power supply .

5. DC 24V: Plug the 24 V DC power supply into the unit and connect
the adaptor to an AC outlet. Only one side of power needs to be
connected to activate both transmitter and receiver.

6. IR 1 Blaster: Connect to the supplied IR blaster cable for IR
signal transmission. Place the IR blaster in direct line-of-sight of
the equipment to be controlled.

7. IR 2 Extender: Connect to the supplied IR receiver cables for IR
signal reception. Ensure that remote being used is within the
direct line-of-sight of the IR extender.

ETHERNETHDMI-IN

LBC-HDBT-TX

RS-232

1

2

3

LINK

HDBT

OUT IN

IR

PWR

+24VDC

4

5

6

7

8

9

Front

Rear

LBC-HDBT User’s Manual

Link Bridge

TM

HDbaseT HDMI Transmission System

Broadata Technical Support, [e-mail]

7

8. Link LED: The yellow LED will illuminate when both the input

and output signals are connected.

9. CAT5e/6 Out: Connect to the reciever unit with a Single CA T5e/6

cable for tranmission of all data signals.

2.2 Receiver Front and Rear Panels

1. HDMI Out: Connect to a HDMI equipped TV/monitor for display

of the HDMI input source signal.

2. LAN: Connect to a PC or Laptop to the Internet or network

connection.

3. RS-232 Out: Connect to the device that is to be controlled (via

D-Sub 9 pin female cable) by RS-232 commands.

4. Power LED: This blue LED will illuminate when the device is

connected to a power supply .

5. DC 24V: Plug the 24 V DC power supply into the unit and connect

the adaptor to an AC outlet. Only one side of power needs to be
connected to activate both transmitter and receiver.

6. IR 2 Blaster: Connect to the supplied IR blaster cable for IR

signal transmission. Place the IR blaster in direct line of sight
of the equipment to be controlled.

HDMI-OUT ETHERNET

RS-232

LBC-HDBT-RX

1

2

3

Front

LINK

HDBT

OUT IN

IR

PWR

+24VDC

4

5

6

7

8

9

Rear

LBC-HDBT User’s Manual
Link Bridge

TM

HDbaseT HDMI Transmission System

Broadata Technical Support, [phone]

8

7. IR 1 Extender: Connect to the supplied IR receiver cables for
IR signal reception. Ensure that remote being used is within the
direct line-of-sight of the IR extender.

8. Link LED: The yellow LED will illuminate when both the input
and output signals are connected.

9. CAT5e/6 In: Connect to the transmitter unit with a Single
CA T5e/6 cable for tranmission of all data signals.

3.0 SERIAL CONTROL

3.1 D-Sub Pin Assignment

Pin

1
2
3
4
5
6
7
8
9

Define TX/RX

N/C
TxD/RxD
RxD/TxD

N/C

GND

N/C

N/C

N/C

N/C

LBC-HDBT User’s Manual

Link Bridge

TM

HDbaseT HDMI Transmission System

Broadata Technical Support, [e-mail]

9

3.2 IR Blaster Cable Pin Assignment

3.3 IR Receiver Cable Pin Assignment

IR Blaster

Power 5V

IR Blaster Signal

NC

IR Receiver

IR Signal

Power 5V

Grounding

LBC-HDBT User’s Manual
Link Bridge

TM

HDbaseT HDMI Transmission System

Broadata Technical Support, [phone]

10

4.0 MAINTENANCE AND TROUBLESHOOTING

4.1 Maintenance

There is no operator maintenance other then keeping the units
clean. However, observe the following light indicators to make
sure that the unit is working properly:

4.2 Troubleshooting

If the LBC-HDBT units do not operate properly after installation,
check for possible cable breaks, loose connections, and
incorrect cable connections. If problems persist that may be
fiber related, contact BCI at 1-800-214-0222 for further
assistance.

For electrical problems, perform the following troubleshooting
procedures:

1. If the POWER indicator is OFF , check for the following:

a. The line cord is plugged into the unit and your outlet

has power.

2. If the POWER indicator is ON, but the Link indicator is
OFF, check for the following:

a. Make sure the appropriate cables are being used.
b. Cable and cable connectors are not broken.
c. For each unit, the transmit (TX) cable is connected to

the other unit’s receiver (RX).

LBC-HDBT User’s Manual

Link Bridge

TM

HDbaseT HDMI Transmission System

Broadata Technical Support, [e-mail]

11

3. If the POWER indicator and Link indicator are ON, but

the channels are not operating, then:

a. Check to see that the attached user equipment is turned

on.

b. Both ends of the link are connected to the

corresponding equipment and to the same
corresponding channel port.

c. Cable connections at both channels are securely

fastened to each connector. T urn the power of f, then
back on to reset the link.

LBC-HDBT User’s Manual
Link Bridge

TM

HDbaseT HDMI Transmission System

Broadata Technical Support, [phone]

12

5.0 SPECIFICATIONS

VIDEO/ AUDIO SPECIFICA TIONS

HDMI Version 1.4 with 3D, 4k×2k support
Video Resolution Up to 4K2K@30Hz
Protocol DDC/EDID/HDCP Capable
Video Bandwidth 300MHz / 10.2Gbps
Audio Operating Mode Stereo Audio
Audio Formats Supports up to 7.1CH & Dolby TrueHD,

DTS-HD Master Audio
Audio Sampling Rate 32KHz to 192KHz
HDMI/Audio Connector HDMI Female plug

DATA

Serial Control RS232
Data Rate Up to 57.6Kbaud
Connector DB9 Serial
LAN Connector RJ45
IR Control Infrared
Data Rate 30 - 50KHz
In/Out Connectors 3.5mm Stereo
Ethernet Speed 100 Mbps

HDBT TRANSMISSION

Cable Type CA T 5e/6 or higher
Number of Cables 1
Connector/ Distance RJ-45 / Up to 100m

PHYSICAL

Dimensions Standalone 4.03”(W) x 3.95”(D) x 0.98”(H)
Power C on sum pti on +24VDC @ 1.25 Amp s (Max.)
Operating Temperature 0 to +40oC
Humidity 20 to 90% RH, Non-Condensing

LBC-HDBT User’s Manual

Link Bridge

TM

HDbaseT HDMI Transmission System

Broadata Technical Support, [e-mail]

13

6.0 SERVICE PROCEDURE

6.1 Replacement Policy

Standard products found defective on arrival (DOA) will be
replaced, based on availability , within 24 to 48 hours anywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.

6.2 Return/Repair Service

The LBC-HDBT System contains no user serviceable
components. If you have a problem with your unit, please contact
the Customer Service Department. To facilitate our return/repair
processing please contact Broadata Communications, Inc. to
obtain a Return Material Authorization (RMA). Please include
the following information:

• Product model number

• Serial Number

• Complete description of problem

• Hardware installation description

Broadata Communications, Inc.

2545 West 237th Street, Suite K

T orrance, CA 90505

1-800-214-0222

[phone]

[phone] (Facsimile)

e-mail: [e-mail]

Website: www .broadatacom.com

LBC-HDBT User’s Manual
Link Bridge

TM

HDbaseT HDMI Transmission System

Broadata Technical Support, [phone]

14

7.0 LIMITED W ARRANTY

Broadata Communications, Inc. (BCI) warrants, for a period of one year
from date of shipment, each product sold shall be free from defects in
material and workmanship. BCI will correct, either by repair, or at BCI’ s
election, by replacement, any said products that in our sole discretion
prove to be defective and are returned to the manufacturing location
within 30 days after such defect is ascertained. All warranties are limited
to defects arising under normal use and do not include malfunctions or
failure resulting from misuse, abuse, neglect, alterations, electrical power
problems, usage not in accordance with product instructions, improper
installation, or damage determined by BCI to have been caused by the
Buyer or repair made by a third party. Limited warranties granted on
products are to the initial customer end-user and are not transferable.
OUR LIABILITY UNDER THIS W ARRANTY SHALL IN ANY CASE BE
LIMITED TO THE INVOICE VALUE OF THE PRODUCT SOLD AND BCI
SHALL NOT BE LIABLE TO ANYONE FOR CONSEQUENTIAL OR
INCIDENT AL DAMAGES ARISING FROM THE USE OF ITS PRODUCTS
OR THE SALE THEREOF. We make NO WARRANTY AS TO THE
MERCHANT ABILITY OF ANY GOODS, OR THA T THEY ARE FIT FOR
ANY P ARTICULAR PURPOSE OR END APPLICATION NOR DO WE
MAKE ANY WARRANTY, EXPRESSED OR IMPLIED OTHER THAN
AS ST A TED ABOVE.

LBC-HDBT User’s Manual

Link Bridge

TM

HDbaseT HDMI Transmission System

Broadata Technical Support, [e-mail]

15

LBC-HDBT User’s Manual
Link Bridge

TM

HDbaseT HDMI Transmission System

Broadata Technical Support, [phone]

16

Broadata Communications, Inc.

2545 West 237th Street, Suite K

T orrance, CA 90505

1-800-214-0222

[phone]

[phone] (Facsimile)

e-mail: [e-mail]

Website: www .broadatacom.com

60000-LBC-HDBT
