Broadata LBC-H2CS-T/R-Lite User Manual

LBC-H2CS-T/R-Lite

LINK BRIDGETM HDBASET

HDMI 2.0 EXTEDER 4 PLAY

BCI reserves the right to make changes to the products described herein without

prior notice or consent. No liability is assumed as a result of their use or

application. All rights reserved.

©2015 Broadata Communications, Inc.

LBC-H2CS-T/R-Lite User Manual

Link Bridge

TM

HDBaseT HDMI 2.0 Extender, 4 Play

Broadata Technical Support, [e-mail]

3

SAFETY INSTRUCTIONS AND

COMPLIANCE DECLARATIONS

PLEASE OBSERVE THE FOLLOWING SAFETY

PRECAUTIONS

SURGE PROTECTION DEVICE RECOMMENDED

This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.

LBC-H2CS-T/R-Lite User Manual
Link Bridge

TM

HDBaseT HDMI 2.0 Extender, 4 Play

Broadata Technical Support, [phone]

4

TABLE OF CONTENTS

1.0 PRODUCT DESCRIPTION .............................................5

2.0 OPERATION CONTROLS AND FUNCTIONS ............... 6

2.1 TRANSMITTER FRONT AND REAR PANELS...............6

2.2 RECEIVER FRONT AND REAR PANELS .......................7

3.0 IR......................................................................................8

3.1 IR BLASTER CABLE PIN ASSIGNMENT........................8

3.2 IR RECEIVER CABLE PIN ASSIGNMENT ......................8

4.0 MAINTENANCE AND TROUBLESHOOTING .................9

4.1 MAINTENANCE ................................................................9

4.2 TROUBLESHOOTING .....................................................9

5.0 SPECIFICATIONS .......................................................... 10

6.0 SERVICE PROCEDURE ............................................... 11

6.1 REPLACEMENT POLICY ............................................. 11

6.2 RETURN AND REPAIR SERVICE .................................11

7.0 LIMITED WARRANTY....................................................12

LBC-H2CS-T/R-Lite User Manual

Link Bridge

TM

HDBaseT HDMI 2.0 Extender, 4 Play

Broadata Technical Support, [e-mail]

5

1.0 PRODUCT DESCRIPTION

• Extend HDMI 2.0 Signals up to 40 meters Over One CA T 5e/6
Cable, based on chroma subsampling

• Supports True DDC/EDID/HDCP Transmission Over One
CAT 5e/6 Cable

• Video/Audio+IR+RS232, Over 1 CA T 5e/6 Cable

• Bi-directional PoC (Power over Cable)

LBC-H2CS-T/R-Lite User Manual
Link Bridge

TM

HDBaseT HDMI 2.0 Extender, 4 Play

Broadata Technical Support, [phone]

6

2.0 OPERATION CONTROLS AND FUNCTIONS

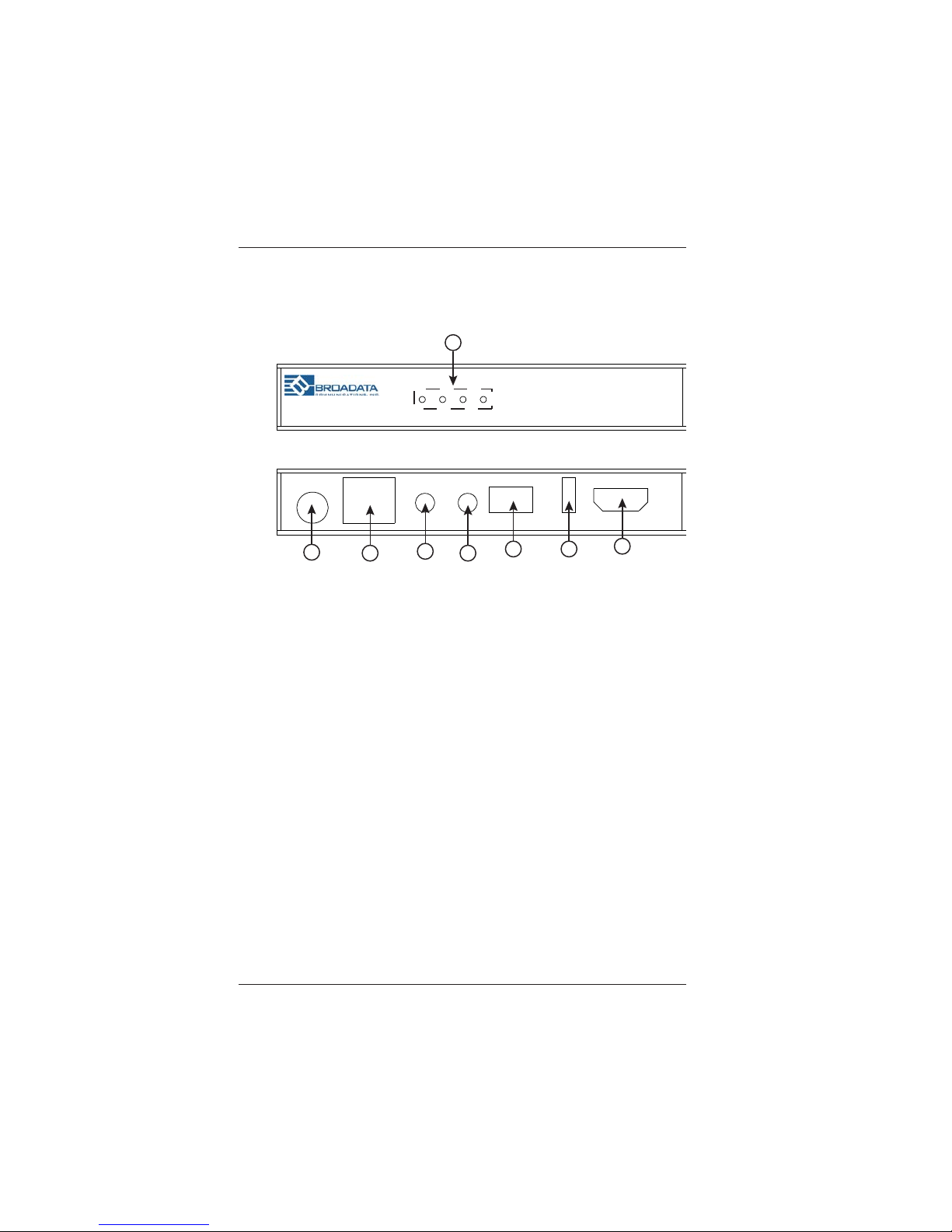

2.1 Transmitter Front and Rear Panels

1. LED: Power LED, Status LED, Link LED, HDCP LED

(a) Power LED: This LED light always shine is meant that

works fine.

(b) Signal LED: This LED light is always shine is meant

that video signal works fine.

(c) Link LED: This LED light always shine is meant that

works fine.

2. Latch-locking power jack: Connect to 12V DC power supply

3. RJ45: Plug in a Cat-5/5e/6 cable that needs to be linked to
the receiving unit LBC-H2CS-R-Lite

4. IR Receiver: Infrared 3.5mm socket for plugging in the
extension cable of IR receiver

5. IR Blaster: Infrared 3.5mm socket for plugging in the
extension cable of IR blaster

6. RS-232(terminal block format): The order of RS-232 pin
are TX, RX, GND (from the left side to the right)

7. Dip Switch: for F/W update ([ON] F/W update Mode; [OFF]
Normal Mode)

8. HDMI IN: Connects to a HDMI source with HDMI male-male
cable

LBC-H2CS-T-Lite

Front

Rear

1

2

3

4

5

6 7

8

LBC-H2CS-T/R-Lite User Manual

Link Bridge

TM

HDBaseT HDMI 2.0 Extender, 4 Play

Broadata Technical Support, [e-mail]

7

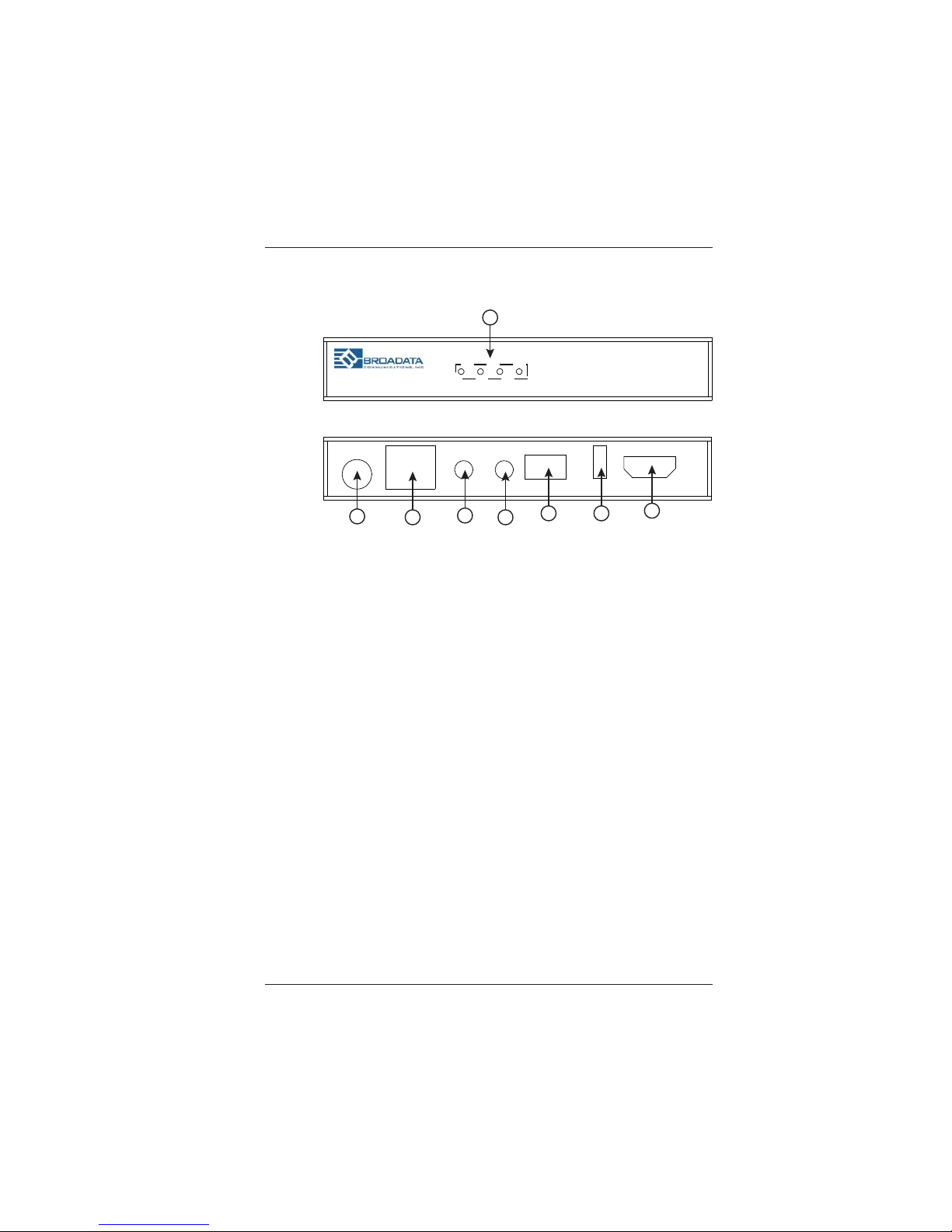

2.2 Receiver Front and Rear Panels

1. LED: Power LED, Status LED, Link LED, HDCP LED

(a) Power LED: This LED light always shine is meant that

works fine.

(b ) Signal LED: This LED light always shine is meant that

video signal works fine.

(c) Link LED: This LED light always shine is meant that

works fine.

2. Latch-locking power jack: Connect to 12V DC power supply

3. RJ45: Plug in a Cat-5/5e/6 cable that needs to be linked to

the transmitting unit LBC-H2CS-T-Lite

4. IR Receiver: Infrared 3.5mm socket for plugging in the

extension cable of IR receiver

5. IR Blaster: Infrared 3.5mm socket for plugging in the

extension cable of IR blaster

6. RS-232(terminal block format): The order of RS-232 pin

are TX, RX, GND (from the left side to the right)

7. Dip Switch: for F/W update ([ON] F/W update Mode; [OFF]

Normal Mode)

8. HDMI OUT: Connects to a HDMI display with HDMI male-

male cable

LBC-H2CS-R-Lite

Front

Rear

1

2

3

4

5

6 7

8

LBC-H2CS-T/R-Lite User Manual
Link Bridge

TM

HDBaseT HDMI 2.0 Extender, 4 Play

Broadata Technical Support, [phone]

8

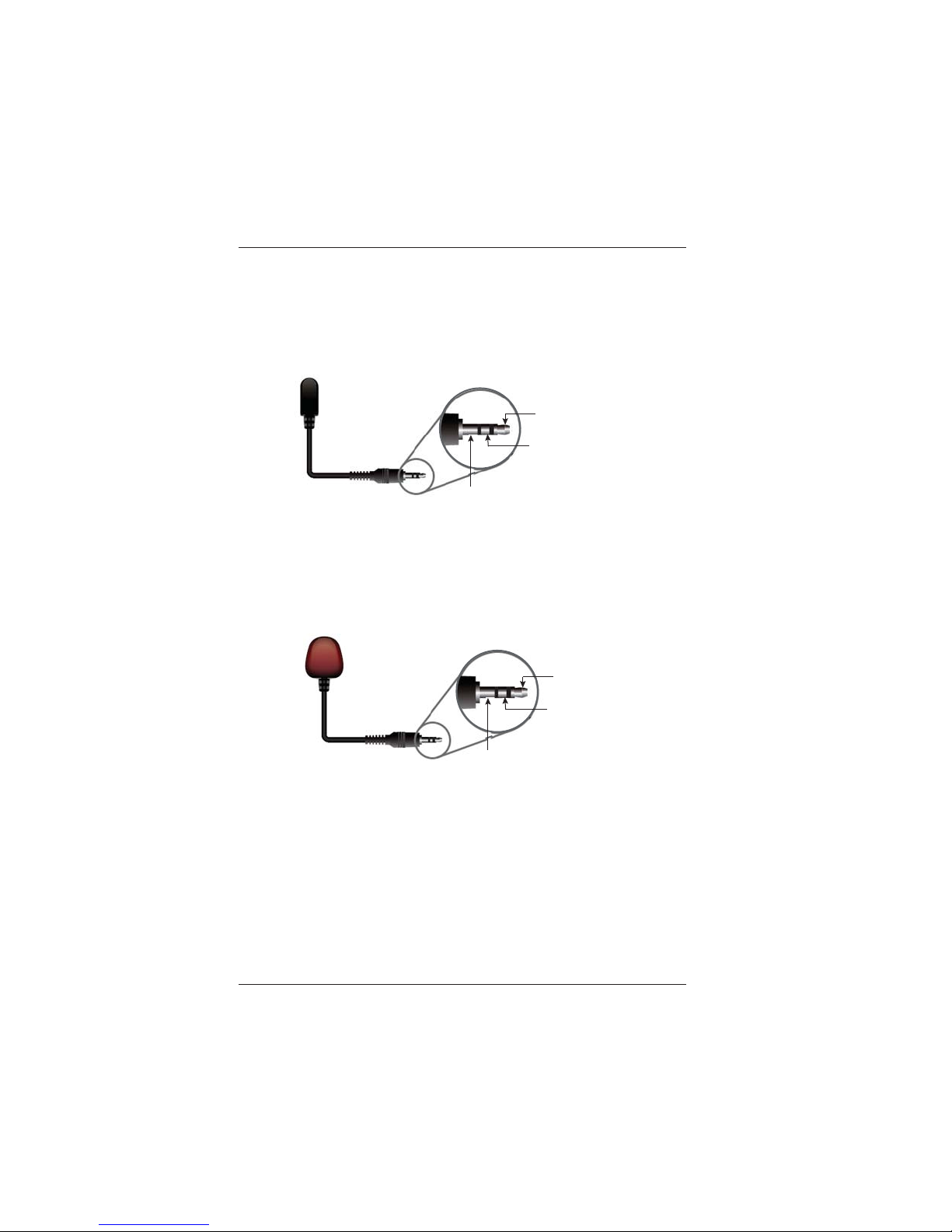

3.0 IR EXTENDERS

3.1 IR Blaster Cable Pin Assignment

3.3 IR Receiver Cable Pin Assignment

IR Blaster

IR Blaster Signal [20-60KHz]

NC

Grounding

IR Receiver

IR Signal

Grounding

Power

LBC-H2CS-T/R-Lite User Manual

Link Bridge

TM

HDBaseT HDMI 2.0 Extender, 4 Play

Broadata Technical Support, [e-mail]

9

4.0 MAINTENANCE AND TROUBLESHOOTING

4.1 Maintenance

There is no operator maintenance other then keeping the units
clean. However, observe the following light indicators to make
sure that the unit is working properly:

4.2 Troubleshooting

If the LBC-H2CS-Lite units do not operate properly after
installation, check for possible cable breaks, loose connections,
and incorrect cable connections. If problems persist that may
be fiber related, contact BCI at 1-800-214-0222 for further
assistance.

LBC-H2CS-T/R-Lite User Manual
Link Bridge

TM

HDBaseT HDMI 2.0 Extender, 4 Play

Broadata Technical Support, [phone]

10

5.0 SPECIFICATIONS

VIDEO/ AUDIO SPECIFICA TIONS

HDMI HDMI 2.0 with HDR (4K60Hz 4:2:0

10-bit) support
Video Resolution Up to 4K2K@60Hz
Protocol DDC/EDID/HDCP 1.4/2.2 Capable
Video Bandwidth 600MHz / 18Gbps
Audio Operating Mode Stereo Audio or up to 7.1 Suround Sound
HDMI Connector HDMI Female plug

DATA/IR

Serial Control RS-232
Data Rate Up to 1 15.2Kbaud
Connector Terminal block
IR Control Infrared
Data Rate 20 - 60KHz
In/Out Connectors 3.5mm Stereo

PHYSICAL

Dimensions Standalone 4.7”(W) x 2.9”(D) x 0.8”(H)
Power Consumption +12VDC @ 1.2 Amps (Max.)
Operating Temperature 0 to +40oC
Humidity 20 to 90% RH, Non-Condensing

LBC-H2CS-T/R-Lite User Manual

Link Bridge

TM

HDBaseT HDMI 2.0 Extender, 4 Play

Broadata Technical Support, [e-mail]

11

6.0 SERVICE PROCEDURE

6.1 Replacement Policy

Standard products found defective on arrival (DOA) will be
replaced, based on availability , within 24 to 48 hours anywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.

6.2 Return/Repair Service

The LBC-H2CS-Lite System contains no user serviceable
components. If you have a problem with your unit, please contact
the Customer Service Department. To facilitate our return/repair
processing please contact Broadata Communications, Inc. to
obtain a Return Material Authorization (RMA). Please include
the following information:

• Product model number

• Serial Number

• Complete description of problem

• Hardware installation description

Broadata Communications, Inc.

2545 West 237th Street, Suite K

T orrance, CA 90505

1-800-214-0222

[phone]

[phone] (Facsimile)

e-mail: [e-mail]

Website: www .broadatacom.com

LBC-H2CS-T/R-Lite User Manual
Link Bridge

TM

HDBaseT HDMI 2.0 Extender, 4 Play

Broadata Technical Support, [phone]

12

7.0 LIMITED WARRANTY

Broadata Communications, Inc. (BCI) warrants, for a period of one
year from date of shipment, each product sold shall be free from defects
in material and workmanship. BCI will correct, either by repair, or at
BCI’s election, by replacement, any said products that in our sole
discretion prove to be defective and are returned to the manufacturing
location within 30 days after such defect is ascertained. All warranties
are limited to defects arising under normal use and do not include
malfunctions or failure resulting from misuse, abuse, neglect, alterations,
electrical power problems, usage not in accordance with product
instructions, improper installation, or damage determined by BCI to have
been caused by the Buyer or repair made by a third party. Limited
warranties granted on products are to the initial customer end-user and
are not transferable. OUR LIABILITY UNDER THIS WARRANTY SHALL
IN ANY CASE BE LIMITED TO THE INVOICE VALUE OF THE
PRODUCT SOLD AND BCI SHALL NOT BE LIABLE TO ANYONE FOR
CONSEQUENTIAL OR INCIDENT AL DAMAGES ARISING FROM THE
USE OF ITS PRODUCTS OR THE SALE THEREOF. We make NO
WARRANTY AS TO THE MERCHANTABILITY OF ANY GOODS, OR
THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE OR END
APPLICA TION NOR DO WE MAKE ANY WARRANTY, EXPRESSED
OR IMPLIED OTHER THAN AS STATED ABOVE.

LBC-H2CS-T/R-Lite User Manual

Link Bridge

TM

HDBaseT HDMI 2.0 Extender, 4 Play

Broadata Technical Support, [e-mail]

13

LBC-H2CS-T/R-Lite User Manual
Link Bridge

TM

HDBaseT HDMI 2.0 Extender, 4 Play

Broadata Technical Support, [phone]

14

Broadata Communications, Inc.

2545 West 237th Street, Suite K

T orrance, CA 90505

1-800-214-0222

[phone]

[phone] (Facsimile)

e-mail: [e-mail]

Website: www .broadatacom.com

60000-LBCH2CST/RLite
