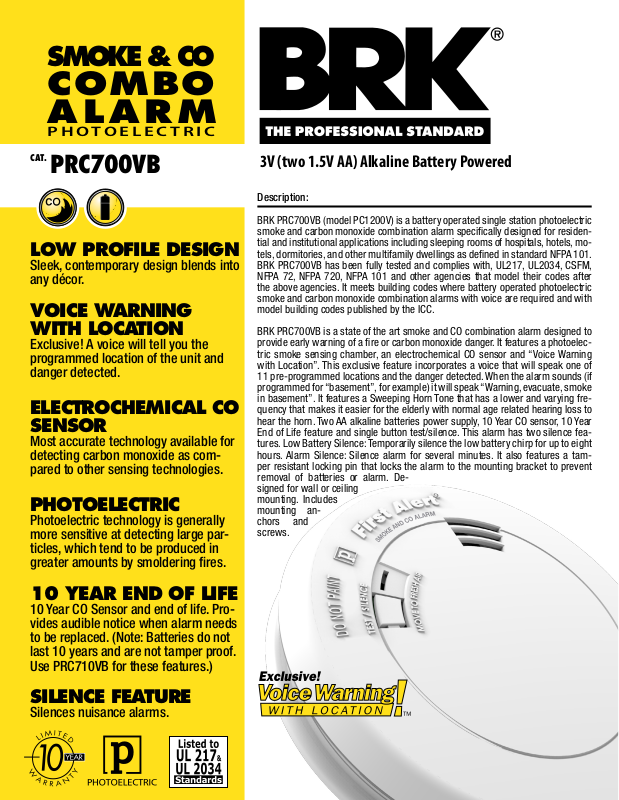

BRK electronic PRC700VB Quick Start Manual
SMOKE & CO
COMBO
ALARM
PHOTOELECTRIC
CAT.
PRC700VB
LOW PROFILE DESIGN
Sleek, contemporary design blends into
any décor.
VOICE WARNING
WITH LOCATION
Exclusive! A voice will tell you the
programmed location of the unit and
danger detected.
ELECTROCHEMICAL CO
SENSOR
Most accurate technology available for
detecting carbon monoxide as compared to other sensing technologies.
PHOTOELECTRIC
Photoelectric technology is generally
more sensitive at detecting large particles, which tend to be produced in
greater amounts by smoldering fires.
3V (two 1.5V AA) Alkaline Battery Powered
Description:
BRK PRC700VB (model PC1200V) is a battery operated single station photoelectric
smoke and carbon monoxide combination alarm specifically designed for residential and institutional applications including sleeping rooms of hospitals, hotels, motels, dormitories, and other multifamily dwellings as defined in standard NFPA 101.
BRK PRC700VB has been fully tested and complies with, UL217, UL2034, CSFM,
NFPA 72, NFPA 720, NFPA 101 and other agencies that model their codes after
the above agencies. It meets building codes where battery operated photoelectric
smoke and carbon monoxide combination alarms with voice are required and with
model building codes published by the ICC.
BRK PRC700VB is a state of the art smoke and CO combination alarm designed to
provide early warning of a fire or carbon monoxide danger. It features a photoelectric smoke sensing chamber, an electrochemical CO sensor and “Voice Warning
with Location”. This exclusive feature incorporates a voice that will speak one of
11 pre-programmed locations and the danger detected. When the alarm sounds (if
programmed for “basement”, for example) it will speak “Warning, evacuate, smoke
in basement”. It features a Sweeping Horn Tone that has a lower and varying frequency that makes it easier for the elderly with normal age related hearing loss to
hear the horn. Two AA alkaline batteries power supply, 10 Year CO sensor, 10 Year
End of Life feature and single button test/silence. This alarm has two silence features. Low Battery Silence: Temporarily silence the low battery chirp for up to eight
hours. Alarm Silence: Silence alarm for several minutes. It also features a tamper resistant locking pin that locks the alarm to the mounting bracket to prevent
removal of batteries or alarm. Designed for wall or ceiling
mounting. Includes
mounting anchors and
screws.
10 YEAR END OF LIFE
10 Year CO Sensor and end of life. Provides audible notice when alarm needs
to be replaced. (Note: Batteries do not
last 10 years and are not tamper proof.
Use PRC710VB for these features.)
SILENCE FEATURE
Silences nuisance alarms.
CAT.
PRC700VB
TOP VIEW SIDE VIEW
5.7”
1.28”
ARCHITECTURAL AND ENGINEERING SPEC
The smoke and CO combination alarm shall be a BRK Model PC1200V (cat. no.
PRC700VB) and shall provide at a minimum the following features and functions:
1. A Photoelectric smoke sensing chamber and an electrochemical CO sensor.
2. The unit shall have an “10 Year End of Life” signal. This signal should be capable
of temporarily being silenced for up to 2 days. After about 2 days, the signal will
resume. After about 2-3 weeks the signal cannot be silenced.
3. Fully screened smoke sensing chamber to resist entry of small insects thereby
reducing the probability of unwanted alarms and be capable of self restoring.
4. Powered by replaceable 2 AA alkaline batteries and a solid state speaker horn rated
at 85dB at 10 ft.
5. A visual LED power-on indicator to confirm unit is receiving power or is alarm.
6. A full function test button should check all alarm functions by simulating a smoke
and CO condition, causing the unit to alarm.
7. Two Silence features - Low Battery Silence: Silence low battery chirp for up to 8
hours. Alarm Silence: Temporarily silence unwanted nuisance alarms.
8. Tamper resistant locking pin that locks alarm to mounting bracket to prevent
removal of batteries.
9. The unit shall be capable of operating between 40°F (4°C) and 100°F (38°C) and
relative humidity between 10% and 95%.
10. The unit shall contain mounting hardware and shall be listed for wall or ceiling
mounting.
11. The unit shall at a minimum meet the requirements of UL217, UL2034, CSFM, NFPA
72, NFPA 720, NFPA 101, ICC
INSTALLATION OF ALARM
Installation of this alarm must conform to NFPA 72 and 720. Always check your local
building codes. Follow all instructions for placement as outlined in the user’s manual in
sections titled “Recommended Locations for Smoke Alarms” and “Locations to Avoid for
Smoke Alarms”.
THE PARTS OF THIS ALARM
2
7
MOUNTING
BRACKET
3
TECHNICAL SPECS
Alarm Dimensions: 5.7”Dia. x 1.28”H
Weight: 7.6 oz
Operating Voltage: 3V Battery Powered (2 AA Alkaline)
Temperature Range: 40°F (4°C) to 100°F (38°C)
Humidity Range: 10% to 95% relative humidity (RH)
Audio Alarm: 85dB at 10 feet
Test/Silence: Electronically simulates smoke and CO conditions,
causing the unit to alarm. Press and hold test/silence
button.
Alarm Reset: Automatic when smoke clears
Smoke Sensor: Photoelectric
CO Sensor: Electrochemical
Indicator Lights/Sounds:
DC Power: Intermittent Green LED
Local Alarm: Audio alarm and rapidly flashing Red LED
Listing: Listed to UL217 and UL2034 Standards
SHIPPING SPECS
Individual Carton Dimensions 5.75 ”L x 1.38”D x 5.75”H
Weight 0.58 lbs.
Cube 0.03 ft3
UPC 0 29054 01498 6
Master Carton Dimensions 8.88 ”L x 6.06”W x 6.31”H
Master Pack 6
Weight 3.8 lbs.
Cube: 0.20 ft3
I2of5: 600 29054 01498 8
Pallet Information
Cases per Layer 32
Number of Layers: 8
Cases per Pallet: 256
Units per Pallet: 1,536
Cube: 55.8 ft3
Weight: 1,044 lbs.
4
6
6
1
1. Test/Silence button
2. LED alarm light
3. Install AA batteries here
4. Locking tab slot (Break out Tab)
5. Mounting bracket
6. Mounting Slots
7. Horn
brkelectronics.com
4
©2014 BRK Brands, Inc. a Jarden Corporation
Company (NYSE: JAH)
3901 Liberty Street Road
Aurora, IL 60504-8122
All rights reserved
First Alert is a registered trademark of the First Alert Trust
BRK is a registered trademark of BRK Brands, Inc.
CM3207
