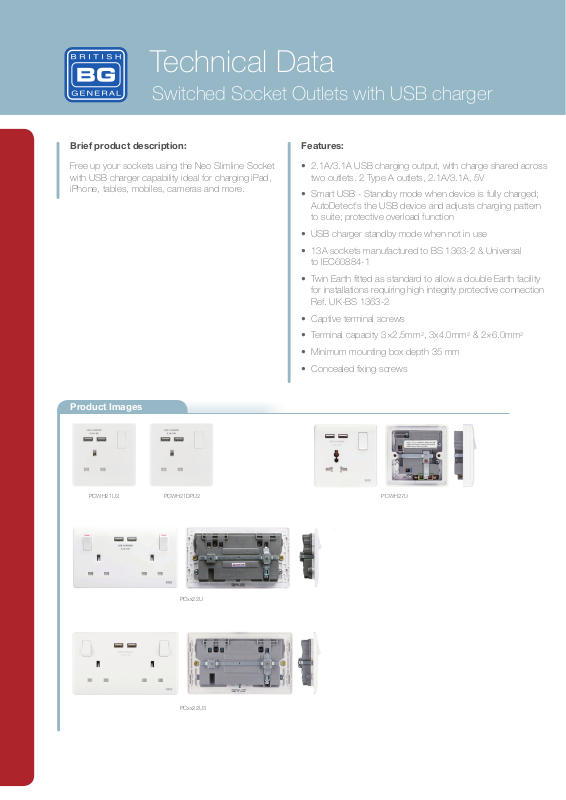

Technical Data

Switched Socket Outlets with USB charger

Brief product description: Features:

Free up your sockets using the Neo Slimline Socket with USB charger capability ideal for charging iPad, iPhone, tables, mobiles, cameras and more.

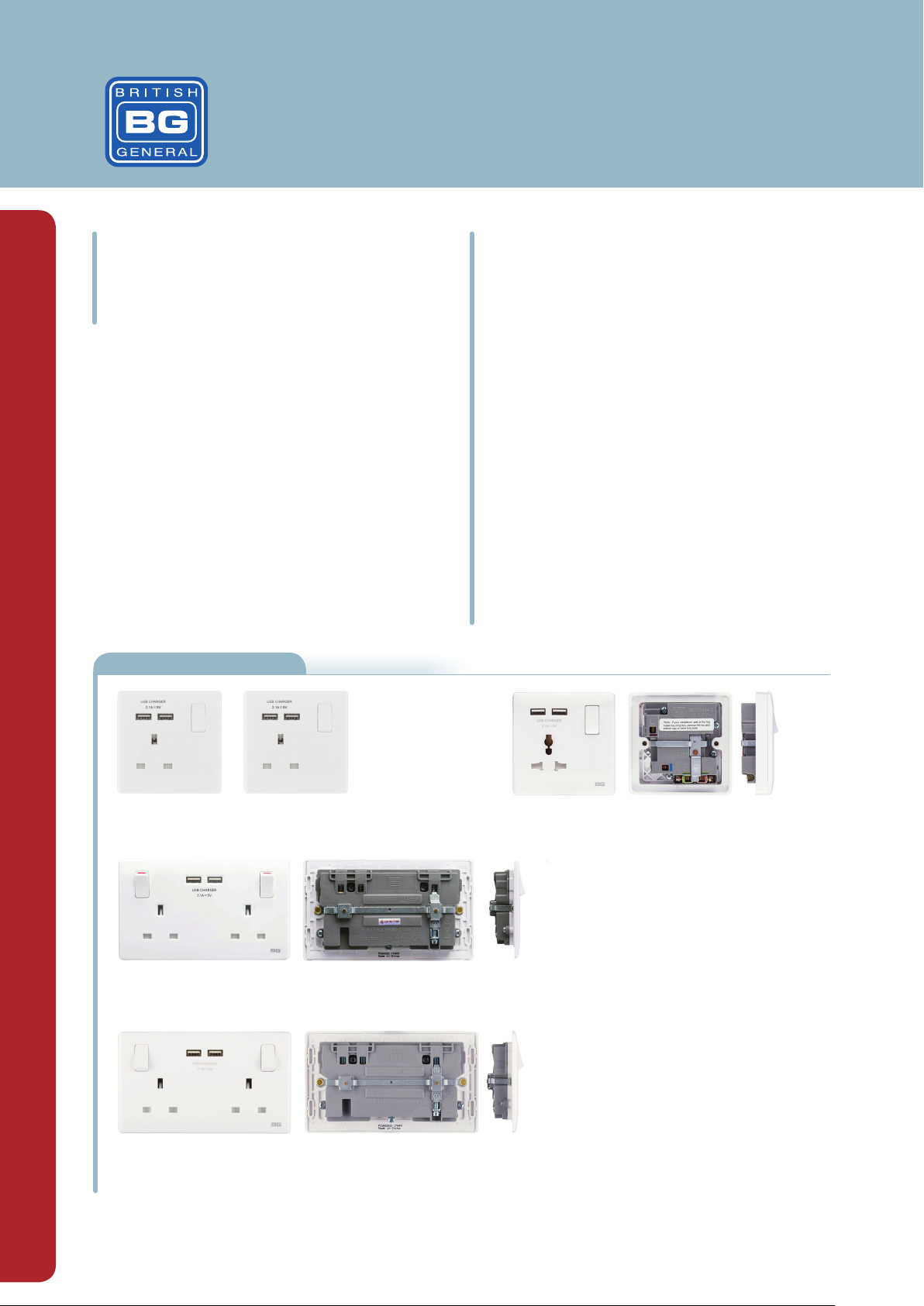

Product Images

• 2.1A/3.1A USB charging output, with charge shared across two outlets. 2 Type A outlets, 2.1A/3.1A, 5V

• Smart USB - Standby mode when device is fully charged; AutoDetect's the USB device and adjusts charging pattern to suite; protective overload function

• USB charger standby mode when not in use

• 13A sockets manufactured to BS 1363-2 & Universal

to IEC60884-1

• Twin Earth ﬁtted as standard to allow a double Earth facility for installations requiring high integrity protective connection Ref. UK-BS 1363-2

• Captive terminal screws

• Terminal capacity 3×2.5mm

• Minimum mounting box depth 35 mm

• Concealed ﬁxing screws

, 3x4.0mm2 & 2×6.0mm

PCWH21U2

PCWH27U PCWH21DPU2

PCxx22U

PCxx22U3

Page 2

Switched Socket Outlets with USB charger

Technical Speciﬁcations

Standard(s)

ASTA Approval

Rating

Contact Gap

Terminal Capacity – L & N

RoHS Directive

WEEE Directive

Mounting Box Depth(Min)

Switch type

Fixing Centres

USB Output

Output tolerance

Stand-by power

USB Overcurrent Protection

Size

UK-BS 1363-2

Yes, License number 1182

Note PCxx27U not covered by ASTA approval

13 Amp

3.0mm minimum

3×2.5mm², 3x4.0mm² & 2×6.0mm²

35mm

PCxx21U2, PCxx22U, PCxx22U3, PCxx27U - Single Pole

PCxx21DPU2 - Double Pole

60.3mm (PCxx21U2, PCxx21DPU2,PCxx27U)

120.6mm (PCxx22U, PCxx22U3)

5V, 2.1A (PCxx22U3, 3.1A)

<5%

<75mW

<2.43A

86mm×86mm×32mm (PCxx21U2)

86mm×86mm×35mm (PCxx21DPU2 )

86mm×86mm×33mm (PCxx27U)

86mmx146mmx32mm (PCxx22U, PCxx22U3)

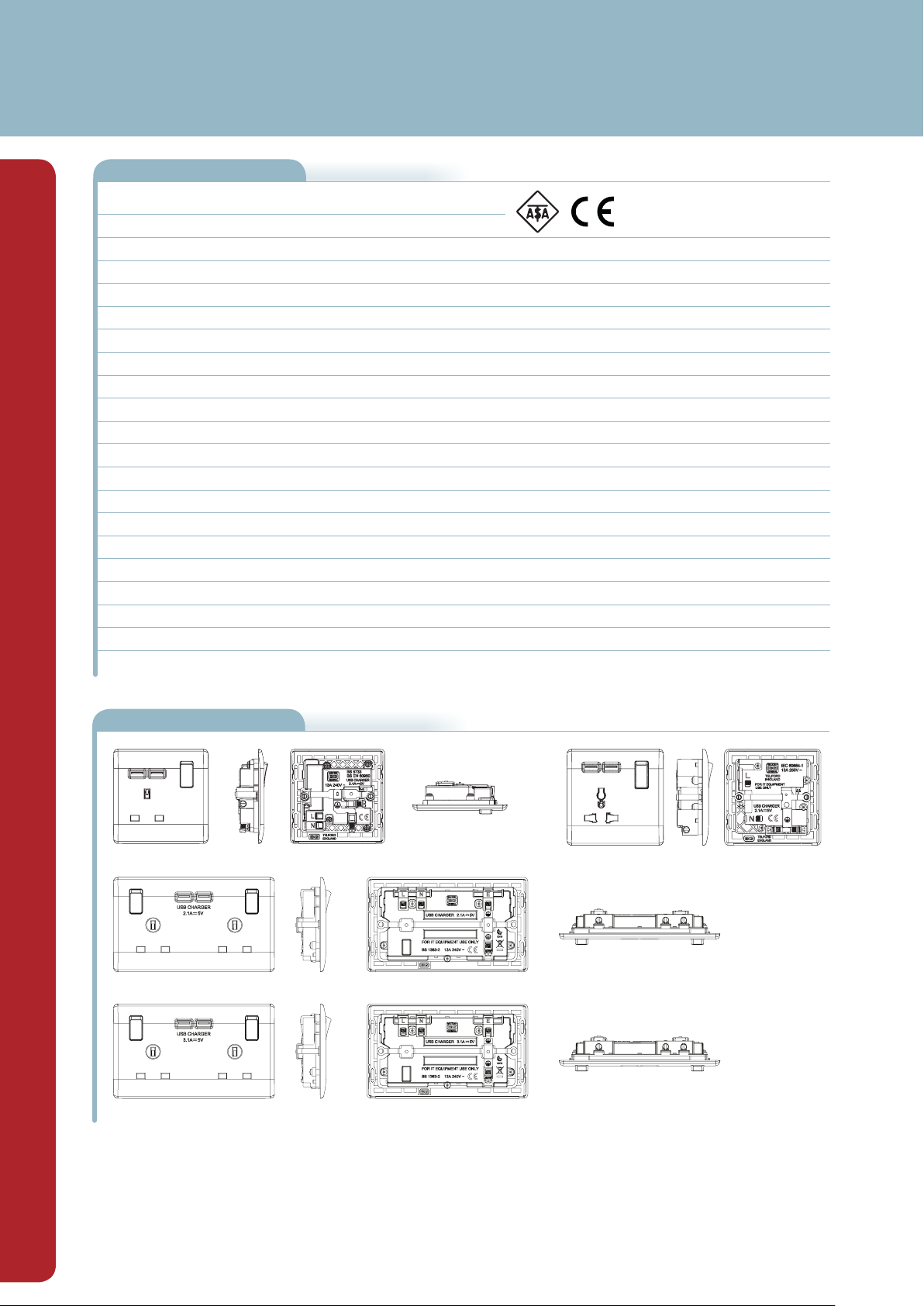

Line Diagrams

PCxx22U3

PCWH21U2/ PCWH21DPU2

PCWH27U

PCxx22U

Page 3

Switched Socket Outlets with USB charger

Packaging Information

Cat No.

PCxx21U2

PCxx21DPU2

PCxx22U

PCxx22U3

PCxx27U

Description

13A 1 Gang Single Pole Switched Socket + USB (2.1A)

13A 1 Gang Double Pole Switched Socket + USB (2.1A)

13A 2 Gang Single Pole Switched Socket + USB (2.1A)

13A 2 Gang Single Pole Switched Socket + USB (3.1A)

13A 1 Gang Universal Switched Socket + USB (2.1A)

Weights & Dimensions

Cat No. Description

PCxx21U2

PCxx21DPU2

PCxx22U

PCxx22U3

PCxx27U

1G SP Skt - USB(2.1A)

1G DP Skt - USB(2.1A)

2G SP Skt - USB(2.1A)

2G SP Skt - USB(3.1A)

1G Uni Skt - USB(2.1A)

Barcodes

Cat No. Description

PCxx21U2

PCxx21DPU2

PCxx22U

PCxx22U3

PCxx27U

1G SP Skt - USB(2.1A)

1G DP Skt - USB(2.1A)

2G SP Skt - USB(2.1A)

2G SP Skt - USB(3.1A)

1G Uni Skt - USB(2.1A)

Packaging Type

Product Inner Box Outer Box

BG Printed Bag

Dimension (W x L x H) cm

Product EachInner Box Inner

11.9 x 3.5 x 22.4

11.9 x 3.8 x 22.4

24.5 x 3.5 x 16.4

22.4 x 3.6 x 11.9

17.7x18.7x9.7

16.2×17.7x9.7

17.7x18.7x9.7

Outer Box Outer

36.5x50.5x21.5

37×50.5x21.5

33.5×50.5x20.5

36.5x50.5x21.5

Weight (g)

104

168

169

137

White (WH)

Product Inner Box Outer Box

5050765118873

5050765155809

5050765160124

5050765160155

5050765118903

5050765118880

5050765155816

5050765160131

5050765160162

5050765118910

5050765118897

5050765155823

5050765160148

5050765160179

5050765118927

BG Printed Box

Box

1135

1018

918

933

1463

Pack Quantity

BG Brown Carton

Each Inner

Box

CMB (m3)

Box

11900

10680

9700

9850

15280

Outer Box

0.039

0.040

0.034

0.039

Champagne (CH)

Product Inner Box Outer Box

5050765159456

5050765159463

Outer

Box

100

5050765159470

Barcodes

Cat No. Description

PCxx21U2

PCxx21DPU2

PCxx22U

PCxx22U3

PCxx27U

1G SP Skt - USB(2.1A)

1G DP Skt - USB(2.1A)

2G SP Skt - USB(2.1A)

2G SP Skt - USB(3.1A)

1G Uni Skt - USB(2.1A)

Silver (SL)

Product Inner Box Outer Box

5050765155045

5050765155007

5050765155052

5050765155014

5050765155069

5050765155021

Pearl White (PW)

Product Inner Box Outer Box

5050765155076

5050765155038

5050765155083

5050765155045

5050765155090

5050765155052

Page 4

Switched Socket Outlets with USB charger

Installation Information

Safety Warning

Before use please read carefully and use in accordance with these safety wiring instructions.

Before commencing any electrical work ensure the supply is switched off at the mains. Either by switching off the consumer unit or by removing the appropriate fuse.

Wiring should be in accordance with the latest edition of the IEE regulations (BS 7671).

Wire Identiﬁcation – Twin & Earth Cable

EARTH = Green/Yellow Sleeving

NEUTRAL = Black (pre Apr 04) / Blue (after Apr 04)

LIVE = Red (pre Apr 04) / Brown (after Apr 04)

The ends of the individual conductors should have the insulation removed by approx.12mm. Any bare earth conductors should be sleeved to within 12mm of the ends. (These details are for general information only and conductor lengths may need to be trimmed in certain installations).

General Installation Instructions

1) If using the new product to replace an old one, note the cable connections and wire up new product in the same way as the old one, with Earthing as stated in these instructions.

2) Ensure the mounting box (metal or patress) for either ﬂush or surface mounting is the appropriate size for the product.

3) Route the cable through the most suitable entry point of the mounting box. If a metal box is used, a protective cable grommet should be used.

4) Cables should be prepared so a sufﬁcient conductor length reaches the terminals. Strip the ends of the individual conductors so that an adequate length enters the terminals.

5) Carefully arrange the wiring to lie along the edges of the product or box, keeping the central area clear.

6) To assist with the correct installation please consult the appropriate wiring diagram on this leaﬂet.

7) When connecting the new accessory ensure that only the bare end of the wire enters the terminal, and no bare wires are visible.

Always tighten the terminal screws securely, but do not overtighten. An earth connection should always be made between the mounting box earth terminal, and the accessory earth terminal, where ﬁtted. If this earth wire is bare, it is essential that it is sheathed

with a length of green/yellow sleeving.

8) Carefully position the accessory into the wall box, ensuring that no wires are trapped between the plate and the wall. Do not overtighten the screws. (Fit screw covers + clip-on)

9) Once work has been completed correctly, replace the fuse for the circuit, switch the power back on, and test. The product is now ready for use. * Note - If your installation uses a four lug metal mounting box, remove the top and bottom lugs or bend fully back.

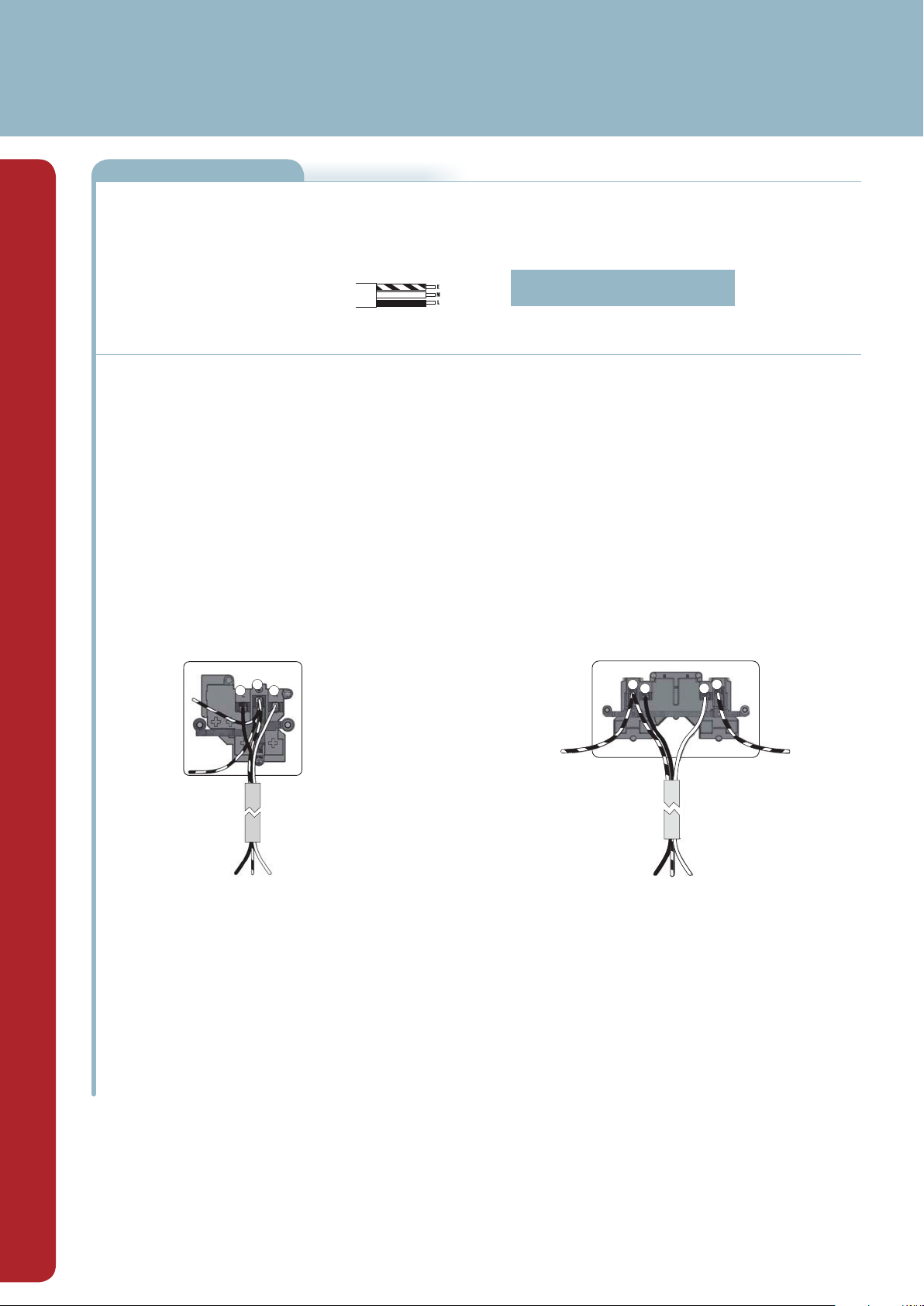

1 Gang 13 Amp Switched Socket

This socket is ﬁtted with with two linked terminals to provide a dual earth facility. This is for use in "clean earth" installations where additional earth capacity is required to comply with Regulation 607 of BS7671 IEE Wiring Regulations.

Connect the cables as shown in the diagram.

Technical Helpline: 03300 249 279

If in doubt consult a competent electrician.

2 Gang 13 Amp Switched Socket

This socket is ﬁtted with with two linked terminals to provide a dual earth facility. This is for use in "clean earth" installations where additional earth capacity is required to

comply with Regulation 607 of BS7671 IEE Wiring Regulations. Connect the cables as shown in the diagram.

L N

All earth wires must be

All earth wires must be sleeved and terminated to the back box

USB Charger Information

Switched 13A socket with 2 x USB ports for charging mobile devices such as mobile phones, MP3 players and tablets.

2.1A 5V output from the USB outputs

• Total charger output current is 2.1A. This can be delivered from one USB socket or divided between the two as required.

• 2.1A is sufﬁcient power output to charge the majority of USB products.

• A device needing 1.5A would leave the other port at 0.6A, so devices may charge more slowly than with a normal single plug charger.

• The total output current achieved is dictated by the speciﬁc device being charged and other external factors, such as the quality of charging cable being used.

• Overload protection for connected devices.

Low energy stand-by mode

• When not in use the USB sockets are in a low energy stand-by mode.

The USB circuits on this socket are designed to withstand insulation resistance tests at 500V. A reading of 0.4m +/-0.05 is typically caused by the USB sockets.

FROM SUPPLY

LIVE

NEUTRAL

EARTH

sleeved and terminated to the back box

LIVE

EARTH

Note - The front surface of this product may become warm in use. This is normal and not cause for concern.

FROM SUPPLY

NEUTRAL

TO FUNCTIONAL EARTH
