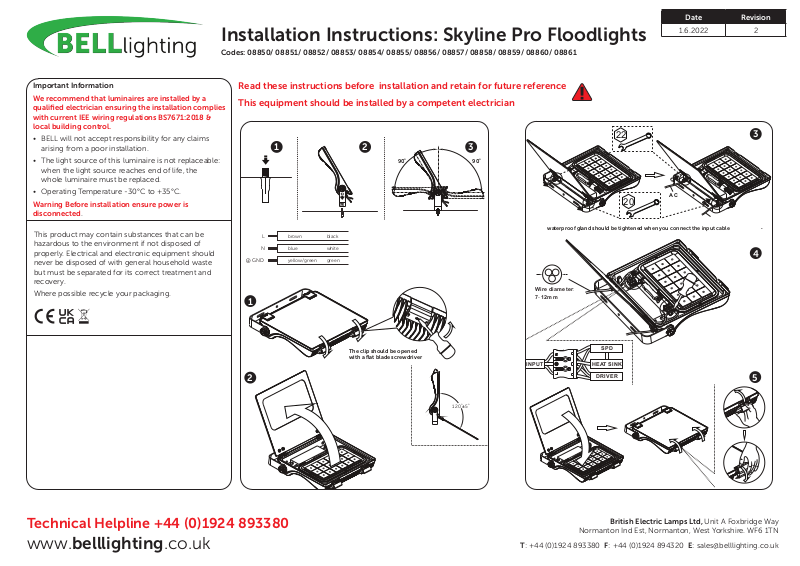

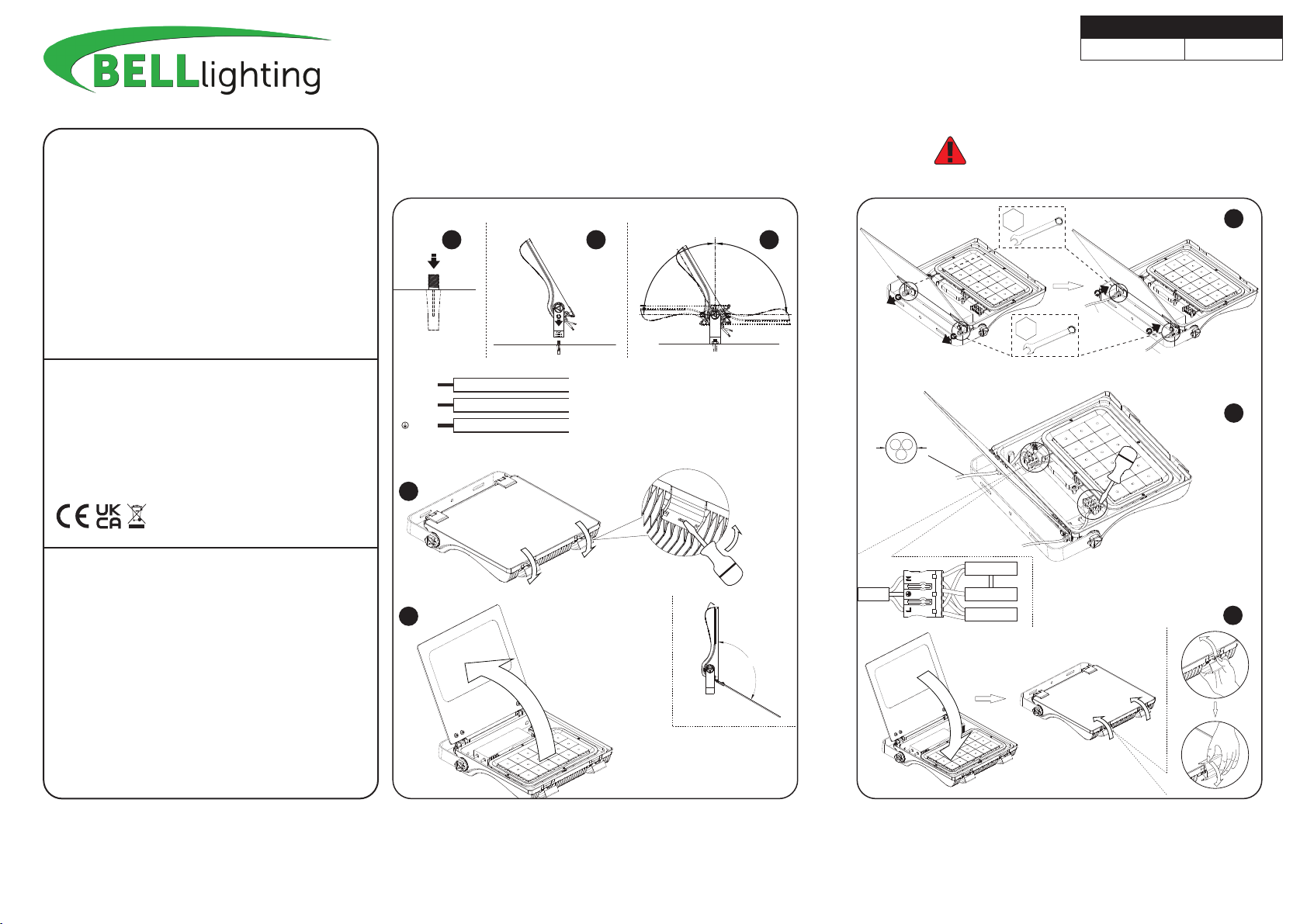

Installation Instructions: Skyline Pro Floodlights
o
90
o
90
(With input line)
L
N
GND
brown
blue
yellow/green
black
white
green
o o
1 20 ±5
The clip should be opened
with a flat blade screwdriver
.
AC
22
20
.
INP UT
DRI VER
SPD
HEAT S IN K
Wir e di ame ter:
7- 1 2mm
waterproof gland should be tightened when you connect the input cable
Codes: 08850/ 08851/ 08852/ 08853/ 08854/ 08855/ 08856/ 08857/ 08858/ 08859/ 08860/ 08861
Date Revision
1.6.2022 2
Important Information
We recommend that luminaires are installed by a
qualified electrician ensuring the installation complies
with current IEE wiring regulations BS7671:2018 &
local building control.
• BELL will not accept responsibility for any claims
arising from a poor installation.
• The light source of this luminaire is not replaceable:
when the light source reaches end of life, the
whole luminaire must be replaced.
• Operating Temperature -30°C to +35°C.
Warning Before installation ensure power is
disconnected.
This product may contain substances that can be
hazardous to the environment if not disposed of
properly. Electrical and electronic equipment should
never be disposed of with general household waste
but must be separated for its correct treatment and
recovery.
Where possible recycle your packaging.
Read these instructions before installation and retain for future reference
This equipment should be installed by a competent electrician
3
1 2 3
4
1
Technical Helpline +44 (0)1924 893380
www.belllighting.co.uk
2
5
British Electric Lamps Ltd, Unit A Foxbridge Way
Normanton Ind Est, Normanton, West Yorkshire. WF6 1TN
Page 2
Installation Instructions: Skyline Pro Floodlights
80W
51 0 W
240W
45mm(1.77")
87mm
(3.43")
452mm(17.8")
430mm(16.93")
462mm(18.19")
418mm(16.46")
100mm
(3.94")
240mm(9.45")
42mm(1.65")
83mm
(3.27")
413mm(16.26")
334mm(13.15")
366mm(14.41")
325mm(12.8")
60mm
(2.36")
160mm(6.3")
82mm
(3.23")
359mm(14.13")
40mm(1.57") 276mm(10.87")
308mm(12.13")
265mm(10.43")
11mm(0.43")
25mm(0.98")
55mm
(2.17")
135mm(5.31")
∅11mm(0.43")
11mm(0.43")
∅11mm(0.43")
40mm(1.57")
11mm(0.43")
40mm(1.57")
∅11mm(0.43")
Codes: 08850/ 08851/ 08852/ 08853/ 08854/ 08855/ 08856/ 08857/ 08858/ 08859/ 08860/ 08861
Date Revision
1.6.2022 2

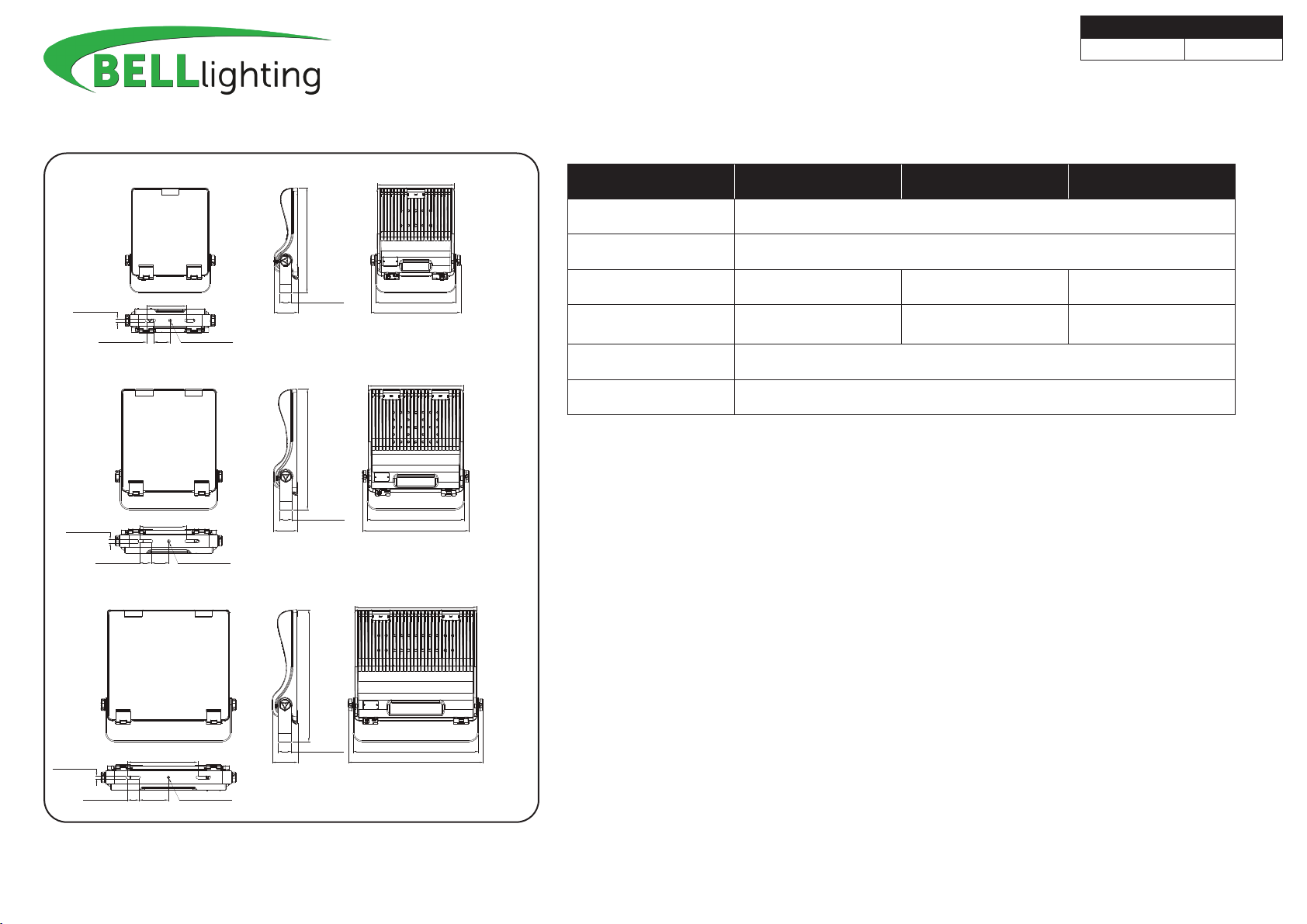

Dimensions
Product Specifications 80W 150W 240W
Input Voltage AC 100/240V
Power Frequency 50/60 Hz
Outlook Dimensions 359 x 308 x 82mm 413 x 366 x 83mm 462 x 452 x 87mm
Luminaire Net Weight
+/- 0.3 kg
4.6 kg 6.8 kg 8.9 kg
Working Temperature -30°C - +35°C
Storage temperature -40°C - +70°C
