Page 1
BV-210/BV-254
User Manual
¾ 200 Mbps
¾ 1.1” Slimmest Design
¾ Low Power Consumption
¾ Best Performance
Powerline Ethernet Bridge
Powerline Ethernet Switch
V. 1.0.1
Powerline
Ethernet
Bridge +
S
witch
Page 2
1
TABLE OF CONTENT
ORDERING INFORMATION.....................................................................................................2
INCLUDED ITEMS.................................................................................................................4
IMPORTANT SAFETY INSTRUCTIONS......................................................................................5
THE FIRST THING YOUT NEED TO KNOW BEFORE INSTALLATION...............................................6
AC outlets connection...........................................................................................................6
Connecting the Powerline Adapter to an Extention Cord............................................8
Electrical Interference............................................................................................................8
Electrical Wiring......................................................................................................................8
P
RODUCT OUTLOOK ...........................................................................................................9
P
RODUCT OVERVIEW ........................................................................................................11
Standby Mode........................................................................................................................11
PRODUCT INSTALLATION ...................................................................................................12
Setting Logical Network Group.........................................................................................12
Remove a Device from a Logical Network Group........................................................13
Setting Up a Different Network Group.............................................................................13
Application 1 – Local Powerline Network Among Computers..................................13
Application 2 – Computer to DSL/Cable Router Connection....................................15
Application 3 – Wireless Access Point Range Extensions........................................17
Business Installation............................................................................................................18
SPECIFICATIONS...............................................................................................................19
FAQ (FREQUENTLY ASKED QUESTIONS)............................................................................20
T
ROUBLE SHOOTING .........................................................................................................23
Page 3
2
ORDERING INFORMATION
This BV-210/BV-254 User Manual describes how the powerline connects to the
Ethernet Bridge (BV-210) and to the Ethernet Switch (BV-254).
The BV-210 is a one-port Powerline Ethernet Bridge. The BV-254 is a four-port
Powerline Ethernet Switch.
Powerline technology lets you use your home's electrical system to transmit data signals,
and it uses the electrical system as a network, with each electrical outlet serving as a node.
Any Ethernet-equipped device (PCs, TiVos, and set-top boxes, among others) that's
connected to a power line adapter can be part of the power line network.
After successful installation, the BV-210 and BV-254 Powerline network behaves like a
traditional LAN for computers. These brite-View Powerline Adapters support up to 200Mbps
network speed.
See the following table for a summary.
Categories Description
Powerline Ethernet Bridge
(BV-210)
The BV-210 is a HomePlug device used to extend
a LAN into a separate room using the existing
electrical system in the building. An Ethernet cable
from the network router is plugged into a bridge,
which plugs into an AC wall outlet.
Page 4
3
Powerline Ethernet Switch
(BV-254)
The BV-254 Powerline 4-Port 200Mbps Ethernet
Adapter turns any power outlet into a 4-port home
network connection. The BV-254 adapter extends
your network to provide 200Mpbs connections
without the cost or hassle of running new wiring.
Just plug the BV-254 Powerline 4-Port Ethernet
Adapter directly into the wall outlet, and you are
ready.
*You will need at least a pair of brite-View powerline Ethernet Adapters in order to enable powerline
communication.
Page 5
4
INCLUDED ITEMS
POWERLINE
ETHERNET
SWITCH
DUAL PACKAGE
POWERLINE ETHERNET SWITCH
+ POWERLINE ETHERNET BRIDGE
COMBO PACKAGE
DEVICE
Two devices
X 2
Combinational devices
ETHERNET CABLE
2
Page 6
5
NOTICE: This product complies with IC: ICES-006; en conformité avec IC: NMB-006
I
MPORTANT SAFETY INSTRUCTIONS
This product is intended for connection to the AC power line. For installation instructions,
refer to the Installation section. The following precautions should be taken when using this
product.
z Please read all instructions before installing and operating this product.
z Please keep all instructions for later reference.
z Please follow all warnings and instructions marked on the product.
z For safety reasons, when the device is powered on, the venting holes should
remain uncovered.
z Unplug the Powerline device from the wall outlet before cleaning. Use a dry cloth
for cleaning. DO NOT use liquid cleaners or aerosol cleaners.
z DO NOT operate this product near any liquid.
z This product should never be placed near or over a radiator and heat register.
This product relies on the building’s electrical installation for short-circuit (over-current)
protection.
z It is recommended that the adapter is plugged directly into an electrical outlet, rather
than into an uninterruptable power supply or extension cord with surge protection.
brite-View Powerline adapters have their own power filter for surge protection.
z Only a qualified technician should service this product. Opening or removing covers
may expose you to dangerous voltage or other hazards.
Unplug the product from the wall outlet and refer the product to qualified service personnel
for the following conditions:
¾ If liquid has been spilled into the product.
¾ If the product has been exposed to rain or water.
¾ If the product does not operate normally when the operating instructions are
followed.
¾ If the product exhibits a distinct change in performance.
Page 7
6
The FIRST THING YOUT NEED TO KNOW BEFORE INSTALLATION
These powerline adapters sends data to and from each other over the existing electrical
wiring in your home, and the network performance may be affected by electrical noises or
the length of the electrical wiring in your house. Keep the following in mind when placing
this powerline device at home.
AC outlets connection
Avoid connecting these adapters to an uninterruptible power supply (UPS) or backup power
supply device. For best results, we recommend connecting the adaptors directly to a wall
outlet. Avoid connecting high power-consumption appliances to the same wall outlet. Plug
these power consuming devices onto a noise filtering extension cord to prevent
interference on the powerline network. See the following illustration for details:
For best performance, isolating the powerline adapter from other appliances is
recommended.
Page 8
7
The following connections are NOT recommended, although current powerline
communication technology can overcome most noise interference from other AC adapters
or chargers.
Page 9
8
Connecting the Powerline Adapter to an Extention Cord
If you must connect this device to a power strip, please keep the following suggestions in
mind:
• Make sure the extension cord does not have a noise filter or a surge protector, as these
features decrease the network signal strength over the electrical wiring.
• Use an extension cord as short as possible.
• Do not connect the powerline adaptor to an extension cord that receives power from
another extension cord.
Electrical Interference
Certain electrical devices emit electrical noise. The noise may interfere with the
performance, speed, and reliability of the powerline adapters. For best results, we
recommend connecting an electrical noise filter to noise emitting appliances.
The following appliances are more likely to produce electrical noise:
• Battery chargers (including cell phone chargers)
• Hair dryers
• Power drills
• Halogen lights
• Vacuum cleaners
Additionally, the powerline adapters may interfere with the following appliance:
• Lights or lamps which have a touch-sensitive on/off feature
Electrical Wiring
This device sends data to and from each other over the existing electrical wiring in your
house. If two wall outlets are separated by a great distance of electrical wiring, these
devices may not communicate well with each other. For more information, refer to the
troubleshooting section.
Page 10
9

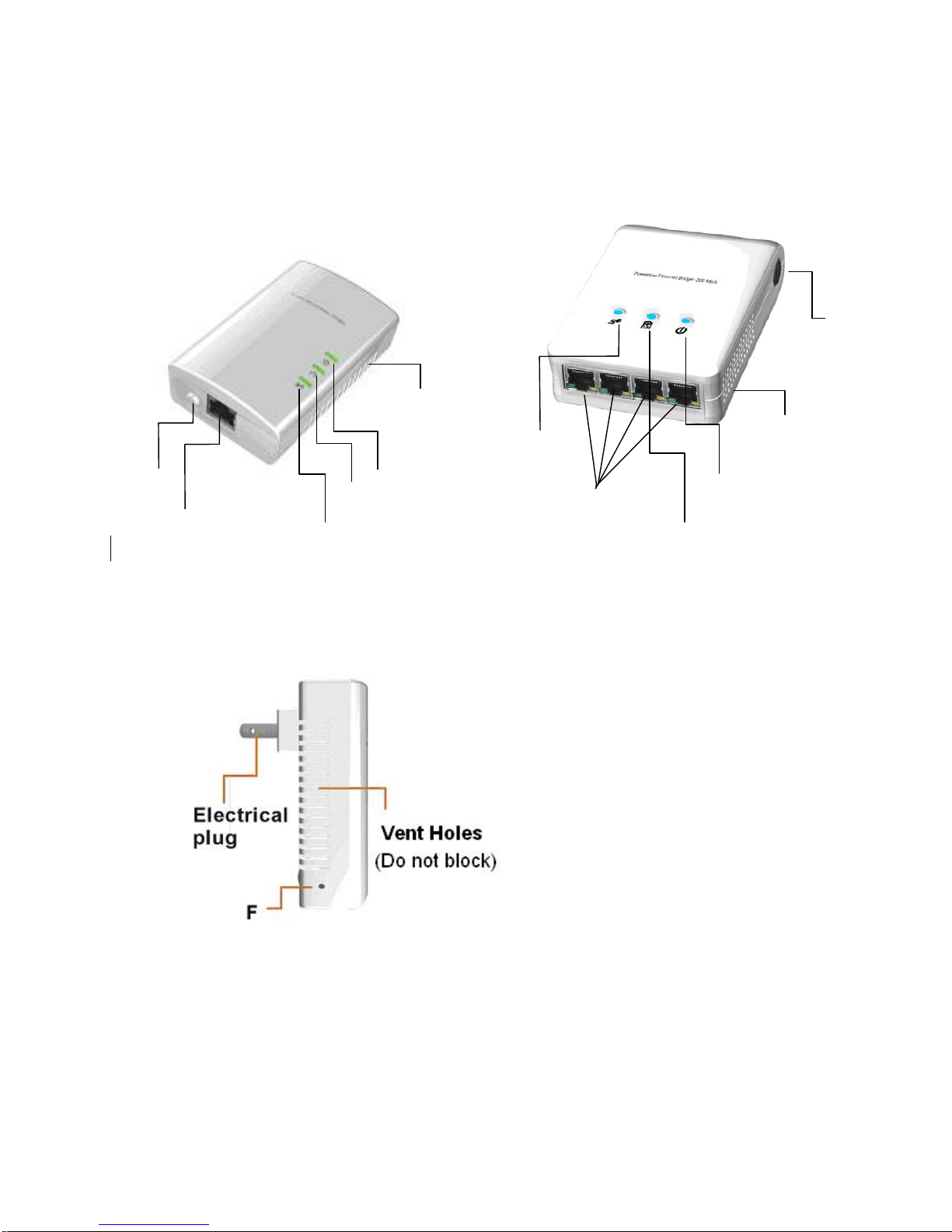

PRODUCT OUTLOOK
A. Top View
Powerline Ethernet Bridge Powerline Ethernet Switch
B. Side View
Ethernet Port
B
A
C
E
V
ent Holes
(Do not block)
Four Ethernet Ports
D
A
C
E
V
ent Holes
(Do not block)
Page 11
10
*1 :
The “PLC Link/ACT “ LED indicator will turn on when the powerline link is detected. If the device is serving as a
station, the LED indicator will flash to indicate powerline activity. If the device is serving as a CCo (Central
Coordinator), the LED indicator will a solid light, even in the presence of powerline activity.
Item Item Name
Description
A
PLC Link/ACT LED
On: Powerline link detected (*1)
Blinking:
(1) Powerline traffic detected (*1)
(2) Powerline device not in any logical network.
Off: No powerline traffic detected
B
Ethernet Link/ACT LED
On: Ethernet link detected
Blinking: Ethernet traffic detected
Off: no Ethernet link detected
C
POWER LED
On: powered on
Blinking:
(1) Rebooting or
(2)
The device is sitting at a network node
for interfacing with another network
Off: powered off
D
HomePlug 1.0 DET LED
Blinking: HomePlug 1.0 Traffic detected
Off: HomePlug traffic 1.0 not detected
E GROUP Button
Press for 2 seconds to allow a device to
interface with a logical network or clear
grouping information
F
Reset-to-factory-default Button
Press to reset firmware setting to factory default
Page 12
11
PRODUCT OVERVIEW
These powerline Ethernet adapters are virtually Ethernet cable and Ethernet hub
replacement. Two of these powerline Ethernet bridges (or one bridge and one switch) can
be used to replace an Ethernet cable, for connecting any computer to another computer,
computer to a DSL/cable router, or a wireless AP to a DSL/cable device. Many pairs of this
devices can be connected together to form a network communication. For example, three
computers can be connected to a DSL/cable router for internet access via four of these
powerline Ethernet adapters, each computer is connected to one powerline adapter and the
DSL/cable router to the fourth powerline adapter.
The maximum amount of nodes in a powerline logical network group is defined in the
SPECIFICATIONS section in this user’s manual.
If a user finds two newly purchased devices are not able to communicate with each other,
please press the “reset-to-factory-default” button while the device is plugged into the
electrical socket and powered. If these devices are still not working, please read the other
sections in this user manual for frequently asked questions and trouble shooting.
Standby Mode
If no Ethernet cable is connected to the Powerline Ethernet Bridge within two minutes
after powering it on, this device will go into standby mode automatically, in order to lower
power consumption. Meanwhile, the POWER LED will blink ON and OFF at a slow rate. To
exit the standby mode, insert the Ethernet cable or re-plug in this device to the electrical
outlet.
Note:
1. Some computers support “Wake on LAN” and it may cause the Ethernet adapters to stay
on without entering the standby mode.
2. Powerline Ethernet Switch does not go into standby mode.
Page 13
12
PRODUCT INSTALLATION
Setting Logical Network Group
Users can set HomePlug AV devices into one or many logical network groups. Devices in
the same logical network group will communicate with each other. Devices in different
network group won’t communicate with each others.
If you have a pair of powerline Ethernet adapters, either one in the pair can be “device A” or
“device B”.
To make powerline device B join device A’s logical network, please do the following steps:
(NOTE: for configuration convenience, please place device A and B together when setting
up the network. After the configuration these devices can be deployed anywhere in the
house.)
Step 1. Clear device B’s logical network group by pressing its GROUP button for 10
seconds. After release the button, all LED lights will simultaneously blink on
and off. It means the network group clearing procedure has started.
The following steps are to be followed in order for device B to interface with device A‘s
logical network:
Step 2. Now press the GROUP button on device A for 2 to 3 sec (make sure POWER
LED starts to blink).
Step 3. After following the previous steps, in less than two minutes, press GROUP
button on device B again, for 2 to 3 seconds (make sure POWER LED starts to
blink). After 10 seconds, device B will start communicating with device A.
Now device A and B can interface with each other. Users can include device C (3rd
Powerline Ethernet adapter) to device A’s logical network by following the same procedures
above. Users can assign as many Powerline devices into this logical network group as
possible until the maximum number of adapters described in the SPECIFICATION section is
reached.
Page 14
13
Remove a Device from a Logical Network Group
If device A and B are in the same logical network group but you want to remove device A
from this logical network group, just follow the procedure in Step 1 by pressing the GROUP
button on device A for 10 seconds. This will stop the communication between A and B. If
you want to remove a device from a logical network group of 3 or more devices, just press
the GROUP button on that device as explainted in Step 1.
Setting Up a Different Network Group
When you press the GROUP button on device A for 10 seconds, a random network key is
generated and which is different from device A’s network name (clearing device A from its
original network group). You can then add other devices to device AB’s network group by
following Ste p 2 and St ep 3, which will form two groups of logical network in total, using 4
devices.
The following are some application examples and their installations.
Application 1 – Local Powerline Network Among Computers

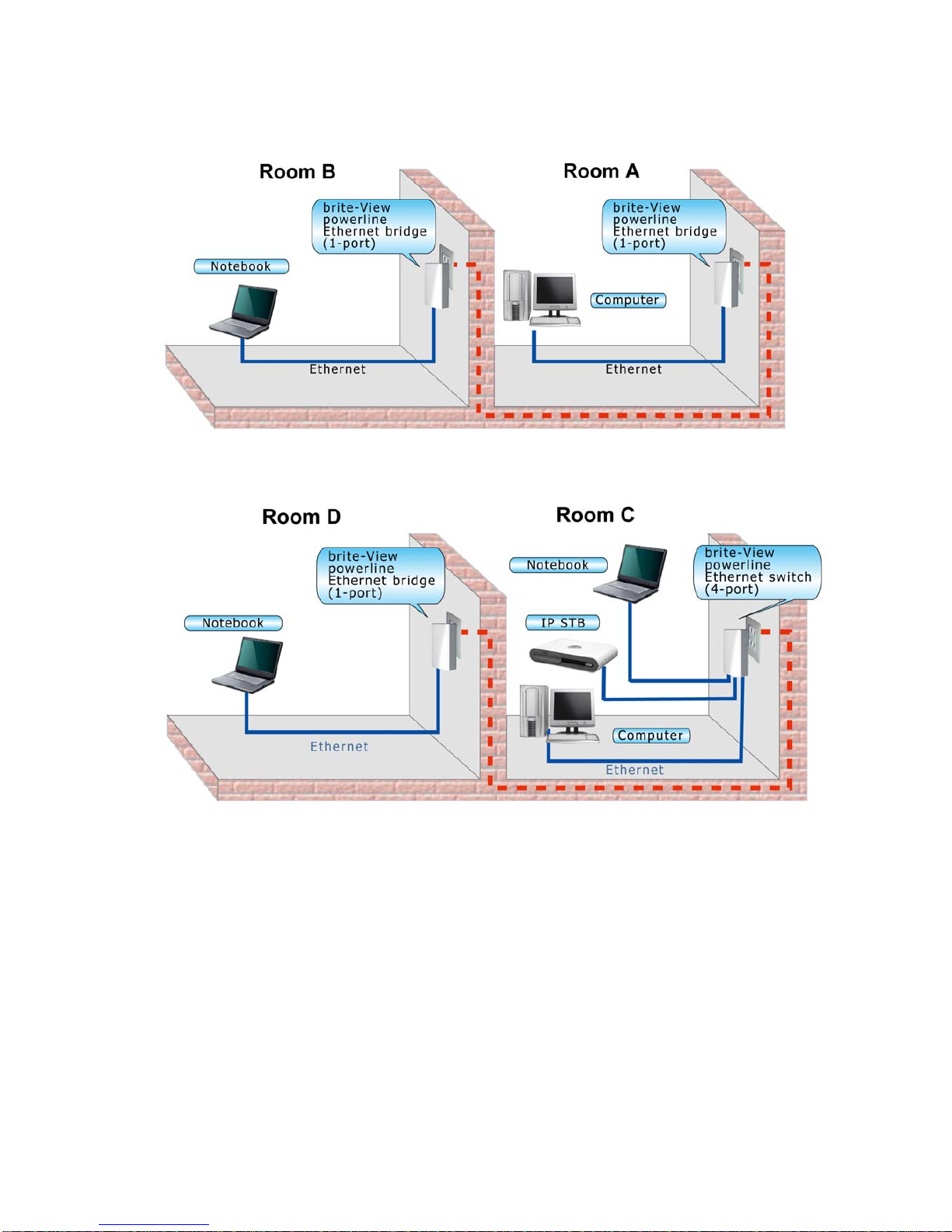

Connect computers in different rooms with brite-View Powerline Ethernet adapters!
Installation Options:
You need at least 2 brite-View powerline Ethernet bridges in order to establish a network
communication. For example, you can establish a network for computers in different rooms
as shown in Room A and Room B. You can then add more adapters to that network, one by
one.
You can also purchase one powerline Ethernet bridge (one-port) with and a Ethernet switch
(4-port). As shown in Room C, multiple network devices are connect to the Powerline
Ethernet switch, and the laptop computer is connected to the Powerline Ethernet bridge
in Room D.
Page 15
14
Page 16
15
Application 2 – Computer to DSL/Cable Router Connection

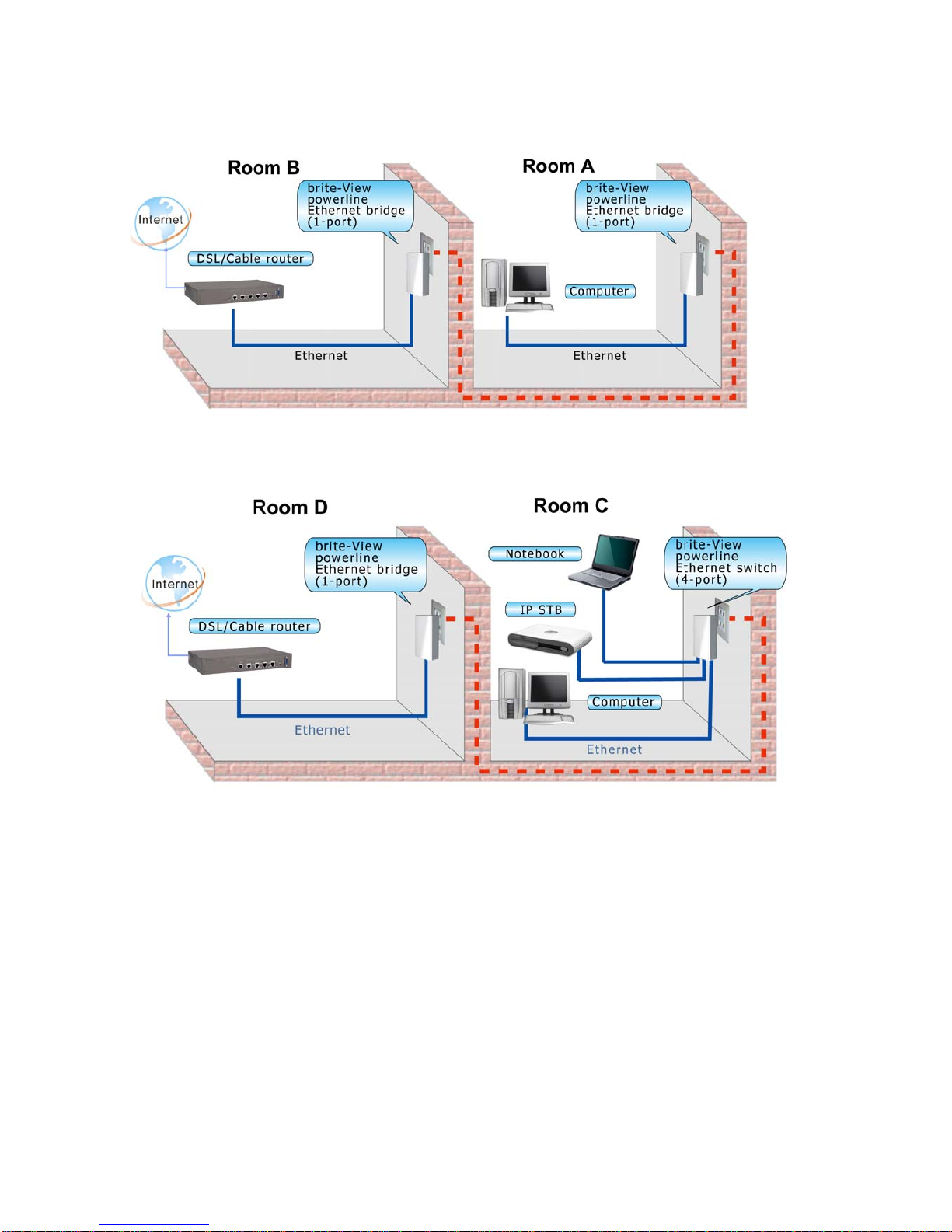

Use brite-View powerline to establish communication between your computer and your
router – even if they are in different rooms.
Installation Options:
Connect the computer to a brite-View powerline Ethernet bridge as shown in Room A. The
other brite-View powerline Ethernet bridge can be placed in another room, connected to a
broadband DSL/cable router shown in Room B. The picture of Room C shows multiple
network devices connected to a brite-View powerline Ethernet switch, and then linked to the
DSL/cable router in Room D via a single-port powerline Ethernet bridge.
Page 17
16
Note: Under decent powerline signal conditions, two devices can communicate with each
other without problems even though the two rooms are not right next to each other. (See
the FAQ section for more details.)
Page 18
17
Application 3 – Wireless Access Point Range Extensions

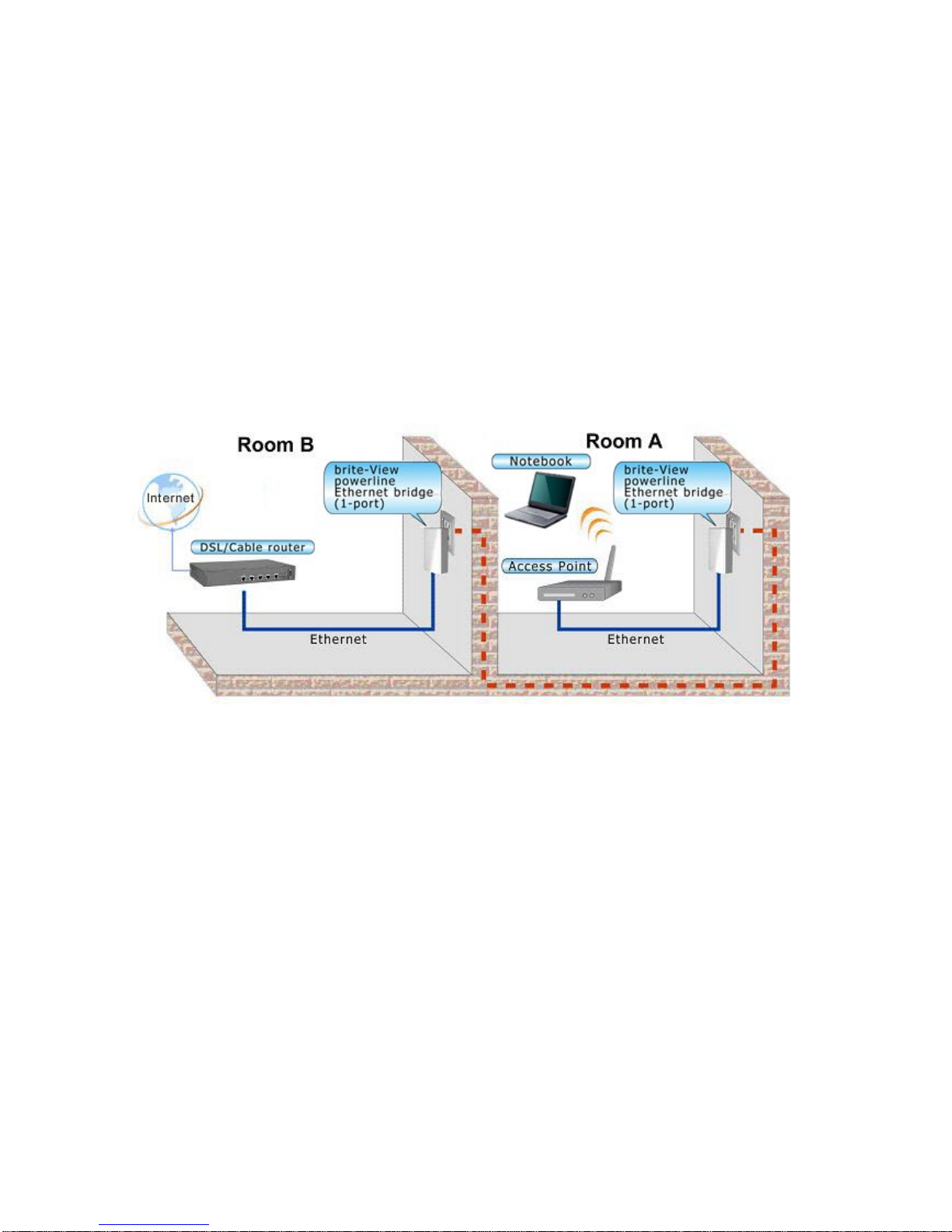

Use brite-View powerline Ethernet adapters to extend your WiFi network and eliminate WiFi
dead zone.
Installation procedure:
Connect one powerline Ethernet bridge to a wireless access point as shown in Room A.
Then, connect the second included powerline Ethernet bridge or switch to a broadband
DSL/cable router as shown in Room B.
Page 19
18
Business Installation
We DO NOT recommend these powerline devices for business operation due to the
complexity of the network environment in business settings, although some businesses will
find it an inexpensive networking solution.
Page 20
19
SPECIFICATIONS
Items Description
Powerline Ethernet Bridge
device Powerline Ethernet Switch device
PHY Rate
200Mbps
Effect Data Rate
TCP: Up to 90 Mbps
UDP: Up to 91 Mbps
TCP: Up to 91 Mbps
UDP: Up to 92 Mbps
Frequency Band
2~28 MHz (With Mask)
Access Methods
CSMA/CA channel-access schemes
Qos
Four-level priority based contention access, and multi segment bursting
8-level VLAN priority field, TOS field
QoS Classification by destination MAC address and IP Port
Modulation
OFDM (QAM 8/16/64/256/1024, QPSK, BPSK, ROBO)
10/100 RJ-45 port
1 port 4 ports
Distance
AC Wire : 100 meters
LAN Standards
IEEE 802.3, IEEE 802.3U,
PLC Standard
HomePlug A V
Operating System
OS independent
Max. devices in a
network Group
Up to 63 slaves with 1 master, 64 total devices
IGMP
Support for IPv4/IGMP v1,v2,v3 snooping
Support for IPv6 and MLD v1,v2 snooping
Max 16 source addresses and Group Members
Encryption
128-bit AES Link Encryption with key management
LEDs
1. Power (green), 2. Powerline
Activity (green), 3. Ethernet
Link/Activity (green)
1. Power (blue), 2. Powerline Activity
(blue), 3. AV/1.0 DET (blue),
Temperature
0~40 ℃ (Operating); -20~60 ℃ (Storage)
10~85% Non-Condensing (Operating)
Relative Humidity
5~90% Non-Condensing (Storage)
Power Source
100 ~ 240 VAC 50/60Hz
Full load: (1 10 V A C) = 4.2W; (220 VAC) =
5.3W; (240 VAC) = 5.8W
Power
consumption
Full load: (1 10 V A C) = 2.7W; (220
VAC) = 3.28W; (240 VAC) = 4W
Standby mode: (110 VAC) = 0.72W;
(220 VAC) = 1.36W; (240 VAC) =
1.4W
NA
Certification
CE, CE-LVD, FCC Class B
Page 21
20
FAQ (Frequently Asked Questions)
1. What is the maximum powerline Ethernet devices communication distance?
ANS: Powe rline technology provides reliable communication coverage in a home setting; the
limiting factor is often your home electrical system noise/interference. Powerline devices can
communicate with each other within the distance of 340 feet in most homes. Even if the
electrical wiring is very “noisy”, the two devices can still communicate with each other within
the distance of 120 feet.
2. What is the throughput of these powerline adapters?
ANS: The throughput depends largely on several factors: (1) interference from other electrical
appliances, (2) number of the powerline Ethernet adapters sharing the common electrical
wiring, and (3) application packet types (TCP or UDP). TCP applications are slower than
UDP applications. (4) the distance between the two powerline communication devices,
Distance, interference, or the number of powerline devices influences the data throughput. The
maximum throughput between two devices for TCP and UDP are specified in the
S
PECIFICATIONS section.
3. Do I have to change my home electrical wiring or install special filters for using this
device?
ANS: Powerline communication takes advantage of a home's existing electrical wiring to
network computers in different rooms so that they can share files, printers, and Internet
connections. Generally speaking, there is no need to rewire or to install special filters.
4. What type of AC outlets should be used with these Powerline adapters??
ANS: These powerline adapters work with AC 100V to 240V with 2-prong or 3-prong electrical
outlets.
5. Can this power-line device work with circuit breakers?
ANS: It’s different in each country. Please consult a local professional personnel.
6. Is it secure to send private data over this powerline device?
ANS: Yes, and it’s because the technology supports data encryption. Please refer to the
S
PECIFICATIONS section for the type of encryption algorithm used with this device.
7. How can I connect multiple devices?
ANS: multiple devices can be connected together if they are in same logical network group.
Use the GROUP button or install utility software on a PC to group of these devices. By default,
Page 22
21
device in a newly shipped dual or combo package are in same group.
8. How many devices can be assigned to a single group?
ANS: Please see S
PECIFICATIONS section for maximum number of devices that can be
assigned to a single logical network group. There can be multiple groups in the same electric
wiring environment.
9. Do all devices in a logical network group communicate with one another?
ANS: Yes. For example, when four powerline devices, A, B, C and D form a logical network
group, .B, C, and D all communicate to A. if A is linked to a computer B, C, and D can all reach
shared files on the computer. If A is linked to an DSL/cable broadband router, B, C, and D are
all connected to the internet via the DSL/cable router.
10. What standard does this device use?
ANS: Homeplug AV. Powerline devices from multiple manufacturers using this same standard
will be able to communicate with each other. Please see S
PECIFICATIONS section for the exact
PLC standard this device features.
11. How many of this device can I install in my home?
ANS: Although the multiple devices can be used in a single power-wiring network in a building,
the more number of devices being deployed will share the bandwidth, and cause unintended
performance degradation. Therefore, for the best performance result, we do not recommend
any more than 16 units.
12. Can I install this device in an office environment?
ANS: Powerline devices are not recommended to be used in an office environment unless it is
a “SOHO” (small office; home office) with very simple electrical wiring and without too much
electrical noise.
13. Can this PLC device communicate with any other PLC devices purchased on the
market?
ANS: Powerline communication devices using different standards (protocols) may have
problem communicating with each other, although they can co-exist on the same electrical
wires. Check the following table for communication capability between different PLC
standards.
Capability of
communication between
PLC standard
HomePlug
1.0
HomePlug
turbo
HomePlug
AV
UPA HD-PLC
Page 23
22
HomePlug 1.0
OK OK
NO NO NO
HomePlug turbo
OK OK
NO NO NO
HomePlug AV NO NO
OK
NO NO
UPA NO NO NO
OK
NO
HD-PLC NO NO NO NO
OK
To understand what type of PLC standard this device use, please check it in the
S
PECIFICATIONS section.
Page 24
23
TROUBLE SHOOTING
New devices are assigned to the same logical network group so they should have no problem
communicating with each other. If two used devices cannot communicate with each other:
• Check the logical network group to make sure they are using the same PLC configuration
utility.
• If they are using the same configuration utility but the device still cannot communicate with
each other, the electrical wiring may be the problem. Examples of potential problems are:
– Old fuse boxes.
– Old wiring that does not meet modern wiring building codes.
• First, make sure the devices are functioning well. Plug these units onto nearby electrical
outlets in the same room or onto one extension cord with noise-filtering feature. If these two
devices can communication on the same extension cord, go to the long-distance
debugging steps. If these two devices still cannot communicate, continue to check the
following.
• Check if Ethernet cables are securely plugged in
• Check power supply condition
• Check if LED lights are properly lit, blinking, or turned off
• Uninstall and reinstall the device
• Ping the device to see if it is connected to the network
• Gradually increase the distance between Powerline units. Your testing will determine what
the maximum communication distances is between the two Powerline devices in your home.
Long distance debugging steps:
• Gradually increase the distance between the two Powerline devices. Sometimes device A
cannot connect to device B well when device B is plugged into a nearby outlet, but may
communicate well when device B is plugged into an outlet that is further away It all depends
on the electrical wiring topologies. Try different outlets on different walls or in different rooms
to see if it makes any difference.
• Swap the location of devices to isolate problems caused by a particular Powerline unit.
• If you find problem areas, have a qualified electrician review the building’s electrical plans
and assess the noise condition in each phase of the electrical wiring.
Page 25
24
•
Pay special attention to the electrical noise generated by the following devices:
– Air conditioning
– Florescent lights, particularly industrial grade lights
– Refrigerators
– Surge protectors and other line filters and conditioning
– Blowers
– Large electrical motors
Note
1) These powerline devices are not designed for business use. Consult a professional
electrician to evaluate the noise level in your building’s electrical wiring and then suggest
remedies.
2) If you have moved a powerline unit or disconnected the cables, it may take other devices
on the network at least 5 minutes to “refresh” the information from the powerline adapter.
3) Use same powerline models for best connectivity. Also, the utility software designed for
one model may not work on another model. In particular, remote control and advanced
features may not work properly if the powerline adapter is made by another manufacturer.
Loading...
