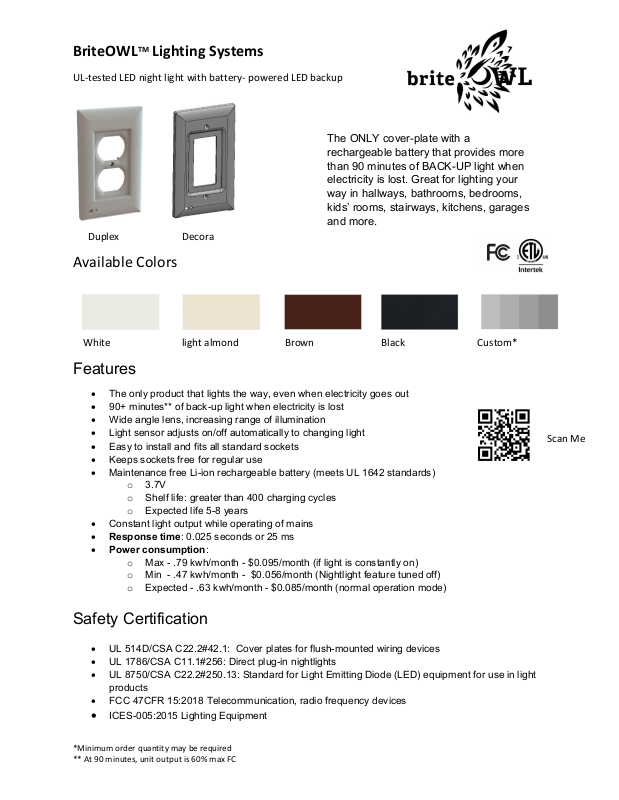

BriteOWLTM Lighting Systems
UL-tested LED night light with battery- powered LED backup
The ONLY cover-plate with a
rechargeable battery that provides more
than 90 minutes of BACK-UP light when
electricity is lost. Great for lighting your
way in hallways, bathrooms, bedrooms,
kids’ rooms, stairways, kitchens, garages
and more.
Duplex Decora
Available Colors
White light almond Brown Black Custom*
Features
The only product that lights the way, even when electricity goes out
90+ minutes** of back-up light when electricity is lost
Wide angle lens, increasing range of illumination
Light sensor adjusts on/off automatically to changing light
Easy to install and fits all standard sockets
Keeps sockets free for regular use
Maintenance free Li-ion rechargeable battery (meets UL 1642 standards)
o 3.7V
o Shelf life: greater than 400 charging cycles
o Expected life 5-8 years
Constant light output while operating of mains
Response time: 0.025 seconds or 25 ms
Power consumption:
o Max - .79 kwh/month - $0.095/month (if light is constantly on)
o Min - .47 kwh/month - $0.056/month (Nightlight feature tuned off)
o Expected - .63 kwh/month - $0.085/month (normal operation mode)
Safety Certification
UL 514D/CSA C22.2#42.1: Cover plates for flush-mounted wiring devices
UL 1786/CSA C11.1#256: Direct plug-in nightlights
UL 8750/CSA C22.2#250.13: Standard for Light Emitting Diode (LED) equipment for use in light
products
FCC 47CFR 15:2018 Telecommunication, radio frequency devices
ICES-005:2015 Lighting Equipment
*Minimum order quantity may be required
** At 90 minutes, unit output is 60% max FC
Page 2
__________________________________________________________

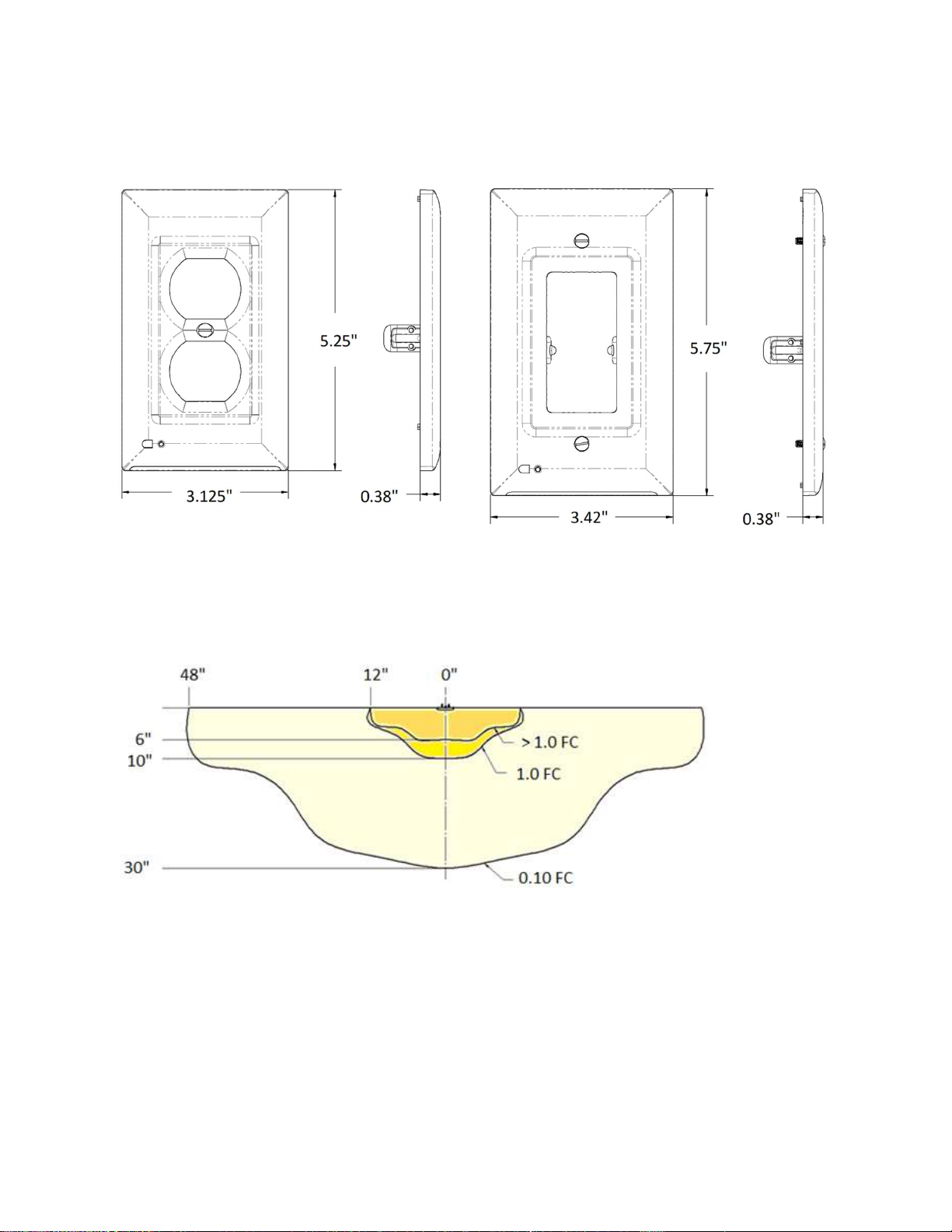

Dimensions
Dimensions are approximate and subject to change
__
________________________________________________________
Photometric Performance
Isolux boundaries demonstrate briteOWL luminescence when powered by 120VAC
mains. After 90 minutes on battery power, the 0.10 FC boundary reads at least 0.06 FC,
meeting NFPA 7.9.2.1 safety requirements.
www. OwlPowerSolutions.com 1 (214) 377-7307
