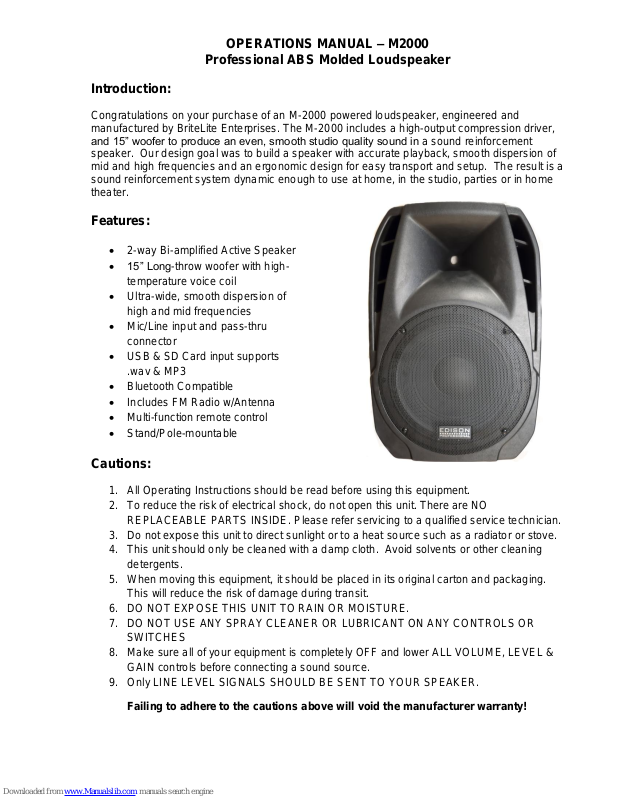

OPERATIONS MANUAL – M2000

Professional ABS Molded Loudspeaker

Introduction:

Congratulations on your purchase of an M-2000 powered loudspeaker, engineered and
manufactured by BriteLite Enterprises. The M-2000 includes a high-output compression driver,
and 15” woofer to produce an even, smooth studio quality sound in a sound reinforcement
speaker. Our design goal was to build a speaker with accurate playback, smooth dispersion of
mid and high frequencies and an ergonomic design for easy transport and setup. The result is a
sound reinforcement system dynamic enough to use at home, in the studio, parties or in home
theater.

Features:

 2-way Bi-amplified Active Speaker
 15” Long-throw woofer with high-

temperature voice coil

 Ultra-wide, smooth dispersion of

high and mid frequencies

 Mic/Line input and pass-thru

connector

 USB & SD Card input supports

.wav & MP3

 Bluetooth Compatible
 Includes FM Radio w/Antenna
 Multi-function remote control
 Stand/Pole-mountable

Cautions:

1. All Operating Instructions should be read before using this equipment.

2. To reduce the risk of electrical shock, do not open this unit. There are NO
REPLACEABLE PARTS INSIDE. Please refer servicing to a qualified service technician.

3. Do not expose this unit to direct sunlight or to a heat source such as a radiator or stove.

4. This unit should only be cleaned with a damp cloth. Avoid solvents or other cleaning
detergents.

5. When moving this equipment, it should be placed in its original carton and packaging.
This will reduce the risk of damage during transit.

6. DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

7. DO NOT USE ANY SPRAY CLEANER OR LUBRICANT ON ANY CONTROLS OR
SWITCHES

8. Make sure all of your equipment is completely OFF and lower ALL VOLUME, LEVEL &
GAIN controls before connecting a sound source.

9. Only LINE LEVEL SIGNALS SHOULD BE SENT TO YOUR SPEAKER.

Failing to adhere to the cautions above will void the manufacturer warranty!

OPERATIONS MANUAL – M2000

Warning:

Make sure speaker is off and all LEVEL controls are down (counterclockwise) before every

2. There is also a 1/4” and XLR Output connector labeled LINE OUT. This allows you to connect more

Professional ABS Molded Loudspeaker

Functions:

1. USB Port

2. SD/MMC Port

3. LCD Display

4. Press this button to PAUSE. Press for 2-3 seconds to return to the
MENU

5. Press this button to return to the start of the previous track

6. Press this button to skip to the beginning of the next track.

7. Mode button, to switch between USB/SD or FM/Bluetooth function. Press
for two to three seconds to select EO/PLAY MODE/LANGUAGE. When
paused in USB/SD mode, press button for two or three seconds to select
a folder, then select the audio file.

8. Press to raise the Digital Audio Player’s volume. In folder mode, press to
skip to the previous page.

9. Press to lower the Digital Audio Player's volume. In folder mode, press to
skip to the previous page.

10. MIC IN: Use XLR or 1/4" jack connector balanced or unbalanced.

11. LINE IN: Use RCA or XLR connector balanced or unbalanced.

12. LINE OUT: Use this connector to daisy-chain several active speakers
together from the same signal source.

13. MIC LEVEL: Control the output volume when using a microphone.

14. LINE LEVEL: Control the output volume for LINE level inputs.

15. MASTER: Controls the output volume.

16. TREBLE: Raise or attenuate highs at 12dB @ 12 KHz frequency.

17. BASS: Raise or attenuate lows at 12dB @ 80Hz frequency.

18. PEAK: LED illuminates when a clipped signal is present. Reduce volume
to avoid distorted sound.

19. Power Indicator

20. Power Supply Switch

21. Voltage Selector: Adjust AC Power between 115V and 230V

22. Power Supply Input Connector: Use with power cord.

23. FM RADIO with antenna.

24. Remote Control

use.

Connections:

1. Connect the output from your signal source (mixing console, microphone, preamp, or other mic- or
line-level source) directly to the INPUT connector on the back of the speaker. It accepts balanced
line-level signals from mixers, preamplifiers, CD players, tape decks, etc., and accepts direct
connections from dynamic microphones through the MIC input.

than one M-2000 to the output of your sound source. Simply plug a ¼” or XLR cable from the Line
Out connector of one speaker to the input connector of another speaker, and so on, daisy-chaining
multiple speakers.

3. Turn on your signal source. (Make sure volume is turned down) Turn on M-2000. Start signal
source and adjust volume controls on the signal source and M-2000 speaker.
