Read these instructions carefully before use and keep
them for future reference. Your childs safety may be
affected if you do not follow these instructions.
Please read this User Guide carefully BEFORE
trying to use your pushchair
Looking after your pushchair
The pushchair and its cover have been
carefully designed, manufactured and tested to
high safety standards.
Regularly inspect and maintain your pushchair
to ensure freedom of movement of the joints,
locking devices and security of components.
To prolong the life of your pushchair, keep it
clean and do not leave it in direct sunlight for
extended periods of time.
Cleaning the cover
The seat cover is removable and can be
washed in accordance with the washing
instructions on the label.
The hood and trims may be cleaned using
warm water with household soap or mild
detergent. Allow it to dry fully, preferably away
from direct sunlight.
DO NOT dry clean or use bleach or any other
aggressive cleaning agents.
IMPORTANT MAINTENANCE ADVICE
If the wheels squeak use a silicon based spray
or light lubricating oil ensuring it penetrates the
wheel and axle assembly.
Regularly clean and lubricate the front swivel
and wheel units as dirty or dry units can have
an adverse effect on manoeuvrability and
steering.
When using the Stroller on the beach, clean it
completely afterwards to remove all the sand
and salt from the mechanisms and wheel
assemblies.
If there are compression marks or indentations
on the tyres – use a domestic hair dryer to
gently warm the area. This should help make
them disappear. (DO NOT OVERHEAT).
Under certain climate conditions the covers
and trims may be affected by mould and
mildew. To help prevent this occurring, do not
fold or store this Stroller if it is wet or damp.
Always store in a well ventilated area.
To maintain the safety of your Stroller, seek
prompt repairs for bent, torn or broken
parts. Use only those parts and accessories
approved by Britax.
Replacement parts and accessories are
available from your Britax stockist or contact
Britax Customer Service Department on 01264
386034.
This product is not intended for commercial
use.
WARNING – Use a harness as soon as your
child can sit unaided.
WARNING – Any load attached to the handle
affects the stability of the pushchair.
Important!
Children up to 15kg (approx. 4 years)
GB
Warnings & Guarantee
WARNING – A CHILD’S SAFETY IS YOUR RESPONSIBILITY
WARNING – This vehicle is only intended for
children from birth and up to 15kg.
WARNING – This vehicle is not suitable for
running or skating.
WARNING – It may be dangerous to leave
your child unattended.
WARNING – Ensure that all locking devices
are fully engaged before use.
WARNING – Use a harness as soon as your
child can sit unaided.
WARNING – Overloading, incorrect folding
and the use of non-approved accessories may
damage or break this pushchair and make it
unstable for use.
WARNING – Regularly inspect the pushchair
to ensure all parts are in full working order.
DO NOT Do not add an additional mattress
thicker than 15 mm in place of the infant
comfort pad, when used in infant carrier mode.
DO NOT allow the pushchair to remain wet for
prolonged periods of time. If it does get wet,
allow to dry unfolded at room temperature.
DO NOT carry more than 2kg in the shopping
basket.
DO NOT allow children to play with or adjust
the pushchair.
DO NOT carry more than one child on this
pushchair.
DO NOT overload the pocket on the back of
the hood – this may cause the pushchair to fall
backwards.
DO support the back of the pushchair seat
when reclining it.
DO use a correctly tted and adjusted harness
at all times. If using an alternative harness
conforming to BS6684, ‘D’ ring attachments
are found on each side of the pushchair.
DO read the labels on the covers for washing
instructions and do not tumble dry – drip dry
only.
DO regularly inspect the pushchair to ensure
all parts are in full working order.
DO ensure children are clear of moving parts
and locking devices while making adjustments.
DO periodically check that any screws, nuts,
bolts and other fastenings are fully tightened.
DO store the pushchair in a safe place when
not in use. Avoid placing heavy objects on top
of it and do not store near direct heat sources,
e.g. radiators, open bar res or in direct sun
light as the cover may fade.
This pushchair is designed and manufactured
to comply to EN1888: 2005.
This pushchair is a Type ‘A’ chassis, and is
compatible with other Britax Type ‘A’ products.
Guarantee
All Britax products are carefully designed,
manufactured and tested. However, should
this product prove faulty within six months of
purchase due to a materials or manufacturing
fault please return it to the original place of
purchase. We will then, at our discretion, repair
it free of charge.
For guarantee purposes proof of purchase will
be required. We recommend that you retain
your receipt and attach it to this user guide.
They should be kept in a safe place.
Britax does not accept liability for damage
arising from abuse, misuse or negligence. This
guarantee is not transferable and therefore
does not apply to second-hand products.
Your statutory rights are not affected by this
guarantee.
1407.001 - VISIO AX118 User Guide.indd 2-3 22/6/07 15:22:47
Page 3
20. Frame locking latch
21. Hood catch
22. Shopping Basket
23. Folding Handle
12. Harness straps
13. Arm Rest
14. Bumper Bar
15. Calf Support
16. Calf Support release latches
17. Foot rest
18. Front swivel wheel lock
19. “D” Rings
Introducing your new pushchair
Children up to 15kg (approx. 4 years)
01. Extendable Handles
02. Frame Lock Release latches
03. Infant Comfort Pad (optional)
04. Seat Cover
05. Lower Framework
06. Foot Lock
07. Foot Brake
08. Hood
09. Hood Tensioner
10. Removable Apron Panel
11. Removable Apron
Infant Carrier Toddler Carrier
4
7
6
8
10
1
2
5
9
12
13
14
15
17
18
3
19
20
21
22
16
11
23
1407.001 - VISIO AX118 User Guide.indd 4-5 22/6/07 15:22:49

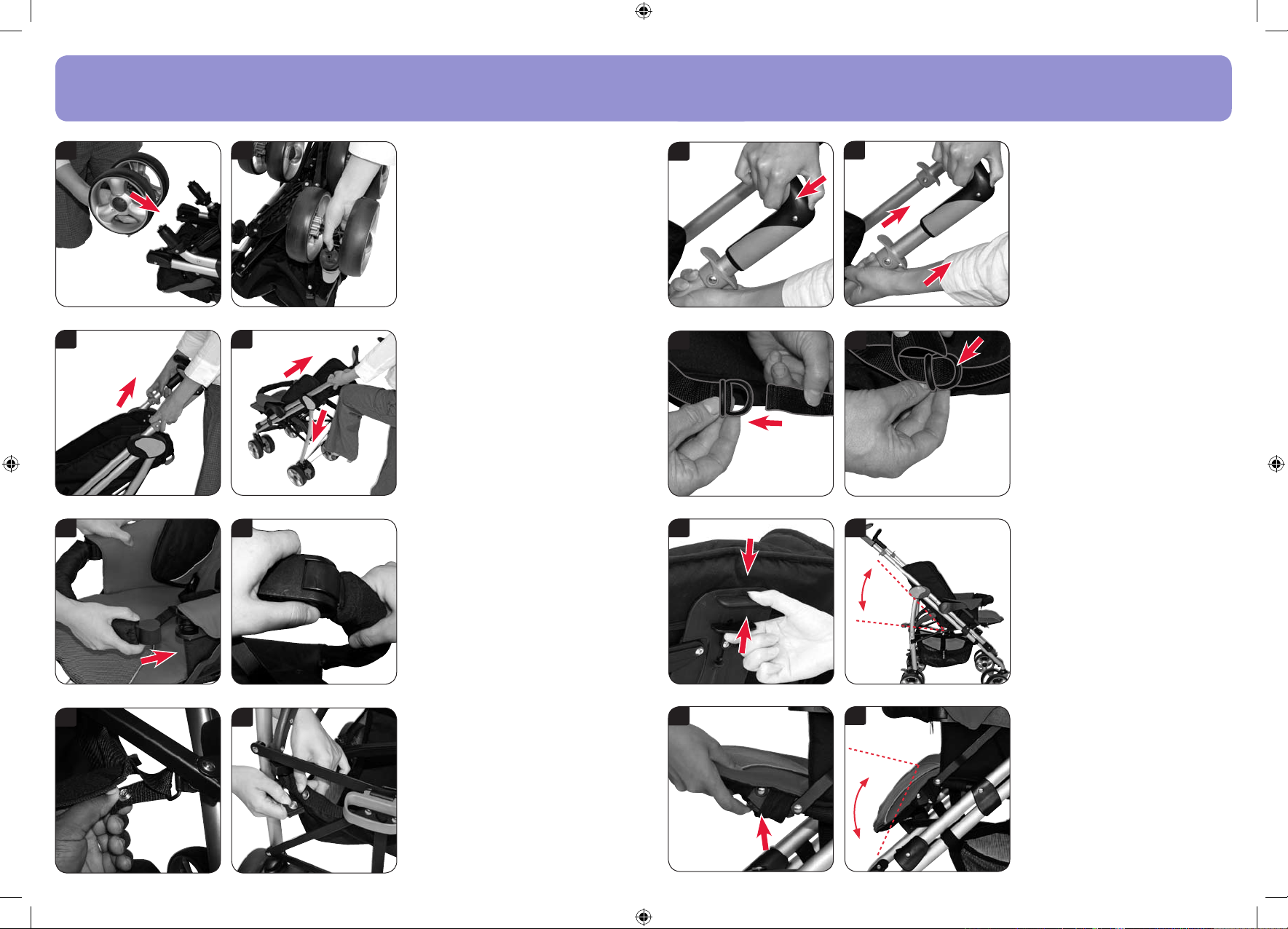

Page 4
6b
Unfolding the pushchair
Holding the pushchair in a vertical position,
lift up on the lock release latches (dia 2a).
Push down on the foot lock with your
foot whilst pulling both handles up rmly,
opening the pushchair until the chassis
locks into the open position (dia 2b).
Ensure the frame locking latch has locked
on both sides.
Fitting and removal of the front swivel
wheels
Take each of the front swivel wheel
assemblies and press them down onto
each of the front legs. You will hear a
“click” when they are locked into place
(dia 1a).
If you need to remove a front swivel wheel,
press the wheel release lever (dia 1b)
located on the underside of the wheel and
lift the wheel assembly from the front leg.
2b
1a
1b
2a
3a
Fitting the bumper bar
Whilst pressing the button on the bottom
of the bumper bar, slide one side of the
bar into the armrest socket in the position
shown (dia 3a), release the button to
engage the lock (dia 3b). Repeat this
sequence for the other side.
3b
2. Using the functions of your pushchair
Children up to 15kg (approx. 4 years)
Attaching the shopping basket
Ensure the basket is tted with the zips at
the sides.
Thread the front press stud straps through
the metal loops attached to the front of the
frame, press studs together (dia 4a).
Thread the rear press stud straps around
the rear legs and above the frame, press
studs together (dia 4b).
Extending and retracting the handles
To extend each of the pushchair handles,
press the button located at the top of each
handle inwards (dia 5a), pull the handles
towards you to extend (dia 5b).
5a
5b
Threading the underside chassis
cover straps
Place the pushchair on it’s side to gain
better access to the underside cover
straps.
Thread the loose end of the strap through
both D-rings (dia 6a). Thread the strap
back over the last D-ring and back through
the rst D-ring (dia 6b). Pull the strap tight.
6a
To adjust the calf support
Lower the calf support by lifting up the
release latches located underneath both
sides of the calf support (dia 8a) and push
the calf support down.
Raise the calf support by lifting it until the
release latches lock into place
(dia 8b).
8a
8b
Adjusting the backrest
Squeeze clips towards each other to
release the backrest lock
(dia 7a). Move the backrest into the
desired position (dia 7b).
7a 7b
1. Assembling your pushchair
Children up to 15kg (approx. 4 years)
4a 4b
1407.001 - VISIO AX118 User Guide.indd 6-7 22/6/07 15:22:53
Page 5
2. Using the functions of your pushchair, continued
Children up to 15kg (approx. 4 years)
12a
For your childs comfort, unfasten the
harness and move them away to the side
of the pushchair (dia 12e).
Insert the optional infant comfort pad or
mattress in the position shown (dia 12f).
The magnets will hold the infant comfort
pad in position.
The D-rings can be used to attach your
own harness.
Place the hood in the correct position (with
the window at front of pushchair) over the
pushchair. Attach the hood clip to each
side of the pushchair frame by locating the
clips over the top of the upper tube rst,
then pushing until they click into place.
(dia 12g).
Open the hood by pulling the front of
the canopy forwards engaging the hood
tensioners on each side to click in place
(dia 12h).
12e 12f
3. Using your pushchair as an infant pram
Children up to 9kg (or until your child can sit unaided)
Using the front swivel wheel locks
To lock the front swivel wheels into the
locked position, align front wheels into
a straight forward position and slide the
wheel lock guide up (dia 9a). To unlock the
front wheels, slide front wheel lock guide
down (dia 9b).
9a
9b
10a 10b
To use the pushchair brake
IMPORTANT - Parking brake is to be
used only when pushchair is stopped.
DO NOT apply the parking brake to a
moving pushchair.
IMPORTANT - To prevent the pushchair
from moving, always use the parking
brake when loading/unloading pushchair
or making any adjustments.
To lock rear wheels for parking or loading
pushchair, depress foot brake (dia 10a).
To release brake, simply lift up the foot
brake to disengage brake from rear wheel
hubs (dia 10b).
IMPORTANT - Always use the brake
pedal, as using the connecting bar will
cause it to bend.
Folding your pushchair
Lock the front wheels. Position the seat in the front-facing full upright position.
Lift up on the lock release latches (dia 11a).
Lift up the lower framework with your foot then pull up on the folding handle to fold the frame (dia 11b).
Hold pushchair vertically and push down on the handles until the latches lock on both sides (you will hear a click)
(dia 11c).
11a
11b
12b
Open the bumper bar (see dia 3a and
3b). Raise the calf support to the upright
position (dia 12a and 12b). Close the
bumper bar on the outside with the calf
support on the inside.
12h12g
11c
Lower the backrest into the infant carrier
position (lowest position) (dia 12c) by
squeezing and pulling the adjustment
handle upwards. (dia 12d).
12c
12d
1407.001 - VISIO AX118 User Guide.indd 8-9 22/6/07 15:22:56
Page 6
13a
3. Using your pushchair as an infant pram, continued
Children up to 9kg (or until your child can sit unaided)
12i 12j
4. Using your pushchair with an infant carrier
Children up to 13kg (approx. 1 year)
Ensure that the left hand and right hand
adaptors are used on the correct side of
the child seat.
To t the adaptor to the child seat squeeze
the lever and insert into the space below
the handle (dia 13a). Make sure it is fully
tted and release the lever to lock into
place. Repeat this process for
both adaptors.
13b
13c
Fitting the infant carrier
First unfold the armrest covers (please see dia 15a).
Lower the infant carrier (will be labelled ‘Type V, A, B, W’) onto the armrests in
the orientation shown (dia 13b), making sure that the prongs either side drop
into both slots on each armrest. Push down rmly. Once the infant carrier is
engaged you will hear a click.
Lower the infant carrier handle to the safety stop position. Please refer to the
user guide for the infant carrier.
WARNING – Check that the attachment devices are correctly engaged
before use.
Removing the infant carrier
To remove the infant carrier, move the
handle to the carrying position.
Please refer to the user guide for the
infant carrier.
Pull up the release levers on each side
(dia 13d) and lift the infant carrier out of
the sockets (dia 13e).
The infant carrier is now ready for use.
Re-attach the armrest pads after use.
13d 13e
13f
Removing the adaptors
To remove the adaptors from the child seat, pull the lever on the adaptors
away from the child seat while pulling down (dia 13f). Repeat the process for
both adaptors.
IMPORTANT -
It may be necessary to remove the adaptors from the child seat when installing
it in your vehicle. If the adaptors are in contact with the vehicle seat cushion,
remove them.
Place the optional apron over the frame as
shown (dia 12i).
On each side fold the ‘hook and loop
strap’ back onto itself, and tuck inside
the apron. Attach the remaining hook
fastenings on both sides of the apron to the
loop fastenings on each side of the seat
cover (dia 12j). The loop fastenings on the
seat cover should be shared by the hook
fastenings on both the apron and canopy.
1407.001 - VISIO AX118 User Guide.indd 10-11 22/6/07 15:22:57
Page 7
5. Using your pushchair for carrying a toddler, continued
Children up to 15kg (approx. 4 years)
Place the hood in the correct position
(with window at rear of pushchair) over
the pushchair. Attach the hood clip to each
side of the pushchair frame by locating the
clips over the top of the upper tube rst,
then pushing until they click into place.
(dia 14h).
Open the hood by pulling the front of
the canopy forwards engaging the hood
tensioners on each side to lock it in place
(dia 14i).
14i14h
14j
14k
Attach the optional apron in the toddler
position, place the apron over the frame as
shown (dia 14j). Attach the hook and loop
straps on each side around the pushchair
chassis, threading straps between the
tubes as shown (dia 14k).
14a
14b
Lower the leg support into the toddler
carrying position (dia 14a and 14b).
Note: The bumper bar may need to be
removed during this procedure.
Raise the backrest into the toddler carrying
position (upright position) (dia 14c) by
squeezing and pulling the adjustment
handle upwards.
14c
14d
Unfasten the harness and insert the
optional infant comfort pad in the position
shown, rethread the harness through the
slots in the infant pad (dia 14e and 14f).
14e
14f
To secure your child
A ve-point harness is provided to restrain your child (dia 14g). To secure the
child in the harness, push buckle
A
through C and into B until the buckle
prongs snap into position. Carefully adjust the harness by pulling the slider
D
until the desired t is achieved in the waist belt, shoulder and crotch straps.
Always adjust the harness when changing the seating position of the child.
To release the buckle, squeeze the top and bottom prongs.
WARNING – Always use the crotch strap in combination with the waist belt.
WARNING – Fasten the harness when not in use to prevent it becoming trapped
when folding the pushchair. “D” rings are provided at each side of the seat for
attachment of an alternative harness.
D
A
B
C
14g
A
C
D
5. Using your pushchair for carrying a toddler
Children up to 15kg (approx. 4 years)
1407.001 - VISIO AX118 User Guide.indd 12-13 22/6/07 15:22:59
Page 8
15j
6. Removing and retting the covers and harness, continued
Children up to 15kg (approx. 4 years)
To remove the infant pad
Unthread the harness (if it’s in the toddler carrying position) (dia 15f).
To ret the infant pad simply place the infant pad in the pushchair, thread the
harness back though then use the magnets to keep it in place.
15f
15h
To remove the optional removable
apron.
Unfasten the hook loops on both sides of
the seat (dia 15g) then pull the apron off
(dia 15h).
Removing the main chassis cover
Unthread the underside cover straps
(dia 15j).
Unhook the cover from under the calf
support by pulling up in the direction
shown (dia 15k).
The chassis cover can now be lifted from
the pushchair frame (dia 15l and m) and
the harness released from the chassis
cover.
To ret all the covers, simply reverse the
above instructions.
15k
15l
15m
15g
6. Removing and retting the covers and harness
Children up to 15kg (approx. 4 years)
15a
Unfolding the armrest pads
To unfold the armrest pads, pull down on the fabric on the outer side and fold
into the centre of the pushchair (dia 15a).
Removing the bumper bar cover
To remove the bumper bar cover, simply unzip the bumper bar cover and
remove from the plastic moulding (dia 15b).
15b
Removing the shopping basket
Remove the press studs straps located at
the rear (dia 15c) and the front
(dia 15d) of the shopping basket.
15c 15d
Removing the canopy hood
Pull the hood clips off the bars located just above the armrest (dia 15e).
15e
1407.001 - VISIO AX118 User Guide.indd 14-15 22/6/07 15:23:02
Page 9
AZ0-048
Britax Excelsior Limited
1 Churchill Way West
Andover
Hampshire SP10 3UW
United Kingdom
Tel: 01264 386034
www.britax.eu
Britax is a registered trademark of Britax Childcare
GB
1407.001 - VISIO AX118 User Guide.indd 16 22/6/07 15:23:02
Loading...
