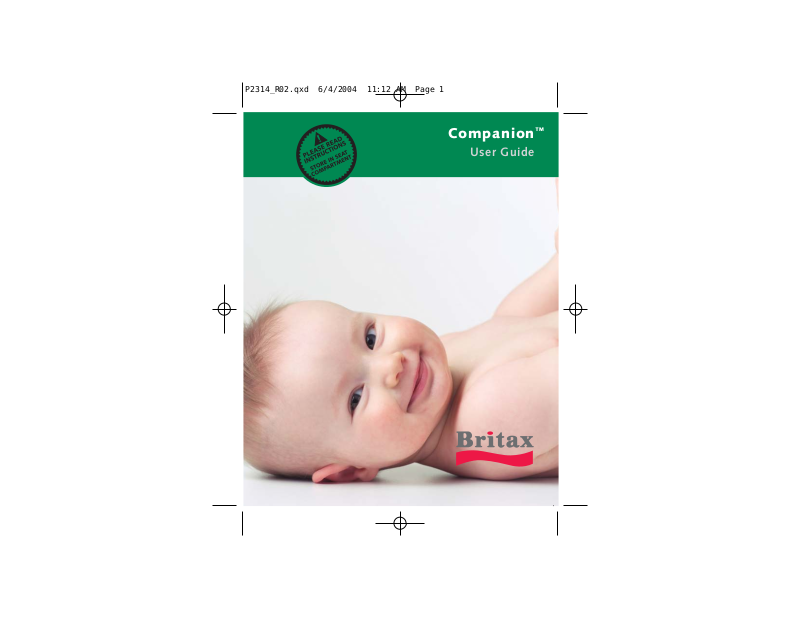

Companion
User Guide
Table of Contents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Using the Restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17
LATCH Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjustable Canopy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjustable Handle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Harness Buckle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Adjusting Buckle Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
Adjusting Width of Head Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Chest Clip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Checking Harness Height. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Harness Height Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Securing Child in Restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-17
Vehicle Safety Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Vehicle Seating Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Base Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-25
LATCH Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
Lap-Shoulder Belt Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-23
Lap Belt Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25
Recline Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Attaching Restraint to Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Removing Restraint from Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installation without Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-28
Lap-Shoulder Belt Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27
Lap Belt Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installation in Aircraft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-33
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
This product and its components are subject to change without notice.
© 2003–2004 Britax Child Safety, Inc. All rights reserved.
Printed in U.S.A.
P231400 R2:06/04
•
Use only in a rear facing position when using this restraint in the
vehicle. This infant restraint cannot be used forward facing in a
vehicle.
•
Use only with children who weigh between 4 and 22 pounds (2
and 10 kg) and whose height is 30 inches (76 cm) or less.
•
Snugly adjust the belts provided with this restraint around your
child. A snug strap should not allow any slack. It lies in a relatively
straight line without sagging. It does not press on the child’s flesh
or push the child’s body into an unnatural position.
•
An optional Low Birth Weight Foam insert may be used to help
obtain a snug fit for infants whose weight is less than 7 pounds
(3 kg.). To order optional foam, call Britax at 1-888-4BRITAX.
•
Secure this child restraint with the vehicle’s child restraint
anchorage system if available or with a vehicle belt.
•
Follow all instructions labeled on the child restraint and in these
written instructions.
According to accident statistics, the National Highway Traffic
•
Safety Administration recommends that parents select the rear
seat as the safest location for a properly installed child restraint.
Please study the sections on Vehicle Safety Belts and Vehicle
Seating Positions in this booklet to ensure the child’s safety. If in
doubt about installing the child restraint, consult the vehicle
owner’s manual.
•
Secure this child restraint even when it is not occupied. In a
crash, an unsecured child restraint may injure vehicle occupants.
• Consult your child’s doctor before using this child restraint. Some
infants must be secured with a device that allows them to lie flat.
•
When using in vehicle with air bags, always refer to the vehicle
owner’s manual for child restraint installation instructions and
precautions.
•
Never use the adjuster strap to lift or carry this child restraint. Doing
so could cause damage to the harness adjuster and webbing.
Always carry a child restraint by the handle or shell.
•
The primary protection for occupants of a vehicle in a collision is
the structure of the vehicle; a child restraint will not protect an
infant when the vehicle is seriously impacted. However, correctly
installed, a child restraint will substantially improve the chances
for survival in most crashes. Make sure that all users fully
understand the correct ways to use this child restraint in a
vehicle.
• This child restraint must not be used in boats, or other noncertified applications.
• NEVER leave child unattended.
NEVER place carrier on beds, sofas, or other soft surfaces. Infant
•
carrier can roll over on soft surfaces and suffocate the child.
• NEVER use in or on strollers unless approved by Britax.
• NEVER install forward facing in a vehicle.
• NEVER place carrier near edges of counter tops, tables, or other
elevated surfaces. Child’s movement can slide carrier.
• NEVER leave child carrier when straps are loose or undone. Child
can strangle in loose restraint straps.
• Carrier in shopping carts can be dangerous.
• Watch your child closely when restraint is not installed in a vehicle
to avoid tipping over and strangulation.
• Harness must be used at all times when child is in carrier.
32
Safety Information
Safety Information
IMPORTANT NOTES
•
Verify that the child restraint is secure and that the harness is
properly adjusted around the child each time the child restraint is
used.
• Adjust the harness to fit the clothes the child is wearing. The fit for
a child in winter clothes will differ from a child in summer clothes.
• Cover the restraint when the vehicle is parked in direct sunlight. Parts
of the child restraint could become hot enough to burn the child.
• Store the child restraint in a safe place when it is not being used for
an extended period of time. Do not place heavy objects on top of it.
•
Stop use of a child restraint that is older than six years or has
been in a severe crash to prevent injury due to deterioration or
hidden damage.
• Do not leave children alone in a vehicle, even for a short time.
• Do not, except as described in this booklet, attempt to disassemble
any part of the child restraint or change the way its harness or the
vehicle belts are used.
• Do not leave loose objects, e.g. books, bags, etc., in the back of a
vehicle. In the event of a sudden stop, loose objects will keep
moving, potentially causing serious injuries.
• Do not leave folding vehicle seats unlatched. In the event of a
sudden stop, a loose seat back could prevent the child restraint
from protecting the child as well as it should.
• Do not allow children to play with the child restraint.
Do not hang accessories or toys from handle. Doing so could
•
create a hazard for the child.
This child restraint system conforms to all applicable Federal motor
vehicle safety standards. This restraint is certified for use in motor
vehicles and aircraft.
Fill out the registration card and mail it in today!
Child restraints could be recalled for safety reasons. You must
register this restraint to be reached in a recall. Send your name,
address, and the restraint's model number and manufacturing date
to Britax Child Safety, Inc. 13501 South Ridge Drive Charlotte, NC
28273 or call 1-888-4BRITAX. For recall information, call the U.S.
Government's Auto Safety Hotline at 1-800-424-9393 (202-3660123 in DC area).
You may also register by visiting BritaxUSA.com.
WARNING! DO NOT place a child
restraint in the front seat of a vehicle with
a passenger air bag unless the air bag is
turned off. DEATH or SERIOUS INJURY
can occur. The back seat is the safest place
for children under 12.
54
Features
Features
1 Canopy
2 Handle
3 Head Pad
4 Handle Release Button
5 Harness Slots
6 Chest Clip
1
2
3
4
5
6
7
8
9
10
11
12
13
7 Harness
8 Buckle
9 Belly Pad
10 Perma-Book™ (under cover)
11 Harness Adjuster Lever (under flap)
12 Harness Adjuster Strap
13 Restraint Belt Guides (under cover)
14 Release Handle
15 User Guide Storage Slot
16 Anti-Rebound Bar
17 Lock-off
18 Base Belt Guides
14
15
16
17
5
7
18
19
20
21
12
22
23
24
19 Attachment Clips
20 Recline Adjustment Knob
21 Harness Yoke
22 LATCH Connector Storage Ring
23 LATCH Connector
24 LATCH Harness Adjuster
76
Using the Restraint
Using the Restraint
LATCH Storage
RReemmoovvaall::
Press button on LATCH connector to
release from storage ring.
AAttttaacchhmmeenntt::
Attach each LATCH connector to storage
ring on front of base, then remove slack
(Fig. A).
Adjustable Canopy
To raise, pull canopy at top of canopy arch
toward foot of restraint. To collapse, push
canopy at top of canopy arch (Fig. B).
A
B
Adjustable Handle
To adjust, press both handle release buttons
(Fig. C) while rotating handle into position.
Adjust the handle to one of the following
three positions: Carrying & In-Stroller
Position, In-Vehicle & Stationary Position, or
Optional In-Stroller Position (Fig D).
Carrying & In-Stroller
Position
D
In-Vehicle & Stationary
Position
C
Optional In-Stroller
Position
98
Using the Restraint
Using the Restraint
Harness Buckle
TToo UUnnffaasstteenn BBuucckkllee
•
Brace the rear of the buckle with hand.
•
Use thumb to press release button until
tongues are ejected from buckle.
TToo FFaasstteenn BBuucckkllee
•
Hold the buckle with one hand.
•
Use the other hand to insert one tongue
at a time into the buckle. Proper
connection is confirmed with a positive
click after inserting the second buckle
tongue.
IMPORTANT: Periodically clean the buckle
to ensure proper operation. See section,
Cleaning the Buckle, on page 33.
(Fig A):
(Fig B):
Adjusting Buckle Position
If your child has outgrown the initial buckle
position, adjust the buckle position as
instructed below.
RReemmoovvee BBuucckkllee
1 With restraint removed from the base,
pull cover and foam back so the buckle
slots are visible.
2 Locate metal retainer attached to the
opposite end of the buckle strap from the
buckle on the top side of the restraint.
A
B
3 Pull retainer up to loosen (Fig C).
4 Turn the retainer so that the short side will
go down through the slot in the restraint
shell to the bottom side of the restraint
(Fig. D).
5 From the bottom of the restraint, turn
the retainer so the short side will go up
through the slot in the restraint shell to
the top side of the restraint.
RReeppllaaccee BBuucckkllee
6 Turn the retainer so that the short side
will go down through the desired slot to
the bottom side of the restraint (Fig. E).
7 Turn retainer so that the short side will go
up through the other slot to the top side
of the restraint (Fig F).
8 Replace cover.
9
Pull buckle away from restraint until
tight, then verify that the strap is not
twisted and the release button is facing
outward.
C
D
E
F
1110
Using the Restraint
Using the Restraint
Adjusting Width of Head Pad
If your head pad features optional width
adjustment, use the following steps to
adjust the head pad.
TToo ddeeccrreeaassee wwiiddtthh::
Squeeze top center of head pad to inflate
sides to desired width (Fig A).
TToo iinnccrreeaassee wwiiddtthh::
Press release valve, indicated with label on
head pad, to deflate head pad to desired
width.
Chest Clip
SSeeccuurriinngg tthhee CChheesstt CClliipp
Secure the chest clip by sliding the harness
into the slot on the right side of the chest
clip (Fig B).
IMPORTANT: The correct height for the
chest clip is at the center of the chest,
level with the armpits (Fig. C).
RReelleeaassiinngg tthhee CChheesstt CClliipp
Release the chest clip by sliding the harness out
of the slot on the right side of the chest clip.
A
B
Recline Adjustment
To adjust recline, turn knob on front of
base until desired angle is achieved (Fig. D).
• When correctly reclined, the red line on base
will be level with the ground.
• If there is a problem stabilizing the base,
place a rolled towel in the crease of the
vehicle seat to help level the base.
WARNING: Only raise base as described
D
above. Do not raise the base off of the
front edge of vehicle seat; doing so will
reduce the protection for your child.
Attaching Restraint to Base
To install, align restraint rear facing with
slots in base, then push down until it clicks
into base (Fig. E).
• Pull up from child restraint handle to be sure
it is properly secured.
E
WARNING: Never attach restraint to base
unless the base is secured in a vehicle as
described on pages 20-25.
Removing Restraint from Base
To remove child restraint from base,
squeeze release handle on the rear of the
restraint, while lifting restraint by handle
(Fig. F).
C
F
12 13
Using the Restraint
Using the Restraint
Checking Harness Height
TToo CChheecckk HHaarrnneessss HHeeiigghhtt::
1 Place child in restraint, then secure
harness (see pages
2 Observe where the harness is positioned
on the child.
• Harness straps should be located in the
nearest slot at or below the child’s shoulder
3 If harness height is correct, continue using
child restraint without adjustment. If
harness height requires adjustment, refer to
Harness Height Adjustment on page 15.
24–25
).
Weight Range
Rear Facing ONLY
4–22 lbs. (2–10 kg)
Maximum Height
The child is too tall when the top of the
head is above the top of the restraint or
height exceeds 30 inches (76 cm).
Rear Facing
Strap Height
Harness Height Adjustment
1 Loosen the harness by pressing the
harness adjuster lever while pulling the
harness straps forward as far as possible
(Fig. A).
2 From the rear of the restraint, unhook
the harness straps from the yoke (Fig. B).
3 Pull straps through the shell, cover, and
head pad.
4
Thread straps through proper slots in
head pad.
•
Use bottom slots in head pad when using
with bottom slots in shell. Use top slots in
head pad when using with middle or top
slots in shell.
5
Thread the harness straps through slots
in shell, at the new height, toward the
bottom of the restraint (Fig. C).
6 Reattach harness straps to the yoke
(Fig. B).
7 Pull harness adjuster strap to tighten the
harness.
8 Verify that all straps are threaded at the
same height and are not twisted.
A
B
C
1514
Using the Restraint
Using the Restraint
Securing Child in Restraint
1 Loosen the harness by pressing the har-
ness adjuster lever while pulling the harness straps forward (Fig. A).
2 Slide the harness strap out of one side of
chest clip to release (Fig. B).
3 Unfasten the buckle by pressing down
on the release button (Fig C).
4 Move the harness straps to the sides of
the restraint.
5 Place child in the restraint.
6 Position the harness straps around the
child and fasten the child restraint buckle (Fig D) and secure chest clip (Fig E).
•
Proper connection of the buckle is
confirmed with a positive click after
inserting the second buckle tongue.
7 Gently pull up on the harness straps to
tighten the lap section of the harness,
which should fit low on the child's body.
A
B
8 Slowly pull the adjuster strap to tighten
the harness around the child (Fig. F).
•
Snugly adjust the belts provided with this
child restraint around your child. A snug strap
should not allow any slack. It lies in a
relatively straight line without sagging. It
does not press on the child's flesh or push the
child's body into an unnatural position.
9
Position the chest clip at the center of the
child's chest, level with the child's armpits
10
Verify that harness is not twisted and child
.
is properly secured.
11
Make sure that harness height is correct.
Refer to Checking Harness Height on page
14 for instructions.
IMPORTANT:
•
Always pull on the harness after
securing the child to make sure the
buckle and harness are locked. If not,
the buckle or adjuster area may be
clogged with food, drink, or objects
that need to be removed. See pages
31 and 33 for cleaning instructions.
Always make sure that the harness is
•
tight before each use, or after any
adjustments.
D
E
C
F
1716
Vehicle Safety Belts
Vehicle Seating Positions
NOTE: The information in this section applies
only to installation with vehicle belts.
IMPORTANT: Some vehicles have no seating
positions which are compatible with this
child restraint, or any other child restraint.
If in doubt, contact the vehicle
manufacturer for assistance.
The following types of vehicle belts are not
compatible with this child restraint:
Front vehicle belts with top or bottom
anchorage points in the door.
Motor driven automatic vehicle belts.
Three-point belts that have separate
retractors for the shoulder section and the
lap section.
2-point Emergency Locking Retractor
(ELR) vehicle belts without the use of a
belt shortening clip.
The owner's manual for your vehicle will have information on the types
of vehicle belts in your vehicle. If your belt type is listed above, select
another seating position or use LATCH connectors.
This child restraint can fit securely in most vehicles using the existing vehicle
belts. However, some vehicle designs prevent a secure fit of the child
restraint due to the position of the vehicle belt lower anchorage points.
WARNING:
•
Forward facing vehicle seats MUST be used with this child
restraint. Side facing or rear facing seats CANNOT be used.
•
DO NOT place a child restraint in the front seat of a vehicle
with a passenger air bag unless the air bag is turned off.
DEATH or SERIOUS INJURY can occur. The back seat is the
safest place for children under 12.
1918
Base Installation
LATCH Installation
• Figure A illustrates a typical rear facing
LATCH installation.
• Verify that your vehicle is equipped with
LATCH anchors. If LATCH anchors are not
installed, you must use vehicle belt
installation methods.
1 Disconnect LATCH connectors from
storage ring on the front of the base.
2 Open lock-off by lifting both tabs, then
opening lock-off plate (Fig. B).
3 Press and hold the LATCH adjuster
release button, then pull to lengthen
LATCH harness to full length.
4 Place the base sideways on the vehicle
seat, with the anti-rebound bar facing you.
5 Verify that the LATCH harness is not
twisted, then attach the farthest
connector to farthest LATCH anchor in
desired seating position (Fig. C).
•
A positive click confirms attachment.
6 Rotate base into rear facing position with
anti-rebound bar against vehicle seat back.
7 Verify that the LATCH harness is not
twisted, then attach the closest
connector to closest LATCH anchor in
desired seating position (Fig. D).
•
A positive click confirms attachment.
A
B
Base Installation
8
Adjust recline by turning knob on front
of base until correct angle is achieved.
• When correctly reclined, the red line on
base will be level with the ground.
• If there is a problem stabilizing the base,
place a rolled towel in the crease of the
vehicle seat to help level the base.
WARNING: Only raise base as described
above. Do not raise the base off of the
front edge of vehicle seat; doing so will
reduce the protection for your child.
9 Push the base firmly into the vehicle seat
while pulling each LATCH harness tight
(Fig. E).
10 Close lock-off plate over the LATCH
harness, then secure by closing both tabs
while pressing firmly on the lock-off
plate (Fig. F).
• Lock-off is properly secured when tabs are
flat against lock-off plate.
11 Verify that all connections are secure and
the base is stable.
BBaassee RReemmoovvaall::
Release each LATCH harness from the
LATCH anchor by pressing the release
button on the LATCH connector.
• When not in use, always store the LATCH
C
connectors on storage ring at front of base.
D
E
F
20
21
Base Installation
Base Installation
Lap-Shoulder Belt Installation
• Figure A illustrates a typical rear facing lap-
shoulder belt installation.
• If attached, remove restraint before
installing base.
When not in use, always store the LATCH
•
connectors on storage ring at front of base.
1 Place the base in a rear facing position on
the vehicle seat with the anti-rebound
bar against the vehicle seat back.
2 Open lock-off by lifting both tabs, then
opening lock-off plate (Fig. B).
3 Pull to fully extend vehicle belt.
4 With shoulder and lap portion of vehicle
seat belt together, route under both belt
guides (Fig. C).
A
B
5 Verify that the vehicle belt is not twisted,
then buckle (Fig. D).
Adjust recline by turning knob on front
6
of base until correct angle is achieved.
• When correctly reclined, the red line on
base will be level with the ground.
• If there is a problem stabilizing the base,
place a rolled towel in the crease of the
vehicle seat to help level the base.
D
WARNING: Only raise base as described
above. Do not raise the base off of the
front edge of vehicle seat; doing so will
reduce the protection for your child.
7 Push the base firmly into the seat while
removing slack from the lap portion of
the vehicle belt, then the shoulder
portion (Fig. E).
8 Close lock-off plate over the vehicle belt,
then secure by closing both tabs while
E
pressing firmly on the lock-off plate
(Fig. F).
• Lock-off is properly secured when tabs are
flat against lock-off plate.
9 Verify that vehicle belt is tight and that
the base is stable.
BBaassee RReemmoovvaall::
Remove restraint, then open lock-off and
C
remove vehicle belt from belt guides.
F
22
23
Base Installation
Base Installation
Lap Belt Installation
• Figure A illustrates a typical rear facing lap
belt installation with the restraint attached.
• If attached, remove restraint before
installing base.
When not in use, always store the LATCH
•
connectors on storage ring at front of base.
1 Place the base in a rear facing position on
the vehicle seat.
2 Open lock-off by lifting both tabs, then
opening lock-off plate (Fig. B).
3 Pull to fully extend vehicle belt.
4 Route vehicle belt under both belt guides
(Fig. C).
5 Verify that the vehicle belt is not twisted,
then buckle.
6
Adjust recline by turning knob on front
of base until correct angle is achieved.
• When correctly reclined, the red line on
base will be level with the ground.
• If there is a problem stabilizing the base,
place a rolled towel in the crease of the
vehicle seat to help level the base.
WARNING: Only raise base as described
above. Do not raise the base off of the
front edge of vehicle seat; doing so will
reduce the protection for your child.
A
B
7 Push the base firmly into the seat while
removing slack from the vehicle belt (Fig.
D).
8 Close lock-off plate over the vehicle belt,
then secure by closing both tabs while
pressing firmly on the lock-off plate.
• Lock-off is properly secured when tabs are
flat against lock-off plate.
9 Verify that vehicle belt is tight and that
D
the base is stable.
BBaassee RReemmoovvaall::
Remove restraint, then open lock-off and
remove vehicle belt from belt guides.
E
C
2524
Installation Without Base
Installation Without Base
Lap-Shoulder Belt Installation
• Figure A illustrates a typical rear facing lap-
shoulder belt installation of restraint only.
WARNING: Do not install this restraint using
a non-locking ELR vehicle belt, unless a
locking clip is used. Refer to the vehicle
owner's manual for instructions on
correct use of vehicle belts with child
restraints.
1 Place the restraint rear facing on the
vehicle seat.
2 Push cover back to expose belt guides
(Fig. B).
3 Pull to fully extend vehicle belt.
4 With shoulder and lap portion of vehicle
seat belt together, route under both belt
guides (Fig. C).
A
B
5 Verify that the vehicle belt is not twisted,
then buckle (Fig. D).
• When correctly reclined, the red line on
restraint will be level with the ground.
• If there is a problem stabilizing the restraint,
place a rolled towel in the crease of the
vehicle seat to help level the restraint.
WARNING: Only raise restraint as described
above. Do not raise the restraint off of
the front edge of vehicle seat; doing so
will reduce the protection for your child.
6 Push the restraint firmly into the vehicle
seat while removing slack from the lap
portion of the vehicle belt, then the
shoulder portion (Fig. E).
7 Adjust handle to In-Vehicle position.
8 Verify that vehicle belt is tight and that
the restraint is stable.
D
E
26
C
27
Installation Without Base
Installation in Aircraft
Lap Belt Installation
• Figure A illustrates a typical rear facing lap
belt installation of restraint only.
WARNING: Do not install this restraint using
a non-locking ELR vehicle belt, unless a
belt shortening clip is used. Refer to the
vehicle owner's manual for instructions
on correct use of vehicle belts with child
restraints.
1 Place the restraint rear facing on the
vehicle seat.
2 Push cover back to expose belt guides
(Fig. B).
3 Pull to fully extend vehicle belt.
4 Route vehicle belt under both belt guides.
5 Verify that the vehicle belt is not twisted,
then buckle.
• When correctly reclined, the red line on
restraint will be level with the ground.
• If there is a problem stabilizing the restraint, place a rolled towel in the crease of
the vehicle seat to help level the restraint.
WARNING: Only raise restraint as described above. Do not raise the
restraint off of the front edge of vehicle seat; doing so will reduce
the protection for your child.
6 Push the restraint firmly into the vehicle seat while removing slack
from the vehicle belt.
7 Adjust handle to In-Vehicle position.
8 Verify that vehicle belt is tight and that the restraint is stable.
A
B
This child restraint is certified for use in
aircraft. Most airlines in the U.S. and
Canada will allow the use of a child
restraint, if it is labeled as an approved
child restraint for airline use and fits
properly on the plane. Contact the airline
about their policy prior to traveling.
•
Place the restraint next to a window
to avoid blocking the aisle.
•
If the aircraft lap belt is too short, ask the flight attendant for
C
a Belt Extender.
TToo IInnssttaallll iinn AAiirrccrraafftt::
1 Place the restraint, without base, rear facing on the aircraft seat.
2 Push cover back to expose belt guides.
3 Fully extend aircraft lap belt.
4 Route aircraft belt under each belt guide.
5 Verify that the seat belt is not twisted, then buckle.
6 Push the restraint firmly into the seat while removing slack from the
seat belt.
7 Verify that vehicle belt is tight and that the restraint is stable.
28
29
Care and Maintenance
Care and Maintenance
Cover & Head Pad
RReemmoovvaall::
1 Unhook attachment clips under each handle pivot point.
2 Loosen the harness by pressing the adjuster lever located in the front of
the restraint, while pulling the harness straps forward as far as possible.
3 Unhook the harness straps from the yoke on the bottom of restraint.
4 Unbuckle harness and remove the belly pad from the buckle.
5 Pull upper harness straps through the shell, cover, and head pad to
the top of the restraint.
6 Remove head pad.
• If removing head pad only, end procedure here. Replace head pad by
reversing steps above.
7 Gently remove the upper portion of the cover. Be careful not to
damage the energy absorbing foam.
8 Pull the lower harness straps, buckle tongues, chest clip, and buckle
through the slots in the cover.
9 Remove cover from the restraint.
WARNING:
Do not take apart or attempt to take apart the harness. It is
•
unnecessary and dangerous to do so.
•
Never remove the buckle tongues from the harness. They cannot
be reattached after removal.
RReeffiittttiinngg tthhee CCoovveerr::
To refit the cover, reverse Cover Removal directions.
the harness is not twisted.
30
Make sure that
Cleaning the Cover
•
HAND WASH,
•
LINE DRY, to prevent cover from shrinking.
•
DO NOT:
using cold water and mild soap.
Bleach, machine wash, machine dry, or iron.
Cleaning the Head Pad Cover
•
REMOVE CONTENTS OF HEAD PAD,
sponge and mild detergent.
•
HAND WASH COVER ONLY,
•
LINE DRY, to prevent cover from shrinking.
•
DO NOT:
disassemble head pad insert.
Bleach, machine wash, machine dry, iron, or
using cold water and mild soap.
sponge clean with damp
Cleaning the Shell & Harness
•
BRUSH AWAY LOOSE DEBRIS, using a soft bristled brush.
•
SPONGE CLEAN, using warm water and mild soap.
•
TOWEL DRY
•
DO NOT:
machine wash, machine dry, or disassemble the harness.
Use solvents, abrasive cleaners, or bleach. Do not
Cleaning the Harness Adjuster
WARNING:
and free of food, coins, dirt, and other objects.
it must be removed to prevent interference with the adjuster
mechanism.
•
•
•
•
Periodically check the adjuster area to be sure it is clean
If debris is present,
BRUSH AWAY LOOSE DEBRIS, using a soft bristled brush.
SPONGE CLEAN, using warm water and mild soap.
TOWEL DRY
DO NOT:
harness.
Use solvents, abrasive cleaners, or disassemble the
31
Care and Maintenance
Care and Maintenance
Buckle
RReemmoovvaall::
1 With restraint removed from the
base, pull cover and foam back so
that the buckle slots are visible.
2 Locate metal buckle strap
retainer on the top side of the
restraint.
3 Pull retainer up to loosen.
4 Turn the retainer so that the short side will go down through the slot
in the restraint shell to the bottom side of the restraint.
5 From the bottom of the restraint, turn the retainer so the short side will
go up through the slot in the restraint shell to the top side of the restraint.
6 Thread the retainer through the hole in cover to remove buckle from
restraint.
IInnssttaallllaattiioonn::
1
Locate the appropriate buckle slot.
2
Turn the buckle retainer so that the short side will go through the
slot in the cover and restraint shell
3 From the bottom of the restraint, turn the retainer so the short side
will go up through the unused slot in the restraint shell to the top
side of the restraint.
4 Replace cover and belly pad.
5
Pull buckle away from restraint until tight, then verify that the
strap is not twisted and the release button is facing outward.
32
A
(Fig. A)
.
Cleaning the Buckle
If a child eats and drinks while in
the restraint, the buckle may need
to be periodically checked and
cleaned of any accumulated
debris or dried liquids.
•
THOROUGHLY RINSE,
using warm water (Fig. B).
•
SOAK, overnight if possible,
using warm water to loosen
hardened drinks or food.
•
TEST THE BUCKLE, by
fastening and unfastening
until a positive click is heard
after inserting the second
buckle tongue (Fig. C). If a
click is not heard, repeat
cleaning procedure.
•
TOWEL DRY
•
DO NOT:
household detergents.
Lubricate, use solvents, abrasive cleaners, soap or
B
BuckleUnbuckle
C
33
Warranty
This child restraint was manufactured by Britax. Britax Child Safety, Inc. (“Britax”) warrants
this product to the original retail purchaser as follows:
LIMITED ONE-YEAR WARRANTY
This product is warranted against defective materials or workmanship for one year from the
date of original purchase. Proof of purchase is required. The exclusive remedy for this
warranty is that Britax will, at its option, provide repair or replacement components for this
product or refund the original purchase price of the product. Britax reserves the right to
discontinue or change fabrics, parts, models or products, or to make substitutions.
To make a claim under this warranty, contact Britax Consumer Services at
1-888-427-4829 or write to us using the address on the back cover of this booklet. Proof
of purchase is required.
PLEASE COMPLETE AND MAIL THE OWNER REGISTRATION CARD WITHIN (30) DAYS
OF PURCHASE.
WARRANTY LIMITATIONS
This warranty does not include damages which arise from negligence, misuse or use not in
accordance with the product instruction.
The use of non-Britax Child Safety, Inc. covers, inserts, toys, accessories, or tightening
devices is not approved by Britax. Their use could cause this restraint to fail Federal Safety
Standards or perform worse in a crash. Their use automatically voids the Britax warranty.
LIMITATION OF DAMAGES
The warranty and remedies as set forth above are exclusive and in lieu of all others, oral or
written, express or implied. In no event will Britax, or the retailer selling this product, be
liable for any damages, including incidental or consequential damages, arising out of the use
or inability to use this product.
LIMITATIONS OF WARRANTIES AND OTHER WARRANTY TERMS AND
STATE LAWS
Any implied warranties, including implied warranties of merchantability and fitness for a
particular purpose, shall be limited to the duration and terms of the express written
warranty. Some states do not allow limitations on how long an implied warranty lasts or the
exclusion or limitation of incidental or consequential damages, so the above limitations may
not apply. This warranty gives you specific legal rights, and you may have other rights,
which vary from state to state. Neither Britax, nor the retailer selling this product, authorizes
any person to create for it any other warranty, obligation, or liability in connection with this
product.
Notes
3534
Notes
36
Loading...
