Ideas

for the Garden

Art.-No. 96-359 • Protective charge 0,50 £

Contents

BRILL evolution – the (R)evolution from BRILL Page 4
The BRILL evolution electric and
petrol mowers

Mowing lawns without side-effects Page 8
The multi-function machine that can
do everything

Real power packs – BRILL Steelline Page 16

Petrol mowers with rear-wheel drive

Ideas for the Garden

evolutionbrillencioSteelline

BRILL stands for
quality and tradition

Already since the establishment of the company in the year
1873 the quality and efficiency of development and produc­tion have been the primary focus of BRILL. We started under
modest working conditions in an on-site foundry in
Wuppertal-Barmen. Today we have modern manufacturing
plants as well as a highly developed logistics center at the
company’s site in Witten-Herbede.

For years our products and services and their reliability have
been documented and confirmed with various safety test
marks and awards by independent internationally recognized
institutions.

To guarantee consistent pro­duction quality, the company
has been certified under DIN
ISO 9001 since 1997.
That means that quality can
be checked in all stages of pro­duction.That means proven
quality for you.

Hattrick – lawn care with fresh air cure Page 18

The multifunction machine that can do everything

Keeps you and your lawn fit Page 20

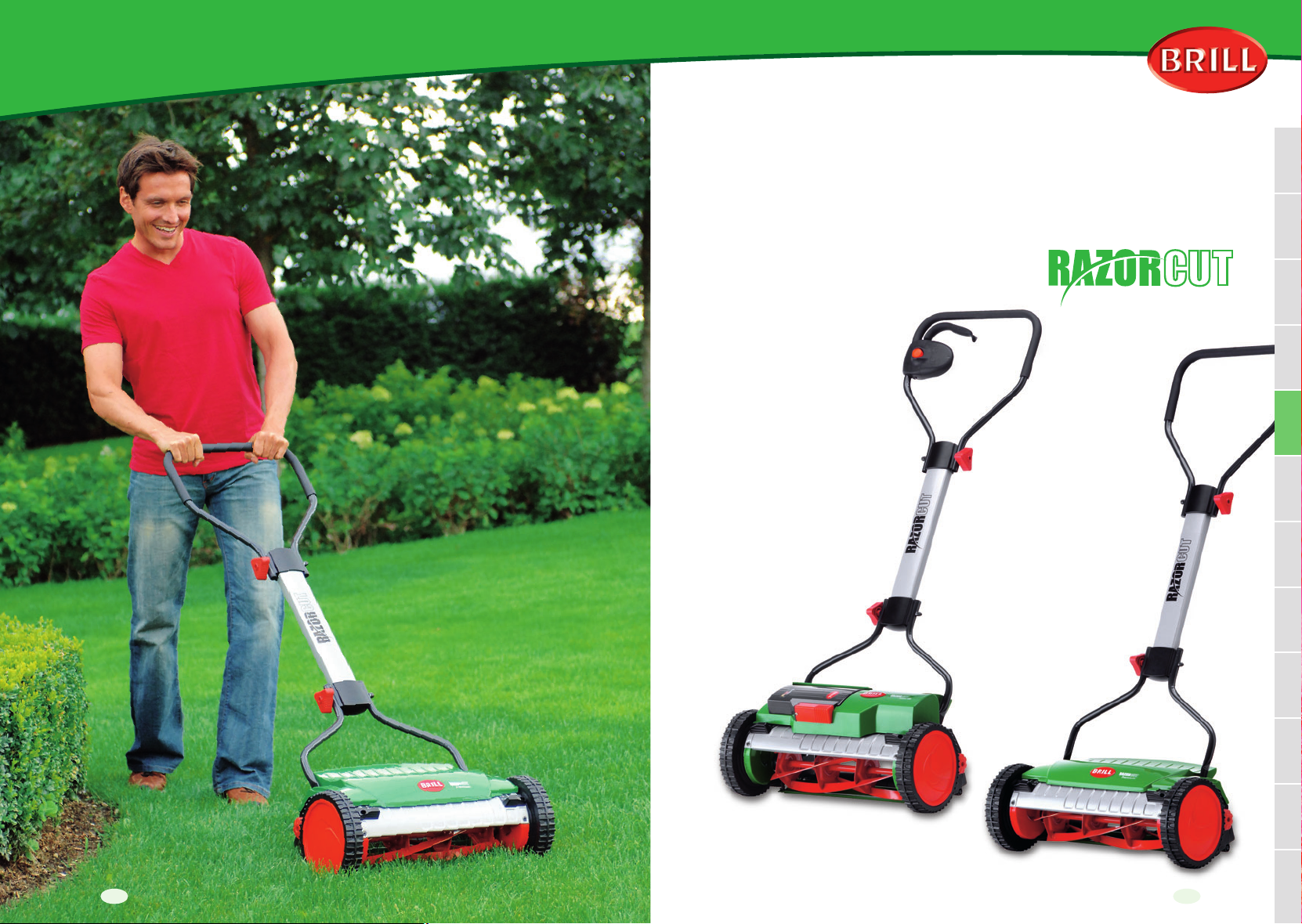

BRILL hand cylinder mowers

Lawn scarifiers – no problem Page 24
with thatch and moss

BRILL aerators

5 x power which lasts Page 28

BRILL power battery range 24 volts

Handy garden tools Page 31

BRILL Gardenboy
BRILL lawn edge trimmers
BRILL hedge trimmers

Compost with comfort Page 36

BRILL shredders

Fun to drive in the garden Page 38

BRILL lawn tractors Crossover

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

www.brill.de

Further information Page 42

www.brill.de

All the spares you need Page 43

Aftersales parts at a glance

E

V

O

L

U

T

I

O

N

BRILL evolution – the (R)evolution from BRILL

This is what it
stands for!

Superior technology, convenient
handling, dynamic design

BRILL evolution sets new standards in lawn mower
technology. Innovative technology and functional
design were the decisive factors in the development of
the evolution series. The revolutionary space-saving
concept is optimally tailored to today’s requirements.
When positioned upright, the evolution finds room in
the smallest of spaces. The patented dual channel air
system guarantees a perfect cut.

The evolution petrol mower is equipped with a special
tank system, so that it can also be stored upright in a
filled state. Particularly pleasing is the low weight of
the petrol mowers. They only weigh slightly more than
comparable electrical appliances. In this way mowing
lawns becomes fun!

Now with

mulching function

The DuoAir Management

A dual channel air system with
effective cutting technology
collects grass and sucks the lawn
cuttings in an air flow, resulting
in an ideal cutting performance
even with the closest cutting
height.

More cleaner air for people
with allergies

A closed grass box effectively
holds dust and pollen. This
means that dirt is no longer
swirled up and allergy sufferers
can breathe a new sigh of relief.

Ideas for the Garden

Always at the right height...

The ideal position can always
be attained thanks to the
adjustable handle bars.
The grass box which opens at
the back can also be emptied
without a change of grip.

evolutionbrillencioSteelline

Hattrick mowersCylinder mowers

Lawn scarifiers

Always close...

The BRILL evolution can
always be perfectly adapted

The upright position...

A functional design makes the
BRILL evolution a real space­saver. It is easy to carry or fit
into even the smallest car boot.
It shrinks in size if not in use.
When positioned upright, it
finds room in every corner.

Simply practical

The grass cuttings in the grass
box can be easily removed in an
upright position, without

4

having to change your grip, so
that your back is treated with
care.
The closed grass box system
protects people with allergies in
the best possible way from dust
and pollen.

Getting a grip...

The integrated ergonomical
handles are a real relief. They
can be used to lift and trans­port the BRILL evolution easily,
in addition to placing it in the
boot.

The control centre...

Everything comes together
cleanly and clearly – at the
comfort panel with the useful
cable carrier. Mowing with ease
at long last!

to the right lawn height
using the central, adjustable
7 postion height settings.
The deepest cutting height of
16 mm makes mowing lawns
of golf course quality possible.

Well filled...

The grass box level indicator
of the BRILL evolution is a new
practical thing.
It can be easily read and you
also know when it is time to
empty the grass box.

5

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

BRILL evolution – the (R)evolution from BRILL

Ideas for the Garden

evolutionbrillencioSteelline

Art no

EAN Code

Cutting width

Engine

Power

Housing

Cutting technology

Handle bar adjustment

Wheels

Cutting height adjust-

ment with display
Grass box volume

Safety

Wheel drive

Moving cable guide

Noise level

Weight

Recommended

for areas up to

Packed fully assembled

evolution mulching function

For the 41 and 42 series models
a mulch box is available as a
special accessory. This is inserted
instead of the grass box and
distributes the mown grass
directly on to the lawn. In this
way you fertilize your lawn
and protect it from drying out.

Electric lawnmowers Petrol lawnmowers
BRILL evolution 33 EF

61050

40 09093 000771

33 cm

Electric 230 V

1,000 W

Robust PP plastic

Single blade

Plain bearing

Central, 7 position height
settings from 16 – 70 mm
28 l

Comfort panel, engine
and blade stop under 3 sec.

88 dB(A)

17 kg

400 sq. m

Not standard Standard The right to make technical amendments reserved









BRILL Evolution 36 EF

61051

40 09093 000788

36 cm

Electric 230 V

1,300 W

Robust PP plastic

Single blade

Ball bearing

Central, 7 position height
settings from 16 – 70 mm
36 l

Comfort panel, engine and
blade stop under 3 sec.

89 dB(A)

19 kg

500 sq. m







BRILL Evolution 41 EF

61052

40 09093 000795

41 cm

Electric 230 V

1,600 W

Robust PP plastic

Single blade

Ball bearing

Central, 7 position height
settings from 16 – 70 mm
50 l

Comfort panel, engine and
blade stop under 3 sec.

92 dB(A)

22 kg

700 sq. m







Practical cleaning...

Thanks to its upright position, it
can be cleaned after use wit­hout difficulty.

There is even a storage bracket
available as an accessory,
making it possible to hang the
evolution on a wall with out
difficulty.

BRILL evolution 33 EM

61040

40 09093 000702

33 cm

Electric 230 V

1,000 W

Robust PP plastic

Single component blade

Plain bearing

Central, 7 position height set­tings, from 16 – 70 mm
28 l

Cable release, engine and
blade stop under 3 sec.

88 dB(A)

16 kg

400 sq. m







BRILL evolution 36 EM

61041

40 09093 000719

36 cm

Electric 230 V

1,200 W

Robust PP plastic

Single component blade

Plain bearing

Central, 7 position height settings,
from 16 – 70 mm
36 l

Cable release, engine and blade stop
under 3 sec.

89 dB(A)

19 kg

500 sq. m







Accessories:

BRILL evolution cutting blade

BRILL bracket for evolution

BRILL evolution 41 EM

61042

40 09093 000726

41 cm

Electric 230 V

1,500 W

Robust PP plastic

Single component blade

Ball bearing

Central, 7 position height settings,
from 16 – 70 mm
50 l

Flick-Flack cable guide, engine and
blade stop under 3 sec.

92 dB(A)

21 kg

700 sq. m

EAN Code 40 09093 001044 40 09093 001051 40 09093 001068 40 09093 001525

Cutting width 33 cm 36 cm 41 cm 42 cm

EAN code 40 09093 001075







Art no 61604 61605 61606 61608

Art no 61630

BRILL evolution 42 BM

61053

40 09093 001440

42 cm

Briggs & Stratton

2.6 kW

High impact resistant ABS-plastic

Single component blade

Ball bearing

Central, 7 position height settings,
from 16 – 70 mm
50 l

Engine and blade stop under 3 sec.

95 dB(A)

24 kg

800 sq. m

BRILL mulch box for evolution

BRILL evolution 42 BFR

61054

40 09093 001457

42 cm

Briggs & Stratton

2.9 kW

High impact resistant ABS-plastic

Single component blade







Ball bearing

Central, 7 position height settings,
from 16 – 70 mm
50 l

Engine and blade stop under 3 sec.

95 dB(A)

25.5 kg

900 sq. m

Art no 78933

EAN Code 40 09093 001952

Cutting width 41 cm

Art no 78934

EAN Code 40 09093 001945

Cutting width 42 cm







* Maximale Leistung bei 3.600 U/min

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

6

7

brillencio – mowing lawns without side-effects

Just

right for

people with

allergies

Friendly to

your ears

Kind to

your back

Brilliant Features

The brillencio from BRILL has
li terally been created for a rela­xed lawn mowing. Its design
took on fundamental require­ments such as a noise prevention,
comfortable handling and as far
as possible, protection of those
suffering from allergies from
dust and pollen.
That is also what has emerged:
friendly to your ears, just right
for people suffering from aller­gies and kind to your back.

Friendly to your ears as a
matter of principle

The silencer system integrated
in the housing „swallows” the
noise volume and at the same
time deflects the exhaust
gases from the en gine directly
to wards the ground.

Airspace – just right for people
suffering from allergies

The closed all-round retaining
system prevents the ejection of
grass, dust particles and pollen.
People suffering from allergies
can breathe a sigh of relief.

Technology which is kind to
your back

The closed multi-function box
covering the gass box at the rear
provides noise insulation and
optimises the air flow. The folding
mecha nism of the handle bars
enables the grass box to be re ­move d whilst standing in an up ­right position.
A central and infinitely variable
height adjustment of 30 -80 cm
provides ideal mowing positions.

Magnesium housing –
ultra light and unbreakable

The housing of all 43 and 51
models is of ultra light, high
impact-resistant magnesium –
High-Tech is used in your garden!

Ideas for the Garden

The closed silencer concept:
Emissions, dust particles and pollen are almost completely encapsulated in the multi­function box. The low-noise blade and the silencer which is integrated in the housing reduce
the noise perception by up to 50%.

The brillencio enables
the grass box to be
removed from a stan­ding position, thereby
being kind to the
back.

The aerodynamically optimised
blade guarantees a clean cut.

Upon removing the grass box,
the brillencio silent-mower
becomes a powerful long grass
mower.

The height adjustment is central
and can be continuously adju­sted from 30 to 80 mm.

The complete housing of all
brillencio 43 and 51 models is
made of the ultra light and
highly impact-resistant material,
magnesium.

evolutionbrillencioSteelline

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

brillencio

Housing with silencer
Low-noise blade
Removal of the grass box in
a manner which is kind to your back

8

Powerful long grass mower

9

brillencio – mowing lawns without side-effects

Ideas for the Garden

evolutionbrillencioSteelline

Art no

EAN Code

Cutting width

Engine

Max power (kW/hp)

(at 3,600 rpm)

Housing

Cutting technology

Wheels

Cutting height adjustment

Recommended for areas up to

with display

Grass box volume

Safety

Wheel drive

Electric start

Noise level

Weight

Packed fully assembled

brillencio 41 B

62041

40 09093 000474

41 cm

Briggs & Stratton, 158 cc

2.9 kW ( 4.0 HP)

High impact resistant PA/ABS-plastic

Low noise single component blade

With double ball bearing mounting

Central, infinitely variable
from 30 – 80 mm
50 l

Engine and blade stop under 3 sec.



700 sq. m

94 dB(A)

31 kg

Not standard Standard The right to make technical amendments reserved







brillencio 41 BR

62043

40 09093 000498

41 cm

Briggs & Stratton, 158 cc

2.9 kW ( 4.0 HP)

High impact resistant PA/ABS-plastic

Low noise single component blade

With double ball bearing mounting

Central, infinitely variable
from 30 – 80 mm
50 l

Engine and blade stop under 3 sec.

1-speed

800 sq. m

94 dB(A)

34.5 kg

brillencio 48 BRX

62056

40 09093 001471

48 cm

Briggs & Stratton, 190 cc

4.1 kW (5.5 HP)

High impact resistant PA/ABS plastic

Low noise single component blade

With double ball bearing mounting

Central, infinitely variable
from 30 – 80 mm
65 l

Engine and blade stop under 3 sec.







1-speed

1,400 sq. m

94 dB(A)

39,5 kg







brillencio 48 BR (e)-comfort

62029

40 09093 000689

48 cm

Briggs & Stratton, 190 cc

4.1 kW (5.5 HP)

High impact resistant PA/ABS plastic

Low noise single component blade

With double ball bearing mounting

Central, infinitely variable
from 30 – 80 mm
65 l

Engine and blade stop under 3 sec.

1-speed

1,500 sq. m

94 dB(A)

43.5 kg







Easy start with (e)-comfort

The brillencio starts with no problems with
this strong 12 Volt power pack whatever the
weather. Just turn the key and off it goes. The
battery can simply be taken out of the holder
and can be charged using an external charger.

State-of-the-art materials

High impact resistance and extremly robust
materials characterise the
housing of the smaller models is made of
high-quality PA/ABS plastic.

Ready to start quickly – rapidly stored

Every

brillencio is ready for work in an instant
folded away again and stored so that it
saves space. The compact design, the refined
folding mechanism and the two integrated
handles make it easy.

brillencio. The

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

10

11

brillencio – unbeatably light magnesium housing

Ideas for the Garden

evolutionbrillencioSteelline

Art no

EAN Code

Cutting width (cm)

Engine

Max power (kW/hp)

(at 3,600 rpm)

Housing

Cutting technology

Wheels

Cutting height adjustment

Recommended for areas up to

Ultra-light – extremely stable

What has proved its worth in
the aerospace and aeroplane
technology is used in the
brillencio. The housings made
of magnesium are ultra-light,
high impact resistant and
robust.

with display

Grass box volume

Safety

Wheel drive

Electric start

Noise level

Weight

Packed fully assembled

brillencio 43 B OHC

62025

40 09093 000627

43 cm

Honda, 135 cc

3.4 kW (4.5 HP)

Magnesium

Low noise single component blade

With double ball bearing mounting

Central, infinitely variable
from 30 – 80 mm
50 l

Engine and blade stop under 3 sec.

1-speed

1,000 sq. m

93 dB(A)

34 kg

Not standard Standard The right to make technical amendments reserved



Runs very smoothly

The long wheelbase means
that the brillencio glides over
the lawn pass after pass,
stably and on track – attractive,
clean cutting guaranteed!







brillencio 43 BR OHC

62026

40 09093 000634

43 cm

Honda, 135 cc

3.4 kW (4.5 HP)

Magnesium

Low noise single component blade

With double ball bearing mounting

Central, infinitely variable
from 30 – 80 mm
50 l

Engine and blade stop under 3 sec.

1-speed

1,200 sq. m

93 dB(A)

37.5 kg

Perfect Balance

The grass box is arranged in
such a way on the brillencio
that its weight is transferred
to the rear axle when full.

brillencio 51 BR OHC

62030

40 09093 000443

51 cm

Honda, 160 cc

4.1 kW (5.5 HP)

Magnesium

Low noise single component blade

With double ball bearing mounting

Central, infinitely variable
from 30 – 80 mm
65 l

Engine and blade stop under 3 sec.







Vario

1,800 sq. m

98 dB(A)

43 kg

Convenient Vario-drive

Several models save the
gardener from having to
push the mower because
they have driven wheels.
The Vario-drive with infinitely
variable adjustable speed
en ables the brillencio also to
handle large areas and lawn
areas on slopes without
difficulty.







Push or pull – the brillencio
lawn roller

The basis of an attractive
lawn is the soil preparation
when sowing the grass. The
hand operated lawn roller
presses the lawn seed against
the soil ensuring good ger mi­nation and equal growth.

Hang on: after the lawn has
been mown for the first time,
the lawn roller can be directly
attached onto the brillencio,
thereby achieving an additio­nal compacting of the soil.

Accessories:

Duo-cutting blade for brillencio

Charger for brillencio

Battery for electric start

brillencio lawn roller 430 BRW*

61601

Art no

40 09093 616019

EAN Code

Art no

EAN Code

Art no

EAN Code

Art no

EAN Code

Art no

EAN Code

Art no

EAN Code

Rating

Art no

EAN Code

41 cm

61600

40 09093 616002
43 cm

61602

40 09093 616026
48 cm

61603

40 09093 616033
51 cm

61619

40 09093 616194
12 – 24 h
230 V

62901

40 09093 629019
12 V, maintenance-free

61631

40 09093 00182
50 cm
22 cm

Cutting width

Cutting width

Cutting width

Cutting width

Charging time

Input voltage

Working width

Roller diameter

* Frame and brillencio trailer coupling included in delivery

of the lawn roller.

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

12

13

brillencio electro – strong and electric

Ideas for the Garden

brillencio electro

The brillencio electro is ideal
for small to medium sized
gardens of individual houses.
However, considerably larger
areas can also be cut without
difficulty with the powerful
1,500 W motor.

The innovative cutting
geo me try of the mowing
mechanism also handles tall
and damp grass extremely
well.

Although it has a cutting
width of 41 cm the brillencio
electro enables to proceed
fast and it is very easy to
handle and manoeuvre.

The low weight of the plastic
housing contributes to this.
The wide handles mean that
the mower is easy to move
around the garden.

The functional, two-handed safety switch
enables the brillencio 41 E to be switched
on easily.

The advantages at a glance

The greatest benefit is provi­ded by the new BRILL design
for the grass box, which pro­tects the user’s back.

The multi-function box,
which acts as a silencer, is
opened by a well-designed
hinge mechanism, releasing
the grass box and enabling
the user to remove it whilst
in a standing position.

The brillencio system, used
throughout the range, retains
dust, grass and pollen reliably.
A clean cut is guaranteed by
the long wheelbase, the
excellent smooth-running of
the lightweight wheels and
cleverly designed balancing
of the weight.

With its infinitely variable
height adjustment from 30
to 80 mm, the brillencio elec­tro 41 E can handle any situa­tion.

Art no

EAN Code

Cutting width

Engine

Power/output

Mulch-box

Housing

Cutting technology

Handle bar adjustment

Wheels

Cutting height adjustment

Recommended for areas up to

Not standard Standard



The right to make technical amendments reserved

Accessory:

Cutting blade for brillencio

Cutting blade for Basic 32 ED

with indicator

Grass box volume

Packed fully asssembled

61601

Art no

40 09093 616019

EAN Code

Art no

EAN Code

41 cm

61604

40 09093 001044
32 cm

Cutting width

Cutting width

Safety

brillencio 41 E

62044

40 09093 000504

41 cm

Electric 230 V

1,500 W

High impact resistant PA/ABS plastic

Low noise single component blade

With double ball bearing mounting

Central, infinitely variable from 30 – 80 mm

50 l

Two-handed safety switch, moving cable guide,
motor and blade stop under 3 sec.
800 sq. m







Art no

EAN Code

Cutting width

Engine

Power

Housing

Cutting technology

Handle bar adjustment

Wheels

Cutting height adjustment with

Packed fully assembled

display

Grass box volume

Safety

Moving cable guide

Weight

Recommended

for areas up to

BRILL Basic 32 ED

64100

40 09093 641004

32 cm

Electric 230 V

900 W

Robust PP plastic

2 triangular cutter blades sharpened
on both sides

Plain bearing

Central, infinitely variable between

25 and 55 mm
32 l

Engine and blade stop under 3 sec.

13.7 kg

300 sq. m







evolutionbrillencioSteelline

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

14

15

BRILL Steelline – strong on slopes

Ideas for the Garden

Power packs

No blade of grass is spared

Robust, sheet steel housing, powerful engines and large cutting widths
characterize the new Steelline petrol mowers. Fitted with extra-large rear
wheels, the petrol mowers are extremely manoeuvrable and demonstrate their
great mobility even when the ground is uneven. The grass is cut perfectly even
when it is long.

The mowers are fitted with powerful Briggs & Stratton or Honda engines and
some of them have a single speed wheel drive giving 3.5 km/h. The 52 series
model is executed as standard with discharging of the grass to the side and the
mulching function.

Art no

EAN code

Engine

Max. power

Cutting width

Cutting height

Housing made of

Blades with rear discharge

Wheels

Wheel drive

Lateral discharge

Grass box

Grass box level indicator

Mulching function

Weight

Recommended for areas up

Steelline 42 XL 4.0

63310

40 09093 173680

Briggs & Stratton
Quattro 40

2,9 kW (4,0 HP)

42 cm

central, 7 position height
settings (30 – 70 mm)
steel sheet

1 blade

Plain bearing

65 l

28 kg

800 sq. m

to

evolutionbrillencioSteelline

Steelline 42 XL 6.0

63311

40 09093 175400

Briggs & Stratton
Series 675 Ready Start

4,4 kW (6,0 HP)

42 cm

central, 7 position height
settings (30 – 70 mm)
steel sheet

1 blade

Plain bearing





65 l





30 kg

800 sq. m









Steelline 46 XL 6.0

63312

40 09093 175417

Briggs & Stratton
Series 675 Ready Start

4,4 kW (6,0 HP)

46 cm

central, 7 position height
settings (30 – 80 mm)
steel sheet

1 blade

Ball bearing



65 l

32 kg

1.000 sq. m









Steelline 46 XL R 6.0

63306

40 09093 001761

Briggs & Stratton
Series 675 Ready Start

4,4 kW (6,0 HP)

46 cm

central, 7 position height
settings (30 – 80 mm)
steel sheet

1 blade

Ball bearing

1-single-speed,
3,5 km/h

65 l

33 kg

1.200 sq. m

Not standard Standard The right to make technical amendments reserved









Steelline 46 XL R OHC

63307

40 09093 001778

Honda GCV135

3,4 kW (4,5 HP)

46 cm

central, 7 position height
settings (30 – 80 mm)
steel sheet

1 blade

Ball bearing

1-single-speed,
3,5 km/h

l

65

33 kg

1.200 sq. m









Steelline 52 XL R 6.0

63308

40 09093 001785

Briggs & Stratton
Series 675 Ready Start

4,4 kW (6,0 HP)

51 cm

central, 7 position height
settings (30 – 80 mm)
steel sheet

1 blade

Ball bearing

1-single-speed,
3,5 km/h

65 l

35 kg

1.600 sq. m









Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

Easily adjustable

The integrated spring system
enables the cutting height to
be conveniently set centrally
to seven different heights
from 30 to 80 millimetres.

16

Clean mowing

The grass box made of robust
plastic holds 65 litres and can
be removed easily.

Easy to manoeuvre

The extra large wheels with
single-speed wheel drive
ensure more grip and simple
handling.

Easily visible

The practical level indicator
shows when the grass box
has to be emptied.

Accessories:

BRILL Steelline cutting blade

Art no 61611

EAN Code 40 09093 182897

Working width 42 cm

Art no 61609

EAN Code 40 09093 001976

Working width 46 cm

Art no 61610

EAN Code 40 09093 001983

Working width 51 cm

17

BRILL Hattrick – lawn care with fresh air cure

The all-rounder

Aerating, mowing, collecting – the multi­function machine that can do everything

Spring-clean for the lawn! The Hattrick aera­tes, mows and collects in one operation. The
aerator roller on the front thoroughly removes
thatch and moss from the lawn. It is equipped
with robust, durable steel tines, which aerate
the lawn as they rotate. The aerator roller is
activated via the connection button.

Mulching with the
BRILL MulchCut

When mulching the grass cut­tings are finely cut and returned
directly to the lawn and serve as
a source of moisture and natu­ral fertiliser. The Mulch Set is
part of the special equipment
of the Hattrick. It is simply hoo­ked into the collection chute in
place of the grass box.

aerating, mowing,
collecting

18

The dual channel air system ensures an opti­mum mowing and collection performance
under all conditions, so that the removed
thatch and the grass clippings land safely in
the large grass catcher.

The comfort panel with ergonomic handle
guide and practical cable guide is clearly
arranged and particularly pleasant to operate.

BRILL Hattrick 36 EH

Art no

EAN Code

Cutting width

Engine

Output/power

Aerator can be switched on

Mulch-box

Housing

Cutting technology

Handle bar adjustment

Wheels

Cutting height adjustment with

Recommended for areas up to

Packed fully assembled

Accessories:

BRILL Hattrick aerator roller Art no 78350

BRILL mulch box Art no 78983

indicator

Fabric grass catcher

Safety

Wheel drive

Weight

Noise level

62103

40 09093 001426

36 cm

Electric – 230 V

1,500 W

Available as accessory

Robust PP plastic

Single component blade

Plain bearing

Central, infinitely variable from 30 – 70 mm

38 l

Comfort panel, movable cable guide,
engine and blade stop under 3 sec.

21 kg

88 dB(A)

600 sq. m

EAN Code 40 09093 835007

Working width 36 cm

Art no 78352

EAN Code 40 09093 835205

Working width 40 cm

EAN Code 40 09093 000887

Mulch-box 36 cm

Art no 78962

EAN Code 40 09093 896206

Mulch-box 40 cm

Ideas for the Garden

BRILL Hattrick 40 BHR

61014

40 09093 001433

40 cm

Briggs & Stratton, 190 cc

3.7 kW (5.0 HP) at 3,600 rpm









Not standard Standard The right to make technical amendments reserved



BRILL Hattrick cutting blade Art no 61605

Available as accessory

High impact resistant PA/ABS plastic

2 triangular blades sharpened on both sides

With double ball bearing mounting

Central, infinitely variable from 30 – 80 mm

46 l

Engine and blade stop under 3 sec.

35 kg

95 dB(A)

1,000 sq. m

EAN Code 40 09093 001051

Working width 36 cm

evolutionbrillencioSteelline

Hattrick mowersCylinder mowers



Lawn scarifiers



24 V battery tools





Handy toolsShreddersTractorsInternetAccessories

19

BRILL Cylinder mowers – keeps you and your lawn fit

Ideas for the Garden

BRILL Cylinder Mower

The razor-sharp fitness programme

The classic lawn mower now
in a new design. Worthy of note
is the modern shape of the
robust and foldable handle bars
in silver and grey with ergo­nomic foam rubber handles.

The large wheels with their
special profile also ensure con­venient working as does too the
attractive "rear spoiler" which
ejects the grass cuttings in a
controlled manner. Mowing with
the cylinder mower means
precision cutting of each single
blade of grass. Precision
sharpened to a hundredth of a
millimetre, blade cylinder
and bottom blade of special
hardened steel leave a lawn cut
as if with scissors whereby the
contactfree cutting technique –
a BRILL invention – ensures
quietness. Mowing is less sporty
but easier with the battery­powered BRILL RazorCut.This is
suitable for average sized lawns
of up to 300 m

2

.

evolutionbrillencioSteelline

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

20

21

BRILL Cylinder mowers – keeps you and your lawn fit

Ideas for the Garden

evolutionbrillencioSteelline

Art no

EAN Code

Engine

Cutting width

Cutting technology

Contact-free cutting technology

Cylinder & bottom blade: Special

steel and precision-sharpened

Blade spindle mounted

on ball bearings
Cover to protect

flowers and shrubs

Cutting height adjustment

Recommended for areas

Frame

Drive

Safety

Grass catcher

Noise level

Weight

22

Cylinder mower Battery-powered cylinder mower
BRILL Classic 30

78357

40 09093 001822

30 cm

blade cylinder,
5 blades

classic ladder frame design

6 settings from 17 – 43 mm

up to 100 sq. m

available as accessory

5.4 kg

Not standard Standard The right to make technical amendments reserved













BRILL RazorCut Premium 33

78366

40 09093 001815

33 cm

blade cylinder,
5 blades

maintenance- 
free

because of anti-coiling device

ergonomically shaped with foam
rubber handle
infinitely variable from 14 – 45
mm with monitoring scale on
both sides

up to 200 sq. m

available as accessory

6.9 kg

Accessory:

Cylinder mower grass catcher 38 Art no 65041

Cylinder mower grass catcher 30/33 Art no 65061









BRILL RazorCut Premium 38

78371

40 09093 001808

38 cm

blade cylinder,
5 blades

maintenance- 
free

because of anti-coiling device

ergonomically shaped with foam
rubber handle
infinitely variable from 14 – 45 mm
with monitoring scale on both sides

up to 250 sq. m

available as accessory

7.4 kg

EAN 40 09093 610628

Material

Woven nylon, reinforced

Cutting width 38 cm

Cutting width 30 and 33 cm

with steel frame

Weight 1.5 kg

EAN 40 09093 001969

Woven nylon, reinforced

Material

with steel frame

Weight 1.3 kg









BRILL RazorCut Accu 38

65070

40 09093 001792

24 V

38 cm

blade cylinder with electric drive,
5 blades

maintenance- 
free

because of anti-coiling device

ergonomically shaped with foam
rubber handle
infinitely variable from 20 – 45 mm
with monitoring scale on both sides
power battery 24 V

safety switch

approx. 300 sq. m
with fully charged battery
available as accessory

86 dB(A)

11 kg







It could not be simpler:
The battery can be
withdrawn for changing
in a single movement.

Heat-treated cylinder
blades ensure precise cut.

The cutting height adjustment of

the RazoCut is infinitely variable

from 14 to 45 millimetres or from

20 to 45 millimetres respectively.

23

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

BRILL Lawn scarifiers – no problem with thatch
and moss

Ideas for the Garden

evolutionbrillencioSteelline

A beautiful,

Your lawn breathes a sigh of
relief!

The scarifying of the lawn is
an important requirement for
the obtaining of beauti ful
thick green grass.
Only a powerful lawn scari­fier effectively removes
thatch, moss, cuttings and
dead vegetation. Nutrients,
air and water are otherwise
unable to penetrate deep
down to the roots of the grass.
You gain the best results with
the electric lawn scarifiers
from BRILL.

With working widths of 30,
32, 36 and 38 cm and
powerful electric motors
from 1100 to 1500 watts, the
new BRILL electric scarifier is
even able to remove thatch
and moss from larger areas.

The new BRILL lawn scarifier
is also available as a powerful
model with a petrol engine.
With its wide working width
of 40 cm, it guarantees effi­cient scarifying.

Height control

And your lawn takes a deep breath...

The BRILL lawn scarifier –
clever technology:



a compact design with
functions easy to use



central transport and
parking position which can
be operated from above



infinitely variable height
adjustment for the blade
roller



optimised discharge chute



height-adjustable bars
permitting ergonomically
effective working



carrying handles for easy
transportation



space-saving

thick lawn
needs air

Ideal care

Scarifying is best carried out in the spring at
the start of the period of growth and once
again in the late autumn. The lawn aerator on
the other hand can be used more often,
because the interference is not so severe.
Comparable to a vigorous raking, the rotating
steel tines of the aerator roller scour through
the space between the individual lawn plants.
This means that excessive formation of thatch
is prevented and the lawn remains healthy
and vigorous over the entire year.

Scarifying and aerating:
two in one.

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

24

25

BRILL Lawn scarifiers – no problem with thatch and
moss

Ideas for the Garden

evolutionbrillencioSteelline

Art no

EAN Code

Working width

Engine

Housing

Height adjustment

of the blade bar

Number of blades

Centrally operational

transport position

Handle bar adjustment

Cable guide

Wheels

Grass catcher

Recommended

for areas of up to

Packaged completely

pre-assembled

Weight

BRILL electric moss claw

230 RL
62112

40 09093 001181

40 cm

230 V/180 W

Robust PP plastic

2 aerator rollers with special
spring steel tines

150 sq. m

2,4 kg

The steel tine roller thoroughly removes moss
growing on the surface.



BRILL 28 VE/RL

62066

40 09093 001488

28 cm

230 V/1,000 W

Robust PP plastic

Central, infinitely variable
up to 15 mm

6





Plain bearing

45 l (available as accessory)

500 sq. m

11 kg





BRILL 30 VE

62063

40 09093 000733

30 cm

230 V/1,100 W

Robust PP plastic

Central, infinitely variable
up to 15 mm

14





Plain bearing

35 l (available as accessory)

600 sq. m

21 kg





BRILL 32 VE

62064

40 09093 000740

32 cm

230 V/1,200 W

Robust PP plastic

Central, infinitely variable
up to 15 mm

14





Plain bearing

35 l (available as accessory)

700 sq. m

22 kg





BRILL 36 VE

62060

40 09093 000566

36 cm

230 V/1,200 W

Robust PP plastic

Central, infinitely variable
up to 20 mm

16





Plain bearing

50 l (available as accessory)

800 sq. m

26 kg





BRILL 38 VE

62061

40 09093 000573

38 cm

230 V/1,500 W

Robust PP plastic

Central, infinitely variable
up to 20 mm

17





Ball bearing

50 l (available as accessory)

900 sq. m

27 kg





Not standard Standard The right to make technical amendments reserved



BRILL 40 VB

64014

40 09093 001587

40 cm

Briggs & Stratton 2.6 kW (3.5 HP)

Robust PP plastic

Central, infinitely variable
up to 20 mm

17





Ball bearing

50 l (available as accessory)

1,000 sq. m

33 kg



Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

Accessories:

BRILL grass catcher

Art no

EAN Code

30
62075

40 09093 001129

BRILL blade reel

Grass catcher and open chute kompakt und Platz sparend

26

Art no

EAN Code

Volume

for 30 VE and 32 VE
62073

40 09093 001013
35 l

32
62076

40 09093 001136

36
62071

40 09093 000863

for 36 VE, 38 VE und 40 VB
62070

40 09093 620702
50 l

38
62072

40 09093 000870

40
62077

40 09093 001143

27

BRILL 24 V battery – 5 x power which lasts

The absolute
freedom
in the garden

BRILL battery 24 Volts

Power in the pack: BRILL power battery

With the BRILL battery range, amateur gardeners have the
experience of absolute freedom of movement in the garden.
The BRILL compact battery even makes them independent
of the mains, especially in awkward areas. It is carried direct
on the body with a shoulder strap and belt clip. That is com­fortable and means that the user hardly feels the weight of
the connected tools.

The high performance 24 Volts technology guarantees a long
running time. It can be used as a powerful source of energy
for up to 5 pieces of battery operated tools. The BRILL power
battery is connected by a short spiral cable with a clip in plug.
Just push it into the BRILL power battery and off you go.

Aerating, sweep­ing: two in one.

BRILL Lawn Aerator ...provides the lawn with fresh air!

The unique 400 RLB manual lawn aerator from BRILL with a
full power 24 volt battery provides the lawn with fresh air and
with its additional sweeping function, it is a combi-tool with
a practical double use.
It aerates the lawn by carefully freeing it from thatch and moss.
The handy battery-powered tool reaches all corners. After
completing the work on the lawn, you simply push the brushes
on and sweep your path or terrace clean without any effort.
The debris is collected in the container.

Simple to
combine

The battery and the battery­powered tools are all available
individually. Only the battery
spindle mower RazorCut Accu 38
is supplied as standard with a
24 Volt power battery. This does,
however, also fit all other tools. In
this way amateur gardeners can
put together their individual
equipment.

with power battery

without power battery

with power battery

without power battery

Connection system

Accessories:

BRILL grass catcher Art Nr 65041

Art no

Art no

EAN Code

EAN Code

Output/power

Charging time

Life span

Engine

Capacity with fully

charged battery

Working width

Housing

Technology

Handle bars

Lower handle

Safety

Weight approx.

Packaging Qty

Included in box

Not standard Standard The right to make technical amendments reserved



EAN 40 09093 610628

Material

Weight 1.5 kg

BRILL RazorCut 38

65070

40 09093 001792

24 V

Approx. 18 – 24 hours

Approx. 1,000 load cycles

Spiral cable incl. battery clip

24 V

Approx. 300 sq. m with fully charged
battery
38 cm

Steel sheet/plastic

Electrically driven blade cylinder,
5 blades
Ergonomically shaped with foam
rubber handle

Safety switch

11 kg

1

Only available with battery and battery charger,
grass box available as accessory

BRILL brush set for 400 RLB R/H Brush

Woven nylon,
reinforced with steel frame

BRILL aerator for 400 RLB R/H Roller

Ideas for the Garden

BRILL battery lawn aerator 400 RLB

62111

62110

40 09093 001112

40 09093 001099

24 V

Approx. 18 – 24 hours

Approx. 1,000 load cycles

Spiral cable incl. battery clip

24 V

Approx. 40 min

40 cm

Plastic

2 aerator rollers with special
spring steel tines
Aluminium fix

360° rotatable

4.1 kg

2

Double brush set and 4 l container, available with/without power
battery and charger only, grass catcher available as accessory

Art no 12563

L/H Brush

Art no 12564

Art no 14762

L/H Roller

Art no 14763

evolutionbrillencioSteelline

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

28

29

BRILL 24 V battery – 5 x power which lasts

BRILL Gardenboy 400 GB

Ideas for the Garden

with power battery

without power battery

with power battery

without power battery

Output/power

Charging time

Connection system

Capacity with fully

charged battery

Working width

Cutting circle diameter

Handle bars

Lower handle

Weight approx.

Packaging Qty

Included in box

Power battery 24 volts*

* Can be used with 400 RLB, 270ART, 240 ABT, 420AHS and RazorCut 38

Art no

Art no

EAN Code

EAN Code

Life span

Engine

Housing

Technology

Safety

BRILL battery hedge trimmer 420 AHS

65032

65003

40 09093 610420

40 09093 650037

24 V

Approx. 18 – 24 hours

Approx. 1,000 load cycles

Spiral cable incl. battery clip

24 V

Approx. 60 min

42 cm bar length

Plastic

Low vibration, hardened safety under­blade running in the opposite direction

Dual safety switch, fast blade stop
under 0.5 sec

3.7 kg

1

Blade protector for storage, available with
or without power battery and charger

Not standard Standard The right to make technical amendments reserved



65006

Art no

40 09093 650068

EAN Code

24 V

Output

2 Ah

power

Life span

Weight

20 Nickel-cadmium
cells, each 1.2 V
Approx. 18 – 24 hours

Approx. 1,000 load cycles
Shoulder belt, belt clip
and charger

1.4 kg
4

The battery and battery tools
(apart from the RazorCut Accu 38)
are avail able individually so that
amateur gardeners can compose
their own set of equipment.

Power source

Charging time

Accessories incl.

Packaging Qty

BRILL battery shrub trimmer 240 ABT

65030

65002

40 09093 610406

40 09093 650020

24 V

Approx. 18 – 24 hours

Approx. 1,000 load cycles

Spiral cable incl. battery clip

24 V

Approx. 75 min

24 cm bar length

Plastic

Blade – hardened and laser-cut with
special ground finish, safety under-blade

Impact protection on blade ends

2.5 kg

2

Blade protector for storage, available with or
without power battery and charger

Fast charger for power battery 24 volts

Charging time

Input voltage

Output voltage

Charging current

Charge monitoring

Discharging method

Dimensions

Packaging Qty

BRILL battery lawn edge trimmer

65029

65004

40 09093 610390

40 09093 650044

24 V

Approx. 18 – 24 hours

Approx. 1,000 load cycles

Spiral cable including battery clip

24 V

Approx. 40 min

23 cm

Plastic

1.4 mm diameter cord length 6 m
1-cord techn. with automatic tip

Fixed

360° rotatable

2.8 kg

2

Available with or without power
battery and charger

65038

Art no

40 09093 610482

EAN Code

Approx. 2 hours

230 V, 50 Hz
24 V, DC (nominal)

1.2 A

delta U, safety timer,
controller-monitored
charging
Via push button

160 x 122 x 95 mm

Protection against overload,

Safety

short-circuit and connection to the
wrong terminal

1

The relaxing way

to cultivate the soil

The BRILL Gardenboy is the
universal garden tool for pre­paring and looking after your
beds. With its specially harde­ned steel prongs it scarifies
the earth without mixing up
the layer of humus in the top
soil and the natural order of
the useful micro-organisms.
Thanks to its low weight and
back-friendly ergonomic
design the BRILL Gardenboy
makes sure that the hard
work required in looking after
a garden becomes a pleasure.
The BRILL Garden boy – the
innovative electic soil harro­wer for edge-trimming, scari­fying, harrowing, loosening
and weeding.

Art no

EAN Code

Output/power

Engine

Working width

Housing

Technology

Handle bars

Lower handle

Safety

Weight approx.

Working depth

BRILL Gardenboy 400 GB

65052

40 09093 001556

350 W

230 V

Approx. 100 mm

High impact-resistant PA/ABS plastic

2 x 3 tines made of rolled carbon steel,
oscillating rotation of approx. 90°, 550
movements back and forth per minute

Fixed

Infinitely adjustable and rotable

Mechanic safety clutch as overload
protection

2.3 kg

80 mm

evolutionbrillencioSteelline

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

30

31

BRILL Lawn edge trimmer

Ideas for the Garden

evolutionbrillencioSteelline

Always with
a beautiful
edge

BRILL Lawn edge trimmers

are an all-round tool for edges
and corners, their services are
required whenever grass grows
out of control. For example,
around fences and hedges, walls,
tree trunks and other places
where access is difficult.

The rotating nylon cord with a
high speed motor also produces
a clean cut along beds and lawn
edges. You have a choice of four
different models to meet every
demand.

Art no

EAN Code

Engine

Output/power

Power source

Charging time

Charge

Connection system

Capacity with a

full battery

Cutting circle diameter

Housing

Line thickness

Line adjustment

Shaft

Upper handle

Lower handle

Cutter head

Safety

Weight

Noise level

Packaging Qty

Accessories:

Art no

EAN Code

Packaging Qty

Cord length

BRILL lawn edge trimmer

200 RT Tip
75026

40 09093 502602

230 V

200 W max. 12,000 rpm

23 cm

Plastic

1.4 mm diameter, cord
length 6 m, 1-cord system
Automatic tip

Plastic

Fixed

Fixed

Fixed

1.5 kg

94 dB(A)

4

Replacement cassette for

200 RT
75060

40 09093 506006

2 / SB-packaging,
packed in = 10
6 m

BRILL lawn edge trimmer

270 RT Tip
75027

40 09093 502701

230 V

270 W max. 12,000 rpm

23 cm

Plastic

1.4 mm diameter, cord length
6 m, 1-cord system

Automatic tip

Aluminium

Fixed

360° rotating

Fixed

1.9 kg

93 dB(A)

2

Replacement cassette for

270 RT and 270 ART
75060

40 09093 506006

2 / SB-packaging,
packed in = 10
6 m

BRILL lawn edge trimmer

400 RT Duo-tip
75029

40 09093 502909

230 V

400 W max. 12,000 rpm

27 cm

Plastic

1.6 mm diameter, cord length
2 x 3 m, 2-cord system

Automatic tip

Aluminium

Adjustable up to 10 cm

360° rotating

Tilt 45°

3.0 kg

94 dB(A)

2

Replacement cassette for

400 RT
75062

40 09093 506204

2 / SB-packaging,
packed in = 10
3 m

BRILL electric lawn edge
trimmer 1000 EF

75046

40 09093 610130

230 V

1,000 W max. 8,500 rpm

35 cm

Plastic

2.0 mm diameter, cord length

6.2 m, 2-cord system

Automatic tip

Aluminium

Fixed

Height-adjustable, rotating
360°, with vibration damping
Fixed

Integrated cable release,
Switch on lock, shoulder strap

4.5 kg

96 dB(A)

1

Replacement cassette for

1000 EF
75045

40 09093 504507

2 / SB-packaging,
packed in = 5

6.2 m

BRILL battery lawn edge
trimmer 270 ART

65004

40 09093 650044

24 V

24 V

20 nickel-cadmium cells,

each 1.2 V
Approx. 18 – 24 hours

Approx. 1,000 load cycles

Spiral cable incl. battery clip

Approx. 40 min

23 cm

Plastic

1.4 mm diameter, cord length
6 m, 1-cord system

Automatic tip

Aluminium

Fixed

360° rotating

1.4 kg

2

The right to make technical amendments reserved

BRILL lawn edge trimmer

270 ART + power battery 24 V
65029

40 09093 610390

24 V

24 V

20 nickel-cadmium cells,

each 1.2 V
Approx. 18 – 24 hours

Approx. 1,000 load cycles

Spiral cable incl. battery clip

Approx. 40 min

23 cm

Plastic

1.4 mm diameter, cord length
6 m, 1-cord system

Automatic tip

Aluminium

Fixed

360° rotating

2.8 kg

2

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

32

33

BRILL Hedge trimmers – everything in good shape

Ideas for the Garden

To provide you with a neat cut:

BRILL Hedge trimmers

Max. power / output

Length of cut

Safety blades

Gear material

Dual safety switch

Safety cable clip

Impact protection at blade

Electr. blade stop

under 0.5 sec.

Packaging Qty

All BRILL Hedge trimmers
are equipped with powerful
motors and can cut branches
up to 24 mm thick cleanly
and precisely with their
hardened safety blades.

All the models are balanced
so that they feel comfortably
in the user’s hand and the
three-sided handle is easy to
operate.

Included in box

Art no

EAN Code

Engine

end

Weight

Noise level

BRILL hedge trimmer 420 HS

75030

40 09093 503005

230 V

400 W / 2,400 rpm

40 cm

Low vibration, running in
opposite directions, hardened
Hardened special steel with
safety clutch

3.4 kg

87 dB(A)

1

Blade protector for storage











Not standard Standard The right to make technical amendments reserved

BRILL hedge trimmer 540 HS

75031

40 09093 503104

230 V

400 W / 2,400 rpm

54 cm

Low vibration, running in
opposite directions, hardened
Hardened special steel with
safety clutch

3.6 kg

87

1

Blade protector for storage









dB(A)

BRILL hedge trimmer 680 HS

75032

40 09093 503203

230 V

400 W / 2,400 rpm

68 cm

Low vibration, running in
opposite directions, hardened
Hardened special steel with
safety clutch

3.8 kg

87 dB(A)

1

Blade protector for storage









BRILL battery shrub trimmer

240 ABT
65002

40 09093 650020

24 V

24 cm

Hardened, laser-cut with
special sharpened finish
Hardened special steel with
safety clutch

Spiral cable incl. battery clip

0.8 kg

85 dB(A)

4

Blade protector for storage

BRILL power battery 24 volts
required
Capacity approx. 60 min
with fully charged battery







BRILL battery shrub trimmer

420 AHS
65003

40 09093 650037

24 V

42 cm

Low vibration, running in
opposite directions, hardened
Hardened special steel with
safety clutch

Spiral cable incl. battery clip



2.5 kg

89 dB(A)

1

Blade protector for storage

BRILL power battery 24 volts
required
Capacity approx. 75 min
with fully charged battery



evolutionbrillencioSteelline

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

34

35

BRILL Shredder – compost with comfort

The indexing bolt guarantees safety.
It prevents the unit starting on its own
when undertaking relatively small pieces of
assembly work.

Ideas for the Garden

evolutionbrillencioSteelline

With the LH and ESK shredder, the cut material
is drawn in by the rotating cutting wheel.

36

The 64 l collector box protects the blade access
from below.

Crush tree cuttings...

BRILL shredders turn hedge

trimmings and tree cuttings
into valuable shredded material
in no time at all.

The starter

As a powerful starter model,
the MH model is a real fast-runner
and works with the well proven
flat blade technology.

The power models

Innovative cutting techniques
especially make the LH and ESK
models quiet and especially easy
to use.

EAN Code

Rotational speed

of shredding mechanism

Shredding mechanism

Capacity

Cutting-crushing tech.

with self feed

Safety bolt

Access protection

from above

Access protection

from below

Collector box

Transport wheels

Weight

BRILL LH and ESK garden shredders

With the LH and ESK models,
the shredder material is broken up
by crushing and cutting, enabling it
to rot more easily.
The collecting box fulfils an
im portant additional function in
the 2000 ESK and 2300 ESK models:
it is not only storage space for the
shredded materials but it also
forms a safety factor because it
protects the discharge opening
from access. Therefore, no-one can
accidentally reach into the cutting
mechanism from underneath while
it is operating. If the box is remo­ved, the unit switches off immedia­tely. The long distance between the
filling hopper and the blade mecha­nism forms an additional safety fac­tor in the 2300 ESK.

Art no

Engine

Power

BRILL shredder

2200 MH
74000

40 09093 000948

230 V

2,200 W

2,800 rpm

1 flat blade

Up to 3.5 cm Ø









21 kg



BRILL ProfiCut 2800 MH

This powerful universal shredder
represents an energetic helper
in the garden. Fitted with a

2.0 kW motor and a unique
cutting mechanism, it chops up
branches with a thickness of
up to 5 cm without any problem.
Safety is ensured by the large
filling hopper with chips/slivers
protection system as well as
the automatic start-up safe­guard. Its two large wheels
allow the shredder to be trans­ported easily.

BRILL ProfiCut

2800 MH – 230 V
74001

40 09093 001662

230 V

2,000 W

2,800 rpm

Crown cutter,
triangular cutter
Up to 5 cm Ø







125 l collector bag

43 kg



BRILL ProfiCut

2800 MH – 400 V
74002

40 09093 001679

400 V

2,000 W

2,800 rpm

Crown cutter,
triangular cutter
Up to 5 cm Ø







125 l collector bag

45 kg

The integrated toolbox for
spare cutter and operating
instructions is very practical.



BRILL Roller shredder

2300 LH
73983

40 09093 739831

230 V

2,300 W

40 rpm

High quality, hardened steel

Up to 4 cm Ø









24 kg

Not standard Standard The right to make technical amendments reserved



Accessory:

Flat cutter for 2200 MH Art no 61607



BRILL safety shredder

2300 ESK
78055

40 09093 805505

230 V

2,300 W

40 rpm

High quality, hardened steel

Up to 4 cm Ø

64 l collector box

35.2 kg

Easily accessible cutting
mechanism with directly
driven flat cutter plate, crown
knife and triangular cutters
with three cutting edges.

EAN Code 40 09093 001167

Hattrick mowersCylinder mowers











Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

37

BRILL Lawn tractors – fun to drive in the garden

Ideas for the Garden

evolutionbrillencioSteelline

Comfortable mowing
of large areas

Optimized in respect of function and design,
BRILL's lawn tractors now offer even more
convenience and performance. The new
Crossover models have powerful engines and
are optional equipped with hydrostatic travel
drive, electric emptying of the grass box per
rocker switch and an electromagnetic clutch
for the cutter which enables the blade to be
switched on in a simple manner. With cutting
widths of 74, 92 and 102 cm the range permits

even large lawns to be mown comfortably and
rapidly. The 92 and larger models have
an asynchronous cutting mechanism with
two suction-reinforced wing blades and ball­bearing-mounted V-belts. The 13 to 20 HP
Briggs & Stratton or Honda engines ensure a
high mowing performance. The extra large
tyres on the 102 series mower give more
driver comfort especially on difficult terrains.

Art no

EAN Code

Engine

Max. power/output

Cutting width

Height adjustment,

cutting height

Gear changing

Blade coupling

Wheel size

Capacity

Grass box

Emptying of grass box

from the driver’s seat

Dimensions (L x W x H)

Turning circle

Weight

Smooth running

Tractors with hydrostatic tra­vel drive can be manoeuvred
without jerks and steplessly
per pedal.

BRILL Crossover 74/13

65053

40 09093 001686

Briggs & Stratton I/C 13 HP OHV AVS

9.6 kW, 13 HP

74 cm (1 blade)

6 settings, 30 – 90 mm

5 fwd/1 reverse

Mechanical belt coupling

Front: 13 x 6.0 – 6
Rear: 18 x 6.5 – 8

3,500 sq. m/h

220 l

telescopic lever

2,610 x 960 x 1,120 mm

185 cm

202 kg

Well lit

The standard fitting out with
xenon lamps means that the
ambient surroundings are well
illuminated.

BRILL Crossover 74/13 H

65054

40 09093 001693

Briggs & Stratton I/C 13 HP OHV AVS

9.6 kW, 13 HP

74 cm (1 blade)

6 settings, 30 – 90 mm

Manual Hydrostat

Mechanical belt coupling

Front: 13 x 6.0 – 6
Rear: 18 x 6.5 – 8

3,500 sq. m/h

220 l

telescopic lever

2,610 x 960 x 1,120 mm

185 cm

203 kg

Not standard Standard The right to make technical amendments reserved



The BRILL Mulch System

The lawn needs a great deal
of moisture in the summer
to prevent it drying out.
Mulching proves to be
extremely practical and
effective, especially on large
gardens. For the fine
grass cuttings provide the

Convenient to operate

The central cutting height
adjustment device is positioned
directly next to the driver's
seat.

lawn with moisture and
fertiliser at the same time,
in addition there is no need
for any waste disposal.

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

38

39

BRILL Lawn tractors – fun to drive in the garden

The BRILL Honda lawn tractors
are equipped with a very
efficient engine. They start
easily, run smoothly and quietly
and keep a clean cut even
when mowing thick lawns.

BRILL quick release coupling with drive

Art no

78973

EAN Code

40 09093 897302

Accessory for front sweeping machine and snow­clearing panel

BRILL quick release coupling without drive

78977

Art no

40 09093 897708

EAN Code

Accessory for snow-clearing panel

BRILL driving set for mechanic
blade coupling

Art no

78985

EAN Code

40 09093 001860

Accessory for front sweeping machine

BRILL driving set for electromagnetic
blade coupling

Art no

78986

EAN Code

40 09093 001877

Accessory for front sweeping machine

BRILL snow-clearing panel TS 125

Dimensions (l x w x h)

BRILL universal spreader

BRILL trailer coupling

BRILL charger for tractor battery

Mounting frame and quick release coupling required as accessories.

Spreading width

Trailer coupling required as accessory.

40

Art no

EAN Code

Working width

Clearing panel

Weight

Connection

Art no

EAN Code

Capacity

Tyr e s

Hopper

Art no

EAN Code

Art no

EAN Code

Art no

EAN Code

Engine

Max. power/output

Cutting width

Height adjustment,

cutting height

Gear changing

Blade coupling

Wheel size

Capacity

Grass box

Emptying of grass box

from the driver’s seat

Dimensions (L x W x H)

Turning circle

Weight

78982

40 09093 100204
125 cm

Sheet steel, swivelling
operation from the driver’s
seat in 5 mountings, under
edge of panel with rubber strip

42 kg

46.5 x 125 x 42 cm

Quick release coupling system

78714

40 09093 871401
300 – 360 cm
Approx. 80 kg
16˝x 4˝

Polyethylene

78987

40 09093 001884

78989

40 09093 001907

BRILL Crossover 92/13

65055

40 09093 001709

Briggs & Stratton
I/C 13 HP OHV AVS

9.6 kW, 13 HP

92 cm (2 blades)

6 settings,
30 – 90 mm
5 fwd/1 reverse

Electromagnetic

Front: 13 x 6.5 – 6
Rear: 18 x 8.5 – 8

4,000 sq. m/h

300 l

Supported by pneumatic spring

2,610 x 1,040 x 1,120 mm

190 cm

209 kg

BRILL front sweeping machine TK 520

Sweeping width

Sweeping brushes

Sweeping roller

Supporting wheel

Total weight

Including debris container. Mounting frame,
quick release coupling and driving set required as accessories.

BRILL mounting frame

Accessory required for front sweeping machine and
snow-clearing panel

BRILL mulching wedge for 92 cm mowing deck

BRILL mulching wedge for 102 cm mowing deck

Connection

BRILL Crossover 92/13 H

65056

40 09093 001716

Briggs & Stratton
I/C 13 HP OHV AVS

9.6 kW, 13 HP

92 cm (2 blades)

6 settings,
30 – 90 mm

Foot-operated Hydrostat

Electromagnetic

Front: 13 x 6.5 – 6
Rear: 18 x 8.5 – 8

4,000 sq. m/h

300 l

Supported by pneumatic spring

2,610 x 1,040 x 1,120 mm

190 cm

210 kg

78943

Art no

40 09093 894318

EAN Code

120 cm
Weather-resistant plastic
core, nylon brushes
30 cm diameter
pneumatic tyres, infinitely variable
Sheet steel structure

Housing

High performance worm

Gearing

gear, V-belt drive
48 kg
Quick release coupling system

78984

Art no

40 09093 001853

EAN Code

78992

Art no

40 09093 001921

EAN Code

78991

Art no

40 09093 001914

EAN Code

BRILL Crossover 92/16 H OHV

65057

40 09093 001723

Honda GCV 520 I/C 16 HP OHV

11.8 kW, 16 HP

92 cm (2 blades)

6 settings,
30 – 90 mm

Foot-operated Hydrostat

Electromagnetic

Front: 13 x 6.5 – 6
Rear: 18 x 8.5 – 8

4,500 sq. m/h

300 l

Supported by pneumatic spring

2,610 x 1,040 x 1,120 mm

190 cm

220 kg

BRILL trailed sweeper

BRILL towed trailer

BRILL deflector/swath shield

BRILL service and exposition rack

BRILL Crossover 102/15

65058

40 09093 001730

Briggs & Stratton
Intek 14.5 HP OHV AVS

10.7 kW, 14,5 HP

102 cm (2 blades)

6 settings,
30 – 90 mm
5 fwd/1 reverse

Electromagnetic

Front: 15 x 6.0 – 6
Rear: 18 x 8.5 – 8

5,500 sq. m/h

300 l

Supported by pneumatic spring

2,610 x 1,090 x 1,120 mm

160 cm

213 kg

Art no

EAN Code

Sweeping width

Collecting capacity

Sweeping brush

Height adjustment

Area of use

Trailer coupling required as accessory

Trailer coupling required as accessory

Art no

EAN Code

Load-holding area

Pan

Loading aperture

Load weight

Dimensions

Art no

EAN Code

Art no

EAN Code

BRILL Crossover 102/16 H OHV

65060

40 09093 001754

Honda GCV 530 16 HP OHV

11.8 kW, 16 HP

102 cm (2 blades)

6 settings,
30 – 90 mm

Foot-operated Hydrostat

Electromagnetic

Front: 15 x 6.0 – 6
Rear: 18 x 8.5 – 8

6,000 sq. m/h

300 l

Supported by pneumatic spring

2,610 x 1,090 x 1,120 mm

160 cm

223 kg

78709

40 09093 001174
96 cm
270 l

Diameter 10 – 25 cm
Central, infinitely variable
Sweeping up leaves and
cut grass from the lawn

65040

40 09093 610536
293 l

Steel
Steel, removable,
reinforced guide
max. 292.5 kg
108 x 82 x 30 cm

78993

40 09093 001938

78988

40 09093 001891

Ideas for the Garden

BRILL Crossover 102/20 HE

65059

40 09093 001747

Briggs & Stratton
Intek 20 HP OHV V2

14.5 kW, 20 HP

102 cm (2 blades)

6 settings,
30 – 90 mm

Foot-operated Hydrostat

Electromagnetic

Front: 15 x 6.0 – 6
Rear: 18 x 8.5 – 8

7,000 sq. m/h

300 l

Electric

2,610 x 1,090 x 1,120 mm

160 cm

233 kg

Not standard Standard The right to make technical amendments reserved



BRILL lawn aerator

BRILL lawn roller

BRILL snow chains

Aerator stars
Working width
Working depth

Trailer coupling required as accessory

Working width

Weight when empty

Maximum weight filled

Roller material

Anhängerkupplung als Accessories erforderlich.

for 74 cm model

for 92/102 cm model

Art no

EAN Code

Wheels
Weight

Art no

EAN Code

with water

Art no

EAN Code

Art no

EAN Code

78713

40 09093 871302
15 pieces
102 cm

Up to 64 mm
Plastic 7˝x 1.75˝
Approx. 27 kg

78712

40 09093 871203
91 cm
Approx. 18 kg

180 kg

Non-rusting, reinforced
polyethylene

78726

40 09093 001846

78725

40 09093 872507

41

evolutionbrillencioSteelline

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

BRILL – all the spares you need

Ideas for the Garden

You will find the complete BRILL
product range on our website

www.brill.de

BRILL spare blade evolution

Duo-cutting blade for brillencio

BRILL triangular cutter blades

BRILL Hattrick aerator roller

BRILL aerator roller

BRILL scarifier roller

Art no

EAN Code

Cutting width

Art no

EAN Code

Cutting width

Art no

EAN Code

Cutting width

Art no

EAN Code

Cutting width

Art no

EAN Code

Cutting width

Art no

EAN Code

Cutting width

Art no

EAN Code

Cutting width

Art no

EAN Code

Cutting width

Art no

EAN Code

Art no

EAN Code

Cutting width

Art no

EAN Code

Cutting width

Art no

EAN Code

Cutting width

Art no

EAN Code

Cutting width

Art no

EAN Code

Cutting width

Art no

EAN Code

Cutting width

Art no

EAN Code

Cutting width

Art no

EAN Code

Cutting width

Art no

EAN Code

Cutting width

61604

40 09093 001044
33 cm

61605

40 09093 001051
36 cm

61606

40 09093 001068
41 cm

61608

40 09093 001525
42 cm

61601

40 09093 616019
41 cm

61600

40 09093 616002
43 cm

61602

40 09093 616026
48 cm

61603

40 09093 616033
51 cm

70002

40 09093 000207

78350

40 09093 835007
36 cm

78352

40 09093 835205
40 cm

62069

40 09093 001518
28 cm

62068

40 09093 001501
28 cm

62075

40 09093 001129
30 cm

62076

40 09093 001136
32 cm

62071

40 09093 000863
36 cm

62072

40 09093 000870
38 cm

62077

40 09093 001143
40 cm

BRILL line cassettes

Suitable for BRILL tools

Cord thickness/length

manufacturer's equipment

Suitable for BRILL tools

Cord thickness/length

manufacturer's equipment

Suitable for BRILL tools

Cord thickness/length

manufacturer's equipment

Suitable for BRILL tools

Cord thickness/length

manufacturer's equipment

Suitable for BRILL tools

Cylinder mower grass catcher

50 l scarifier grass catcher

35 l scarifier grass catcher

45 l scarifier grass catcher

Charger for 24 Volts battery

Charger for brillencio

brillencio electric start battery

Art no

EAN Code

Use with other

Art no

EAN Code

Use with other

Art no

EAN Code

Use with other

Art no

EAN Code

Use with other

Art no

EAN Code

Art no

EAN Code

Material

Weight

Art no

EAN Code

Material

Weight

Art no

EAN Code

Material

Weight

Art no

EAN Code

Material

Weight

Art no

EAN Code

Charging time

Charging current

Input voltage

Output voltage

Art no

EAN Code

Charging time

Input voltage

Art no

EAN Code

Performance

75025

40 09093 502503
300 RT

1.4 mm / 1 x 4 m

ufo 69000, 68000, 2000 K,
2500, 12 E/libero 100/light 90,
100, 300 accu/handy 100/
RT 250/2120/2124/RT 1120

75060

40 09093 506006
200, 270, 350 RT Tip p, 270 ART

1.4 mm / 1 x 6 m

ufo 69600/libero 200/light 200,
300/handy 200/TopGarden
3000/RT 300/2230/2125/2227/
3230CS/1120TA

75062

40 09093 506204
400 RT DuoTipp

1.6 mm / 2 x 3 m

ufo 3500TA, 4000TVA/3540 LX/
TopGarden 3500

75035

40 09093 503500
450 RT Duo-contro l,
400 RT Twinmatic

1.6 mm / 2 x 3 m

ufomatic, ufocontrol, ufotronic/
3545 GXS

75045

40 09093 504507
1000 EF

65041

40 09093 610628

Woven nylon, reinforced
with steel frame

1.5 kg

62070

40 09093 620702

Woven nylon, reinforced
with steel frame

1.8 kg

62073

40 09093 001013

Woven nylon, reinforced
with steel frame

1.5 kg

62067

40 09093 001495

Woven nylon, reinforced
with steel frame

1.8 kg

61617

40 09093 616170
18 to 24 h
100 mA
230 V
29 V

61619

40 09093 616194
12 to 24 h
230 V

62901

40 09093 629019
12 V, maintenance-free

evolutionbrillencioSteelline

Hattrick mowersCylinder mowers

Lawn scarifiers

24 V battery tools

Handy toolsShreddersTractorsInternetAccessories

42

General notes: pictures not binding, the right to make technical amendments reserved, errors excepted, no liability for literal mistakes

43
