Integrated Amplifier
User Manual
Power
Integrated Amplifier
Input 1
Source
1
2
3
Power
Integrated Amplifier
Input 1
Source
1
2
3
Dear User,
Thank you for purchasing BRIK Integrated Amplifier.
Please read this User Manual before operating the machine to ensure its
best performance and your safety.
Instructions:
Connecting Source
Connect D/A Converter, Bluetooth Stage, Internet Radio, Phono Stage, CD
Player, Mobile Phone, or other line level sources through Input 1 (3.5mm jack)
on the front panel or Input 2 or 3 on the rear panel.
Connecting Speaker
Connect speaker cables with 4mm diameter Banana plug, spade connector, or
naked wire.
Highly recommend connecting speakers with 4 ohm and 100 watts output.
Connecting Power
Before connecting, check the label to ensure the local power supply is
compliant, and then connect the low voltage plug from the power supply to the
20V In socket. Press the Power button on the front panel to turn on the machine
and re-press the Power button to turn off.
Please use 20V/3A power supply or 19V/3.42 power supply for BRIK
Integrated Amplifier.
This item shall be connected to a mains socket outlet with a protective earthing
connection.
Choosing Source
Use the switch on the front panel to choose the music source.

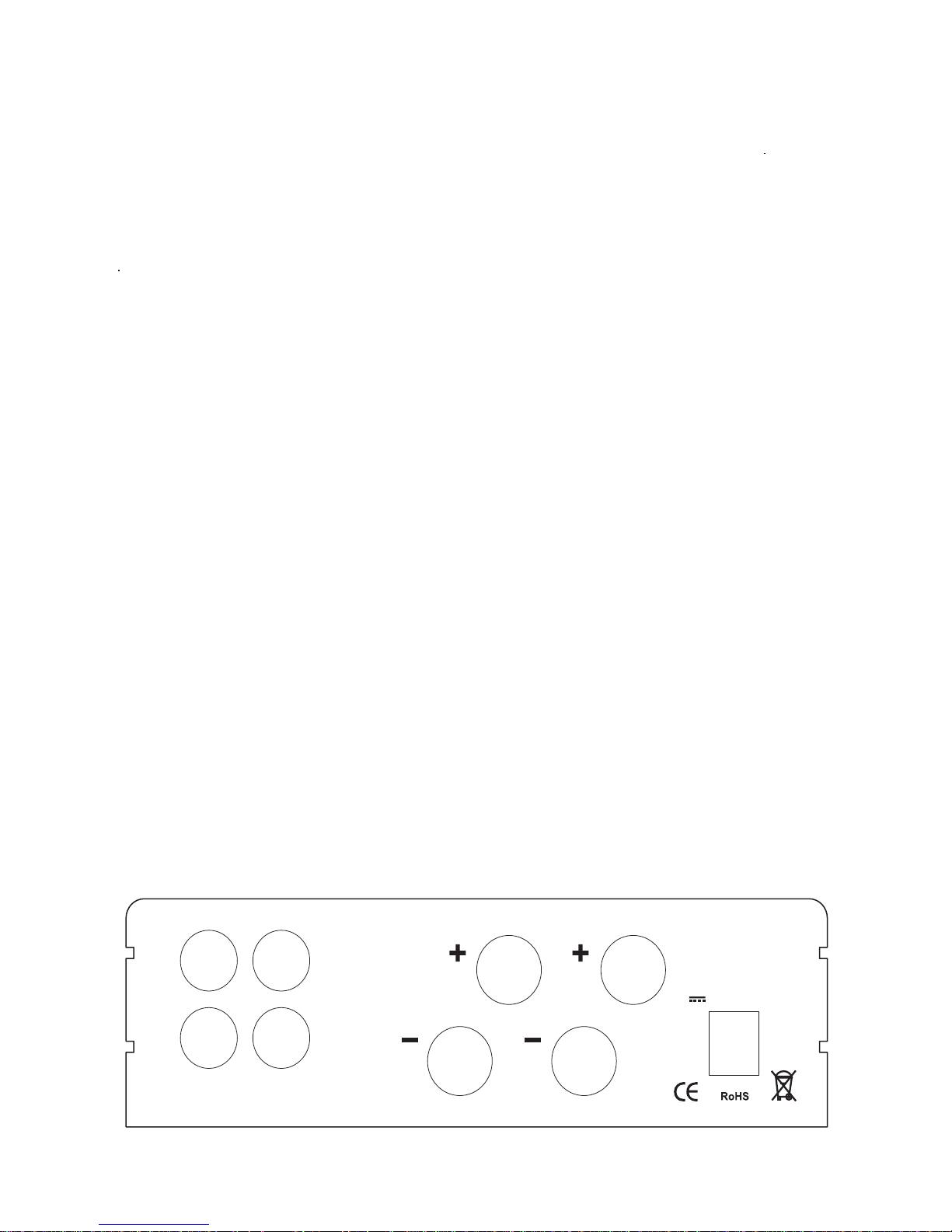

R L2 3Input
Made In Taiwan
Speaker
L
DC 20V 3A In
R
Integrated
Amplifier
Specifications:
INPUT OPTION
POWER OUTPUT(4OHM LOAD)
INPUT SENSITIVITY
INPUT IMPEDANCE
DISTORTION
FREQUENCY RESPONSE
SEPARATION
MIN. HUM VOLUME AT MIN.
S/N
DIMENSION
WEIGHT
RCA Line Input x 2
3.5 φ Line Input x 1
> 20 W (1KHz THD 0.5 %)
> 35 W (THD 10 % Max Output)
210 mV
20K OHM
< 0.5 %
(1KHz 1W / 4 OHM 20Hz ~ 20K Hz)
20 ~ 20K Hz
(Volume at Max 1W Output -3dB)
> 60 dB
< 10 mV (20K LPF)
> 75 dB (20K LPF)
W 140 x H 48 x D160 mm
1100 g
NOTE
- BRIK Integrated Amplifier operates in accordance with its specifications
within environment temperature 40 degrees Celsius.
CAUTION
- Only use approved BRIK power supply. The use of other adaptors or
supplies
could seriously damage this item.
- Place all connecting cables where they are not likely to be walked on or
trapped
by items placed on them.
WARNING
- Never open the case of this item as this will invalidate the guarantee. There
are no user adjustments inside. Please refer all service work to an authorized
BRIK agent.
- This item shall not be exposed to dripping or splashing liquid, and that no
objects filled with liquids, such as vases, shall be placed on the apparatus.
The information was correct at the time of going to press. The manufacturer reserves
the rights to make changes to the technical specification without prior notice.
The manufacturer accepts no responsibility for damage caused by not adhering to
these instructions for use. Modification or change to any part of the product by
unauthorized persons releases the manufacturer from any liability over and above the
lawful rights of the customer.
BRIK 2011
WWW.BRIK-AUDIO.COM
