Page 1
Power
Equalizer Stage
32Hz 125Hz 500Hz 2K 8K
62.5Hz 250Hz 1K 4K 16K
Equalizer Stage
User Manual

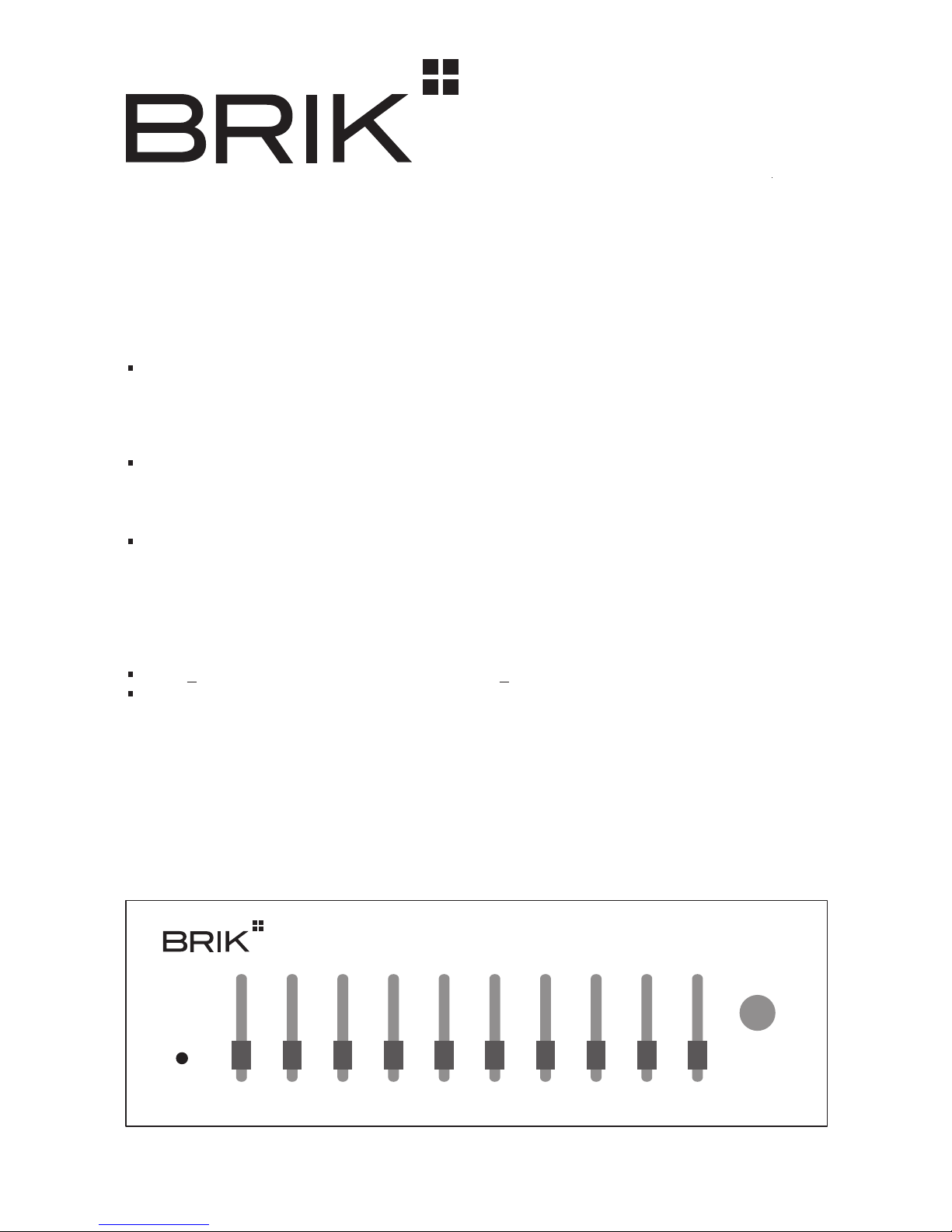

Page 2
Power
Equalizer Stage
32Hz 125Hz 500Hz 2K 8K
62.5Hz 250Hz 1K 4K 16K
Dear User,
Thank you for purchasing BRIK Equalizer Stage.
Please read this User Manual before operating the machine to ensure its
best performance and your safety.
Instructions:
Connecting Source
Connect D/A Converter, Bluetooth Stage, Internet Radio, Phono Stage, CD
Player, or other line level sources through Input on the rear panel.
Connecting Amplifier
Connect the Output socket to a line input on an amplifier.
Connecting Power
Before connecting, check the label to ensure the local power supply is
compliant, and then connect the low voltage plug from the power supply to the
12V In socket and switch the machine on.
Reinforcing Sound
Reinforce sound with the 10 selections on the front panel - Upward for plus
(+10dB+2dB) & Downward for minus (-10dB+2dB).
Use the By Pass / EQ selection on the rear panel to bypass or pass the
signals through Equalizer Stage.

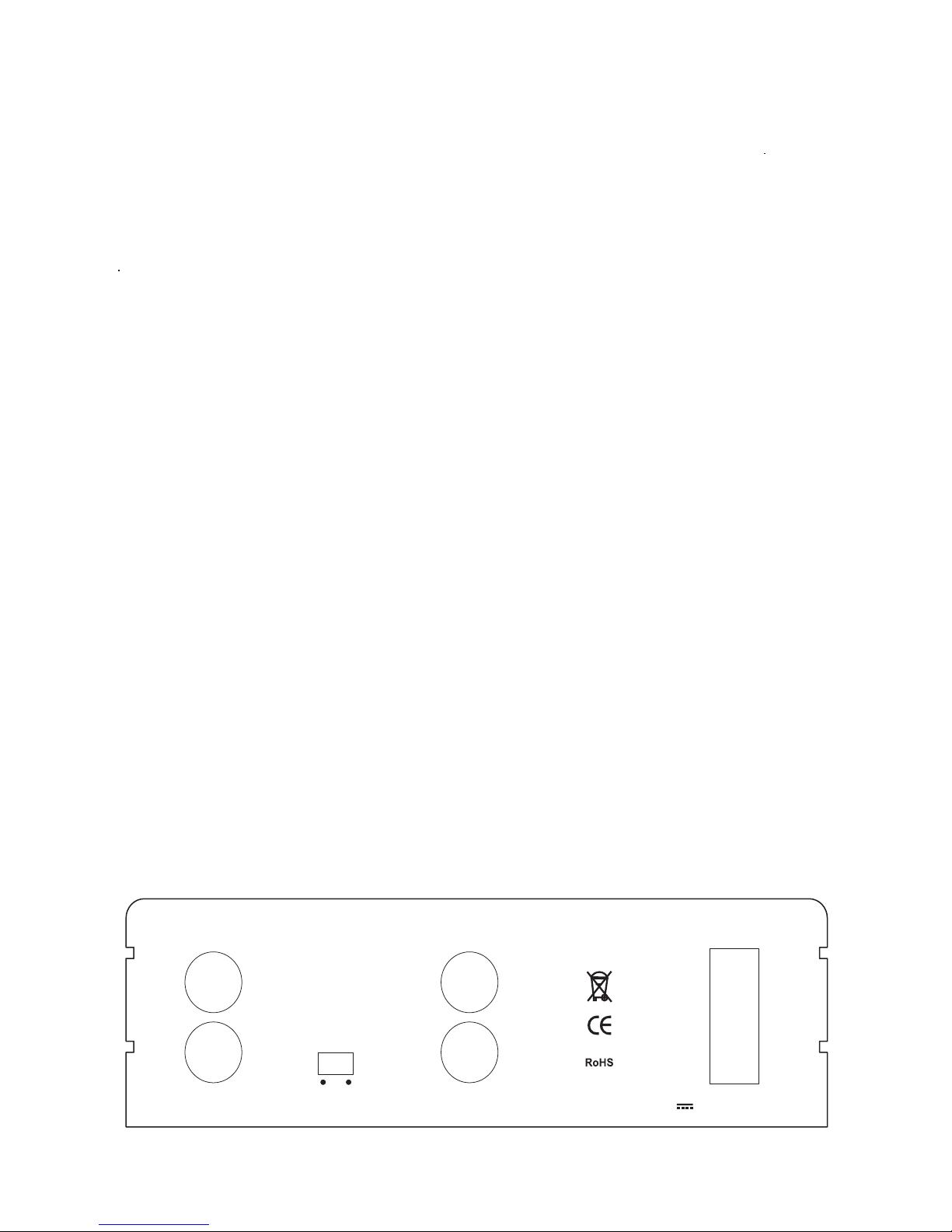

Page 3
L
R
Input
Equalizer Stage
DC 12V 50mA In
By PASS EQ
L
R
Output
Made In Taiwan
Specifications:
INPUT OPTION
OUTPUT OPTION
OUTPUT LEVEL
DISTORTION
S/N
OUTPUT IMPEDANCE
CONTROL RANGE
DIMENSION
WEIGHT
ANALOGUE RCA INPUT x 1
ANALOGUE RCA OUTPUT x 1
BY PASS / EQ SELECTION x 1
2V
<0.035%
FLAT - 100 dB
A-WEIGHTED - 106 dB
< 650 OHM
±10 dB
W 140 x H 48 x D160 mm
1000 g
NOTE
- BRIK Equalizer Stage operates in accordance with its specifications within
environment temperature 40 degrees Celsius.
WARNING
- Never open the case of this item as this will invalidate the guarantee. There
are no user adjustments inside. Please refer all service work to an authorized
BRIK agent.
- This item shall not be exposed to dripping or splashing liquid, and that no
objects filled with liquids, such as vases, shall be placed on the apparatus.
Page 4
The information was correct at the time of going to press. The manufacturer reserves
the rights to make changes to the technical specification without prior notice.
The manufacturer accepts no responsibility for damage caused by not adhering to
these instructions for use. Modification or change to any part of the product by
unauthorized persons releases the manufacturer from any liability over and above the
lawful rights of the customer.
BRIK 2011
WWW.BRIK-AUDIO.COM
