Bright Technology cb958b User Manual

TABLE OF CONTENTS

1. Preface----------------------------------------------------------------------------------------------------------------------------------------1

NAMEPLATE --------------------------------------------------------------------------------------------------------------------------------------1 WARNING -----------------------------------------------------------------------------------------------------------------------------------------1 INTRODUCTION ---------------------------------------------------------------------------------------------------------------------------------1 INSTALLATION -----------------------------------------------------------------------------------------------------------------------------------2 SAFETY REGULATION---------------------------------------------------------------------------------------------------------------------------------------2

2.CB958 BALANCE INSTALLATION & OPERATION MANUAL -----------------------------------------------------------------3

2.1PROTECTIVE COVER ASSEMBLY -------------------------------------------------------------------------------------------------------3

2.2BALANCE SHAFT ASSEMBLY -------------------------------------------------------------------------------------------------------------4

2.3 EQUIPPING POWER SOURCE -----------------------------------------------------------------------------------------------------------4

3 .CB958SERIES WHEEL BALANCER TECHNICAL PERFORMANCE -----------------------------------------------------------------4

3.1PERORMANCE & CHARACTERISTIC ----------------------------------------------------------------------------------------------------4

3.2MAIN TECHNICAL SPECIFICATION -------------------------------------------------------------------------------------------------------4

3.3WORKING PRINCIPLE ----------------------------------------------------------------------------------------------------------------------5

4. TRANSPORTATION & INSTALLATION-----------------------------------------------------------------------------------------------5

4.1TRANSPORTATION------------------------------------------------------------------------------------------------------------------------5

4.2INSTALLATION -----------------------------------------------------------------------------------------------------------------------------5

5. SAFETY PRECAUTIONS ----------------------------------------------------------------------------------------------------------------6

6. CONFIGURATION & USE-----------------------------------------------------------------------------------------------------------------7

6.1 CONFIGURATION ------------------------------------------------------------------------------------------------------------------------7

6.2 DISPLAY PANEL -----------------------------------------------------------------------------------------------------------------------------8

6.3 BASIC OPERATION-----------------------------------------------------------------------------------------------------------------------9

6.4 VALUE INPUT-----------------------------------------------------------------------------------------------------------------------------10

6.5 RESIDUAL UNBALANCE VALUE DISPLAY---------------------------------------------------------------------------------------11

6.6 BALANCE MODE & ALU BALANCE MODE SELECT--------------------------------------------------------------------------11

6.7 SUPPLEMENTARY EXPLANATION -----------------------------------------------------------------------------------------------13

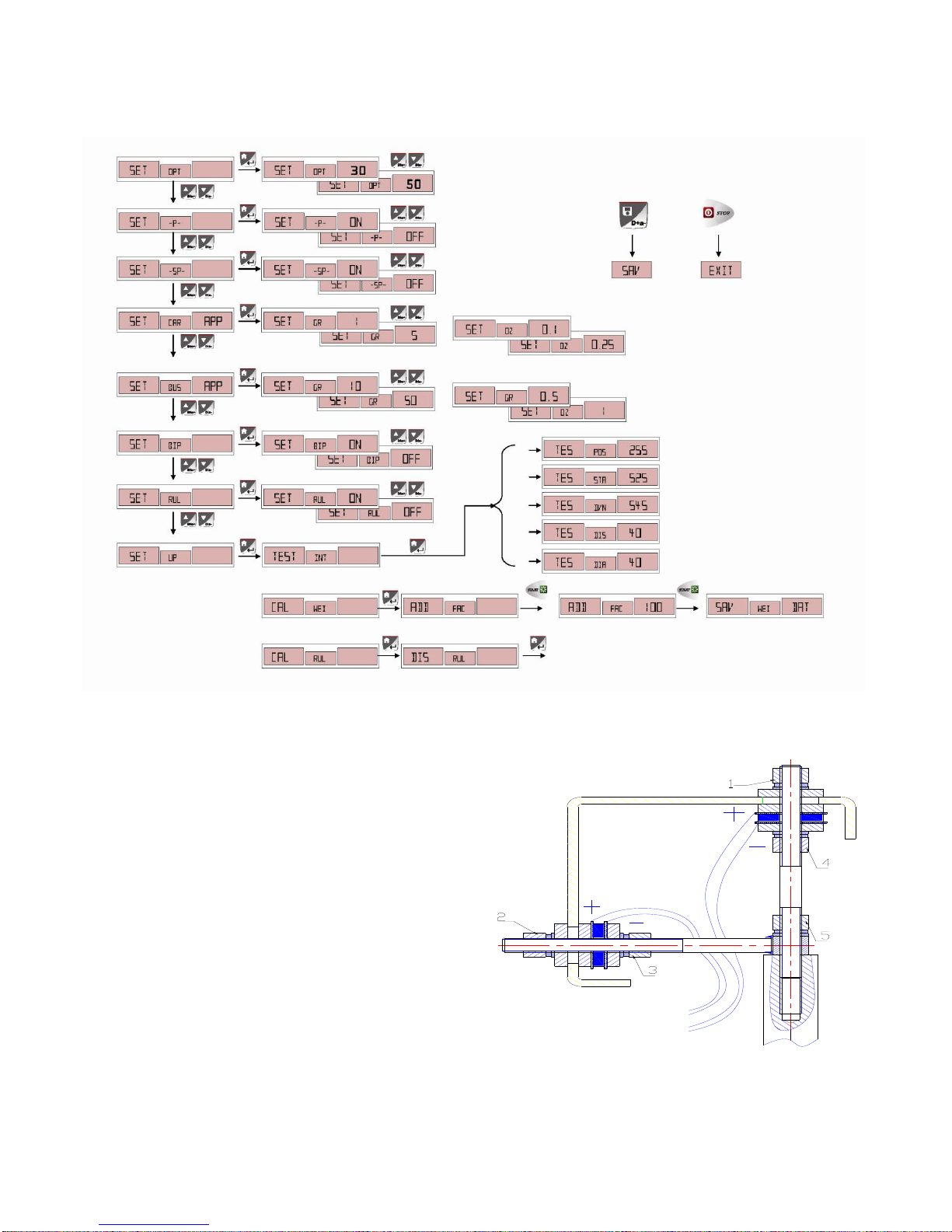

7. PROGRAM SETUP-----------------------------------------------------------------------------------------------------------------------14

7.1PROGRAM FUNCTION INTRODUCTION-----------------------------------------------------------------------------------------14

7.2ERROR--------------------------------------------------------------------------------------------------------------------------------------16

III

7.3 PRESS SENSOR INSTALLATION AND WIRING --------------------------------------------------------------------------------------16

7.4 GENERAL TROUBLESHOOTING & SOLUTION -------------------------------------------------------------------------------18

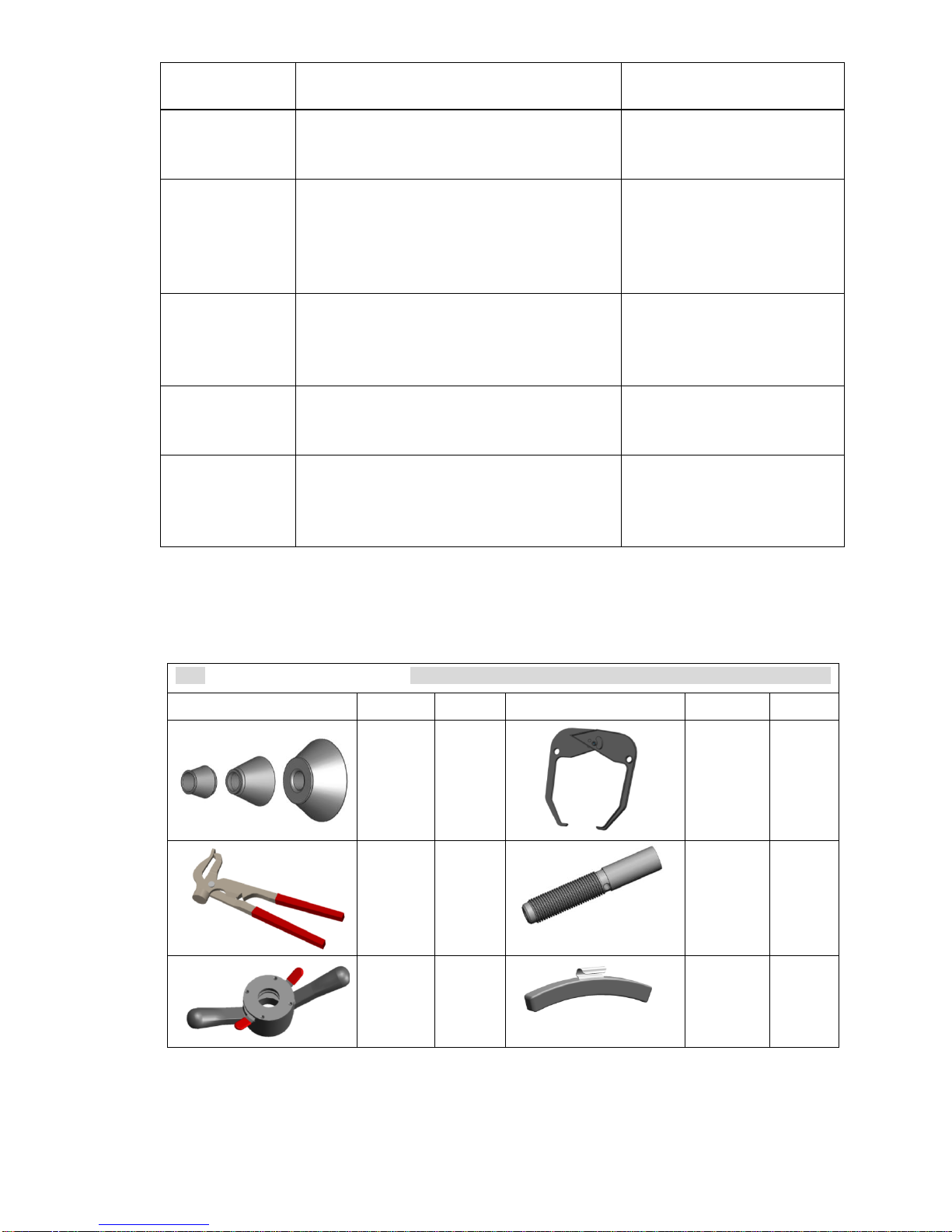

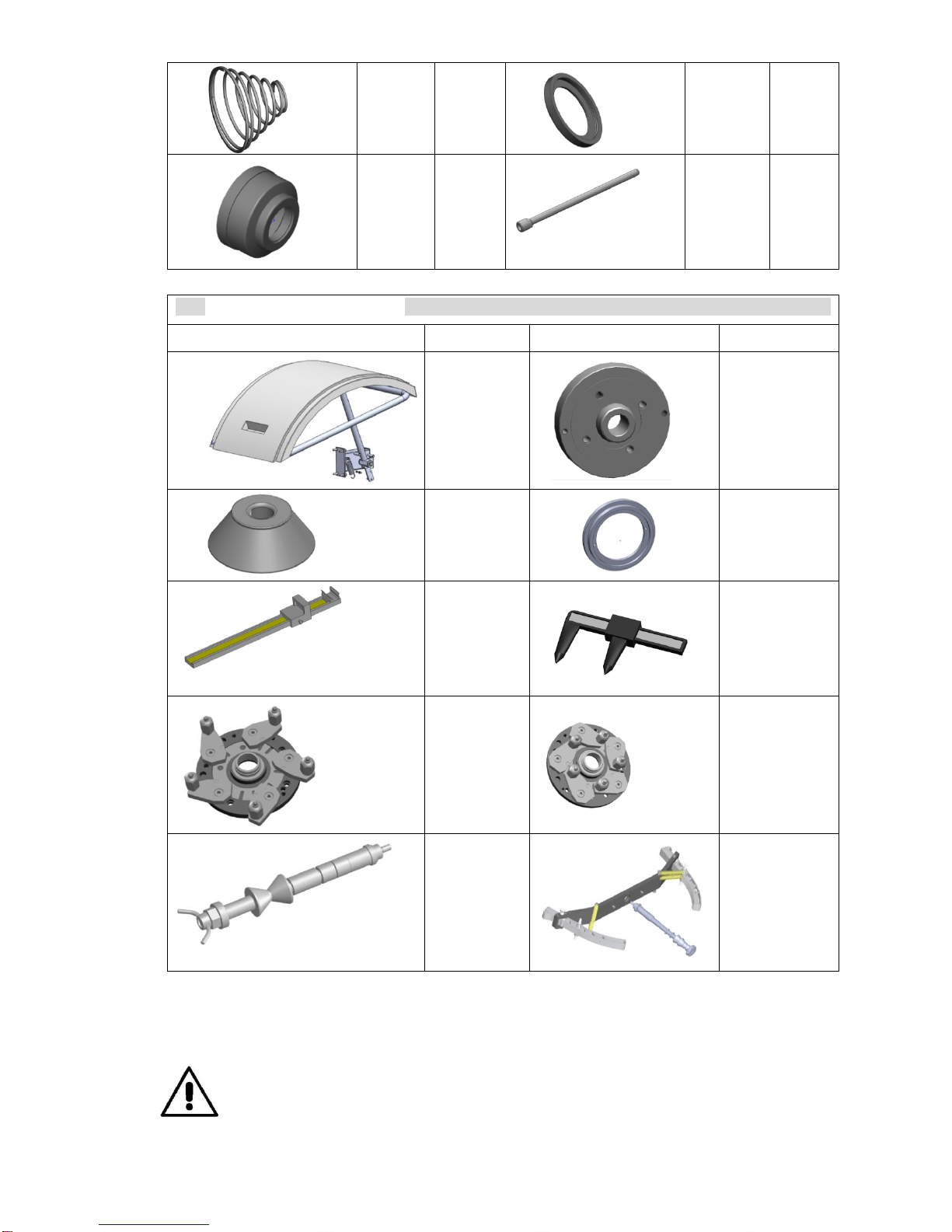

7.5 STANDARD ACCESSORIES -----------------------------------------------------------------------------------------------------------19

8. MAINTENANCE----------------------------------------------------------------------------------------------------------------------------20

9. OPERATION DETAILED DESCRIPTION-------------------------------------------------------------------------------------------23

HOW TO BALANCE A WHEEL------------------------------------------------------------------------------------------------------------23 APPENDIX 1 LAYOUT OFTHE POWER SUPPLY CARD--------------------------------------------------------------------------24 APPENDIX 2 WIRING DIAGRAM---------------------------------------------------------------------------------------------------------25

1. PREFACE

WARNING

During this period, the manufacturer will repair or replace the parts returned or the machine itself, sustaining the costs but not accepting responsibility for normal wear and tear, incorrect use or transportation, or failure to carry out maintenance. The manufacturer will not inform the customer about any improvements to the products or the upgrading of the production line.

INTRODUCTION

The purpose of this manual is to provide the owner and operator of this machine with a set of safe and practical instructions for the use and maintenance of the wheel balancer. If such instructions are carefully followed, the machine will offer you the levels of efficiency and duration. The following paragraphs define the levels of danger regarding the machine.

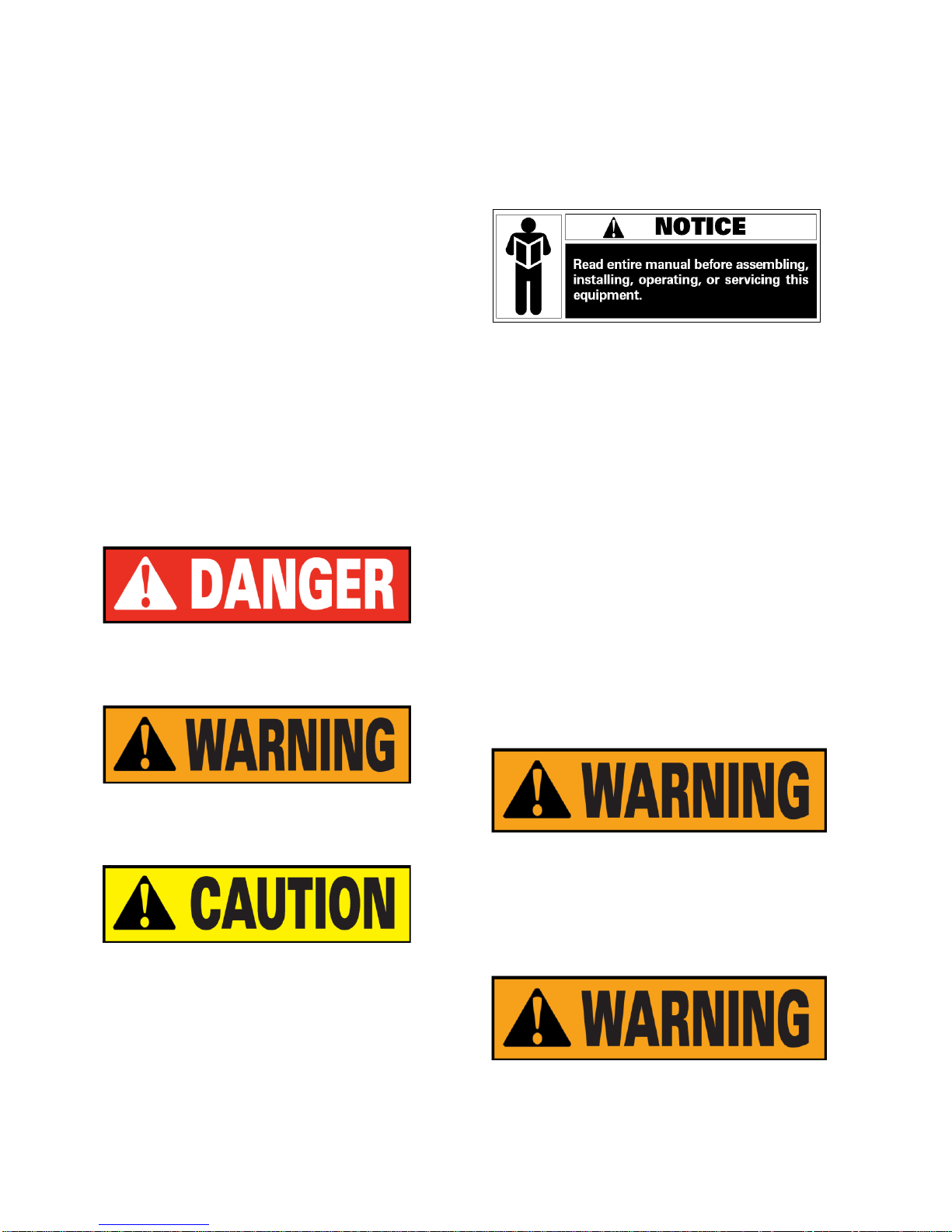

DANGER: Refers to immediate danger with the risk of serious injury or death.

WARNING: Dangers or unsafe procedures that can cause serious injury or death.

ATTENTION: Dangers or unsafe procedures that can cause minor injuries or damage to property.

Read these instructions carefully before using the machine. Keep this manual and the illustrated materials supplied with the equipment in a folder near the place of operation so as to allow the machine operators to

consult the documentation at any time.

The manual is only to be considered valid for the machine serial number and model stated on the attached nameplate.

The instructions and information described in this manual must always be complied with: the operator will be held responsible for any operation not specially described and authorized in this manual.

Some of the illustrations contained in this booklet have been taken from pictures of prototypes: standard production machines may differ slightly in certain respects. These instructions are for the attention of personnel with basic mechanical skills. We have therefore condensed the descriptions of each operation by omitting detailed instructions regarding, for example, how to loosen or tighten the fixing devices. Do not attempt to perform operations unless properly quailed or with suitable experience. If necessary, please contact an authorized Service Centre for assistance.

INSTALLATION

Take the utmost care when unpacking, assembling, lifting and setting up the machine as indicated below. Failure to observe these instructions can damage the machine and compromise the operator's safety. Remove the original packing materials after positioning them as indicated on the packaging.

All regulations in force concerning safety at work must be complied with when choosing the installation

position. In particular, the machine must only be installed and operated in protected environments where there is no risk of exposure to water or liquids.

IMPORTANT: for the correct and safe operation of the machine, the lighting level in the place of use should be at least 300 lux.

Environmental operating conditions must comply with the following requirements:

- relative humidity ranging from 30% to 80% (without condensation);

- temperatures ranging from 0° to +50°C.

The floor must be strong enough to support a load equal to the weight of the equipment plus the maximum load allowed.

The machine must not be operated in potentially explosive atmospheres.

SAFETY REGULATIONS

Failure to comply with the instructions and danger warnings can cause serious injuries to the operator or other persons. Do not operate the machine until you have read and understood all the danger/warning notices in this manual. The correct use of this machine requires a qualified and authorized operator. This operator must be able to understand the manufacturer's written instructions, be suitably trained and be familiar with the safety

procedures and regulations. Operators are forbidden to use the machine under the influence of alcohol or drugs that could affect his/her physical and mental capacity. The following conditions are essential:

-read and understand the information and instructions described in this manual;

- have a thorough knowledge of the features and characteristics of the machine;

-keep unauthorized persons well clear of the working area;

- make sure that the machine has been installed in compliance with all relevant standards and regulations in force;

- make sure that all machine operators are suitably trained, that they are capable of using the machine correctly and safely and that they are adequately supervised during work;

- do not touch power lines or the inside of electric motors or any other electrical equipment before making sure that they have been powered off;

- read this booklet carefully and learn how to use the machine correctly and safely;

- always keep this user manual in a place where it can be readily consulted and do not fail to refer to it.

Do not remove or deface the DANGER, CAUTION, WARNING or INSTRUCTION decals. Replace any missing or illegible decals. If any decals have become detached or damaged, it is possible to obtain them from your nearest reseller.

-Observe the unified industrial accident prevention regulations relating to high voltages and rotating machinery whenever the machine is in use or being serviced.

- Any unauthorized changes or modifications made to the machine automatically release the manufacturer from any liability in the case of damage or accidents resulting from such changes or modifications.

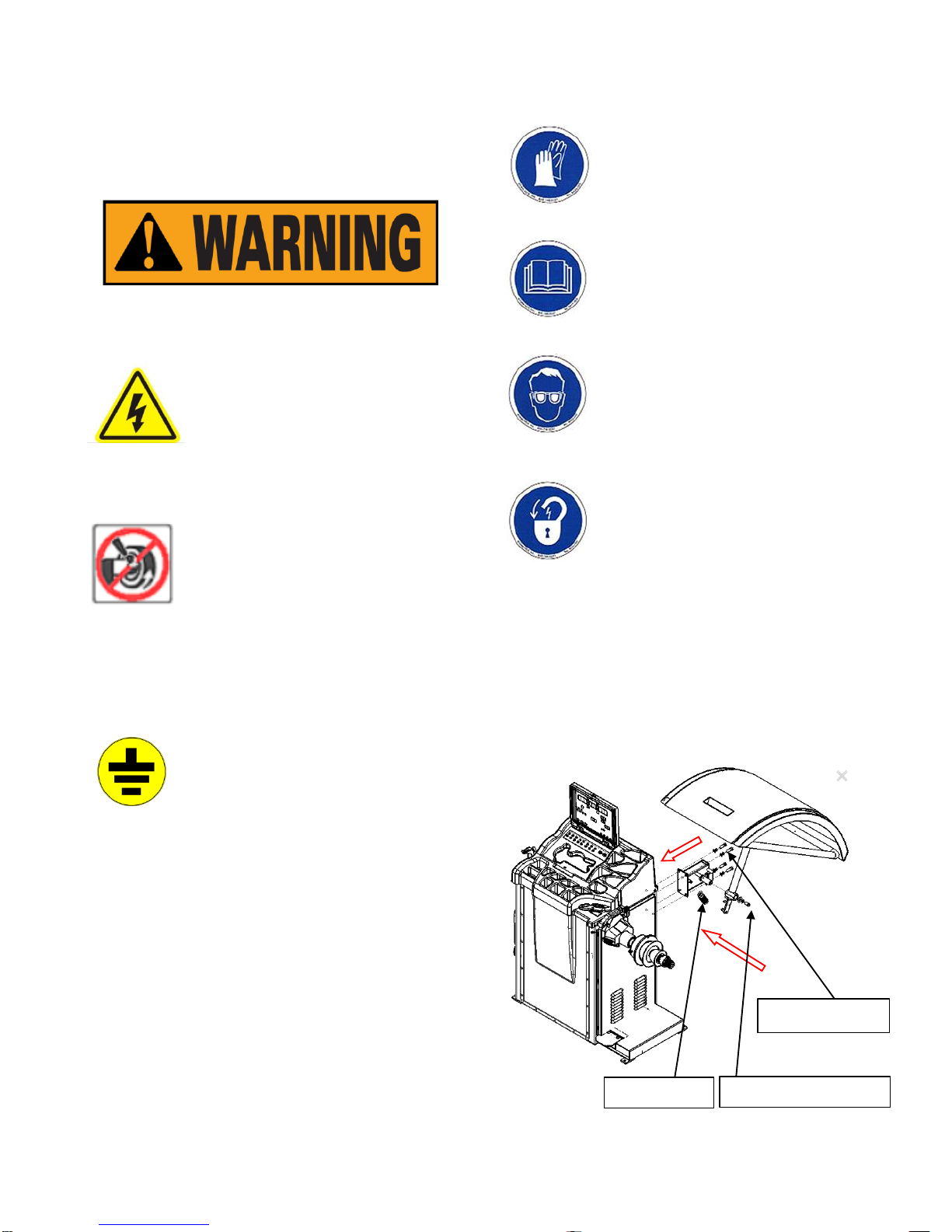

Meaning of the decals (including the one indicating caution)

Lightning symbol This decal, positioned on the back of the machine, indicates where to insert the power supply cable and warns the user to pay attention to

his safety.

Warning for rotating machine part This decal, positioned next to the balancing shaft, reminds the user that this is a rotating part and is

therefore dangerous and should not be touched with the hands. The arrow indicates the rotation direction.

Grounding symbol This decal, positioned on the back of the machine, indicates where to insert the power supply cable and warns the user to pay attention to his

safety

2. INSTALLATION & OPERATION

Before installation and use of the wheel balancer, you should carefully read this installation and operation manual. The manual should be kept for future reference. Operators should be familiar with this instruction manual to ensure correct operation and safety.

ATTENTION：

WEAR PROTECTIVE GLOVE

READ OPERATION MANUAL

WEAR PROTECTIVE GLASSES

POWER OFF THE ELECTRICAL SOURCE OF THE MACHINE DURING MAINTANCE

2.1 PROTECTIVE COVER INSTALLATION Before operating the machine, please connect the protective hood by following the indication Of the Fig1 if you need to install the protective hood.

Spring

Screw M10X25

Screw M10X35

As shown of the above figure, slip the protective cover into the protective cover support tubeand insert the socket head screw M10X50. And then lock the locknut along the reverse direction and loose the 2 hexagon nut to tight the socket head screw.，This can prevent the protective hood from shaking to influence the test.

2.2 MAIN SHAFT INSTALLATION

MAINSHAFT INSTALLATION：Before installation, use the ethyl alcohol and compressed air to clean up the center hole of the shaft and connect part. Use spanner and screw to fix the thread shaft on the balance shaft (Fig2)

2.3 EQUIPPED WITH POWER SUPPLY

ATTENTION! According to the label on the connect

between power cable and body, the power cable connect socket must be grounded with the reliable earth wire.

All the electrical devices installation must be done by

the qualified staff. Before installation, please check If the power system is comply with the technical parameter marked on the nameplate of the machine. The wiring of the machine must have the fuse and the perfect ground protection. And install the electrical Leakage automatic controls switch in the power source. And recommend the application of the stabilizer if the voltage of installation site is unstable.

WARNING Any electrical connect in the workshop is only done by the qualified technical staffs and it should meet the enforced regulation. . Any electrical connect must be according to the following:

• Power on the data plate on the machine;

• Voltage decrease can not exceed 4% of the rated

voltage on the data plate when full load (10% when start)

-Operators must:

• Install the plug;

• install 30ma circuit breaker;

• install power cable fuse;

• provide with effective workshop electrical connect to

ground;

- prevent the authorized operation and pull out the plug to prolong the working life when not use the machine.

- if the machine directly connected to the power source

through the power board not the plug, we should use the qualified staffs to operate.

3. ⅢCB958 WHEEL BALANCER

TECHNICAL CHARACTERISTIC

3.1CHARACTERSIC：

－adopts quality computer with the feature of high intelligence and high stable －mechanical main shaft adopts high precision bearing driven, wear-resistant, low noise

－press stop key to realize the emergency stop －full automatic dynamic/static balance check －balance 3 ALU rim and 1 motorcycle tire －self-calibration and full automatic trouble diagnosis

3.2MAIN TECHNICAL SPECIFICATION

－rated voltage 230V 60HZ －power 250W －speed 7S（when wheel is about 20Kg）－accuracy 1g

FIG2

FIG4

－noise ≤69dB －rim diameter 10″～30″ －maximum wheel weight75kg －rim width 1.5～20″ －net weight 155 kg －max wheel diameter 47inch －working environment：temperature 0℃-50℃，RH：

30% —80% (no condense);

3．3 WORK PRINCIPLE

The micro CPU will provide the normal information if it

checks each unit in the normal situation. And the operators can execute the balance operation. When balancing, MCPU can control the rotation of the balancer tester main shaft through the drive interface. The unbalance signal sensed by balance sensor is sent to the micro-processor port through A/D converter. CPU will integrated analyze the unbalance signal and angle signal to calculate the unbalance value and display the value through the LED unit. We can realize the man-machine talk through keyboard and LED.

FIG 3 CB958 WHEEL BALANCER WORK PRINCIPLE

4. INSTALLATION & TRANSPORTATION

4.1 TRANSPORTATION

－Place, carry and store the machine according to the indication of the label on the package carton.

－ Store environment: RH20%-95% temperature-10℃-+60℃ －When transport and use the machine, do not pull the rotation shaft, or it will cause the permanent damage.

4.1.1 After being sure that the package of your machine is perfect, you can carry the wheel balancer to the installation site.(Fig4). The choice of the installation should comply with the following requirements. The ambient temperature is 0℃-50℃ and the RH ≤85%. And the installation site as shown in Fig5

4.1.2 Remove all packaging and check contents with below list of items. If any parts missing or damaged, please contact your distributor.

Packing material such as plastic, Polystyrene, nail, screw, timber and carton must be placed into a scrap box and be handled in accordance to the local regulation and law.

4.2 INSTALLATION

L E D DISPLAY

MCPU

KEY INPUT UNIT

POWER UNIT

BALANCE SENSOR A/D CONVERTER

ANGLE SPEED TEST CONTROL

INTERFACE

MAINSHAFT ROTATION DRIVE INTERFACE

ANGLE SPEED SENSOR

TIRE

BALANCE SENSOR

MAINSHAFT

MAINSHAFT DRIVE

Fig5

Position the wheel balancer in the desired position for use. It must be ensured the floor is leveled and of solid construction. The wheel balancer is designed for operation indoors and should not be exposed to moisture or direct sunlight.

5. SAFETY PRECAUTIONS

5.1.1 Before operation, ensure you have read the instruction manual and all warning labels. Not working in accordance with the safety instructions should cause serious injury or death to the operator or bystanders.

5.1.2 Keep hands removed and loose clothing and jewelry and stand clear of all moving parts of the machine when in use. Inspect the machine before use for any damage. In the event of any damage, the machine must not be used

5.1.3 In the event of the emergency, you should press

the ―STOP‖ button immediately. To prevent injury, it

must ensure the protective cover is fitted all time.

5.1.4 Before balancing, operators should check all the tyres and wheels for possible defects. Do not balance the tyres and wheels with fault.

5.1.5 Do not attempt to balance the wheel if it is to be found to be defect in any way.

5.1.6 You should wear properly, such as glove, goggle and working suit. You should not wear necktie, long hair and loosen clothing. The operator should stand beside the machine and the unauthorized person should be kept away from the machine.

5.1.7Before balancing, you should ensure the mount of the wheel is proper. Before you start rotating the wheel, you should confirm the quick nut turn around the thread shaft for less than 4turns and is firmly fixed on the main shaft.

GENERAL CONDITIONS OF USE

The wheel balancers described in this manual must be used exclusively to measure the extent and position of car wheel unbalances, within the limits specified in the technical data section. Furthermore, models equipped with motors must be provided with a suitable guard.

Any use other than those described in this manual is to be considered improper and unreasonable.

Do not start the machine without the wheel locking equipment.

Protective

cover plays the role of prevention and safety.。

Do not

clean or wash the wheels mounted on the machine with compressed air or jets of water.

Get to know your machine. The best way to prevent accidents and obtain top performance from the machine is to ensure that all operators know how the machine works.

Learn the function and location of all the controls.

Carefully check that all controls on the machine are working properly.

The machine must be installed properly, operated correctly and serviced regularly in order to prevent accidents and injuries.

NAMEPLATE

Note: The nameplate is stuck in the center to the top on the rear of the machine.

C B 9 5 8 B

With protective cover Model Balancer

Wheel

B. CE mark indicates that this model of machine has CE certification. C. SERIES NUMBER: The first 3 digital is

the abbreviation of the model of the machine and the middle 4 is the production date and the last 4 is the product series number.

D. The content on the transverse line

include the name and address of the company. The contents below the transverse line includes the rated electrical parameters of the machine such as voltage, frequency, power, phase and full load electrical current and the weight and the production date of the machine.

6. CONFIGURATION & USE

6.1 CONFIGURATION

1 2 3

1. Power plug 2. Front Panel

3.A-sale 4.Control Panel

5.Weight Tray 6.Protective Cover

7. Quick Nut 8.Balance Shaft

9.Body 10. Power source switch

11. Hinging handle

6.2 DISPLAY PANEL & CONTROL PANEL

6.2.1 DISPLAY PANEL

In the state of parameter input, it is input key for the distance from wheel to the wheel balancer. You can change the distance set value of the window by press the up/down key. The default unit is mm.

When use the automatic scale, it is no need for you to use this key and the machine will automatically access the distance from the machine to the tire.

In the state of parameter input, it is the input key of the breadth of the rim. The default unit is inch

In the state of parameter input, it is the diameter of the rim input key. You can change the rim diameter set value of the window by press the up/down key. The default unit is inch. When use the automatic scale, it is no need for you to use this key and the machine will automatically access the diameter of the rim.

STA/DYN conversion key: The default boot mode is the standard dynamic balance. If you need to adopt the static balance, you can press this key to operate.

ALU mode. Press this key one by one to realize the choice of the ALU1 \ALU2\ALU3 standard aluminum alloy mode.

Self definite ALU mode. If cooperate with the automatic measure scale, you can realize the stick of the weight to the self definite position.

Split weight: After you select the self definite ALU mode, you can realize the split of the weight. When the position of the weight is between the two spokes, you can hide the weight

5 6 7 8 9

Inside unbalance value display

Inside unbalance

value

Outside unbalance value

display

Balance mode

mode selection

rim breadth display

im diameter display

distance display customer mode select

behind between the two spokes.

OPT: When you choose this function, you can realize the optimum of the rim, wheel and tire.

MOT\CAR\BUS tire mode selection:

to choose it in accordance of the type of the tire. MOT to balance of the motorcycle tire CAR to balance of the common tire BUS to balance of the heavy duty tire

to realize the function of speed

reduction and high efficiency.

Residual unbalance value select key: Select this button to display the outside/inside residual unbalance value

mm/inch conversion key for the diameter and breadth of the tire.

Gr/Oz Unbalance value conversion key

1、 program entrance key for

entering into the program setup function

2、 confirm key for confirming the

input result

press key to stop the machine

press key to start the machine

6.3 BASIC OPERATION

6.3.1 Switch on the main switch on the left side of the

machine，the display will display ―CB-953‖ and then ―0‖、 ―0‖（it will display ―0.00‖, ―0.00‖ in ounce state）

6.3.2 MOUNT WHEEL Preparation before test： Check and clean the dust and mud and if there are foreign bodies, such as metal, stone, clipped weights on the surface of the tyre or wheel. And also check the air pressure of the tyre is according with the specified value. Check if there are deformation on the rim positioning surface and installation hole. Check if there

are any foreign bodies in the tyre. Take off the original weight.

The installation methods of the wheel：Positive positioning, negative positioning & flange disk. You can select different methods according to the practice.

6.3.2.1 SMALL CAR WHEEL POSITIVE POSITION

Positive positioning is the normal method. It is featured with simple and quick operation. It is mainly suitable to the common steel rim and aluminum alloy rim with small deformation.

Main shaft wheel（ direction of the rim installation surface is inside） cone quick nut

6.3.2.2 SMALL CAR WHEEL NEGATIVE POSITION

Main shaft spring cone wheel

bowl quick nut

When the deformation of the outside of the wheel, adopt this method to positioning to grantee the accurate positioning of the steel rim inner hole and main shaft. suitable to the steel rim, especially the thick ALU

The choice on the cone should be adapted to the rim

center hole and pay attention to its direction. Or it will cause the inaccurate measurement.

6.3.2.3LARGE FLANGE DISK POSITION（OPTIONAL） This position is adapted to the mount of the large tire.

Main shaft large flange plate（fixed on the main shaft） wheel cone quick nut

Note：The choice on the cone should be adapted to the rim center hole and pay attention to its direction. Or it will cause the inaccurate measurement.

6.4 INPUT VALUE

6.4.1 Input Distance

Pull the Dis scale to the position stuck on the rim. Press the key to input the Di value into the

display. At this moment, the display will display ―Dis‖： ―XXX‖. And we can also adjust this value by rotating the

tyre fixed on the main shaft.

When use the automatic scale, the distance from the machine frame to the tire can be accessed by the automatic scale. To reach the measurement accuracy, you must execute a self-calibration before operation.

6.4.2 Input (Br) eadth Value

Use the Br caliper of the accessories to measure the breadth of the rim. Press the key to input the Br value

into the display. And now the display will display ―Br‖： ―XXX‖. And we can also adjust this value by rotating

the tyre fixed on the main shaft.

6.4.3 Input the Tire Diameter Value(Dia)

After confirming the rim diameter, press the key to input the rim diameter into the display. At this moment, the display will display ―Dia‖：―XXX‖，And we can also adjust this value by rotating the tire fixed on the main shaft in this process we should open this function. The machine can automatically access the diameter of the rim tested.

Note：When you balance the tire with the relative larger diameter（ DIA>23‖ ）,you can adopt long scale to automatically measure. It is very conveniently.

The detailed measurement methods: Fist pull the scale to enter the long scale situation and then pull the scale to the zero position. At this moment, you will hear the sound of click and then quickly pull the scale to the measurement position. When the measurement result is same to the short scale measurement result, using long scale to measure the tire of larger diameter is more convenient.

6.4.4 UNIT CONVERSION SELECTION：

①The unit conversion of the Br of the rim from

inch to mm: Normally, the display of Br should be in inch. When you need the unit of the display to be mm, you can use the

key to realize the unit conversion from inch to mm. ②The unit conversion of the D of the rim from inch to mm: Normally, the display of D should be in inch. When you need the unit of the display to be mm, you can use the

key to realize the unit conversion from inch to mm.

After unit conversion, the unit of the display values of rim Br and D are , but when you switch off and then on the wheel balancer, the unit will be still inch.

③The unit conversion from gram to ounce： Normally, the unit of the unbalance value is gram (g). If

you want to make the ounce(Oz) to be the unit, you can execute the g/Oz conversion. The unit of the displayed unbalance value is gram（g）. The way to realize the unit

conversion from gram to ounce is to press .

6.4.5 When press the start key ，wheel balancer starts to run. A few seconds later, the

machine automatically stop. The machine can also automatically start by lowering down the protective cover which can be setup by the program.

6.4.6 DISPLAY UNBALANCE VALUE When the spin ends, the display will display the inner

and outside value of the rim. Use your hand to pull the wheel. When all the positioning lamps light inside and outside light, the weight adding position will be indicated.

6.4.7 Rotate the wheel, when the left side positioning lamp all light, at this moment, the highest position is the inner unbalance position and when the right side positioning lamp all light, at this moment, the highest position is the outer unbalance position.

6.4.8 Add the corresponding weight at the unbalance point and start test again until the balance of the tyre.

CAUTION！

1. When start the machine, use hand to pull the wheel

to help it start rotation, especially to the relative bigger tyre, to prolong the working life of the motor.

2. Check if there are any mistakes on the dimension.

3. Check if the balance methods meet the configuration of the rim and select the balancer most easily to balance.

4. Check if the contract nut tight or not.

5. When the balance ends, remove the tyre. Pay attention to handle it with gentle and avoid knocking the main shaft.

6. When clipping the weight. Use the hammer to clip the weight on the rim without too much force. Place on the ground and knock and do not knock when it is on the main shaft to avoid damaging the sensor. The position to add the weight must be without the grease and dry.

6.5 UNBALANCE VALUE DISPLAY RESIDUAL

The minimum value of the standard weight is 5g so if the weight you use is less than 5 g, the wheel balancer will not display the value and only displays the state of

―00‖. When you need to display the residual unbalance

value, you should press ，and the display will immediately display the inside or outside unbalance

value of less than 5g. The maximum residual unbalance value is 4 g.

6.6 BALANCE MODE SELECT

Select the balance mode according to the weight dding

position and the balance mode. Press the

Corresponding key to select the balance mode.

When you switch on the machine the machine will automatic enter into the dynamic balance mode and no need to select.

Note color to indicate the modified position of the

weight

DYNAMIC—clip the weight on both sides of rim（dynamic balance test once start）

STATIC— Stick weight in centre

STATIC—optional for balancing the motorcycle When balancing motorcycle wheels, you require the (optional) motorcycle adaptor accessory MJ-II. With the assistance of the extension scale, to measure Di, Br and Di. Input the measure value into the Di, Br and Di display window. The input method is similar to the parameter input of the car.. When we balance the motorcycle tyre, we do not select the MOT function if the present scale can measure the value of dis. And if the present scale can not measure the value of dis, we need the extension scale to execute the dynamic balance. First we should select MOT and then input the parameter to execute the dynamic balance.

ALU1－to balance light aluminum alloy rim by sticking the weight on the shoulder of the rim.

ALU1

Dis1=Dis + ”

Br*=Br－1 ”

Dia1=Dia2=Dia－1”

ALU2－to balance light aluminum alloy rim by hiding

the weight inside.

Dis1=a+ ‖

Br*=Dis from O point to the outside of the

flange disk － ‖ －Dis

Dia1=Dia-1‖ Dia2=Dia -2 ‖

ALU3－Click the weight inside and stick

the weight outside（outside position is

similar to ALU2）

/4” 3/4”

/2”

”

” 1/

”

/4”

Dis1=Dis

Dis2= Dis from O point to the outside of the flange

disk－ ‖

Dia1=Dia

Dia2=Dia－2 ‖

ALU4－Click the weight inside and stick the

weight outside（outside position is similar to

ALU2）

Dis1=Dis Dis2=Dis + ‖

Dia1=Dia Dia2=Dia－1‖

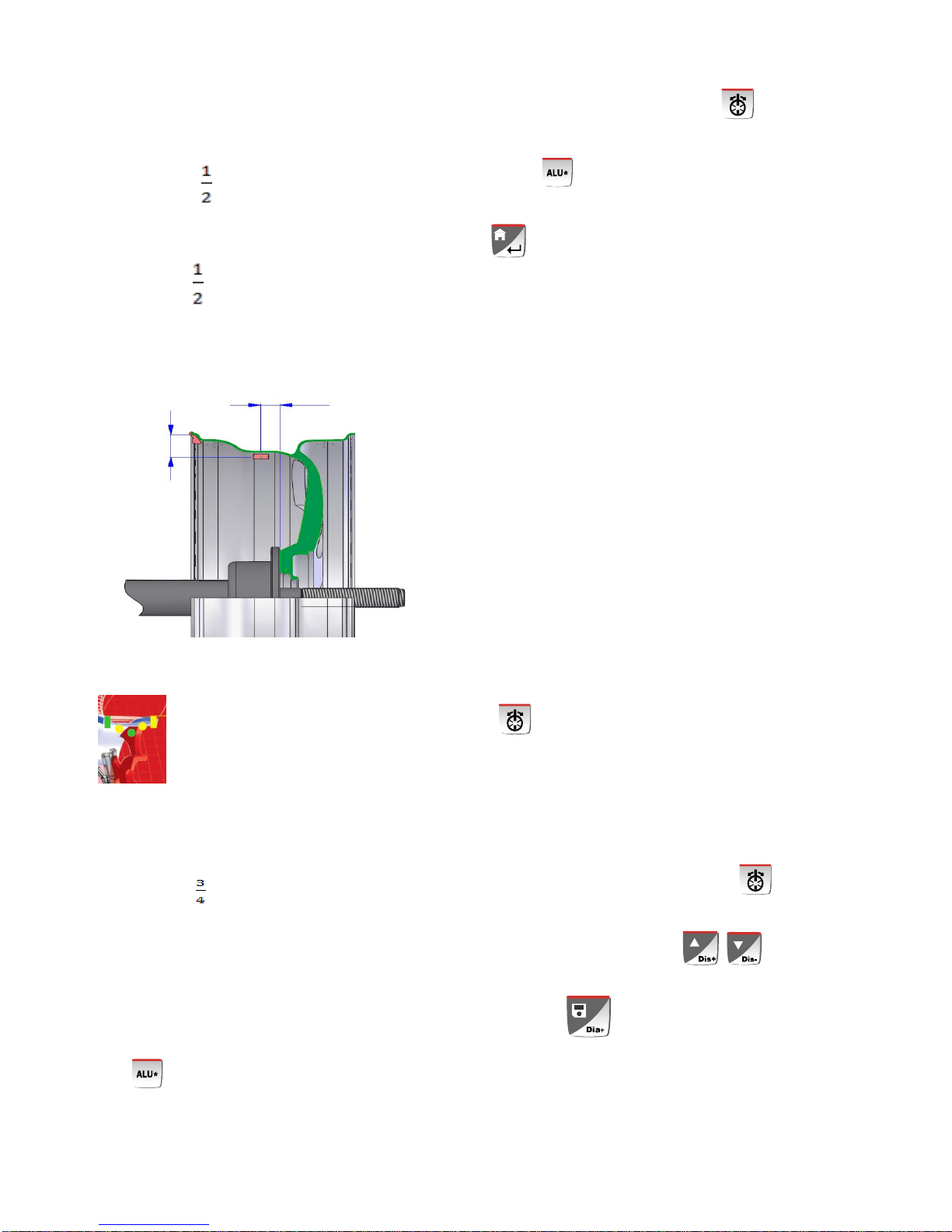

6.7 ALU* SELF DEFINITION METHOD AND

WEIGHT SPLIT FUNCTION ALU*

When the customer select the self definition ALU

modes , first use the scale to measure the inside position of the self-definition weight and then hen press

key to confirm. At this moment, the display will

display the dimension at the D1 position. And then use the scale to measure the inside position of the self-definition weight. When we hear the sound of tick， Meanwhile, the display will display the dimension at the D2 position. On this condition, we complete the measurement. Press start key to start up the machine. After the machine stops rotating, the display displays the inside and outside unbalance value. Rotate the wheel until the entire inside position indication lamps light up. At this moment, the D1 lamp will light. Step the brake to stop the tire. Pull out the scale and the Dis value will reduce when the length of the scale enlarged. When pull to the zero position, press the back end of the scale and the seal will mark a weight position. In a similar way, when the entire outer indication lamp light, mark a weight stick position and stick the corresponding weight and rotate the wheel to test and the self-definition ALU mode complete.

ALU SELF-DEFINATION BALANCE MODE ： You can hide the weight behind the spoke. Thisis

only applied to the outside weight. The detailed operation step is ：

6.7．1、After complete the self-definition ALU mode，

first stick the weight inside and select key. The display will display ―SP‖ –―5‖. According to the

actual spoke quantity, press to adjust to the actual quantity of the spoke to clip the weight and

then press to confirm. 2 Position any bar of the spoke to the 12clock and hold

on and press

/4”

to confirm.

6.7SUPPLEMENTARY EXPLAINATION:

Once switching on, you will see standard dynamic balance mode setup by the computer. When selecting ALU mode and the configuration of the aluminum alloy rim is similar to the above standard ALU1\ALU2\ALU3, you can get relative accurate balance effect. If the section of the tire similar to the one given be the program, you need do some adjustment on the position and weight of the weight. General speaking, 1~2 times of adjustment can reach relative satisfactory balance effect.

7 PROGRAM SETUP

7.1 PROGRAM FUNCTION INTRODUCTION

Press program key to enter the program setup menu.

7．1.1 [SET] –[OPT]-[ ] (unbalance value optimum

calibration)：Press key to confirm the entrance.

Select up and down key to adjust the unbalance threshed value. You can choose from

15Gr-100Gr and press key to confirm when you

choose the corresponding value.. Press key to enter the next function setup level.

7.1.2 [SET] –[p]-[ ] (protective hood setup) Once

again press to confirm the entrance. Select

up/down key to ON/OFF setup the protective

hood function and ten press key to return.

7.1.3 [SET]-[SP]-[ ] （ protective hood control ）

Select to enter and then press key To confirm the entrance and the setup is similar to the

above.

7.1.4 [SET]-[APP]-[ ]-( light tire minimum unbalance setup) You can setup 1Gr and 5Gr. The setup is similar to the above.

7.1.5

7.1.6 [SET]-[BIP]-[ ] (beeper setup) You can setup the on/off of the beeper.

7.1.7 [SET]-[Rl1]-[ ] (set up if the automatic scale Dis -to the machine- input automatic or not) You can choose on or off.

7.1.8 [SET]-[Rl2]-[ ] (set up if the automatic rim breadth input automatic or not) You can choose on or off.

7.1.9

7.1.10 [SET]-[PRN]-[ ] ( printer setup switch) You can select on/off. If select on , you can select printing

When press key to print the balance result.

7.1.11 [SET]- [UP]-[ ] ( enter the next menu of the programm) Involve the test on the various sensors and scales and the self-calibration.

7.1.12 [SET]- [UP] Press key to enter into the special function setup.

[TES] –[INT]- (sensor\scale measurement) It can separately measure the photocell sensor, piezoelectric sensor, Dis, Bre and Dis . Through the test, we can identify the problem.

Press key to enter and the display will display TES POS (phase sensor). Rotate the tire forward and

backward and the display will display [TES] –[POS][XXX]. If rotate the tire backward, the value of[ XXX] will increase and if forward, [XXX ]will decrease.

Once again press key to enter [TES]- [STA] (dynamic test sensor). When service, press the

sensor vertical to the main shaft.

You can execute the following step by step:

[TES] [ DYN]( dynamic sensor test) [TES] [ Dis] (test for the distance to the machine ） [TES] [Dia] (test for the rim diameter） [TES] [ Wid] (test for the rim breadth）

By testing the above sensors, you can quickly find the trouble shooting point. After entering into [SET] [UP], do not enter the [TES]-

[INT] program. Press key, you can enter the customer weight marking(CAL WEI) You can select this

function when you consider the test result inaccurate or the machine not used for a long time. When you enter into this function, display will display[ ADD] –[ ]-[ 0 ]-

and press to start the machine for a time.

（This operation must be executed after mounting the tire or rim with the relative small unbalance value and input the correct value of the Dis, Bre and Dia） Or you will cause the inaccurate measurement result. When rotate the wheel to test, it will display [ADD] [ ]–[100]. Rotate the wheel and clip a piece of standard weight of 100Gr at the top center position when the entire tire unbalance indicating lamp light. And start the machine once again, you can realize the self-calibration. This operation can make the machine fast restore its use of precision. ****The shortcuts is located in the operation window not

the program setup window. Press and hold on key. Five seconds later, the program will automatically enter the self-calibration program and the display will display [ADD]-[ ] –[ 0 ]- The other operation steps are similar to the above. If need to enter the scale self-calibration, follow the following steps：

The display will display [CAL]-[WEI]-[CAL] Press to enter [CAL]- [RL1]-[ ]

Enter the scale calibration program：[CAL]- [RL1]-

[ ](distance to the machine) Press key to confirm the entrance and the display will display [Dis]

-[ ]-[ 0 ]

Position the scale to the zero position, press to confirm and the display will display [Dia]-[ ]--[14]，

Mount a medium size tire or rim on the main shaft and then, according to the diameter of the rim and tire

mounted on the shaft, press to adjust the 14to the dimension of the rim mounted（change the

value on the right window from 14 to 16 if the diameter of the tire mounted is 16‖） and then pull out the scale end to lean it against the edge of the rim and at the

same time press key to confirm. Thus we have completed the automatic dis&dia scale calibration. Ⅱ****The shortcuts is located in the operation window

not the program setup window. Press and hold on

key. Five seconds later, the program will automatically enter the self-calibration program and the display will display [ADD]-[ ] –[ 0 ]-. Then press

and the display will display [CAL]—[RL1]-[ ], The other operation steps are similar to the above. If need to enter the width scale self-calibrition ,follow the following steps The display will display.[CAL]-[RL1]-[ ] Press

to enter [CAL]-[RL2]-[ ] (Cale width ruller)

Press to confirm the entrance and the display will display [CAL]-[RL2]-[P0],Position the width scale to

the zero position press to confirm and display

will display [CAL]-[RL2]-[P1] ,and Pull out the width scale end to lean it against the plan of the

mainshaft and at the same time press key to

confirm.

Thus we have completed the automatic widthscale calibration.

The above operation step vector diagram is as follows：

7.2 ERROR INDICATION:

Attention： When change the computer board, the

phase sensor or the press sensor, you must execute the self-calibration. When change the computer board, you should setup the parameter according to the parameter marked in the machine or on the original computer board. Repeat the self-calibration after the modification.

7.3 INSTALLATION AND WIRING OF THE PRESS SENSOR

Sometimes, inaccurate balance or incorrect position is caused by the breakage of the press sensor. The changing method of the sensor is as following: (1)Remove the upper cover and the right side panel of the balancer.

(2)Detach the nut1 and 2, elastic washer, plain washer and large flat washer.

(3)Loose the back nut3.4.5 to detach every parts.

(4)Change the new sensors and tight the dual-head screw and then tight nut 5. The installation of the negative and positive pole of the piezoelectric ceramics disk of the sensor must follow the picture.

(5)Use the spanner to tight the nut4 and then nut 3. At this moment, you should pay attention to the horizontal and vertical sensor screws should be vertical. And the end of the screws should be just fallen into the 2 holes.

(6)Mount the nut1 and 2, elastic washer, plain washer and large flat washer and completely tigh them. Usually, lock nut 1 and then nut 2. We require to flat the elastic washer and then return the nut 1/4—1/2turn. Use this way to get the normal pre-pressure of the press sensor（use torque wrench to lock and the torque is 40NM）

(7)There are glass glue coat on the surface of the press sensor and the normal installation result of the piezoelectric ceramics disk of the sensor is the IR should be larger than 50MΩ.

(8)Discharge the output line of the shortcuts press sensor，insert into the computer board after discharge

to avoid the breakage of the computer board.

(9)Insert the vertical（┴）& horizontal（∥）sensor plugs according to the original position. (10)Calibrate the balancer again and install the upper cover and the side panel after check result is normal.

7.4 GENERAL TROUBLESHOOTING & SOLUTION：

Description

Cause

Solution

Start the machine but not display.

1. .Check the circuit of 220V is normal or not.

2. power board fault

3. The cable between the power board and computer loose

4. computer board fault

1. Check and connect the external power source.

2. Changer the power board

3. Check the plug cable

4. Change the computer board

Display is normal but the start button and input push button not working.

1. contact switch not good

2. machine breakdown

1. Open the housing of the machine and plug in and tight the contact switch plug.

2. Start the machine again

Display is normal but not braking after start.

1. The cable between the power board and computer loose

2. power board fault

1. Plug in and tight the cable between the computer board and power board.

3. computer board fault

2. Change the power board

3. Change the computer board

Balance is not accurate & difficult to reach ―00‖

1. sensor lead connect or contact no good

2. memory value lost

1.Connect again

2. Correct the memory value according to the manual.

Each spin, the change of the value will not exceed 5g.

1. There are foreign body on the rim or the assemble surface in the rim center deformation

2. sensor damp or quick nut not tightly clamped

3. The external power voltage or the air pressure not enough. The flange dick not locked.

1. Change the wheel

2. Oven, recalibrate the sensor.

3. Fix the anchor bolt.

Each spin, the range of the change of value will be 20-90g.

1. There are foreign bodies on the wheel or the unbalance of the wheel value too big.

2. sensor damage

3. external power source voltage too low

1. Change the wheel

2. Check the sensor and wiring.

3. Check power source and assemble stabilizer.

Balance is not accurate & difficult to reach ―00‖

1. Sensor damp or damage

2. Program chore

1. Calibrate again,oven and then self-calibration or change.

2. Self-calibration again

When second mount & demount, the error will exceed 10g.

1. Wheel internal hole irregular

2. Flange disk assemble not properly

1. Change the wheel

2. Check the assemble surface and try again.

7.5 ACCESSORIES OF THE WHEEL BALANCER

STANDARD ACCESSORIES

ACCESSORIES

Name

Q.ty

ACCESSORIES

Name

Q.ty

Cone(40)

1 SUIT

Breadth Measuring Scale

Weight Pliers

Threaded Shaft

Quick

Ring

nut

(40)

100g Weight

8. MAINTENANCE

WARNING

The manufacturer will not bear any responsibility in the event of claims resulting from the use of non-original spare parts or accessories.

Spring

Plastic Cap Protective Cover

Plastic

Cap

Gauge Extension

OPTIONAL ACCESSORIES

ACCESSORIES

NAME

ACCESSORIES

NAME

Guard

Four Holes Adapter(40)

Special Cone

(40)

Flag

WEIGHT POSITION SCALE

CENTERLESS CALIPER

DK-W-1(40)

DK-W-2(40)

MJ-I(40)

MJ-I I(40)

WARNING

Unplug the machine from the socket and make sure that all moving parts have been locked before performing any adjustment or maintenance operation.

WARNING

Do not remove or modify any part of the machine (except for service interventions).

CAUTION

Keep the work area clean. Never use compressed air and/or jets of water to remove dirt or residues from the machine. Take all possible measures to prevent dust from building up or rising during cleaning operations. Keep the wheel balancer shaft, the securing ring

nut, the centering cones and ﬂange clean. These

components can be cleaned using a brush previously dripped in environmentally friendly

solvents. Handle cones and ﬂanges carefully so

as to avoid accidental dropping and subsequent damage that would affect centering accuracy.

After use, store cones and ﬂanges in a place

where they are suitably protected from dust and dirt. If necessary, use ethyl alcohol to clean the display panel. Perform the calibration procedure at least once every six months. LUBRICATION

The only rotating parts of the wheel balancer are the motor and balance shaft. These parts must be periodically lubricated by the operators. If the machine is used very frequently, more than 2hours per day, we should annually check the bearing. And we will check once a year if the machine is used less than 2hours a day. When test, do not open up the bearing so you need insert a screwdriver to test the noise. Due to the function of the bearing is to clamp and support

and not suitable to change or remove the grease. In addition, the speed of it is not too fast compared to the machine so no need to change the grease. If you note the run of the bearing abnormal or there is noise, change the bearing. If the customer confirms the bearing is not changed, you only need change the grease. Disassemble the bearing and open up the sealing ring and fill the XHP103 grease. These operation should be guided by the profession personnel and calibrate the machine after changing the grease. If the change of the grease not correctly, it will influence the accuracy of the machine. On this condition, you need to reinstall the sealing ring and assemble the machine and adjust again.

Technical safety card for using grease in the wheel balancer

Mobilgrease XHP

103

NLGI degree

Type of thickener

Li-complex

Colour, appearance

Dark blue

Penetration on the processed item 25°, ASTM D 217, mm/10

235

Dropping point, °C, ASTM D 2265

280

Viscosity oil base, ASTM D 445, cSt @ 40°C

100

Change of penetration consistency, ASMT D 1831 (established upon the rolling of the greases), mm/10

4 spheres test, impression diam., ASTM D 2266, mm

0.5

4 spheres test, welding load, ASTM D 2509, kg

315

Test Timken OK load, ASTM D 2509, lb

Stability of oxidisation bomb method, ASTM D 942, pressure drop at 100 hours, kPa

Corrosion prevention, ASTM D 1743

Passed

Emcor rust, IP 220, wash away with acid water

Rust protection, IP 220-mod, wash

away with distilled water

Corrosion on copper, ASTM D 4048

Resistance to water spray, ASTM D 4049, % spray

Wash away with water, ASMT D 1264, loss (weight%), @ 79°C

SCRAPPING

If the machine is to be scrapped, separate all electrical, electronic, plastic and ferrous components and dispose of them separately, as provided for by local regulations in force.

ENVIRONMENT INFORMATION

If the machines have the crossed-out bin symbol

on their data plate , the following disposal procedure must be applied to.

This product may contain substances that can be hazardous to the environment and to human health if it is not disposed of properly.

Electrical and electronic equipment must never be disposed of in the usual municipal waste but must be separately collected for their proper treatment.

The crossed-out bin symbol , placed on the product and on this page, reminds the user that

the product must be disposed of properly at the end of its life.

Thus, the hazardous consequences that non-speciﬁc treatments of the substances contained in these products, or improper use of parts of them, may have on the environment or on human health are prevented. Furthermore, this helps to recover, recycle and reuse many of the materials contained in these products.

Electrical and electronic manufacturers and distributors set up proper collection and treatment systems for these products for this purpose.

Contact your local distributor to obtain information

on the collection procedures at the end of the life of your product.

When purchasing this product, your distributor will also inform you of the possibility to return another end-of-life piece of equipment free of charge as long as it is of equivalent type and had the same functions as the purchased product.

Any disposal of the product performed in a different way from that described above will be liable to the penalties provided for by the national regulations in force in the country where the product is disposed of.

Further measures for environmental protection are recommended: recycling of the internal and external packaging of the product and proper disposal of used batteries (only if contained in the product).

Your help is crucial to reduce the amount of natural resources used for manufacturing electrical and electronic equipment, minimize the

use of landﬁlls for product disposal and improve

the quality of life, preventing potentially hazardous substances from being released in the environment.

FIREFIGHTING MEANS TO BE USED Consult the following table to choose the most

suitable ﬁre extinguisher. Dry materials

Water YES Foam YES Powder YES* CO2 YES*

YES* Use only if more appropriate extinguishers are not at hand or when the ﬁre is small.

Flammable liquids Water NO Foam YES Powder YES CO2 YES

Electrical equipment

Water NO Foam NO Powder YES CO2 YES

Warning This table contains general instructions to be used as guidelines for users. All the applications of each type of extinguisher must be obtained from the relevant manufacturer.

9.DETAILED MACHINE OPERATION：

9.1 How to balance a tire?

1. Switch on the power source

2. Select the cone according to the tire. Assemble the tire on the main shaft of the wheel balancer and firmly lock it.

3. Input the tire parameter.

3.1 Pull out the scale of the balancer to measure the Di value which means the distance from the insider of the tire to the body. According to measured reading, the unit of which is cm, press

，to adjust the value to make the value

displayed in the right side window to be the measured value. But the unit of this displayed value is mm. eg you should input 55mm if the measured value is 5.5cm.

3.2 Use the width measurement scale to measure

the Bre。you can press to input the Br value which is the implied value with the unit of inch. If you want to convert this value into the

value with the unit of mm, press to realize the conversion between the units.

3.3 Check the D value, which means the diameter

of the rim, marked on the tire. Press the key

to realize the conversion of the Br unit .

4. Lower down the protective cover（you can also

press the start key）. After the machine start, rotate and test, it will automatic stops. In the left

/right window, the corresponding values will be displayed. Rotate the tire, when all the position indication lamps light. Pls add the weight corresponding to the value displayed in the window. Once again, start the machine to test. The window will display the unbalance value. The balance process will be completed until reaching the balance range you requied.

9.2 Herewith, we will not explain the ALU mode in detail，the operation of ALU1\ALU2\ALU3\ALU4 is according to the diagram in the chapter 6.6.

The function of the OPT mode and ALU* mode can be seen in the demonstration CD.

APPENDIX Ⅰ

LAYOUT OF THE POWER SUPPLY CARD

APPENDIX Ⅱ

Wiring Diagram

Sequence No: Model: Production Date:

WARRANTY

Machine involves the warranty period of 90 days and the parts and components are 6 months.

The manufacturer is only responsible for the normal wear, improper transportation or use and the maintenance without care. Manufacturer will not notify the customers when improve the products and production line for this warranty terms do not involve the change result. All the claims must clearly note the model and sequence number of the machine.

Bright Technology cb958b User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
