HT851W USERS GUIDE
Content
SAFETY PRECAUTIONS ................................................................................................................. 1
1 OVERVIEW ............................................................................................................................ 2
1.1INTRODUCTION ................................................................................................................... 2
1.2 SYSTEM REQUIREMENTS .................................................................................................... 3
2 DEVICE INSTALLATION ....................................................................................................... 4
2.1 HARDWARE INSTALLATION ................................................................................................... 4
2.2 STARTUP ........................................................................................................................... 5
3 QUICK SETUP ........................................................................................................................... 6
4 ADVANCED SETTINGS ................................................................................................................ 9
4.1 INTERNET SETTING ............................................................................................................. 9
4.2 WIRELESS LAN SETTINGS ................................................................................................ 10
4.3 ROUTER SETTINGS ........................................................................................................... 12
4.4 SYSTEM SETTING ............................................................................................................. 15
4.5 VOICE SETTINGS .............................................................................................................. 16

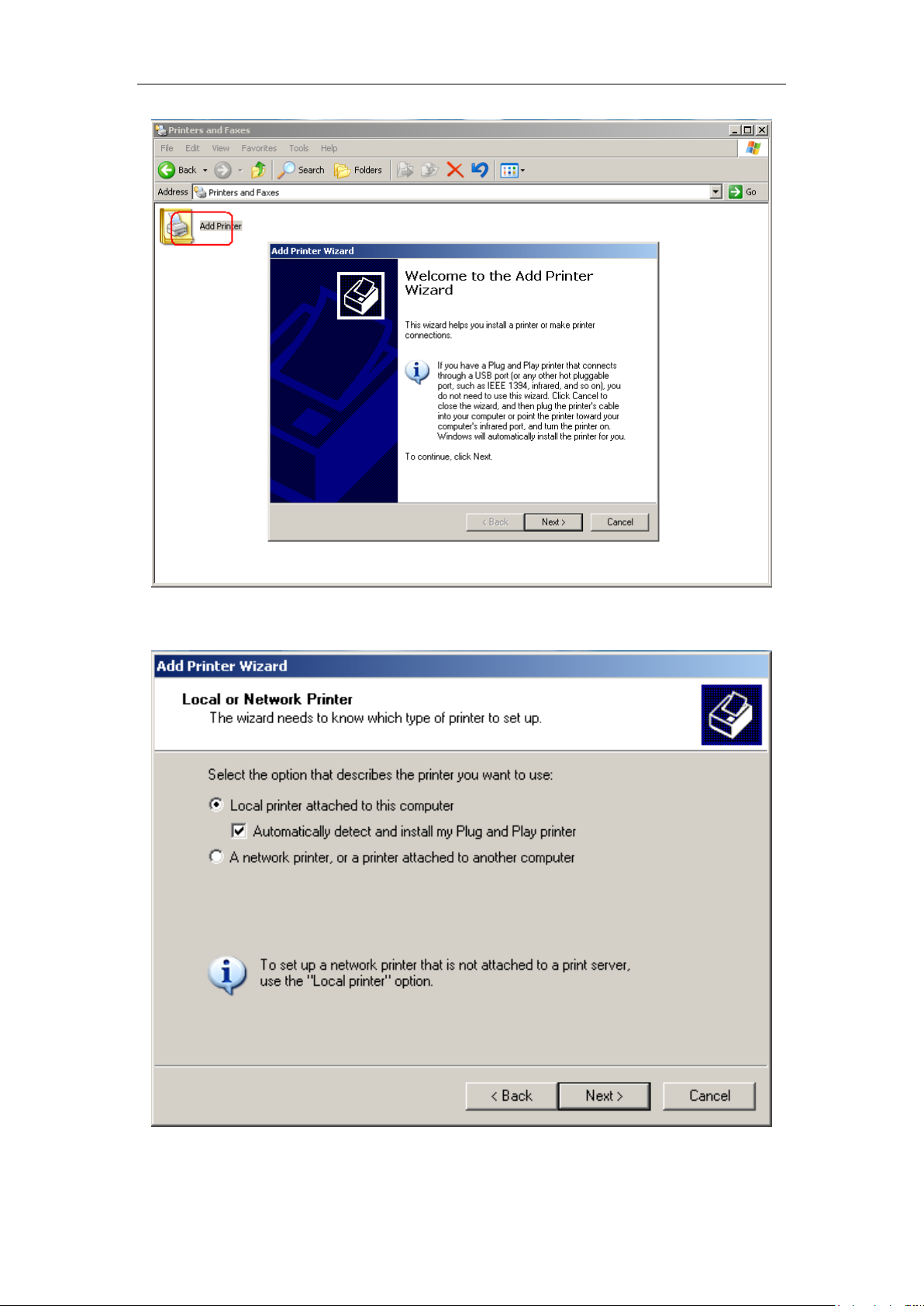

4.6 USB DEVICE APPLICATIONS ............................................................................................. 17
5 WARNING AND PRECAUTIONS ........................................................................................ 23
USERS GUIDE
Do not switch on your device when the device use is prohibited or when
the device use may cause interference or danger.
Follow the rules or regulations in hospitals and health care facilities.
Switch off your device near medical apparatus.
Switch off your device in an aircraft. The device may cause interference
to control signals of the aircraft.
Switch off your device near high-precision electronic devices. The
device may affect the performance of these devices.
Do not attempt to disassemble your device or its accessories. Only
qualified personnel are allowed to service or repair the device.
Do not place your device or its accessories in containers with strong
electromagnetic field.
Do not place magnetic storage media near your device. Radiation from
the device may erase the information stored on them.
Do not put your device in a high-temperature place or use it in a place
with flammable gas such as a gas station.
Keep your device and its accessories away from children. Do not allow
children to use your device without guidance.
Use approved batteries and chargers only to avoid explosion.
Observe the laws or regulations on device use. Respect others‟ privacy
and legal rights when using your device.
Safety Precautions
Read the safety precautions carefully to ensure the correct and safe use of your wireless
device.
It is recommended that the equipment only be used in the environment where
temperature is between 0
equipment in the environment where temperature is between 0℃ and 45℃ or
humidity is between 10% to 90%.
℃ and 45℃ and humidity is between 10% to 90%. Keep the
1
USERS GUIDE
1 Overview
HT851W is positioned as a terminal device that interconnects with wireless fix-line
phone. It provides circuit switched voice service by through connect fix-line phone as well
as integrated functions of router. The products are therefore offered high-speed Internet
data access service for LAN/WLAN via wired/wireless WAN. Besides, the product also
provides network sharing service via access to File Server and Printer server by USB. The
products meet demands on both voice calling and Internet accessing in special situation
such as in remote area, no access to fix-line network and temporary office.
1.1Introduction
Product Reference ID
1. SIM card slot
2. Power button
3. WPS button
4. Internet button
5. Network signal lamp
6. WIFI indicator
7. LAN indicator
8. Power port
9. RJ11 interface
10. Ethernet (LAN) interface
11. USB interface
12. Reset button
2
USERS GUIDE
ITEM
INTRODUCTION
SIM card slot
Insert SIM card
Power button
Start-up/Shutdown device
WPS button
Establish/Disconnect WPS connection
Internet button
Connect/Disconnect Internet access
Network signal indicator
Indicate network connection status
WIFI indicator
Indicate WLAN connection status.
LAN indicator
Accessing LAN when LAN indicator is blinking
Power Interface
Connect power adapter
RJ11 interface
Connect voice device via phone line with RJ11 connector
Ethernet (LAN) interface
Connect PC or Laptop via Ethernet cable with RJ45
connector
USB interface
Connect USB Printer/USB stick
Reset button
Restore settings to factory default , restart router
Item
Description
Operating
System
Windows
Windows7/VISTA/XP(SP2 and higher )
Mac
X 10.4.9 or higher, but no higher than X10.6.0
Browser
Internet Explorer
6/7/8
Safari
3/4/5
Interface Specification
1.2 System Requirements
3
USERS GUIDE
2 Device Installation
2.1 Hardware Installation
Before you want to use your device, please follow the quick steps below to
power up your network:
1. Insert SIM card into SIM slot
2. Connect Power adapter
3. Hold the Power button to power on;
4. Connect FWT with your terminal device。
5. Four RJ45 connectors of the device are used to built wired LAN
Alternative, user also can choose built-in 3G module connect to the Internet via 3G
network。
Also，WIFI of HT851W can be used to build WLAN，RJ11connector can connect
fix-line phone to provides voice service via Circuit Switched (CS) Domain。USB connector
can be used to connect USB printer or USB stick to provides network print service and
network store function。
When 3G Only Internet connection is applied, the device is connected to
the Internet through the built-in 3G Modem, All of the four RJ45 connectors will
be used to build wired LAN network. At the same time, network sharing
function can be achieved through WLAN for any terminal devices that support
WiFi. Voice service is provided via CS domain by connect fix-line phone to
4
USERS GUIDE
build-in RJ11 connector. USB connector is used to connect external USB
printer or USB stick in order to provide network print and storage functions.
2.2 Startup
Power up the device
After all installation is complete, hold the power button over 2 second to power up the
device.
Restart the device
Some configurations may take effect after system reboot. The device will reboot
automatically once these configurations to be modified. After reboot the webpage
will be automatically redirected to Homepage and need you to re-login for further
changes。
Shutdown the device
Hold the power button over 2 second when the device is powered on, the device will
automatically shutdown.
5
USERS GUIDE
3 Quick Setup
Use the instructions in this guide to help you connect the device, set it up, and configure it
to work.
Login page
Open Web browser and enter “http//192.168.100.1” into address bar then press
Enter to access configuration page. If you are first time access to the configuration page,
quick installation page is appeared to let you quickly and easily configure it to work. In
these setup you can make follow configurations
Set your administrator password and press „Next‟, the default password is „admin‟.
(It is strongly recommend you to change the default password).
Enter into APN configuration page，select Use the current APN and then
press „Next‟.
6
USERS GUIDE
Enter into WIFI security configuration，you can modify network name(SSID) and
security settings for WIFI, press „Finish‟ once you finish quick setup guide.
