Brightstar HT850HS User Manual
3G HOTSPOT USER GUIDE
Do not switch on your device when the device use is prohibited or when
the device use may cause interference or danger.
Follow the rules or regulations in hospitals and health care facilities.
Switch off your device near medical apparatus.
Switch off your device in an aircraft. The device may cause interference
to control signals of the aircraft.
Switch off your device near high-precision electronic devices. The
device may affect the performance of these devices.
Do not attempt to disassemble your device or its accessories. Only
qualified personnel are allowed to service or repair the device.
Do not place your device or its accessories in containers with strong
electromagnetic field.
Do not place magnetic storage media near your device. Radiation from
the device may erase the information stored on them.
Do not put your device in a high-temperature place or use it in a place
with flammable gas such as a gas station.
Keep your device and its accessories away from children. Do not allow
children to use your device without guidance.
Use approved batteries and chargers only to avoid explosion.
Observe the laws or regulations on device use. Respect others‟ privacy
and legal rights when using your device.
Safety Precautions
Read the safety precautions carefully to ensure the correct and safe use of your wireless
device.
It is recommended that the equipment only be used in the environment where temperature
is between 0℃ and 50℃ and humidity is between 10% to 90%. Keep the equipment in the
environment where temperature is between -10℃ and 70℃ or humidity is between 10% to
90%.
1
Content
Safety Precautions .................................................................................................. 1
1. Overview .............................................................................................................. 3
1.1 Introduction .................................................................................................... 3
1.2 System Requirements ................................................................................... 6
2. Quick Start ........................................................................................................... 7
2.1 Connect the Device........................................................................................ 7
2.2 Basic Tasks .................................................................................................... 8
3. Quick Setup ....................................................................................................... 12
4. Advanced Settings ............................................................................................ 14
4.1 Wireless LAN Settings ................................................................................. 14
4.2 Internet Settings .......................................................................................... 16
4.3 Router Settings ............................................................................................ 17
4.4 NAT Settings ................................................................ ................................ 18
4.5 Sharing ......................................................................................................... 19
4.6 System Settings ........................................................................................... 19
5 Warning and Precautions .................................................................................. 21
6. FCC Regulations ............................................................................................... 23
7.RF Exposure Information (SAR) ........................................................................ 24
2
Indicator
Status
Description
1. Signal
Keep Red
SIM error, PIN verification failed or no
signal.
Keep Yellow
Weak signal
Keep Green
Good signal
Keep Blue
Roaming and good signal
Blue and flashing slowly
Roaming but poor signal
Unlit
power off, normal working mode or
Sleeping Mode
2. Network
Keep Red
no network
1
2 3 4
1. Overview
3G Hotspot provides a simple way to use 3G connect to the Internet with any
Wi-Fi-enabled device and to fulfill needs of sharing your internet connection during
outside home.
1.1 Introduction
Indicator Description
Fig 1.1
The device is equipped with four LED status indicators (Fig 1.1) including:
3
Green and flashing fast
dialling
Green and flashing slowly
registering to 2G network
Keep Green
connected to 2G network
Blue and flashing slowly
registering to 3G network
Keep Blue
connected to 3G network
Yellow and flashing fast
dial failed
Unlit
power off, normal working mode or
Sleeping Mode
3. Power/
Connect
Keep Green
normal battery power
Keep Yellow
low battery power
Keep Red
very low battery power and will power
off automatically
Green and flashing slowly
charging
Blue and breathing
Normal working mode
Yellow and breathing
Sleeping Mode
Unlit
power off
4. WIFI/WPS
Blue and flashing slowly
Wi-Fi on and transmit data
Green and flashing fast
WPS connection is building
Keep Green for 5 Seconds
WPS connection built
Keep Red for 5 Seconds
WPS connection failed to build
Unlit
Wi-Fi off
2 3 1
Button Description
Fig 1.2
1. Power/Connect
Power on/off the power when press and hold the power button for over 2
seconds.
Connect/disconnect the Internet when press and hold the power button within 2
seconds.
4
1 2 3
2. Wi-Fi/WPS
Turn on/off Wi-Fi or WPS.
Wi-Fi: enable/disable Wi-Fi when press and hold the Wi-Fi button within 2
seconds.
WPS: when Wi-Fi is enabled, press and hold the Wi-Fi button over 4seconds unitl
Wi-FI LED become green and sharply flash, WPS is active.
3. Reset
Restart the device when press and hold the reset button within 2 seconds.
Reset the device to factory default when press and hold the reset button for over
3 seconds.
Connector Description
Fig 1.3
1. SIM Slot
A SIM can be inserted for connecting to the network.
2. Micro USB Connector
A terminal device can be connected via USB cable.
3. Micro SD Slot
A MicroSD card (maximum 16G supported) can be inserted for file transfer or storage.
Please do as the following to insert them (Fig 1.4).
Fig 1.4
5
1.2 System Requirements
CPU: Pentium 500MHz or above.
Hard Disk: 50MB available space.
Operating System: Windows7/VISTA/XP (SP2 and above ), Mac OS X 10.4.9 and
Later, Up to X10.6.0.
Display Resolving Power: 800 × 600 pixels or above (1024 × 768 is
recommended).
Interface: Standard USB 2.0 interface.
Web Browser: Internet Explorer 6/7/8, Safari3/4/5.
One or more computing devices that support Wi-Fi (802.11b/g).
Note:
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
6
2. Quick Start
2.1 Connect the Device
Before you want to use the device, setup your device as following:
1. Insert SIM;
2. Insert MicroSD Card;
3. Insert the battery;
4. Hold the Power/Connect button to power on;
5. Connect this device to your terminal device.
If you want to go to internet, manage LAN, connect your terminal device to 3G
Hotspot via USB or Wi-Fi:
Via USB: If your terminal device (such as desktop) is Wi-Fi disabled, you can
connect them via USB cable. After connected in the first time, driver will be
installed automatically.
Via Wi-Fi: It is better for you to connect the device to Wi-Fi-enabled devices
through Wi-Fi, for which you don‟t need to install any driver.

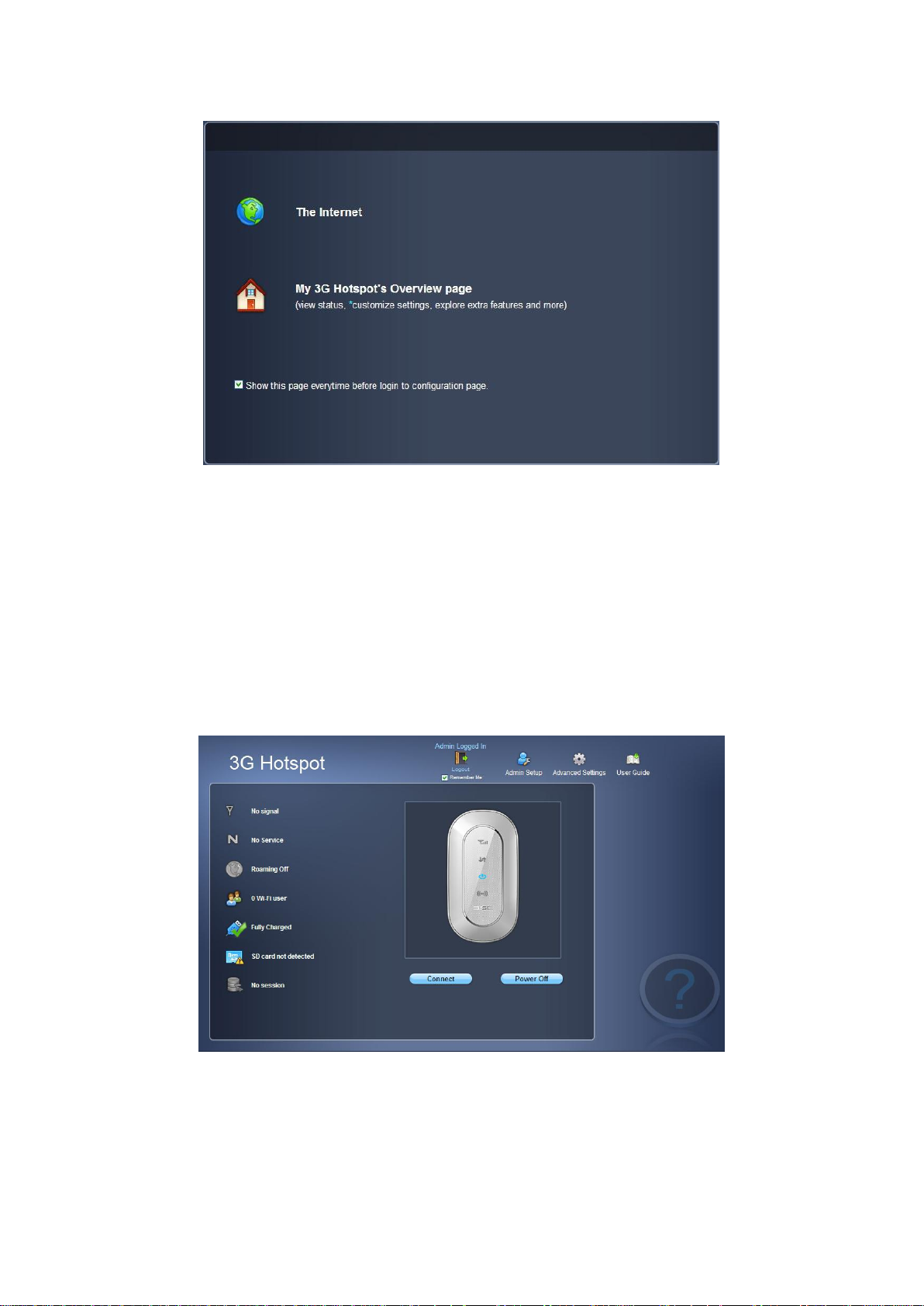

Fig 2.1
7
