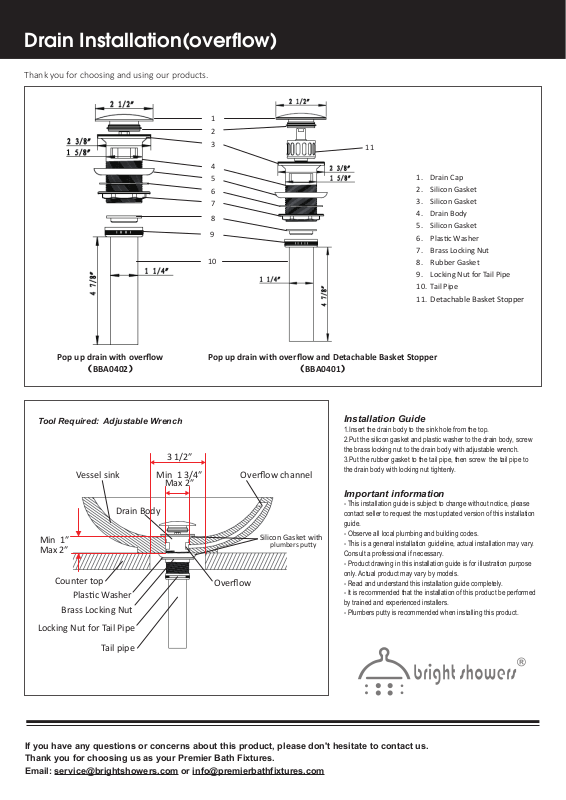

Drain Installation(overflow)
1
BBA0402）
BBA0401）
2
Thank you for choosing and using our products.

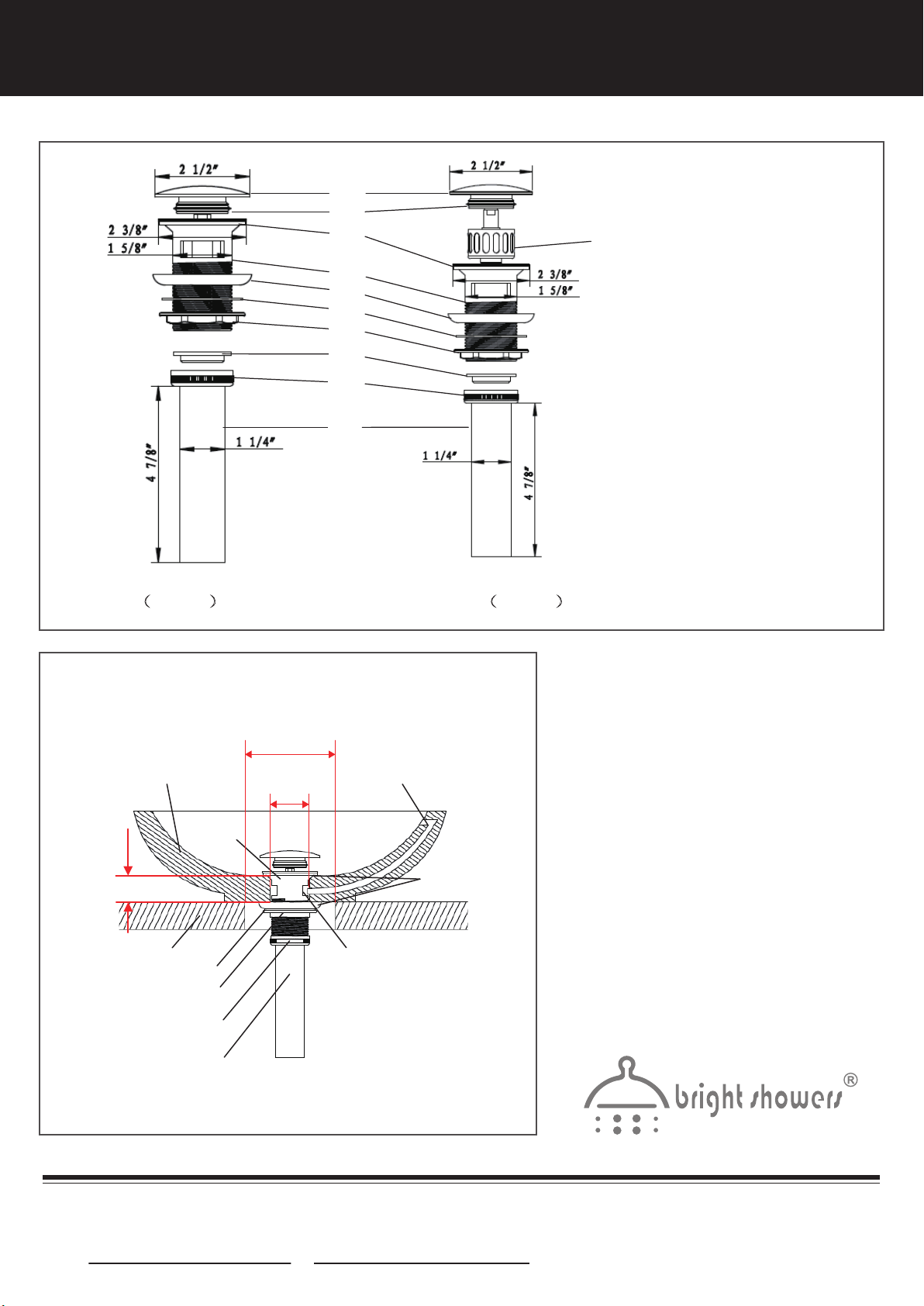

Pop up drain with overflow
（
Tool Required: Adjustable Wrench
3 1/2ʺ
Vessel sink
Min 1 3/4ʺ
Max 2ʺ
Min 1ʺ
Max 2ʺ
Drain Body
Counter top
Plasc Washer
Brass Locking Nut
Locking Nut for Tail Pipe
Tail pipe
3
4
5
6
7
8
9
10
11
1. Drain Cap
2. Silicon Gasket
3. Silicon Gasket
4. Drain Body
5. Silicon Gasket
6. Plasc Washer
7. Brass Locking Nut
8. Rubber Gasket
9. Locking Nut for Tail Pipe
10. Tail Pipe
11.
Detachable Basket Stopper
Pop up drain with overflow and Detachable Basket Stopper
（
Installation Guide
1.Insert the drain body to the sink hole from the top.
2.Put the silicon gasket and plastic washer to the drain body, screw
the brass locking nut to the drain body with adjustable wrench.
3.Put the rubber gasket to the tail pipe, then screw the tail pipe to
Overflow channel
the drain body with locking nut tightenly.
Important information
- This installation guide is subject to change without notice, please
contact seller to request the most updated version of this installation
guide.
- Observe all local plumbing and building codes.
- This is a general installation guideline, actual installation may vary.
Consult a professional if necessary.
- Product drawing in this installation guide is for illustration purpose
only. Actual product may vary by models.
- Read and understand this installation guide completely.
- It is recommended that the installation of this product be performed
by trained and experienced installers.
- Plumbers putty is recommended when installing this product.
Overflow
Silicon Gasket with
plumbers puy
If you have any questions or concerns about this product, please don't hesitate to contact us.
Thank you for choosing us as your Premier Bath Fixtures.
Email: [email protected] or [email protected]
