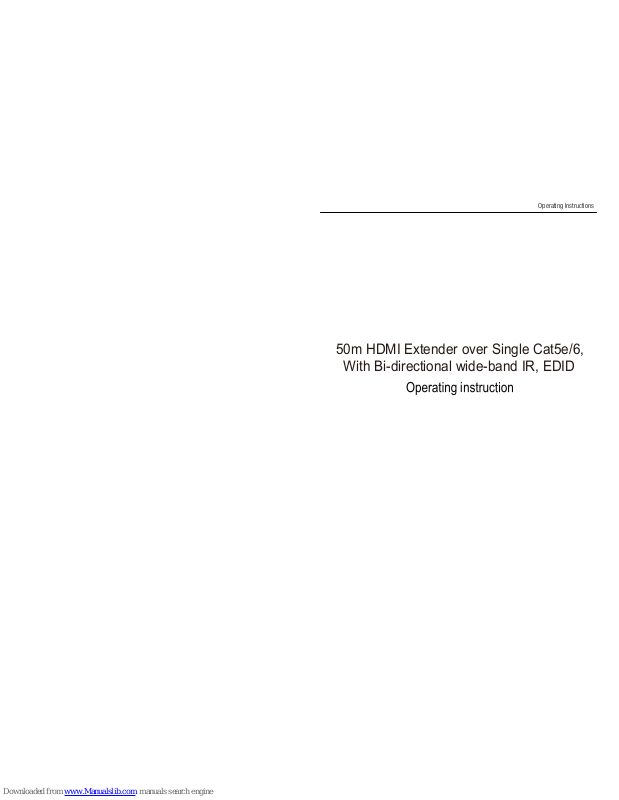

Operating Instructions
i
50m HDMI Extender over Single Cat5e/6,
With Bi-directional wide-band IR, EDID
Operating Instructions
Operating Instructions
50m HDMI Extender over Single Cat5e/6,
With Bi-directional wide-band IR, EDID
Operating instruction
Dear Cust omer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before
connecting,
operating or adjusting this product. Please keep this manual for future reference.
N
otice
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute the warranty of any kind, express or implied.
Features
Allows HDMI Audio/Video Signals and IR to be transmitted over a 50m single Cat5e/6 Cable.
Transmits a wide-band (38K-56KHz) Bi-Directional IR control signal together with the HDMI signal.
Automatically adjusts feedback, equalization and amplification.
EDID DIP switch on Transmitter to enhance EDID communication between sources and displays.
Supports PCM ,Dolby Digital™, and DTS Digital Surround™.
Follows IEEE-568B cable termination standards.
Supports 3D video format.
result from accidents,misuse,abuse,neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage,
modification, or service by anyone other than a Factory Service center or other Authorized Servicer, or damage
that is attributable to acts of God.
2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY
COVERAGE".THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRNTY.
(As examples, this excludes damag
es for lost time, cost of having someone remove or re-install an installed unit if
applicable, travel to and from the service, loss of or damage to media or images, data or other recorded content.
The items listed are not exclusive, but are for illustration only.)
3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR
RESPONSIBILITY.
LIMITED WARRANTY LIMITS AND EXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT
COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages
which occurred in shipment, or failures which are caused by products not supplied by warrantor,or failures which
61
Supports 24bit Deep Color.
Operating Instructions
Operating Instructions
S p ec if ic at io ns
Operating Temperature Range -5 to +35℃(+23 to +95 )
℉
Operating Humidity Range 5 to 90%RH (No Condensation)
Data transfer speed 6.75Gbps
Connectors Transmitter
HDMI Receptacle x 1
RJ45 Receptacle x 1
Power DC Receptacle x 1
IR Receptacle x 2(for IR TX and RX cable)
Connectors Receiver
HDMI Receptacle x 1
RJ45 Receptacle x 1
Power DC Receptacle x 1
IR Receptacle x 2(for IR TX and RX cable)
Resolution outputs 1080p/1080i/720p/576p/480p
Audio format supported DTS-HD Master Audio, Dolby True HD, multi-channel 5.1, stereo etc
Output Video Signal
HDMI
Dimensions (HxWxD) 2.56”W x .95”Hx3.34”D(65x24.1x85mm)
Power supply DC 5V Power supply
Power consumption 4W(MAX)
Transmission Distance 1080p up to 50m
（1）
Net Weight 319g (1 Pair)
IR wavelength & frequency Wavelength: 940nm IR Frequency: 38KHz - 56KHz
Note:
1.Under perfect transmission conditions including straight cable runs with no electrical interference, bends,
kinks, patch panels or wall outlets.
Package Contents
1xHDMI Transmitter
1xHDMI Receiver
2 x IR TX Emitter
2x IR RX Receiver
2x5V/1A DC Adapter
1xUser Manual
Safety information
safeguards
To reduce the risk of electric shock, do not expose this product to rain or moisture
PRODUCT SERVICE
1) Damage requiring service: The unit should be serviced by qualified service personnel if:
(a)The DC power supply cord or AC adaptor has been damaged;
(b)Objects or liquids have gotten into the unit;
(c)The unit has been exposed to rain;
(d)The unit does not operate normally or exhibits a marked change in performance;
(e)The unit has been dropped or the cabinet damaged.
2) S
ervicing Personnel: Do not attempt to service the unit beyond that described in these operating instructions.
Refer all other servicing to authorized servicing personnel.
3) R
eplacement parts: When parts need replacing ensure the servicer uses parts specified by the manufacturer or
parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric
shock, or other hazards.
4) S
afety check: After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in
proper working condition.
WARRANTY
If your product does not work properly because of a defect in materials or workmanship, our Company (referred to
as "the warrantor" ) will , for the length of the period indicated as below, (
Parts(2)Year ,Labor(90) Days) which
starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with
new or refurbished parts, or (b) replace it with a new of a refurbished product. The decision to repair or replace will
be made by the warrantor.
During the "Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product during the
warranty period. This Limited Warranty is extended only to the original purchaser and only covers product
purchased as new. A purchase receipt or other proof of original purchase date is required for Limited Warranty
service.
M
ail-In Service
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton.
Include a letter detailing the complaint and provide a day time phone and/or email address where you can be
reached.
5 2
RXTX
HDMI Extender over single Cat5e/6 cable
Operating Instructions
Operating Instructions
Panel Description
Transmitter Panel
1 .
Power input, 5VDC.
2 . HDMI input.
3 . DIP switch .(adjust EDID to ensure better compatibility)
4 . IR RX.
5 . IR TX.
6 . CAT-5E/6 output.
7 .
Status of power input. When power input on, the LED lights. 8 .
Status of signal connection. When this works well, the LED lights.
Status of power input. When power input on, the LED lights.
Status of signal connection. When this works well, the LED lights.
Receiver Panel
7 .
Power input, 5VDC.
6 . HDMI output
5 . IR RX
4 . IR TX
3 . CAT-5E/6 input
2 .
1 .
3
Connection Diagram
Connections and Operations :
1.Connect 1 source such as a Blu-Ray Pla
HDMI in
IR TX IR TX
IR RX
yer, game console, STB, etc. to the HDMI input on the transmitter
2.Connect 1 display such as an HDTV or HD Projector to the HDMI output on the receiver
.
3.Connect a single Category 5e/6/7 up to (50m) to both transmitter and receiver.
4.Plug in the IR-RX cable and IR-TX cable to the IR jack port located on the Receiver and transmitter balun.
5. Power on the transmitter and receiver firstly, then power on the source and sink.
6. DIP Switch Description.
EDID for Transmitter
snoitcnuF noitisoP
0 HDMI 1080P 2CH
1
HDMI 1080P 5.1CH
HDMI 1080P 7.1CH
HDMI 1080P 3D 2CH
Reserved
Reserved
The distance is 40m under 5.1CH or 7.1CH.
HDMI 1080P 3D 5.1CH
HDMI 1080P 3D 7.1CH
2
3
4
5
6
7
4
CAT5E/6 cable
HDMI out
up to 50m
IR RX
3D TV
