DVD
HDMI Ca ble
TV
Con necti on inst ructi on:
1). Conn ect HDMI input w ith HDMI source d evice and conn ect IR blaster
extens ion cable with I R OUT interfac e of the sender (TX ).
2). Conn ect HDMI outpu t with HDMI disp lay device and c onnect IR
receive r extension ca ble with IR IN inte rface.
3). Power on t he device (pow er led lights) a nd it works.
Note:
1） When the w ireless signa l transmits th rough wall, gl ass or other
obstac les, it will cau se signal loss . Suggest inst alling this de vice in
good env ironment with f ew obstacles .
2） The exte rnal environm ent wireless s ignal interf ere the transmi ssion,
such as mi cro waver, wireles s mouse and keyboa rd etc.
Specification
HDMI signal Full compatible with HDCP
Support resolution
480i @60Hz , 480p@ 60Hz, 5 76i@5 0Hz, 57 6p@50 Hz,
720p @50/6 0Hz, 10 80i@5 0/60H z, 1080 p@50/ 60Hz,
4K×2K@ 30Hz/ 24Hz/ 25Hz
Transmit distance
200m at 4K×2K@30Hz
IR remote control
Supp ort 20 ~60kH z wide fre quenc y IR remo te devi ce
Working temperature
0℃～60℃
Power supply
DC5V/3A *2PCS
Power consumption
TX: ≤15W; RX: ≤15W
Product dimension
Weight
Color
195(L) x 137(W) x .32(H)mm *2PCS
Items
Black
TX: 560g RX: 560g
Enclosure material
Metal
Transport protocol HDbitT

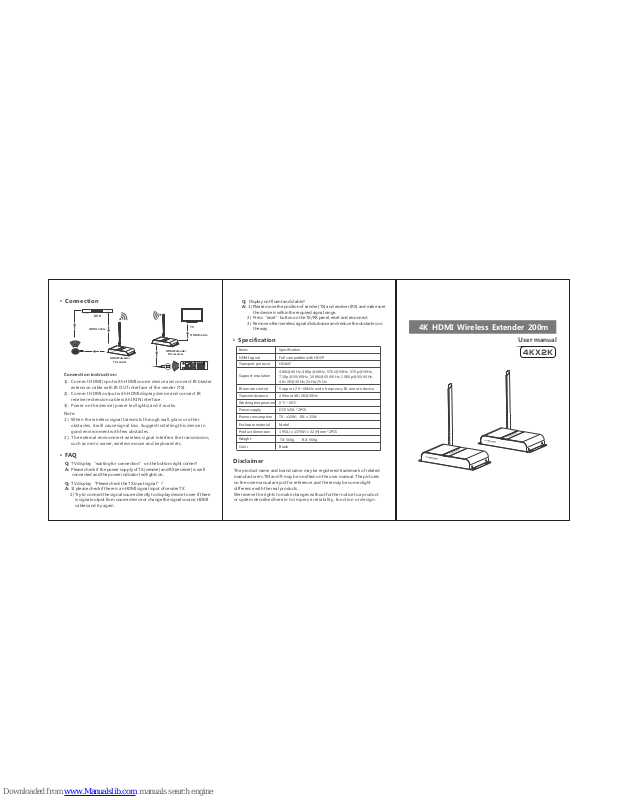

• Connec tio n
HDMI Extender
TX sender
HDMI Extender
RX receiver
• FAQ
Q: TV display “waiting for connection” on the bottom right corner?
A: Please check if the power supply of TX (sender) and RX(receiver) is well
connected and the power indicator led lights on.
Q: TV display “Please check the TX input signal”?
A: 1) please check if there is an HDMI signal input of sender TX
2) Try to connect the signal source directly to display device to see if there
is signal output from source device or change the signal source, HDMI
cables and try again.
Q: Display not fluent and stable?
A: 1) Please move the position of sender (TX) and receiver (RX) and make sure
the device is within the required signal range.
2) Press“reset”button on the TX/RX panel, reset and reconnect.
3) Remove other wireless signal disturbance and reduce the obstacles on
the way.
• Speci fica tion
The product name and brand name may be registered trademark of related
manufacturer s.TM and ® may be omitted on the user manual. The pictures
on the user manual are just for reference,and there may be some slight
difference with the real products.
We reserve the rights to make changes without further notice to a product
or system described here in to imp rove rel iabil ity, fun ction o r desig n.
Disclaim er
HDMI Ca ble
4K HDMI Wireless Extender 200m
User manual
Power led It lights when power is on
Data transmission
led
Led blinks slowly when it is building connection. Led blinks fast
when it is successfully connected and transmitting data
Connection led It lights when wireless signal is well connected
Power input Connect with DC5V/3A power adapter
Reset
Press reset button to restart the device
HDMI input
Connect with HDMI source device
IR OUT
Connect with IR blaster extension cable. Please put the IR blaster
close to source device to best transmit the IR signal from receiver
Antenna
Launch wireless signal
2. HDMI Extender RX receiver
Power led It lights when power is on
Data transmission
led
Led blinks slowly when it is building connection. Led blinks fast
when it is successfully connected and transmitting data
Connection led It lights when wireless signal is well connected
Power input Connect with DC5V/3A power adapter
Reset
Press reset button to restart the device
HDMI output
Connect with HDMI display device
IR IN
Connect with IR receiver extension cable. Please make sure the
remote control is within the required range of IR receiver
Antenna
Receive wireless signal
Please read below saf ety instruc tions carefu lly before in stallation and
operat ion:
1. Please p ay attention to all the warn ings and hin ts on this dev ice.
2. Do not ex pose this uni t to rain, moi sture and liq uid.
3. Do not pu t any stuff in to the device .
4. Do not repair the dev ice or open th e enclosure w ithout profes sional
perso n guidance to avoid electro nic shock.
5. Make sure good ventila tion openin gs to avoid pro duct overhea ting
damag e.
6. Shut off p ower and make s ure environm ent is safe be fore install ation.
7. Do not pl ug-in/out t he network ca bles and IR ca bles when it i s in
using t o avoid cable s damage.
8. Use DC5V only. Make sure th e specifica tion matched if using 3
party DC adapters.
HDMI E xtend er TX
send er*1p cs
HDMI E xtend er RX
rece iver* 1pcs
DC5V /3A pow er
adap ter*2 pcs
IR bla ster ex tensi on
cabl e*1pc s
1. HDMI Extender TX sender
• Impo rt an t saf ety noti ce
rd
This tr ansmitter ex tends HDMI si gnal wireles sly from sourc e device
to displ ay device up t o 200meters w ith the advan ced applicat ion of
HDbitT transpor t protocol and wireless technol ogy. The signa l resolution
up to 4K×2K. It requires no cables be tween sender (TX) and receiver (RX)
which m akes the insta llation eas y and clean.
• Intr oduct ion
Note:
1) Transmis sion distan ce will be dif ferent due to t he environme nt.
2) Wall, b rick or glass will shorte n the signal c over range or cause big
signa l loss.
1. Transmit HDMI signal fro m source device to display device up to
200me ters wireles sly.
2. Suppor t IR remote control function to control sou rce device content
from lo ng distance.
3. No cab le between se nder(TX) an d receiver(R X)
4. Easy a nd clean ins tallation
• Feat ures
• Pack age c ont ent s
IR rec eiver e xtens ion
cabl e*1pc s
User m anual *1pcs
1. HDMI s ource device (DVD, PS3, Set to p box, PC etc)
2. HDMI d isplay devi ce ( SDTV, HDTV, and proje ctor etc.).
• Inst al lat ion Re qu ire men t
• Pane l des cri pti on
IR OUT IR IN
