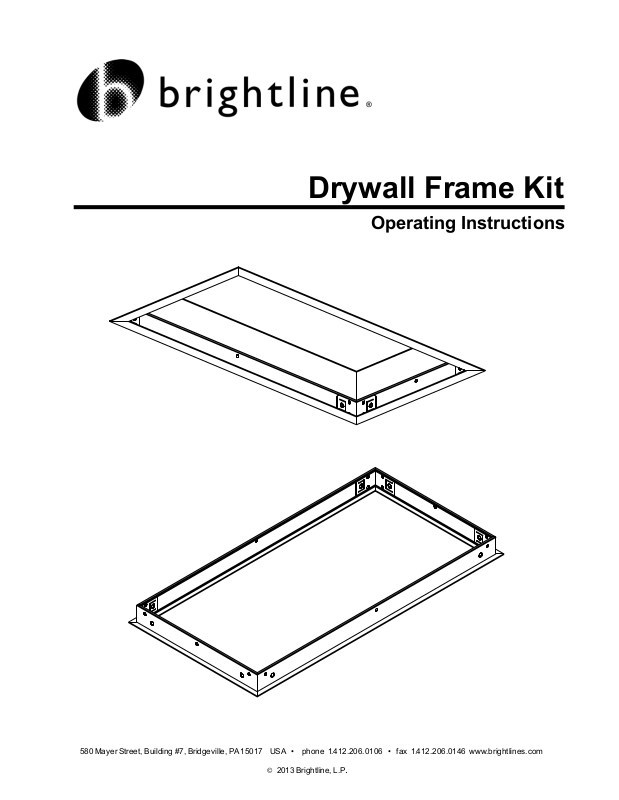

Brightline Drywall Frame Kit Operating Instructions Manual

Drywall Frame Kit

Operating Instructions

580 Mayer Street, Building #7, Bridgeville, PA 15017 USA • phone [phone] • fax [phone] www.brightlines.com

© 2013 Brightline, L.P.

Installation

1. Frame out ceiling opening.

"A"

+1/8"

-0"

(3mm)

2. Opening Size: See chart.

Part Number

016-229

016-228

016-347

016-348

016-354

016-355

016-356

016-357

300mm x 600mm Metric Panel

600mm x 600mm Metric Panel

150mm x 600mm Metric Panel

150mm x 1200mm Metric Panel

1'x2' Imperial Panel

2'x2' Imperial Panel

6"x2' Imperial Panel

6"x4' Imperial Panel

Description

Overall

Frame Dimensions

13.06 inches x 25.06 inches

25.06 inches x 25.06 inches

330mm x 630mm

630mm x 630mm

180mm x 630mm

7.06 inches x 25.06 inches

180mm x 1230mm

7.06 inches x 49.06 inches

(3mm)

+1/8"

"B"

-0"

Cutout "A"

12.25 inches 24.25 inches

24.25 inches 24.25 inches

310mm 610mm

610mm 610mm

160mm 610mm

6.25 inches

160mm

6.25 inches

Cutout "B"

24.25 inches

1210mm

48.25 inches

1

Installation

2

3. Assemble the Drywall Frame Kit with corner brackets.

4. Place in the ceiling opening. The flange should overlap the drywall.

SHIMS (BY OTHERS) IN THE

CORNER WILL CLOSE UP

SEAMS IN DRYWALL FRAME

Installation

3

5. Screw (supplied by others) or nail (supplied by others) frame securely into side framing
members. This must be sufficient to support combined weight of installed fixture and
frame kit. Note: Refer to Datasheet of the fixture for weight.

WOOD SHIM

NOTE: SHIM CORNERS TO
CREATE A HAIRLINE SEAM

6. Install * fixture into Drywall Frame Kit from below by angling the fixture through installed
frame, and lowering the fixture into position.
Note: Electrical power connections must be made prior to installing the fixture unless

the top is accessable.

* See supplement for installation of Video Plus fixture.

Drywall Frame Kit Sizes

4

6"x4'

(150mm X 1200mm)

6"x2'

(150mm X 600mm)

1'x2'

(300mm X 600mm)

2'x2'

(600mm X 600mm)

WARRANTY

5

Brightline guarantees all its products to be free from defects in materials and

workmanship for a period of one (1) year from the date of shipment.

PROCEDURES

If any product is found to be unsatisfactory under this warranty, the buyer must notify

Brightline immediately. Once a course of action has been determined, if it is neces-

sary to return the product to
Ship the product directly to

15017. The RA number should be marked on the shipping carton. The unit will be
replaced or put into proper operating condition, free of all charges. The correction of
any defects through repair or replacement by

all obligations and liability of
contract of sale.

Brightline is not responsible for damage to its products caused by improper

installation, maintenance, or use; by improper electrical hookups; or by unauthorized
repairs.
Failure to notify
unauthorized installation, maintenance, use, repairs, or adjustments shall termina
warranty and

Brightline of unsatisfactory operation or any improper or

Brightline shall have no further responsibility under the warranty.

Brightline shall not be liable for special or consequential damages in any claim,

action, suit, or proceeding arising under this warranty or contract of sale, nor shall

Brightline be liable for claims for labor, loss of profits or goodwill, repairs, or other

expenses incidental to replacement.
whatsoever, expressed or implied, and all implied warranties of merchantability and
fitness for a particular purpose that exceed the obligation specifically described in this
warranty are hereby disclaimed by
All shipments, unless otherwise noted, are F.O.B. factory.
The customer is advised to inspect for shipping damage, apparent and/or hidden.
If detected, notify the transportation company and file your claim.

Brightline a Return Authorization (RA) will be issued.

Brightline, 580 Mayer Street, Building #7, Bridgeville, PA

Brightline shall constitute fulfillment of

Brightline to the buyer under this warranty and the

DISCLAIMERS

te the

Brightline makes no other warranty of any kind

Brightline and excluded from this agreement.

580 Mayer Street, Building #7, Bridgeville, PA 15017 USA · phone [phone] · fax [phone]

www.brightlines.com
