Double Blind

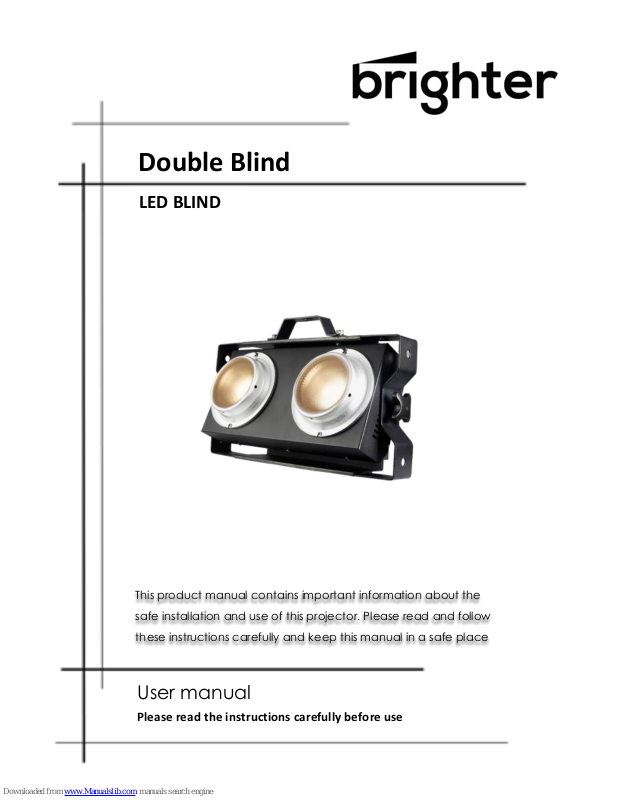

LED BLIND
This product manual contains important information about the
safe installation and use of this projector. Please read and follow
these instructions carefully and keep this manual in a safe place
User manual
Please read the instructions carefully before use
Page 2
Thanks for your choosing our product, which adopts the latest light source-LED. It
overcomes the disadvantages of traditional light source (Such as high electricity
consumption, short life, high temperature, etc.) LED can save much energy, with
long life, high brightness, bright colours. It is the ideal product on all kinds of lighting
fields at present.
SAFTY INFORMATION
1. This unit belongs to class 1 protective lights, so the lights must be
grounded well. Should be grounded by the professional.
2. Please confirm the voltage is among the proper value.
3. Please confirm the power cord is undamaged.
4. Please cut off the power before cleaning the lights.
5. Only permitted to connect the power cord with the plug.
6. Don't use knife to drag the power cord when unplugging.
7. Be careful when installing the light. Don’t touch the bare wire, to avoid the electric
shock.
8. Don't look straight at the light source when the light is on, otherwise your eyes can
be hurt.
9. When choosing the installing position, please confirm the light is not exposed to the
high temperature, moist or dusty place.
10. Please use proper, applicable and safe wires to connect the light.
11. Please don’t operate it until you know the light's function well.
Note: The light should be operated only by the professional engineer.
12. Please don't modify the light at will, which can cause short circuit, burn, electric
shock, etc. Otherwise the manufacturer won't consider warranty.
Technical Specifications:
Power: 2 x 100 W COB LED
Light source: LED COB
Lifetime: up to 60 000 hours
Independently controlled LEDs
Control: DMX512, Sound Active, Master/Slave
DMX: 4, 8 channels
Dimmer: linear 0-100% (32 bit)
Page 3
Colour temperature: 2500K/3200K/6500K
The device can be controlled by the standard DMX512 signal, master/slave control and it can
run alone via the address code as well.
DMX-512 2-8CH control
(1) DMX A001 8 Channels:
CHANNEL
FUNCTION
VALUE
COLOR FUNCTION
CH1
COB(1-4)Dimmer
0-255
Dimmer 0% - 100%
CH2
Strobe
0-255
Strobe
CH3
FUNCTION
0-50
NO
51-100
SKIP
101-150
Gradual
151-200
Pulse
201-255
Sound
CH4
SPEED
0-255
slow-fast
CH5
Dimmer
0-255
COB1
0-100%
CH6
Dimmer
0-255
COB2
0-100%
CH7
Dimmer
0-255
COB3
0-100%
CH8
Dimmer
0-255
COB4
0-100%
(2) DMX B001 2 Channels:
CHANNEL
FUNCTION
VALUE
COLOR FUNCTION
CH1
COB(1-4)Dimmer
0-255
Dimmer 0% - 100%
CH2
Strobe
0-255
Strobe
Page 4
Menu Mode
NUMBER
LCD SCREEN
1
Address A 001 B:001
2
Skip 0-255
3
Gradual 0-255
4
Pulse 0-255
5
Sound
Set up ok
6
COB 1 – COB2 – COB3 – COB4
Dimmer 0-255
7
Gline 0-255
