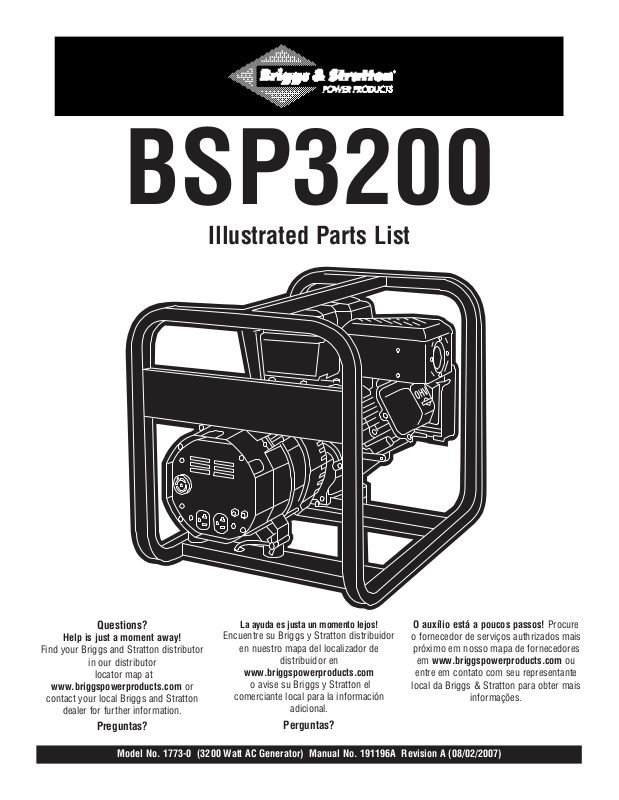

Page 1
Illustrated Parts List
BSP3200
Questions?
Help is just a moment away!
Find your Briggs and Stratton distributor
in our distributor
locator map at
www.briggspowerproducts.com or
contact your local Briggs and Stratton
dealer for further information.
Preguntas?
La ayuda es justa un momento lejos!
Encuentre su Briggs y Stratton distribuidor
en nuestro mapa del localizador de
distribuidor en
www.briggspowerproducts.com
o avise su Briggs y Stratton el
comerciante local para la información
adicional.
Perguntas?
O auxílio está a poucos passos! Procure
o fornecedor de serviços authrizados mais
próximo em nosso mapa de fornecedores
em www.briggspowerproducts.com ou
entre em contato com seu representante
local da Briggs & Stratton para obter mais
informações.
Model No. 1773-0 (3200 Watt AC Generator) Manual No. 191196A Revision A (08/02/2007)
Page 2
2
BSP 3200 Generator
EXPLODED VIEW – MAIN UNIT
Copyright © 2007 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
Page 3
BSP 3200 Generator
3
PARTS LIST – MAIN UNIT
Item Part # Description
1 191403GS SET, Decal, Unit & Air Cover
2 M190341GS KIT, Cradle (Includes 24, 30, 31 & 33)
3 67989GS NUT, M8 Flanged Serrated
4 81917GS PIN, Roll, 4mm x 10
5 70642GS MOUNT, Vibration Engine
6 66365GS HOUSING, Engine Adaptor
7 86307GS HHCS, 5/16" x 3/4", SEMS
8 B2816JGS ASSY, Rotor
9 * WASHER, 5/16 - M8
10 96796GS WASHER, Flat (special)
11 47480GS HHCS, 5/16" - 24 x 7
12 191271AGS ASSY, Stator
13 66825BGS CARRIER, Rear Bearing
14 67022GS GROMMET, Rubber
15 86308GGS HHCS, M6-1.0 x 100, SEMS
16 95003AGS ASSY., Control Panel
17 74908GS TAPTITE, M5 .08 x 10mm
18 191459GS DECAL, Control Panel
19 91825GS RECTIFIER, Brush & Bridge
20 66849GS TAPTITE, M5 - .08 x 20mm
21 86494GS SCREW, M6 - 1.0 x 16 Wing
23 195373GS WIRE, Ground
24 B4986GS DECAL, Ground
25 * WASHER, #10 Ext. Shakeproof
26 * TPHMS, M8 1.25 x 35
27 86292GS SCREW, Self Driller 12-14 x 7/8"
28 84242GS GROMMET
29 55199JGS WIRE, Ground Panel
30 93639GS DECAL, Danger
31 191438GS DECAL, Danger Instructions
32 * PPHMS, M8 - 1.25 x 20
33 191436GS DECAL, Caution Hot Muffler
900 § ENGINE
Parts Not Illustrated
191196GS MANUAL, Operator
MS3780 MANUAL, Engine
43483GS PLUG, 250V, 20A
* - Items without part numbers are common fasteners and are available at local hardware stores.
§ - Contact Engine Manufacturer
Page 4
4
BSP 3200 Generator
EXPLODED VIEW AND PARTS LIST – CONTROL PANEL
Item Part # Description
1 95600GS COVER, Control Panel
2 * PPHMS, M4 0.7 x 10
3 94396BGS CIRCUIT BREAKER, 20amp
4 94396AGS CIRCUIT BREAKER, 15amp
5 * WASHER, #8 Shakeproof, Int.
6 68759GS OUTLET, 120V, 20A
7 * WASHER, Flat, #8
8 * WASHER, Lock #8
9 * NUT, M4 - 0.7 Hex
10 68867GS OUTLET, 120/240V, 20Amp
11 * NUT, 3/8 - 24
* - Items without part numbers are common fasteners and are
available at local hardware stores.
