AYP3352A59 (1995) Page 1 of 24
BELT GUARD AND PULLEY
AYP3352A59 (1995) Page 2 of 24
BELT GUARD AND PULLEY
Ref # Part Number Qty Description
1 121313X SUB= 159233
2 109227X PAD IDLER TI
3 130812 ENGINE PULLEY
4 74770812 SCREW
5 72140404 BOLT
6 121463X KEEPER BELT
7 104213X NUT-CAP TI
8 19091016 WASHER
9 131158X017 GUARD.BELT.SLKSCR
10 72140405 BOLT T
11 9180R V BELT STD
12 23230506 SET SCREW
13 2649M KEY T
14 9175R TRANS SHEAVE RT
15 110528X BOLT TI
16 12000036 KLIP RING TI
17 73350600 NUT
18 9178R SUB= 75673
19 674A30 IDLER ARM TI
20 74760620 SUB= 74780620
21 106968X SHAFT IDLER TI
22 73350500 JAM NUT TI
23 73220400 SUB= 50675
24 10040400 LOCKWASHER
AYP3352A59 (1995) Page 3 of 24
DECALS
AYP3352A59 (1995) Page 4 of 24
DECALS
Ref # Part Number Qty Description
1 146348 DECAL.CNTRL.PNL.5
2 146356 DECAL.GUARD.BELT.
3 127521 NLA
4 110594X DECAL TI
5 120431X DECAL TI
6 110593X SUB= 121858X
7 271948 DECAL, BRIGGS & STRATTON
8 120075X DECAL TI
145903 MANUAL.O.3352A59
AYP3352A59 (1995) Page 5 of 24

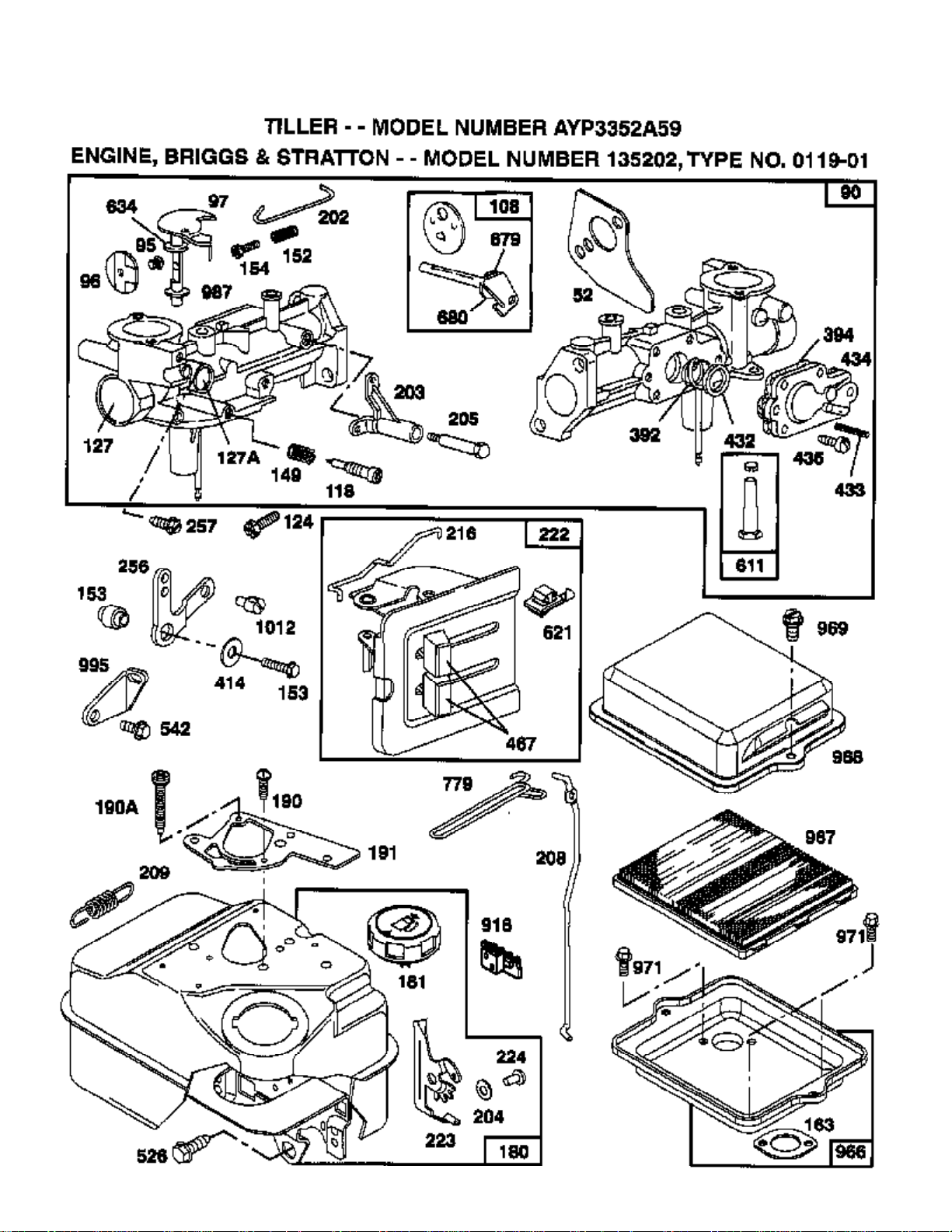

ENGINE/B&S
AYP3352A59 (1995) Page 6 of 24
ENGINE/B&S
Ref # Part Number Qty Description
1 395990 CYLINDER ASSEMBLY
2 297565 BUSHING, CYLINDER
3 299819 SEAL, OIL
5 214040 HEAD, CYLINDER
7 272157 GASKET, CYLINDER HEAD
8 495774 BREATHER ASSEMBLY
9 27549 GASKET, VALVE COVER
10 94621 SCREW, STEMS
11 66578 GROMMET, BREATHER TUBE
12 270080 GASKET CRANKCASE STANDARD .015"
270125 GASKET, CRANKCASE .005" THICK
270126 GASKET, CRANKCASE .009" THICK
13 94221 SCREW, CYLINDER HEAD 2-3/32"
14 94679 SCREW, CYLINDER HEAD 2-15/32"
15 93448 PLUG, PIPE, HEX SOCKET
94387 PLUG OIL DRAIN
16 492088 CRANKSHAFT
230978 CRANKSHAFT GEAR PIN
18 297602 COVER ASSEMBLY, CRANKCASE
19 495660 BUSHING, CRANKCASE COVER
20 294606 SEAL, OIL
21 66768 PLUG, OIL FILLER
22 94682 SCREW
23 297229 FLYWHEEL, MAGNETO
24 222698 KEY, FLYWHEEL
25 298904 PISTON ASSEMBLY, STANDARD
298905 PISTON ASSEMBLY .010" OVERSIZE
298906 PISTON ASSEMBLY .020" OVERSIZE
298907 PISTON ASSEMBLY .030" OVERSIZE
26 298982 RING SET, PISTON, STANDARD
299742 RING SET, PISTON, CHROME, STANDARD
298983 RING SET, PISTON .010" OVERSIZE
298984 RING SET, PISTON .020" OVERSIZE
298985 RING SET, PISTON .030" OVERSIZE
27 26026 LOCK, PISTON PIN
28 298909 PIN ASSY, PISTON, STD
298908 PIN ASSEMBLY, PISTON .005" OVERSIZE
29 299430 ROD ASSEMBLY, CONNECTING
390459 ROD ASSEMBLY, CONNECTING
30 221890 DIPPER, CONNECTING ROD
32 94745 SCREW, CONNECTING ROD
33 211119 VALVE, EXHAUST
34 261044 VALVE, INTAKE
35 260552 SPRING, INTAKE VALVE
36 26478 SPRING, EXHAUST VALVE
37 222443 GUARD, FLYWHEEL
40 93312 RETAINER, VALVE SPRING
45 260642 TAPPET, VALVE
46 212733 GEAR, CAM
52 271936 GASKET, INTAKE ELBOW MOUNTING
55 494846 HOUSING, REWIND STARTER
56 493824 PULLEY, REWIND STARTER
57 262594 SPRING, REWIND STARTER
58 280406 ROPE, REWIND STARTER
59 396892 INSERT, HANDLE
60 393152 HANDLE, REWIND STARTER
65 94686 SCREW, HOUSING MOUNTING
69 280973 WASHER
AYP3352A59 (1995) Page 7 of 24
ENGINE/B&S
Ref # Part Number Qty Description
69A 224322 WASHER
73 224632 SCREEN, ROTATING
81 222263 LOCK, SCREW
90 495426 CARBURETOR ASSEMBLY
95 93499 SCREW
96 223793 THROTTLE, CARBURETOR
97 490048 SHAFT AND LEVER THROTTLE
108 491177 VALVE AND SHAFT GROUP, CHOKE
118 231533 VALVE, NEEDLE
121 495606 CARBURETOR OVERHAUL KIT
124 94616 SCREW, ELBOW MOUNTING
127 220352 PLUG, WELCH
127A 223789 PLUG, WELCH
149 26336 SPRING, NEEDLE VALVE
152 260575 SPRING, THROTTLE ADJUSTMENT
153 490589 SCREW AND COLLAR
154 93527 SCREW, MACHINE, ROUND HEAD
163 271935 GASKET, AIR CLEANER MOUNTING
180 495405 TANK ASSEMBLY, FUEL
181 494559 CAP, FUEL TANK
190 94712 SCREW, FUEL TANK
190A 94677 SCREW, FUEL TANK MOUNTING1-3/4"
191 272489 GASKET, FUEL TANK TO CARBURETOR
200 223886 GUIDE, AIR
202 262270 LINK, THROTTLE
203 280720 BELL CRANK
495603 GASKET SET
495606 CARBURETOR OVERHAUL KIT
204 222962 BUSHING, GOVERNOR LEVER, FLAT
205 231520 SCREW, SHOULDER
208 262279 ROD, SPEED CONTROL
209 262283 SPRING, GOVERNOR
216 262359 LINK, CHOKE
219 494845 GEAR, GOVERNOR
220 221551 WASHER THRUST
222 490649 PANEL, CONTROL
223 223455 LEVER, GOVERNOR CONTROL
224 93491 RIVET, GOVERNOR CONTROL LEVER MOUNTING
227 490374 LEVER ASSEMBLY, GOVERNOR
230 222450 WASHER, GOVERNOR LEVER
256 223813 CRANK, BELL
257 93543 SCREW, SEMS, HEX HEAD
300 393615 MUFFLER, EXHAUST
304 495759 HOUSING, BLOWER
305 94619 SCREW, SEMS, BLOWER, HOUSING MOUNTING
306 221511 SHIELD, CYLINDER
308 224738 COVER, CYLINDER HEAD
332 92284 NUT, FLYWHEEL
333 397358 ARMATURE GROUP
334 93414 SCREW, ARMATURE MOUNTING
337 802592 PLUG, SPARK
346 93705 SUB= 69485
356 398808 WIRE, GROUND
358 495603 GASKET SET
363 19069 PULLEY, FLYWHEEL
373 92987 NUT, HEX
383 89838 WRENCH SPARK PLUG
392 262328 SPRING, FUEL PUMP DIAPHRAGM
AYP3352A59 (1995) Page 8 of 24
ENGINE/B&S
Ref # Part Number Qty Description
394 272538 DIAPHRAGM
414 220982 WASHER
432 221377 CAP, SPRING
433 93265 PIN, DIAPHRAGM COVER
434 214021 COVER, DIAPHRAGM
435 93141 SCREW, DIAPHRAGM
455 224250 CUP, STARTER
456 224321 RETAINER, REWIND STARTER
459 492833 PAWL, STARTER
461 262626 PIN, STARTER
467 280715 KNOB, CONTROL
515 262625 SPRING, TORSION
526 94659 SCREW,SEMS,TANK BRACKET MOUNT
527 223786 CLAMP BREATHER TUBE
528 231550 TUBE, BREATHER
529 67838 GROMMET, BREATHER TUBE
542 93572 SCREW
552 231079 BUSHING, GOVERNOR CRANK
562 92613 BOLT, GOVERNOR LEVER
592 231082 NUT, HEX
608 495766 STARTER ASSEMBLY, REWIND
611 391813 FUEL PIPE AND CLIP ASSEMBLY
613 93935 SCREW, HEX HEAD
614 93306 COTTER, HAIR PIN
615 93307 RETAINER, E-RING
616 231077 CRANK, GOVERNOR
621 396847 SWITCH, STOP
634 271853 WASHER, THROTTLE SHAFT, FOAM
635 66538 ELBOW, SPARK PLUG
676 393757 DEFLECTOR, EXHAUST, SIDE OUTLET
679 270382 WASHER, FOAM
680 221839 WASHER, BRASS
741 261696 GEAR, TIMING
779 262570 LINK, SPEED CONTROL
851 221798 TERMINAL, IGNITION CABLE
869 211787 SEAT, INTAKE VALVE, STANDARD
870 211172 SEAT, INTAKE VALVE, STANDARD
871 262001 GUIDE, EXHAUST VALVE
63709 GUIDE, INTAKE VALVE
916 280321 RACK, GEAR CONTROL
966 492797 BASE, AIR CLEANER
967 491588 SUB= 3364
968 495357 COVER, AIR CLEANER
969 490073 SCREW, COVER MOUNTING
971 94018 SCREW, AIR CLEANER
987 398970 SEAL, THROTTLE SHAFT
995 223887 BRACKET, CONTROL LINK
1012 490507 RETAINER, LINK
1016 224278 COVER, REWIND STARTER
AYP3352A59 (1995) Page 9 of 24
ENGINE/B&S
AYP3352A59 (1995) Page 10 of 24
ENGINE/B&S
Ref # Part Number Qty Description
1 395990 CYLINDER ASSEMBLY
2 297565 BUSHING, CYLINDER
3 299819 SEAL, OIL
5 214040 HEAD, CYLINDER
7 272157 GASKET, CYLINDER HEAD
8 495774 BREATHER ASSEMBLY
9 27549 GASKET, VALVE COVER
10 94621 SCREW, STEMS
11 66578 GROMMET, BREATHER TUBE
12 270080 GASKET CRANKCASE STANDARD .015"
270125 GASKET, CRANKCASE .005" THICK
270126 GASKET, CRANKCASE .009" THICK
13 94221 SCREW, CYLINDER HEAD 2-3/32"
14 94679 SCREW, CYLINDER HEAD 2-15/32"
15 93448 PLUG, PIPE, HEX SOCKET
94387 PLUG OIL DRAIN
16 492088 CRANKSHAFT
230978 CRANKSHAFT GEAR PIN
18 297602 COVER ASSEMBLY, CRANKCASE
19 495660 BUSHING, CRANKCASE COVER
20 294606 SEAL, OIL
21 66768 PLUG, OIL FILLER
22 94682 SCREW
23 297229 FLYWHEEL, MAGNETO
24 222698 KEY, FLYWHEEL
25 298904 PISTON ASSEMBLY, STANDARD
298905 PISTON ASSEMBLY .010" OVERSIZE
298906 PISTON ASSEMBLY .020" OVERSIZE
298907 PISTON ASSEMBLY .030" OVERSIZE
26 298982 RING SET, PISTON, STANDARD
299742 RING SET, PISTON, CHROME, STANDARD
298983 RING SET, PISTON .010" OVERSIZE
298984 RING SET, PISTON .020" OVERSIZE
298985 RING SET, PISTON .030" OVERSIZE
27 26026 LOCK, PISTON PIN
28 298909 PIN ASSY, PISTON, STD
298908 PIN ASSEMBLY, PISTON .005" OVERSIZE
29 299430 ROD ASSEMBLY, CONNECTING
390459 ROD ASSEMBLY, CONNECTING
30 221890 DIPPER, CONNECTING ROD
32 94745 SCREW, CONNECTING ROD
33 211119 VALVE, EXHAUST
34 261044 VALVE, INTAKE
35 260552 SPRING, INTAKE VALVE
36 26478 SPRING, EXHAUST VALVE
37 222443 GUARD, FLYWHEEL
40 93312 RETAINER, VALVE SPRING
45 260642 TAPPET, VALVE
46 212733 GEAR, CAM
52 271936 GASKET, INTAKE ELBOW MOUNTING
55 494846 HOUSING, REWIND STARTER
56 493824 PULLEY, REWIND STARTER
57 262594 SPRING, REWIND STARTER
58 280406 ROPE, REWIND STARTER
59 396892 INSERT, HANDLE
60 393152 HANDLE, REWIND STARTER
65 94686 SCREW, HOUSING MOUNTING
69 280973 WASHER
AYP3352A59 (1995) Page 11 of 24
ENGINE/B&S
Ref # Part Number Qty Description
69A 224322 WASHER
73 224632 SCREEN, ROTATING
81 222263 LOCK, SCREW
90 495426 CARBURETOR ASSEMBLY
95 93499 SCREW
96 223793 THROTTLE, CARBURETOR
97 490048 SHAFT AND LEVER THROTTLE
108 491177 VALVE AND SHAFT GROUP, CHOKE
118 231533 VALVE, NEEDLE
121 495606 CARBURETOR OVERHAUL KIT
124 94616 SCREW, ELBOW MOUNTING
127 220352 PLUG, WELCH
127A 223789 PLUG, WELCH
149 26336 SPRING, NEEDLE VALVE
152 260575 SPRING, THROTTLE ADJUSTMENT
153 490589 SCREW AND COLLAR
154 93527 SCREW, MACHINE, ROUND HEAD
163 271935 GASKET, AIR CLEANER MOUNTING
180 495405 TANK ASSEMBLY, FUEL
181 494559 CAP, FUEL TANK
190 94712 SCREW, FUEL TANK
190A 94677 SCREW, FUEL TANK MOUNTING1-3/4"
191 272489 GASKET, FUEL TANK TO CARBURETOR
200 223886 GUIDE, AIR
202 262270 LINK, THROTTLE
203 280720 BELL CRANK
495603 GASKET SET
495606 CARBURETOR OVERHAUL KIT
204 222962 BUSHING, GOVERNOR LEVER, FLAT
205 231520 SCREW, SHOULDER
208 262279 ROD, SPEED CONTROL
209 262283 SPRING, GOVERNOR
216 262359 LINK, CHOKE
219 494845 GEAR, GOVERNOR
220 221551 WASHER THRUST
222 490649 PANEL, CONTROL
223 223455 LEVER, GOVERNOR CONTROL
224 93491 RIVET, GOVERNOR CONTROL LEVER MOUNTING
227 490374 LEVER ASSEMBLY, GOVERNOR
230 222450 WASHER, GOVERNOR LEVER
256 223813 CRANK, BELL
257 93543 SCREW, SEMS, HEX HEAD
300 393615 MUFFLER, EXHAUST
304 495759 HOUSING, BLOWER
305 94619 SCREW, SEMS, BLOWER, HOUSING MOUNTING
306 221511 SHIELD, CYLINDER
308 224738 COVER, CYLINDER HEAD
332 92284 NUT, FLYWHEEL
333 397358 ARMATURE GROUP
334 93414 SCREW, ARMATURE MOUNTING
337 802592 PLUG, SPARK
346 93705 SUB= 69485
356 398808 WIRE, GROUND
358 495603 GASKET SET
363 19069 PULLEY, FLYWHEEL
373 92987 NUT, HEX
383 89838 WRENCH SPARK PLUG
392 262328 SPRING, FUEL PUMP DIAPHRAGM
AYP3352A59 (1995) Page 12 of 24
ENGINE/B&S
Ref # Part Number Qty Description
394 272538 DIAPHRAGM
414 220982 WASHER
432 221377 CAP, SPRING
433 93265 PIN, DIAPHRAGM COVER
434 214021 COVER, DIAPHRAGM
435 93141 SCREW, DIAPHRAGM
455 224250 CUP, STARTER
456 224321 RETAINER, REWIND STARTER
459 492833 PAWL, STARTER
461 262626 PIN, STARTER
467 280715 KNOB, CONTROL
515 262625 SPRING, TORSION
526 94659 SCREW,SEMS,TANK BRACKET MOUNT
527 223786 CLAMP BREATHER TUBE
528 231550 TUBE, BREATHER
529 67838 GROMMET, BREATHER TUBE
542 93572 SCREW
552 231079 BUSHING, GOVERNOR CRANK
562 92613 BOLT, GOVERNOR LEVER
592 231082 NUT, HEX
608 495766 STARTER ASSEMBLY, REWIND
611 391813 FUEL PIPE AND CLIP ASSEMBLY
613 93935 SCREW, HEX HEAD
614 93306 COTTER, HAIR PIN
615 93307 RETAINER, E-RING
616 231077 CRANK, GOVERNOR
621 396847 SWITCH, STOP
634 271853 WASHER, THROTTLE SHAFT, FOAM
635 66538 ELBOW, SPARK PLUG
676 393757 DEFLECTOR, EXHAUST, SIDE OUTLET
679 270382 WASHER, FOAM
680 221839 WASHER, BRASS
741 261696 GEAR, TIMING
779 262570 LINK, SPEED CONTROL
851 221798 TERMINAL, IGNITION CABLE
869 211787 SEAT, INTAKE VALVE, STANDARD
870 211172 SEAT, INTAKE VALVE, STANDARD
871 262001 GUIDE, EXHAUST VALVE
63709 GUIDE, INTAKE VALVE
916 280321 RACK, GEAR CONTROL
966 492797 BASE, AIR CLEANER
967 491588 SUB= 3364
968 495357 COVER, AIR CLEANER
969 490073 SCREW, COVER MOUNTING
971 94018 SCREW, AIR CLEANER
987 398970 SEAL, THROTTLE SHAFT
995 223887 BRACKET, CONTROL LINK
1012 490507 RETAINER, LINK
1016 224278 COVER, REWIND STARTER
AYP3352A59 (1995) Page 13 of 24
ENGINE/B&S
AYP3352A59 (1995) Page 14 of 24
ENGINE/B&S
Ref # Part Number Qty Description
1 395990 CYLINDER ASSEMBLY
2 297565 BUSHING, CYLINDER
3 299819 SEAL, OIL
5 214040 HEAD, CYLINDER
7 272157 GASKET, CYLINDER HEAD
8 495774 BREATHER ASSEMBLY
9 27549 GASKET, VALVE COVER
10 94621 SCREW, STEMS
11 66578 GROMMET, BREATHER TUBE
12 270080 GASKET CRANKCASE STANDARD .015"
270125 GASKET, CRANKCASE .005" THICK
270126 GASKET, CRANKCASE .009" THICK
13 94221 SCREW, CYLINDER HEAD 2-3/32"
14 94679 SCREW, CYLINDER HEAD 2-15/32"
15 93448 PLUG, PIPE, HEX SOCKET
94387 PLUG OIL DRAIN
16 492088 CRANKSHAFT
230978 CRANKSHAFT GEAR PIN
18 297602 COVER ASSEMBLY, CRANKCASE
19 495660 BUSHING, CRANKCASE COVER
20 294606 SEAL, OIL
21 66768 PLUG, OIL FILLER
22 94682 SCREW
23 297229 FLYWHEEL, MAGNETO
24 222698 KEY, FLYWHEEL
25 298904 PISTON ASSEMBLY, STANDARD
298905 PISTON ASSEMBLY .010" OVERSIZE
298906 PISTON ASSEMBLY .020" OVERSIZE
298907 PISTON ASSEMBLY .030" OVERSIZE
26 298982 RING SET, PISTON, STANDARD
299742 RING SET, PISTON, CHROME, STANDARD
298983 RING SET, PISTON .010" OVERSIZE
298984 RING SET, PISTON .020" OVERSIZE
298985 RING SET, PISTON .030" OVERSIZE
27 26026 LOCK, PISTON PIN
28 298909 PIN ASSY, PISTON, STD
298908 PIN ASSEMBLY, PISTON .005" OVERSIZE
29 299430 ROD ASSEMBLY, CONNECTING
390459 ROD ASSEMBLY, CONNECTING
30 221890 DIPPER, CONNECTING ROD
32 94745 SCREW, CONNECTING ROD
33 211119 VALVE, EXHAUST
34 261044 VALVE, INTAKE
35 260552 SPRING, INTAKE VALVE
36 26478 SPRING, EXHAUST VALVE
37 222443 GUARD, FLYWHEEL
40 93312 RETAINER, VALVE SPRING
45 260642 TAPPET, VALVE
46 212733 GEAR, CAM
52 271936 GASKET, INTAKE ELBOW MOUNTING
55 494846 HOUSING, REWIND STARTER
56 493824 PULLEY, REWIND STARTER
57 262594 SPRING, REWIND STARTER
58 280406 ROPE, REWIND STARTER
59 396892 INSERT, HANDLE
60 393152 HANDLE, REWIND STARTER
65 94686 SCREW, HOUSING MOUNTING
69 280973 WASHER
AYP3352A59 (1995) Page 15 of 24
ENGINE/B&S
Ref # Part Number Qty Description
69A 224322 WASHER
73 224632 SCREEN, ROTATING
81 222263 LOCK, SCREW
90 495426 CARBURETOR ASSEMBLY
95 93499 SCREW
96 223793 THROTTLE, CARBURETOR
97 490048 SHAFT AND LEVER THROTTLE
108 491177 VALVE AND SHAFT GROUP, CHOKE
118 231533 VALVE, NEEDLE
121 495606 CARBURETOR OVERHAUL KIT
124 94616 SCREW, ELBOW MOUNTING
127 220352 PLUG, WELCH
127A 223789 PLUG, WELCH
149 26336 SPRING, NEEDLE VALVE
152 260575 SPRING, THROTTLE ADJUSTMENT
153 490589 SCREW AND COLLAR
154 93527 SCREW, MACHINE, ROUND HEAD
163 271935 GASKET, AIR CLEANER MOUNTING
180 495405 TANK ASSEMBLY, FUEL
181 494559 CAP, FUEL TANK
190 94712 SCREW, FUEL TANK
190A 94677 SCREW, FUEL TANK MOUNTING1-3/4"
191 272489 GASKET, FUEL TANK TO CARBURETOR
200 223886 GUIDE, AIR
202 262270 LINK, THROTTLE
203 280720 BELL CRANK
495603 GASKET SET
495606 CARBURETOR OVERHAUL KIT
204 222962 BUSHING, GOVERNOR LEVER, FLAT
205 231520 SCREW, SHOULDER
208 262279 ROD, SPEED CONTROL
209 262283 SPRING, GOVERNOR
216 262359 LINK, CHOKE
219 494845 GEAR, GOVERNOR
220 221551 WASHER THRUST
222 490649 PANEL, CONTROL
223 223455 LEVER, GOVERNOR CONTROL
224 93491 RIVET, GOVERNOR CONTROL LEVER MOUNTING
227 490374 LEVER ASSEMBLY, GOVERNOR
230 222450 WASHER, GOVERNOR LEVER
256 223813 CRANK, BELL
257 93543 SCREW, SEMS, HEX HEAD
300 393615 MUFFLER, EXHAUST
304 495759 HOUSING, BLOWER
305 94619 SCREW, SEMS, BLOWER, HOUSING MOUNTING
306 221511 SHIELD, CYLINDER
308 224738 COVER, CYLINDER HEAD
332 92284 NUT, FLYWHEEL
333 397358 ARMATURE GROUP
334 93414 SCREW, ARMATURE MOUNTING
337 802592 PLUG, SPARK
346 93705 SUB= 69485
356 398808 WIRE, GROUND
358 495603 GASKET SET
363 19069 PULLEY, FLYWHEEL
373 92987 NUT, HEX
383 89838 WRENCH SPARK PLUG
392 262328 SPRING, FUEL PUMP DIAPHRAGM
AYP3352A59 (1995) Page 16 of 24
ENGINE/B&S
Ref # Part Number Qty Description
394 272538 DIAPHRAGM
414 220982 WASHER
432 221377 CAP, SPRING
433 93265 PIN, DIAPHRAGM COVER
434 214021 COVER, DIAPHRAGM
435 93141 SCREW, DIAPHRAGM
455 224250 CUP, STARTER
456 224321 RETAINER, REWIND STARTER
459 492833 PAWL, STARTER
461 262626 PIN, STARTER
467 280715 KNOB, CONTROL
515 262625 SPRING, TORSION
526 94659 SCREW,SEMS,TANK BRACKET MOUNT
527 223786 CLAMP BREATHER TUBE
528 231550 TUBE, BREATHER
529 67838 GROMMET, BREATHER TUBE
542 93572 SCREW
552 231079 BUSHING, GOVERNOR CRANK
562 92613 BOLT, GOVERNOR LEVER
592 231082 NUT, HEX
608 495766 STARTER ASSEMBLY, REWIND
611 391813 FUEL PIPE AND CLIP ASSEMBLY
613 93935 SCREW, HEX HEAD
614 93306 COTTER, HAIR PIN
615 93307 RETAINER, E-RING
616 231077 CRANK, GOVERNOR
621 396847 SWITCH, STOP
634 271853 WASHER, THROTTLE SHAFT, FOAM
635 66538 ELBOW, SPARK PLUG
676 393757 DEFLECTOR, EXHAUST, SIDE OUTLET
679 270382 WASHER, FOAM
680 221839 WASHER, BRASS
741 261696 GEAR, TIMING
779 262570 LINK, SPEED CONTROL
851 221798 TERMINAL, IGNITION CABLE
869 211787 SEAT, INTAKE VALVE, STANDARD
870 211172 SEAT, INTAKE VALVE, STANDARD
871 262001 GUIDE, EXHAUST VALVE
63709 GUIDE, INTAKE VALVE
916 280321 RACK, GEAR CONTROL
966 492797 BASE, AIR CLEANER
967 491588 SUB= 3364
968 495357 COVER, AIR CLEANER
969 490073 SCREW, COVER MOUNTING
971 94018 SCREW, AIR CLEANER
987 398970 SEAL, THROTTLE SHAFT
995 223887 BRACKET, CONTROL LINK
1012 490507 RETAINER, LINK
1016 224278 COVER, REWIND STARTER
AYP3352A59 (1995) Page 17 of 24
HANDLE
AYP3352A59 (1995) Page 18 of 24
HANDLE
Ref # Part Number Qty Description
1 137176X505 HANDLE BRKT
2 72140512 BOLT
3 73680500 SUB= 73690500
4 19111116 WASHER
5 2621J500 SUB= 154127
6 140536 GRIP NUB DOUBLE
7 74760524 BOLT.HEX.5/16-1.5
8 3069J SUB= 164937
9 8206H GRIP T
10 1685H SUB= 68478
11 3067J SUB= 100382K
12 3070J SPRING EXT TI
13 19121414 WASHER
14 136376 KNOB HANDLE
15 471J BOLT CT
16 10040500 LOCKWASHER
17 73220500 NUT.HEX.5/16-18
18 98000129 NUT
19 72140506 BOLT
20 9209R505 PANEL. HANDLE
21 72110508 BOLT CRT
22 2622J500 SUB= 159764
23 19131312 WASHER
AYP3352A59 (1995) Page 19 of 24
TINE ASSEMBLY
AYP3352A59 (1995) Page 20 of 24
TINE ASSEMBLY
Ref # Part Number Qty Description
1 674A66 TINE OUTER RH T
2 3146R RETAINER.SPRING
3 674A64 SUB= 156924
4 674A63 TINE.INNER.LH
5 674A65 TINE.OUTER.LH.T
6 4929H RIVET.PAN HD.1.75
AYP3352A59 (1995) Page 21 of 24
TRANSMISSION
AYP3352A59 (1995) Page 22 of 24
TRANSMISSION
Ref # Part Number Qty Description
1 74760524 BOLT.HEX.5/16-1.5
2 74780652 BOLT HEX 3/8-16
3 19131311 WASHER
5 73800600 NUT
6 9056R505 "SHIELD, TINE"
7 1949J500 SUB= 9181949J500
8 110519X500 SUB= 110519X
9 10040500 LOCKWASHER
10 73220500 NUT.HEX.5/16-18
11 74760544 SUB= 74780544
12 126669X SUB= 532126669
14 9173R SPLIT SPACER RT
15 73510500 NUT
16 19091412 WASHER
17 19092016 WASHER
18 10040400 LOCKWASHER
19 74610412 BOLT
20 REFER TO IMAGE
AYP3352A59 (1995) Page 23 of 24
WHEEL AND DEPTH STAKE
AYP3352A59 (1995) Page 24 of 24
WHEEL AND DEPTH STAKE
Ref # Part Number Qty Description
1 9194R DRILLED RIVET RT
2 74760520 BOLT
3 74760512 BOLT
4 73220500 NUT.HEX.5/16-18
5 10040500 LOCKWASHER
6 73800600 NUT
7 4921H SPRING.RETAINER
8 1952J500 SUPPORT STAKE RH
9 122233X SUB= 2582J
10 326J500 SUB= 4929H
11 74780628 BOLT
12 74760524 BOLT.HEX.5/16-1.5
13 1951J500 SUPPORT STAKE LH
14 120958X WASHER
15 5388J STAKE SPRING TI
16 121117X BOLT SHOULDER
17 9188R SUB= 107644X
18 19131311 WASHER
19 9190R500 BRACKET.WHL.PNT.
20 73680600 SUB= 73690600
21 74760516 SUB= 77394
22 73800500 NUT
Loading...
