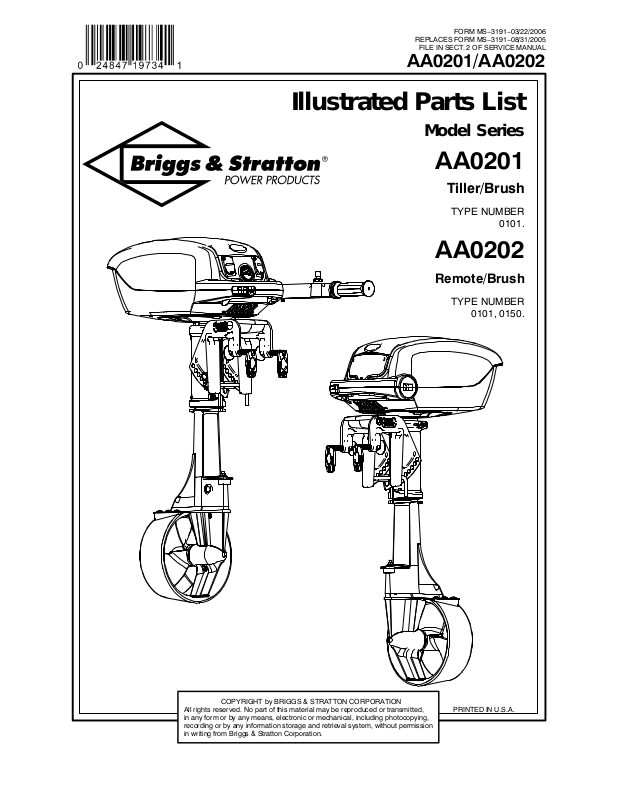

REPLACES FORM MS−3191−08/31/2005
FILE IN SECT. 2 OF SERVICE MANUAL
FORM MS−3191−03/22/2006
AA0201/AA0202
Illustrated Parts List
Model Series
AA0201
Tiller/Brush
TYPE NUMBER
0101.
AA0202
Remote/Brush
TYPE NUMBER
0101, 0150.
All rights reserved. No part of this material may be reproduced or transmitted,
in any form or by any means, electronic or mechanical, including photocopying,
recording or by any information storage and retrieval system, without permission
in writing from Briggs & Stratton Corporation.
COPYRIGHT by BRIGGS & STRATTON CORPORATION
PRINTED IN U.S.A.
AA0201/AA0202
1058 OPERATOR’S MANUAL
REMOTE COWL
3004A
1019
TILLER COWL
3216
3004
3212
3232
3202
3205
3051A
3203
10 FOOT POWER HARNESS 16 FOOT POWER HARNESS
3233
3211
486
3211
486
3051
3191−2 Assemblies include all parts shown in frames. 03/22/2006
2
3248
AA0201/AA0202
3211
3246A
3246
3247
3207
3210
3241
3000
3223
3209
3075
3234
3235
3209A
3206
3238
3237
3217
3221
3235A
3235B
3234A
3236
3201
3200
3239
3214
3213
3215
3240
3191−3 Assemblies include all parts shown in frames. 03/22/2006
3
AA0201/AA0202

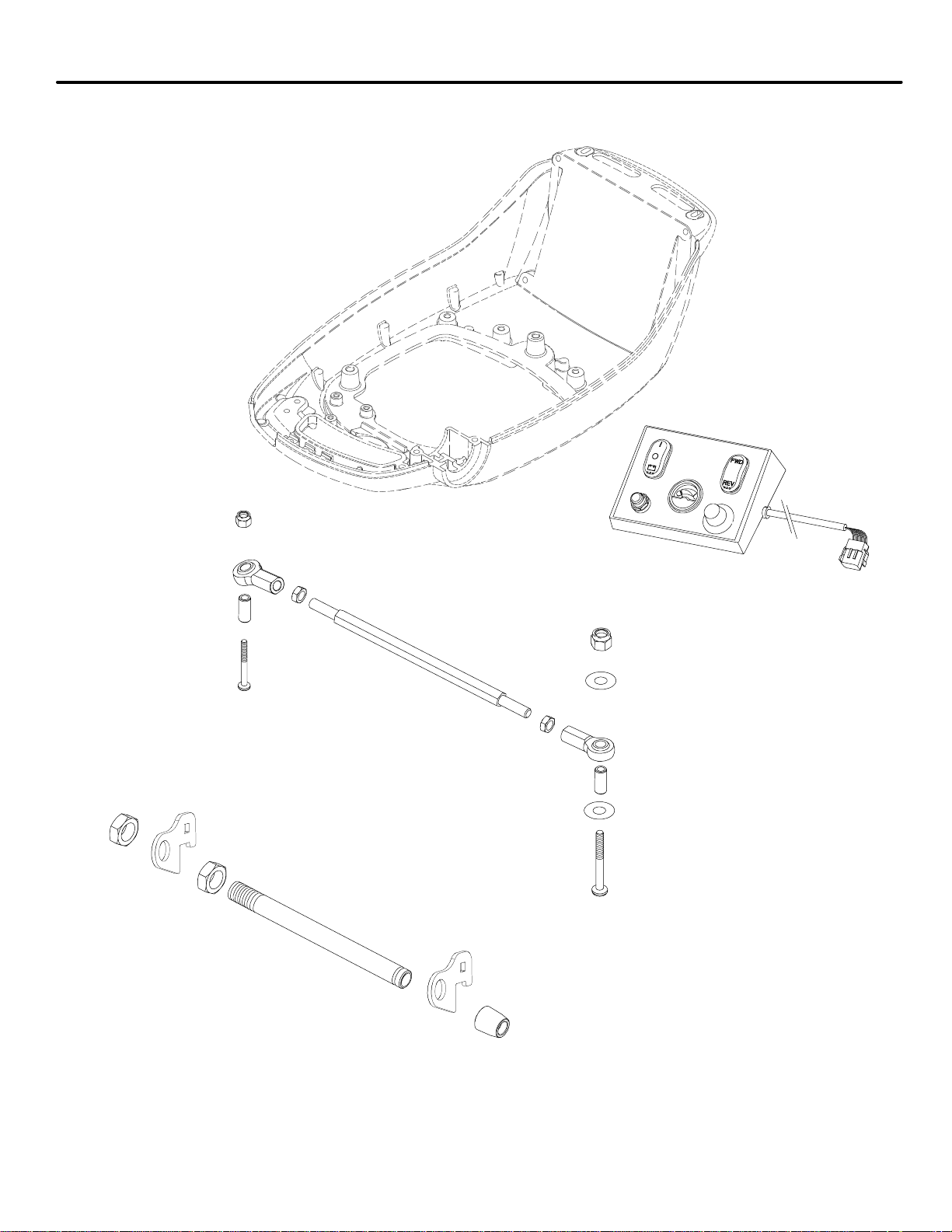

REMOTE STEERING
3201
3242
3227
3242
3243
3218
668
3245A
3204
3243
3243
3230
3244
3243
3218
668
3244
3245
3231
3227
3228
3191−4 Assemblies include all parts shown in frames. 03/22/2006
4
3201
AA0201/AA0202
TILLER STEERING
3042
3087
3012
3001
3040
1343
3054
3047
3013
3023
3041
3086
3219
3220
621
3191−5 Assemblies include all parts shown in frames. 03/22/2006
5
AA0201/AA0202
3068
3019
3084
3093
3092
3069
3002
3025
3039
3020
614
3069
3070
3026
3097
3080
3057
3088
3014
3016
3018
3022
415
3020
3094
3059
3191−6 Assemblies include all parts shown in frames. 03/22/2006
6
AA0201/AA0202
3066
3061
3060
3010
3071
3015
3082
3063
3000
3075
4 INCH EXTENSION−OPTION
3229
3010
3071A
3063A
3060A
3224
3208
3074
1112
3073
3034
3067
3030
3062
3090
3029
3031
3037
3032
3006
3007
3028
3072
3082A
3008
3191−7 Assemblies include all parts shown in frames. 03/22/2006
7
AA0201/AA0202
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
415 861217 Plug
(Drive Shaft Housing)
486 861734 Fuse
(80 Amp)
614 861215 Pin−Cotter
(Tilt Rod)
621 861607 Switch−Stop
668 861737 Spacer
(Remote Steering)
1019 861722 Kit−Label
1058 MS5678 Operator’s Manual
1112 861281 Plug−Vent
1343 861531 Nut
(Stop Switch)
3000 861185 Adapter/Seal−
Crankshaft
3001 861723 Tiller
3002 861216 Rod−Tilt
3004 861513 Cowl
(Tiller)
3004A 861768 Cowl
(Remote)
3006 861511 Propeller
3007 861674 Coupling−Propeller
3008 861225 Washer/Nut Set
(Propeller)
3010 861220 Spring−Drive Shaft
3012 861265 Isolator
3013 861733 Pivot−Housing
3014 861451 Clamp−Shift Rod
3015 861242 Carrier−Input Shaft
3016 861636 Hook−Reverse
3018 861264 Hook−Actuator
3019 861244 Clamp/Handle Kit
3020 861249 Ring−Isolator
3022 861263 Screw−Set
3023 861252 Plate−Retainer
(Throttle Rod)
3025 861246 Bracket−Transom
(Port or Starboard)
3026 861251 Pad−Friction
3028 861274 Carrier−Output Shaft
3029 861278 Gear−Reverse
3030 861277 Gear−Forward
3031 861288 Shaft−Output
3032 861285 Clutch/Pin Kit
3034 861726 Case−Gear
3037 861286 Follower−Cam Shift
3039 861516 Housing−Drive Shaft
3040 861301 Handle−Throttle
3041 861299 Rod−Throttle
3042 861740 Cable−Throttle
3047 861253 Screw
(Retainer Plate)
(Throttle Rod)
3051 861598 Screw
(Cowl)
(Rear)
3051A 861601 Screw
(Cowl)
(Front)
3054 861599 Screw
(Housing Pivot)
3057 861250 Screw
(Tilt Bracket)
3059 861250 Screw
(Friction Pad)
3060 861282 Stud
(Gear Case)
(3” Long)
3060A 861764 Stud
(Gear Case)
(7” Long)
(Option)
3061 861240 Washer
(Gear Case)
3062 861241 Screw
(Gear Case)
3063 861241 Screw
(Input Shaft Carrier)
(7/8” Long)
3063A 861765 Screw
(Input Shaft Carrier)
(4 7/8” Long)
(Option)
3066 861239 Nut
(Gear Case)
3067 861267 Seal−O Ring
(Input Shaft Carrier)
3068 861248 Bolt
(Transom Bracket)
(5 1/2” Long)
−−−−−−− Note −−−−−
861752 Bolt
(Transom Bracket)
(6” Long)
(Remote Version)
3069 861247 Washer
(Transom Bracket)
3070 861255 Nut
(Transom Bracket)
3071 861309 Shaft−Drive
(23” Long)
3071A 861763 Shaft−Drive
(27” Long)
(Option)
3072 861275 Seal−O Ring
(Output Shaft Carrier)
3073 861280 Plug−Oil Drain/Fill
3074 861771 Seal−O Ring
(Cam Rod Seal)
3075 861268 Seal−Crankshaft
Adapter
3080 861239 Nut
(Friction Pad)
3082 861266 Seal−Shaft
(Input Shaft Carrier)
3082A 861266 Seal−Shaft
(Output Shaft Carrier)
3084 861310 Clamp
Washer/Screw Set
3086 861240 Washer
(Throttle Rod)
3087 861209 Lanyard
3088 861512 Rod−Shift
3090 861320 Gear−Pinion Drive
3092 861253 Screw
(Clamp
Washer/Screw Set)
3093 861568 Bracket−Starboard Tilt
(Kit contains both
Port and Starboard
Bracket)
3094 861568 Bracket−Port Tilt
(Kit contains both
Port and Starboard
Bracket)
3097 861603 Screw
(Drive Shaft Housing)
(Motor Pan)
3191−8 Assemblies include all parts shown in frames. 03/22/2006
8
AA0201/AA0202
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
3200 861719 Activator−Reverse
Hook
3201 Pan−Motor
(Non−Serviceable
Part, Shown for
Reference Only)
3202 861605 Switch−On/Off
3203 861606 Switch−Forward/
Reverse
3204 861704 Panel−Remote
Control
3205 861705 Gage−Battery Level
3206 861706 Harness−Power
3207 861707 Controller
3208 861708 Nozzle−Thrust
3209 861709 Harness−Wiring
(Tiller)
3209A 861714 Harness−Wiring
(Remote)
3210 861710 Cable−Controller
3211 861711 Cable−Motor
(Black)
(Electric Motor
to Controller)
−−−−−−− Note −−−−−
861713 Cable−Motor
(Red)
(Electric Motor
to Controller)
3212 861712 Harness−Cowl
3213 861715 Fan−Cooling
3214 861716 Sensor−Throttle
3215 861717 Bracket−Cooling Fan
3216 861720 Housing−Connector
3217 861721 Contactor
3218 861727 Rod−Ball Joint
3219 861728 Clamp−Throttle
3220 861730 Knob−Throttle Friction
3221 861599 Screw
(Contactor)
3223 861602 Screw
(Controller)
3224 861731 Screw
(Nozzle Thrust)
3227 861736 Bracket−Steering Tube
3228 861739 Seal−Steering Tube
3229 861741 Housing Extension−
Drive Shaft
(4” Long)
(Option)
3230 861753 Rod−Link
3231 861754 Tube−Steering
3232 861761 Harness−Power
Supply 10 Foot
(10 Foot)
3233 861762 Harness−Power
Supply 16 Foot
(16 Foot)
3234 861747 Nut
(Contactor)
(High Voltage)
3234A 861744 Nut
(Contactor)
(Low Voltage)
3235 861751 Washer
(Contactor)
(High Voltage)
3235A 861745 Washer
(Contactor)
(Low Voltage)
3235B 861746 Washer
(Contactor)
(Low Voltage)
3236 861253 Screw
(Reverse Hook
Activator)
3237 861601 Screw
(Power Harness)
3238 861604 Nut
(Power Harness)
3239 861743 Screw
(Throttle Sensor)
3240 861253 Screw
(Cooling Fan Bracket)
3241 861600 Screw
(Electric Motor)
3242 861755 Nut
(Steering Tube)
3243 861757 Nut
(Ball Joint Rod)
(Adjustment on
Link Rod)
−−−−−−− Note −−−−−
861760 Nut
(Ball Joint Rod)
3244 861756 Washer
(Ball Joint Rod)
3245 861759 Screw
(Ball Joint Rod)
(3” Long)
3245A 861758 Screw
(Ball Joint Rod)
(2” Long)
3246 861750 Washer
(Electric Motor
Terminals)
3246A 861749 Washer
(Electric Motor
Terminals)
3247 861748 Nut
(Electric Motor
Terminals)
3248 Motor−Electric
(Contact O.E.M.
for Electric Motor
Service)
3191−9 Assemblies include all parts shown in frames. 03/22/2006
9
