Operator’s Manual
Not for
Reproduction
S75X Series
Compact Zero-Turn Riding
Mower
Model Number: Description
5900859 S75XKAV2652, 52” Cut Compact Zero-Turn Riding Mower
5900918 S75XKAV2252, 52” Cut Compact Zero-Turn Riding Mower
5900551 S75XKAV2352, 52” Cut Compact Zero-Turn Riding Mower
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC.
5375 NORTH MAIN STREET
MUNNSVILLE, NY 13409
800 933 6175
5102230
Rev B
Thank you for purchasing this quality-built SNAPPER
Not for
Reproduction
PRO product. We’re pleased that you’ve placed
your confidence in the SNAPPER PRO brand. When
operated and maintained according to the instructions in
this manual, your SNAPPER PRO product will provide
many years of dependable service.
This manual contains safety information to make
you aware of the hazards and risks associated with
this machine and how to avoid them. This machine
is designed and intended to be used and maintained
according to the manual and operated by trained
professionals for finish cutting of established lawns and
is not intended for any other purpose. It is important that
you read and understand these instructions thoroughly
before attempting to start or operate this equipment.
Save these original instructions for future reference.
The images in this document are representative, and
are meant to compliment the instructional copy they
accompany. Your unit may vary from the images
displayed. LEFT and RIGHT are as seen from the
operator’s position.
The Illustrated Parts List for this machine can be
downloaded from www.snapperpro.com. Please provide
model and serial number when ordering replacement
parts.
PRODUCT REFERENCE DATA
Unit Model Number Unit SERIAL Number
Mower Deck Model Number Mower Deck SERIAL Number
Dealer Name Date Purchased
ENGINE REFERENCE DATA
Engine Make Engine Model
Engine Type/Spec Engine Code/Serial Number
See Features & Controls for the location of Identification
Numbers
Briggs & Stratton Power Products Group, LLC.
Copyright © 2011 Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved.
SNAPPER PRO is a trademark of Briggs & Stratton
Corporation Milwaukee, WI, USA.
Contact Information:
Briggs & Stratton Power Products Group, LLC.
5375 N. Main St.
Munnsville, NY 13409-4003
(800) 933-6175
www.snapperpro.com
WARNING
Engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects, or other reproductive
harm.
WARNING
Battery posts, terminals, and related accessories
contain lead and lead compounds — chemicals
know to the State of California to cause cancer or
reproductive harm. Wash hands after handling.
Table of Contents
Not for
Reproduction
Operator Safety .................................................. 2
Safety Decals ..........................................................8
Safety Interlock System ..........................................9
Safety Icons ............................................................9
Features & Controls ......................................... 10
Identification Numbers ..........................................10

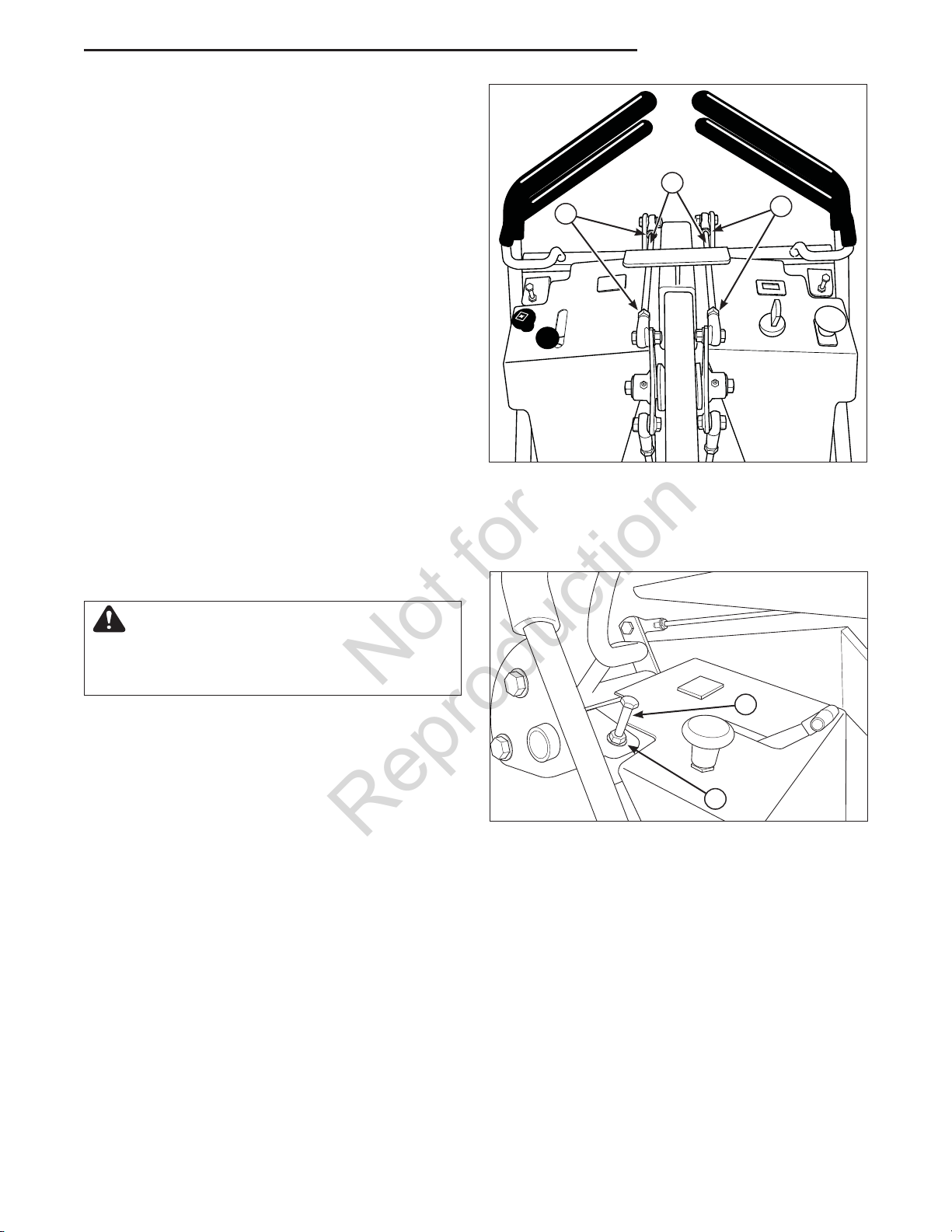

Control Functions ..................................................11
Operation ........................................................... 13
General .................................................................13
Checks Before Starting .........................................13
Starting the Engine ...............................................14
Stopping the Rider ................................................14
Pushing the Rider by Hand ...................................14

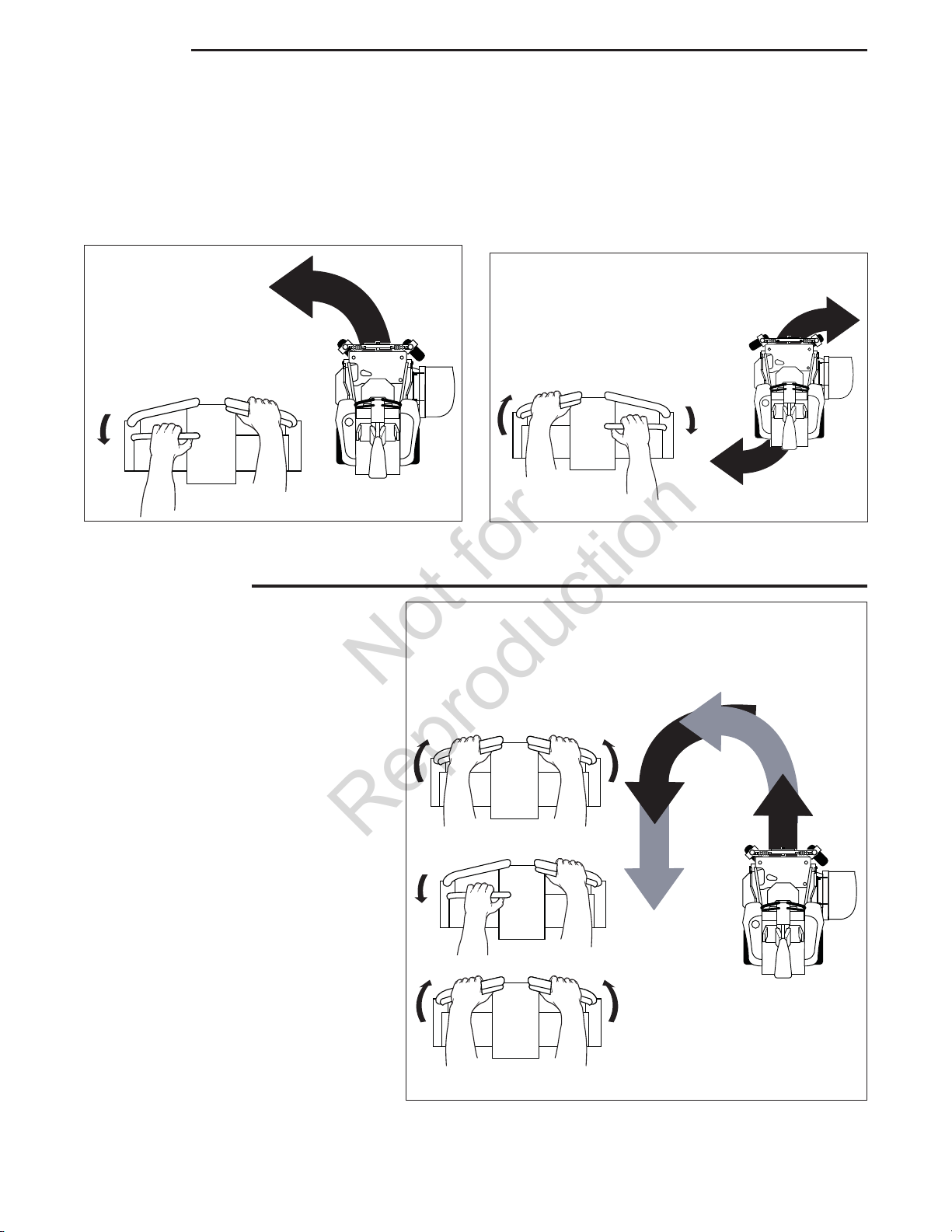

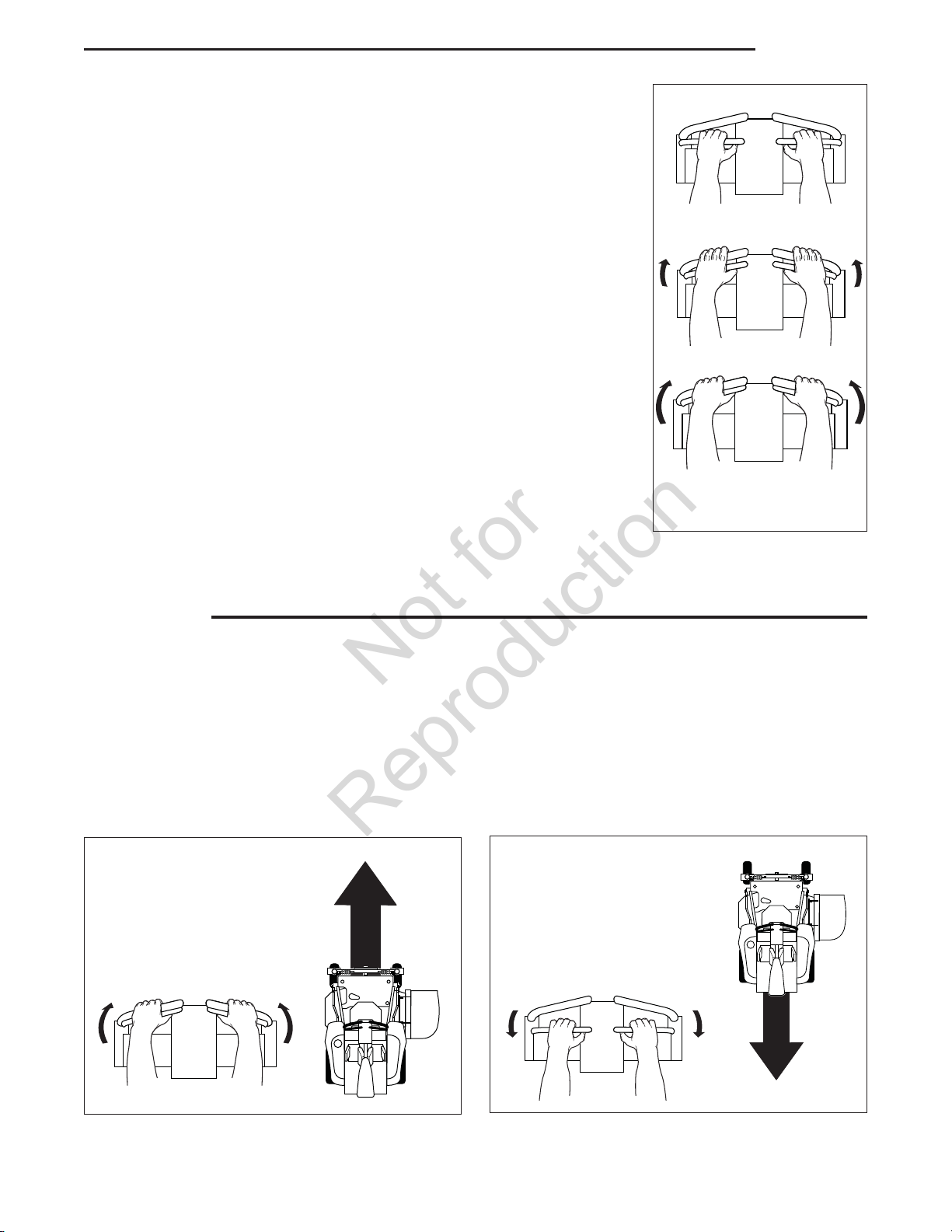

Zero Turn Driving Practice ....................................15
Mowing ..................................................................17

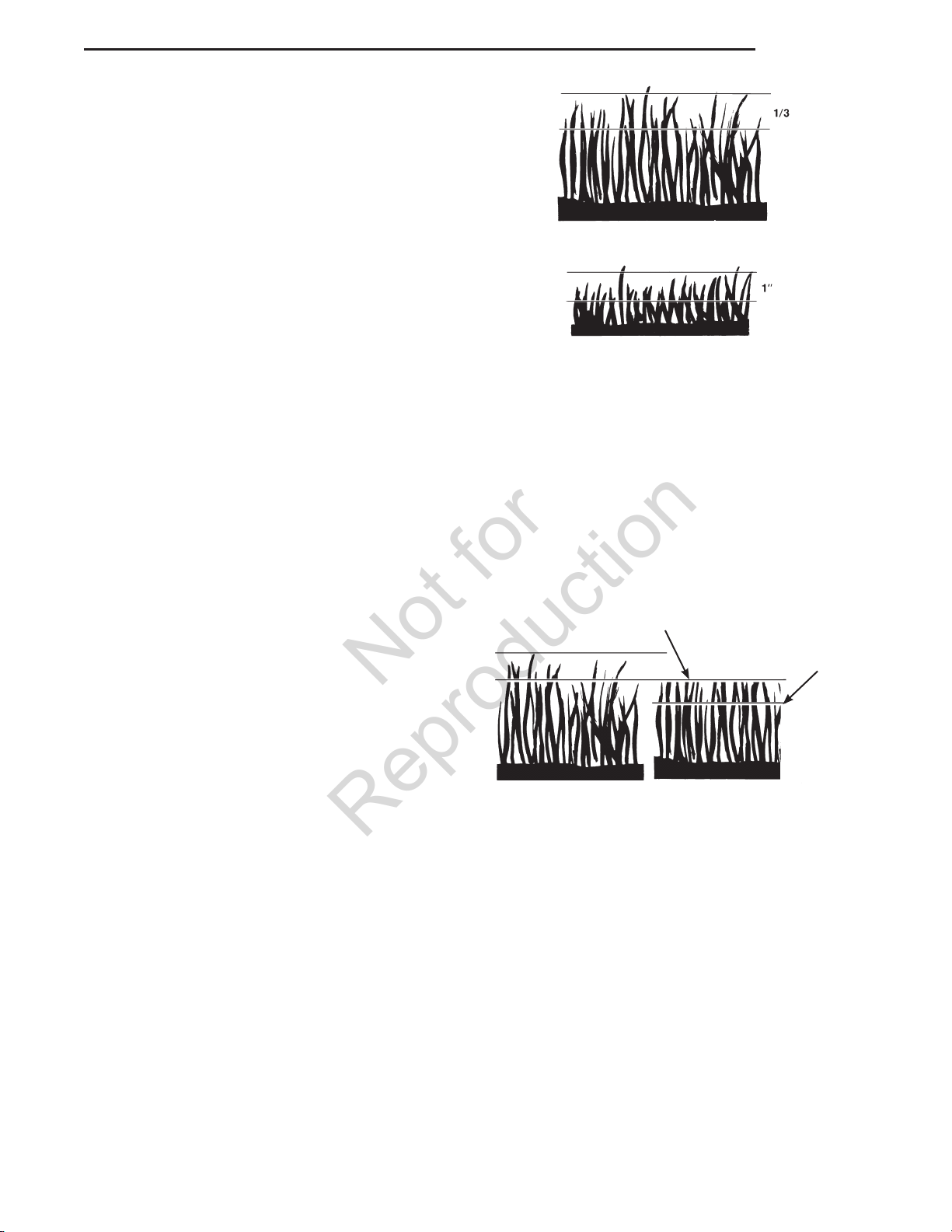

Mowing Recommendations ...................................17

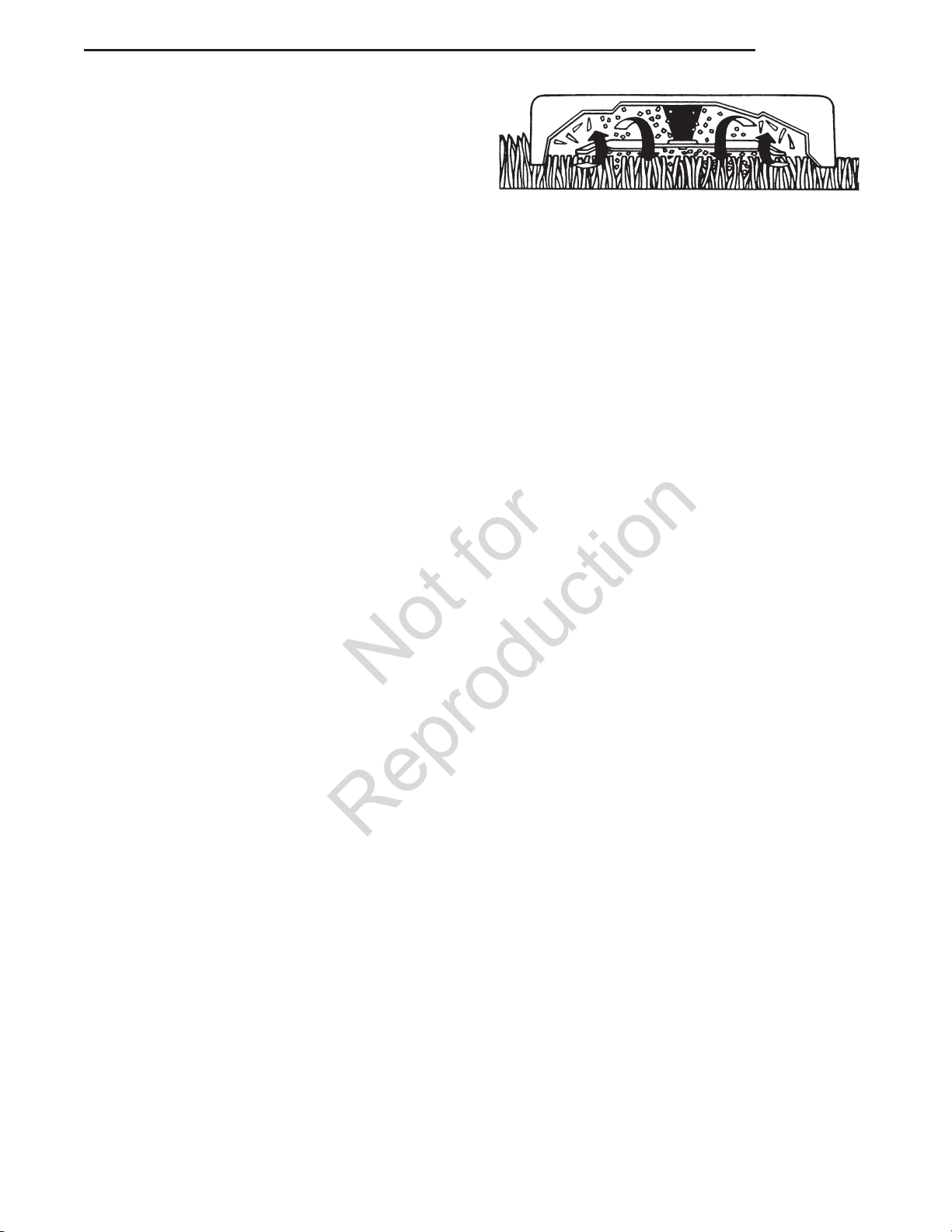

Mowing Methods ...................................................18
Storage .................................................................20
Starting After Long Term Storage .........................20
Regular Maintenance ....................................... 21
Maintenance Schedule .........................................21
Checking Tire Pressures ......................................22
Checking/Adding Fuel ...........................................22
Fuel Filter ..............................................................22
Inspect Muffler & Spark Arrester ..........................22

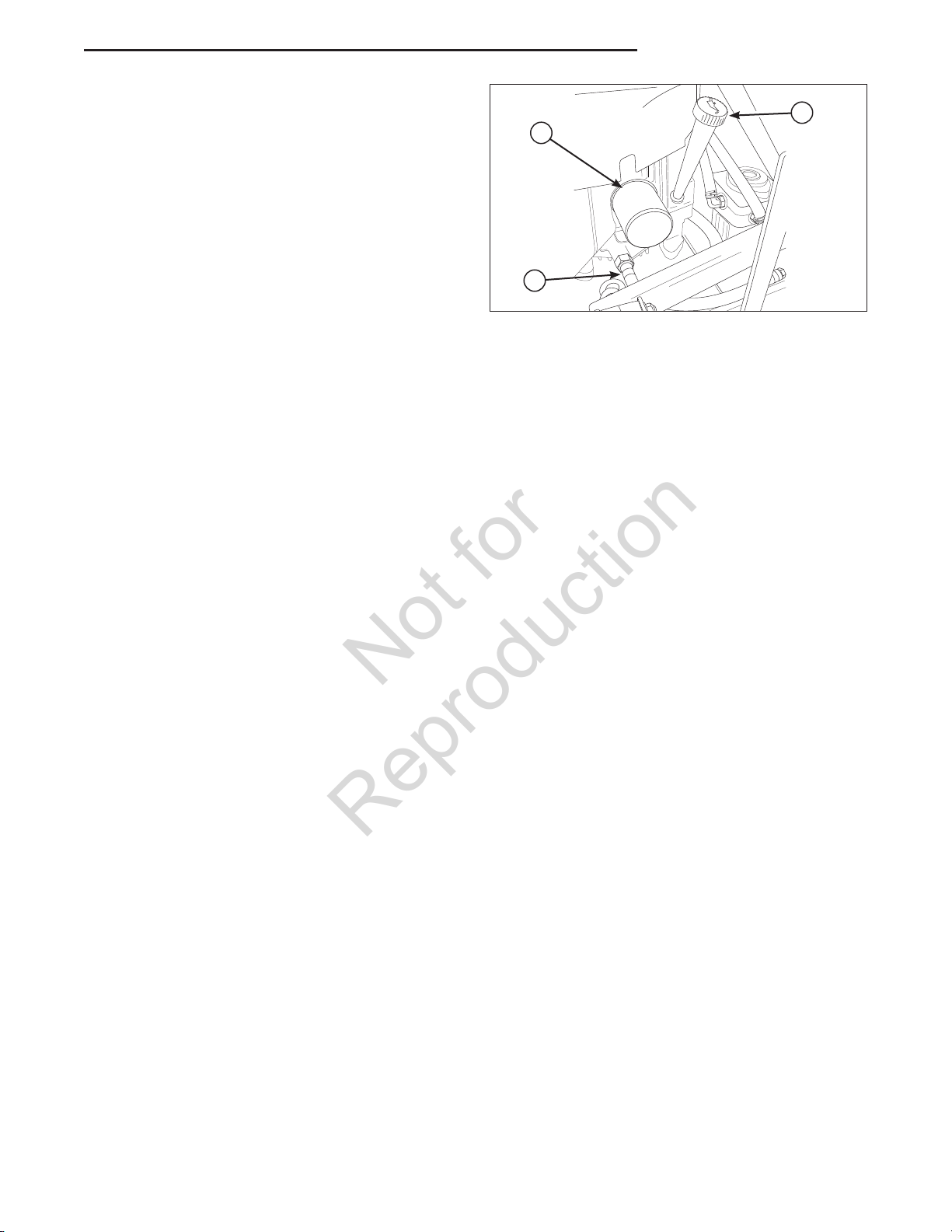

Change Oil & Filter ...............................................23

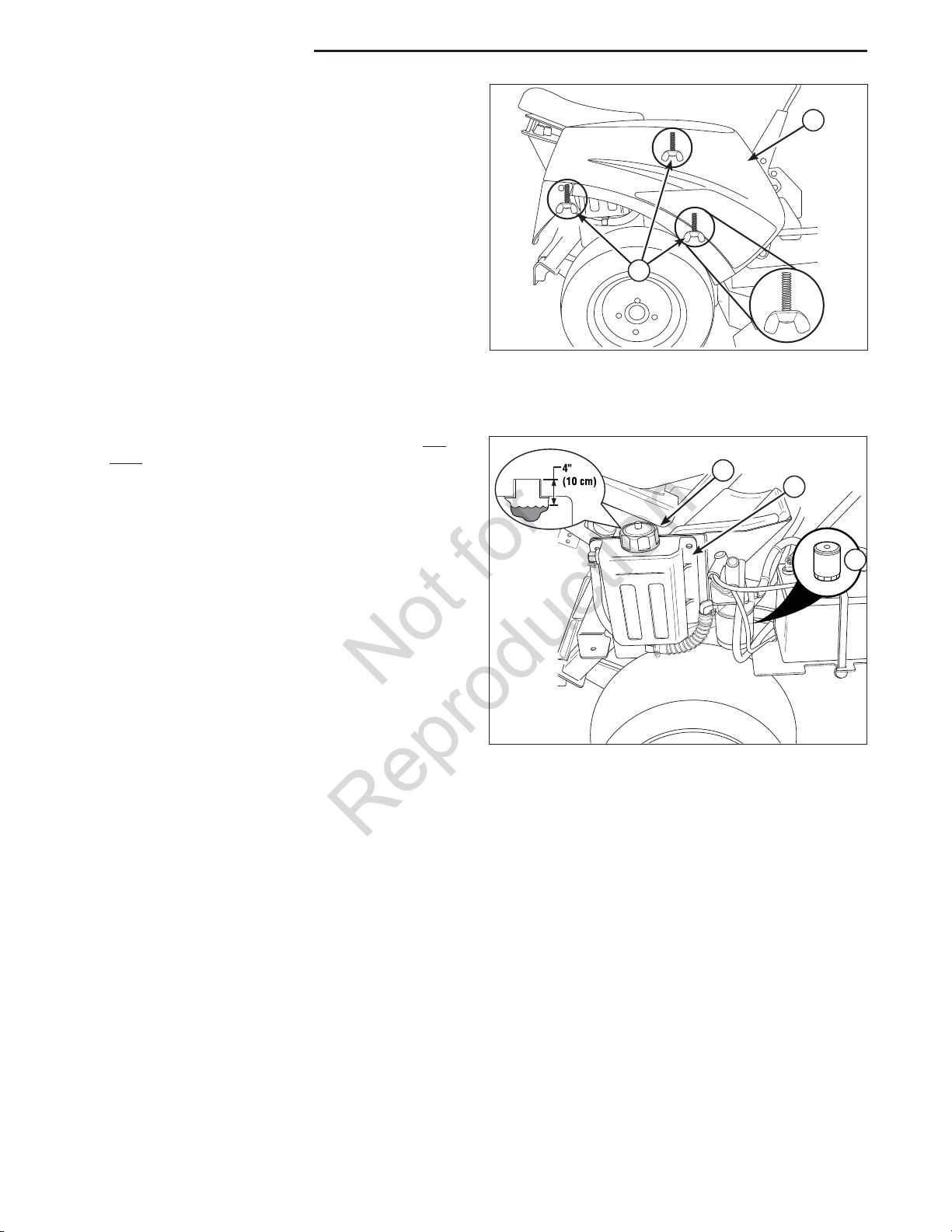

Seriving the Hydraulic System ..............................24

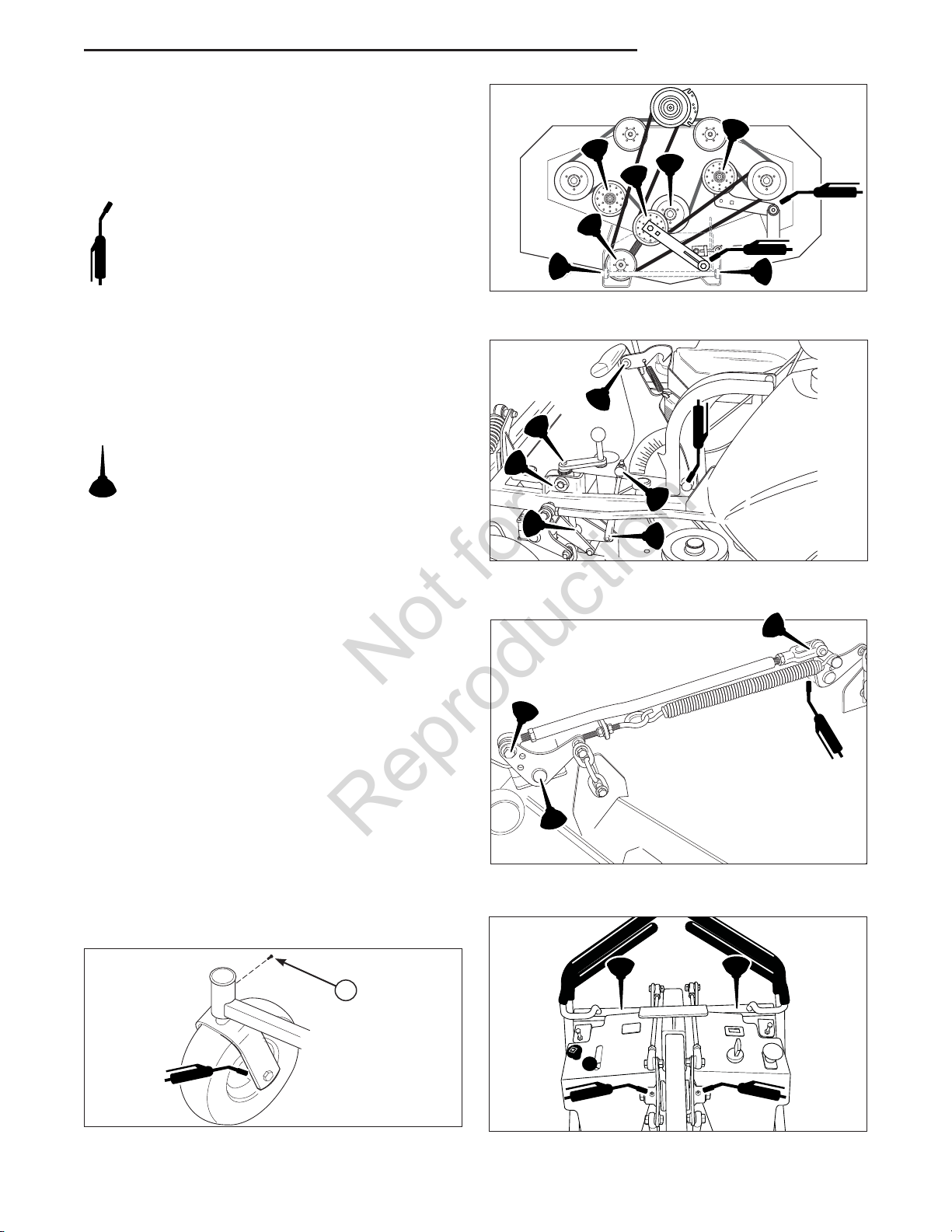

Lubrication ............................................................25

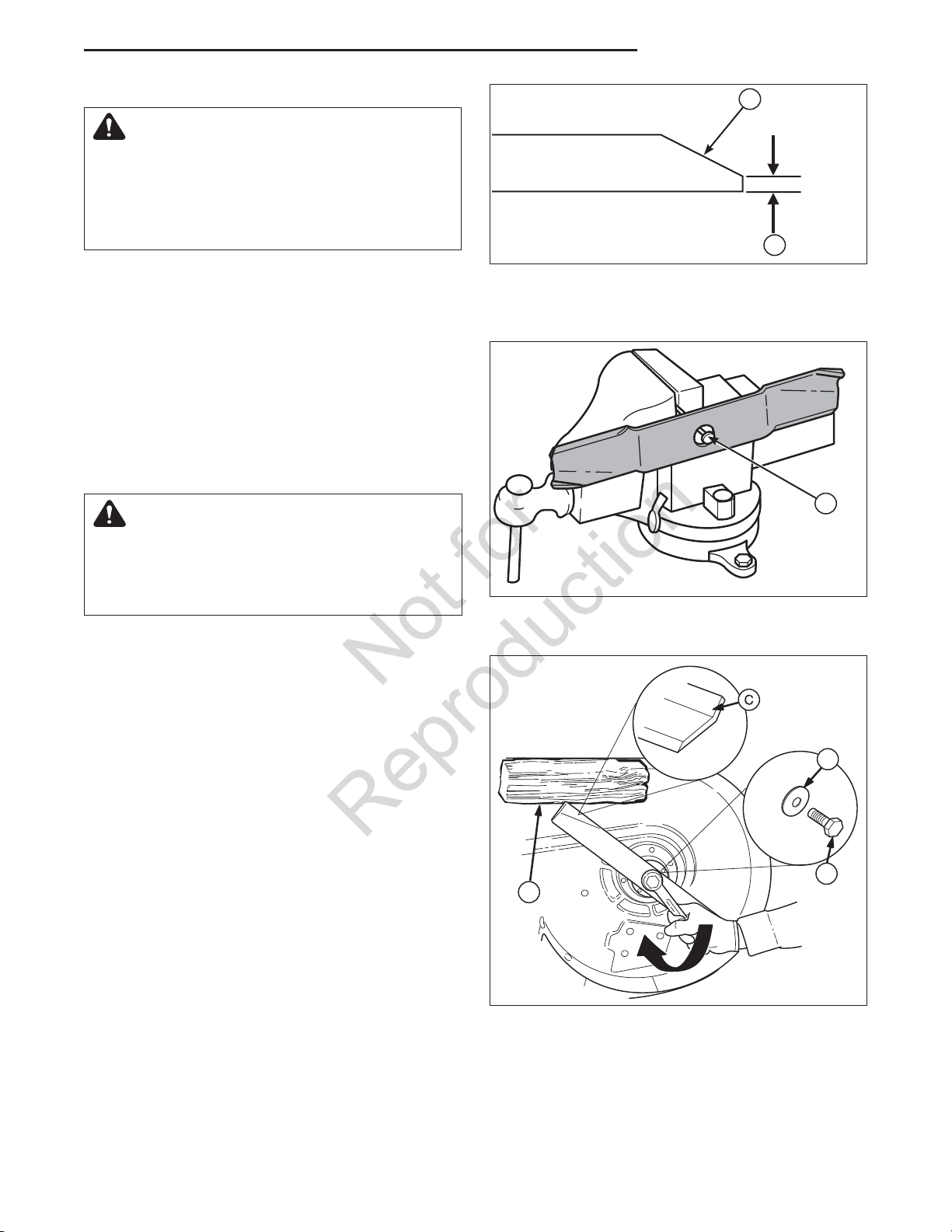

Servicing the Mower Blades .................................26

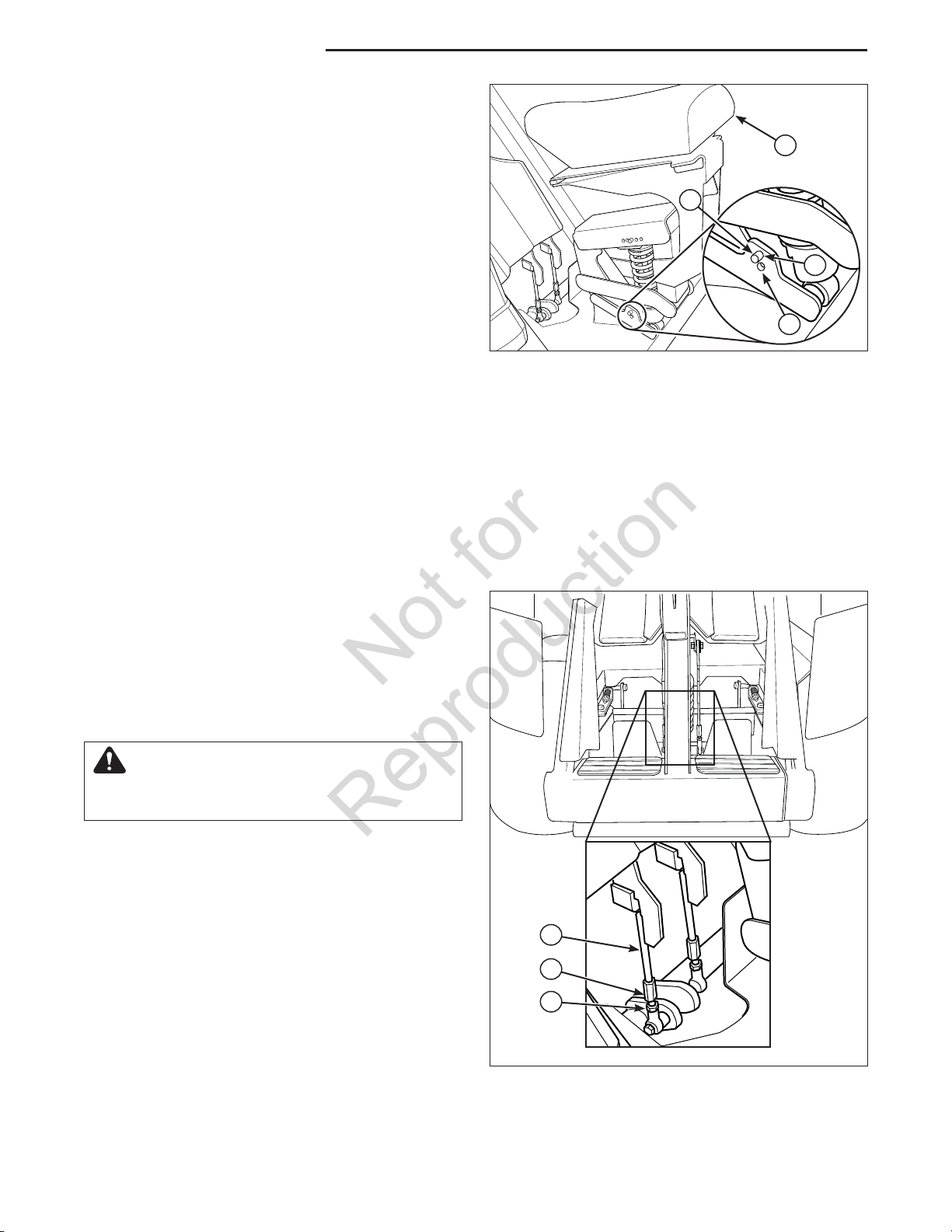

Seat Height Adjustment ........................................28
Neutral Adjustment ...............................................28
Speed Balancing Adjustment ................................29
Parking Brake Adjustment ....................................30

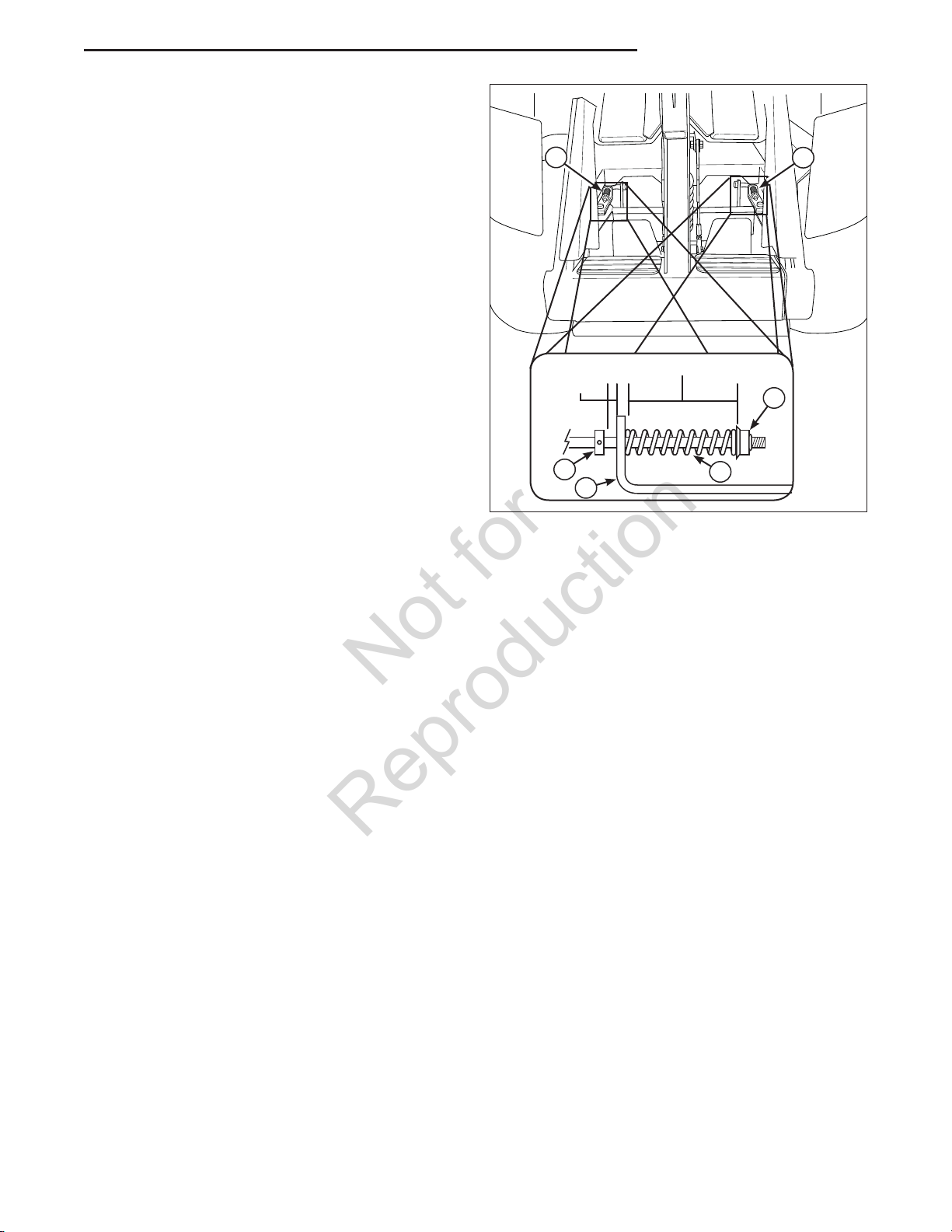

Suspension Adjustment ........................................32
Mowing Height Adjustment ...................................33
Deck Lift Rod Timing Adjustment .........................34

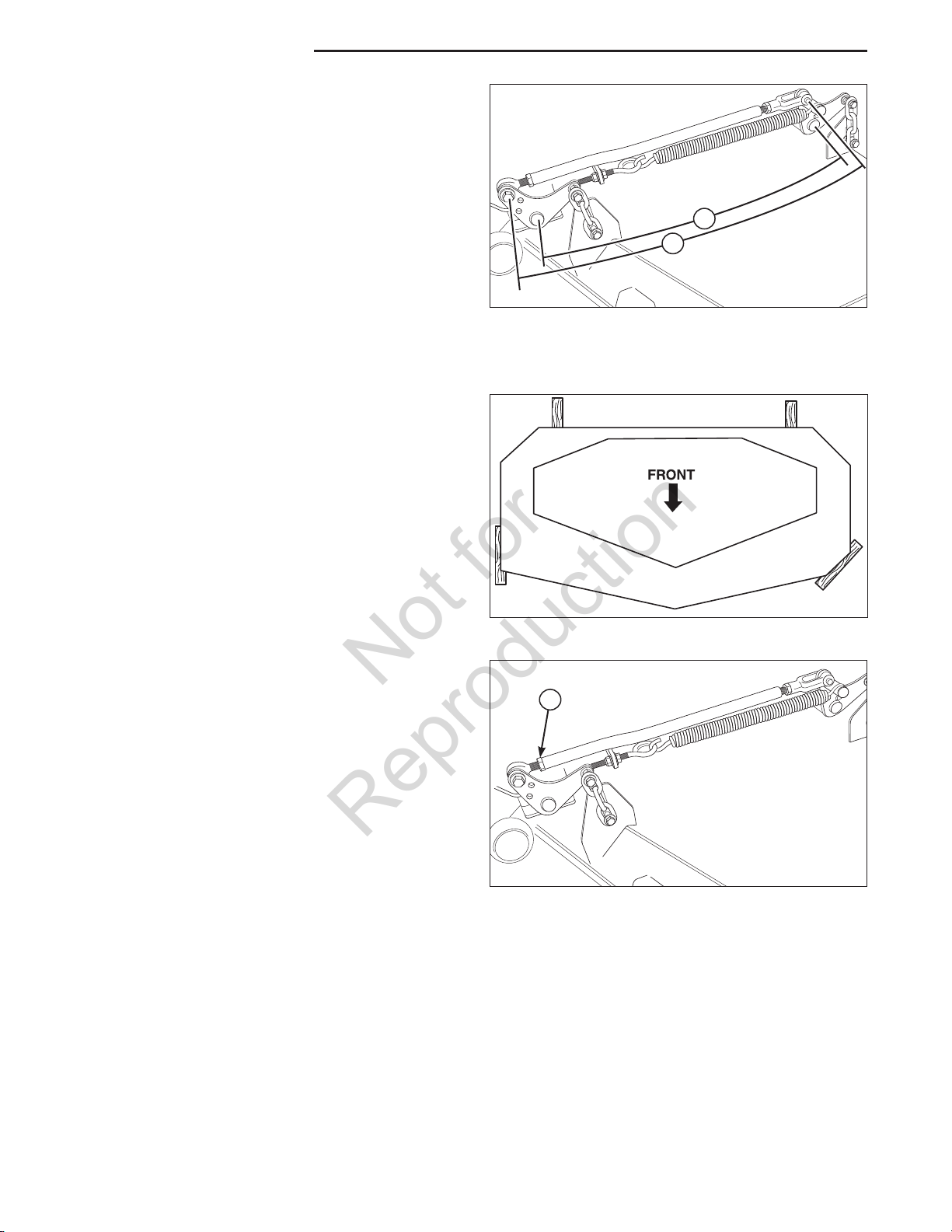

Deck Leveling Adjustment ....................................35

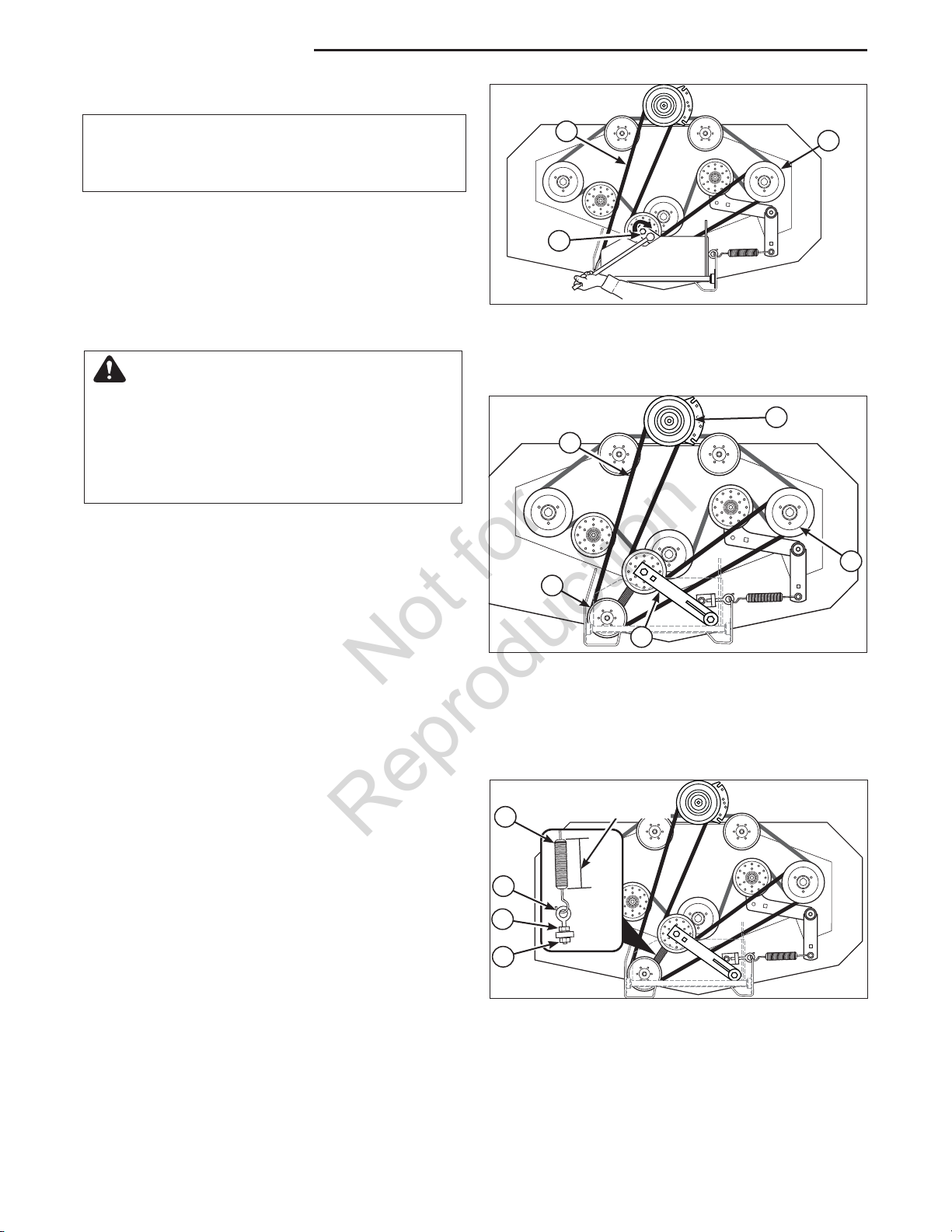

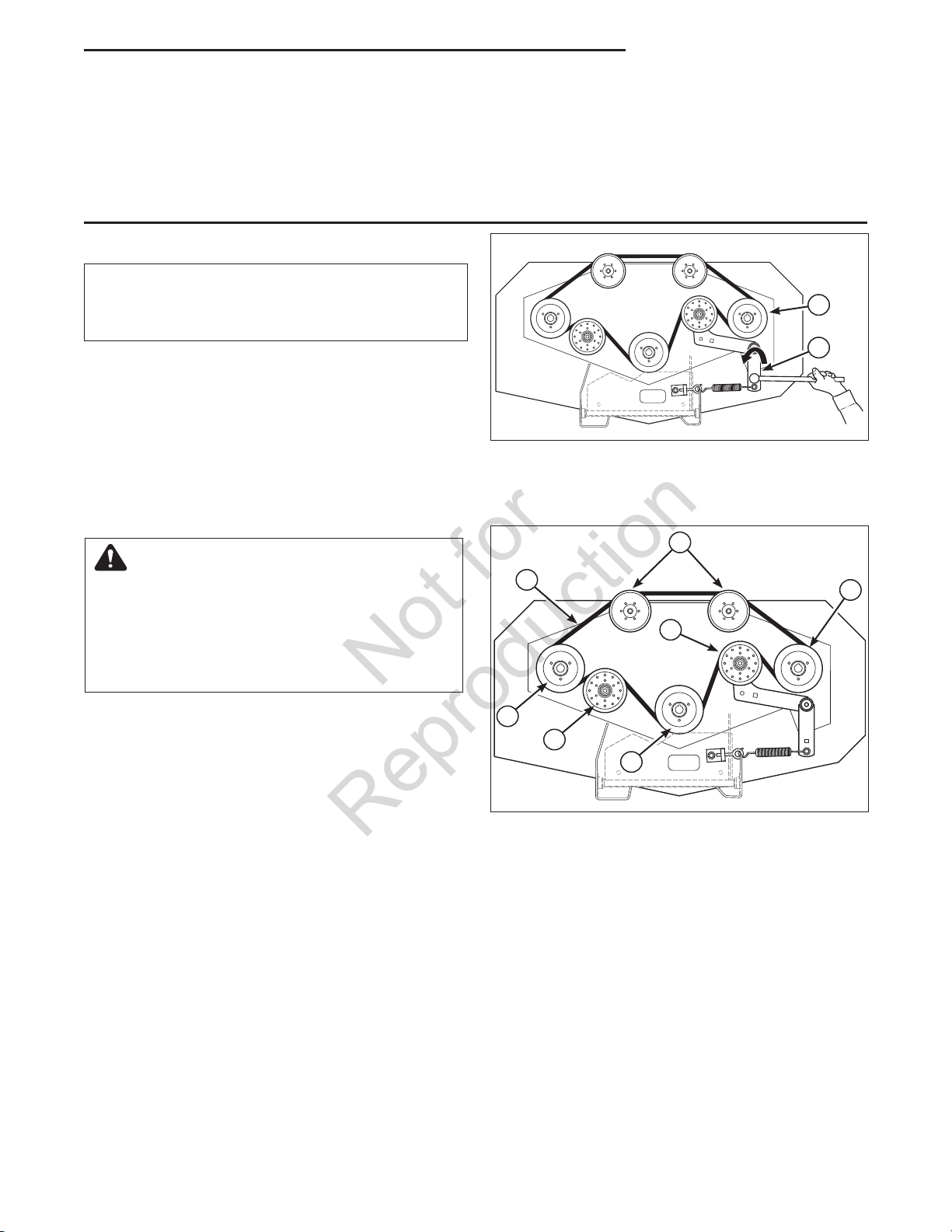

PTO Drive Belt Replacement ................................36

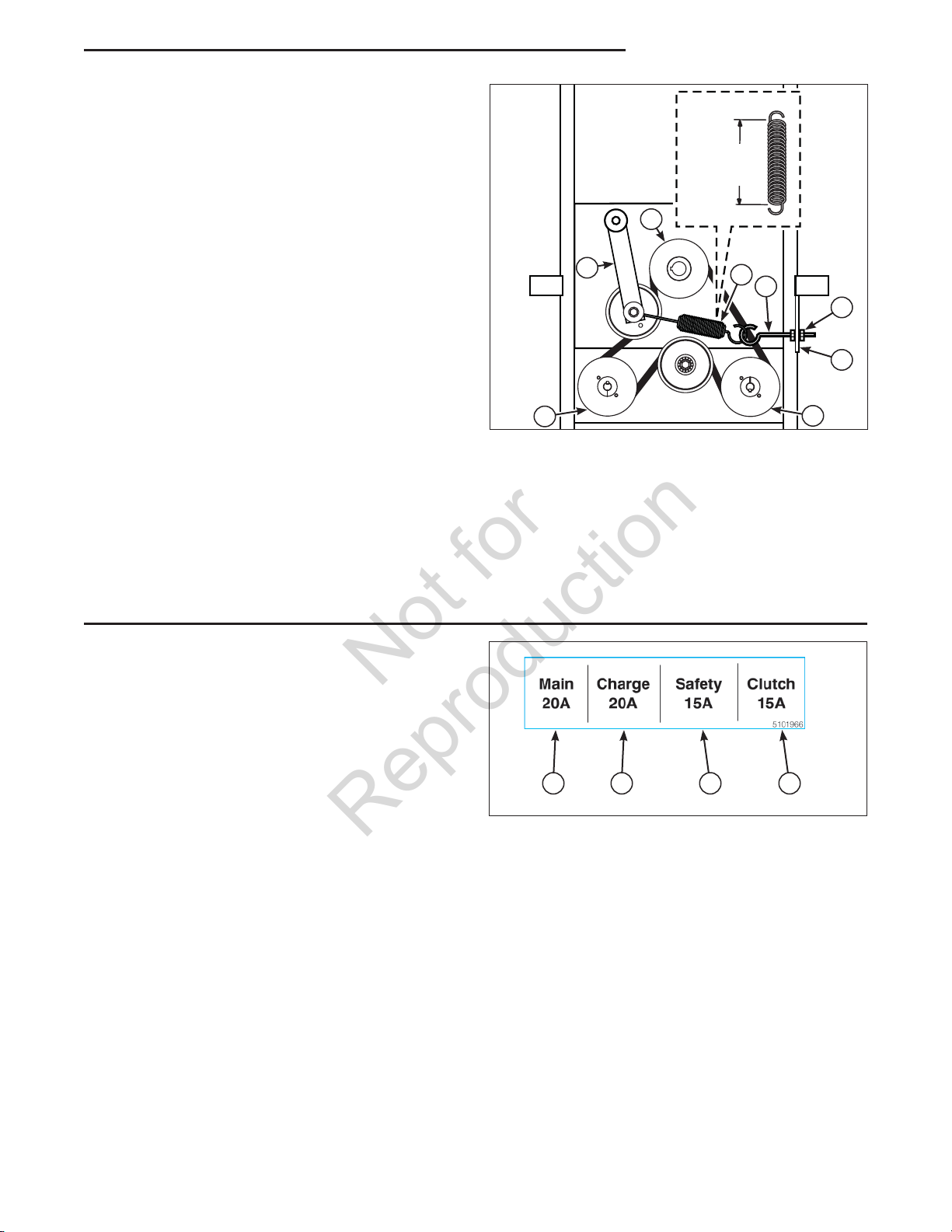

Mower Deck Drive Belt .........................................37
Hydraulic Pump Drive Belt Replacement .............38
Fuse Locations ......................................................39
Battery Maintenance .............................................40

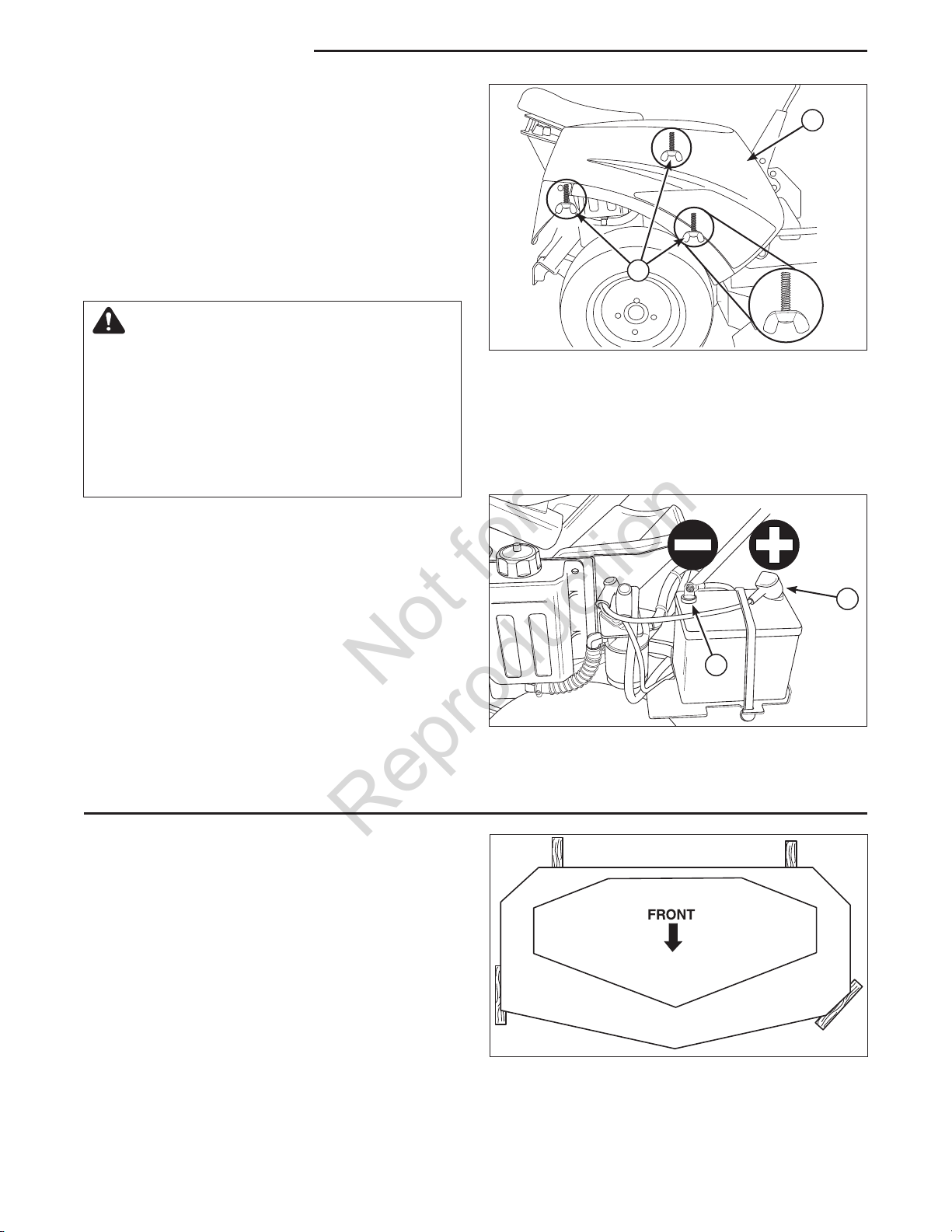

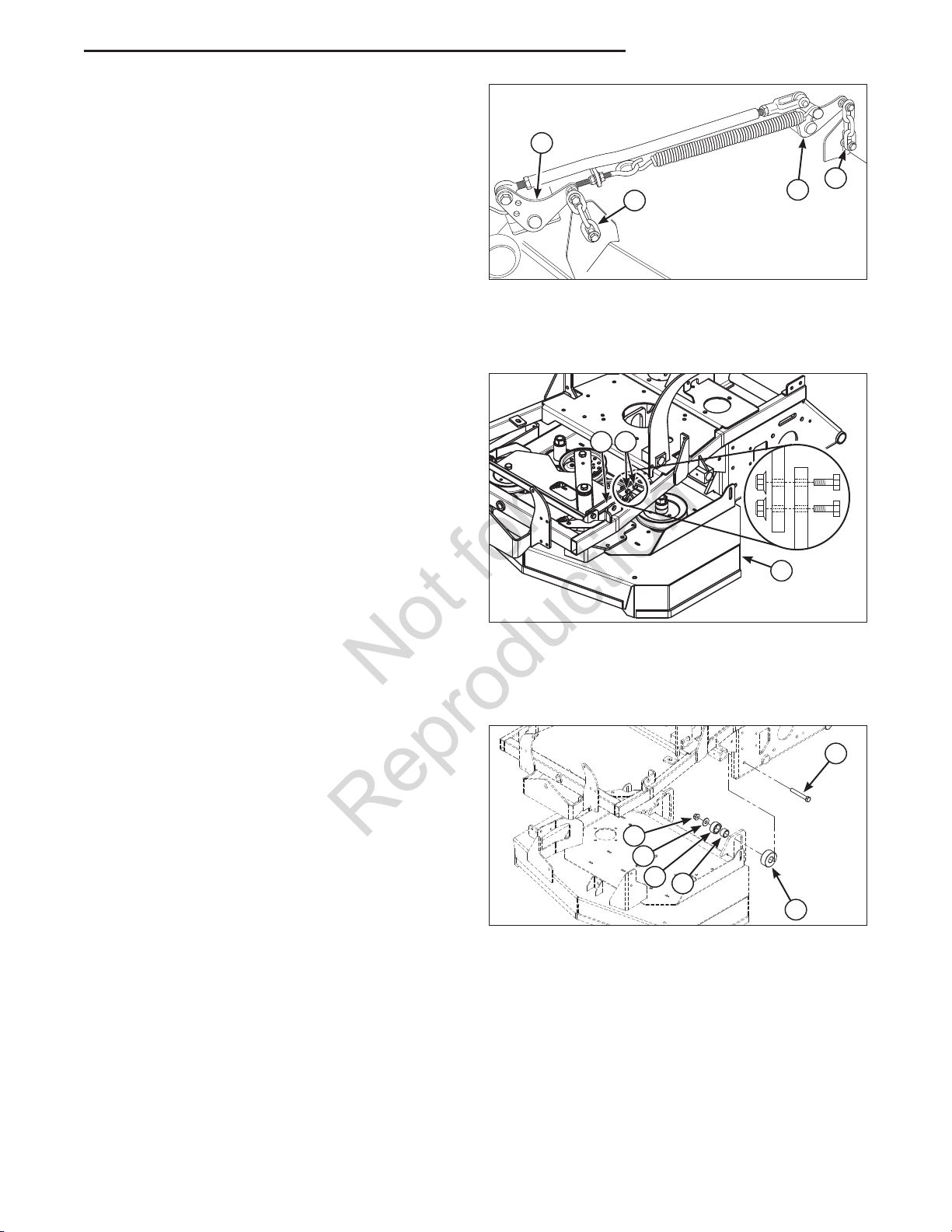

Removing the Mower Deck ...................................40
Installing the Mower Deck .....................................40
Battery Service ......................................................42
Troubleshooting, Adjustments & Service ...... 44
Troubleshooting the Rider ....................................44
Troubleshooting the Mower ..................................45

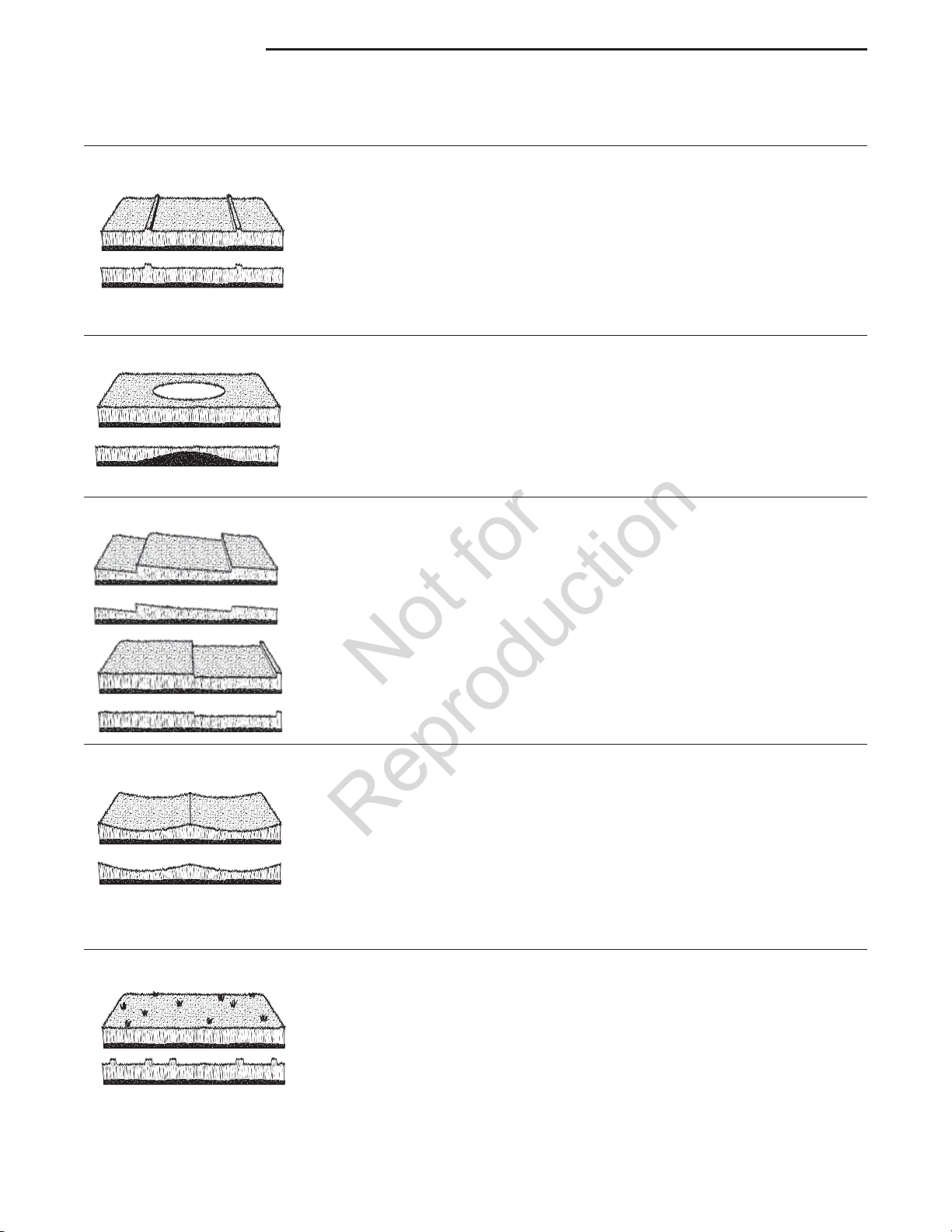

Troubleshooting Common Cutting Problems ........46
Specifications ................................................... 47
Slope Identification Guide ............................... 48
NOTE: In this manual, “left” and “right” are referred to as
seen from the operating position.
1
Operator Safety
Not for
Reproduction
Read the Manual
Operating Safety
Congratulations on purchasing a superior-quality piece of
lawn and garden equipment. Our products are designed and
manufactured to meet or exceed all industry standards for safety.
Do not operate this machine unless you have been trained.
Reading and understanding this operator’s manual is a way to
train yourself.
Power equipment is only as safe as the operator. If it is misused,
or not properly maintained, it can be dangerous! Remember, you
are responsible for your safety and that of those around you.
Use common sense, and think through what you are doing. If
you are not sure that the task you are about to perform can be
safely done with the equipment you have chosen, ask a
professional: contact your local authorized dealer.
The operator’s manual contains important safety
information you need to be aware of BEFORE you
operate your unit as well as DURING operation.
Safe operating techniques, an explanation of the
product’s features and controls, and maintenance
information is included to help you get the most out of
your equipment investment.
Be sure to completely read the Safety Rules and
Information found on the following pages. Also
completely read the Operation section.
Children
Tragic accidents can occur with children. Do
not allow them anywhere near the area of
operation. Children are often attracted to the
unit and mowing activity. Never assume that
children will remain where you last saw them.
If there is a risk that children may enter the
area where you are mowing, have another
responsible adult watch them.
2
Operator Safety
Not for
Reproduction
Slope Operation
Operation on slopes can be dangerous. Using the unit on a slope
that is too steep where you do not have adequate wheel traction
(and control) can cause sliding, loss of steering, control, and
possible rollover. You should not operate on a slope greater than
a 5.4 foot rise over a 20 foot length (15 degrees).
Always mow across slopes, not up and down (to maintain traction
on the wheels) and avoid sudden turns or rapid speed changes.
Reduce speed and use extreme caution on ALL slopes.
Also, note that the surface condition you are on can greatly impact
your ability to safely operate this machine. Operating on wet or
slippery slopes can cause sliding and loss of steering and control.
Do not operate on slopes that are slippery, wet, or have soft soil
conditions.
If you feel unsure about operating the unit on a slope, don’t do it.
It’s not worth the risk.
Thrown Objects
This unit has spinning mower blades. These blades can pick up and
throw debris that could seriously injure a bystander. Be sure to clean
up the area to be mowed and remove objects that could be thrown by
the blade BEFORE you start mowing.
Do not operate this unit without the entire grass catcher or discharge
guard (deflector) in place.
Also, do not allow anyone in the area while the unit is running! If
someone does enter the area, shut the unit off immediately until they
leave.
This equipment has many moving parts that can injure
you or someone else. However, if you stay in the
operator zone (stay seated in the seat), and follow the
safety rules in this operator’s manual, the unit is safe to
operate.
The mower deck has spinning mower blades that can
amputate hands and feet. Do not allow anyone near the
unit while it is running! Keep safety devices (guards,
shields, and switches) in place and working.
To help you, the operator, use this equipment safely, it
is equipped with an operator-present safety system. Do
NOT attempt to alter or bypass the system. See your
dealer immediately if the system does not pass all the
safety interlock system tests found in this manual.
Moving Parts
3
Operator Safety
Not for
Reproduction
Retaining Walls, Drop-offs, and Water
Retaining walls and drop-offs around steps and water are a common hazard. Give yourself a minimum of two
mower widths of clearance around these hazards and hand-trim with a walk behind mower or string trimmer.
Wheels dropping over retaining walls, edges, ditches, embankments, or into water can cause rollovers, which
may result in serious injury, death, or drowning.
Fuel and Maintenance
Always disengage all drives, shutoff the engine, and
remove the key before doing any cleaning, refueling, or
servicing.
Gasoline and its vapors are extremely flammable. Do not
smoke while operating or refueling. Do not add fuel while
engine is hot or running. Allow engine to cool for at least
3 minutes prior to adding fuel.
Do not add fuel indoors, in an enclosed trailer, garage,
or any other enclosed area that is not well ventilated.
Gasoline spills should be cleaned up promptly and before
operation begins.
Gasoline should be stored only in sealed containers
approved for fuel.
Proper maintenance is critical to the safety and
performance of your unit. Keep the unit free of
grass, leaves, and excess oil. Be sure to perform the
maintenance procedures listed in this manual, especially
periodically testing the safety system.
Enclosed Areas
Only operate this unit outdoors and away from
unventilated areas such as inside garages or
enclosed trailers. The engine emits poisonous
carbon monoxide gas and prolonged exposure in an
enclosed area can result in serious injury or death.
4
Operator Safety
Not for
Reproduction
Read these safety rules and follow them closely. Failure to obey these rules could result in loss
of control of unit, severe personal injury or death to you, or bystanders, or damage to property or
equipment. This mowing deck is capable of amputating hands and feet and throwing objects.
The triangle in text signifies important cautions or warnings which must be followed.
TRAINING
1. Read, understand, and follow all instructions in
the manual and on the unit before starting. If the
operator(s) or mechanic(s) can not read English
it is the owner’s responsibility to explain this
material to them.
2. Become familiar with the safe operation of the
equipment, operator controls, and safety signs.
3. All operators and mechanics should be trained.
The owner is responsible for training the users.
4. Only allow responsible adults, who are familiar
with the instructions, to operate the unit.
5. Never let children or untrained people operate
or service the equipment. Local regulations may
restrict the age of the operator.
6. The owner/user can prevent and is responsible
for accidents or injuries occurring to themselves,
other people or property.
7. Data indicates that operators, age 60 years and
above, are involved in a large percentage of riding
mower-related injuries. These operators should
evaluate their ability to operate the riding mower
safely enough to protect themselves and others
from serious injury.
PREPARATION
1. Evaluate the terrain to determine what
accessories and attachments are needed to
properly and safely perform the job. Use only
accessories and attachments approved by the
manufacturer.
2. Wear appropriate clothing including safety shoes,
safety glasses and ear protection. Long hair,
loose clothing or jewelry may get tangled in
moving parts.
3. Inspect the area where the equipment is to be
used and remove all objects such as rocks, toys
and wire, which can be thrown by the machine.
4. Use extra care when handling gasoline and
other fuels. They are flammable and vapors are
explosive.
a) Use only an approved container.
b) Never remove fuel cap or add fuel with the
engine running. Allow engine to cool before
refueling. Do not smoke.
c) Never refuel or drain the machine indoors.
5. Check that operator’s presence controls, safety
switches and shields are attached and functioning
properly. Do not operate unless they are
functioning properly.
OPERATION
1. Never run an engine in an enclosed area.
2. Mow only in the daylight or with good artificial
light, keeping away from holes and hidden
hazards.
3. Be sure all drives are in neutral and parking brake
is engaged before starting engine. Only start
engine from the operator’s position. Use seat
belts if provided.
4. Be sure of your footing while using pedestrian
controlled equipment, especially when backing up.
Walk, don’t run. Reduced footing could cause
slipping.
5. Slow down and use extra care on hillsides. Be
sure to travel in the recommended direction on
hillsides. Turf conditions can affect the machines
stability. Use caution when operating near dropoffs.
6. Do not mow in reverse unless absolutely
necessary. Always look down and behind before
and while traveling in reverse.
7. Be aware of the mower discharge direction and do
not point it at anyone. Do not operate the mower
without either the entire grass catcher or the
deflector in place.
8. Slow down and use caution when making turns
and when changing directions on slopes.
9. Never raise deck with the blades running.
10. Never leave a running unit unattended. Always
disengage the PTO, set parking brake, stop
engine, and remove keys before dismounting.
Keep hands and feet away from the cutting units.
11. Turn off the PTO switch to disengage the blades
when not mowing.
12. Never operate with guards not securely in place.
Be sure all interlocks are attached, adjusted
properly and functioning properly.
13. Never operate with the discharge deflector raised,
removed or altered, unless using a grass catcher.
14. Do not change the engine governor setting or
overspeed the engine.
15. Stop on level ground, lower implements,
disengage drives, engage parking brake, shut off
engine before leaving the operator’s position for
any reason including emptying the grass catchers
or unclogging the chute.
16. Stop equipment and inspect blades after striking
objects or abnormal vibration occurs. Make
necessary repairs before resuming operations.
17. Keep hands and feet away from the cutting units.
18. Look behind and down before backing up to be
sure of a clear path.
19. Never carry passengers and keep pets and
bystanders away.
20. Do not operate the unit while under the influence
of alcohol or drugs.
21. Slow down and use caution when making turns
and crossing roads and sidewalks. Stop blades if
not mowing.
22. Use care when loading or unloading the machine
into a trailer or truck.
23. Use care when approaching blind corners, shrubs,
trees or other objects that may obscure vision.
24. To reduce fire hazard, keep unit free of grass,
leaves & excess oil. Do not stop or park over dry
leaves, grass or combustible materials.
5
Operator Safety
Not for
Reproduction
WARNING
It is a violation of California Public Resource
Code, Section 4442, to use or operate the
engine on any forest-covered, brush-covered
or grass-covered land unless the exhaust
system is equipped with a spark arrester,
as defined in Section 4442, maintained in
effective working order. Other states or federal
jurisdictions may have similar laws. Contact
an Authorized Service Dealer to obtain a spark
arrester designed for the exhaust system
installed on this engine.
25. OSHA regulations may require the use of hearing
protection when exposed to sound levels greater
than 85 dBA for an 8 hour time period.
CAUTION
This machine produces sound levels
in excess of 85 dBA at the operator’s
ear and can cause hearing loss
though extended periods of exposure.
Wear hearing protection when operating this
machine.
SLOPE OPERATION
Slopes are a major factor related to loss-of-control and
tip-over accidents, which can result in severe injury or
death. All slopes require extra caution. If you cannot
back up the slope or if you feel uneasy on it, do not
drive on it.
WARNING
Do not use this machine on slopes greater than
15°.*
Select slow ground speed before driving onto
slope. Use extra caution when operating on
slopes with rear-mounted grass catchers.
Mow across the face of slopes, not up and
down, use caution when changing directions
and DO NOT START OR STOP ON SLOPE.
Do
1. Mow across slopes, not up and down.
2. Remove obstacles such as rocks, tree limbs, etc.
3. Watch for holes, ruts, or bumps. Uneven terrain
could overturn the unit. Tall grass can hide
obstacles.
4. Use slow speed. Choose a slow speed so that
you will not have to stop or change speed while
on the slope.
5. Use extra care with grass catchers or other
attachments. These can change the stability of
the unit.
6. Keep all movement on the slopes slow and
gradual. Do not make sudden changes in speed
or direction.
7. See your authorized dealer for recommendations
of available weights to improve stability.
*This limit was determined per CEN Standard EN 836:1997, Section 5.2.2 and
is based on the EN 836 Stability Test procedure described in Section 4.2.4.2.
The 15 degree “limit of stability” is equal to 50% of the angle at which machine
lift-off occurred in static tests. Actual dynamic stability may vary depending on
operating conditions.
6
Do Not
1. Avoid starting, stopping, or turning on a slope.
If tires lose traction (i.e. machine stops forward
motion on a slope), disengage the blade(s) (PTO)
and drive slow off the slope.
2. Do not turn on slopes unless necessary, and then,
turn slowly and gradually uphill, if possible. Never
mow down slopes.
3. Do not mow near drop-offs, ditches, or
embankments. The operator could lose footing or
balance or mower could suddenly turn over if a
wheel is over the edge of a cliff or ditch, or if an
edge caves in.
4. Do not mow on wet grass. Reduced footing or
traction could cause sliding.
5. Do not try to stabilize the unit by putting your foot
on the ground. (ride-on units)
6. Do not mow excessively steep slopes.
7. Do not use grass catcher on steep slopes.
8. Do not mow slopes if you cannot back up them.
TOWED EQUIPMENT (RIDE-ON UNITS)
1. Tow only with a machine that has a hitch designed
for towing. Do not attach towed equipment except
at the hitch point.
2. Follow the manufacturer’s recommendations
for weight limit for towed equipment and
towing on slopes. See attaching a trailer under
OPERATION.
3. Never allow children or others in or on towed
equipment.
4. On slopes, the weight of the towed equipment
may cause loss of traction and loss of control.
5. Travel slowly and allow extra distance to stop.
6. Do not shift to neutral and coast down hill.
CHILDREN
Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted
to the unit and the mowing activity. Never assume that
children will remain where you last saw them.
1. Keep children out of the mowing area and under
the watchful care of another responsible adult.
2. Be alert and turn unit off if children enter the area.
3. Before and during reverse operation, look behind
and down for small children.
4. Never carry children, even with the blade(s) off.
They may fall off and be seriously injured or
interfere with safe unit operation. Children who
have been given rides in the past may suddenly
appear in the mowing area for another ride and be
run over or backed over by the machine.
5. Never allow children to operate the unit.
6. Use extra care when approaching blind corners,
shrubs, trees, or other objects that may obscure
vision.
EMISSIONS
1. Engine exhaust from this product contains
chemicals known, in certain quantities, to cause
cancer, birth defects, or other reproductive harm.
2. Look for the relevant Emissions Durability Period
and Air Index information on the engine emissions
label.
IGNITION SYSTEM (GASOLINE MODELS)
1. This spark ignition system complies with Canadian
ICES-002.
Operator Safety
Not for
Reproduction
SERVICE AND MAINTENANCE
To avoid personal injury or property damage, use
extreme care in handling gasoline. Gasoline is
extremely flammable and the vapors are explosive.
Safe Handling of Gasoline
1. Extinguish all cigarettes, cigars, pipes, and other
sources of ignition.
2. Use only approved gasoline containers.
3. Never remove the gas cap or add fuel with the
engine running. Allow the engine to cool before
refueling.
4. Never fuel the machine indoors.
5. Never store the machine or fuel container where
there is an open flame, spark, or pilot light such
as near a water heater or other appliance.
6. Never fill containers inside a vehicle or on a
truck bed with a plastic bed liner. Always place
containers on the ground away from your vehicle
before filling.
7. Remove gas-powered equipment from the truck
or trailer and refuel it on the ground. If this is not
possible, then refuel such equipment on a trailer
with a portable container, rather than from a
gasoline dispenser nozzle.
8. Keep nozzle in contact with the rim of the fuel tank
or container opening at all times until fueling is
complete. Do not use a nozzle lock-open device.
9. If fuel is spilled on clothing, change clothing
immediately.
10. Never over-fill the fuel tank. Replace gas cap and
tighten securely.
11. Use extra care in handling gasoline and other
fuels. They are flammable and vapors are
explosive.
12. If fuel is spilled, do not attempt to start the engine
but move the machine away from the area of
spillage and avoid creating any source of ignition
until fuel vapors have dissipated.
13. Replace all fuel tank caps and fuel container caps
securely.
Maintenance and Storage
1. Always observe safe refueling and fuel
handling practices when refueling the unit after
transportation or storage.
2. Always follow the engine manual instructions for
storage preparations before storing the unit for
both short and long term periods.
3. Always follow the engine manual instructions for
proper start-up procedures when returning the unit
to service.
4. Never store the machine or fuel container inside
where there is an open flame, such as in a water
heater. Allow unit to cool before storing.
5. Shut off fuel while storing or transporting. Do not
store fuel near flames or drain indoors.
6. Keep all hardware, especially blade attachment
bolts, tight and keep all parts in good working
condition. Replace all worn or damaged decals.
7. Never tamper with safety devices. Check their
proper operation regularly.
8. Disengage drives, lower implement, set parking
9. Clean grass and debris from cutting units, drives,
10. Let engine cool before storing and do not store
brake, stop engine and remove key or disconnect
spark plug wire. Wait for all movement to stop
before adjusting, cleaning or repairing.
mufflers, and engine to prevent fires. Clean up oil
or fuel spillage.
near flame.
11. Stop and inspect the equipment if you strike an
object. Repair, if necessary, before restarting.
12. Park machine on level ground. Never allow
untrained personnel to service machine.
13. Use jack stands to support components when
required.
14. Carefully release pressure from components with
stored energy.
15. Disconnect battery or remove spark plug wire
before making any repairs. Disconnect the
negative terminal first and the positive last.
Reconnect positive first and negative last.

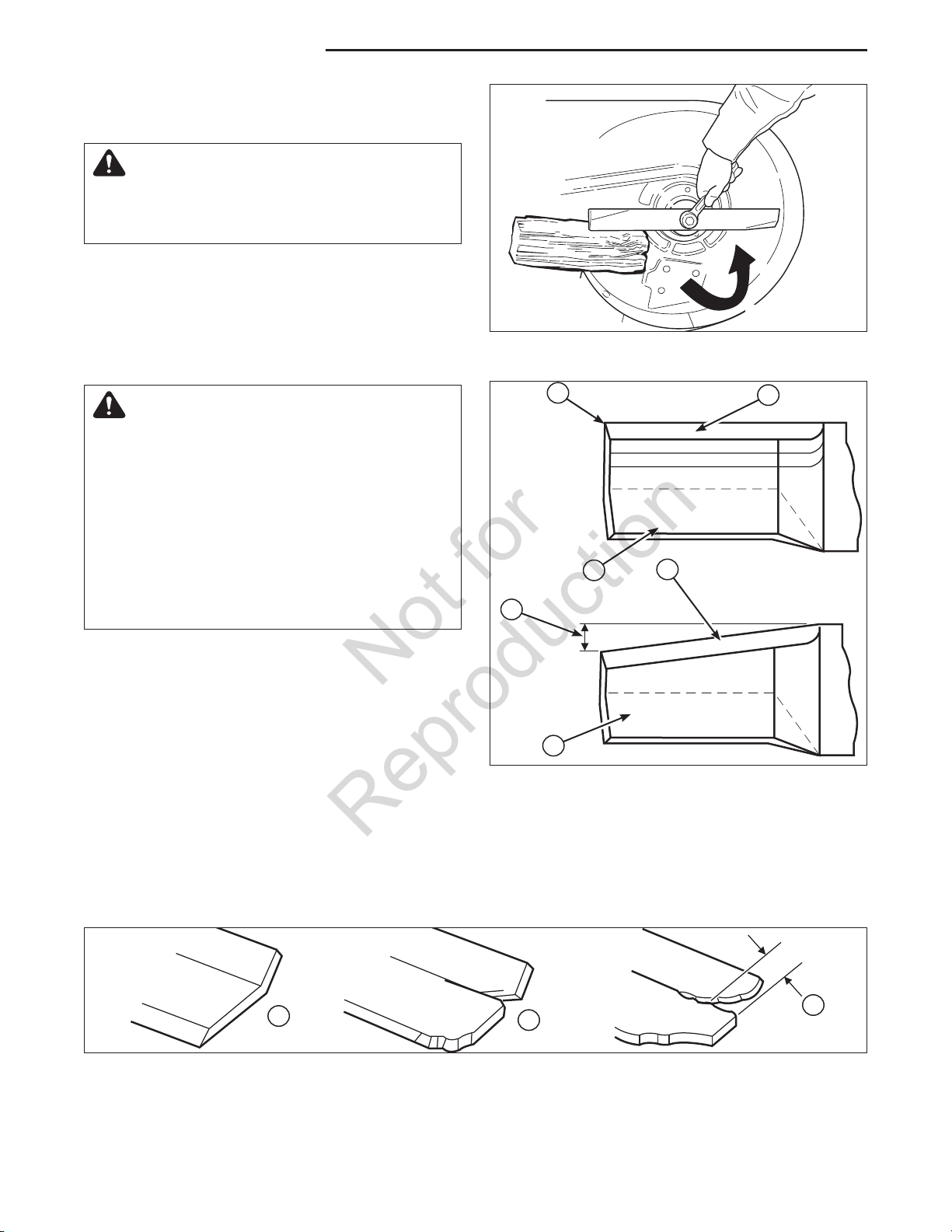

16. Use care when checking blades. Wrap the
blade(s) or wear gloves, and use caution when
servicing them. Only replace blades. Never
straighten or weld them.
17. Keep hands and feet away from moving parts.
If possible, do not make adjustments with the
engine running.
18. Charge batteries in an open well ventilated area,
away from spark and flames. Unplug charger
before connecting or disconnecting from battery.
Wear protective clothes and use insulated tools.
19. Grass catcher components are subject to wear,
damage, and deterioration, which could expose
moving parts or allow objects to be thrown.
Frequently check components and replace
with manufacturer’s recommended parts, when
necessary.
20. Check brake operation frequently. Adjust and
service as required.
21. Use only factory authorized replacement parts
when making repairs.
22. Always comply with factory specifications on all
settings and adjustments.
23. Only authorized service locations should be
utilized for major service and repair requirements.
24. Never attempt to make major repairs on this unit
unless you have been properly trained. Improper
service procedures can result in hazardous
operation, equipment damage and voiding of
manufacturer’s warranty.
25. Units with hydraulic pumps, hoses, or motors:
WARNING: Hydraulic fluid escaping under
pressure may have sufficient force to penetrate
skin and cause serious injury. If foreign fluid is
injected into the skin it must be surgically removed
within a few hours by a doctor familiar with this
form of injury or gangrene may result. Keep body
and hands away from pin holes or nozzles that
eject hydraulic fluid under high pressure. Use
paper or cardboard, and not hands, to search for
leaks. Make sure all hydraulic fluid connections
are tight and all hydraulic hoses and lines are in
good condition before applying pressure to the
system. If leaks occur, have the unit serviced
immediately by your authorized dealer.
26. WARNING: Stored energy device. Improper
release of springs can result in serious personal
injury. Springs should be removed by an
authorized technician.
27. Models equipped with an engine radiator:
WARNING: Stored energy device. To prevent
serious bodily injury from hot coolant or steam
blow-out, never attempt to remove the radiator
cap while the engine is running. Stop the engine
and wait until it is cool. Even then, use extreme
care when removing the cap.
7
Operator Safety
Not for
Reproduction
Safety Decals
This unit has been designed and manufactured to
provide you with the safety and reliability you would
expect from an industry leader in outdoor power
equipment manufacturing.
Although reading this manual and the safety
instructions it contains will provide you with the
necessary basic knowledge to operate this equipment
safely and effectively, we have placed several safety
labels on the unit to remind you of this important
information while you are operating your unit.
B
A
C
G
A
E
All DANGER, WARNING, CAUTION and
instructional messages on your rider and mower
should be carefully read and obeyed. Personal bodily
injury can result when these instructions are not
followed. The information is for your safety and it is
important! The safety decals below are on your rider
and mower.
If any of these decals are lost or damaged, replace
them at once. See your local dealer for replacements.
These labels are easily applied and will act as a
constant visual reminder to you, and others who may
use the equipment, to follow the safety instructions
necessary for safe, effective operation.
B
C
F
G
D
E
D
F G
8
www.snapperpro.com
Safety Interlock System
Not for
Reproduction
This unit is equipped with safety interlock switches.
These safety systems are present for your safety,
do not attempt to bypass safety switches, and never
tamper with safety devices. Check their operation
regularly.
Operational SAFETY Checks
Test 1 — Engine should NOT crank if:
• PTO switch is engaged, OR
• Parking brake is not engaged, OR
• Ground speed control levers are not in the
NEUTRAL position.
Test 2 — Engine SHOULD crank if:
• PTO switch is NOT engaged, AND
• Parking brake is engaged, AND
• Ground speed control levers are locked in the
NEUTRAL position.
Test 3 — Engine should SHUT OFF if:
• Operator rises off seat with PTO engaged, OR
• Operator rises off seat with parking brake
disengaged.
• Operator moves the ground speed control levers
out of their neutral positions before disengaging
the parking brake.
Operator Safety
Safety Icons
The alert symbol is used to identify safety
information about hazards that can result in personal
injury. A signal word (DANGER, WARNING, or
CAUTION) is used with the alert symbol to indicate
the likelihood and the potential severity of the injury.
In addition, a hazard icon may be used to represent
the type of hazard. An explanation of hazard levels
and icons are as follows:
DANGER
This indicates a hazard which, if not avoided, will
result in serious injury or death.
WARNING
This indicates a hazard which, if not avoided, could
result in serial injury or death.
CAUTION
This indicates a hazard which, if not avoided, might
result in minor or moderate injury.
CAUTION or NOTICE
These messages presented without the alert symbol
indicate a situation where the unit or property could
be damaged.
North American Safety Icons
Alert Toxic Fumes
Read the
Manual
Open Flame
Hazard
Test 4 — Blade Brake Check
Mower blades and mower drive belt should come to
a complete stop within seven (7) seconds after the
electric PTO switch is turned off (or operator rises off
seat). If the mower drive belt does not stop within
seven (7) seconds, see your dealer.
NOTE: Once the engine has stopped, PTO switch
must be turned off, parking brake must be engaged,
and the ground speed control levers must be in the
NEUTRAL position after the operator returns to the
seat in order to start the engine.
WARNING
If the unit does not pass a safety test, do not
operate it. See your authorized dealer. Under
no circumstance should you attempt to defeat
the purpose of the safety interlock system.
Fire Hazard
Thrown Objects Hot Surface
Rollover Hazard
Slippery Slopes
Amputation -
Rotating Parts
Overhead
Obstacles
Keep Children
Away
Amputation -
Hand In Blade
Wear Protective
Gear
Tipover Dropoffs
Amputation Foot In Blade
Pinch Point
9
Features and Controls
SAMPLE
Not for
Reproduction
Features and Controls
Identification Numbers
SAMPLE
USA Models
When contacting your authorized dealer for
replacement parts, service, or information you
MUST have these numbers.
Record your part number, serial number and engine
serial numbers in the space provided for easy access.
These numbers can be found in the locations shown.
NOTE: For location of engine identification numbers,
refer to the engine owner’s manual.
Identification
Tag
10
www.snapperpro.com
Features & Controls
Not for
Reproduction
Control Functions
The information below briefly describes the function of individual controls. Starting, stopping, driving, and
mowing require the combined use of several controls applied in specific sequences. To learn what combination
and sequence of controls to use for various tasks see the OPERATION section.
Throttle Control
The throttle controls engine speed. Move the
throttle forward to increase engine speed and back
to decrease engine speed. Always operate at FULL
throttle.
Choke
Close the choke for cold starting. Open the choke
once the engine starts. A warm engine may not
require choking. Pull the knob UP to close the choke.
Push to knob DOWN to open the choke.
Fuel Tank Cap
To remove the cap, turn counterclockwise.
Handle, Cutting Height Adjustment Handle
& Deck Lift Lock Lever
These control the cutting height of the mower deck:
Cutting Height Adjustment Handle: Turn the cutting
height adjustment handle CLOCKWISE to raise the
cutting height of the mower; COUNTER-CLOCKWISE
to lower the cutting height of the mower.
Deck Transport Adjustment Handle & Deck
Lift Lock Lever: Pull the deck transport handle
adjustment backwards and up until it latches into
place to raise the cutter deck to the TRANSPORT
position. To lower the cutter deck to the OPERATION
position, release the deck lift lock lever and push the
deck transport handle forward and down.
Deck Transport Adjustment
11
Features & Controls
Not for
Reproduction
Ground Speed Control Levers
These levers control the ground speed of the rider.
The left lever controls the left rear drive wheel and the
right lever controls the right rear drive wheel.
Moving a lever forward increases the FORWARD
speed of the associated wheel, and pulling back on a
lever increases the REVERSE speed.
Note: The further a lever is moved away from the
neutral position the faster the drive wheel will turn.
See the OPERATION section for steering instructions.
Hour Meter
The hour meter measures the number of hours the
PTO has been engaged. The hour meter has a self
contained power source so the total hours are always
visible.
Parking Brake
DISENGAGE Releases the parking brake.
Ignition Switch
The ignition switch starts and stops the engine, it has
three positions:
OFF Stops the engine and shuts off the
electrical system.
RUN Allows the engine to run and powers
the electrical system.
START Cranks the engine for starting.
NOTE: Never leave the ignition switch in the RUN
position with the engine stopped–this drains the
battery.
ENGAGE Locks the parking brake.
Pull the parking brake lever back to engage the
parking brake. Move the lever fully forward to
disengage the parking brake. NOTE: To start the unit
the parking brake must be engaged.
PTO (Power Take Off) Switch
The PTO switch engages and disengages the mower.
Pull UP on the switch to engage, and push DOWN to
disengage.
12
www.snapperpro.com
Operation
Not for
Reproduction
Operation
General Operating Safety
Before first time operation:
• Be sure to read all information in the Safety and
Operation sections before attempting to operate
this tractor and mower.
• Become familiar with all of the controls and how to
stop the unit.
• Drive in an open area without mowing to become
accustomed to the unit.
WARNING
Never operate on slopes greater than 15°.
Select slow ground speed before driving onto
a slope. Use extra caution when operating on
slopes with a rear-mounted grass catcher.
Mow across the face of slopes, not up and
down, use caution when changing directions
and
DO NOT START OR STOP ON SLOPE.
Checks Before Starting
• Check that crankcase is filled to full mark on
dipstick (B, Figure 1). See the engine Operator’s
Manual for instructions and oil recommendations.
• Make sure all nuts, bolts, screws and pins are in
place and tight.
• Fill the fuel tank with fresh fuel. Refer to engine
manual for fuel recommendations.
A
B
WARNING
Never allow passengers to ride on the unit.
Before leaving the operator’s position for any
reason, engage the parking brake, disengage
the PTO, stop the engine and remove the key.
To reduce fire hazard, keep the engine, tractor
and mower free of grass, leaves and excess
grease. Do not stop or park tractor over dry
leaves, grass or combustible materials.
Gasoline is highly flammable and must be
handled with care. Never fill the tank when the
engine is still hot from recent operation. Do not
allow open flame, smoking or matches in the
area. Avoid over-filling and wipe up any spills.
Figure 1. Pre-start Checks
A. Fuel Tank Cap
B. Crankcase Oil Fill & Dipstick
WARNING
Do not load this zero-turn rider on a trailer or
truck using two separate ramps. Only use
a single ramp that is at least one foot wider
than the width of the rear wheels of this rider.
This rider has a zero turning radius and the
rear wheels could fall off the ramps, or the
rider could tip over injuring the operator or
bystanders.
13
Operation
Not for
Reproduction
WARNING
If you do not understand how a specific control
functions, or have not yet thoroughly read the
FEATURES & CONTROLS section, do so now.
Do NOT attempt to operate the tractor without
first becoming familiar with the location and
function of ALL controls.
Starting the Engine
1. While sitting in the operator’s seat, engage the
parking brake and make sure the PTO switch is
disengaged and the ground speed control levers
are in the NEUTRAL position.
2. NOTE: A warm engine may not require
choking.
Set the engine throttle control to FAST throttle
position. Then fully close the choke by pulling the
knob OUT fully.
3. Insert the key into the ignition switch and turn it to
START.
4. After the engine starts, gradually open the choke
(push knob down fully). Reduce to half throttle
speed and allow the engine to warm up.
Warm up the engine by running it for at least a minute
before engaging the PTO switch or driving the rider.
5. After warming the engine, ALWAYS operate
the unit at FULL THROTTLE when mowing.
In the event of an emergency the engine can be
stopped by simply turning the ignition switch
to STOP. Use this method only in emergency
situations. For normal engine shut down follow the
procedure given in STOPPING THE RIDER.
Pushing the Rider by Hand
DO NOT TOW RIDER
Towing the unit will cause hydraulic pump
and wheel motor damage. Do not use
another vehicle to push or pull this unit.
1. Disengage the PTO, engage the parking brake,
turn the ignition OFF, and remove the key.
2. To disengage the pumps (free-wheel position),
turn the hydraulic release valves (A, Figure 2)
located on the pumps COUNTER-CLOCKWISE a
maximum of 2 full turns.
4. Disengage the parking brake.
The unit can now be pushed by hand.
5. After moving the unit, re-engage the pumps
(drive position) by turning the release valves
CLOCKWISE and tighten to 80-120 in. lbs. of
torque.
A
Figure 2. Hydraulic System By-Pass
A. Hydraulic Release Valve
(left-hand pump shown)
Stopping the Rider
1. Releasing the ground speed control levers so they
can return to the NEUTRAL position will stop rider
movement.
2. Disengage the PTO by pushing down on the PTO
switch.
3. Engage the parking brake by pulling the handle
back until it locks into position.
4. Move the throttle control to mid-throttle position
and turn the ignition key to OFF. Remove the
key.
14
www.snapperpro.com
Loading...
